NPWWCH-100Single-Mode CDMA Cellular Phone

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes in contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operation using the Wide Telecom belt- holster. To comply with FCC RF exposure requirements use only Wide Telecom approved accessories. When carrying the phone with the power on, use only the specific Wide Telecom belt-holster that has been tested for compliance. The use of non Wide Telecom approved accessories may violate FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm August 30, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 Part 22 Certification Gentlemen: On behalf of Wide Telecom Inc. we hereby submit an application for Part 22 Certification of the Wide Telecom Single-Mode CDMA Cellular Phone as follows: FCC ID: NPWWCH-100 Model(s): WCH-100 Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Single-Mode CDMA Cellular Phone Tx Freq. Range: 824.70 - 848.31 MHz Rx Freq. Range: 869.70 - 893.31 MHz Max. RF Output Power: 0.251 Watts (ERP) Emission Designator: 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), circuit diagrams and description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm September 8, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Linda Elliott SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 Confirmation No.: EA98600 Correspondence Ref. No.: 16003 Dear Linda: In response to your e-mail dated September 8, 2000 we confirm the applicant’s contact information as follows: Contact Name: Matt Park Telephone No.: 310-320-7795 Fax No.: 310-320-7798 If you have any further questions, please do not hesitate to contact me. Sincerely, Jonathan Hughes Project Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm September 11, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Linda Elliott SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 Confirmation No.: EA98600 Correspondence Ref. No.: 16003 Dear Linda: Further to your e-mail dated September 8, 2000 we confirm that the applicant’s new address is as follows (beginning September 16, 2000): New Address: Wide Telecom, Inc. 3551 Voyager St., Suite 103 Torrance, CA 90503 Tel. 310-921-9737 Fax 310-921-9686 Contact Name: Matt Park, Sales Manager If you have any further questions, please do not hesitate to contact me. Sincerely, Jonathan Hughes Project Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm September 18, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 731 Confirmation No.: EA98600 Correspondence Reference No.: 16102 Dear Errol: On behalf of Wide Telecom Inc. is an amendment in response to your e-mail dated September 14, 2000 requesting additional information for the subject application. 1. Please find attached the calibration certificate and gain information for the dipole antenna used for the ERP measurements. The following is a detailed description of the ERP signal substitution measurement method used: The EUT is first placed into the field test area at 3.0 meters. The field of maximum intensity is found by rotating the EUT approximately 360 degrees and changing the height of the receive antenna from 1 to 4 meters. Both horizontal and vertical polarizations are investigated. The field strength is recorded from a calibrated spectrum analyzer for each channel being performed. The EUT is then replaced with a calibrated dipole of a well-known gain. The dipole is fed through a directional coupler and the power at the coupler port is monitored. The field of maximum intensity is found for the dipole and the power adjusted in order to read the same on the spectrum analyzer that was found for the EUT. The feed point for the dipole is then connected to a calibrated power meter and the power adjusted to read the same as the coupler port previously recorded, to account for any mismatch in impedance, which may occur at the dipole antenna. The forward power for the dipole is then determined. The actual ERP level is determined by adding the forward power and the calibrated gain of the dipole. 2. Please find attached the revised AGC value table for the Tune-Up Procedure attachment listing a maximum output of 24dBm conducted power. Also attached is a letter from the applicant confirming that the maximum power level of all production units will be 24dBm conducted output. 3. The 731 Form was submitted inadvertently requesting 251mW ERP to be listed on the grant. This power level is the conducted output. The correct output power to be listed on the grant is 244mW ERP. If you have any further questions or comments, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc.

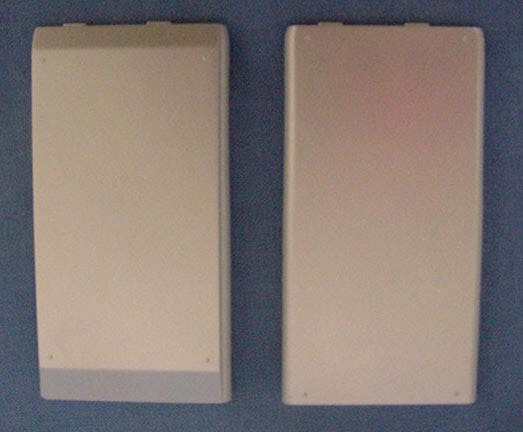

CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone (824-849MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE FOR SAMPLE LABEL) FCC ID LABEL LOCATION

CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna, Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. (See test report). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. V1Y 9L3 Canada Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Name: WIDE TELECOM INC. 2909 Oregon Court, #C-4 Torrance, CA 90503 Attn: Matt Park Phone: 310-320-7795 Fax: 310-320-7798 FCC ID: NPWWCH-100 Model(s): WCH-100 Equipment Type: Single-Mode CDMA Cellular Phone Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Tx Frequency Range: 824.70 - 848.31 MHz Rx Frequency Range: 869.70 - 893.31 MHz Max. RF Output Power: 0.251 Watts (ERP) FCC Rule Part(s): 2.1093; ET Docket 96.326 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna, Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3 4.1 SAR LIMITS........................................................................ 3 4.2 DETAILS OF SAR EVALUATION........................................... 4 4.3 EVALUATION PROCEDURES................................................. 5 a: (i) Head............................................................................ b: (ii) Body............................................................................ 5.0 SYSTEM VALIDATION.......................................................... 5 6.0 SIMULATED EQUIVALENT TISSUES...................................... 6 6.1 TISSUE PARAMETERS......................................................... 6 7.1 SYSTEM SPECIFICATIONS.................................................... 7 8.0 TEST EQUIPMENT LIST........................................................ 8 9.0 MEASUREMENT UNCERTAINTIES........................................ 9 10.0 REFERENCES...................................................................... 10 APPENDIX A - SAR MEASUREMENT DATA..................................... 11 APPENDIX B - DIPOLE VALIDATION 12 APPENDIX C - PROBE CALIBRATION 13 APPENDIX D - TEST SETUP PHOTOGRAPHS 14 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna, Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 1 Single-Mode CDMA Cellular Phone (824-849MHz) 1.0 INTRODUCTION This measurement report shows compliance of the Wide Telecom Inc. Model: WCH-100 Single- Mode 800MHz CDMA Cellular Phone FCC ID: NPWWCH-100 with FCC Part 2, 1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1 - 1992 (1), FCC OET Bulletin 65–1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Figure 1. Front of EUT Figure 2. Rear of EUT Figure 3. Side of EUT EUT Type Single-Mode CDMA Cellular Phone FCC ID NPWWCH-100 Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) WCH-100 FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Certification Tx Frequency Range (MHz) 824.70 - 848.31 S/N No. Pre-production Rx Frequency Range (MHz) 869.70 - 893.31 Max. RF Output Power 0.251W (ERP) Modulation CDMA Battery Type(s) 3.7V Li-ion Medium B1-LIM or 3.6V Li-ion Slim B1-LPS Antenna Type Helical (λ/3) Antenna Length 108 mm CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna, Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 2 Single-Mode CDMA Cellular Phone (824-849MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material (see Figure 6). The robot is a six-axis industrial robot performing precis…

Text truncated - open the document above for the full version.

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes in contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operation using the Wide Telecom belt- holster. To comply with FCC RF exposure requirements use only Wide Telecom approved accessories. When carrying the phone with the power on, use only the specific Wide Telecom belt-holster that has been tested for compliance. The use of non Wide Telecom approved accessories may violate FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 CERTIFICATION This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. V1Y 9L3 Canada Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Name: WIDE TELECOM INC. 2909 Oregon Court, #C-4 Torrance, CA 90503 U.S.A. Attn: Matt Park Phone: 310-320-7795 Fax: 310-320-7798 FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22, §2 FCC ID: NPWWCH-100 Model(s): WCH-100 Equipment Type: Single-Mode CDMA Cellular Phone Tx Frequency Range: 824.70 - 848.31 MHz Rx Frequency Range: 869.70 - 893.31 MHz Max. RF Output Power: 0.251 Watts (ERP) Frequency Tolerance: 2.5 PPM Emission Designator: 1M25F9W CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.1 GENERAL INFORMATION 1 2.1 MEASUREMENT PROCEDURES 2 Occupied Bandwidth (2.1049) 2 Spurious/Harmonic Emissions at Antenna Terminal (2.1051) 2 Radiated Spurious & Harmonic Emissions (2.1053) 2 Frequency Stability/Temperature Variation (2.1055) 3 3.1 TEST DATA 4 Effective Radiated Power Output 4 Field Strength of Spurious Radiation 5-7 Frequency Stability 8-9 4.1 SAMPLE CALCULATIONS 10 5.1 LIST OF TEST EQUIPMENT 11 6.1 CONCLUSION 12 ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL EUT PHOTOGRAPHS ATTACHMENT H: INTERNAL EUT PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS / DESCRIPTION ATTACHMENT K: PARTS LIST / TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL / RF EXPOSURE WARNING ATTACHMENT N: SAR MEASUREMENT REPORT CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 1 Single-Mode CDMA Cellular Phone (824-849MHz) APPLICANT: WIDE TELECOM INC. 2909 Oregon Court, #C-4 Torrance, CA 90503 Attn: Matt Park Phone: 310-320-7795 Fax: 310-320-7798 MEASUREMENT REPORT - FCC PART 22 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(a) General Information FCC ID NPWWCH-100 Model(s) WCH-100 EUT Type Single-Mode CDMA Cellular Phone Classification Licensed Non-Broadcast Transmitter Held to Ear (TNE) Rule Part(s) §22, §2 Max. RF Output Power 0.251 Watts (ERP) Tx Freq. Range 824.70 - 848.31 MHz Rx Freq. Range 869.70 - 893.31 MHz Emission Designator 1M25F9W Modulation CDMA Battery Type(s) 3.7V Li-ion Medium Model: B1-LIM or 3.6V Li-ion Slim Model: B1-LPS CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 2 Single-Mode CDMA Cellular Phone (824-849MHz) 2.1 MEASUREMENT PROCEDURES 2.2 OCCUPIED BANDWIDTH - §2.1049(c) The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator. The radio transmitter was operating at maximum output power with and without internal data modulation. 100% of the in-band modulation is below the specified mask per §22.917. Specified Limits: (a) On any frequency removed from the assigned carrier frequency by more than 20kHz, up to and including 45kHz, the sideband is at least 26dB below the carrier. (b) On any frequency removed from the assigned carrier frequency by more than 45kHz, up to and including 90kHz, the sideband is at least 45dB below the carrier. (c) On any frequency removed from the assigned carrier frequency by more than 90kHz, up to the first multiple of the carrier frequency, the sideband is at least 60dB below the carrier of 40 + log 10 (mean power output in Watts) dB, whichever is the smaller attenuation. 2.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL - §2.1051 The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from 10MHz to 20GHz. The transmitter is modulated with a 2500Hz tone at a level of 16dB greater than that required to provided 50% modulation. The antenna output terminal of the EUT was connected to the input of a…

Text truncated - open the document above for the full version.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm September 13, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 731 Confirmation No.: EA98600 To Whom It May Concern: On behalf of Wide Telecom Inc. we hereby submit the following amendment to the subject application: 1. We have retested the Conducted Spurious emissions with the high-pass filter removed. We would like to replace the previously submitted Conducted Spurious test plots with the new test plots attached. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc. CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 1013 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 1013 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 1013 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 363 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 363 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 363 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 777 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 777 CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Date of Test: September 13, 2000 B.C. V1Y 9L3 CANADA © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 Single-Mode CDMA Cellular Phone CONDUCTED SPURIOUS Channel 777

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm October 16, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang SUBJECT: WIDE TELECOM INC. FCC ID: NPWWCH-100 731 Confirmation No.: EA98600 Dear Errol: On behalf of Wide Telecom Inc. is an amendment to resubmit revised Field Strength of Spurious Radiation test data for the above-referenced application as follows: 1. Previously submitted test data did not account for an additional 20dB attenuator. 2. The actual floor of the spectrum analyzer is <100dBm. 3. The antenna factor and cable loss readings are corrected. 4. The table frequencies for the high channel are amended. If you have any questions or comments regarding the above, please do not hesitate to contact me. An expedited review of this application is respectfully requested. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc. CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 5 Single-Mode CDMA Cellular Phone (824-849MHz) 3.3 FIELD STRENGTH OF SPURIOUS RADIATION – §2.1053 Operating Frequency: 824.70 MHz Channel: 1013 Measured Conducted Power: 24.00dBm Modulation: CDMA (Internal) Distance: 3 meters Limit: 43 + 10 log 10 (W) = 37.48 dBc Frequency Level AFCL (dBc) (MHz) (dBm) (dB) POL (H/V) ERP (dBm) 1649.40 < - 63.00 30.55 H - 20.33 43.74 2474.10 < - 75.99 34.22 H - 29.65 53.06 3298.80 < - 74.63 37.15 H - 25.36 48.77 4123.50 < - 79.21 40.22 H - 26.87 50.28 4948.20 < - 100 Notes: 1. The bandwidth is set per §22.917 (RBW = 1MHz, VBW = 1MHz). 2. The spectrum was checked from 10 MHz up to 20GHz. 3. < -100dBm is below the floor of the spectrum analyzer. 4. The EUT is manipulated through 3 orthogonal axis and the worst-case emission are reported. 5. The EUT is placed 3.0 meters away from the receiving antenna and the ERP is calculated using the formula. ERP (dBm) = 10 Log 10 (((r(mV/m)/1 x 10 6 ) 2 / 49.2/1 x 10 -3 ) ERP (dBm) = 10 Log 10 [ (3 x FS/1 x 10 6 ) 2 / (49.2) x 1000] ERP (Watts) = {(3 x FS)/1 x 10 6 } 2 / 49.2 Note: The antenna factor and cable loss were determined prior to the test. CELLTECH RESEARCH INC. Test Report S/N: 080800-08NPW 1955 Moss Court, Kelowna Dates of Tests: August 14-17, 2000 B.C. V1Y 9L3 CANADA ____________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWCH-100 6 Single-Mode CDMA Cellular Phone (824-849MHz) Operating Frequency: 835.89 MHz Channel: 363 Measured Conducted Power: 24.00dBm Modulation: CDMA (Internal) Distance: 3 meters Limit: 43 + 10 log 10 (W) = 37.48 dBc Frequency Level AFCL (dBc) (MHz) (dBm) (dB) POL (H/V) ERP (dBm) 1671.78 < - 56.69 30.25 H - 14.32 37.74 2507.67 < - 73.53 34.01 H - 27.40 50.82 3343.56 < - 74.55 36.98 H - 25.45 48.87 4179.45 < - 81.11 39.89 H - 29.10 52.52 5015.34 < - 100 Notes: 1. The bandwidth is set per §22.917 (RBW = 1MHz, VBW = 1MHz). 2. The spectrum was checked from 10 MHz up to 20GHz. 3. < -100dBm is below the floor of the spectrum analyzer. 4. The EUT is manipulated through 3 orthogonal axis and the worst-case emission are reported. 5. The EUT is placed 3.0 meters away from the receiving antenna and the ERP is calculated using the formula: ERP (dBm) = 10 Log 10 (((r(mV/m)/1 x 10 6 ) 2 / 49.2/1 x 10 -3 ) ERP (dBm) = 10 Log 10…
