NPWWSH-100Dual-Mode AMPS/CDMA Cellular Phone

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the Wide Telecom WSH- 100 belt-holster. To comply with FCC RF exposure requirements, use only wide Telecom approved accessories. When carrying the phone with the power on, use only the specific Wide Telecom belt-holster that has been tested for compliance. The use of non Wide Telecom approved accessories may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

WIDE TELECOM, Inc. 514-1, Yatap-Dong, Pundang-Ku, Sungnam-Si, Kyonggi-Do, 463-070, Korea TEL : 82-31-709-5455FAX : 82-31-709-4471 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone FCC ID: NPWWSH-100 is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. TheESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. Cl The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with,or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, //$-g-g Woong Gee Chang Chief Research Engineer ngineer Wide Telecom Inc. WIDE TELECOM, Inc. 5 14-l.. Yotap-Dong. Pundang-Ku. Sungnam-Si. Kyonggi-Do. 463-070. Korea TEL : 82-31-709-5455 FAX : 82-31-709-4471 October 10, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Wide Telecom Inc. FCC ID: NPWWSH-100 FCC E911 Requirements Per s22.921 Gentlemen: Wide Telecom Inc. hereby certifies that the analog cellular telephone (FCC ID: NPWWSH-100)WWSH- using the Automatic A/B Roaming Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-91 1 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Matthew Park, Sales IVlgr Wide Telecom, Inc.-

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • email: [email protected] www.globuswireless.com January 05, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: WIDE TELECOM INC. FCC ID: NPWWSH-100 Part 22 Certification Gentlemen: On behalf of Wide Telecom Inc. we hereby submit an application for Part 22 Certification of the Wide Telecom Dual-Mode AMPS/CDMA Cellular Phone as follows: FCC ID: NPWWSH-100 Model(s): WSH-100 Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Tx Freq. Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Freq. Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.204 Watts ERP (AMPS) 0.190 Watts ERP (CDMA) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Attestation, measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams and description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Wide Telecom Inc. WIDE TELECOM, Inc. 514-1, Yotap-Dong, Pundang-Ku, Sungnam-Si, Kyonggi-Do, 463-070, Korea TEL : 82-31-709-5455 ) FAX : 82-31-709-4471 November 01, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Wide Telecom Inc. FCC ID: NPWWSH-100 FCC Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Wide Telecom Inc. hereby requests confidentiality of the Block Diagrams, Circuit Diagrams, Circuit Description, Parts List, Tune-up Procedure, and Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Wide Telecom Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wide Telecom Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market.

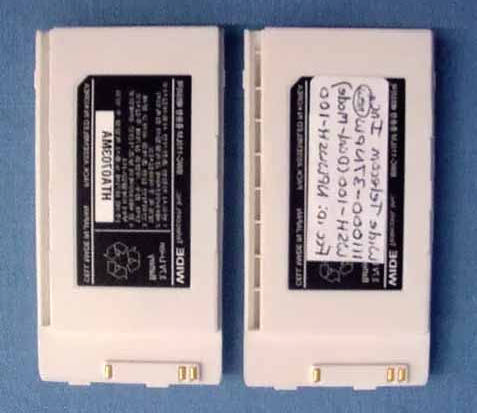

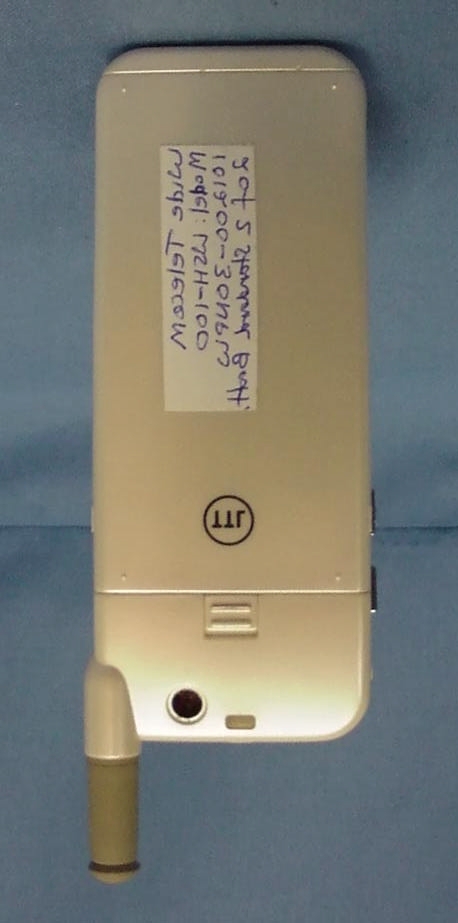

CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual Mode AMPS/CDMA Cellular Phone FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. AMPS/CDMA PHONE MODEL: WSH-100 FCC ID: NPWWSH-100 SERIAL NO.: MADE IN KOREA

CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna Dates of Tests: November 20-24, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. WIDE TELECOM FCC ID: NPWWSH-100 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. (See test report). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Information: WIDE TELECOM INC. 3551 Voyager St., Suite 103 Torrance, CA 90503 Attn: Matt Park, Sales Manager Phone: 310-921-9737 Fax: 310-921-9686 FCC ID: NPWWSH-100 Model(s): WSH-100 Equipment Type: Dual Mode AMPS/CDMA Cellular Phone FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): 2.1093; ET Docket 96.326 Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.204 Watts ERP (AMPS) 0.190 Watts ERP (CDMA) CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 SAR MEASUREMENT SUMMARY......................................... 3-6 5.0 SAR LIMITS........................................................................ 7 6.0 DETAILS OF SAR EVALUATION........................................... 7 7.0 EVALUATION PROCEDURES................................................. 8 8.0 SYSTEM VALIDATION.......................................................... 8 9.0 SIMULATED EQUIVALENT TISSUES...................................... 9 10.0 TISSUE PARAMETERS......................................................... 9 11.0 SYSTEM SPECIFICATIONS.................................................... 10 12.0 TEST EQUIPMENT LIST........................................................ 11 13.0 MEASUREMENT UNCERTAINTIES........................................ 12 14.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA 14 APPENDIX B - DIPOLE VALIDATION 15 APPENDIX C - PROBE CALIBRATION 16 APPENDIX D - TEST SETUP PHOTOGRAPHS 17 APPENDIX E - BODY HOLSTER PHOTOGRAPHS 18 APPENDIX F – RF EXPOSURE MANUAL WARNING STATEMENT 19 CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM INC. FCC ID: NPWWSH-100 1 Dual-Mode AMPS/CDMA Cellular Phone (824.04-848.97MHz) 1.0 INTRODUCTION This measurement report shows compliance of the WIDE TELECOM INC. Model: WSH-100 Dual-Mode AMPS/CDMA Cellular Phone FCC ID: NPWWSH-100 with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65-1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Dual-Mode Cellular Phone FCC ID NPWWSH-100 FCC Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) WSH-100 FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 22 Certification Tx Frequency Range (MHz) 824.04 – 848.97 (AMPS) 824.70 - 848.31 (CDMA) S/N No. Pre-production Rx Frequency Range (MHz) 869.04 - 893.97 (AMPS) 869.70 - 893.31 (CDMA) Max. RF Output Power 0.204 W ERP (AMPS) 0.190 W ERP (CDMA) Modulation(s) AMPS / CDMA Battery Type(s) 3.7V Li-ion Medium B1-LIM or 3.6V Li-ion Slim B1-LPS Antenna Type Retractable Whip Antenna Length 108 mm CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM INC. FCC ID: NPWWSH-100 2 Dual-Mode AMPS/CDMA Cellular Phone (824.04-848.97MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent materi…

Text truncated - open the document above for the full version.

Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.32 mW/g, SAR (10g): 0.888 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 1013 [824.70MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 9.26E-2 4.63E-1 8.34E-1 1.20E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.27 mW/g, SAR (10g): 0.908 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 1013 [824.70MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 9.66E-2 4.83E-1 8.70E-1 1.26E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.39 mW/g, SAR (10g): 0.933 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 9.81E-2 4.90E-1 8.83E-1 1.27E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.29 mW/g, SAR (10g): 0.899 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 9.84E-2 4.92E-1 8.86E-1 1.28E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.38 mW/g, SAR (10g): 0.974 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 777 [848.31MHz] Conducted Power 23.6dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 1.05E-1 5.23E-1 9.41E-1 1.36E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.31 mW/g, SAR (10g): 0.862 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 777 [848.31MHz] Conducted Power 23.6dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 9.06E-2 4.53E-1 8.15E-1 1.18E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.37 mW/g, SAR (10g): 0.950 mW/g Extended Battery Dual-Mode Single Band - Antenna In Model: WSH-100 CDMA Mode Channel 777 [848.31MHz] Conducted Power 23.6dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 1.08E-1 4.30E-1 7.53E-1 1.08E+0 1.40E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Left Hand Section; Position: (75°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.12 mW/g, SAR (10g): 0.777 mW/g Extended Battery Dual-Mode Single Band - Antenna Out Model: WSH-100 CDMA Mode Channel 777 [848.31MHz] Conducted Power 23.6dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 7.71E-2 3.08E-1 5.39E-1 7.71E-1 1.00E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Right Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.13 mW/g, SAR (10g): 0.807 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 8.72E-2 4.36E-1 7.85E-1 1.13E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Right Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.07 mW/g, SAR (10g): 0.770 mW/g Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 8.08E-2 4.04E-1 7.27E-1 1.05E+0 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.382 mW/g, SAR (10g): 0.244 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna In Channel 991 [824.04MHz] Conducted Power 24.0dBm Test Date: Nov 20,…

Text truncated - open the document above for the full version.

Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.355 mW/g, SAR (10g): 0.241 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna Out Channel 383 [836.49MHz] Conducted Power 24.0dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 2.54E-2 1.27E-1 2.28E-1 3.30E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.477 mW/g, SAR (10g): 0.298 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna In Channel 799 [848.97MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.11E-2 1.56E-1 2.80E-1 4.05E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.362 mW/g, SAR (10g): 0.251 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna Out Channel 799 [848.97MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 2.73E-2 1.36E-1 2.46E-1 3.55E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.380 mW/g, SAR (10g): 0.258 mW/g Extended Battery Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna In Channel 799 [848.97MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.00E-2 1.20E-1 2.10E-1 3.00E-1 3.90E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.364 mW/g, SAR (10g): 0.247 mW/g Extended Battery Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 Unmodulated Carrier - Antenna Out Channel 799 [848.97MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 2.78E-2 1.11E-1 1.95E-1 2.78E-1 3.62E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.503 mW/g, SAR (10g): 0.342 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 1013 [824.70MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.69E-2 1.84E-1 3.32E-1 4.79E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.488 mW/g, SAR (10g): 0.337 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 1013 [824.70MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.73E-2 1.86E-1 3.36E-1 4.85E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.434 mW/g, SAR (10g): 0.295 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.24E-2 1.62E-1 2.91E-1 4.21E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.420 mW/g, SAR (10g): 0.287 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna Out Channel 363 [835.89MHz] Conducted Power 23.7dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 2.83E-2 1.41E-1 2.55E-1 3.68E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.501 mW/g, SAR (10g): 0.328 mW/g Body Holster with 1.0cm Spacing Wide Telecom Dual-Mode Single Band Model: WSH-100 CDMA Mode - Antenna In Channel 777 [848.31MHz] Conducted Power 23.6dBm Test Date: Nov 20, 2000 SAR Tot [mW/g] 3.57E-2 1.79E-1 3.21E-1 4.64E-1 Celltech Research Inc. Celltech Research Inc. Wide Telecom FCC ID: NPWWSH-100 Generic Twin Phantom; Flat Section; Position: (270°,270°); Probe:…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM INC. FCC ID: NPWWSH-100 15 Dual-Mode AMPS/CDMA Cellular Phone (824.04-848.97MHz) APPENDIX B - DIPOLE VALIDATION Dipole 835 MHz Generic Twin Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Brain 835 MHz: σ = 0.80 mho/m ε r = 44.2 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 2.02 mW/g, SAR (10g): 1.34 mW/g Validation Date: November 20, 2000 SAR Tot [mW/g] 2.16E-1 6.48E-1 1.08E+0 1.51E+0 1.94E+0 Celltech Research Inc. Celltech Research Inc. Validation Dipole D835V2 SN:411, d = 15mm Frequency: 835 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0 Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.80 mho/m ε r = 44.2 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.07 mW/g ± 0.05 dB, SAR (1g): 2.06 mW/g ± 0.05 dB, SAR (10g): 1.38 mW/g ± 0.05 dB, (Worst-case extrapolation) Penetration depth: 13.6 (12.7, 14.8) [mm] Powerdrift: -0.00 dB SAR Tot [mW/g] 2.50E-1 5.00E-1 7.50E-1 1.00E+0 1.25E+0 1.50E+0 1.75E+0 2.00E+0 2.25E+0 2.50E+0 Validation SN411, 08/26/99 Schmid & Partner Engineering AG, Zurich Switzerland CELLTECH RESEARCH INC. Test Report S/N: 111000-37NPW 1955 Moss Court, Kelowna, Dates of Tests: November 20-24, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. WIDE TELECOM INC. FCC ID: NPWWSH-100 16 Dual-Mode AMPS/CDMA Cellular Phone (824.04-848.97MHz) APPENDIX C - PROBE CALIBRATION Probe ET3DV6 SN:1387 Manufactured:September 21, 1999 Last calibration:September 22, 1999 Calibrated for System DASY3 Page 1 of 7 ET3DV6 SN:1387 DASY3 - Parameters of Probe: ET3DV6 SN:1387 Sensitivity in Free SpaceDiode Compression NormX1.55 μV/(V/m) 2 DCP X98mV NormY1.65 μV/(V/m) 2 DCP Y98mV NormZ1.64 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Brain450MHz ε r =48 ± 5% σ = 0.50 ± 10% mho/m ConvF X6.76 extrapolatedBoundary effect: ConvF Y6.76 extrapolatedAlpha0.30 ConvF Z6.76 extrapolatedDepth2.52 Brain900MHz ε r =42.5 ± 5% σ = 0.86 ± 10% mho/m ConvF X6.34 ± 7% (k=2)Boundary effect: ConvF Y6.34 ± 7% (k=2)Alpha0.47 ConvF Z6.34 ± 7% (k=2)Depth2.25 Brain1500MHz ε r =41 ± 5% σ = 1.32 ± 10% mho/m ConvF X5.78 interpolatedBoundary effect: ConvF Y5.78 interpolatedAlpha0.69 ConvF Z5.78 interpolatedDepth1.88 Brain1800MHz ε r =41 ± 5% σ = 1.69 ± 10% m…

Text truncated - open the document above for the full version.
