NQL9840Cordless Phone

1 Contents Safety Instructions .............................................................................................................3 HANDSET Controls - Location and Function .................................................................... 5 BASE UNIT Controls - Location and Function ................................................................... 7 Getting Started ................................................................................................................... 9 Desk Mounting ...................................................................................................................12 Wall Mounting .................................................................................................................... 13 Cordless Telephone Operation .......................................................................................... 14 Preparing for Use ......................................................................................................... 14 Turning the BASE UNIT RINGER ON/OFF ................................................................. 14 Receiving Calls ............................................................................................................ 15 Placing Calls ................................................................................................................ 16 Redial Feature ............................................................................................................. 17 Storing Numbers on the BASE UNIT ........................................................................... 18 Recalling Stored Numbers from Memory .................................................................... 18 Intercom .......................................................................................................................19 Extension Telephones ................................................................................................. 20 Caller ID System Operation ............................................................................................... 21 Caller ID System .......................................................................................................... 21 Viewing Caller Information During Incoming Calls ................................................ 21 Message Waiting ................................................................................................... 21 Call Waiting ............................................................................................................ 22 Caller List .....................................................................................................................22 Viewing the Caller List ........................................................................................... 22 Placing a Call from the Caller List ......................................................................... 23 Editing the Caller List before Dialing ..................................................................... 23 Saving the Name and Number in the Caller List into the Directory ....................... 23 Deleting All Records in the Caller List ................................................................... 24 Selective Deleting in the Caller List ....................................................................... 24 Name and Telephone Number Directory ..................................................................... 24 2 Contents Viewing the Directory ............................................................................................. 24 Speed Viewing the Directory ................................................................................. 24 Saving in the Directory ........................................................................................... 25 Preferred Calls ....................................................................................................... 25 Blocked Calls ......................................................................................................... 25 Editing Name and Number in the Directory ........................................................... 26 Editing the Number in the Directory before Dialing ............................................... 27 Placing Calls from the Directory ............................................................................ 28 Deleting All Records in the Directory ..................................................................... 28 Selective Deleting in the Directory ......................................................................... 28 Function Operation ...................................................................................................... 29 A. Language ........................................................................................................... 30 B. Silent On/Off ...................................................................................................... 30 C. Time Set ............................................................................................................ 30 D. Ringer Volume ................................................................................................... 31 E. Contrast ............................................................................................................. 31 F. PBX Number ...................................................................................................... 31 G. PBX Mode .......................................................................................................... 32 H. Pause Time ........................................................................................................ 32 I. MSG Waiting (Message Waiting) ...................................................................... 32 Telephone Keypad Characters .................................................................................... 33 Security ................................…

Text truncated - open the document above for the full version.

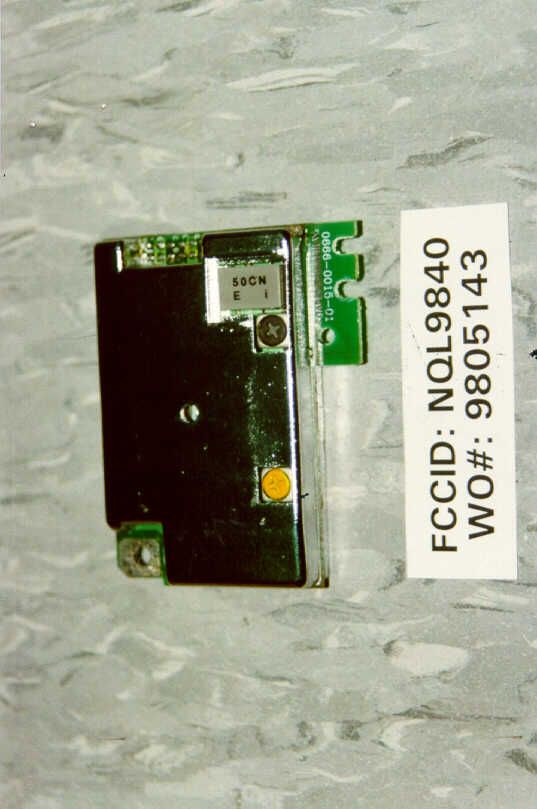

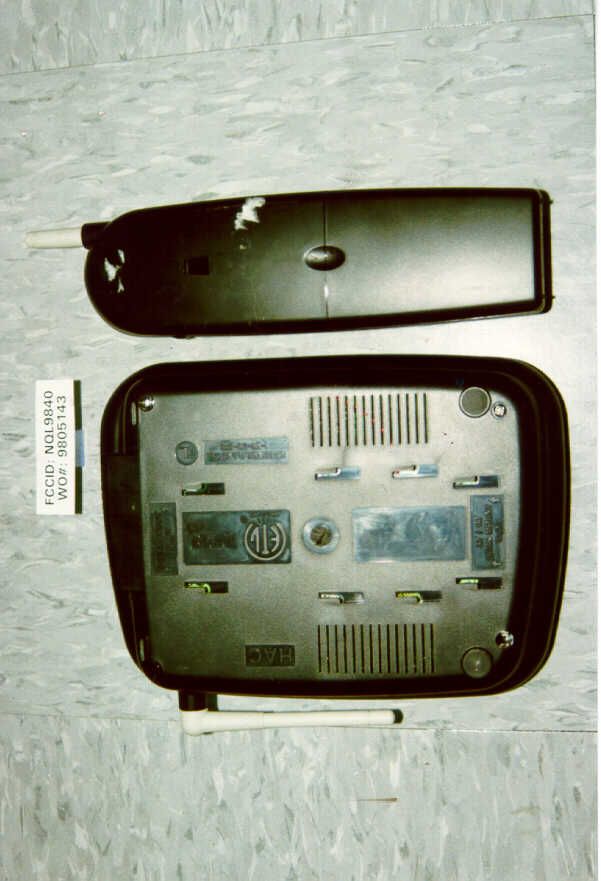

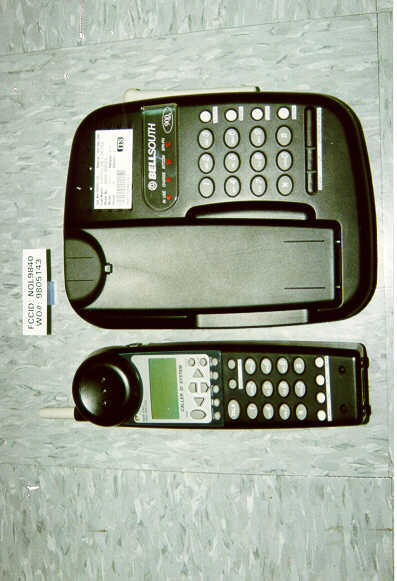

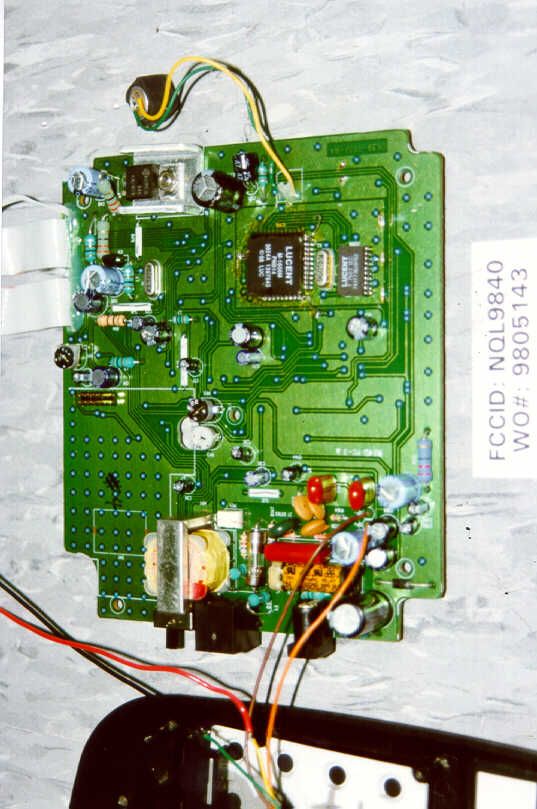

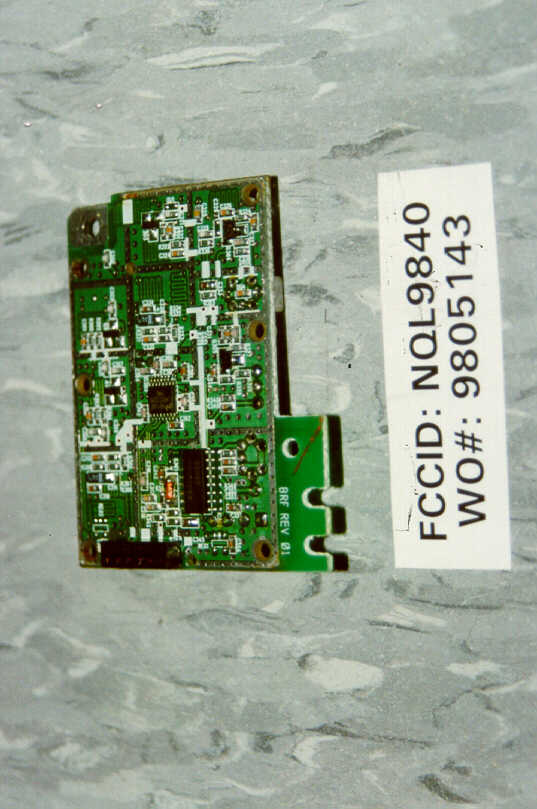

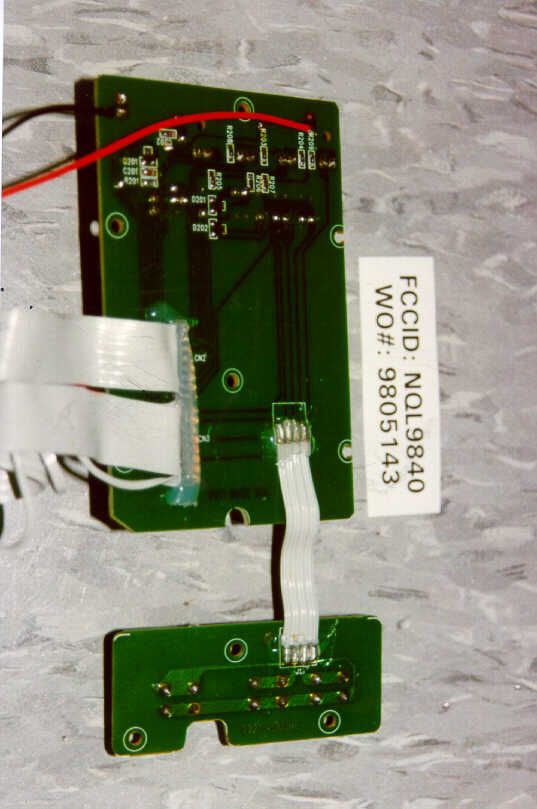

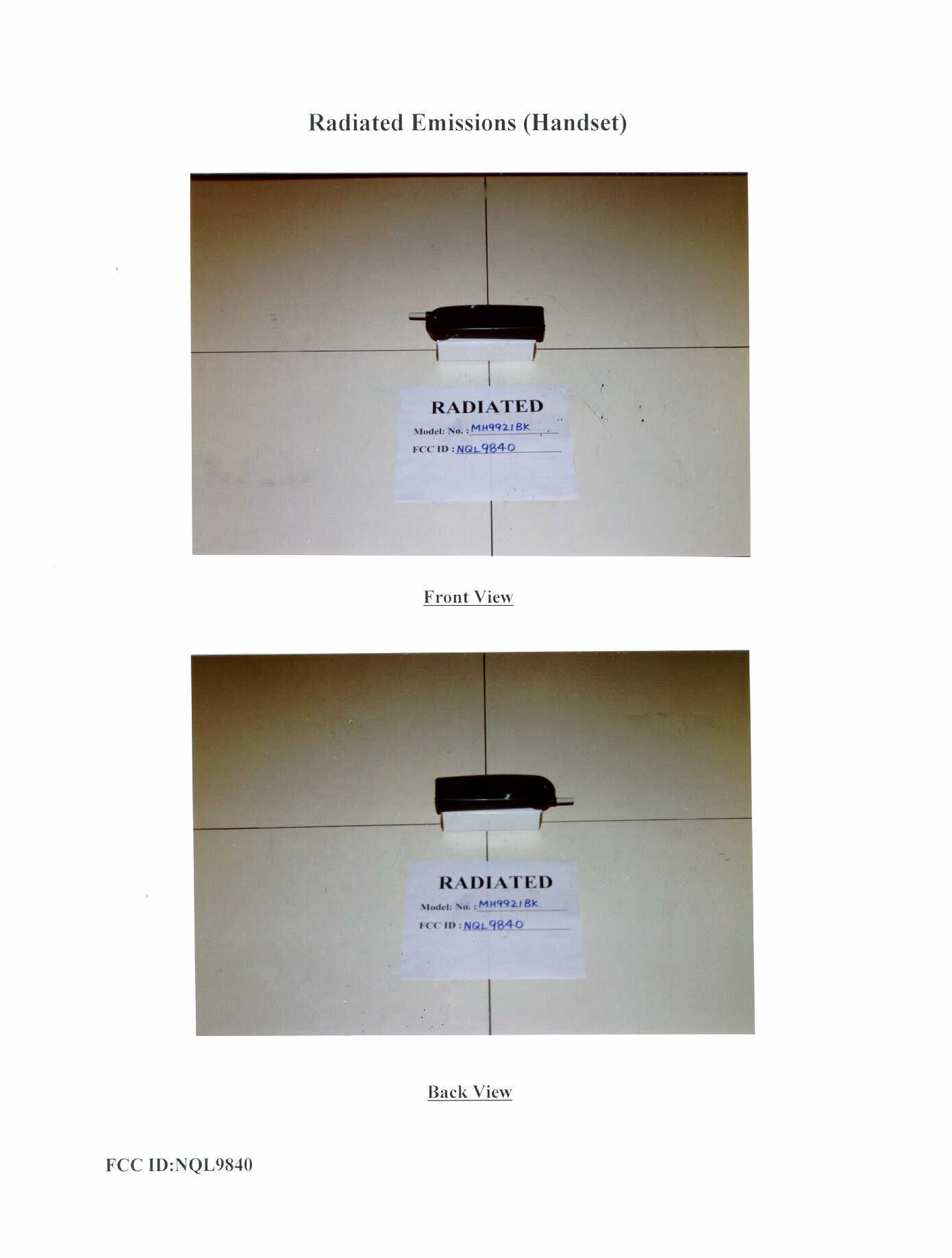

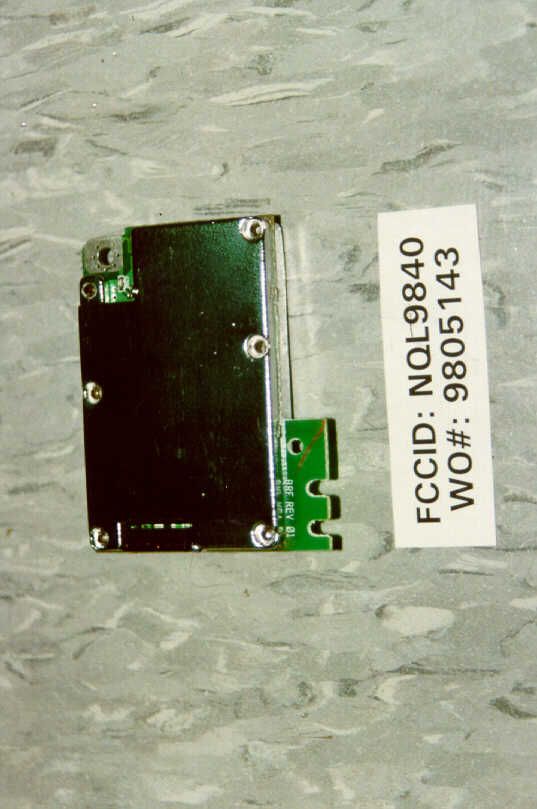

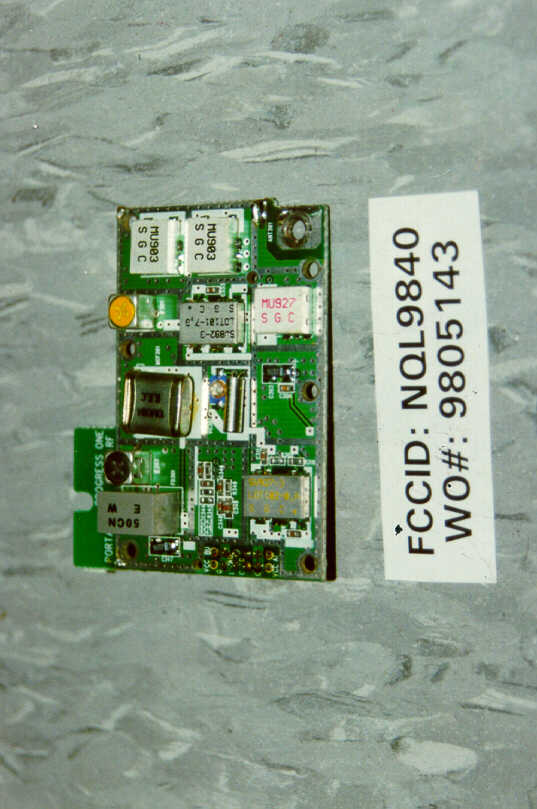

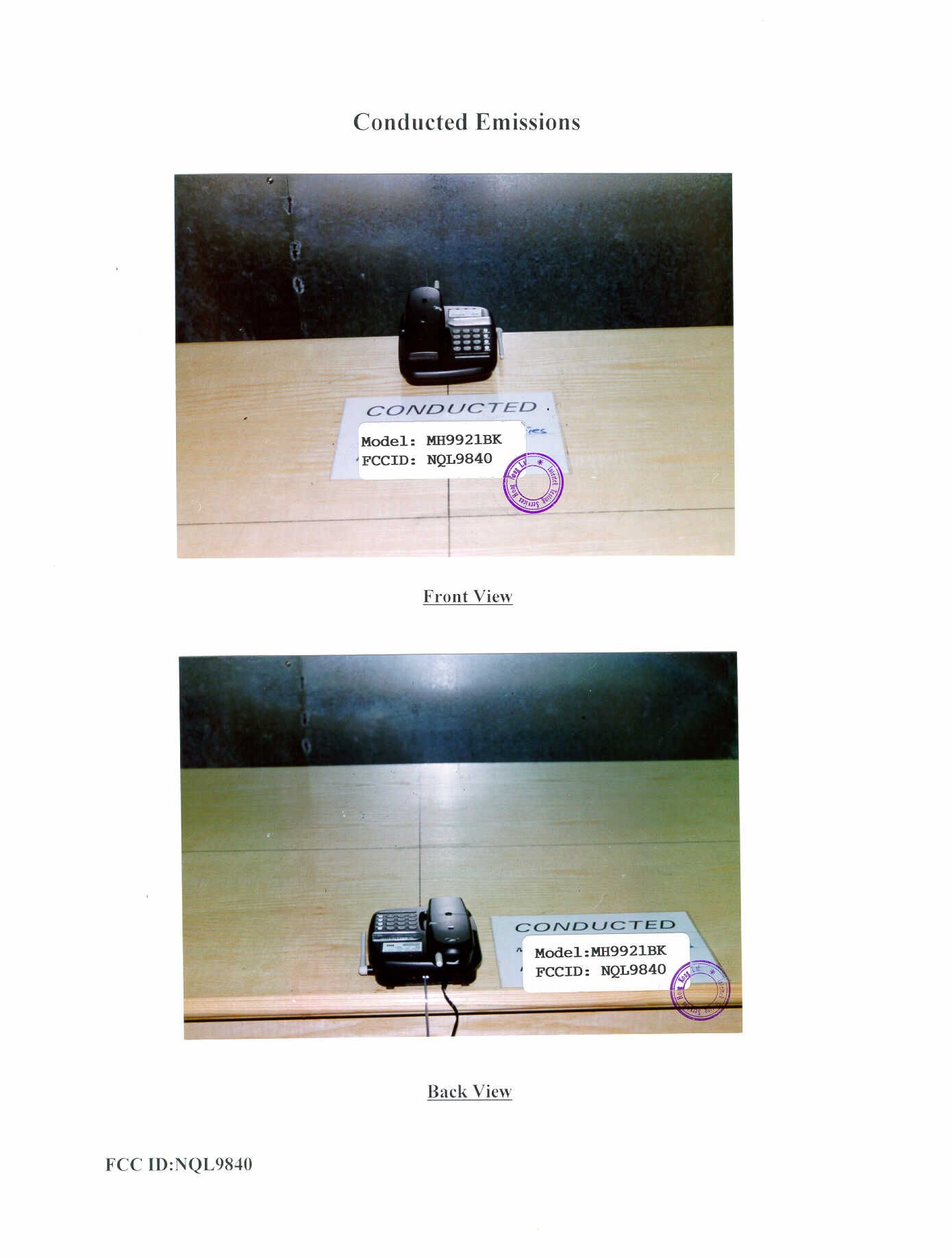

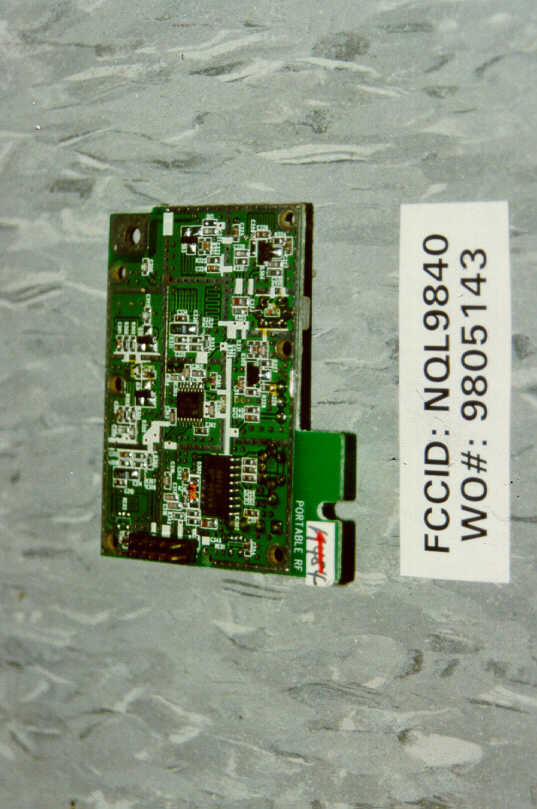

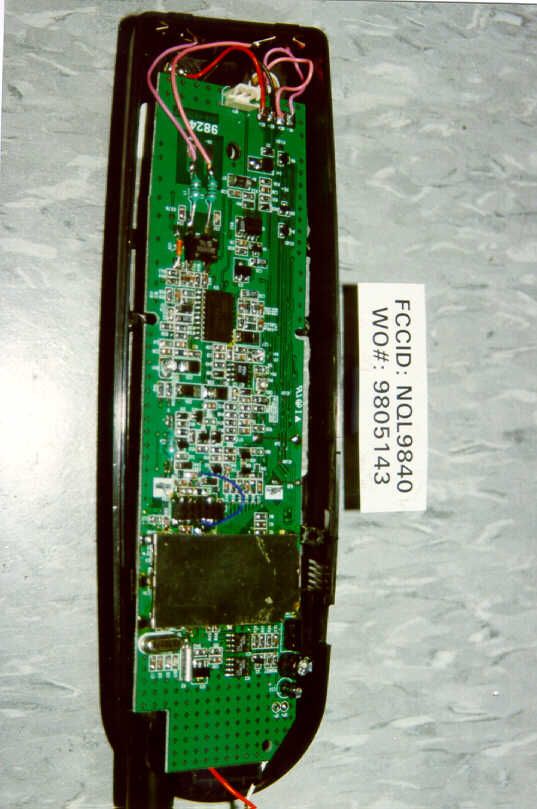

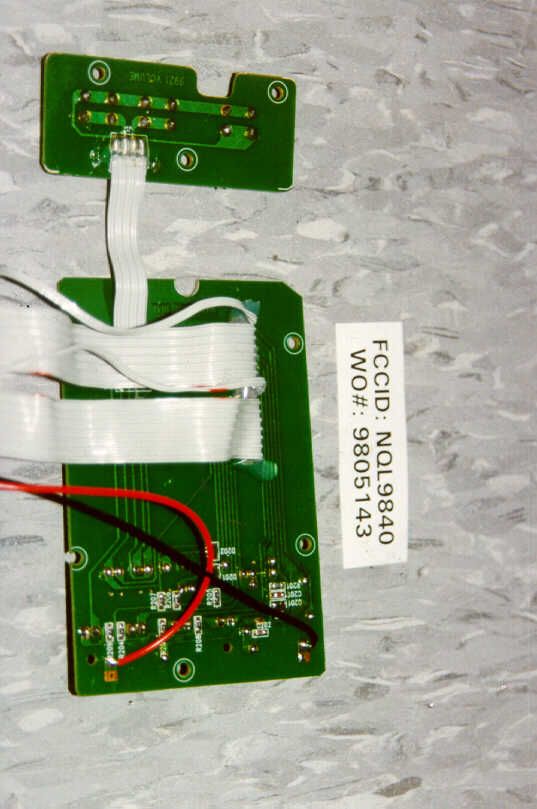

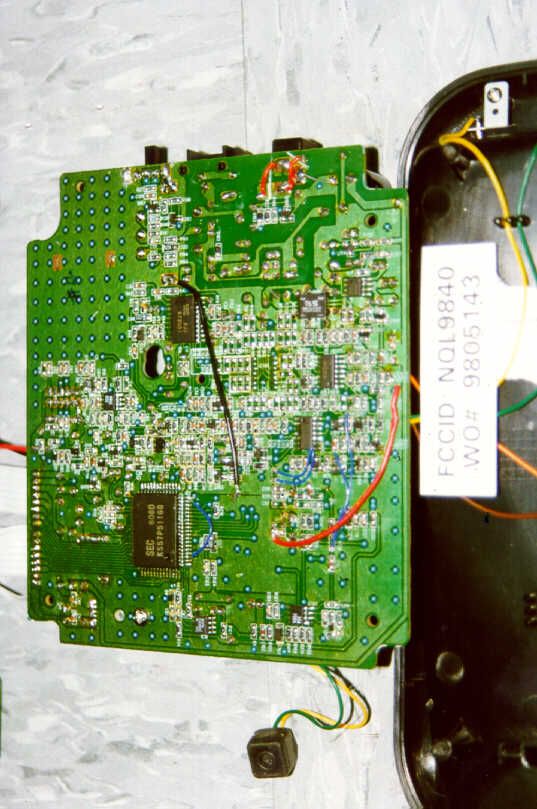

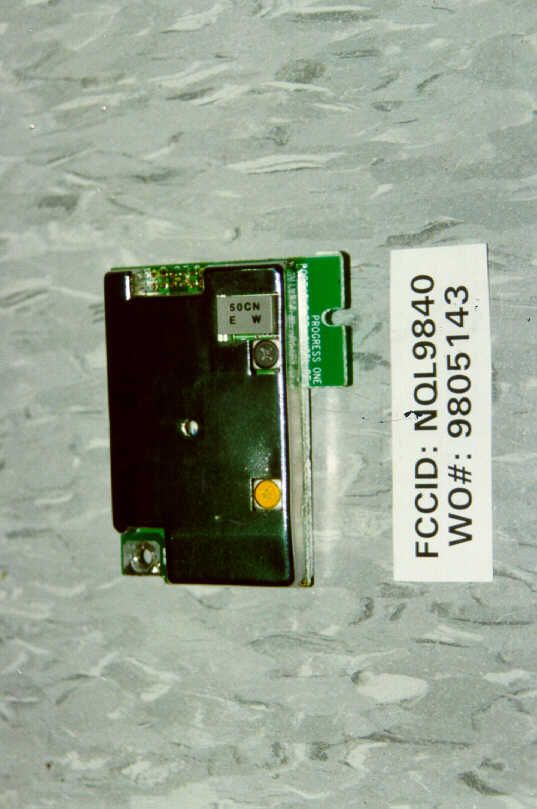

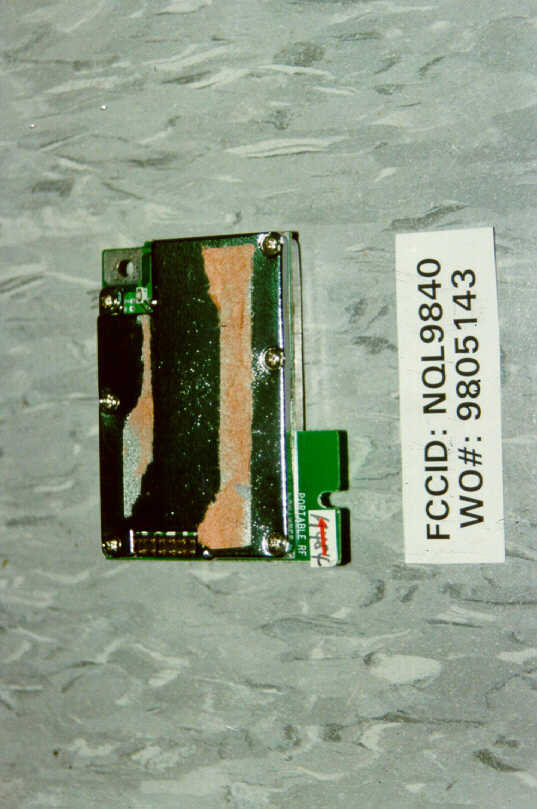

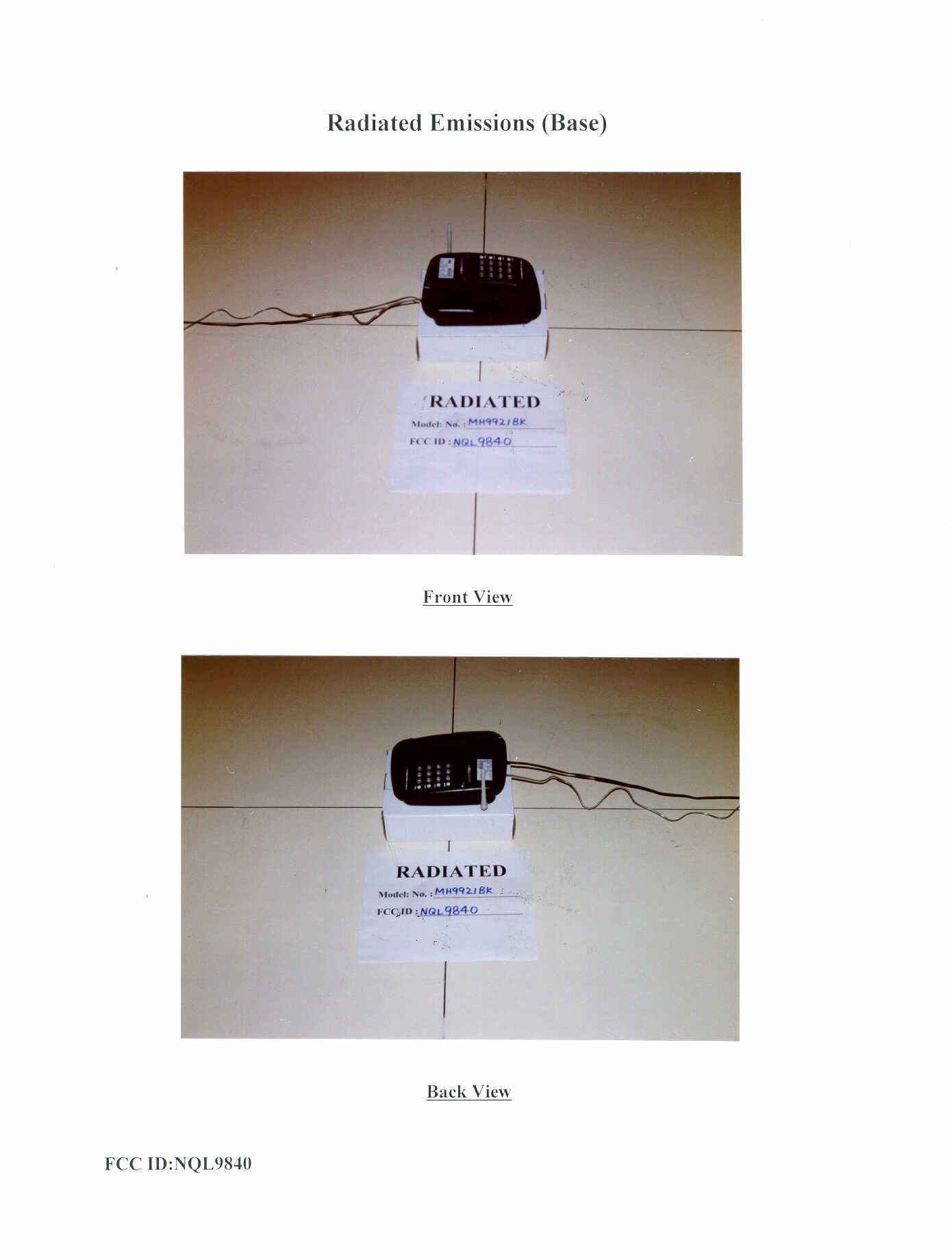

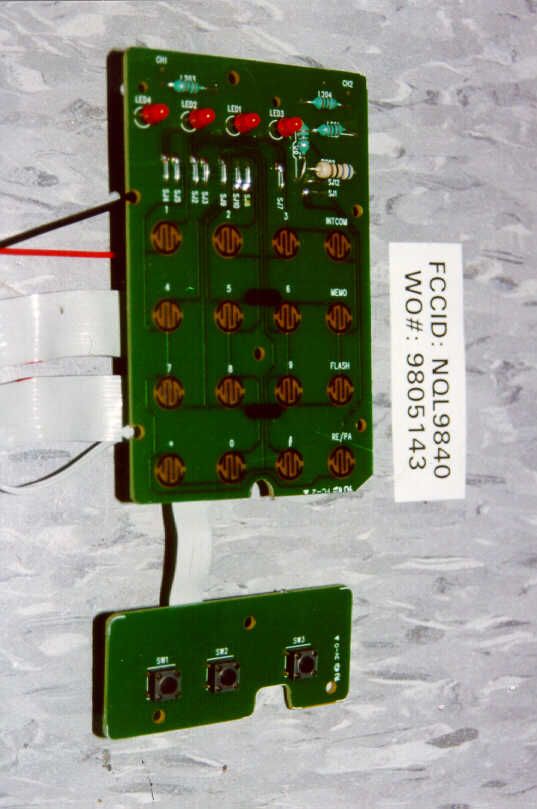

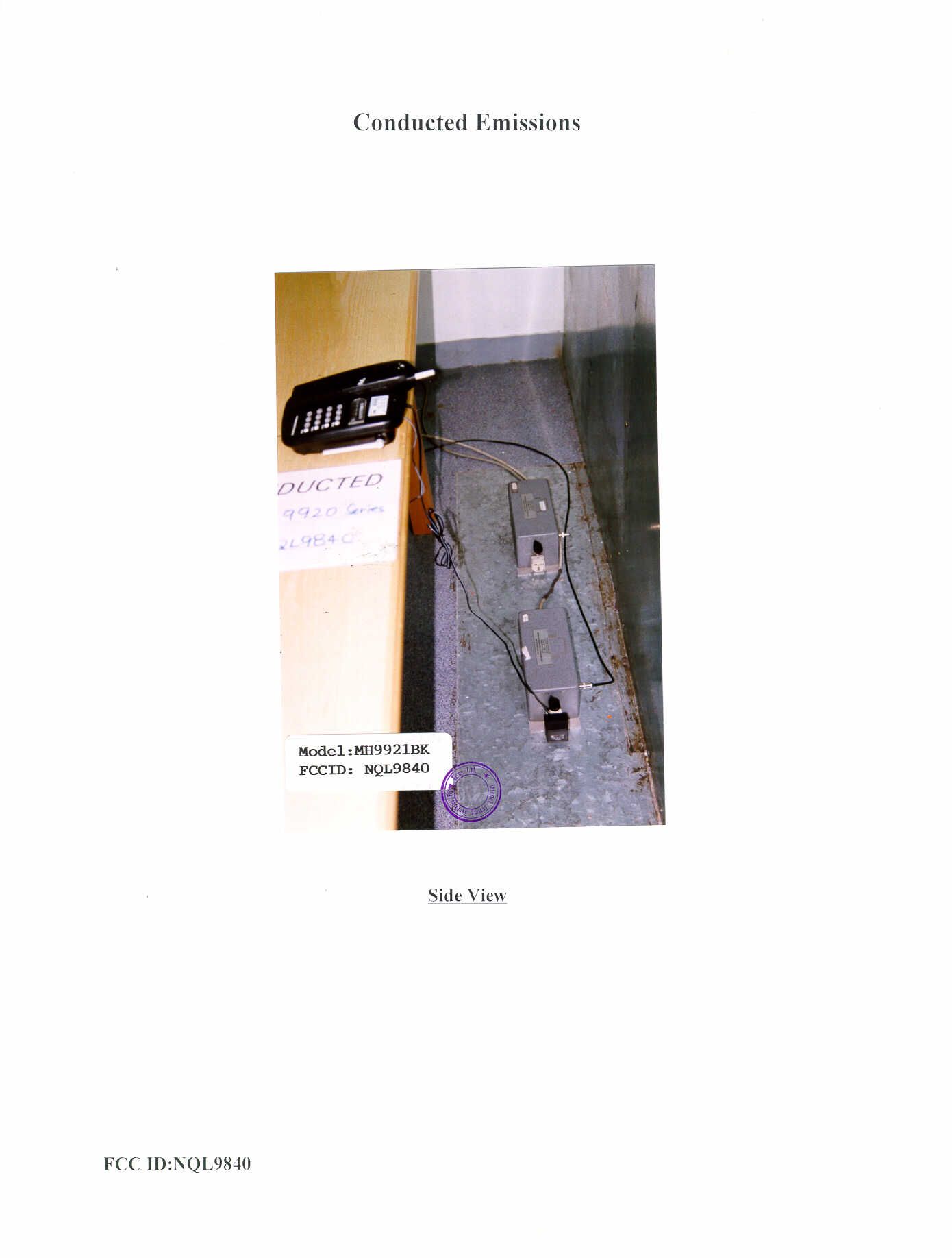

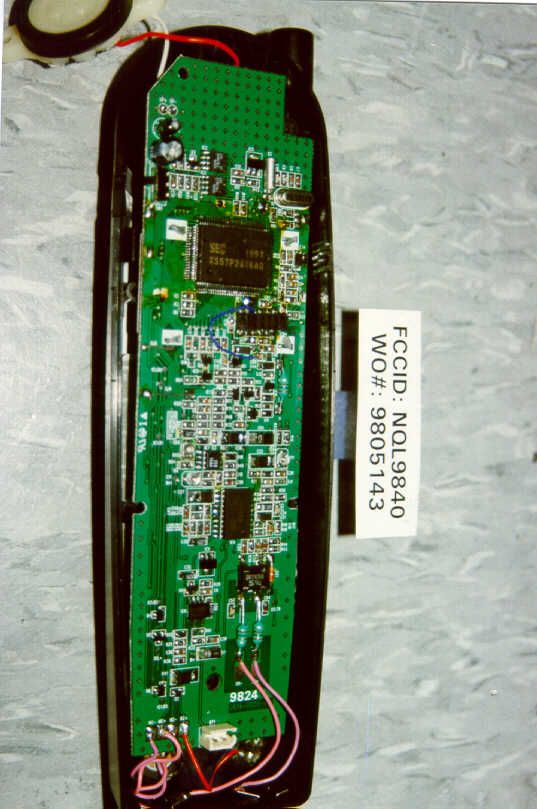

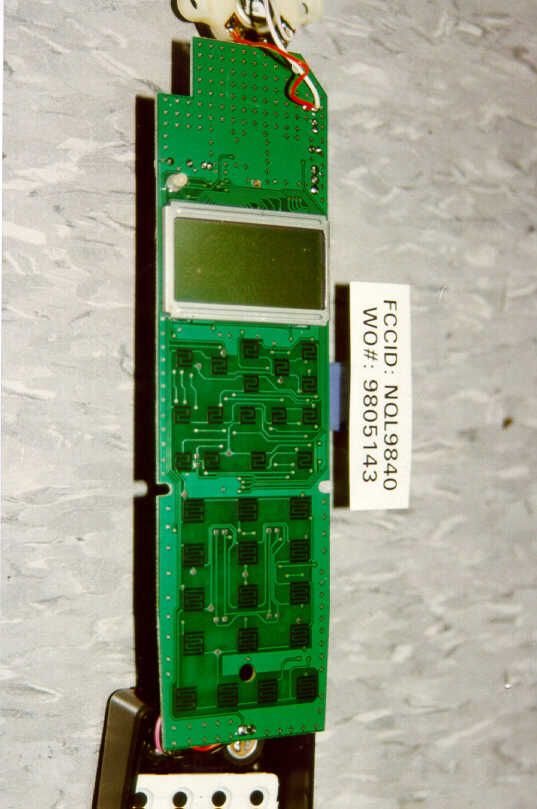

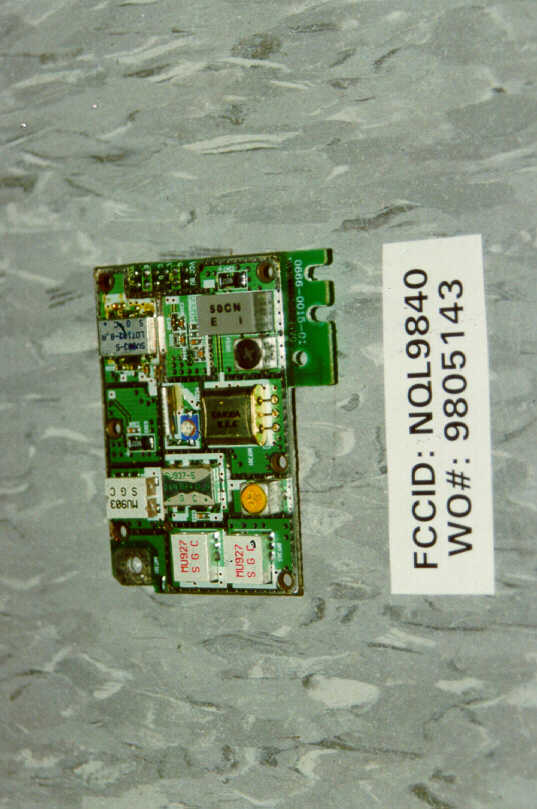

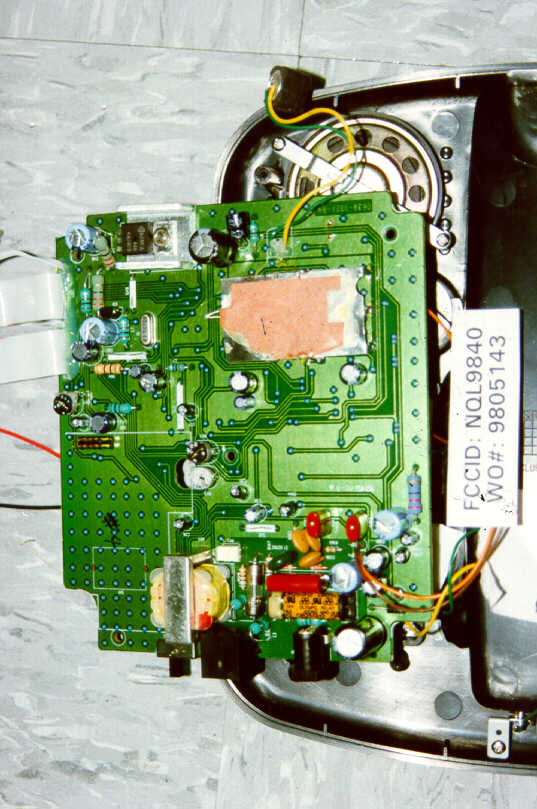

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: NQL9840 Greatsino Limited Application For Certification 900MHz Cordless Telephone (FCC ID: NQL9840) WO# 9805143 CKL/at September 18, 1998 INTERTEK TESTING SERVICES FCC ID: NQL9840 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: NQL9840 ii MEASUREMENT/TECHNICAL REPORT Greatsino Limited - MODEL: MH9920 Series FCC ID: NQL9840 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:C. K. Lam Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone:852-2746-8218 Fax:852-2785-5487 INTERTEK TESTING SERVICES FCC ID: NQL9840 iii Table of Contents 1.0 General Description................................................................................................................. 2 1.1 Product Description.............................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................................3 1.3 Test Methodology ................................................................................................................ 3 1.4 Test Facility.......................................................................................................................... 3 2.0 System Test Configuration...................................................................................................... 5 2.1 Justification .......................................................................................................................... 5 2.2 EUT Exercising Software.....................................................................................................5 2.3 Support Equipment List and Description.............................................................................. 6 2.4 Equipment Modification ......................................................................................................7 3.0 Emission Results....................................................................................................................... 9 3.1 Field Strength Calculation ..................................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ................................................. 11 3.3 Radiated Emission Data - Base Unit.......................................................................................12 3.4 Radiated Emission Configuration Photograph - Handset.......................................................18 3.5 Radiated Emission Configuration Data - Handset .............................................................. 19 3.6 Radiated Emission on the bandedge ................................................................................... 23 3.7 Line Conducted Configuration Photograph - Base Unit..................................................... 24 3.8 Line Conducted Data - Base Unit ...........................................................................................25 4.0 Equipment Photographs........................................................................................................ 28 5.0 Product Labelling................................................................................................................... 30 6.0 Technical Specifications......................................................................................................... 32 7.0 Instruction Manual......................................................................................................................34 8.0 Security Code Information.........................................................................................................36 INTERTEK TESTING SERVICES FCC ID: NQL9840 iv List of attached file Exhibit typeFilename Test Reportreport. doc Test Setup Photobase.jpg, handset.jpg, conduct1.jpg, conduct2.jpg External Photoophoto1.jpg, ophoto2.jpg Internal Photoiphoto1.jpg to iphoto17.jpg Block Diagramblock.pdf Schematiccircuit.pdf ID Labellabel.pdf ID Locationlocation.pdf User Manualmanual.pdf Test Reportbw.pdf Cover letterletter.pdf Circuit Descriptiondescri.pdf Test Reportconduct.pdf INTERTEK TESTING SERVICES FCC ID: NQL9840 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NQL9840 2 1.0General Description 1.1Product Description The MH9920 Series are 900MHz Cordless Phone with Caller ID & Speakerphone. These models within this series belong to a family group of cordless phone, they are electrically and functionally identical, varying only in cosmetic details. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished through a power transformer having an adequate dielectric rating. The circuit wiring is consistent under the requirement of part 68. The handset unit consists of a keypad with twelve standard keys (0,..…
