NQL9940

1 Contents Safety Instructions .............................................................................................................3 HANDSET Controls - Location and Function .................................................................... 5 BASE UNIT Controls - Location and Function ................................................................... 7 Getting Started ................................................................................................................... 9 Desk Mounting ...................................................................................................................12 Wall Mounting .................................................................................................................... 13 Cordless Telephone Operation .......................................................................................... 14 Preparing for Use ......................................................................................................... 14 Turning the BASE UNIT RINGER ON/OFF ................................................................. 14 Receiving Calls ............................................................................................................ 15 Placing Calls ................................................................................................................ 16 Redial Feature ............................................................................................................. 17 Storing Numbers .......................................................................................................... 18 Recalling Stored Numbers from Memory .................................................................... 20 Intercom .......................................................................................................................21 Extension Telephones ................................................................................................. 22 Caller ID System Operation ............................................................................................... 23 Caller ID System .......................................................................................................... 23 Viewing Caller Information During Incoming Calls ................................................ 23 Message Waiting ................................................................................................... 23 Call Waiting ............................................................................................................ 24 Caller List .....................................................................................................................24 Viewing the Caller List ........................................................................................... 24 Placing a Call from the Caller List ......................................................................... 25 Editing the Caller List before Dialing ..................................................................... 25 Saving the Name and Number in the Caller List into the Directory ....................... 25 Deleting All Records in the Caller List ................................................................... 26 Selective Deleting in the Caller List ....................................................................... 26 Name and Telephone Number Directory ..................................................................... 26 Viewing the Directory ............................................................................................. 26 2 Contents Speed Viewing the Directory ................................................................................. 26 Saving in the Directory ........................................................................................... 27 Preferred Calls ....................................................................................................... 27 Blocked Calls ......................................................................................................... 27 Editing Name and Number in the Directory ........................................................... 28 Editing the Number in the Directory before Dialing ............................................... 29 Placing Calls from the Directory ............................................................................ 30 Deleting All Records in the Directory ..................................................................... 30 Selective Deleting in the Directory ......................................................................... 30 Function Operation ...................................................................................................... 31 A. Language ........................................................................................................... 32 B. Silent ON/OFF ................................................................................................... 32 C. Time Set ............................................................................................................ 32 D. Ringer Volume ................................................................................................... 33 E. Contrast ............................................................................................................. 33 F. PBX Number ...................................................................................................... 33 G. PBX Mode .......................................................................................................... 34 H. Pause Time ........................................................................................................ 34 I. MSG Waiting (Message Waiting) ...................................................................... 34 Telephone Keypad Characters .................................................................................... 35 Security .....................…

Text truncated - open the document above for the full version.

Base RF Block Diagram BASE RF BLOCK DIAGRAM A MH-9003 A3 11 Saturday, Novem ber 07, 1998 TitleSize D ocument Num ber Rev D ate : S hee t of RB+ 9 1 3 VCO IN AMP AMP 902/927MHz LIMITER AMP DEMODULATOR (450KHz) 2nd 11.15MHz REFERENCEX-TAL VC301 MOD IN QUADCOIL IFAMP POWER FRE 5 8 16 AF AMP 4 out B.P.F B.P.F MCF (10.7MHz) V.C.O (LOCAL) MIXER PLL IC FM IF IC BLOCK DIAGRAM 57 12 10 14 16 15 2 3 SMOOTHLINE LTD. MIXER VCC L.N.A FIN1 D01 XOUT XIN FI2 DO2 11 IF FILTER TX B+ RX B+ LMX1602 DBL5018 RF BASE AF OUT BUSY DATACLKLE AF IN TX B+ RX B+ Base Block Diagram Handset RF Block Diagram PORT RF BLOCK DIAGRA M A MH-9003 A3 11 Saturday, Novem ber 07, 1998 TitleSize D ocument Num ber R ev Date: Sheet of RB+ 9 1 3 VCO IN AMP AMP 902/927MHz LIMITER AMP DEMODULATOR (450KHz) 2nd 11.15MHz REFERENCEX-TAL VC301 MOD IN QUADCOIL IFAMP POWER FRE 5 8 16 AF AMP 4 out B.P.F B.P.F MCF (10.7MHz) V.C.O (LOCAL) MIXER PLL IC FM IF IC BLOCK DIAGRAM LMX1602 57 12 10 14 16 15 2 3 SMOOTHLINE LTD. MIXER VCC L.N.A FIN1 D01 XOUT XIN FI2 DO2 11 IF FILTER TX B+ RX B+ DBL5018 RF PORT AF OUT BUSY DATACLKLE A F IN TX B+ RX B+ Handset Block Diagram

MODEL NUMBER ALLOCATION Presently, we have a large number of models within each of our various model number series of cordless telephones. Our clients continually request slightly different cosmetic variations of each registered model such as a different case color . In order to control all of these permutations, it is constantly necessary to assign and file, with the FCC, new model numbers to cover these cosmetic variations. Since all models, within a series of cordless telephones, are electrically and functionally identical, varying only in cosmetic detail and to avoid the need to constantly file, with the FCC, to register additional model numbers for cosmetic purposes, we request to register our models as listed tradenames and model numbers: TRADENAMESMODEL NUMBERS BELLSOUTH D(HAC) MH9920(0)(Y)D(HAC) MH9925(0)(Y) AMERITECH D(HAC) MH9921(0)(Y)D(HAC) MH9926(0)(Y) BELL ATLANTIC D(HAC) MH9922(0)(Y)D(HAC) MH9927(0)(Y) PACIFIC BELL D(HAC) MH9923(0)(Y)D(HAC) MH9928(0)(Y) UNISONIC D(HAC) MH9924(0)(Y)D(HAC) MH9929(0)(Y) MH9920 series are 900Mhz Cordless Telephone , Caller ID with Speakerphone NOTE :(0) Zero=Additional charger base suffix "Y" can be added to the model number to represent color variation, can be any letter/s of the alphabet as follows (but not limited to this list) such as : "No suffix"=Gray case B/BK=Black case HG/VHG=Green case W=White case R=Red case RB=Red/Black case PL=Pearl white case such that : MH9920-Model MH9920 is the standard model in gray case MH9920B-Model MH9920 in black case MH9920HG-Model MH9920 in green case FREQUENCE OF 1602 P.L.L * CHANNEL SPACE: 25KHz * 1st I.F.: 10.7 MHz * 2nd I.F.: 450KHz * TCXO(X-TAL): 11.15MHz BASE(MHz)PORTABLE(MHz) CHTXLOCAL(10.7)TXLOCAL(10.7) 1902.125936.825926.125891.425 2902.150936.850926.150891.450 3902.175936.875926.175891.475 4902.200936.900926.200891.500 5902.225936.925926.225891.525 6902.250936.950926.250891.550 7902.275936.975926.275891.575 8902.300937.000926.300891.600 9902.325937.025926.325891.625 10902.350937.050926.350891.650 11902.375937.075926.375891.675 12902.400937.100926.400891.700 13902.425937.125926.425891.725 14902.450937.150926.450891.750 15902.475937.175926.475891.775 16902.500937.200926.500891.800 17902.525937.225926.525891.825 18902.550937.250926.550891.850 19902.575937.275926.575891.875 20902.600937.300926.600891.900 21902.625937.325926.625891.925 22902.650937.350926.650891.950 23902.675937.375926.675891.975 24902.700937.400926.700892.000 25902.725937.425926.725892.025 26902.750937.450926.750892.050 27902.775937.475926.775892.075 28902.800937.500926.800892.100 29902.825937.525926.825892.125 30902.850937.550926.850892.150 31902.875937.575926.875892.175 32902.900937.600926.900892.200 33902.925937.625926.925892.225 34902.950937.650926.950892.250 35902.975937.675926.975892.275 36903.000937.700927.000892.300 37903.025937.725927.025892.325 38903.050937.750927.050892.350 39903.075937.775927.075892.375 40903.100937.800927.100892.400 CIRCUIT DESCRIPTION OF MH9921 V4 1. BASE UNIT : The demodulated signal, resuiting from Double Super Heterodyne system, which appears at output pin no.5 of cn1 is sent to IC6 pin no.15 for Expansion. The expended audio signal is sent to the telephone line via hybrid Transformer HY1. The demodulated data code from CN1 Pin no.7 is Generated by IC1B. Its output is connected to CODE Input Pin no.60 of IC2. The Audio signal receiving from TELE LINE is input to IC6 Pin no.8 for compression. The compressed audio signal from Pin no.3 of IC6 is connected to CN1 Pin no.11 of CN1 modulation. Pin no.62,5 of IC2 is the output port for data codes that should be transmitted to the handset. the data code is connected to Pin no.11 of CN1 for moduiation. CAS signals from tel-line are filtered by AMP IC101B and fed to codec IC102 pin no.4 for decording and them, converted digital sigal transmit to dsp chip ic 102. Camparing the code is correct, DSP (IC103) send CAS detection code to cpu(IC2). After that,ack code from cpu transmit to CO (central office) through tel-line and, CO. Send FSK signal to Base tel-line for final confirmation of Caller ID. FSK is AMP & filterd by IC 105b and fed to codec ic102,next routines for FSK are same as CAS routine.After detection df FSK,CPU generates information commamd (including name,addrecs,telephonenumber,time,date)and transmit the data to Handset through RF section. Stand-by mode : FSK signal detected by IC 105B after ringing is fed to codec(IC102)pin4, and next routimes and poerations are the same as FSK detection at talk-mode. Ext-inuse : In case branch phone is used IC105d7c detect using the branch phone and send the logic- hi signal to CPU. At the moment, Base LED start blinking and Handset LCD displays “EXT-INUSE”. Relay controlling is done by Pin no.27 of IC2. Ring signal monitored by PC1 (PHOTO COUPLER IC) is detected by Pin no.28 of IC2 resulting a data code to the handset. DTMF dialling is generated by IC2 pin 24 this signal output through the base of Q2. When the handset is placed on the base cradle, the charging is detected by Pin no.58 of IC2 sends data codes to handset for security code setting. When the handset is far away from base unit, squelch circuit of IC1C operates and Pin no.8 of IC1C goes "HI". This will be detected by the micro processor and after 20 sec. go to Stand by mode. The power to the base unit is supplied by IC7 (5V REGULATOR IC). The power to the base RF module is supplied by IC9 (5V LOW CURRENT REGULATOR IC). The power to the base CODEC and DSP supplied by IC8 (5V REGULATOR IC). 2. SPEAKER PHONE MODE The audio signal receiving from tel-line is input to IC101B Pin no.6 and fed to CODEC IC102 for converted digital signal transmit to DSP IC103 is connected to IC102 for converted analog signal transmit to AUDIO AMP (IC107). The audio signal receiving form MIC is input to IC101A Pin no.2 and fed to CODEC IC 102 for converted digital signal transmit to DSP IC103 is connected to IC102 for converted analog signal send the tel-line. 1). RX PART THE …

Text truncated - open the document above for the full version.

Base Tel-line Schematic Diagram Base Main Schematic Diagram Handset Main Schematic Diagram

Base RF Schematic Diagram Handset RF Schematic Diagram

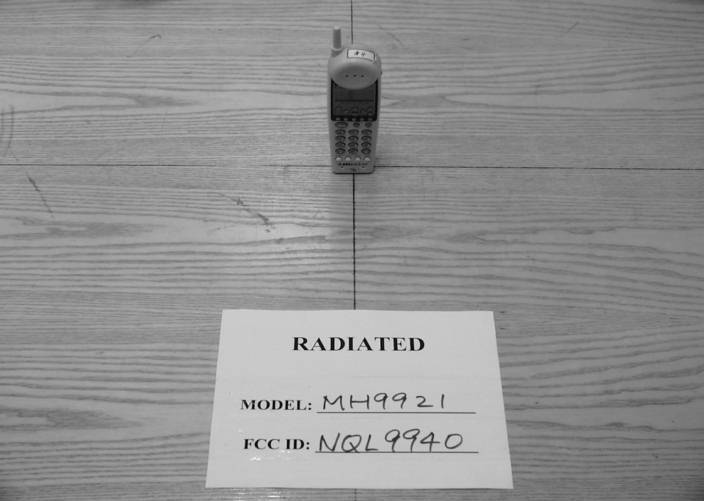

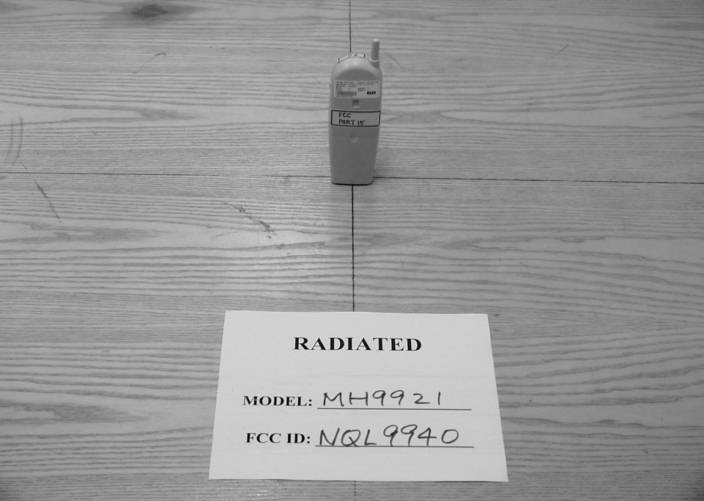

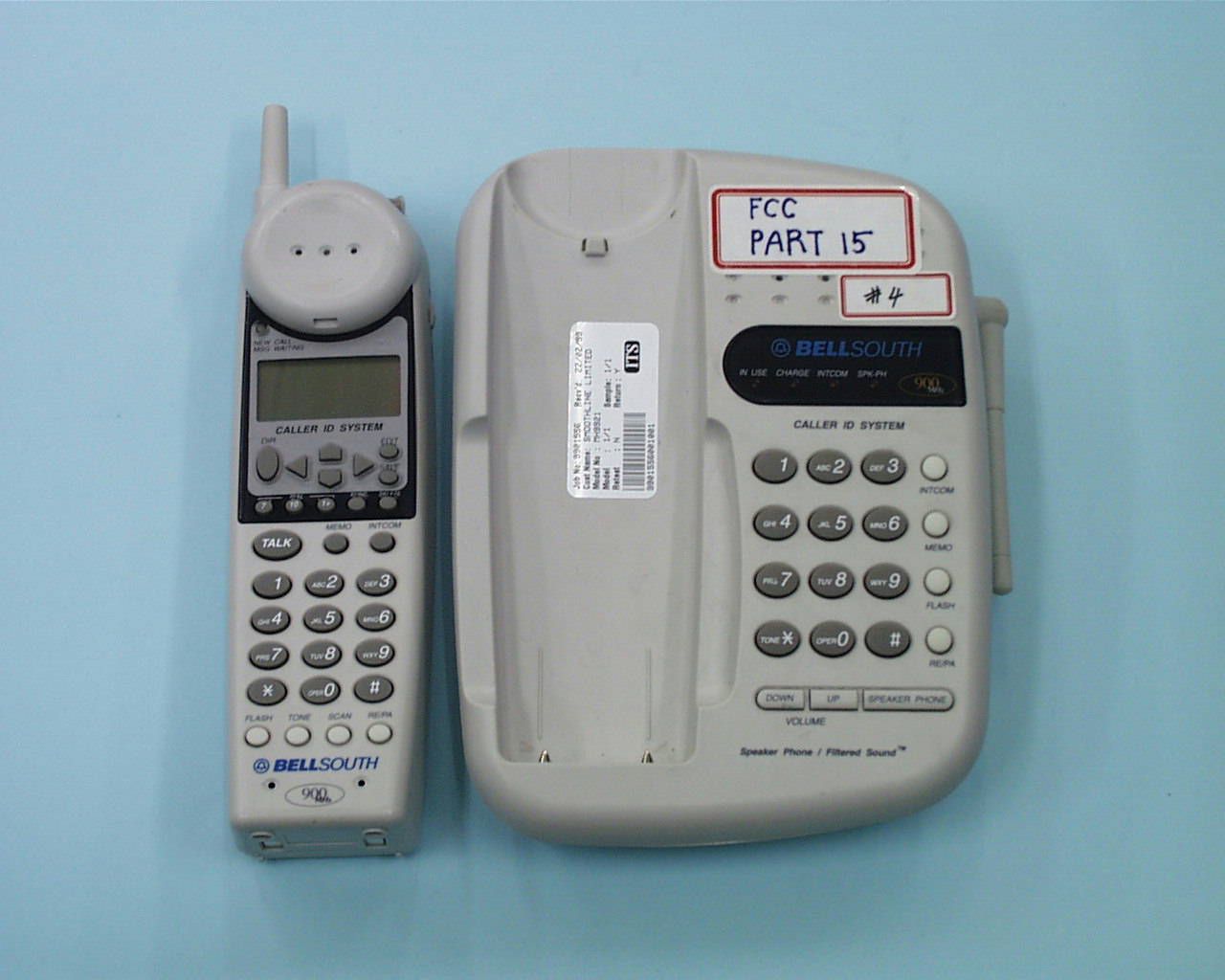

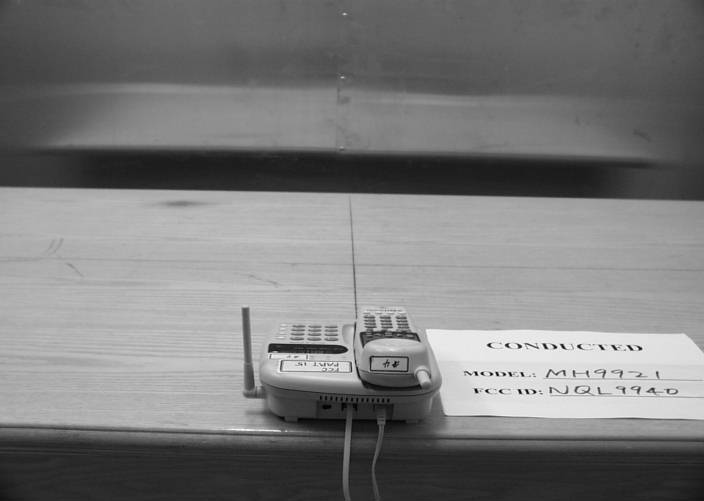

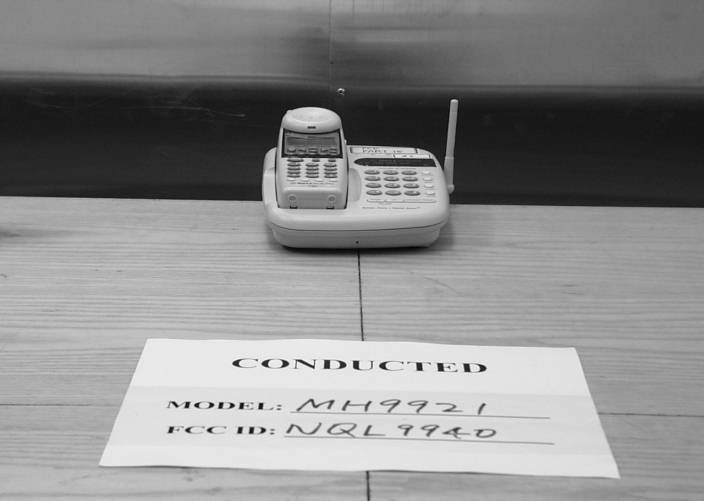

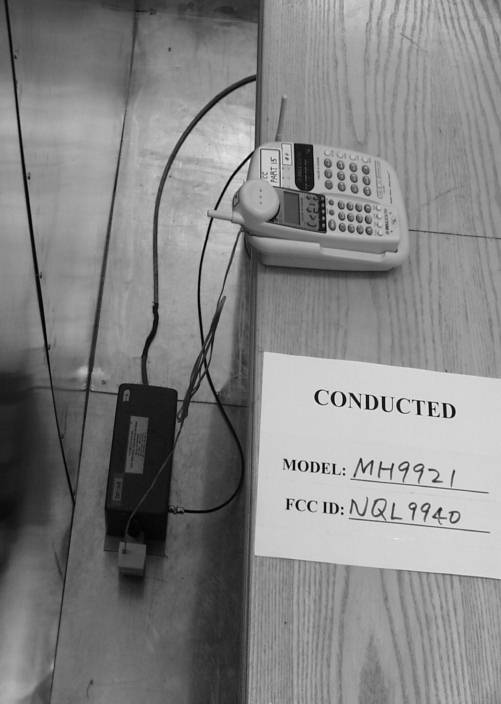

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: NQL9940 Greatsino Limited Application For Certification 900MHz Analog Modulation 40 Channel Cordless Telephone with Speakerphone & Caller ID (FCC ID: NQL9940) WO# 9901556 AL/at March 18, 1999 INTERTEK TESTING SERVICES FCC ID: NQL9940 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: NQL9940 ii MEASUREMENT/TECHNICAL REPORT Greatsino Limited - MODEL: MH9921 FCC ID: NQL9940 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Alfred Lo Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone:852-2746-8217 Fax:852-2785-5487 INTERTEK TESTING SERVICES FCC ID: NQL9940 iii Table of Contents 1.0 General Description................................................................................................................. 2 1.1 Product Description ................................................................................................................ 2 1.2 Related Submittal(s) Grants .................................................................................................... 3 1.3 Test Methodology ................................................................................................................... 3 1.4 Test Facility ............................................................................................................................ 3 2.0 System Test Configuration...................................................................................................... 5 2.1 Justification............................................................................................................................. 5 2.2 EUT Exercising Software ....................................................................................................... 5 2.3 Support Equipment List and Description ................................................................................ 6 2.4 Equipment Modification ......................................................................................................... 7 3.0 Emission Results....................................................................................................................... 9 3.1 Field Strength Calculation..................................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Base Unit.................................................... 11 3.3 Radiated Emission Data - Base Unit..........................................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .........................................................15 3.5 Radiated Emission Configuration Data - Handset ................................................................. 16 3.6 Radiated Emission on the bandedge...................................................................................... 19 3.7 Line Conducted Configuration Photograph - Base Unit ....................................................... 21 3.8 Line Conducted Data - Base Unit ..............................................................................................22 4.0 Equipment Photographs........................................................................................................ 24 5.0 Product Labelling................................................................................................................... 26 6.0 Technical Specifications......................................................................................................... 28 7.0 Instruction Manual......................................................................................................................30 8.0 Security Code Information.........................................................................................................32 INTERTEK TESTING SERVICES FCC ID: NQL9940 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Basebase1.jpg, base2.jpg Test Setup PhotoRadiated Emission for Handsethandset1.jpg, handset2.jpg Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconduct1.jpg to conduct3.jpg Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoophoto1.jpg, ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto18.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf, rfcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: NQL9940 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NQL9940 2 1.0General Description 1.1Product Description The MH9921 is a 900MHz Analog Modulation 40 Channel Cordless Phone with Caller ID & Speakerphone. The unit is…

Text truncated - open the document above for the full version.
