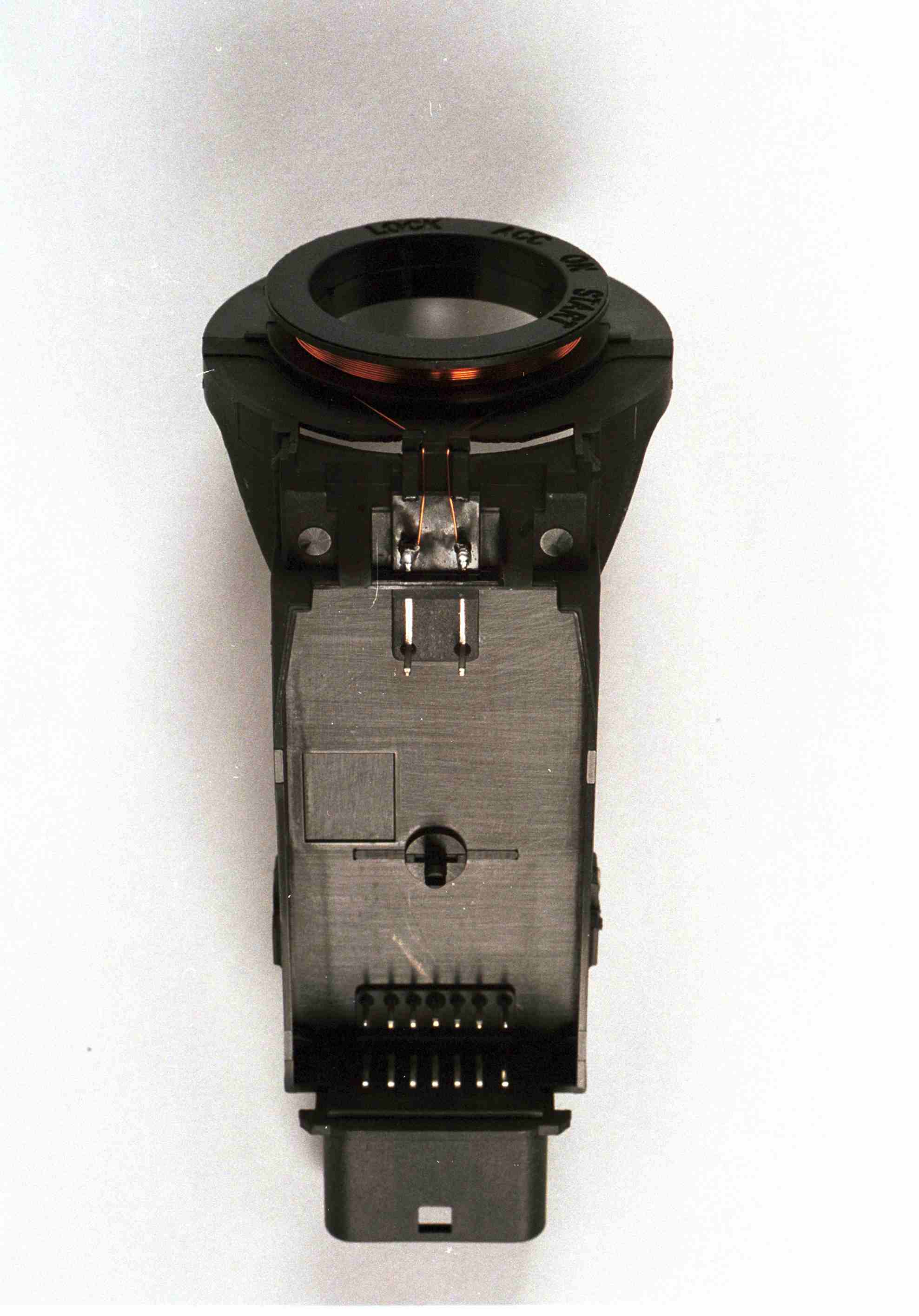

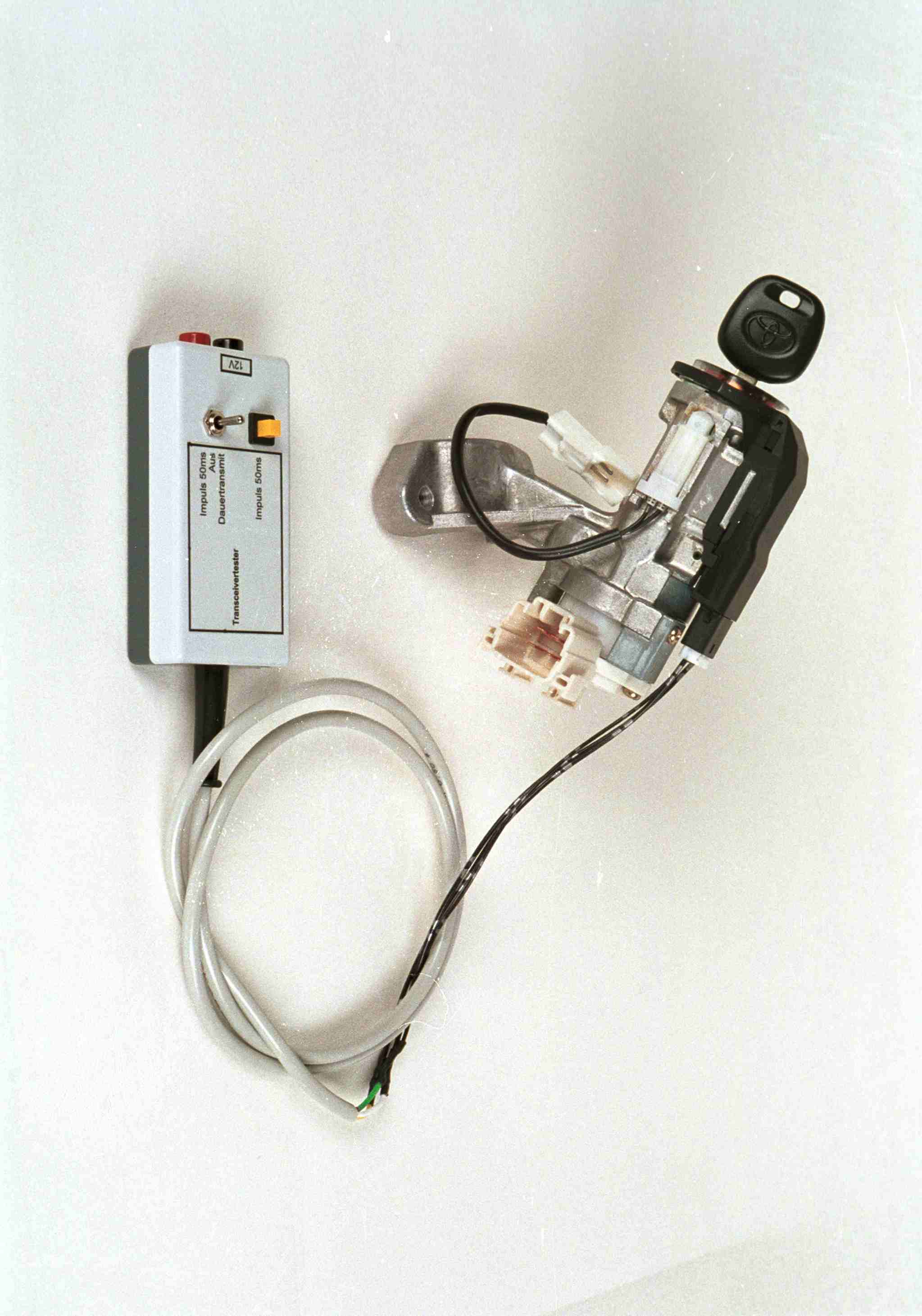

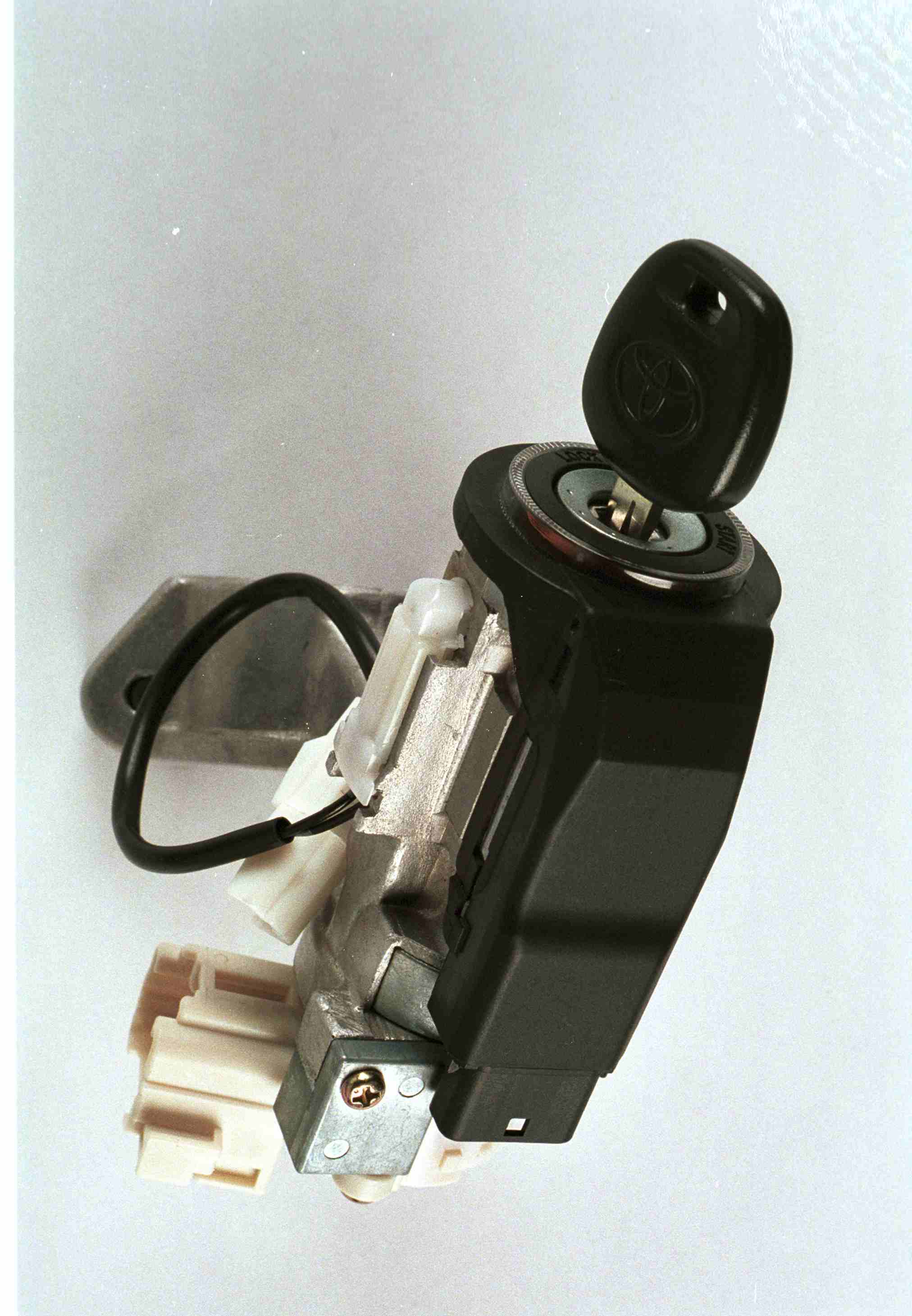

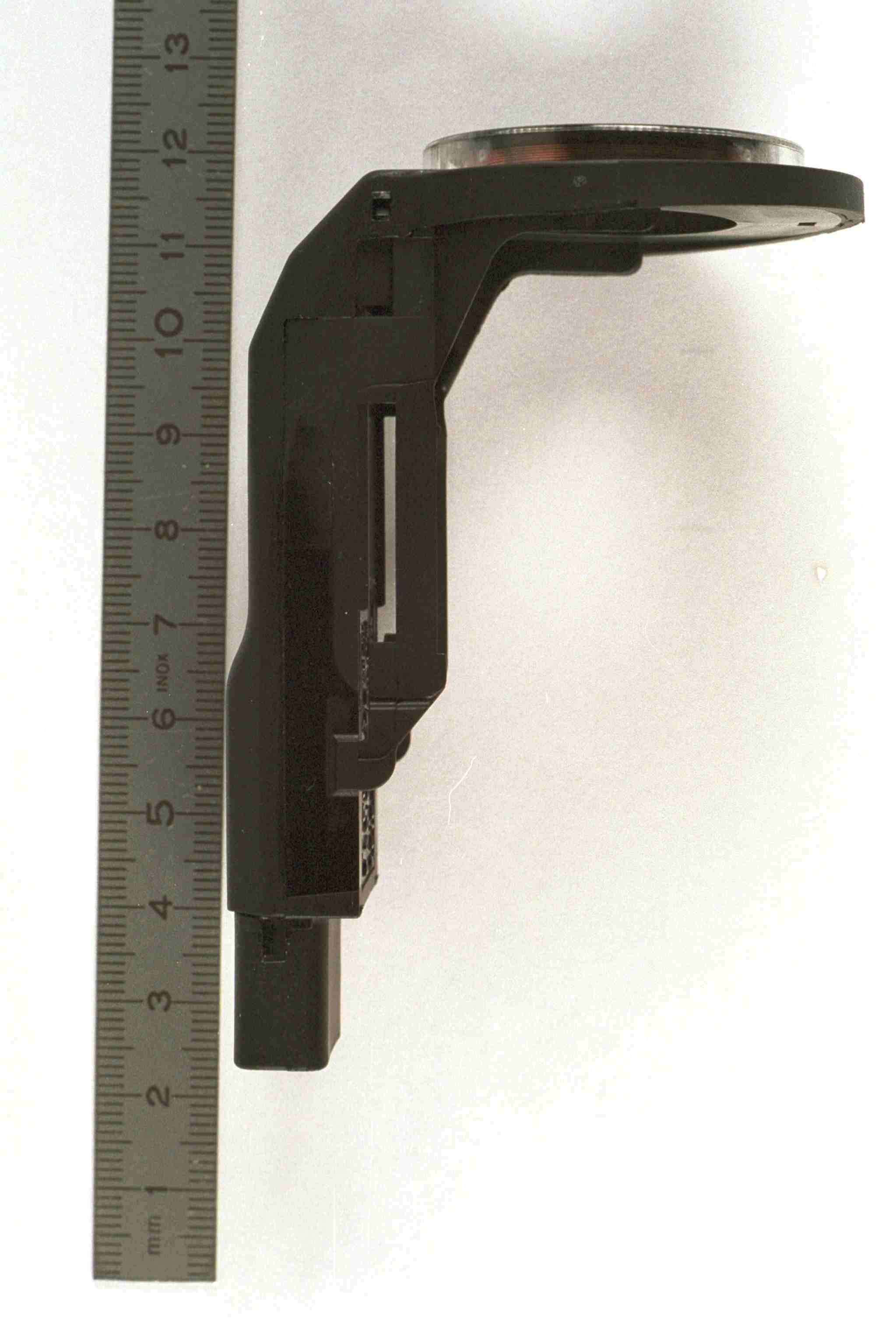

NT8-156072FIFXCVRAutomotive Vehicle Immobilizer Transmitter

Re: Certification for Visteon VP2FIF-15607 Immobilizer Model: VP2FIF-15607 FCC ID: NT8-156072FIFXCVR CANADA: to be provided by IC USER'S MANUAL INFORMATION (PRELIMINARY) The Vehicle User's Manual is in preparation. The following material will be contained in the manual: FCC ID: NT8-156072FIFXCVR CANADA: to be provided by IC This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

Re: Certification for Visteon VP2FIF-15607 Immobilizer Model: VP2FIF-15607 FCC ID: NT8-156072FIFXCVR CANADA: to be provided by IC POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Visteon VP2FIF-15607 Immobilizer Model: VP2FIF-15607 FCC ID: NT8-156072FIFXCVR CANADA: to be provided by IC GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Visteon Corporation 17000 Rotunda Drive Dearborn, MI 48121 Werner Loebach Tel: +49-(0)221-5406-274 Fax: +49-(0)221-5406-261 It will be manufactured by: Visteon Deutschland Gmbh D-50818 Koeln, Germany P.O. E1Y0 197787 Werner Loebach Tel: +49-(0)221-5406-274 Fax: +49-(0)221-5406-261 It will be marketed and serviced by: Toyota Dealers of North America

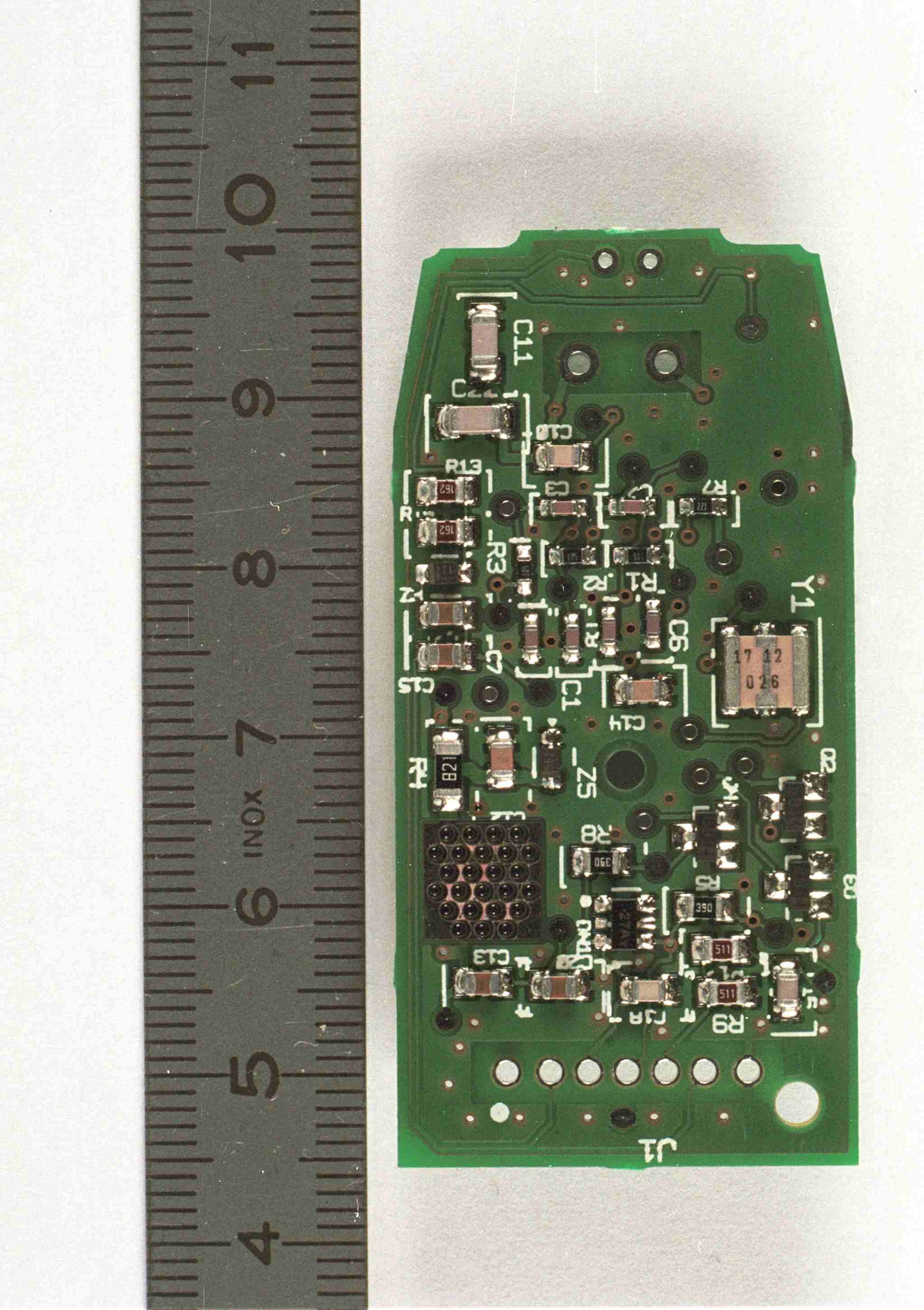

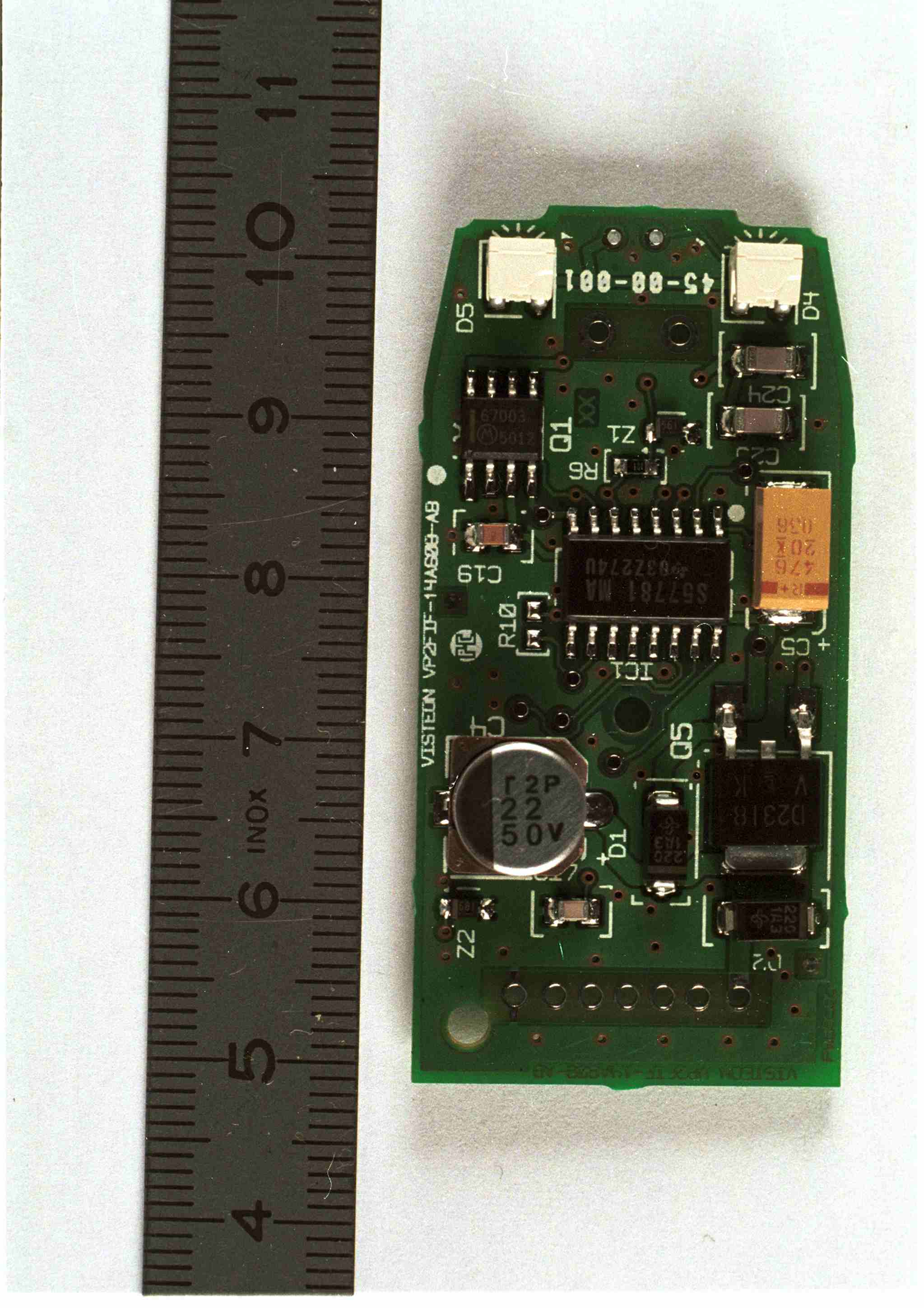

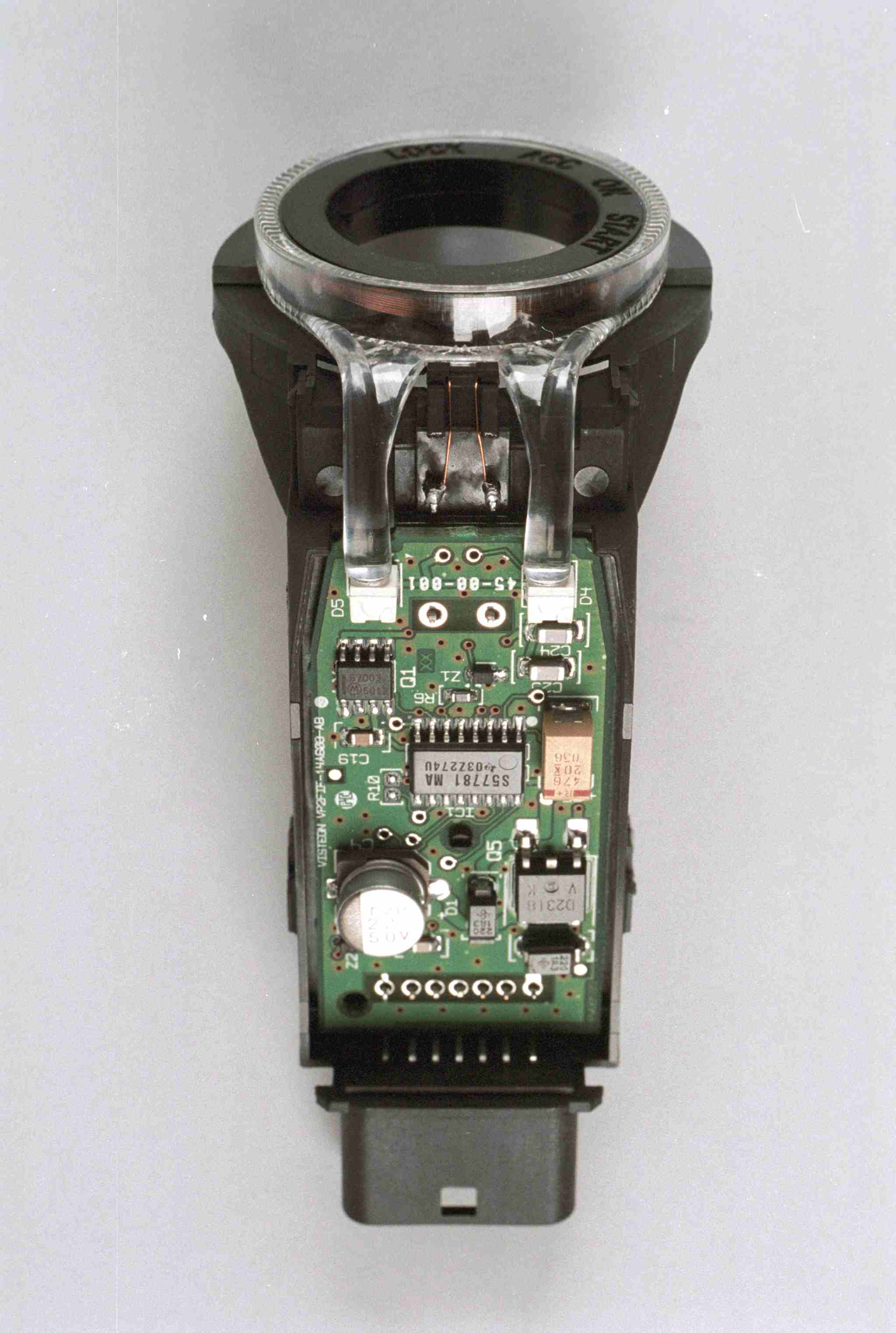

300N JA Function description27.03.00 Page 1 of 5J. von Berg 1.1. 300N Transceiver Function Description:300N Transceiver Function Description: The 300N transceiver is the interface device between an ECU (Electronic Control Unit) and a TIRIS transponder. The ECU interrogates the transponder by first initiating a charge phase. The charge phase generates an electromagnetic field around the antenna coil from which the transponder will accumulate and store energy on its internal charge capacitor. This energy is used to power the transponder in the Read Phase where it sends back a total of 128 bits. In the Read Phase, the data read is validated against a known value and depending on match, the vehicle is enabled. AMP E/G ECU COIL TXCT CODE RXCK B+ B+ E/G ECUR RELAY GNDGND Figure 1 Transceiver to ECU connection 1.1.1.1. Charge Phase:Charge Phase: The ECU initiates the charge phase by simply pulling the TXCT signal high to +5V nom.. As long as the TXCT stays at a high level, the transceiver will continuously charge the transponder. When the charge time expires (typically about 50 ms), the ECU will than pull the TXCT line low and continue into the read phase. In the charge phase, the ECU is immune to any activity on both RXCK and CODE line. 1.2.1.2. Read Phase:Read Phase: The read phase consists of three sub-phases, the waiting time, the watching time and the data processing time. 1.2.1. Waiting: Upon pulling the TXCT line low, the ECU must enter a wait state of not less than 1ms and no more than 1.5 ms after the falling edge of TXCT. In this period of time, no valid data on CODE is present and the ECU must not respond to any transition on CODE or RXCK lines. 1.2.2. Receiving: After the Waiting state, the transponder sends a FSK signal back to the transceiver. The two nominal frequencies are 123,2 kHz representing a logical "1" and 134,2 kHz representing a logical "0". One bit consists of 16 periods of the corresponding frequency. This signal is picked- up by the coil then amplified and decoded. This decoded information is sent to the ECU, using a Synchronous Serial Interface. The ECU starts to check the (data) CODE signal to detect the first low to high transition of the Start Byte (7E). The (clock) RXCK signal is synchronous to the CODE after the first rising edge of CODE. After this event the data on CODE is valid during a low level of RXCK. Since the first transition of the CODE signal is the second bit of the start byte, the first bit (LSB) has to be stuffed with a "0". See Figure 3 The Receiving state must be limited depending on the selected Waiting state. The sum of Waiting time and Receiving time should be equal or less than 20 ms. This is the time in which data on CODE can be expected. 1.2.3. Data Processing : The data sent by the transponder contains16 Bytes, see Figure 5. The evaluation takes place in the ECU. After all bytes are read and the BCC matches the calculated CRC (specified in the CCIT algorithm) and after validation of the identification data, the ECU enables the starting sequence. 300N JA Function description27.03.00 Page 2 of 5J. von Berg 2. I/O Timing TXCT RXCK CODE Start of Cycle End of Cycle Charge Time Read Time Figure 2 Normal Transmit/Receive Cycle Note:Note: the state of RXCK and CODE is not defined before and after the complete cycle. 300N JA Function description27.03.00 Page 3 of 5J. von Berg TXCT RXCK CODE Figure 3 Synchronization of RXCK to CODE 300N JA Function description27.03.00 Page 4 of 5J. von Berg TXCT RXCK CODE t setup t valid t hold Figure 4 CODE setup and hold times during normal transmission 300N JA Function description27.03.00 Page 5 of 5J. von Berg 3. Serial Synchronous Communication Interface Protocol Pre Bytes ByteByteByteByteByteByteByte 123456789101112131415 ByteByteByteByteByteByteByteByteByte 0 7Eh StartBCC Data End of transmit charge time Approx. 2ms after falling edge of TXCT 7Eh StopIdentification dataEnd Bytes 01010110 LSBMSB Note: Data bits are not symetrical. Bit "0" is shorter than bit "1" but the number of periods is 16 for both. Logic "0" 1/134,2 kHz = 119 μs Logic "1" 1/123,2 kHz = 130 μs Serial data to ECU Byte value AAh FSK data transmitted by transponder Figure 5 64-bit Read/Only Transponder Read Data Format
