NT8-CRONY2010In vehicle infotainment

Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com Infotainment System Type of Equipment: In Vehicle Infotainment Model name: CRONY 2010 Brand Name: Visteon Manufacturer: Visteon Corporation Made In Brazil USER MANUAL Version 1.0 December 6, 2021 Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com 1. Safety Requirements  This product works with a supply voltage of 13.5V (operating voltage between 9V to 16V).  Always check the function of each connector color through the wiring diagram.  Do not disassemble or modify the equipment, because this can cause an accident such as fire or electric shock, invalidating your warranty.  Do not block the heat exits of the appliance. This may cause overheating or fire.  To prevent the risk of electric shock, never expose the unit, amplifier and speakers to cleaning products, moisture or water. In addition, contact with dealer or technical support.  Liquids may cause damage, overheating of the unit and risk of fire.  While driving, keep the volume at a level where external sounds can be heard.  Make sure all speaker wiring is properly installed. Otherwise the unit may be damaged.  Respect the local rules, laws and regulations of traffic.  While driving - Do not watch or operate the unit as this may lead to distraction and cause an accident. Park yours car in a safe place to watch or operate the unit. - Do not use the configuration feature or no other function that can divert your attention of the road.  During operation - Do not insert your hands, fingers or strange objects to the unit as this may cause injury or damage to the unit. - Keep small objects out of reach of the children.  To avoid the risk of accidents and the violation of rules, the video feature should never be used while the vehicle is in motion. Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com 2. Warnings  To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. To avoid electric shock, do not open the appliance. Search for an Authorized Service.  Avoid prolonged use at high volume (power greater than 65 decibels), because this may impair your audition.  Taking your eyes off the road for too long or too often while using any infotainment feature can cause a crash. You or others could be injured or killed. Do not give extended attention to infotainment tasks while driving. Limit your glances at the vehicle displays and focus your attention on driving. Use voice commands whenever possible.  Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially not with a 24 V DC battery system.  Do not disassemble or modify the unit, or attempt to repair the product yourself. This may cause serious injury or damage and your warranty will be null and void. If the product needs repair, consult your dealer or contact technical support.  If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer. Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com Overview Infotainment System CRONY 2010 is an Display Audio Infotainment with a 10.25-inch display that combines state-of-the-art technology, modern design, impeccable finishing and multiple features. The product is all designed to run robust LINUX operating system, bringing more connectivity and interactivity to the user. This infotainment system has two variants, India (wired only AA/CP projection) and LATAM (wired+wireless AA/CP projection). Only LATAM variant system support Wi-Fi and GPS fucntionality. This infotainment has no physical buttons, all contact being made through a capacitive screen that allows extremely precise touches. The infotainment system is controlled by using the infotainment display with buttons on left and right bars on the display and steering wheel controls. Display Left Bar: 1. (Display OFF Button)  Touch to turn the display off system. 2. (Volume Increase and Decrease Buttons)  Touch ‘+’ to increase the volume of system.  Touch ‘-’ to decrease the volume of system.  Move slider up or down to increase or decrease volume of system respectively. 3. (Mute Button)  Touch to mute/ unmute the volume of display. Display Right Bar: 4. (Home Button)  Touch to return to home screen. 5. (Radio Button)  Touch to go to radio screen. 6. (Phone Button)  Touch to show phone display when phone is connected with system.  Touch to go to phone settings screen when phone is not connected with system. Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com Note: Phone Button will be replaced by Android Auto/ Apple CarPlay button when Android/ Apple device is connected with system as projection technology. (Apple CarPlay Button) and (Android Auto Button) 7. (Navigation Button)  Touch to show navigation display when Android Auto / Apple CarPlay device is connected with system.  Touch to show notification to user when Android Auto / Apple CarPlay device is not connected with system. Infotainment System © 2019 Visteon Corporation Infotainment System www.visteon.com 3. Radio AM-FM Radio From the Home Screen, touch the Radio icon to display the audio sources screen. Choose radio icon on Home Screen. AM-FM controls a. Seeking a Station Press or to search for the previous or next strongest station. b. Autostoring Presets Touch the button on the infotainment display to automatically store strongest stations in available presets. c. Frequency Band Touch frequency band button or on the infotainment display to switch to respective band. d. Storing Radio Station Presets Favorites are stored near the bottom of the display. Up to 12 preset stations can be stored for FM band and 6 preset stations can b…

Text truncated - open the document above for the full version.

FCB011_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Visteon Corporation One Village Center Drive Van Buren Township, MI, 48111 Date: December 14, 2021 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Agent letter for FCC ID: NT8-CRONY2010 We, Name: Visteon Corporation Address: One Village Center Drive City: Van Buren Township, MI, 48111 Country: USA hereby authorize DEKRA Certification, Inc., 405 Glenn Drive, Suite 11&12 Sterling, VA. USA, 20164 Ms. Lourdes Valverde, e-mail: [email protected], Phone: +1 (732) 207-8336 to act as our agent in the preparation of this application for equipment certification, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by DEKRA Testing and Certification, S.A.U., still resides with us. This agreement expires one year from the current date. Sincerely, __________________________ By: Terry SanSouci Title: Environmental Validation Engineer Company: Visteon Corporation Telephone: (734) 710-7137 e-mail: [email protected]

FCB012_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Visteon Corporation One Village Center Drive Van Buren Township, MI, 48111 Date: December 14, 2021 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Confidentiality request for FCC ID: NT8-CRONY2010 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Visteon Corporation hereby request requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify AT4 wireless in the event information regarding the product or the product is made available to the public. AT4 wireless will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, _________________________ By: Terry SanSouci Title: Environmental Validation Engineer Company: Visteon Corporation Telephone: (734) 710-7137 e-mail: [email protected]

A THE MASTER SOURCE OF INFORMATION FOR THIS DRAWING IS IN A PE COMPUTER DATABASE.CHANGES ARE NOT PERMITTED WITHOUT PRIOR CONSENT OF THE RELEVENT ENGINEERING CAD ACTIVITY. SPECIFICATIONS 1. WEEK CODE TO BE DETERMINED BY PRODUCTION CONTROL IN VIEW OF MODEL PRODUCTION SCHEDULE. 2. YEAR CODE TO BE DETERMINED BY PRODUCTION CONTROL IN VIEW OF CURRENT YEAR OF PRODUCTION OF PRODUCT. 3. REPAIR CODE - SEE DIFFERENT PLANT SPECIFICATION. 4. MANUFACTURING TO PRINT RUNNING SERIAL NUMBER 5. (REF) MATERIAL : WITH IMPRINTABLE VARNISH COATING OR PRESSURE SENSITIVE POLYPROPYLEN FILM OR MATT WHITE PP NY FILM 80MIC WITH PERMANENT ADHESIVE ON BACK AS PER SPEC ESF-M11P1A OR ESF-M99J-258-A2 6. LABEL SHALL BE SUPPLIED IN ROLLS. AND RLEASE PAPER SHOULD BE TWO DIFFRENT(sHOULD NOT BA ATTACHED WITH PERFORATION LINE). 7. PRINTING SHALL BE BLACK. PERMANNENT INK, 1.65 mm HIGH (MIN) UNLESS OTHERWISE SPECIFIED. 8. BLACK LETTERING MUST BE EASILY DISTINGUISHABLE AGAINST ALL BACKGROUND COLORS ( IF NOT SPECIFIED USE WHITE BACKGROUND) 9. OVERALL TOLERANCE OF ±0.5 mm APPLIES TO ALL DIMENSIONS WITHOUT A TOLERANCE. 10. ALPHA CHARACTER HAS TO BE SELECTED FROM THE AVAILABLE LIST CONTROLED BY MANUFACTURING ENGINEERING. HANON SYSTEMS ELD ENGINEERING APPROVAL MUST BE OBTAINED BEFORE ANY CHANGE IN MATERIAL,CONSTRUCTION OR PROCESSING CAN BE MADE. CHANGES AFFECTING DESIGN, COMPOSITION, OR PROCESSING OF THE PART PREVIOUSLY APPROVED FOR PRODUCTION REQUIRE PRIOR APPROVAL FROM HANON SYSTEMS PRODUCT ENGINEERING. REFER TO IATF 16949 RECORD OBLIGATION AND RETENTION TO FOLLOW AS PER IATF 16949 PPFX01 0000001 A 98445929XU 00 FOR REFERENCE PRINTED EI LABEL (AT VISTEON PLANT) MADE IN VISTEON ELECTRONICS BRZIL PVT LTD VPNPLF-18C815-A PLX50 YYYYMMDD/HH:MM:SS VISTEON - CRONY CEM00 SW VER HHHHH-AA-FFFFF FCC ID TBD IN VEHICLE INFOTAINMENT MANUFACTURER :VISTEON CORPORATION Model Name :CRONY 2010 Power Supply :DC 12V This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. 1 1 70 60 10 PRINTING FROM LABEL SUPPLIER GAP BETWEEN LINE IS 2.0mm. LETTER HEIGHT IS 2.0mm MADE IN VISTEON ELECTRONICS BRZIL PVT LTD 1 2 3 4 5 6 7 8 9 SR NODESCRIPTION*VPMPLF-18C815-A_ 1PSA LOGO- 2VISTEON LOGO- 3BARCODE INFOTBD 4BARCODE*TBD* 5PSA PART NO9844592977,9844885780 6VISTEON PART NOVPNPLF-18C815-AA,CA, 7VISTEON PLANT CODEPLX50 8PRODUCTION DATE/TIME YYYYMMDD/HH:MM:SS 9EMC INDEXVISTEON - CRONY CEM00 10SOFTWARE VERSIONTO BE DECIDED AS PER LATEST VERSION 10 HHHHH-AA-FFFFF FCC ID TBD IN VEHICLE INFOTAINMENT MANUFACTURER :VISTEON CORPORATION Model Name :CRONY 2010 Power Supply :DC 12V This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. 70 60 10() 3.5() 5() 2() 2() 2R4X DIMENSION REFERENCE FOR MANUFACTURING HHHHH-AA-FFFFF FCC ID TBD This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN VISTEON ELECTRONICS BRZIL PVT LTD LETTER HEIGHT IS 2.0mm. SPACE BETWEEN LINE IS 1mm 0101 0102 0103 IN VEHICLE INFOTAINMENT MANUFACTURER :VISTEON CORPORATION Model Name :CRONY 2010 Power Supply :DC 12V

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.012 02-15-2022 Test report No: 3231ERM.012 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091 (*) Identification of item under evaluation In vehicle infotainment (*) Trademark Visteon (*) Model and /or type reference CRONY 2010 (*) Other identification of the product FCC ID: NT8-CRONY2010 (*) Features AM/FM receiver, BT EDR, WiFi@5 GHz 802.11a/n20/n40/ac80, GNSS/GPS (*) Manufacturer Visteon Corporation One Village Center Drive, Van Buren Township, MI 48111, USA. Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-15-2022 Report template No FERMUSA_200 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.012 Page 2 of 9 02-15-2022 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 3 Appendix A: FCC RF Exposure assessment result ..................................................................... 4 General description of the device under evaluation ..................................................................... 5 RF Exposure Assessment result and verdict ............................................................................... 6 Appendix B: FCC RF Exposure information ................................................................................ 7 RF Exposure evaluation .............................................................................................................. 8 MPE Evaluation .......................................................................................................................... 9 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.012 Page 3 of 9 02-15-2022 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification Inc. at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested", “General description of the device”). 2. Maximum antenna gain and use distance information. DEKRA Certification Inc. declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Identification of the client Visteon Corporation One Village Center Drive, Van Buren Township, MI 48111, USA Document history Report number Date Description 3231ERM.012 02-15-2022 First release DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.012 Page 4 of 9 02-15-2022 Appendix A: FCC RF Exposure assessment result DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.012 Page 5 of 9 02-15-2022 General description of the device under evaluation The device under evaluation consists of an in-vehicle infotainment system that combines entertainment and information delivery for driver and passengers. This system consists of features like AM/FM Radio, GPS, RVC, USB & BT/WiFi interfaces with 10.25 Inch TFT & Touch screen interface. According to the manufacturer, during its normal use, the separation distance between the radiating structures of the device and nearby users will be greater than distance (>20cm). In order to perform the assessment a conservative evaluation distance of 20 cm has been used. As declared by the client , the maximum conducted output power levels for each supported technology are: Technology…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 03-24-2022 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 3231ERM.008A1 Test report FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-20 Edition) & ICES-003 ISSUE 7 – October (2020) (*) Identification of item tested In vehicle infotainment (*) Trademark Visteon (*) Model and /or type reference tested CRONY 2010 Other identification of the product FCC ID: NT8-CRONY2010 (*) Features AM/FM receiver, BT EDR, WiFi@5 GHz 802.11a/n20/n40/ac80, GNSS/GPS Manufacturer Visteon Corporation One Village Center Drive, Van Buren Township, MI 48111, USA Test method requested, standard FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-20 Edition) ICES-003 ISSUE 7 – October (2020) Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 03-24-2022 Report template No FDT08_23 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 2 of 17 03-24-2022 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client............................................................................................................. 6 Testing period and place ............................................................................................................. 6 Document history ........................................................................................................................ 7 Modifications to the reference test report .................................................................................... 7 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 8 Testing verdicts ........................................................................................................................... 7 Summary .................................................................................................................................... 8 List of equipment used during the test......................................................................................... 8 Appendix A: Test results ........................................................................................................... 10 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 3 of 17 03-24-2022 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies. Uncertainty Uncertainty (factor k=2) was calculated according to the DEKRA Certification internal document PODT000. Frequency (MHz) U (k=2) Units Radiated emission 30 - 1000 5.94 dB 1000-18000 5.89 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 4 of 17 03-24-2022 Data provided by the client An in-vehicle infotainment system that combines entertainment and information delivery for driver and passengers. This system consists of features like AM/FM Radio, GPS, RVC, USB & BT/…

Text truncated - open the document above for the full version.

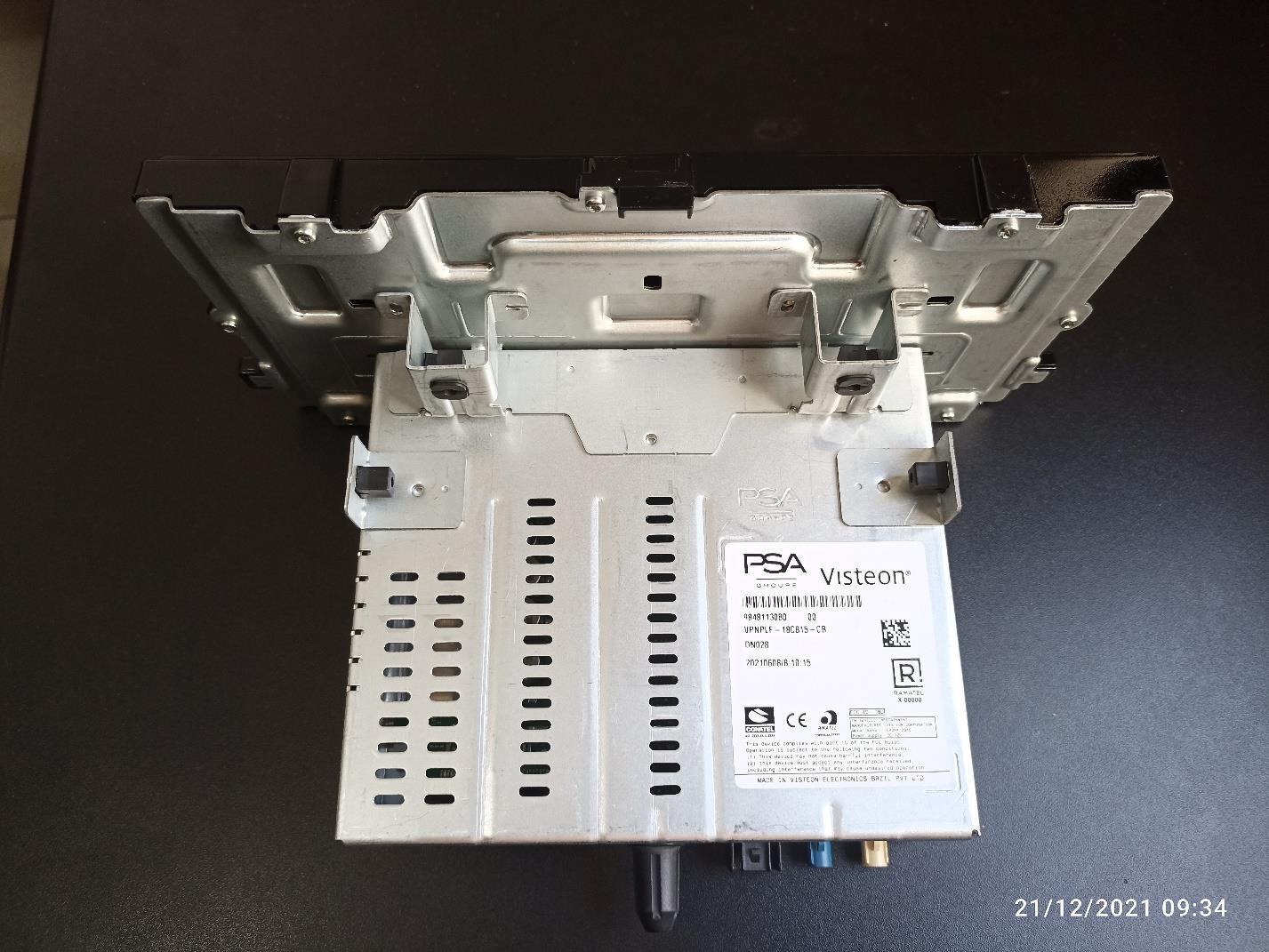

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 1 of 4 03-24-2022 Appendix B: Photographs DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 2 of 4 03-24-2022 Figure B1: Front view of the DUT Figure B2: Rear view of the DUT DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 3 of 4 03-24-2022 Figure B3: Side view of the DUT Figure B4: View of the DUT, and Harness DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3231ERM.008A1 Page 4 of 4 03-24-2022 Figure B5: Radiated emission Setup – Low Range 30 to 1000 MHz Figure B6: Radiated emission Setup – High Range 1 to 18 GHz
