NT8-MAZDA68CMUAutomotive Electronics Infotainment Head Unit

5–14 Interior Features Before Using the Audio System Audio Control Switch Adjusting the Volume To increase the volume, press up the volume switch ( ). To decrease the volume, press down the volume switch ( ). Seek Switch AM/FM radio Press the seek switch ( , ). The radio switches to the next/previous stored station in the order that it was stored. Press and hold the seek switch ( , ) to seek all usable stations at a higher or lower frequency whether programmed or not. Radio stations which have been previously stored in the favorite radio can be called up by pressing the seek switch ( , ) while any radio station stored in the favorite radio is being received. Radio stations can be called up in the order they were stored with each press of the switch ( , ). USB Audio/Bluetooth ® Audio Press the seek switch ( ) to skip forward to the beginning of the next track. Press the seek switch ( ) within a few seconds after playback begins to track down to the beginning of the previous track. Press the seek switch ( ) after a few seconds have elapsed to start playback from the beginning of the current track. Press and hold the seek switch ( , ) to continuously switch the tracks up or down. %:A(5'#-A'FKVKQPKPFD 5–15 Interior Features Before Using the Audio System Pandora ® /Aha™/Stitcher™ Radio Press the seek switch ( ) to skip forward to the beginning of the next track. Press and hold the seek switch ( ) to evaluate the playback of the current song as “Like”. Press and hold the seek switch ( ) to evaluate the playback of the current song as “Dislike”. AUX/USB Audio can be heard from the vehicle's speakers by connecting a commercially- available portable audio unit to the auxiliary jack. A commercially-available, non-impedance (3.5 ) stereo mini plug cable is required. Contact an Authorized Mazda Dealer for details. In addition, audio can be played from the vehicle audio device by connecting a USB device to the USB port. NOTE The SD card slot is for the navigation system. For vehicles with the navigation system, the SD card (Mazda genuine) with stored map data is inserted into the SD card slot and used. USB port Auxiliary jack How to use AUX mode ......... page 5-34 How to use USB mode .......... page 5-35 %:A(5'#-A'FKVKQPKPFD 5–16 Interior Features Before Using the Audio System WARNING Do not adjust the portable audio unit or a similar product while driving the vehicle: Adjusting the portable audio unit or a similar product while driving the vehicle is dangerous as it could distract your attention from the vehicle operation which could lead to a serious accident. Always adjust the portable audio unit or a similar product while the vehicle is stopped. CAUTION Depending on the portable audio device, noise may occur when the device is connected to the vehicle accessory socket. (If noise occurs, do not use the accessory socket.) NOTE y This mode may not be usable depending on the portable audio device to be connected. y Before using the auxiliary jack/USB port, refer to the instruction manual for the portable audio device. y Use a commercially-available, non- impedance (3.5 ) stereo mini plug for connecting the portable audio unit to the auxiliary jack. Before using the auxiliary jack, read the manufacturer's instructions for connecting a portable audio unit to the auxiliary jack. y To prevent discharging of the battery, do not use the auxiliary input for long periods with the engine off or idling. y When connecting a device to the auxiliary jack or USB port, noise may occur depending on the connected device. If the device is connected to the vehicle's accessory socket, the noise can be reduced by unplugging it from the accessory socket. %:A(5'#-A'FKVKQPKPFD 5–17 Interior Features Before Using the Audio System How to connect USB port/ Auxiliary jack USB portAuxiliary jack Connecting a device 1. Open the console lid. 2. Connect the connector on the device to the USB port. Connecting with a connector cable 1. Open the console lid. 2. Connect the device plug/connector cable to the auxiliary jack/USB port. Pass the device plug/connector cable through the notch in the console and connect. WARNING Do not allow the connection plug cord to get tangled with the shift lever: Allowing the plug cord to become tangled with the shift lever is dangerous as it could interfere with driving, resulting in an accident. CAUTION Do not place objects or apply force to the auxiliary jack/USB port with the plug connected. NOTE y Insert the plug into the auxiliary jack/ USB port securely. y Insert or pull out the plug with the plug perpendicular to the auxiliary jack/USB port hole. y Insert or remove the plug by holding its base.  %:A(5'#-A'FKVKQPKPFD 5–18 Interior Features Before Using the Audio System Antenna Antenna %:A(5'#-A'FKVKQPKPFD 5–19 Interior Features Audio Set Basic Operation Method NOTE The explanation of functions described in this manual may differ from the actual operation, and the shapes of screens and buttons and the letters and characters displayed may also differ from the actual appearance. Additionally, depending on future software updates, the content may successively change without notice. Audio Set has three different human interfaces. y Commander switch y Touch panel y Voice recognition with steering switch and microphone  Refer to Voice Recognition on page 5-67 . Commander switch operation NOTE For safety reasons, some operations are disabled while the vehicle is being driven. Volume dial operation Volume dial Press the volume dial to switch the audio MUTE on and off. Turn the volume dial to adjust the volume. The volume increases by turning the dial clockwise, and decreases by turning it counterclockwise. %:A(5'#-A'FKVKQPKPFD…

Text truncated - open the document above for the full version.

MAZDA_68_CMU External Photos Internal Photos

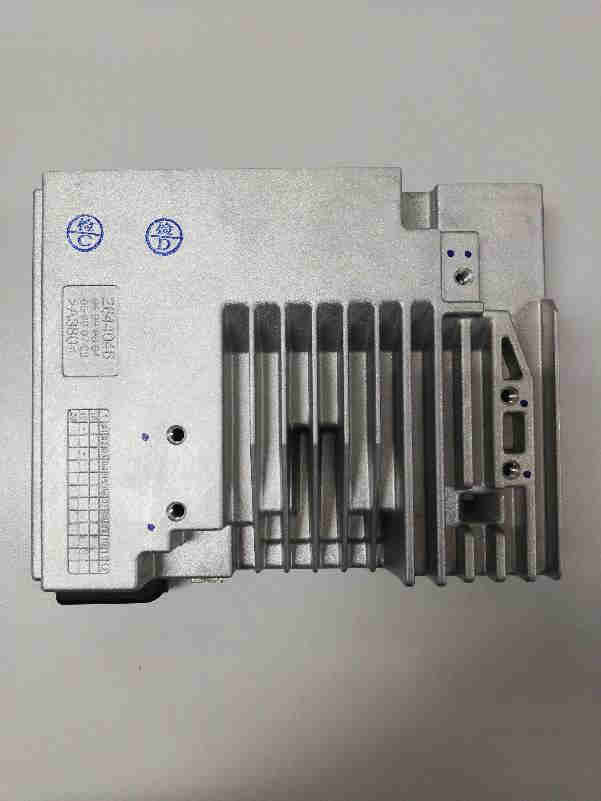

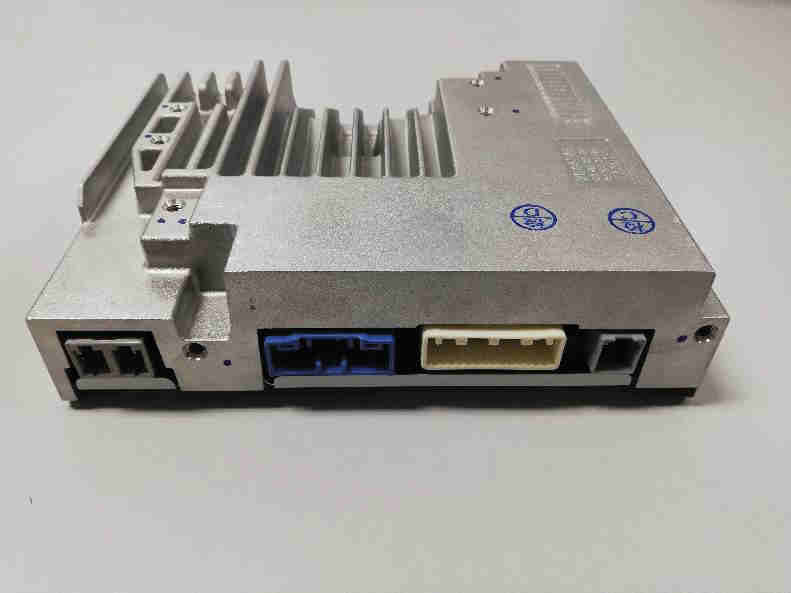

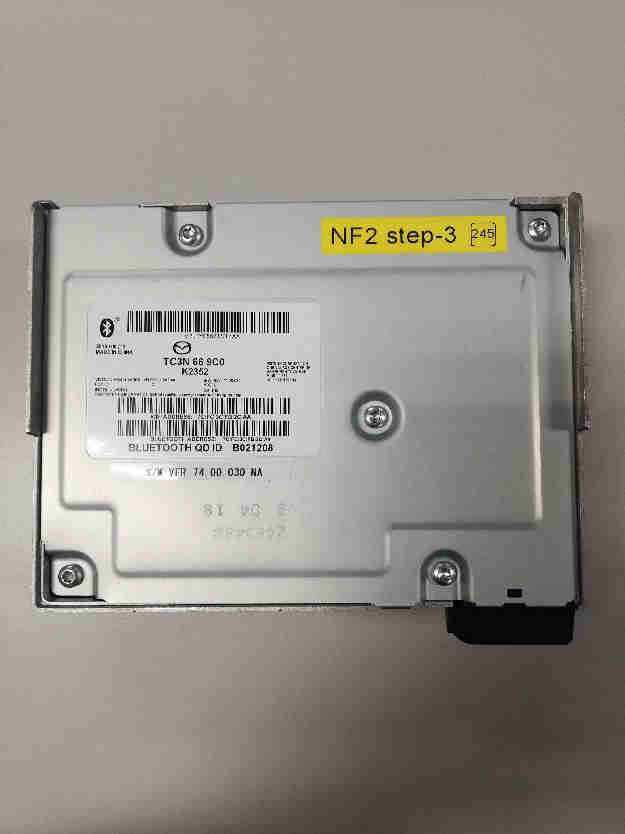

MAZDA_68_CMU External Photos

Internal Photos

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.005 02-17-2020 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 2668ERM.005 Test report FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-18 Edition) & ICES-003 ISSUE 6 – Update April (2017) Identification of item tested Automotive Electronics Infotainment Head Unit Trademark Visteon Corporation Model and /or type reference MAZDA_68_CMU Other identification of the product --- Features Bluetooth 4.0 + EDR, 802.11b/g/n Manufacturer VISTEON CORPORATION One Village Center Drive, Van Buren Township, MI 48111, USA Test method requested, standard FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-18 Edition) ICES-003 ISSUE 6 – Update April (2017) Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-17-2020 Report template No FDT08_21 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.005 Page 2 of 16 02-17-2020 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client............................................................................................................. 7 Testing period and place ............................................................................................................. 7 Document history ........................................................................................................................ 7 Environmental conditions ............................................................................................................ 8 Remarks and comments ............................................................................................................. 8 Testing verdicts ........................................................................................................................... 9 Summary .................................................................................................................................... 9 List of equipment used during the test......................................................................................... 9 Appendix A: Test results ........................................................................................................... 10 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.005 Page 3 of 16 02-17-2020 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies. Uncertainty Uncertainty (factor k=2) was calculated according to the DEKRA Certification internal document PODT000. Frequency (MHz) U(k=2) Units Conducted emission 0,009 - 30 2.69 dB Radiated emission 30-180 3.82 dB 180-1000 2.61 dB 1000-18000 2.92 dB 18000-40000 2.15 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.005 Page 4 of 16 02-17-2020 Data provided by the client The CMU is an infotainment head unit that combines a wealth of options and features into the Mazda vehicle. Bluetooth, Wi-Fi, USB, touch screen capability, navigation and connected services are all features that the CMU has control over. The CMU is designed to have a multimodal interface where the user can exercis…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 02-18-2020 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 2668ERM.006 Test report USA FCC Part 15.247, 15.209, 15.207 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices. Identification of item tested Automotive Electronics Infotainment Head Unit Trademark Visteon Corporation Model and /or type reference MAZDA_68_CMU Other identification of the product -- Features Bluetooth 4.0 + EDR, 802.11b/g/n Manufacturer VISTEON CORPORATION ONE VILLAGE CENTER DRIVE, VAN BUREN TOWNSHIP, MI, 48111 U.S. A Test method requested, standard USA FCC Part 15.247, 10-1-18 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209, 10-1-18 Edition: Radiated emission limits; general requirements CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5 (April 2018). 558074 D01 15.247 Meas Guidance v05r02. Guidance for Compliance Measurements on Digital Transmission Systems, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating Under section §15.247 of the FCC Rules ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 02-18-2020 Report template No FDT08_21 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 2 of 143 02-18-2020 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client............................................................................................................. 6 Testing period and place ............................................................................................................. 6 Document history ........................................................................................................................ 6 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 7 Testing verdicts ........................................................................................................................... 8 Summary .................................................................................................................................... 8 List of equipment used during the test......................................................................................... 9 Appendix A: Test results (Bluetooth EDR) ................................................................................ 10 Appendix B: Test results (Wi-Fi 2.4GHz) ................................................................................... 84 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 3 of 143 02-18-2020 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. an…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 76 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Highest (2480 MHz) Level in dBμV/m TEST RESULTS (Cont.): RESTRICTED BAND 2.31 GHz – 2.5 GHz (PI4DQPSK) CHANNEL: Lowest (2402 MHz) Level in dBμV/m DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 77 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Middle (2440 MHz) Level in dBμV/m CHANNEL: Highest (2480 MHz) Level in dBμV/m DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 78 of 143 02-18-2020 TESTED SAMPLES: S/02 TESTED CONDITIONS MODES: TC#03 (8DPSK) TEST RESULTS: PASS Frequency range 30 MHz – 1000 MHz The spurious emissions below 1 GHz do not depend on the operating channel selected in the EUT. GFSK modulation was selected as a worst case. Frequency range 1 GHz – 26 GHz The results in the following plots and tables show the maximum measured levels in the 1-26 GHz range including the restricted bands 2.31 - 2.39 GHz and 2.4835 - 2.5 GHz. TEST RESULTS (Cont.) 1 GHz – 18 GHz (8DPSK) CHANNEL: Lowest (2402 MHz) Level in dBμV/m Maximizations Frequency (MHz) PK+_MAXH (dBμV/m) AVG_MAXH (dBμV/m) Pol Comment 2402.000000 91.3 86.2 H Fundamental 7206.000000 48.0 39.7 V 9609.000000 46.2 38.6 V DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 79 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Middle (2440 MHz) Level in dBμV/m Maximizations Frequency (MHz) PK+_MAXH (dBμV/m) AVG_MAXH (dBμV/m) Pol Comment 2440.000000 89.1 88.6 H Fundamental 7320.000000 44.2 35.9 H DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 80 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Highest (2480 MHz) Level in dBμV/m Maximizations Frequency (MHz) PK+_MAXH (dBμV/m) AVG_MAXH (dBμV/m) Pol Comment 2480.000000 89.7 89.2 H Fundamental 7440.000000 45.3 38.2 V DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 81 of 143 02-18-2020 TEST RESULTS (Cont.) 18 GHz – 26 GHz (8DPSK) CHANNEL: Lowest (2402 MHz) Level in dBμV/m CHANNEL: Middle (2440 MHz) Level in dBμV/m DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 82 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Highest (2480 MHz) Level in dBμV/m RESTRICTED BANDS 2.31 GHz – 2.5 GHz (8DPSK) CHANNEL: Lowest (2402 MHz) Level in dBμV/m DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 83 of 143 02-18-2020 TEST RESULTS (Cont.) CHANNEL: Middle (2440 MHz) Level in dBμV/m CHANNEL: Highest (2480 MHz) Level in dBμV/m DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 84 of 143 02-18-2020 Appendix B: Test results (Wi-Fi 2.4GHz) DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 85 of 143 02-18-2020 Appendix B Content PRODUCT INFORMATION ...................................................................................................... 86 DESCRIPTION OF TEST CONDITIONS .................................................................................. 87 TEST B.1: 99% OCCUPIED BANDWIDTH AND 6DB BANDWIDTH......................................... 88 TEST B.2: MAXIMUM CONDUCTED OUTPUT POWER AND ANTENNA GAIN .................... 101 TEST B.3: BAND-EDGE EMISSIONS COMPLIANCE (TRANSMITTER) ................................ 108 TEST B.4: POWER SPECTRAL DENSITY ............................................................................. 121 TEST B.5: EMISSION LIMITATIONS RADIATED (TRANSMITTER)....................................... 128 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 86 of 143 02-18-2020 PRODUCT INFORMATION The following information is provided by the supplier, in accordance with clause 5.4.1: Information Description Modulation DSSS/CCK, OFDM, BPSK, DBPSK, QPSK, DQPSK, 8PSK, 16QAM, 64QAM Adaptive Adaptive equipment without the possibility to switch to a non-adaptive mode. Maximum RF Output Power 32.2 mW Operating Frequency Range 2401 – 2483.5 MHz Nominal Channel Bandwidth 20 MHz Extreme operating conditions - Temperature range -30 ºC to +85 ºC Antenna type Integral antenna Antenna gain +0.38 dBi Nominal Voltage - Supply Voltage 12 Vdc - Type of power source DC voltage Equipment type Wi-Fi 2.4GHz b/g/n20 Geo-location capability No DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2668ERM.006 Page 87 of 143 02-18-2020 DESCRIPTION OF TEST CONDITIONS During transmitter test the EUT was being controlled by the SW tool to operate in a continuous transmit mode on the test channel as required and in each of the different modulation modes. TEST CONDITIONS DESCRIPTION TC#01 (1) (b mode) Power supply (V): V nominal = 12 Vdc Channel Bandwidth: 20 MHz Test Frequencies for Conducted/Radiated tests Lowest channel: 2412 MHz Middle channel: 2437 MHz Highest channel: 2462 MHz TC#02 (1) (g mode) Power supply (V): V nominal = 12 Vdc Channel Bandwidth: 20 MHz Test Frequencies for Conducted/Radiated tests Lowest channel: 2412 MHz Middle channel: 2437 MHz Highest channel: 2462 MHz TC#03 (1) (n mode) Power supply (V): V nominal = 12 Vdc Channel Bandwidth: 20 MHz Test Frequencies for Conducted/Radiated tests Lowest channel: 2412 MHz Middle channel: 2437 MHz Highest channel: 2462 MHz Note (1): For spurious emissions for OFDM modes 802.11g and 802.11n20 a preliminary scan was performed to determine the worst case. The following tables and plots show the results for DSSS modulation (8…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 59866RAN.002 2020-02-11 Test report No: NIE: 59866RAN.002 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091 ISED RSS-102 Issue 5:2015 (*) Identification of item under evaluation Automotive Electronics Infotainment Head Unit (*) Trademark Visteon Corporation (*) Model and /or type reference MAZDA_68_CMU Other identification of the product FCC ID: NT8-MAZDA68CMU IC: 3043A-MAZDA68CMU HW version: VPHALF-14B115-FD SW version: 74.00.040A (*) Features Bluetooth 4.0 + EDR, 802.11b/g/n Manufacturer VISTEON CORPORATION One Village Center Drive City Van Buren Township, Zip code: 48111 USA Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ISED RSS-102 Issue 5 (2015-03) – Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) IEEE Std C95.3 TM -2002 (R2008). IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to Such Fields, 100 kHz–300 GHz Summary IN COMPLIANCE Approved by (name / position & signature) Miguel Lacave Antennas Lab Manager Date of issue 2020-02-11 Report template No FAN36_01 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 59866RAN.002 Page 2 of 11 2020-02-11 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 4 General description of the device under evaluation ..................................................................... 4 RF Exposure Assessment result and verdict ............................................................................... 5 Appendix A: FCC RF Exposure information ................................................................................ 6 FCC RF Exposure evaluation ................................................................................................. 7 FCC MPE Evaluation ............................................................................................................. 8 Appendix B: ISED RF Exposure information ............................................................................... 9 ISED RF Exposure evaluation for mobile devices ................................................................. 10 ISED MPE Evaluation .......................................................................................................... 11 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 59866RAN.002 Page 3 of 11 2020-02-11 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification, S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification, S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification, S.A.U. at the time of performance of the test. DEKRA Testing and Certification, S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification, S.A.U. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification, S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification, S.A.U. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested"). 2. Maximum output power and maximum antenna gain information. 3. The device CMU consists of an infotainment head unit that combines a wealth of options and features into the Mazda vehicle. Bluetooth, Wi-Fi, USB, touch screen capability, navigation and connected services are all features that the CMU has control over. The CMU is designed to have a multimodal interface where the user can exercise the system using voice control, multimodal co…
