NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 July 5, 2006 Dear Application Examiner: On behalf of Visteon Corporation, Northwest EMC Inc is submitting this application for the certification of Visteon Corporation VMVL3.1a transmitter, FCC ID: NT807NBTHFA. It operates in the 2400 – 2483.5 MHz band with a conducted peak output power of 1.58 mW. It is a Bluetooth radio used for wireless voice link in automotive applications. Visteon Corporation is seeking approval under FCC 15.247. The EUT can operate with only one antenna as described in this application. An antenna exhibit has been provided that demonstrates compliance with 47 CFR 15.203. It has a gain of 4 dBic, (dBic – 3 dB = dBi) therefore the only antenna provided has a gain of 1 dBi. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247. An RF Exposure exhibit has been provided that demonstrates compliance. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

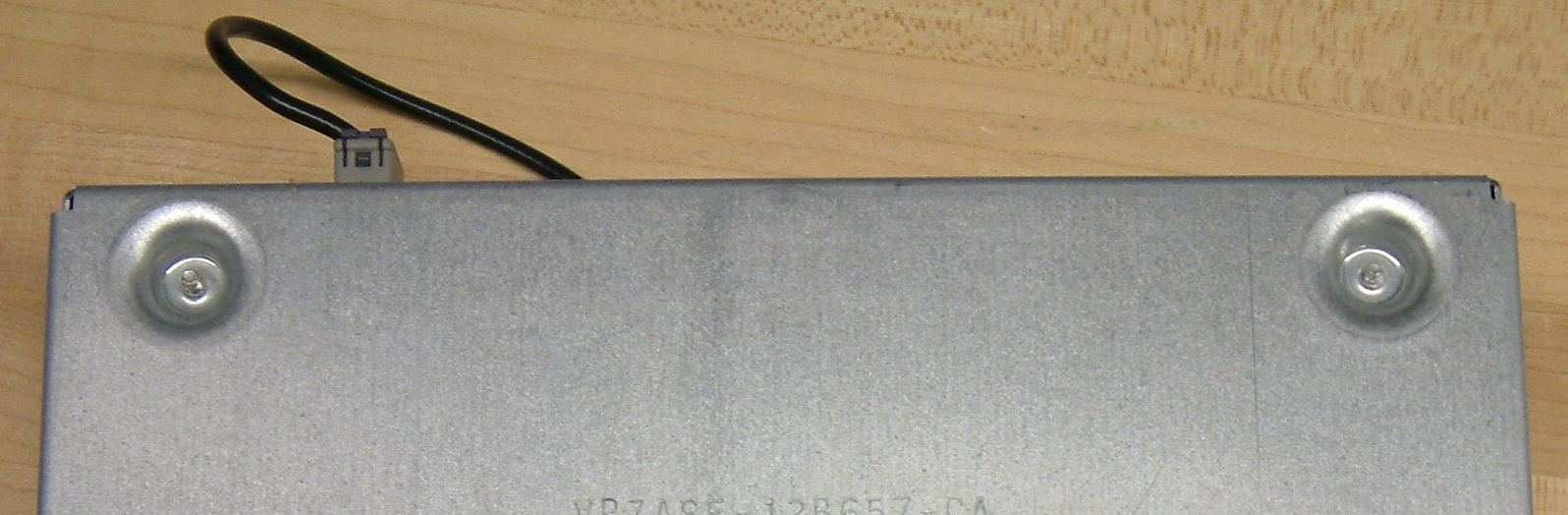

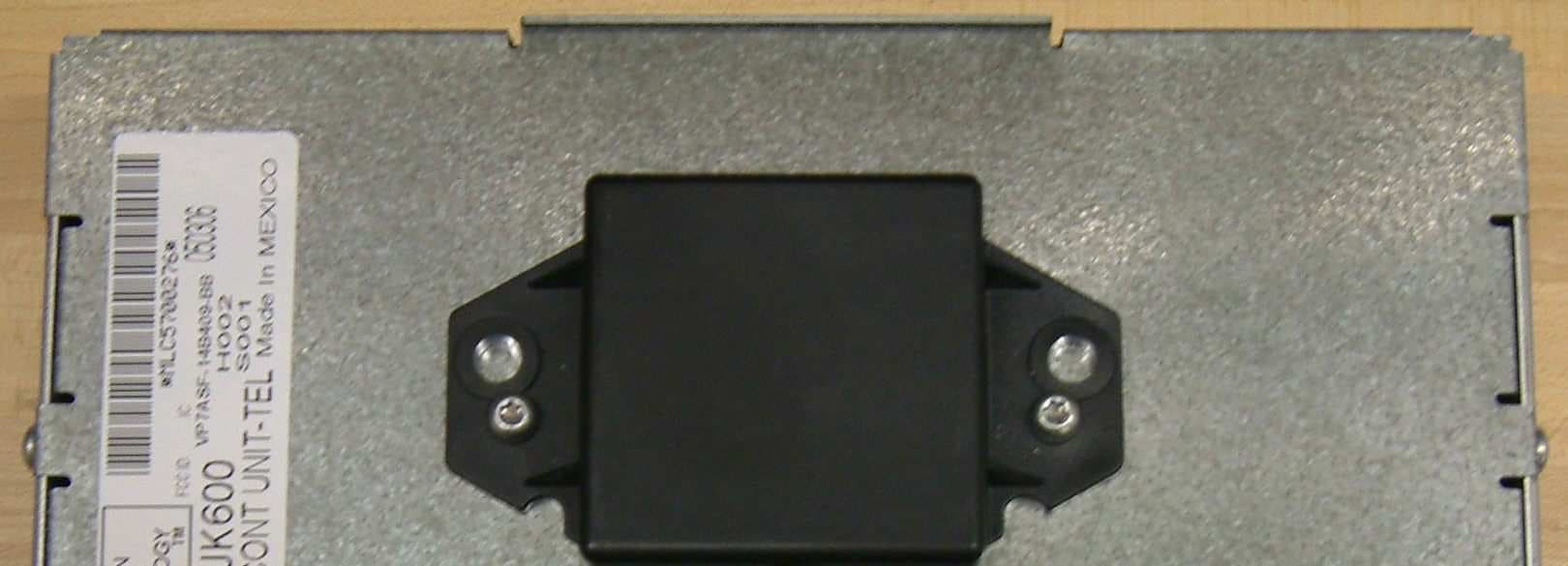

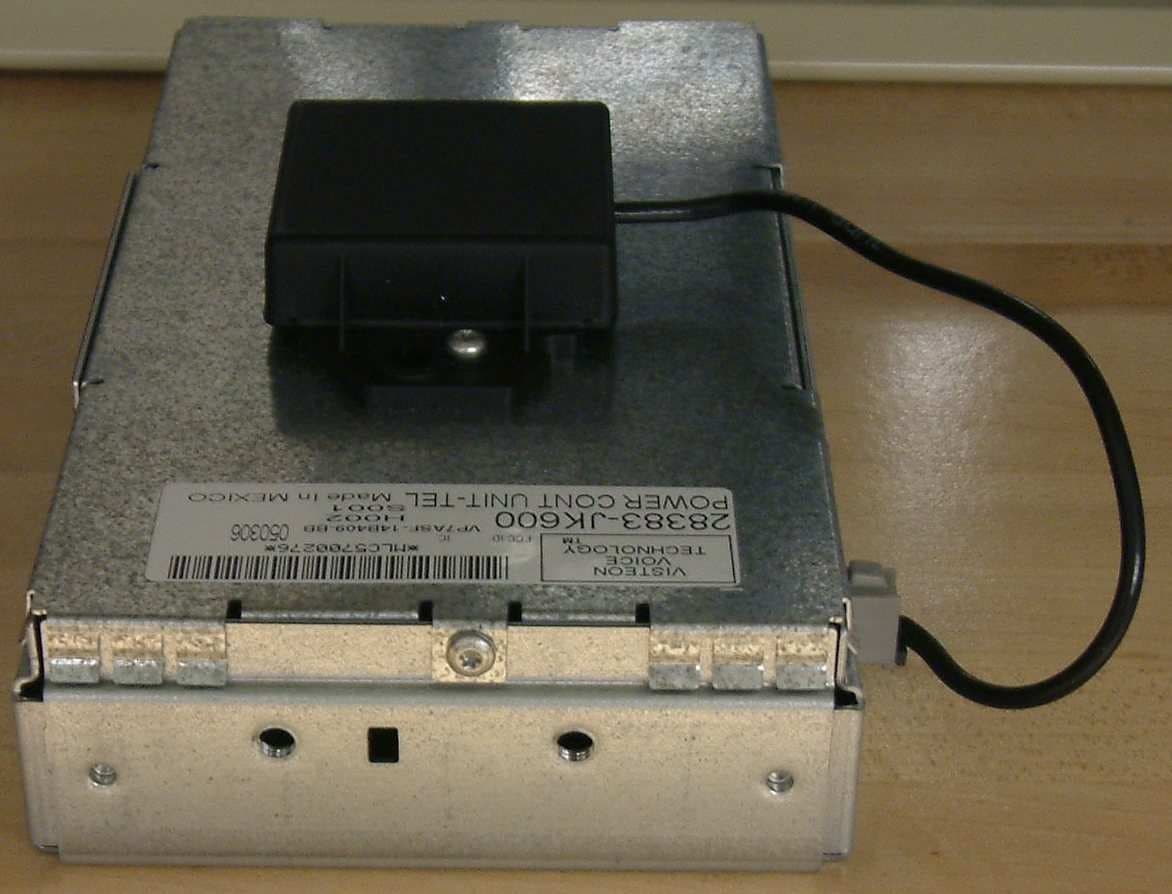

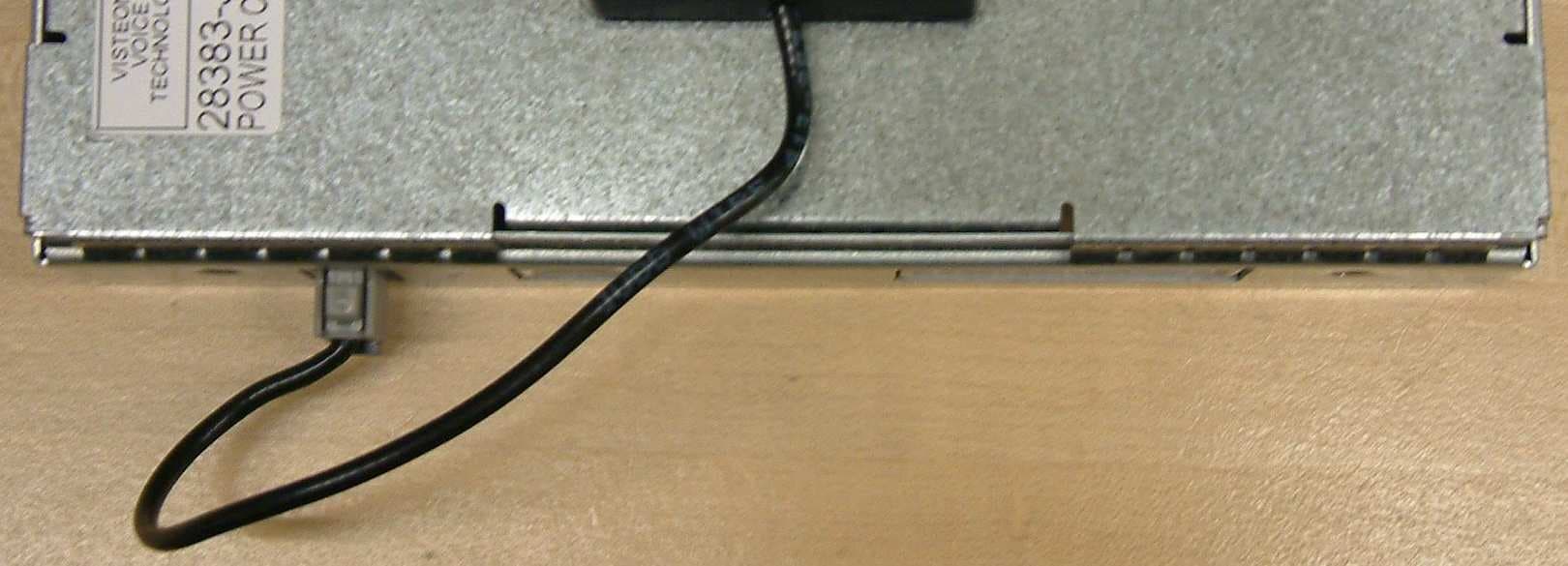

VMVL3.1a – External Photos

David Pop Lead Engineer June 29, 2006 Visteon Corporation One Village Center Drive Van Buren Township, MI 48111 Suite 30.2.077 Tel: 734.710.7703 Fax: 734-736-5598 Email: [email protected] Visteon Bluetooth Antenna Information Antenna Type: RHCP Rectangular Patch Part Number: VP5ASF-19C037-AA Max Gain: 4dBic Drawing: FC End of Document

Antenna Type Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) PatchVP5ASF-19C037-AA24002100.0011.6 FCC ID: NT807NBTHFA Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a Bluetooth radio used for wireless voice link in automotive applications. The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The antenna is a RHCP Rectangular Patch antenna attached to the unit with a unique connector. The antenna has a gain of 1 dBi (4 dBic – 3db = 1 dBi). The maximum peak conducted output power is 1.58 mW. The maximum peak power is 2 mW (EIRP) for FCC ID: NT807NBTHFA. The transmit frequency is 2402 - 2480 MHz. Since the transmit frequency is greater than 1.5 GHz, and the output power is less than 5 W ERP, the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population as (f MHz /1500) mW/cm 2 . The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power density 20 cm from the transmitting antenna is summarized in the following table: The power density does not exceed 1.6mW/cm 2 at 20 cm; therefore, the exposure condition is compliant with FCC rules. The applicant’s radio, FCC ID: NT807NBTHFA, is compliant with the requirements of 15.247(i).

Visteon VMVL3.1a July 19, 2006 Report No. VIST0001 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2006 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: July 19, 2006 Visteon Model: VMVL3.1a Emissions Test Description Specification Test Method Pass Fail Radiated Emissions FCC 15.109(g) (CISPR 22:1997) Class A:2005-10 ANSI C63.4:2003 AC Powerline Conducted Emissions FCC 15.207 AC Powerline Conducted Emissions: 2005-9 ANSI C63.4:2003 Occupied Bandwidth FCC 15.247(a) Occupied Bandwidth:2005-9 ANSI C63.4:2003 Output Power FCC 15.247(b) Output Power:2005-9 ANSI C63.4:2003 Band Edge Compliance FCC 15.247(d) Band Edge Compliance:2005-9 ANSI C63.4:2003 Spurious Conducted Emissions FCC 15.247(d) Spurious Conducted Emissions:2005-9 ANSI C63.4:2003 Spurious Radiated Emissions FCC 15.247(d) Spurious Radiated Emissions:2005-9 ANSI C63.4:2003 Power Spectral Density FCC 15.247(e) Power Spectral Density:2005-9 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Dean Ghizzone, President This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLA…

Text truncated - open the document above for the full version.

NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2006.05.30 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2006.05.30 NORTHWEST EMC OCCUPIED BANDWIDTH XMit 2006.03.01 NORTHWEST EMC Output Power XMit 2006.03.01 NORTHWEST EMC POWER SPECTRAL DENSITY XMit 2006.03.01 NORTHWEST EMC Radiated Emissions PSA 2006.05.30 NORTHWEST EMC SPURIOUS CONDUCTED EMISSIONS XMit 2006.03.01 NORTHWEST EMC Conducted Emissions ACQ 2006.05.30 NORTHWEST EMC BAND EDGE COMPLIANCE XMit 2006.03.01
