FCC CERTIFICATION TEST REPORT prepared for MULTIPLEX USA 14751 Calvert Street Van Nuys, CA 91411 FCC ID: NT9PROFIROYAL January 19, 2000 WLL PROJECT #: 5229X This report shall not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. MULTIPLEX USA FCC ID: NT9PROFIROYAL WLL Project #: 5229X i TABLE OF CONTENTS Statement of Qualifications ________________________________________________ 1.0 INTRODUCTION................................................................................................................................................. 2 1.1 S UMMARY............................................................................................................................................................ 2 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................... 2 3.0 TEST CONFIGURATION................................................................................................................................... 2 3.1 RF O UTPUT POWER (FCC RULE PART 95.639) ................................................................................................... 3 3.2 A UTHORIZED BANDWIDTH (FCC RULE PART 95.633) ......................................................................................... 3 3.3 R ADIATED EMISSIONS TESTING (FCC RULE PART 95.635) .................................................................................. 3 3.3.1 Radiated Data Reduction and Reporting ..................................................................................................... 4 3.4 F REQUENCY STABILITY (FCC RULE PART 95.623) .............................................................................................. 6 TABLES Table 1.Radiated Emissions Data Table 2.Measurement Equipment Used APPENDICES Appendix A.Occupied Bandwidth Plot Appendix B.Statement of Measurement Uncertainty MULTIPLEX USA FCC ID: NT9PROFIROYAL WLL Project #: 5229X 1 MULTIPLEX USA FCC ID: NT9PROFIROYAL WLL Project #: 5229X 2 FCC CERTIFICATION REPORT for MULTIPLEX USA 1.0 Introduction This report has been prepared on behalf of MULTIPLEX USA in support of their application for FCC Certification under Part 95 of the FCC Rules and Regulations for an R/C transmitter. The Equipment Under Test was the PROFI mc 4000 Radio model aircraft remote control transmitter. All measurements were performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code 200066-0) as an independent FCC test laboratory. Measurements were made on the Equipment Under Test in accordance with FCC Rule Part 2 and Part 95, specifically the requirements stipulated in Part 95 Subpart E โ Technical Regulations All results reported herein relate only to the item tested. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. The measurement uncertainty of the data contained herein is ยฑ2.3 dB. Refer to Appendix C for Statement of Measurement Uncertainty. 1.1 Summary The MULTIPLEX USA PROFI mc 4000 Radio complies with the technical requirements of Part 95 of the FCC Rules and Regulations. 2.0 Description of Equipment Under Test (EUT) The MULTIPLEX USA PROFI mc 4000 Radio is a model aircraft remote control transmitter. The EUT is hand- held battery powered and provides for the remote operation of model aircraft. The unit operates in the 72.01-72.99 MHz band reserved for this purpose and provides control for full aircraft flight. The R/C transmitter uses FM-PPM modulation with a frequency deviation of 1.5 kHz. 3.0 Test Configuration To complete the test configuration required by the FCC, the R/C Transmitter was tested with the transmitter being set to continuously transmit. For emissions testing the EUT antenna was placed both horizontally and vertically. A power supply was used to power the EUT and to avoid battery drain. MULTIPLEX USA FCC ID: NT9PROFIROYAL WLL Project #: 5229X 3 3.1 RF Output Power (FCC Rule Part 95.639) The EUT was placed on a 0.8m table with the antenna fully extended. A power charging cord was connected to keep the unit at full charge power, however, the unit only runs off batteries. The output from the transmitter was connected to a 10 dB attenuator and then to the input of an HP 8568B RF Spectrum Analyzer. The analyzer offset was adjusted to compensate for the 10 dB attenuator. The RF output power across a 50 ohm load termination was measured directly by the analyzer. RESULTS: The measured RF output power was 25 dBm, or 0.316 W. LIMIT:For 72-76 MHz operation: 0.75 W 3.2 Authorized Bandwidth (FCC Rule Part 95.633) The authorized bandwidth was measured using the same setup that was used for the RF power measurements test except for the spectrum analyzer resolution bandwidth was set to 1000 Hz. Results of the testing are displayed in Appendix A of this report. RESULTS:7.85 kHz LIMIT:8 kHz 3.3 Radiated Emissions Testing (FCC Rule Part 95.635) The EUT was placed on an 80 cm high, 1 X 1.5 meters non-conductive motorized turntable for radiated testing on a 3 meter open field test site. The emissions from the EUT were measured continuously at every azimuth by rotating the turntable. Broadband antennas were mounted on an antenna mast to determine the height of maximum emissions. The height of the antenna was varied between 1 and 4 meters. Horizontal and vertical field components were measured. The EUT was setup in a fixed in an upright position with the antenna vertical and laying flat and with the antenna horizontal. The batteries were fully charged during testing. Emissions were measured in both vertical and horizontal polarization. The output from the antenna was connected, via a preamplifier, to the input of the sโฆ
Text truncated - open the document above for the full version.
7560 Lindbergh Drive ยท Gaithersburg, Maryland ยท United States
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 95C | 72.01 MHz - 72.99 MHz | 316.00 mW | 8K00F3D | 0.0020000000 % |

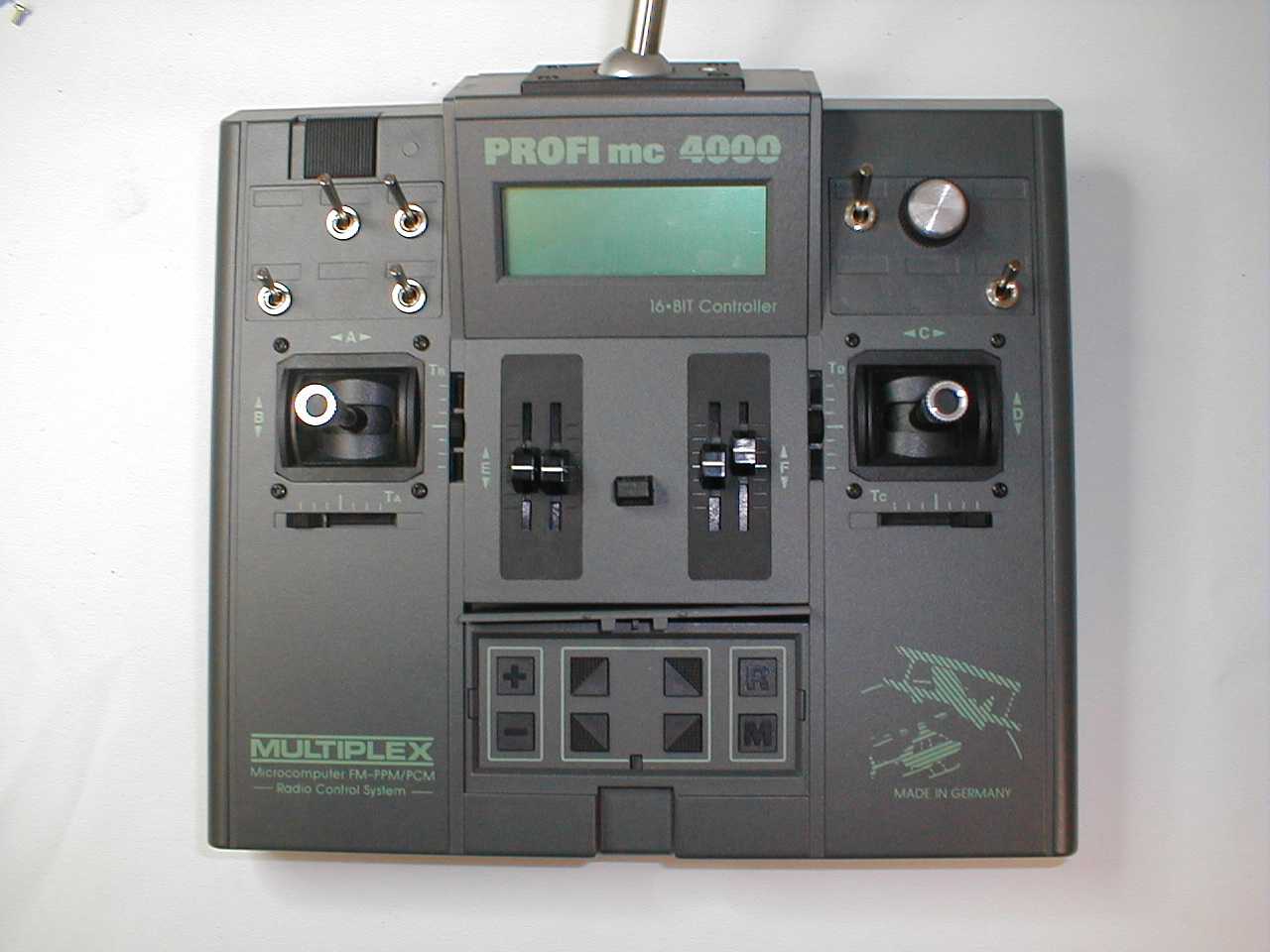

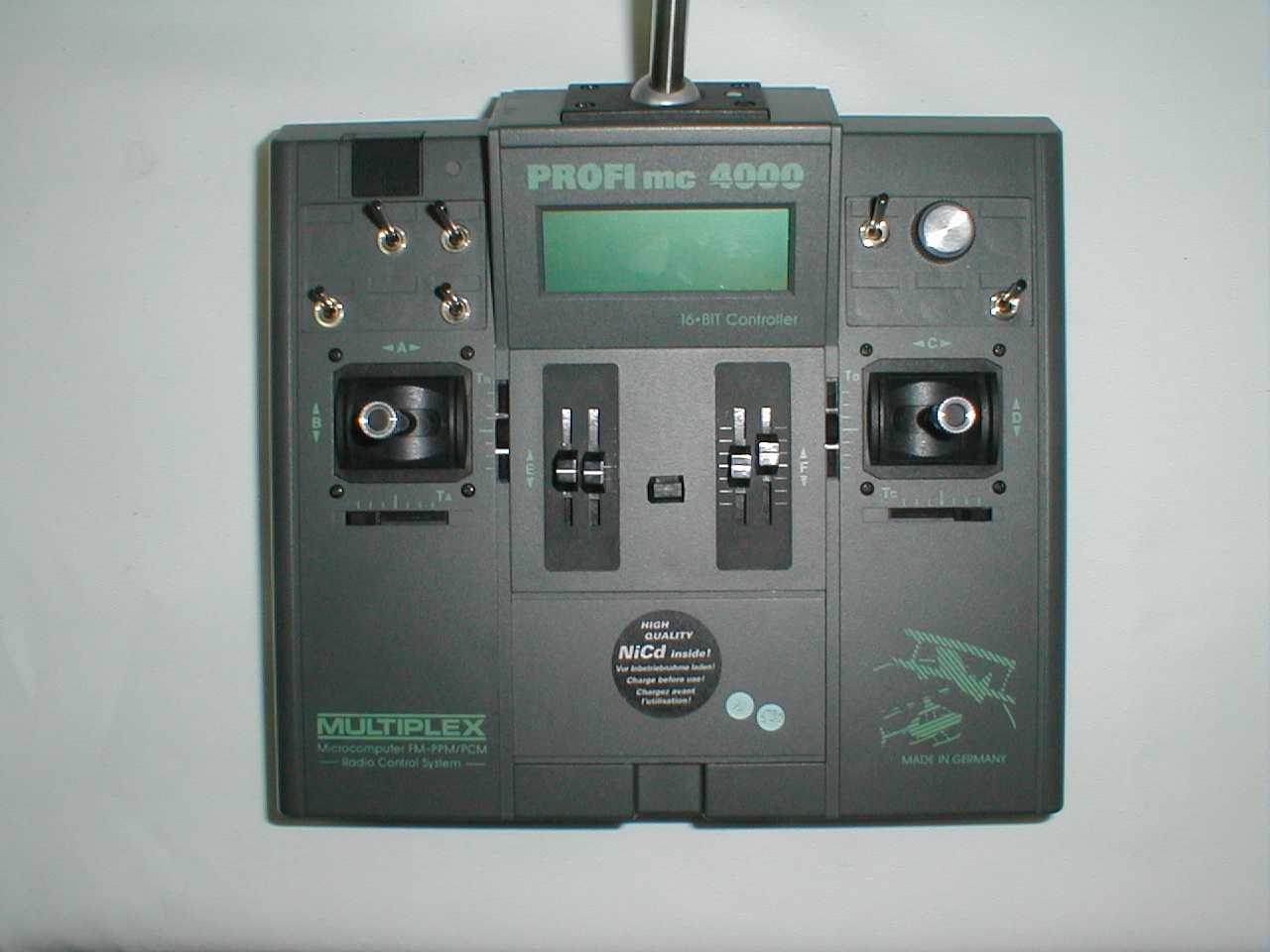

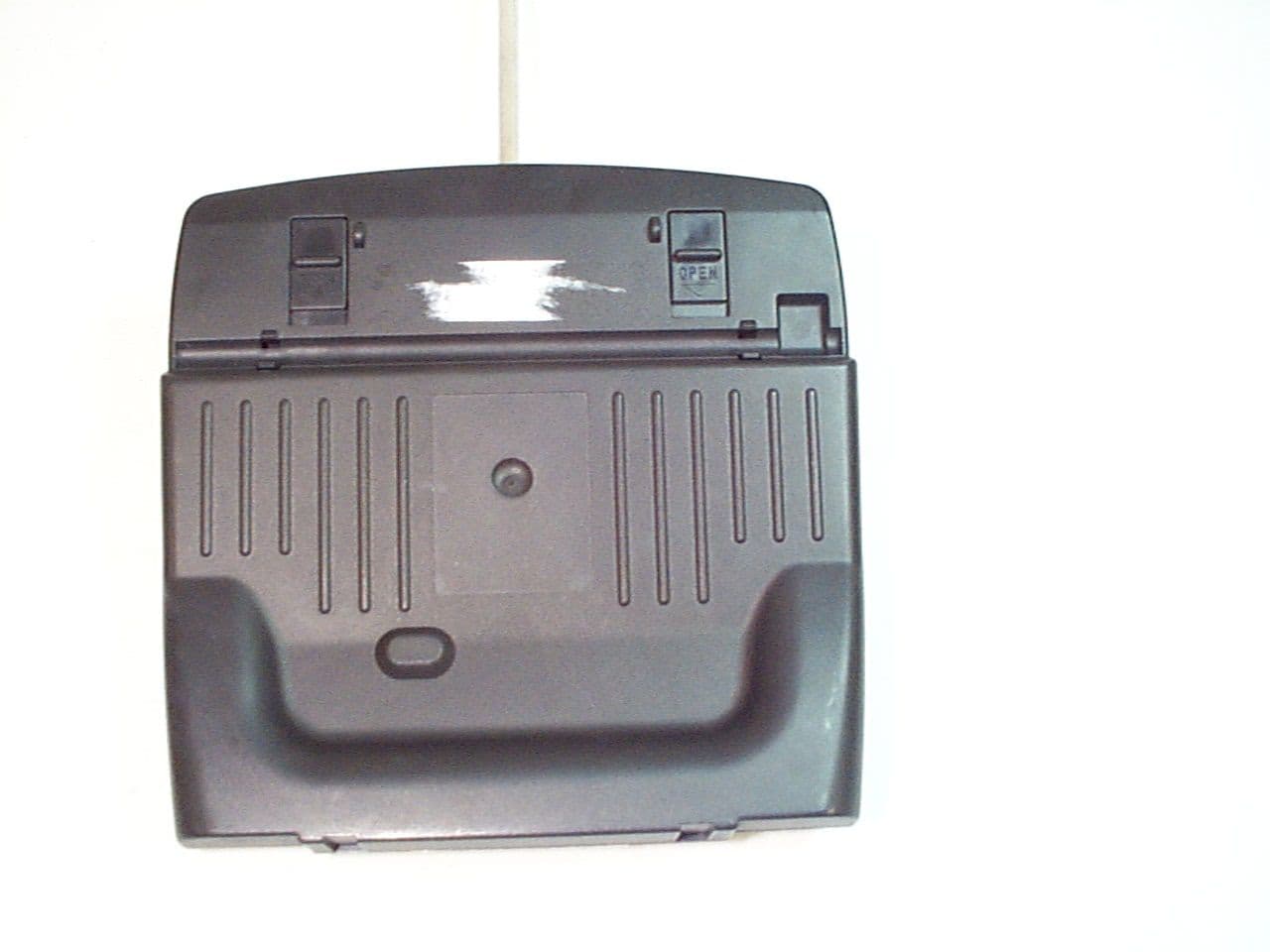

Model Aircraft Radio Control Transmitter
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Remote Control Transmitter
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
