NVB63102Walkie Talkie

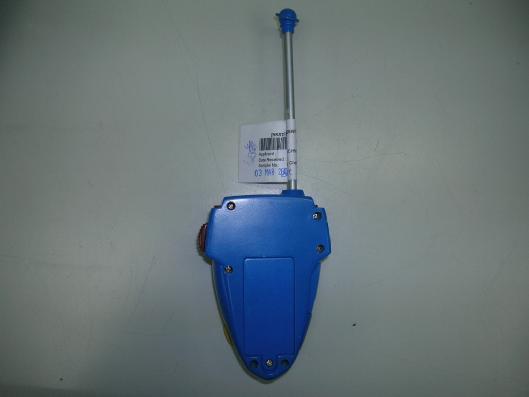

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Application No.: HM156086 Date: 15 March 2006 FCC ID: NVB63102 Circuit Description The 49.86 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Speaker. The output of Q1 has the matching network consisting of L1, T1and C6, C7 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 11.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery. Operation Descriptions The transmitter is a Toy Walkie Talkie operating at 49.86MHz band. The transmitter is powered by a 9V battery (6F22) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 49.86 carrier frequency. Remarks: The transmitter is a 1 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Voice transmitter, Modulation by Speaker; and type is Amplitude modulation.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 1 of 16 No. : HM156086 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Super Technology Limited. Suite #1203, Chinachem Golden Plaza 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Description of Samples: Model name: Superman Movie-Walkie Talkie Model no.: 63102 Brand name: Waner Bros FCC ID: NVB63102 Date Samples Received: 2006-02-22 Date Tested: 2006-03-07 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 2 of 16 No. : HM156086 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-11 of 16 3.2 Bandwidth Measurement Page 12-13 of 16 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 3 of 16 No. : HM156086 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 4 of 16 No. : HM156086 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Super Technology Limited. Suite #1203, Chinachem Golden Plaza 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 5 of 16 No. : HM156086 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Superman Movie-Walkie Talkie Manufacturer: N/A Brand Name: Waner Bros Model Number: 63102 Input Voltage: 9Vd.c (“6F22” battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Super Technology Limited., Superman Movie- Walkie Talkie. The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by speaker, and type is amplitude modulation. 1.4 Date of Order 2006-02-22 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2006-03-07 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-03-13 TEST REPORT Page 6 of 16 No. : HM156086 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date :…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
