NVB63215Walkie Talkie

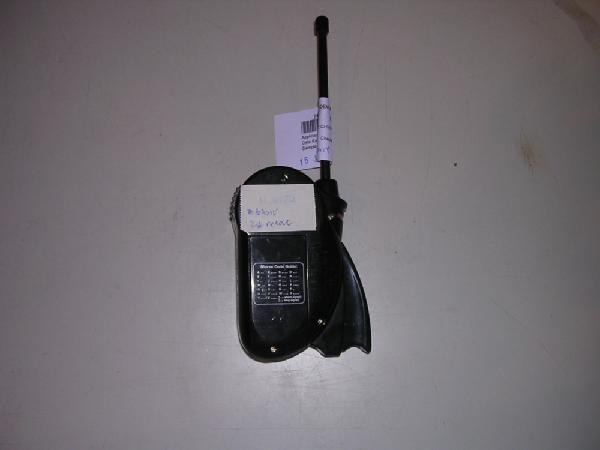

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: NVB63215 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Microphone (SPK). The output of Q1 has the matching network consisting of C1 and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 12cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a Walkie Talkie operating at 49.86MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x 1) and the transmitting frequency is crystal controlled. There are button to control transmitting or receiver voice signal. The operation is achieved by different combinations of form amplitude modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is buttonr transmitter, Modulation by Microphone; and type is Amplitude modulation.

FCC ID: NVB63215 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Microphone (SPK). The output of Q1 has the matching network consisting of C1 and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 12cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a Walkie Talkie operating at 49.86MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x 1) and the transmitting frequency is crystal controlled. There are button to control transmitting or receiver voice signal. The operation is achieved by different combinations of form amplitude modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is buttonr transmitter, Modulation by Microphone; and type is Amplitude modulation.

STC Test Report Date : 2008-01-17 Page 1 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SUT008): Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Manufacturer: Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Description of Samples: Product: The Dark Knight-Walkie Talkies Brand Name: The Dark Knight Model Number: 63215 FCC ID: NVB63215 Date Samples Received: 2007-12-20, 2008-01-02, 2008-01-09, 2008-01-15 Date Tested: 2007-12-20 to 2008-01-16 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-01-17 Page 2 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 15 Content Page 2 of 15 1.0 General Details 1.1 Test Laboratory Page 3 of 15 1.2 Applicant Details Page 3 of 15 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 15 Description of EUT operation 1.4 Date of Order Page 4 of 15 1.5 Submitted Samples Page 4 of 15 1.6 Test Duration Page 4 of 15 1.7 Country of Origin Page 4 of 15 2.0 Technical Details 2.1 Investigations Requested Page 5 of 15 2.2 Test Standards and Results Summary Page 5 of 15 3.0 Test Results 3.1 Emission Page 6-9 of 15 3.2 Bandwidth Measurement Page 10-12 of 15 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 STC Test Report Date : 2008-01-17 Page 3 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Manufacturer Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. STC Test Report Date : 2008-01-17 Page 4 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: The Dark Knight-Walkie Talkies Manufacturer: Super Technology Limited. Brand Name: The Dark Knight Model Number: 63215 Input Voltage: 9Vd.c. (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Super Technology Limited., The Dark Knight-Walkie Talkies. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2007-12-20, 2008-01-02, 2008-01-09, 2008-01-15 1.5 Submitted Sample(s): 8 Samples 1.6 Test Duration 2007-12-20 to 2008-01-16 1.7 Country of Origin China STC Test Report Date : 2008-01-17 Page 5 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2008-01-17 Page 6 of 15 No. : HM160845 The Hong Kong Standards and Testing Ce…

Text truncated - open the document above for the full version.

STC Test Report Date : 2008-01-17 Page 1 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SUT008): Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Manufacturer: Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Description of Samples: Product: The Dark Knight-Walkie Talkies Brand Name: The Dark Knight Model Number: 63215 FCC ID: NVB63215 Date Samples Received: 2007-12-20, 2008-01-02, 2008-01-09, 2008-01-15 Date Tested: 2007-12-20 to 2008-01-16 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-01-17 Page 2 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 15 Content Page 2 of 15 1.0 General Details 1.1 Test Laboratory Page 3 of 15 1.2 Applicant Details Page 3 of 15 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 15 Description of EUT operation 1.4 Date of Order Page 4 of 15 1.5 Submitted Samples Page 4 of 15 1.6 Test Duration Page 4 of 15 1.7 Country of Origin Page 4 of 15 2.0 Technical Details 2.1 Investigations Requested Page 5 of 15 2.2 Test Standards and Results Summary Page 5 of 15 3.0 Test Results 3.1 Emission Page 6-9 of 15 3.2 Bandwidth Measurement Page 10-12 of 15 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 STC Test Report Date : 2008-01-17 Page 3 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. Manufacturer Super Technology Limited. Suite 1203, Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, Hong Kong. STC Test Report Date : 2008-01-17 Page 4 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: The Dark Knight-Walkie Talkies Manufacturer: Super Technology Limited. Brand Name: The Dark Knight Model Number: 63215 Input Voltage: 9Vd.c. (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Super Technology Limited., The Dark Knight-Walkie Talkies. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2007-12-20, 2008-01-02, 2008-01-09, 2008-01-15 1.5 Submitted Sample(s): 8 Samples 1.6 Test Duration 2007-12-20 to 2008-01-16 1.7 Country of Origin China STC Test Report Date : 2008-01-17 Page 5 of 15 No. : HM160845 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2008-01-17 Page 6 of 15 No. : HM160845 The Hong Kong Standards and Testing Ce…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
