CSI-CPBH-MG-C4, CSI-CPBH-MG-P4, CSI-CPBH-MG-C2/P2, CSI-CPBH-MG-AW4, CSI-CPBH-MG-C2/AW2, CSI-CPBH-MG-P2/AW2, CSI-CPBH-MO-C4, CSI-CPBH-MO-P4, CSI-CPBH-MO-C2/P2, CSI-CPBH-MO-AW4, CSI-CPBH-MO-C2/AW2, CSI-CPBH-MO-P2/AW2, CSI-CPBH-MX-C4, CSI-CPBH-MX-P4, CSI-CPBH-MX-C2/P2, CSI-CPBH-MX-AW4 , CSI-CPBH-MX-C2/AW2, CSI-CPBH-MX-P2/AW2, Table of Contents Product Registration Information ........................................................................................................................ 4 Document Purpose / Intended Users ................................................................................................................. 4 Radio and Television Interference ...................................................................................................................... 4 Application .......................................................................................................................................................... 4 Safety Guidelines ............................................................................................................................................... 4 Important Safety Information .............................................................................................................................. 4 Acronyms and Defi nitions ................................................................................................................................... 5 Product Introduction ........................................................................................................................................... 5 Functional Overview ........................................................................................................................................... 6 Electrical Characteristics .................................................................................................................................... 6 Mechanical Specifi cations .................................................................................................................................. 6 AC Power Specifi cations .................................................................................................................................... 6 Environmental Requirements ............................................................................................................................. 6 Mechanical Drawing ......................................................................................................................................... 7 System Set-Up Considerations .......................................................................................................................... 7 Mounting the Co-Pilot Beacon ............................................................................................................................ 7 Typical Co-Pilot/BTS Interconnection with Internal CDMA Timing (MO Series) ................................................. 8 Typical Co-Pilot/Repeater Interconnection with Internal GPS Timing (MG Series) ............................................ 9 Typical Co-Pilot/Repeater Interconnection with External TM-4 (MX Series) .................................................... 10 Optional Accessories .........................................................................................................................................11 Important Installation Notes ...............................................................................................................................11 Powering Up the Unit.........................................................................................................................................11 Local Communication Interface Ports................................................................................................................11 Web based GUI Session .................................................................................................................................. 12 Element Management System ......................................................................................................................... 13 System Info Tab ................................................................................................................................................ 13 System Status and Confi guration Tab .............................................................................................................. 14 Administration Tasks Panel .............................................................................................................................. 15 Supplemental Confi guration Tab ...................................................................................................................... 16 SNMP Confi guration Tab .................................................................................................................................. 16 Alarms Tab ........................................................................................................................................................ 17 Setup Element Confi guration Tab ..................................................................................................................... 17 Special Icons .................................................................................................................................................... 18 Install Software Icon ......................................................................................................................................... 18 Copy Logs Icon................................................................................................................................................. 18 Reboot Icon ...................................................................................................................................................... 18 Collapse/Expand Icon............…
Text truncated - open the document above for the full version.

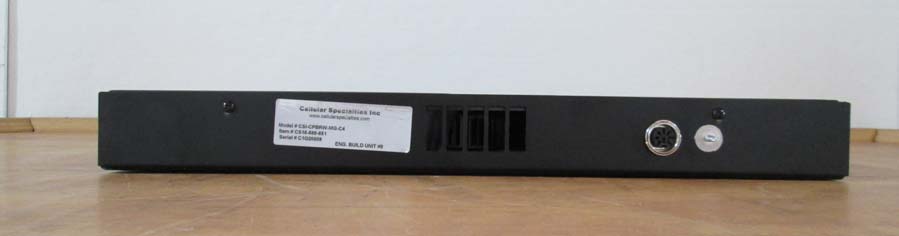

External Photos: NVRCSICPBHMG-C4 FRONT SIDE REAR SIDE TOP BOTTOM
Internal Photos NVRCSICPBHMG-C4
Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 505-12 In Accordance with the Requirements of FCC PART 22:2012 Subpart H IC RSS 132, Issue 3 (January 2013) Issued to Cellular Specialties, Inc. 670 North Commercial Street Manchester, NH 03010 (603) 626-6677 for Co-Pilot Beacon C4 Model: CSI-CPBH-MG-C4 FCC ID: NVRCSICPBHMG-C4 IC: 4307A-CPBHMGC4 Report Issued on April 5, 2013 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 505-12 Issue Date: 4/5/2013 Page 2 of 51 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope ......................................................................................................................................... 3 2. Product Details ........................................................................................................................... 3 2.1. Manufacturer ........................................................................................................................ 3 2.2. Model Number...................................................................................................................... 3 2.3. Serial Number ...................................................................................................................... 3 2.4. Description ........................................................................................................................... 3 2.5. Power Source....................................................................................................................... 3 2.6. EMC Modifications ............................................................................................................... 3 3. Product Configuration................................................................................................................. 3 3.1. Support Equipment .............................................................................................................. 3 3.2. Cables .................................................................................................................................. 3 3.3. Operational Characteristics & Software ...............................................................................4 3.4. Block Diagram ...................................................................................................................... 4 4. Measurement Parameters.......................................................................................................... 5 4.1. Measurement Equipment Used to Perform Test ................................................................. 5 4.2. Measurement & Equipment Setup ....................................................................................... 5 4.3. Test Procedure..................................................................................................................... 5 5. Measurement Summary ............................................................................................................. 6 6. Measurement Data ..................................................................................................................... 7 6.1. Power and Antenna Height Limits 22.913 (a), IC RSS-132 5.4.......................................... 7 6.2. Bandwidth Limitations FCC Part 2.1049, RSS-GEN ........................................................ 18 6.3. Spurious Emissions at the Antenna Terminals 22.917, RSS-132 5.5 .............................. 25 6.4. Field Strength of Spurious Emissions 22.917, RSS-132 5.5 & 5.6................................... 20 6.5. Frequency Stability 22.355, RSS-132 5.3......................................................................... 46 6.6. Public Exposure to Radio Frequency Energy Levels 1.1307 (b)(1), RSS-102 ................. 47 7. Test Site Description ................................................................................................................ 49 Appendix A ................................................................................................................................... 50 Test Number: 505-12 Issue Date: 4/5/2013 Page 3 of 51 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1. Scope This test report certifies that the Cellular Specialties Co-Pilot Beacon CSI-CPBH-MG-C4, as tested, meets the FCC Part 22 Subpart H requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2. Product Details 2.1. Manufacturer: Cellular Specialties 2.2. Model Number: Co-Pilot Beacon CSI-CPBH-MG-C4 2.3. Serial Number: Pre production prototype 2.4. Description: The Co-Pilot Beacon C4 is the first viable location based solution fo r simulcast CDMA Distributed Antenna Systems (DASs). It is designed to improve location accuracy of cell phones and wireless devices outdoors and within buildings. 2.5. Power Source: 120 VAC, 60 Hz 2.6. EMC Modifications: None 3. Product Configuration 3.1. Support Equipment Device Manufacturer Model Serial No. Comment Power Supply APX Technologies SP130P954ER 06502248 Notebook PC Dell Latitude D610 19472301901 Configuring Unit 3.2. Cables Cable Type LengthShieldFrom To RF, 50 Ω, SMA male – SMA male 1M Yes DUT Cellular Antennas Pulse In 1M Yes DUT Unterminated EST Out 1M Yes DUT Unterminated GPS 5M No DUT Garmin GPS Antenna Power Supply 2M + 2MYes DUT 120 VAC, 60 Hz Serial 1 2M Yes DUT Notebook PC USB 1 & USB 2 2M Yes DUT Notebook PC Ethernet 2M No DUT Notebook PC Notebook PC is connected only during setup Test Nu…
Text truncated - open the document above for the full version.
Test Set Up – NVRCSICPBHMG-C4
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 22H | 869.8 MHz - 893.2 MHz | 132.00 mW | 1M27F9W | 1.1200000000 ppm |

700/800 MHZ DUAL BAND INDUSTRIAL BOOSTER
Equipment Class
B2I - Part 20 Industrial Booster (CMRS)
AWS Repeater
Equipment Class
B2I - Part 20 Industrial Booster (CMRS)
THE CO-PILOT BEACON P4
Equipment Class
PCB - PCS Licensed Transmitter
The Co-Pilot Beacon
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
THE CO-PILOT IS DESIGNED TO IMPROVE LOCATION ACCURACY OF CELL PHONES AND WIRESS DEVICES OUTDOORS WITHIN BUILDINGS
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
