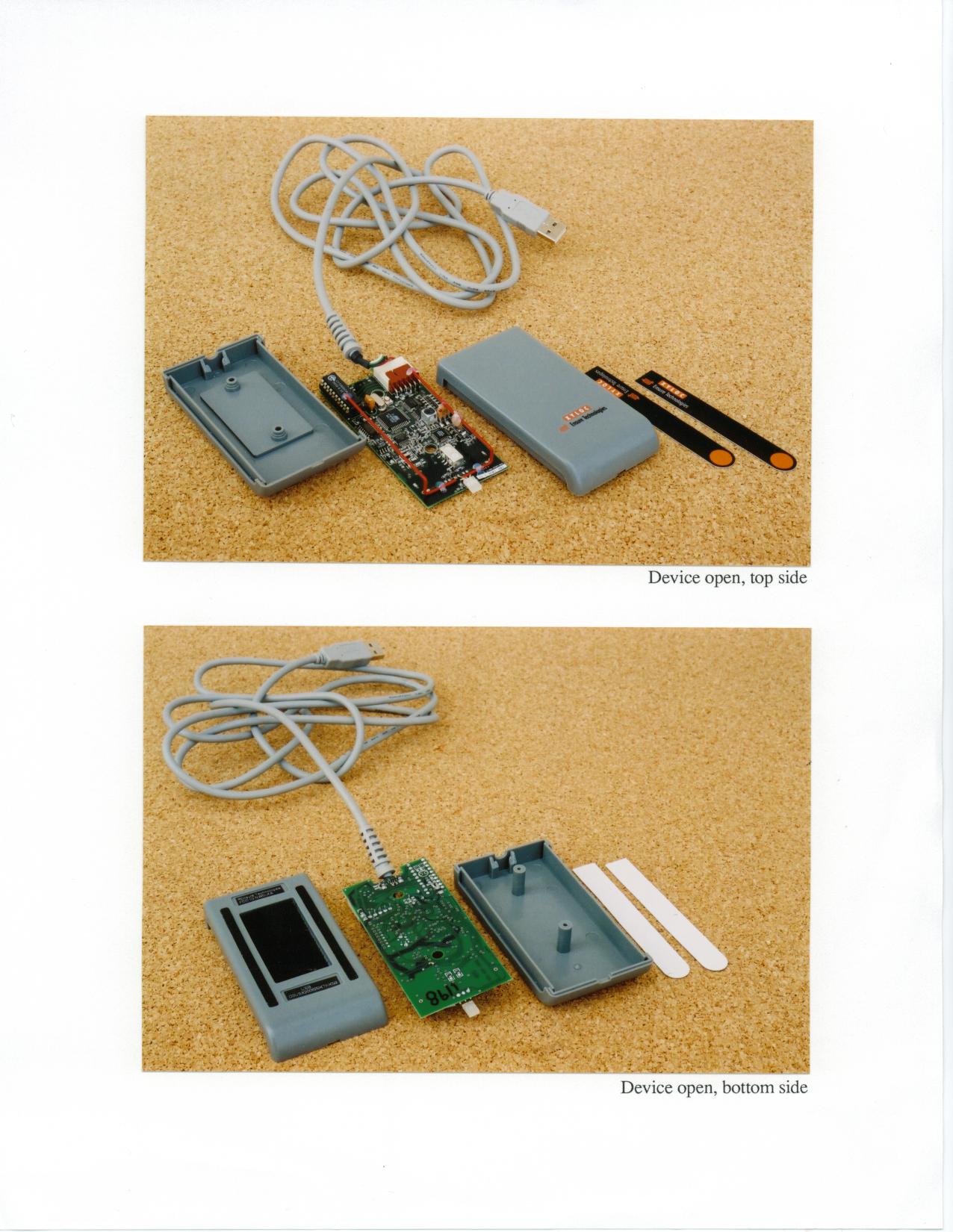

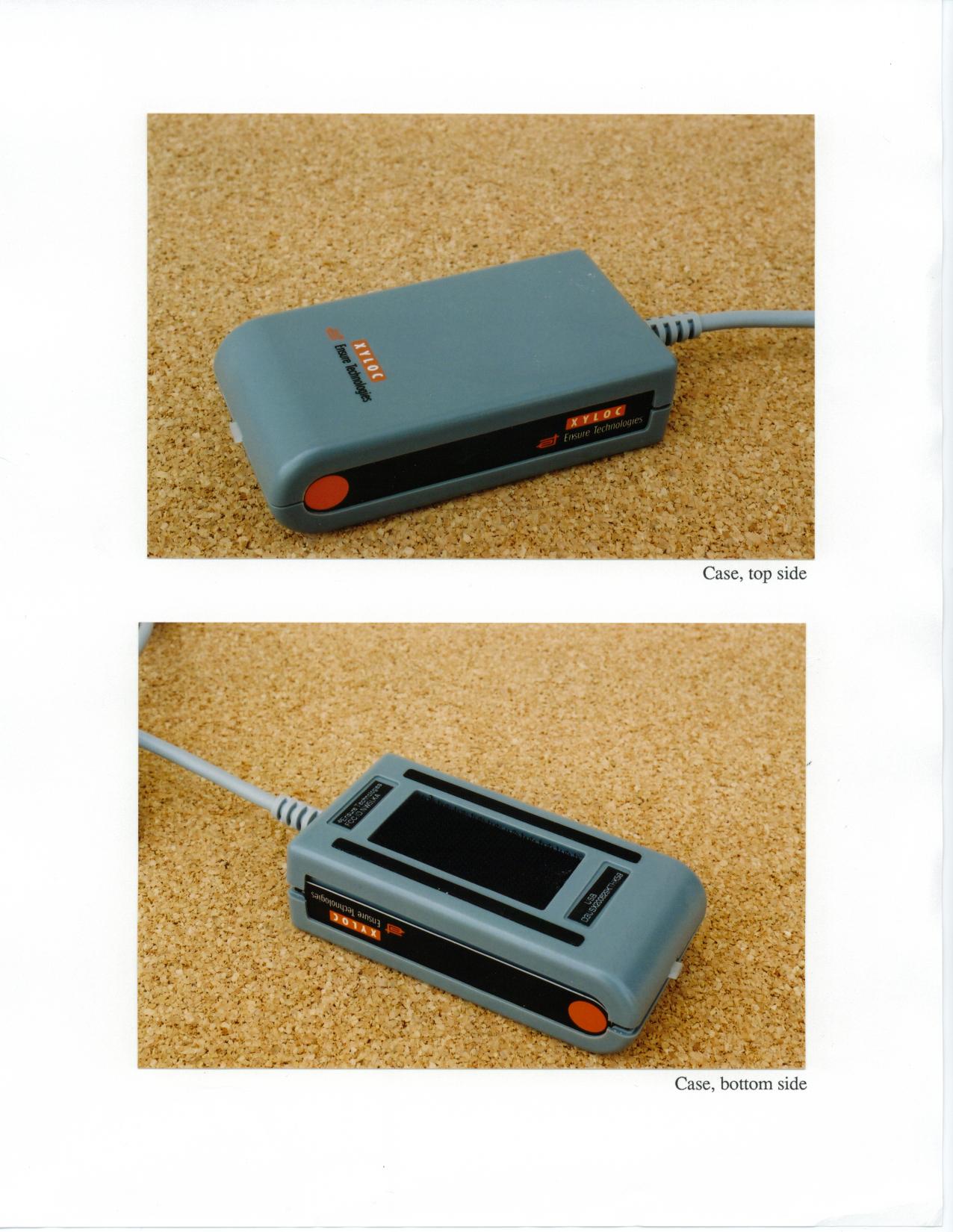

NW5LKADesktop Computer Security Receiver Peripheral

Ensure Technologies Inc

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Mar 12, 2001
Application Purpose: Original Equipment
Date of Application: Mar 12, 2001
Equipment Note: Desktop Computer Security Receiver Peripheral
Frequency Range: 904.00000000 - 906.00000000
Company: Ensure Technologies Inc
Country: United States

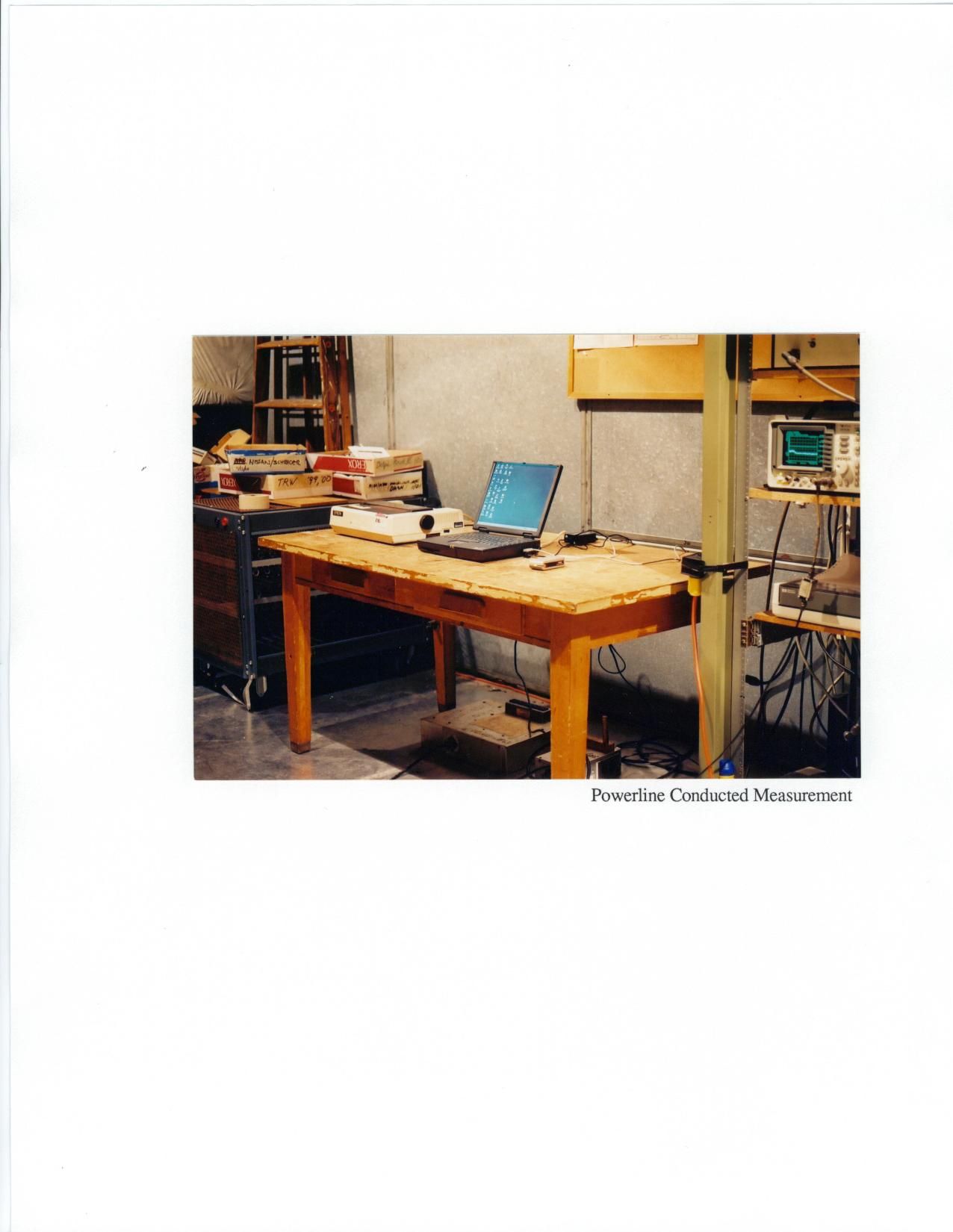

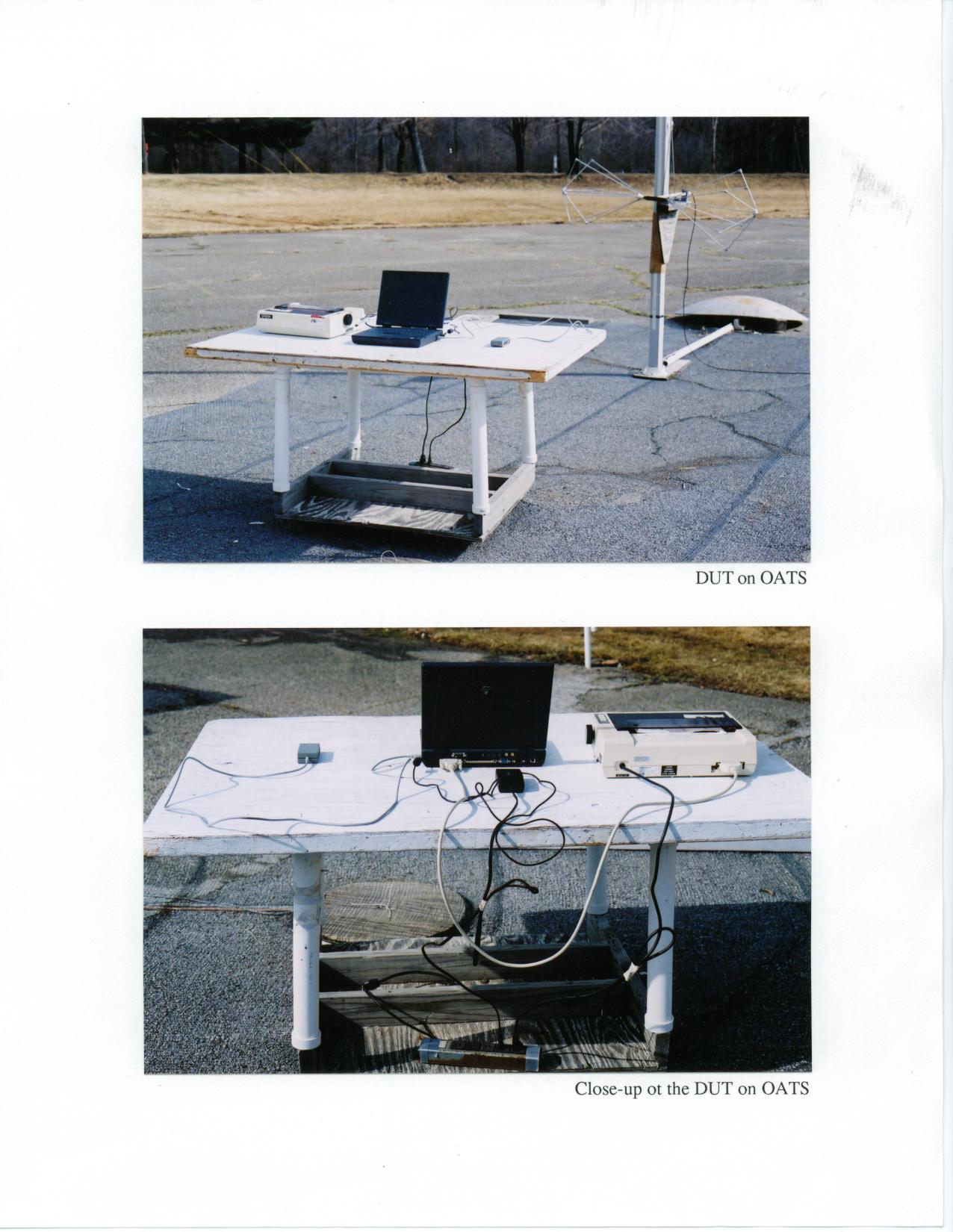

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

file://C:\WINDOWS\Desktop\Lock Block Diagram.JPG 9/18/00

Operational Description

Theory of Operation Ensure Technologies Lock XCLK-1 Please refer to the block diagram for the following discussion: The Receiver is a conventional single conversion FM receiver. The receive frequency is set by the PLL synthesizer (schematic pages 1 and 2). The signal is a Gaussian shift keyed FSK. The output of the demodulator is digitized and applied to the signal processing microprocessor (schematic page 3). This processor continually applies a matched filter to the received signal looking for a valid signal. The signal processor shares the same crystal as the PLL synthesizer. When a valid signal is received, the data is passed up to the Interface microprocessor. This device can connect to a computer, using a USB, PS2, or RS-232 interface. In addition, the interface micro can also interface to a local area network. The receiver uses an internal antenna and can change the pattern of the antenna upon command from the PC. This is done by switching in different antenna elements using the RF switch shown on the schematic page 2.
