S:\TimcoOffice\ReportTemplate\probonholdemail.doc TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com 9 April 2001 FCC SUBJECT: SKY CITY INTERNATIONAL LTD. FCC ID:NW9 SKY-T1 To Whom It May Concern: The original application did not include plots of the pulse train and did not average the peak reading correctly. Also the original report did not include a test set up photograph and no labels or label location. Sincerely, Sid Sanders

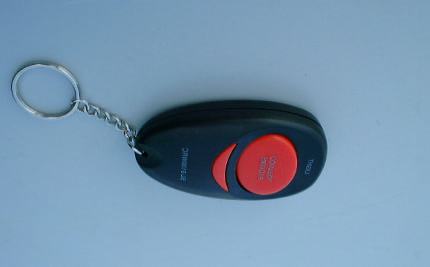

FCC ID: NW9-SKY-T1 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT
FCC ID: NW9-SKY-T1 PHOTOGRAPH OF THE PRODUCT BOTTOM VIEW OF DEVICE WITH FCC ID LABEL
FCC ID: NW9-SKY-T1 INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW
FCC ID: NW9-SKY-T1
Date: 2000-12-31 TEST REPORT Page 1 of 8 No.: HM103361 Law Man KitSteven TsangPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE : SKC001) SKY CITY INTERNATIONAL LIMITED. 25/F., North Point Asia-Pacific Centre, 10 North Point Road, North Point, Hong Kong. DATE OF SAMPLE(S) RECEIVED: 2000-09-27 SUBMITTED SAMPLE(S): 2 samples per model DATE OF TESTING: 2000-12-02 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:MULTI-FUNCTION LANTERN Manufacturer:SKY CITY INTERNATIONAL LIMITED. Model Number:SL9100WRC Brand Name:N/A Rating: 9Vd.c. (6F22 size battery 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification with the clause 15.231a for the Transmitter Section of Federal Communications Commission Rules. Clause 15.231 (1),(2) & (3). TEST EQUIPMENT AUDIT: Please see Appendix A MODIFICATION METHOD: Please see Appendix B Date: 2000-12-31 TEST REPORT Page 2 of 8 No.: HM103361 T E S T S U M M A R Y (1)Measurement of Emission of RF energy on the carrier frequency...........Satisfactory (2)Measurement of the out-of band emission including harmonics..............Satisfactory (3)Measurement of Emission Within Band Edges........................................Satisfactory (4)Measurement of Radiated Emissions........................................................Satisfactory (5)Measurement of Line-Conducted Voltage onto AC Power Line..............Not applicable (6)FCC rule clause 15.231 (1),(2) and (3) subpart C-Intentional-radiator....Satisfactory T E S T D A T A Please refer to the attached result sheets. Date: 2000-12-31 TEST REPORT Page 3 of 8 No.: HM103361 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a (320.594MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Emission of RF energy on the carrier frequency -- 320.594 MHz (PEAK VALUE) ===================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m 320.655.6H+20.175.76095.496.062850.0 ===================================================================== Emission of RF energy on the carrier frequency -- 320.594 MHz (AVERAGE VALUE) ===================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m 320.620.9H+20.141.0112.276.06285.0 ===================================================================== * Adjusted by duty cycle = -5dB ... to be continued Date: 2000-12-31 TEST REPORT Page 4 of 8 No.: HM103361 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a(320.594MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Field strength of spurious emissions (PEAK VALUE) ====================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m #641.237.5H+26.664.11603.276.06285.0 *961.8<1.0+32.8<33.8<49.076.0500.0 1282.4<1.0+28.3<29.3<29.276.06285.0 1603.0<1.0+32.1<33.1<45.276.06285.0 1923.6<1.0+26.2<27.2<22.976.06285.0 *2244.2<1.0+28.0<29.0<28.276.0500.0 2564.8<1.0+28.5<29.5<29.976.06285.0 *2885.3<1.0+30.6<31.6<38.076.0500.0 3205.9<1.0+32.0<33.0<44.776.06285.0 3526.5<1.0+33.0<34.0<50.176.06285.0 ====================================================================== Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2000-12-31 TEST REPORT Page 5 of 8 No.: HM103361 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231a (320.594MHz) TEST CONDITION:Normal TEST DATE:2000-12-02 Field strength of spurious emissions (AVERAGE VALUE) ====================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m #641.215.4H+26.642.0125.956.0628.5 *961.8<1.0+32.8<33.8<49.056.0500.0 1282.4<1.0+28.3<29.3<29.256.0628.5 1603.0<1.0+32.1<33.1<45.256.0628.5 1923.6<1.0+26.2<27.2<22.956.0628.5 *2244.2<1.0+28.0<29.0<28.256.0500.0 2564.8<1.0+28.5<29.5<29.956.0628.5 *2885.3<1.0+30.6<31.6<38.056.0500.0 3205.9<1.0+32.0<33.0<44.756.0628.5 3526.5<1.0+33.0<34.0<50.156.0628.5 ============================================================================ Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2000-12-31 TEST REPORT Page 6 of 8 No.: HM103361 *** INTENTIO…
Text truncated - open the document above for the full version.
FCC ID: NW9-SKY-T1 PULSE TRAIN IS 67.5msec
FCC ID: NW9-SKY-T1 TEST SET UP PHOTOGRAPH OF THE PRODUCT Measurement of Radiated Emission Test Set up FCC ID: NW9-SKY-T1 Measurement of Line-Conducted Voltage Test Set up
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 320.1 MHz - 321.1 MHz | - |
