NWAMS2502ELD554UARollingtrans Trailer ELD

ELD V2.0 User manual 3D Size: Technical Specification： Item Description Main Processor ARM Cortex A7 with 1.3GHz clock with 256KB L2 Cache Storage 256 MB Power Input DC10V – 36V Vehicle Comm. CAN Bus, J1708, J1939 Wireless Bluetooth 5.0 & 4G GPS GNSS support: GPS/GLONASS/QZSS LEDs Green, Yellow, Tricolor light Button Reset Button Operation Temp. -40°C ~ +85 °C Storage Temp. -40°C ~ +85 °C Humidity < 90% Dimension 73.6 mm (W)x 24.3 mm (D)x 25.4 mm (H) Certificated FCC Interface: The Tricolor lights are for BLE and Error: They will flash after a successful connection to the phone, or display a red light if there is an error. The yellow light is for GPS: It stays on when GPS and 4G are not yet in use, and flashes after successful positioning. The green light is for OBD: It flashes when communicating with OBD. Pin definition AGENCY APPROVAL FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information (SAR) This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

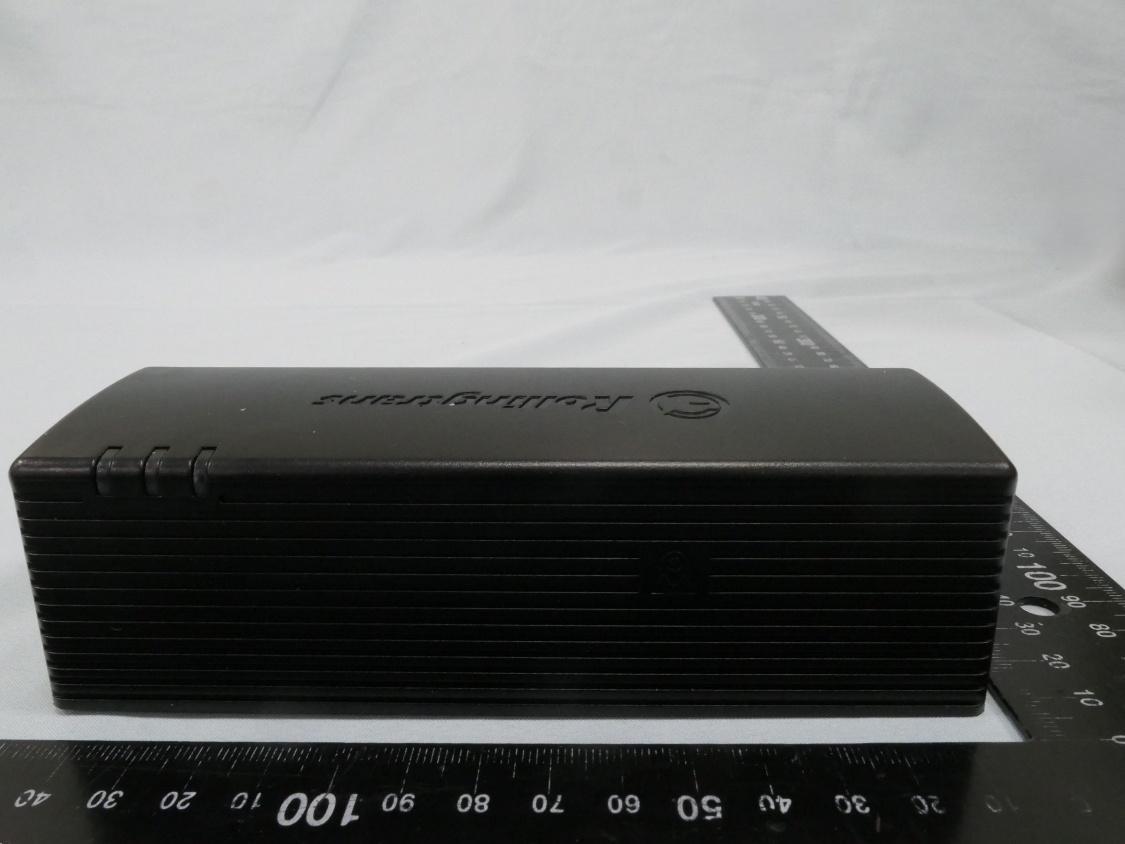

Report No.: 2601TWY401-UE 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2601TWY401-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2601TWY401-UE 3 of 3 (5) EUT Photo (6) EUT Photo

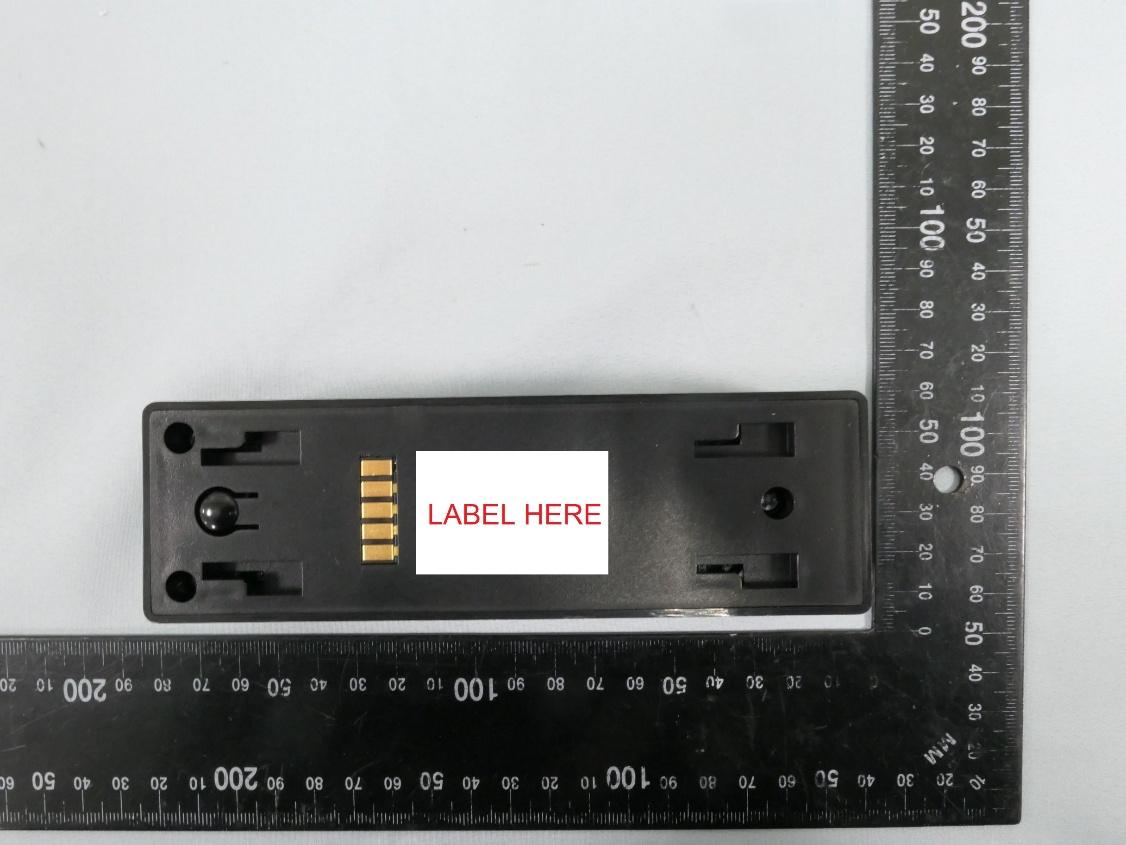

Label Label location

Report No.: 2601TWY401-UI 1 of 15 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2601TWY401-UI 2 of 15 (3) EUT Photo (4) EUT Photo Report No.: 2601TWY401-UI 3 of 15 (5) EUT Photo (6) EUT Photo Report No.: 2601TWY401-UI 4 of 15 (7) EUT Photo (8) EUT Photo Report No.: 2601TWY401-UI 5 of 15 (9) EUT Photo (10) EUT Photo Report No.: 2601TWY401-UI 6 of 15 (11) EUT Photo (12) EUT Photo Report No.: 2601TWY401-UI 7 of 15 (13) EUT Photo (14) EUT Photo Report No.: 2601TWY401-UI 8 of 15 (15) EUT Photo (16) EUT Photo Report No.: 2601TWY401-UI 9 of 15 (17) EUT Photo (18) EUT Photo Report No.: 2601TWY401-UI 10 of 15 (19) EUT Photo (20) EUT Photo Report No.: 2601TWY401-UI 11 of 15 (21) EUT Photo (22) EUT Photo Report No.: 2601TWY401-UI 12 of 15 (23) EUT Photo (24) EUT Photo Report No.: 2601TWY401-UI 13 of 15 (25) EUT Photo (26) EUT Photo Report No.: 2601TWY401-UI 14 of 15 (27) EUT Photo (28) EUT Photo Report No.: 2601TWY401-UI 15 of 15 (29) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2601TWY401-U4 Phone: +886-3-3288388 Repor t Vers ion: 1.0 Web: www.mrt-cert.com Issue Date: 2026-03-06 Page Number: 1 of 13 RF Exposure Evaluation Declaration FCC ID : NWAMS2502ELD554UA Applicant : Microprogram Information Co., Ltd. Application Type : Certification Product : Rollingtrans Trailer ELD Model No. : MS2502, EHA55-4U-A Brand Name : Microprogram FCC Rule Part(s) : FCC Part 2.1093 Received Date : January 28, 2026 Test By : ( Kaunaz Lee ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2601TWY401-U4 Page Number: 2 of 13 Revision History Report No. Version Description Issue Date Note 2601TWY401-U4 1.0 Original Report 2026-03-06 Report No.: 2601TWY401-U4 Page Number: 3 of 13 CONTENTS Description Page 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope ........................................................................................................................ 5 1.2. MRT Test Location .................................................................................................... 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Feature of Equipment under Test .............................................................................. 6 2.2. Description of Available Antennas .............................................................................. 7 2.3. Device Classification .................................................................................................. 8 2.4. Applied Standards ..................................................................................................... 8 3. RF Exposure Evaluation ..................................................................................................... 9 3.1. Limits ......................................................................................................................... 9 3.2. MPE Exemptions ......................................................................................................10 3.3. Test Result of RF Exposure Evaluation .....................................................................13 Report No.: 2601TWY401-U4 Page Number: 4 of 13 General Information Applicant Microprogram Information Co., Ltd. Applicant Address 6F, No.402, Shizheng Rd, Xitun Dist.,Taichung City 407.,Taiwan Manufacturer Microprogram Information Co., Ltd. Manufacturer Address 6F, No.402, Shizheng Rd, Xitun Dist.,Taichung City 407.,Taiwan Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2601TWY401-U4 Page Number: 5 of 13 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2601TWY401-U4 Page Number: 6 of 13 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Note: 1.Model Difference: The difference of models only for marketing different, the other hardware was the same. (declared by the manufacturer) 2.The test was performed base on MS2502. Product Name Rollingtrans Trailer ELD Model Number MS2502, EHA55-4U-A Specification WPAN: Bluetooth Single Mode WWAN: LTE: Band 2,4,12 Report No.: 2601TWY401-U4 Page Number: 7 of 13 2.2. Description of Available Antennas Test Mode Frequency Band (MHz) Antenna Type Max Peak Gain (dBi) BLE 2402 ~ 2480 PCB 2.54 Test Mode Frequency Band (MHz) Antenna Type Max Peak Gain (dBi) LTE Band 2 1850 ~ 1910 FPC Self-adhesive 3M 468MP 3.86 LTE Band 4 1710 ~ 1755 3.86 LTE Band 12 699 ~ 716 1.03 Report No.: 2601TWY401-U4 Page Number: 8 of 13 2.3. Device Classification According to the user manual, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1093 for protable device exposure conditions subject to MPE limits. 2.4. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: FCC Part 2.1093 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2601TWY401-U4 Page Number: 9 of 13 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2601TWY401-U3 Phone: +886-3-3288388 R ep or t Ver s i on: 1.0 Fax: +886-3-3288918 Issue Date: 2026-03-06 Web: www.mrt-cert.com Page Number: 1 of 124 FCC ID : NWAMS2502ELD554UA APPLICANT : Microprogram Information Co., Ltd. Application Type : Certification Product : Rollingtrans Trailer ELD Model No. : MS2502, EHA55-4U-A Brand Name : Microprogram FCC Classification : PCS Licensed Transmitter (PCB) FCC Rule Part(s) : Part2, Part24 Subpart E, Part27 Test Procedure(s) : ANSI/TIA-603-E-2016, ANSI C63.26 2015 Received Date : January 28, 2026 Test Date : January 28, 2026 ~ February 11, 2026 MEASUREMENT REPORT Test By : ( Wen Lee ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2601TWY401-U3 Page Number: 2 of 124 Revision History Report No. Version Description Issue Date Note 2601TWY401-U3 1.0 Original Report 2026-03-06 Report No.: 2601TWY401-U3 Page Number: 3 of 124 CONTENTS Description Page 1. General Information ................................................................................................................5 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 1.3. Product Information ...................................................................................................... 7 1.4. Radio Specification under Testing ................................................................................ 8 1.5. Description of Available Antennas ................................................................................ 8 1.6. Test Methodology ......................................................................................................... 9 2. DESCRIPTION OF TEST ....................................................................................................... 10 2.1. Summary .................................................................................................................... 10 2.2. Occupied Bandwidth ................................................................................................... 12 2.3. Frequency Stability / Temperature Variation ............................................................... 12 2.4. Conducted Output Power Measurment ....................................................................... 13 2.5. Peak-Average Ratio ................................................................................................... 13 2.6. Spurious and Harmonic Emissions at Antenna Terminal ............................................ 14 2.7. Conducted and Radiated Spurious Emissions ............................................................ 14 3. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 15 4. Decision Rules and Measurement Uncertainty................................................................... 16 4.1. Decision Rules ........................................................................................................... 16 4.2. Measurement Uncertainty ........................................................................................... 16 5. TEST RESULT ....................................................................................................................... 17 5.1. Summary .................................................................................................................... 17 5.2. Occupied Bandwidth ................................................................................................... 20 5.3. Frequency Stability Under Temperature & Voltage Variations .................................... 21 5.4. Transmitter Output Power Measurement .................................................................... 22 5.5. Peak-Average Ratio ................................................................................................... 23 5.6. Transmitter unwanted emissions (band-edge) Measurement ..................................... 24 5.7. Transmitter unwanted emissions (spurious) Measurement ......................................... 25 5.8. Radiated Spurious Emissions Measurement .............................................................. 27 Appendix A : TEST RESULT DATA ............................................................................................... 29 A1. Occupied Bandwidth Test Result ...................................................................................... 29 A1.1 LTE Band 2 .................................................................................................................... 29 A1.2 LTE Band 4 .................................................................................................................... 36 A1.3 LTE Band 12 .................................................................................................................. 43 Report No.: 2601TWY401-U3 Page Number: 4 of 124 A2. Frequency Stability Test Result ........................................................................................ 48 A2.1 LTE Band 2 .................................................................................................................... 48 A2.2 LTE Band 4 .................................................................................................................... 49 A2.3 LTE Band 12 .............................…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 1 of 14 2026-02-12 Antenna Measurement Report Model: PCB Antenna Equipment Name: MP1718-ANT Rev 0.1 Applicant: Microprogram Information Co.,Ltd. 11F-8., No262, Sec.2, Henan Rd., Xitun Dist.,Taichung City Taiwan Manufacturer: Microprogram Information Co.,Ltd. 11F-8., No262, Sec.2, Henan Rd., Xitun Dist.,Taichung City Taiwan Antenna Type: PIFA Tested by (name / position & signature) Lucas Liu / Engineer Approved by (name / position & signature) Lorien Chang / Manager Date of issue 2026/02/12 2026/02/12 2026/02/12 DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 2 of 14 2026-02-12 Index Competences and guarantees .......................................................................................................... 3 General conditions .............................................................................................................................. 3 Data provided by the client ................................................................................................................ 3 Testing period and place ................................................................................................................... 4 Document history ................................................................................................................................ 4 Environmental conditions .................................................................................................................. 4 Testing verdicts ................................................................................................................................... 4 Used Equipment ................................................................................................................................. 4 Appendix A: Test results .................................................................................................................... 5 DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 3 of 14 2026-02-12 Competences and guarantees DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification. General conditions 1.This report is only referred to the item that has undergone the test. 2.This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3.This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification. 4.This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification. Data provided by the client The following data has been provided by the client: 1. No DEKRA Testing and Certification declines any responsibility with respect to the information provided by the client and that may affect the validity of results. DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 4 of 14 2026-02-12 Testing period and place Test Location DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan Date (start) 2026/02/05 Date (finish) 2026/02/05 Document history Report number Revision Date Description 2620154R- A324340030S-A Rev. 1.0 2026/02/12 First Release Environmental conditions The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Ambient temperature 22 °C – 28 °C Relative Humidity air < 60% Testing verdicts Not applicable: N/A Pass: P Fail: F Infomation: Info Not measured: N/M Used Equipment Name Manufacturer Type/Model Serial Number Calibration Last Cal. Vector Network Analyzer R&S ZNB 8 106333 2025/5/21 Measurement Software ETS-Lindgren EMQuest 1.17 1474 N/A DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 5 of 14 2026-02-12 Appendix A: Test results DEKRA Testing and Certification No. 26, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411 , Taiwan TEL: +886-3-725-7255 www.dekra-certification.com 2620154R-A324340030S-A Page 6 of 14 2026-02-12 INDEX 1. TEST CONDITIONS ....................................................................................................................................... 7 1.1 Power supply (V) .......................................................…

Text truncated - open the document above for the full version.

antenova.com Affini DATASHEET SRFL064 • flexiiANT® Features • Antenna for 3G, 4G and 5G cellular applications • High performance with multiband coverage • Supports Band 71 (617-698MHz) for 5G coverage in the USA • High Efficiency within a small compact antenna • Operates without requiring a ground plane on the product PCB DATASHEET: AFFINISRFL064-PS-1.01 Contents 1. Description 2 2. Applications 2 3. General data 2 4. Part number 3 5. RF characteristics 3 6. RF performance 4 6.1. Return loss 4 6.2. VSWR 4 6.3. Efficiency5 6.4. Antenna pattern 6 7. Antenna dimensions 12 7.1. Dimensions FPC section 12 7.2. Dimensions assembled 12 7.3. I-PEX connector MHF1 (20278-112R-13) 13 7.4. Assembly13 8. Electrical interface 14 8.1. Host interface 14 8.2. Transmission line 14 9. Mechanicalfixing14 10. Antennaintegrationguide15 10.1. Antennaplacement15 10.2. Orientation of FPC 16 11. Hazardousmaterialregulationconformance17 12. Packaging17 12.1. Optimalstorageconditions18 12.2. Label information 18 1antenova.com 2antenova.com DATASHEET: AFFINISRFL064-PS-1.01 FREQUENCY 617-698MHz 698-824MHz 824-960MHz 1710-2200MHz 2300-2400MHz 2500-2690MHz POLARIZATION Linear OPERATING TEMPERATURE -40°C to +85°C ENVIRONMENTAL CONDITION TEST ISO16750-4 5.1.1./5.1.2 IMPEDANCE 50 Ω WEIGHT <0.5g ANTENNA TYPE FPC Self-adhesive 3M 468MP DIMENSIONS(ANTENNA) 78.0 x 17.0 x 0.15 (mm) CONNECTION I-PEX MHF1 (20278-112R-13) • Telematics and Remote monitoring • IoT (Internet of Things) • CCTV (Closed Circuit TV) • Network devices such as cellular routers • Pico base-stations • POS (Point of Sale) terminals • M2M (Machine to Machine) • Drone communications A high efficiency FPC antenna that covers the most common 4G and 5G bands: B71 (617- 698MHz), LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B40 (2300 – 2400MHz), LTE B7 (2500-2690MHz). 3. General data 2. Applications 1. Description 3antenova.com DATASHEET: AFFINISRFL064-PS-1.01 617-698MHZ698-824MHZ824-960MHZ PEAK GAIN 1.03dBi1.03dBi1.71dBi AVERAGE GAIN (LINEAR) -3.32dBi-3.53dBi-2.9dBi AVERAGE EFFICIENCY >45%>45%>50% MAXIMUM RETURN LOSS -5dB-6dB-8dB MAXIMUM VSWR 3.1:12.7:12.2:1 1710-2200MHZ2300-2400MHZ2500-2690MHZ PEAK GAIN 3.86dBi3.9dBi3.88dBi AVERAGE GAIN (LINEAR) -2.12dBi-1.58dBi-1.93dBi AVERAGE EFFICIENCY >60%>70%>65% MAXIMUM RETURN LOSS -5dB-12dB-11dB MAXIMUM VSWR 3.1:11.6:11.7:1 All data measured on SRFL064-150 in a loaded condition adhered to a plastic carrier in free space. AFFINI SRFL064 4. Part number 5. RF characteristics 4antenova.com DATASHEET: AFFINISRFL064-PS-1.01 6.1. Return loss 6. RF performance 6.2. VSWR All data measured on SRFL064-150 in a loaded condition adhered to a plastic carrier in free space. 5antenova.com DATASHEET: AFFINISRFL064-PS-1.01 6.3. Efficiency All data measured on SRFL064-150 in a loaded condition adhered to a plastic carrier in free space. 6antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 657MHz 6.4. Antenna pattern 6.4.1. 617 MHz – 698 MHz 7antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 764MHz 6.4.2. 698 MHz – 824 MHz 8antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 900MHz 6.4.3. 824 MHz – 960 MHz 9antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 1930MHz 6.4.4. 1710 MHz – 2200 MHz 10antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 2340MHz 6.4.5. 2300 MHz – 2400 MHz 11antenova.com DATASHEET: AFFINISRFL064-PS-1.01 3D pattern at 2600MHz 6.4.6. 2500 MHz – 2690 MHz 12antenova.com DATASHEET: AFFINISRFL064-PS-1.01 7.1. Dimensions FPC section 7. Antenna dimensions 7.2. Dimensions assembled LWT Length WidthThickness 78.0 ±0.217.0 ±0.20.15 (nominal) SRFL064-100SRFL064-150 LengthLength 171 ±2.0221 ±2.0 All dimensions in (mm) All dimensions in (mm) Standard cable lengths for this antenna are 100mm and 150mm 13antenova.com DATASHEET: AFFINISRFL064-PS-1.01 7.3. I-PEX connector MHF1 (20278-112R-13) 7.4. Assembly All dimensions in (mm) I-PEX MATERIAL Copper Alloy PLATING Ag FrontSide MATING HEIGHT: 2.5mm MAX Back 2.0mm 5.0mm 1.13mm ø Cable I-PEX Connector FPC 14antenova.com DATASHEET: AFFINISRFL064-PS-1.01 The host PCB requires the mating connector which is the I-PEX MHF (UFL) receptacle. The location should be close to the chip/modules pin for the RF. Any feed from this receptacle should be maintained at 50Ω impedance 8.1. Host interface 8. Electrical interface • Must have a characteristic impedance of 50Ω. • Length should be kept to a minimum. • Is recommended to be a co-planar waveguide: log on to Antenova.com and try our Transmission line calculator to easily calculate the dimensions most suited to your requirements. • Should have DC blocking capacitor (e.g. 220pF) placed in line to protect the RF front end. 8.2. Transmission line The antenna uses 3M 468MP adhesive on the reverse side of the FPC. The antenna has an easy access split line to peel off to reveal the adhesive side. It is designed for a one time fix to a clean smooth surface. The antenna is keyed with two 1mm locating holes for easy positioning. 9. Mechanicalfixing FPC back side Split line for easy peel 15antenova.com DATASHEET: AFFINISRFL064-PS-1.01 For FPC antennas the host PCB size is not critical to performance, however consideration must be given to placement. Using six spatial directions, as shown below, the antenna should ideally maintain a minimum of three directions free from obstruction in order to radiate effectively. Where there are obstructions (e.g. PCB, metal parts, battery etc.) a minimum clearance should still be maintained. These minimum clearances are described later in this section. We recommend the following during the design phase to maximise antenna performance and minimize noise: • Minimum 4 layer PCB • Route signals and power internally where possible • Flood all layers with ground • Knit ground on all layers together with plenty of vias Follow placement guidance carefully, in addition Antenova provide technical support to help you through all stages of your design. Register for an …

Text truncated - open the document above for the full version.

Report No.: 2601TWY401-U3 Page Number: 60 of 124 PTAR_4G_B2_16QAM_15M_CH18675 PTAR_4G_B2_16QAM_15M_CH18900 PTAR_4G_B2_16QAM_15M_CH19125 PTAR_4G_B2_16QAM_20M_CH18700 PTAR_4G_B2_16QAM_20M_CH18900 PTAR_4G_B2_16QAM_20M_CH19100 Report No.: 2601TWY401-U3 Page Number: 61 of 124 A4.2 LTE Band 4 LTE Band 4 BW Channel Frequency (MHz) PAPR 0.1% Value (dB) QPSK 16QAM 1.4M 19957 1710.7 4.49 5.33 1.4M 20175 1732.5 4.44 5.24 1.4M 20393 1754.3 4.53 5.31 3M 19965 1711.5 4.60 5.46 3M 20175 1732.5 4.60 5.39 3M 20385 1753.5 4.63 5.41 5M 19975 1712.5 4.62 5.39 5M 20175 1732.5 4.57 5.32 5M 20375 1752.5 4.56 5.34 10M 20000 1715 4.71 4.80 10M 20175 1732.5 4.56 4.77 10M 20350 1750 4.59 4.73 15M 20025 1717.5 4.89 4.71 15M 20175 1732.5 4.63 4.70 15M 20325 1747.5 4.71 4.62 20M 20050 1720 4.76 4.72 20M 20175 1732.5 4.47 4.70 20M 20300 1745 4.51 4.58 Report No.: 2601TWY401-U3 Page Number: 62 of 124 PTAR_4G_B4_.QPSK_1.4M_CH19957 PTAR_4G_B4_.QPSK_1.4M_CH20175 PTAR_4G_B4_.QPSK_1.4M_CH20393 PTAR_4G_B4_.QPSK_3M_CH19965 PTAR_4G_B4_.QPSK_3M_CH20175 PTAR_4G_B4_.QPSK_3M_CH20385 Report No.: 2601TWY401-U3 Page Number: 63 of 124 PTAR_4G_B4_.QPSK_5M_CH19975 PTAR_4G_B4_.QPSK_5M_CH20175 PTAR_4G_B4_.QPSK_5M_CH20375 PTAR_4G_B4_.QPSK_10M_CH20000 PTAR_4G_B4_.QPSK_10M_CH20175 PTAR_4G_B4_.QPSK_10M_CH20350 Report No.: 2601TWY401-U3 Page Number: 64 of 124 PTAR_4G_B4_.QPSK_15M_CH20025 PTAR_4G_B4_.QPSK_15M_CH20175 PTAR_4G_B4_.QPSK_15M_CH20325 PTAR_4G_B4_.QPSK_20M_CH20050 PTAR_4G_B4_.QPSK_20M_CH20175 PTAR_4G_B4_.QPSK_20M_CH20300 Report No.: 2601TWY401-U3 Page Number: 65 of 124 PTAR_4G_B4_16QAM_1.4M_CH19957 PTAR_4G_B4_16QAM_1.4M_CH20175 PTAR_4G_B4_16QAM_1.4M_CH20393 PTAR_4G_B4_16QAM_3M_CH19965 PTAR_4G_B4_16QAM_3M_CH20175 PTAR_4G_B4_16QAM_3M_CH20385 Report No.: 2601TWY401-U3 Page Number: 66 of 124 PTAR_4G_B4_16QAM_5M_CH19975 PTAR_4G_B4_16QAM_5M_CH20175 PTAR_4G_B4_16QAM_5M_CH20375 PTAR_4G_B4_16QAM_10M_CH20000 PTAR_4G_B4_16QAM_10M_CH20175 PTAR_4G…
