NXP-44380400LTE Intelligent Remote Radio Head

PN 240-00-0005 Revision 2 February 11, 2015 Altiostar Networks iRU4438 intelligent Remote Radio Head Product Description and Installation Guide Copyright© 2015 Altiostar All rights reserved. iRU4438 intelligent Remote Radio Head Product Description and Installation Guide Copyright © Altiostar Networks 2015. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner. Altiostar Networks, Inc., iR6, and Altiostar Networks, Inc. logo are trademarks of Radio Mobile Access, Inc. All other trademarks are the property of their respective owners. Disclaimer All rights reserved. Information and product specification are subject to change without notice as part of the company continuous process and methodology improvement. Altiostar Networks assumes no responsibility for inaccuracies contained herein. l Preface iRU4438 iRRH Product Description and Installation Guideiii Preface About this document This document covers the basic installation of the Altiostar Networks, Inc. iRU4438 intelligent Remote Radio Head (iRRH) on towers, walls, roof or other structures utilizing a universal mounting assembly. Connections to external interfaces, including signaling, grounding, and power are described. Descriptions of the iRU4438 iRRH indicators are also provided. Refer also to the Altiostar Networks iRB1200 intelligent Baseband Unit (iBBU) Product Description and Installation Guide, document number 240-00-0007, for related information. The iRB1200 iBBU is a companion product. Intended users The target audience for this document is installation and engineering personnel. It assumes personnel have a basic understanding of wireless telecommunications terminology, and experience in installing wireless telecommunications equipment. Conventions used Illustrations and photos in this document are intended to show a basic installation. They show site and equipment configurations encountered during a typical installation. They do not show all details and exceptions, but highlight the main points of the installation. Altiostar Networks, Inc. will often be referred to as Altiostar Networks, or simply Altiostar. The Altiostar Networks, Inc. iRU4438 intelligent Remote Radio Head will often be referred to as the iRU4438 iRRH, or simply the iRRH. The iRB1200 Baseband Unit, a companion unit to the iRU4438 iRRH in the Altiostar Networks LTE micro eNodeB solution, will often be referred to as the iRB1200 iBBU, or simply the iBBU. The Operator or Owner of the facility and equipment where the iRU4438 iRRH is to be installed is referred to as the Operator in this document. NOTE This is an example of a note used in this document that denotes important information about the text or procedure that follows it. l Preface iviRU4438 iRRH Product Description and Installation Guide Overview The iRU4438 intelligent Remote Radio Head is based on a distributed architecture with the following two essential elements: • iRU4438 iRRH • iRB1200 iBBU or vBBU The iRU4438 iRRH is a compact, outdoor microcell radio head with integrated baseband for use in the AWS band. The iRU4438 iRRH is connected to the iRB1200 iBBU through a gigabit Ethernet (GigE) connection compliant with the Common Public Radio Interface (CPRI) standard. Connection to other compliant fronthaul devices can also be facilitated using the Ethernet fronthaul port. The iRU4438 iRRH interconnects with compliant radio antennas and the iRB1200 iBBU which operates within the RAN portion of the LTE wireless network. Contents iRU4438 iRRH Product Description and Installation Guidev Contents 1 Introduction ....................................................................... 1-1 1.1 Conventions used .................................................................... 1-1 1.2 Overview................................................................................ 1-1 2 Safety requirements ........................................................... 2-1 2.1 Overview................................................................................ 2-1 2.2 Purpose ................................................................................. 2-1 2.3 Warning symbols ..................................................................... 2-1 2.4 General safety precautions ....................................................... 2-1 3 Installation prerequisites ................................................... 3-1 3.1 Required tools......................................................................... 3-1 3.2 Required site equipment........................................................... 3-2 3.3 Site preparation ...................................................................... 3-3 3.4 Site pre-installation visit checklist .............................................. 3-3 3.5 Site installation checklist .......................................................... 3-4 4 iRU4438 iRRH installation overview ................................... 4-1 4.1 Installation procedures............................................................. 4-1 4.2 Unpacking the shipping container .............................................. 4-1 4.3 Verifying all parts received........................................................ 4-2 5 Installing the iRU4438 iRRH ............................................... 5-1 5.1 Assembling cables ................................................................... 5-1 5.2 Routing pre-assembled power/fronthaul Ethernet/grounding cables 5-2 5.3 Installing RF antennas on upper/lower omni-antenna brackets....... 5-3 5.4 Installing RF antenna cables ..................................................... 5-5 5.5 Installing the iRU4438 iRRH mounting bracket............................. 5-7 5.6 Hoisting the iRU4438 iRRH on elevated structures........................ 5-9 5.7 Installing the iRU4438 iRRH on the mounting bracket ................. 5-11 5.8 Connecting the grounding cable................................…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 17 February 2015 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: NXP-44380400 To whom it may concern Pursuant to sections 0.457(d) and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application:  Schematics  Bills of Materials  Internal Photographs as per KDB663084  Operational Description Altiostar has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Yours Sincerely Charlie Blackham Director

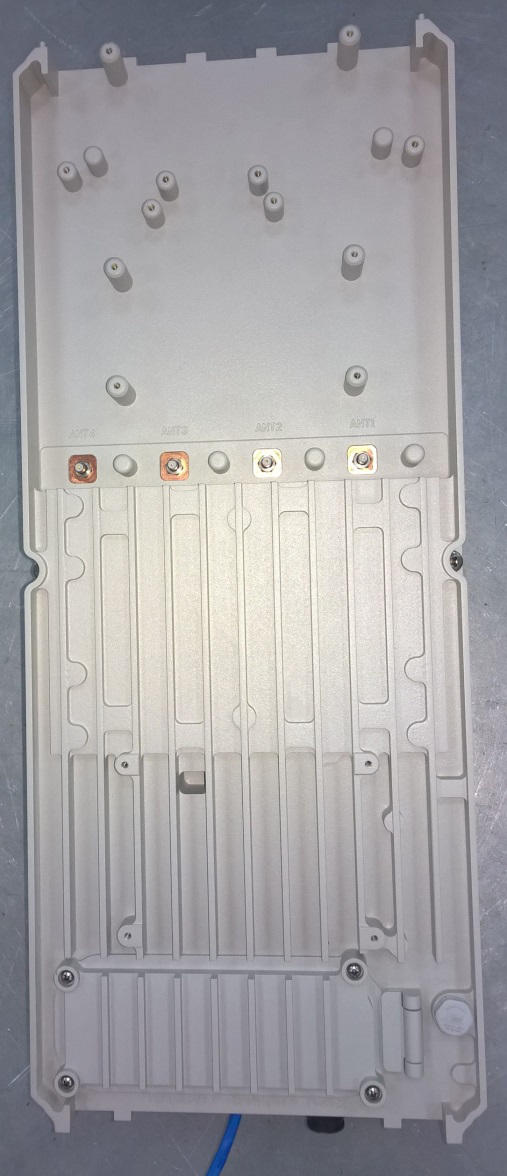

Side Front Side Rear (showing mounting bracket Bottom Front (access panel opened)

Additional User Manual Statement - EM Field exposure iRU4438 RF Exposure FCC Maximum Permissible Exposure (MPE) limits for equipment operating in the frequency range 1500 – 100,000 MHz is 1.0 mW/cm 2 . Following installation and commissioning, the safe distance from the antenna is the greater of: 20cm Or r cm, where r = √ (PG/4πS) P: power input to antenna(s) in mW G: numeric gain of antenna relative to isotropic radiator S: power density in mW/cm2 = 1 mW/cm2 The device has four antenna ports, so safe distance from the antenna shall be the greater of: 20 cm or √ (4*PG/4πS) Which gives 20 cm or √ (0.32*P*G) cm. The iRU4438 is designed to be used with one of three standard antennas combinations: • Four 2 dBi omni-directional antennas • Two 9 dBi 2-port cross-polarised directional panel antennas • Two 18 dBi 2-port cross-polarised directional panel antennas These give the following safe distances from the unit: Antenna gain Safe distance (cm) 2 dBi 22.4 9 dBi 50.2 18 dBi 141.4

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com Temperature Stability Test Report: Altiostar Proxima LTE iRRH FCC ID: NXP-44380400 SC_TR_154_A Prepared for: Altiostar Inc. 100 Ames Pond Drive Tewksbury MA 01876 USA SC_TR_154_A Page 2 of 6 Contents 1 Revision History .............................................................................................. 3 2 Purpose .......................................................................................................... 3 3 Reference Documents ...................................................................................... 3 4 Test configuration ............................................................................................ 4 4.1 Test sample and Operating mode ............................................................. 4 4.2 Support equipment ................................................................................. 4 5 Test Results .................................................................................................... 5 6 Test equipment and location ............................................................................. 6 Tables Table 1: Equipment under test ................................................................................. 4 Table 2: Support Equipment .................................................................................... 4 Table 3: Test results ............................................................................................... 5 Table 4: Test Equipment.......................................................................................... 6 Figures Figure 1: Test Configuration..................................................................................... 4 SC_TR_154_A Page 3 of 6 1 Revision History Revision Originator Date Comment A C Blackham 24 Feb 2015 1 st release 2 Purpose This document details the Altiostar Proxima P4 LTE iRRH (intelligent Remote Radio Head), model number iRU44380400-1, designed to transmit in the 2110- 2155 MHz band. 3 Reference Documents [Ref 1] 47CFR2 Title 47 Code of Federal Regulations Part 2: frequency allocations and radio treaty matters; general rules and regulations [Ref 2] 47 CRF27 Title 47 Code of Federal Regulations Part 27: Miscellaneous Communications Services [Ref 3] TIA-603-C Land Mobile FM or PM – Communications Equipment – Measurement and Performance Standards SC_TR_154_A Page 4 of 6 4 Test configuration Proxima was configured to transmit a E-TM1.1 waveform at 2132/5 MHz and the EVM of the signal was measured using the Analyser. In order for the Analyser to be able to accurately measure the EVM, it was locked to a reference signal from the Proxima unit. The transmit Frequency of Proxima is locked to GPS in typical install and 0.016 ppm was added to the EVM error as that represents the worst case baseband card frequency stability. Mains supply Equipment under Test In Thermal Chamber Support Equipment Figure 1: Test Configuration 4.1 Test sample and Operating mode The equipment under test (EUT) was: Manufacturer Name Model Number Serial Number Altiostar Proxima P4 iRU44380400-1 4014681 Table 1: Equipment under test 4.2 Support equipment The support equipment was: Description Manufacturer Name Serial Number Laptop HP 250 Dvt-mobile altiostar Table 2: Support Equipment Proxima Analyser Laptop Co-ax RF cable With attenuation SC_TR_154_A Page 5 of 6 5 Test Results Temp (°C) System Freq Error (ppm) 60.0 0.020 50.0 0.021 40.0 0.021 30.0 0.021 20.0 0.023 10.0 0.023 0.0 0.026 -10.0 0.027 -20.0 0.024 -30.0 0.029 -40.0 0.024 Table 3: Test results Note : Varying mains input voltage by ±15% did not have any effect on the DC voltage output from the mains power supply nor on voltage rails within the product and the frequency error at 20°C is unchanged for variations in supply voltage. SC_TR_154_A Page 6 of 6 6 Test equipment and location Testing was performed at: Altiostar Networks UK Ltd 6 Horizon Business Village 1 Brooklands Road Weybridge KT13 0TJ Description Manufacturer Name Serial Number Calibration certificate PXA Signal Analyser Agilent N9030A MY541702228 4105006- 4886110-1 Attenuator Fairview Microwave SA18N25WA-30 None N/A for frequency measurements RF cable Times Microwave SLU18-SMNM- 01.75m 3716 Table 4: Test Equipment

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com RF Test Report: Altiostar Proxima LTE iRRH FCC ID: NXP-44380400 SC_TR_153_C Prepared for: Altiostar Inc. 100 Ames Pond Drive Tewksbury MA 01876 USA SC_TR_153_C Page 2 of 22 Contents 1 Revision History .............................................................................................. 4 2 Purpose .......................................................................................................... 4 3 Reference Documents ...................................................................................... 4 4 Test Information ............................................................................................. 5 4.1 Client .................................................................................................... 5 4.2 Test personnel ....................................................................................... 5 4.3 Test sample ........................................................................................... 5 5 Product Description.......................................................................................... 6 6 Test Configuration ........................................................................................... 7 6.1 Test sample and Operating mode ............................................................. 7 6.2 Support equipment ................................................................................. 7 6.3 Equipment set-up ................................................................................... 8 7 Summary of Tests performed ............................................................................ 9 8 Transmit Power 47CFR90.1321 ........................................................................ 10 8.1 Requirement and test method ................................................................. 10 8.2 Test results .......................................................................................... 11 9 Spectral Power Density ................................................................................... 13 9.1 Requirement and test method ................................................................. 13 9.2 Test results .......................................................................................... 13 10 Occupied Bandwidth ....................................................................................... 15 11 Conducted Spurious Emissions inc. Band Edge ................................................... 17 11.1 Requirement and test method ................................................................. 17 11.2 Results for 10 MHz channels ................................................................... 17 11.3 Results for 20 MHz channels ................................................................... 19 12 Radiated Spurious Emissions ............................................................................ 20 12.1 Requirement and test method ................................................................. 20 12.2 Results ................................................................................................ 20 13 Test equipment .............................................................................................. 22 SC_TR_153_C Page 3 of 22 Tables Table 1: Equipment under test ................................................................................. 7 Table 2: Support Equipment .................................................................................... 7 Table 3: Summary of tests performed ....................................................................... 9 Table 4: Transmit power ....................................................................................... 11 Table 5: Transmit power spectral density ................................................................ 13 Table 6: Occupied Bandwidth test results ................................................................ 15 Table 7: Conducted spurious emissions, 10 MHz channel ........................................... 17 Table 8: Conducted spurious emissions, 20 MHz channel, RF-3 .................................. 19 Table 9: Test Equipment........................................................................................ 22 Figures Figure 1: Configuration for test ................................................................................ 8 Figure 2: Transmit Power and PAR plots .................................................................. 11 Figure 3: Additional Transmit Power plots ................................................................ 12 Figure 4: Transmit Power plots ............................................................................... 13 Figure 5: Additional PSD plots ................................................................................ 14 Figure 6: Occupied Bandwidth plots ........................................................................ 15 Figure 7: Additional PSD plots ................................................................................ 16 Figure 8: Conducted Spurious Emissions plots, 10 MHz channels ................................ 18 Figure 9: Conducted Spurious Emissions plots, 20 MHz channels ................................ 19 Figure 10: RSE pre-scans, 10 MHz channel .............................................................. 21 SC_TR_153_C Page 4 of 22 1 Revision History Revision Originator Date Comment A C Blackham 13 Feb 2015 1 st release B C Blackham 12 Mar 2015 Two typing errors corrected C C Blackham 16 Mar 2015 Extra test results added 2 Purpose This document details the Altiostar Proxima P4 LTE iRRH (intelligent Remote Radio Head), model number iRU44380400-1, designed to transmit in the 2110- 2155 MHz band. 3 Reference Documents [Ref 1] 47CFR2 Title 47 Code of Federal Regulations Part 2: frequ…

Text truncated - open the document above for the full version.

Photographs of some of the test configurations Radiated Spurious Emissions: 30-1000 MHz Radiated Spurious Emissions: 1-18 GHz
