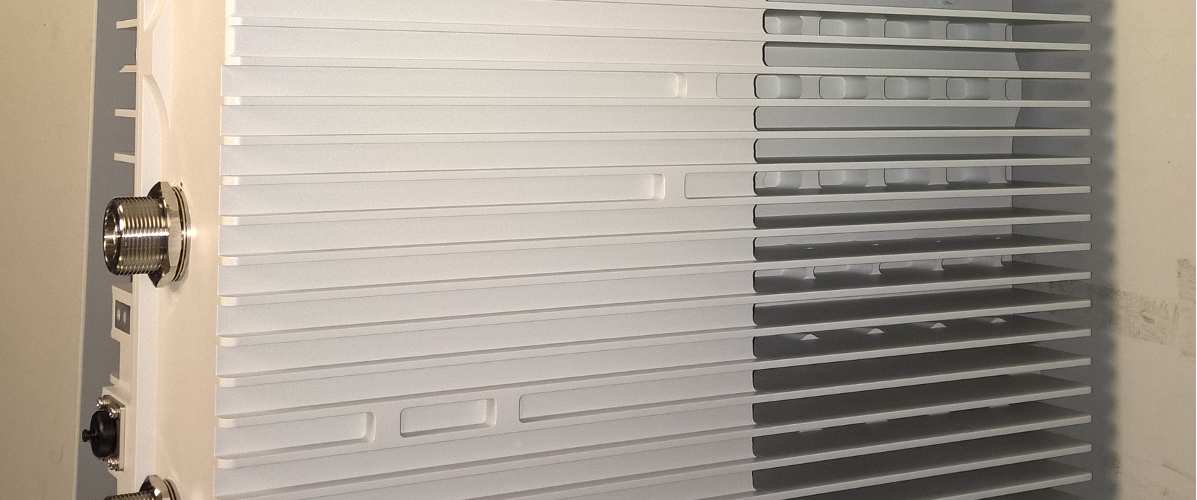

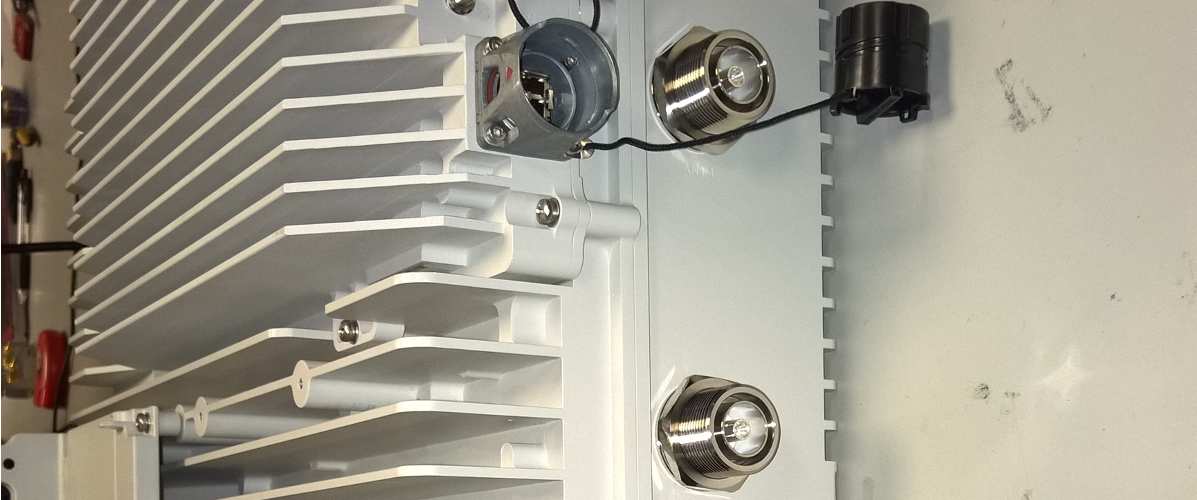

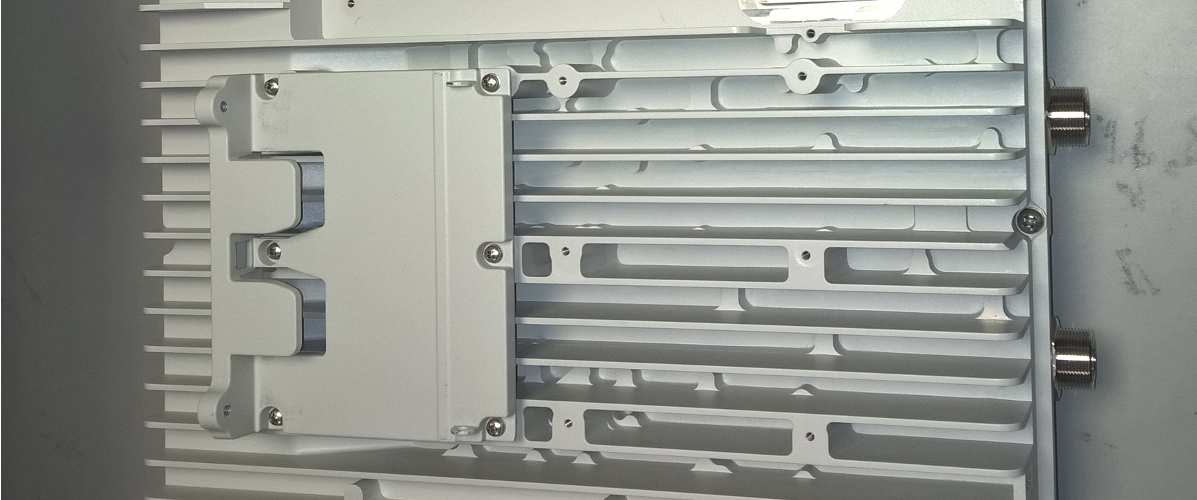

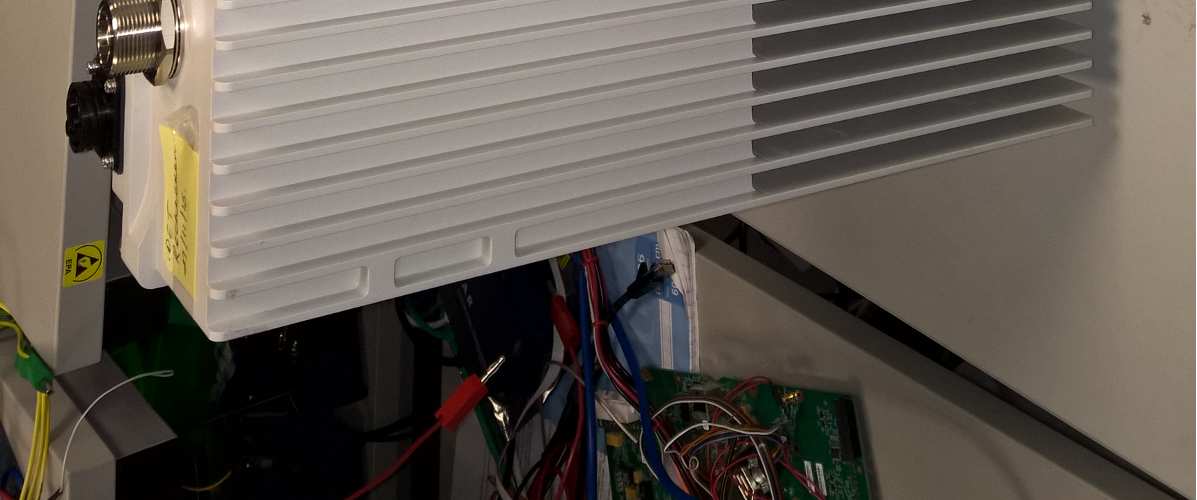

NXP-44510400AWS band LTE Remote Radio Head

PN - 240-00-0033 Revision 1.0 December 1, 2015 Altiostar Networks iRM4451 Remote Radio Head Product Description and Installation Guide Copyright© 2015 Altiostar All rights reserved. iRM4451 RRH Product Description and Installation Guide Copyright © Altiostar Networks 2015. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner. Altiostar Networks, Inc., iR6, and Altiostar Networks, Inc. logo are trademarks of Radio Mobile Access, Inc. All other trademarks are the property of their respective owners. Disclaimer All rights reserved. Information and product specification are subject to change without notice as part of the company continuous process and methodology improvement. Altiostar Networks assumes no responsibility for inaccuracies contained herein. RevisionChange Rev 1.0First issue l iRM4451 RRH Product Description and Installation Guidei Preface About the Manual This document covers the basic installation of the Altiostar Networks, Inc., iRM4451 Remote Radio Head (RRH) on towers, walls, roof or other structures utilizing a universal mounting assembly. Connections to external interfaces, including signaling, grounding, and power are described. Descriptions of the iRM4451 macro-cellular remote radio head indicators are also provided. Intended Users The target audience for this document is installation and engineering personnel. It assumes personnel have a basic understanding of wireless telecommunications terminology, and experience in installing wireless telecommunications equipment. Revision History This section describes the changes made to each revision of this document. l iiiRM4451 RRH Product Description and Installation Guide Contents IRM4451 RRH Product Description and Installation Guideiii Contents 1 Introduction ....................................................................... 1-1 1.1 Target audience....................................................................... 1-1 1.2 Conventions used .................................................................... 1-1 1.3 eNodeB Overview .................................................................... 1-1 2 Safety requirements ........................................................... 2-1 2.1 Overview................................................................................ 2-1 2.2 Purpose ................................................................................. 2-1 2.3 Warning symbols ..................................................................... 2-1 2.4 General safety precautions ....................................................... 2-1 3 Physical description............................................................ 3-1 3.1 iRM4451 boards and modules.................................................... 3-3 3.2 iRM4451 controls, indicators connectors and components ............. 3-3 4 Installation prerequisites ................................................... 4-1 4.1 Required tools......................................................................... 4-1 4.2 Additonal required site equipment ............................................. 4-2 4.3 Site preparation ...................................................................... 4-3 4.4 Site pre-installation visit checklist .............................................. 4-3 4.5 Site installation checklist .......................................................... 4-4 5 iRM4451 installation overview............................................ 5-1 5.1 Installation procedures............................................................. 5-1 5.2 Unpacking the shipping container .............................................. 5-1 5.3 Verifying all parts received........................................................ 5-2 6 Installing the iRM4451 ....................................................... 6-1 6.1 Assembling cables ................................................................... 6-1 6.2 Routing pre-assembled power/GigE optical fronthaul/grounding cables .................................................................................... 6-2 6.3 Installing the iRM4451 mounting bracket .................................... 6-3 6.4 Hoisting the iRM4451 on elevated structures ............................... 6-6 6.5 Installing the iRM4451 on the mounting bracket .......................... 6-7 6.6 Connecting the grounding cable................................................. 6-8 6.7 Connecting the RET cables........................................................ 6-9 6.8 Connecting the GigE optical fronthaul cables ............................... 6-9 6.9 Connecting the –48 V dc power cable ....................................... 6-10 6.10 Checking power................................................................... 6-11 6.11 Installing the solar shield ...................................................... 6-11 7 Terms, Acronyms and Abbreviations................................... 7-1 Contents ivIRM4451 RRH Product Description and Installation Guide Introduction iRM4451 RRH Product Description and Installation Guide1-1 1 Introduction This document covers the basic installation of the Altiostar Networks, Inc. iRM4451 macrocell wireless Remote Radio Head (RRH) on towers, walls, roof or other structures utilizing a universal mounting assembly. Connections to external interfaces, cabling, grounding and power are described. Descriptions of the iRM4451 connectors and indicators are also provided. 1.1 Target audience The target audience for this document is installation and engineering personnel 1.2 Conventions used Illustrations and photos in this document are intended to show a basic installation. They show site and equipment configurations encountered during a typical installation. They do not show all details and exceptions, but highlight the main points of the installation. Altiostar Networks, Inc. will often be referred to as Altiostar Networks, or simply…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 15 December 2015 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confirmation of channel pairing for FCC ID: NXP-44510400 To whom it may concern The Proxima transceiver operates in OFDMA mode with the following transmit / receive channel pairing as per 47CFR27.5(h): Downlink (transmit) frequency range: 2110 - 2155 MHz Uplink (receive) frequency range: 1710 – 1755 MHz (paired at “TX-400” MHz) Yours Sincerely Charlie Blackham Director

US1DOCS 7940776v2 CONFIDENTIALITY AGREEMENT This Confidentiality Agreement (the “Agreement”) dated <DATE> (the “Effective Date”), is between Altiostar Networks, Inc. a Delaware company (“Altiostar”) with offices at 200 Ames Pond Drive, Tewksbury, MA 01876, USA and <COMPANY and ADDRESS> 1. Background. Altiostar and <COMPANY> (collectively the “parties” and individually a “party”) intend to engage in discussions and negotiations concerning the possible establishment of a business relationship between them. In the course of such discussions and negotiations and in the course of any such business relationship, it is anticipated that each party will disclose or deliver to the other party and to the other party’s directors, officers, employees, agents, vendors or advisors (including, without limitation, attorneys, accountants, consultants, bankers, financial advisors and members of advisory boards) (collectively, “Representatives”) certain of its trade secrets or confidential or proprietary information for the purposes of enabling the other party to evaluate the feasibility of such business relationship and to perform its obligations and exercise its rights under any such business relationship that is agreed to between the parties (the “Purposes”). The parties have entered into this Agreement in order to assure the confidentiality of such trade secrets and confidential or proprietary information in accordance with the terms of this Agreement. As used in this Agreement, the party disclosing Proprietary Information (as defined below) is referred to as the “Disclosing Party”; the party receiving such Proprietary Information is referred to as the “Recipient”. 2. Proprietary Information. As used in this Agreement, the term “Proprietary Information” shall mean all trade secrets or confidential or proprietary information identified and designated as such in writing by the Disclosing Party, whether by letter or by the use of an appropriate proprietary stamp or legend, prior to or at the time any such trade secret or confidential or proprietary information is disclosed by the Disclosing Party to the Recipient. Notwithstanding the foregoing, information which is orally or visually disclosed to the Recipient by the Disclosing Party, and identified as Proprietary Information, shall constitute Proprietary Information for 30 days after its disclosure, and thereafter shall remain Proprietary Information only if the Disclosing Party, within 30 days after such disclosure, delivers to the Recipient a written document or documents describing such Proprietary Information and referencing the place and date of such oral, visual or written disclosure and the names of the Representatives of the Recipient to whom such disclosure was made. In addition, the term “Proprietary Information” shall be deemed to include: (a) any notes, analyses, compilations, studies, interpretations, memoranda or other documents prepared by the Recipient or its Representatives which contain, reflect or are based upon, in whole or in part, any Proprietary Information furnished to the Recipient or its Representatives pursuant hereto; and (b) the existence or status of, and any information concerning, the discussions between the parties concerning the possible establishment of a business relationship. 3. Scope of Agreement. This Agreement shall apply to all Proprietary Information disclosed between the parties hereto from the Effective Date until <DATE + 3YEARS>. 4. Use and Disclosure of Proprietary Information. The Recipient and its Representatives shall use the Proprietary Information of the Disclosing Party only for the Purposes and such Proprietary Information shall not be used for any other purpose without the prior written consent of the Disclosing Party. The Recipient and its Representatives shall hold in confidence, and shall not disclose any Proprietary Information of the Disclosing Party; provided, however, that (i) the Recipient may make any disclosure of such information to which the Disclosing Party gives its prior written consent; and (ii) any of the Proprietary Information may be disclosed by the Recipient to its Representatives who need to know such information in connection with the Purposes and who are informed of the confidential nature of such information and of the terms of this Agreement. In any event, the Recipient agrees, at its sole expense, to take reasonable measures to restrain its Representatives from prohibited or unauthorized disclosure or use of the Proprietary Information., including, without limitation, immediate notice of breach of US1DOCS 7940776v2 confidentiality and cooperation in limiting further dissemination of that information. Notwithstanding anything contained in this Agreement to the contrary, this Agreement shall not prohibit the Recipient from disclosing Proprietary Information of the Disclosing Party to the extent required in order for the Recipient to comply with applicable laws and regulations, provided that the Recipient provides prior written notice of such required disclosure to the Disclosing Party and takes reasonable and lawful actions to avoid and/or minimize the extent of such disclosure. 5. Limitation on Obligations. The obligations of the Recipient specified in Section 4 shall not apply, and the Recipient shall have no further obligations, with respect to any Proprietary Information to the extent that such Proprietary Information: (a) is generally known to the public at the time of disclosure or becomes generally known without the Recipient or its Representatives violating this Agreement; (b) is in the Recipient’s possession at the time of disclosure; (c) becomes known to the Recipient through disclosure by sources other than the Disclosing Party without such sources violating any confidentiality obligations to the Disclosing Party; or (d) is independently developed by the Recipient without reference to or reliance upon the Disclosing Party’s Proprietary Information. 6. Ownership of Pr…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 15 December 2015 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: NXP-44510400 To whom it may concern Pursuant to sections 0.457(d) and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: • Schematics • Bills of Materials • Internal Photographs as per KDB 726920 D01 v01r01 section II (3) • Operational Description With regard to internal photographs: • The remote radio head is sold B2B, for professional install typically several metres up a tower or similar structure. Please see submitted example NDA. Altiostar has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Yours Sincerely Charlie Blackham Director

FCC ID: NXP-44510400 FCC ID: NXP-44510400

iRM4451 Tune-up procedure Each iRM4451 unit is subject to an automated RF Calibration as part of system test during manufacture. As part of the test, the RF output power level for each port is measured at a number of gain settings in order to calibrate the internal power measurement and then provide accurate power control. The calibration data required to do this are unique to each unit and recorded and loaded on the unit as part of the automated system test. The permitted power tolerance is +0.5 / -0.5dB.

Additional User Manual Statement - EM Field exposure iRM4451 RF Exposure FCC Maximum Permissible Exposure (MPE) limits for equipment operating in the frequency range 1500 – 100,000 MHz is 1.0 mW/cm 2 . Following installation and commissioning, the safe distance from the antenna is the greater of: 20cm Or r cm, where r = √ (PG/4πS) P: power input to antenna(s) in mW G: numeric gain of antenna relative to isotropic radiator S: power density in mW/cm2 = 1 mW/cm2 The device has four antenna ports, so safe distance from the antenna shall be the greater of: 20 cm or √ (4*PG/4πS) Which gives 20 cm or √ (0.32*P*G) cm. The iRM4451 unit is designed to be used with one of three standard antennas combinations:  Four 2 dBi omni-directional antennas  Two 17 dBi 2-port cross-polarised directional panel antennas for use with 5 MHz channels  Two 18 dBi 2-port cross-polarised directional panel antennas for use with 10, 15 and 20 MHz channels Rounding up the total transmit power of 51 dB for four ports, gives the following safe distances from the unit: Antenna gain Safe distance (m) 2 dBi 1.26 17 and 18 dBi 7.95

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com RF Test Report: Altiostar Networks AWS Band iRM4451 RRH FCC ID: NXP-44510400 SC_TR_181A Prepared for: Altiostar Inc. 100 Ames Pond Drive Tewksbury MA 01876 USA SC_TR_181A Page 2 of 29 Contents 1 Revision History .............................................................................................. 4 2 Purpose .......................................................................................................... 4 3 Reference Documents ...................................................................................... 4 4 Test Information ............................................................................................. 5 4.1 Client .................................................................................................... 5 4.2 Test personnel ....................................................................................... 5 4.3 Test sample ........................................................................................... 5 5 Product Description.......................................................................................... 6 6 Test Configuration ........................................................................................... 7 6.1 Test sample and Operating mode ............................................................. 7 6.2 Equipment set-up ................................................................................... 7 6.3 Support equipment ................................................................................. 8 7 Summary of Tests performed ............................................................................ 9 8 Transmit Power 47CFR90.1321 ........................................................................ 10 8.1 Requirement and test method ................................................................. 10 8.2 Test results: Transmit Power .................................................................. 11 8.3 Test results: Peak-to-average ratio .......................................................... 12 9 Spectral Power Density ................................................................................... 14 9.1 Requirement and test method ................................................................. 14 9.2 Test results .......................................................................................... 14 10 Occupied Bandwidth ....................................................................................... 16 11 Conducted Spurious Emissions inc. Band Edge ................................................... 18 11.1 Requirement and test method ................................................................. 18 11.2 Band edge results ................................................................................. 19 11.3 Conducted spurious emissions ................................................................ 20 12 Radiated Spurious Emissions ............................................................................ 23 12.1 Requirement and test method ................................................................. 23 12.2 Results ................................................................................................ 25 13 Test equipment .............................................................................................. 29 SC_TR_181A Page 3 of 29 Tables Table 1: Equipment under test ................................................................................. 7 Table 2: Support Equipment .................................................................................... 8 Table 3: Summary of tests performed ....................................................................... 9 Table 4: Transmit power ....................................................................................... 11 Table 5: Peak-to-average measurements ................................................................ 12 Table 6: Transmit power spectral density ................................................................ 14 Table 7: Occupied Bandwidth test results ................................................................ 16 Table 8: CSE Band edge results .............................................................................. 19 Table 9: CSE results except bandedge ..................................................................... 20 Table 10: Radiated Spurious Emissions Substitution results ....................................... 25 Table 11: Test Equipment ...................................................................................... 29 Figures Figure 1: Configuration for test ................................................................................ 7 Figure 2: Peak-to-Average plots ............................................................................. 13 Figure 3: Transmit Power Spectral Density plots ....................................................... 15 Figure 4: Occupied Bandwidth plots ........................................................................ 17 Figure 5: CSE plots ............................................................................................... 22 Figure 6: RSE pre-scans, 5 MHz channel .................................................................. 24 Figure 7: RSE final measurements .......................................................................... 28 SC_TR_181A Page 4 of 29 1 Revision History Revision Originator Date Comment A C Blackham 16 Dec 2015 1 st release 2 Purpose This document details the FCC RF testing performed on the Altiostar AWS Band iRM4451 RRH (Remote Radio Head), model number iRM44510400, designed to transmit in the 2110-2155 MHz band. 3 Reference Documents [Ref 1] 47CFR2 Title 47 Code of Federal Regulations Part 2: frequency allocations and radio treaty matters; general rule…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com Temperature Stability Test Report: Altiostar Networks AWS Band iRM4451 RRH FCC ID: NXP-44510400 SC_TR_182_A Prepared for: Altiostar Inc. 100 Ames Pond Drive Tewksbury MA 01876 USA SC_TR_182_A Page 2 of 6 Contents 1 Revision History .............................................................................................. 3 2 Purpose .......................................................................................................... 3 3 Reference Documents ...................................................................................... 3 4 Test configuration ............................................................................................ 4 4.1 Test sample and Operating mode ............................................................. 4 4.2 Support equipment ................................................................................. 4 5 Test Results .................................................................................................... 5 6 Test equipment and location ............................................................................. 6 Tables Table 1: Equipment under test ................................................................................. 4 Table 2: Support Equipment .................................................................................... 4 Table 3: Test results ............................................................................................... 5 Table 4: Test Equipment.......................................................................................... 6 Figures Figure 1: Test Configuration..................................................................................... 4 SC_TR_182_A Page 3 of 6 1 Revision History Revision Originator Date Comment A C Blackham 16 Dec 2015 1 st release 2 Purpose This document details the temperature stability testing performed on the Altiostar AWS Band iRM4451 RRH (Remote Radio Head), model number iRM44510400, designed to transmit in the 2110-2155 MHz band. 3 Reference Documents [Ref 1] 47CFR2 Title 47 Code of Federal Regulations Part 2: frequency allocations and radio treaty matters; general rules and regulations [Ref 2] 47 CRF27 Title 47 Code of Federal Regulations Part 27: Miscellaneous Communications Services [Ref 3] TIA-603-D Land Mobile FM or PM – Communications Equipment – Measurement and Performance Standards SC_TR_182_A Page 4 of 6 4 Test configuration The iRM4451 was configured to transmit an E-TM1.1 waveform at 2132.5 MHz and the EVM of the signal was measured using the Analyser. In order for the Analyser to be able to accurately measure the EVM, it was locked to a reference signal from the iRM4451 unit. The transmit Frequency of the iRM4451 is locked to GPS in typical install and 0.016 ppm was added to the EVM error as that represents the worst case baseband card frequency stability. 48V DC supply Equipment under Test In Thermal Chamber Support Equipment Figure 1: Test Configuration 4.1 Test sample and Operating mode The equipment under test (EUT) was: Manufacturer Model Number Serial Number Altiostar iRM44510400 PLW47150004 Table 1: Equipment under test 4.2 Support equipment The support equipment was: Description Manufacturer Name Serial Number Laptop HP 250 Dvt-mobile altiostar Table 2: Support Equipment iRM4451 Analyser Laptop Co-ax RF cable With attenuation SC_TR_182_A Page 5 of 6 5 Test Results Temp (°C) System Freq Error (ppm) -40.0 0.0174 -30.0 0.0170 -20.0 0.0175 -10.0 0.0172 0.0 0.0170 10.0 0.0170 20.0 0.0172 30.0 0.0171 40.0 0.0169 50.0 0.0166 60.0 0.0168 Table 3: Test results Note : Varying DC input voltage by ±15% did not have any effect on the DC voltage output from the DC-DC power supply nor on voltage rails within the product and the frequency error at 20°C is unchanged for variations in supply voltage. SC_TR_182_A Page 6 of 6 6 Test equipment and location Testing was performed at: Altiostar Networks UK Ltd 6 Horizon Business Village 1 Brooklands Road Weybridge KT13 0TJ Description Manufacturer Name Serial Number Calibration certificate Chamber CTS C-70/600 137108 Internally verified by Altiostar PXA Signal Analyser Agilent N9030A MY54200197 1-7032980367-1 Due 05/07/17 Attenuator Fairview Microwave SA18N100-30 None N/A for frequency measurements RF cable Times Microwave SLU18-SMNM- 01.5m 3155 Table 4: Test Equipment

SC_TR_181-plots Page 1 of 4 5 MHz Channel, QPSK 5 MHz Channel, 16 QAM 5 MHz Channel, 64 QAM Figure 1: Transmit Power and band edge plots; 5 MHz channel SC_TR_181-plots Page 2 of 4 10 MHz Channel, QPSK 10 MHz Channel, 16 QAM 10 MHz Channel, 64 QAM Figure 2: Transmit Power and band edge plots; 10 MHz channel SC_TR_181-plots Page 3 of 4 15 MHz Channel, QPSK 15 MHz Channel, 16 QAM 15 MHz Channel, 64 QAM Figure 3: Transmit Power and band edge plots; 15 MHz channel SC_TR_181-plots Page 4 of 4 20 MHz Channel, QPSK 20 MHz Channel, 16 QAM 20 MHz Channel, 64 QAM Figure 4: Transmit Power and band edge plots; 20 MHz channel
