NY8D1598Bluetooth Wireless GPS

0 CRUX II/BTGPS USER GUIDE Model:D1598 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2 Hardware Configuration When your eyes one our BTGPS, you will find a switch, an external antenna MCX connector, 3 LEDs and an AC plug-in. Their functions are z Switch To turn on BTGPS. To turn off BTGPS. z External antenna MCX Connector when you have an external GPS active antenna with MCX male connector, you can plug it in. Then, the BTGPS will receive GPS satellite signal 3 from this external active antenna, not the built-in antenna. Of course, if you don’t have an external antenna, BTGPS will use the built-in one. Both will be O.K. z AC plug-in when you want to charge BTGPS, you can use our AC adapter or iPaq-compatible AC adapter. Be aware that adapter rating is 5V, 1A. z LEDs Blue LED If there is no other bluetooth device connecting with it, it should be blinking. Once there is a bluetooth connection, it will keep led always on. Green LED If GPS does not fix your position yet, it will be blinking. Once fixed, it will keep led on. 4 Yellow/Red LED Red: means batter is critical low; you should charge battery right away. Yellow: means the batter still need charging, not reaching full state yet. LED off: means the battery is full. 5 Installation Guide Step1 – Turn on your iPaq 3870, and BTGPS. Step2 – From your iPaq, in the “Start” Page, you will see the BlueTooth icon shown at the tray. Click it; you will see a menu pop-up. Step3 –Then clicks on the item of “Bluetooth Manager”. 6 Step4 – You will see the window of "Bluetooth Manager". Clicks on the item of “Search”, at the bottom of window. Your iPaq will start to search all bluetooth devices it can find. 7 Step5 – The “EMTAC BTGPS” is what we want, check it and save it. Step6 – You can save it in the default folder, “All Devices” or you can create a new folder your own. Like here, we save it in the folder of “GPS” . 8 Step7 – After you press “OK”, you will be back to the windows of “Bluetooth Manager”, and you will find an icon of “EMTAC BTGPS” shown there. 9 Step8 – Clicks on the icon, you will some settings of it. Then You should click on “Actions”->”Connect to Serial Port”, to make your iPaq connect to EMTAC BTGPS by serial profile. Step9 – After few seconds, you can press “OK” to go back to “Bluetooth Manager”, you will see the icon with an extra sign, 10 It means all set, then you can run you digital map program. But do remember to change the COM port setting of GPS source of your program to COM 8. After that, your digital map can receive the GPS signal from our BTGPS. Even though, you may use another kind of machine, but the basic configuration steps are almost all the same. You must 1. Pair our BTGPS. 2. Make a serial port connection. 3. Open the right COM port for your application

EMTAC Technology Corp. 1F, No. 22, Industry East 9 Road, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C TEL: +886-35-631-688 FAX: +886-35-631-028 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910701R04. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

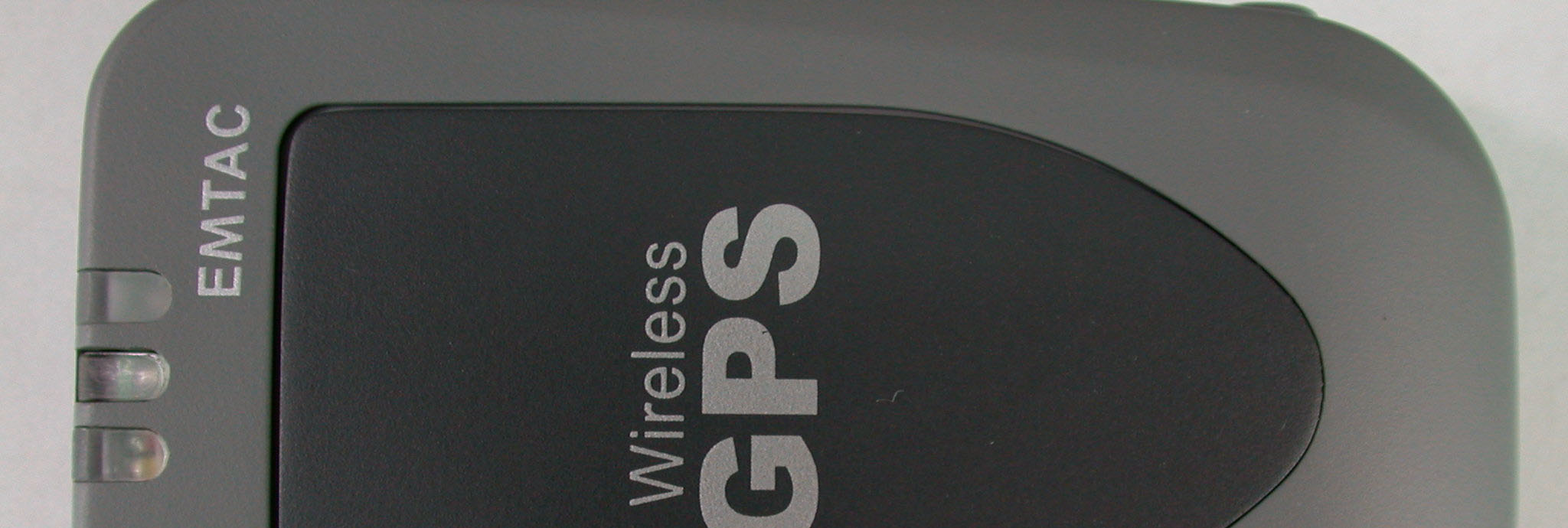

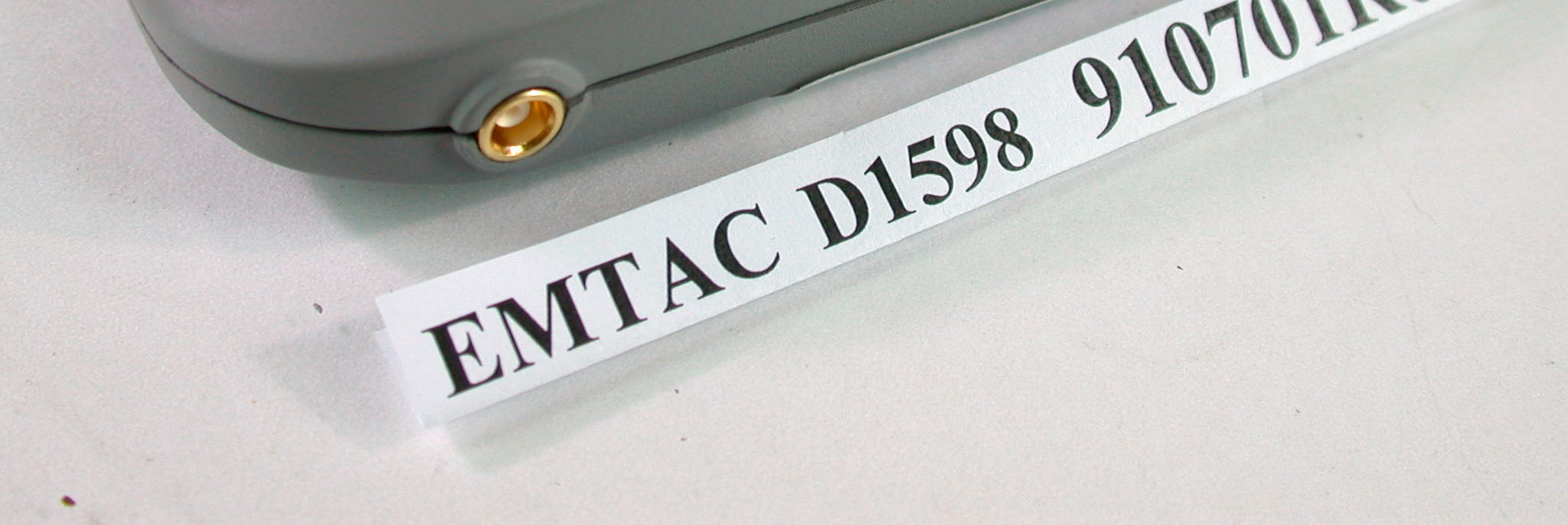

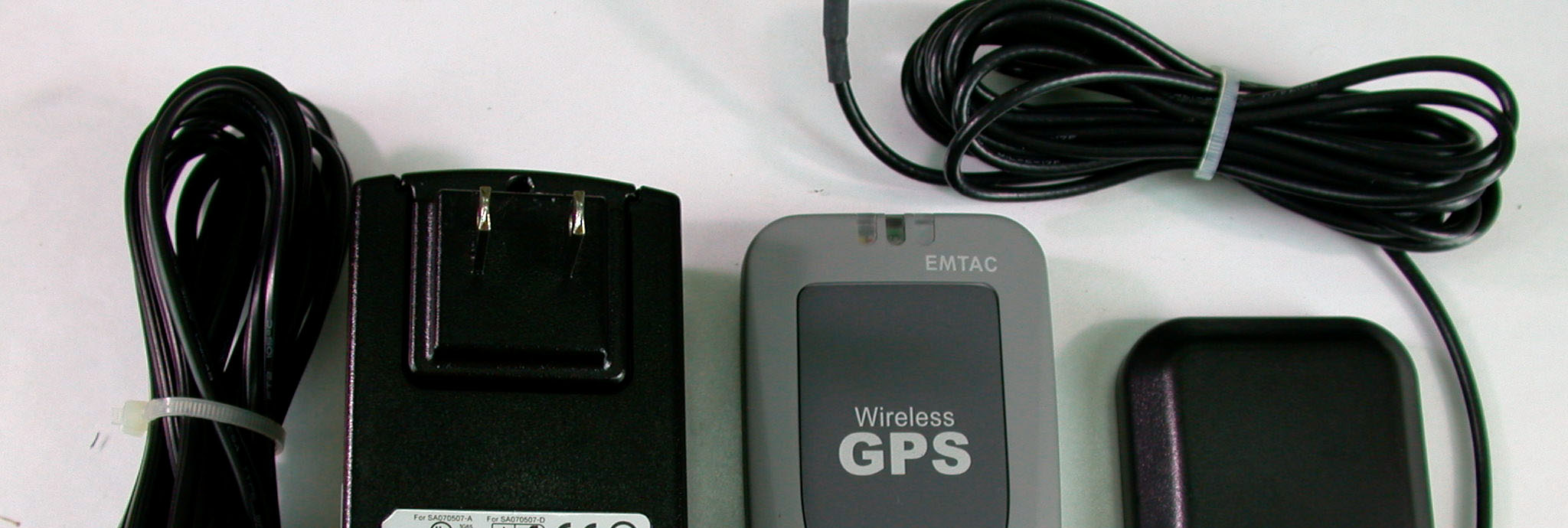

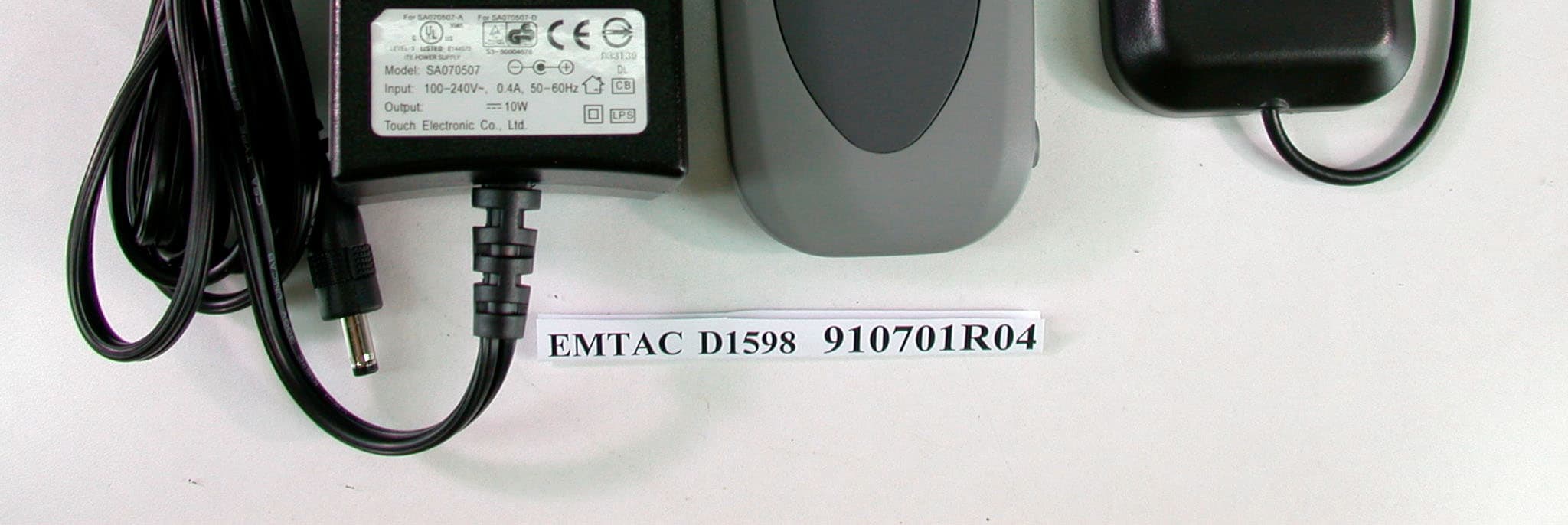

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Label

D1598_Label (522x341x256 gif)

Page 4 Page 5 Page 6 Page 7

Page 8 Page 9 Page 10 Page 11

FCC ID: NY8D1598 ADT No.910701R04 Operational Description The transmitter of the EUT (CRUX II/BTGPS) is powered by host equipment. The antenna is ceramic antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance away from the radiator. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

FCC ID: NY8D1598 ADT No.: 910701R04 FCC TEST REPORT REPORT NO.: RF910701R4 MODEL NO.: D1598 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:EMTAC Technology Corp. ADDRESS: 1F, No. 60, Lane 91, Tong-Mei Road, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NY8D1598 ADT No.: 910701R04 RF Exposure Measurement (Portable Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: NY8D1598 ADT No.: 910701R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: NY8D1598 ADT No.: 910701R04 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 024021.330.33 3924411.370.33 7824801.420.34 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation.

FCC ID: NY8D1598 Report No.: RF910701R041Issued: August 8, 2002 FCC TEST REPORT REPORT NO.: RF910701R04 MODEL NO.: D1598 RECEIVED: June 14, 2002 TESTED: July 16 ~ August 2, 2002 APPLICANT: EMTAC Technology Corp. ADDRESS: 1F, No. 60, Lane 91, Tong-Mei Road, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: NY8D1598 Report No.: RF910701R042Issued: August 8, 2002 TABLE OF CONTENTS 1CERTIFICATION .......................................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................................. 5 3GENERAL INFORMATION........................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT............................................................................. 6 3.2DESCRIPTION OF TEST MODES............................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................... 8 4TEST PROCEDURES AND RESULTS ........................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................9 4.1.2TEST INSTRUMENTS.................................................................................9 4.1.3TEST PROCEDURES ...............................................................................10 4.1.4TEST SETUP ............................................................................................10 4.1.5TEST RESULTS ........................................................................................ 11 4.2NUMBER OF HOPPING FREQUENCY USED .......................................................... 17 4.2.1LIMIT OF HOPPING FREQUENCY USED................................................17 4.2.2TEST INSTRUMENTS...............................................................................17 4.2.3TEST PROCEDURES ...............................................................................18 4.2.4TEST SETUP ............................................................................................18 4.2.5TEST RESULTS ........................................................................................18 4.3DWELL TIME ON EACH CHANNEL .......................................................................... 20 4.3.1LIMIT OF DWELL TIME USED..................................................................20 4.3.2TEST INSTRUMENTS...............................................................................20 4.3.3TEST PROCEDURES ...............................................................................21 4.3.4TEST SETUP ............................................................................................21 4.3.5TEST RESULTS ........................................................................................22 4.4CHANNEL BANDWIDTH............................................................................................ 25 4.4.1LIMITS OF CHANNEL BANDWIDTH ........................................................25 4.4.2TEST INSTRUMENTS...............................................................................25 4.4.3TEST PROCEDURE .................................................................................26 4.4.4TEST SETUP ............................................................................................26 4.4.5EUT OPERATING CONDITION ................................................................26 4.4.6TEST RESULTS ........................................................................................27 4.5HOPPING CHANNEL SEPARATION ......................................................................... 31 FCC ID: NY8D1598 Report No.: RF910701R043Issued: August 8, 2002 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION ........................................31 4.5.2TEST INSTRUMENTS...............................................................................31 4.5.3TEST PROCEDURES ...............................................................................32 4.5.4TEST SETUP ............................................................................................32 4.5.5TEST RESULTS ........................................................................................32 4.6MAXIMUM PEAK OUTPUT POWER ......................................................................... 36 4.6.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .........36 4.6.2INSTRUMENTS.........................................................................................36 4.6.3TEST PROCEDURES ...............................................................................37 4.6.4TEST SETUP ............................................................................................37 4.6.5EUT OPERATING CONDITION ................................................................37 4.6.6TEST RESULTS ........................................................................................38 4.7RADIATED EMISSION MEASUREMENT .................................................................. 41 4.7.1LIMITS OF RADIATED EMISSION MEASUREMENT ...............................41 4.7.2TEST INSTRUMENTS...................................................................…

Text truncated - open the document above for the full version.

FCC ID: NY8D1598 Report No.: RF910701R0454Issued: August 8, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NY8D1598 Report No.: RF910701R0455Issued: August 8, 2002 RADIATED EMISSION TEST
