NYOMBEC7FOB2208Remote Keyless Entry Transmitter

Model : MBEC7FOB2208 4.USER MANUAL 4.1ITEM : FOB LF system - This system is IBU and inculdes RKE. - RKE in IBU system is intended for auto door lock or unlock or TRUNK in vehicle. - This SMK system is to be installde on motor vehicles as *OE item. *OE : Original Equipment. *IBU : Intergrated Body control Unit *RKE : Remote Keyless Entry. 4.2SYSTEM CONSTRUCTION 4.2.1SYSTEM IN VEHICLE 4.2.2SYSTEM FOR TEST ① Connect the 12V power supply and turn on the switch ② Pressing the white tact switch, LF signal is transmitted and FOB LED and IBU LED is flahes ③ When the tact switch is pressed repeatively, FOB LED and IBU LED is flahes, repeatively. * It shows the status of operation through the LED used. Radio Frequency (433.92MHz) ANTENNA BATTERY LF ANT IBU Low Frequency (125KHz) SSB Radio Frequency (433.92MHz) ANTENNA BATTERY LF ANT IBU Low Frequency (125KHz) SwitchLED Model : MBEC7FOB2208 6. Product Information 6.1 Configuration of smart key system 6.1.1 Fob (transmitter): Fob includes passive entry and passive start functions. It uses a radio frequency and has a TP function for emergency start. 6.1.2 Smart key system (receiver): Controls RKE, passive entry, passive start functions. 6.2 Performance 6.2.1 Transmitter Battery life 2 Year(10Times/Day)(Lithium 3V 1EA) Frequency 433.92MHz Code Rolling Code(Hopping Algorithm) Electric field strength10mW (433.92MHz) Operating temperature range - 10 ~ + 60°C with Battery Storage temperature range - 30 ~ + 85°C without Battery ModulationFSK ITEM SPECIFICATION Rated supply voltage DC 3V Operating voltage range DC 2.5 ~ 3.2V )&&ZDUQLQJVWDWHPHQW  Ȝ7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV   WKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG  WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHG LQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ   7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD&ODVV%GLJLWDOGHYLFHSXUVXDQWWRSDUW RIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQ DUHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQUDGLDWHUDGLRIUHTXHQF\HQHUJ\DQGLIQRW LQVWDOOHGDQGXVHGLQDFFRUGDQFHZLWKWKHLQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV +RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQWGRHV FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQW RIIDQGRQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQHRUPRUHRIWKHIROORZLQJPHDVXUHV ² 5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD ²,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU ²&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULVFRQQHFWHG ² &RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS   $Q\FKDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKH DXWKRULW\WRRSHUDWHHTXLSPHQW 7KLVGHYLFHDQGLWVDQWHQQDPXVWQRWEHFRORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRU WUDQVPLWWHU (QGXVHUVDQGLQVWDOOHUVPXVWEHSURYLGHGZLWKDQWHQQDLQVWDOODWLRQLQVWUXFWLRQVDQGWUDQVPLWWHURSHUDWLQJ FRQGLWLRQVIRUVDWLVI\LQJ5)H[SRVXUHFRPSOLDQFH  )&&,&5)5DGLDWLRQ([SRVXUH6WDWHPHQW 7KLVHTXLSPHQWFRPSOLHVZLWK)&&,6('UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQPHQW 7KLVHTXLSPHQWVKRXOGEHLQVWDOOHGDQGRSHUDWHGZLWKPLQLPXPGLVWDQFHmPEHWZHHQWKHUDGLDWRU \RXU ERG\ 7KLVGHYLFHFRPSOLHVZLWK)&&,6('UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQPHQW  ,&ZDUQLQJVWDWHPHQW 566*HQ,VVXH 7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGD¶VOLFHQFHH[HPSW566V2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZR FRQGLWLRQV  7KLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQG  7KLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFH LQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH  /HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G ,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGH OLFHQFH / H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHV  O DSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHW   O XWLOLVDWHXUGHO DSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXELPrPHVLOHEURXLOODJHHVWVXVFHSWLEOH G HQFRPSURPHWWUHOHIRQFWLRQQHPHQW  &RORFDWHG 7KLVGHYLFHDQGLWVDQWHQQD V PXVWQRWEHFRORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRU WUDQVPLWWHU

MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro, 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Tel: +82-10-9430-9631 Date: May 30, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 FCC ID : NYOMBEC7FOB2208 IC number : 3109A-MBEC7FOB228 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro, 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Tel: +82-10-9430-9631 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ryu Hee-Tack / Head Project Manager MOBASE ELECTRONICS CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro, 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Tel: +82-10-9430-9631 Date: May 30, 2022 Federal Communications Commission Authorization and Evaluation Division Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 Confidentiality Request regarding application for certification of FCC ID : NYOMBEC7FOB2208 IC number : 3109A-MBEC7FOB228 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules and IC regulation, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List Part List.pdf Schematics Diagram(s) Schematic.pdf Operation description Operation description.pdf Block diagram Block diagram.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ryu Hee-Tack / Head Project Manager MOBASE ELECTRONICS CO., LTD.

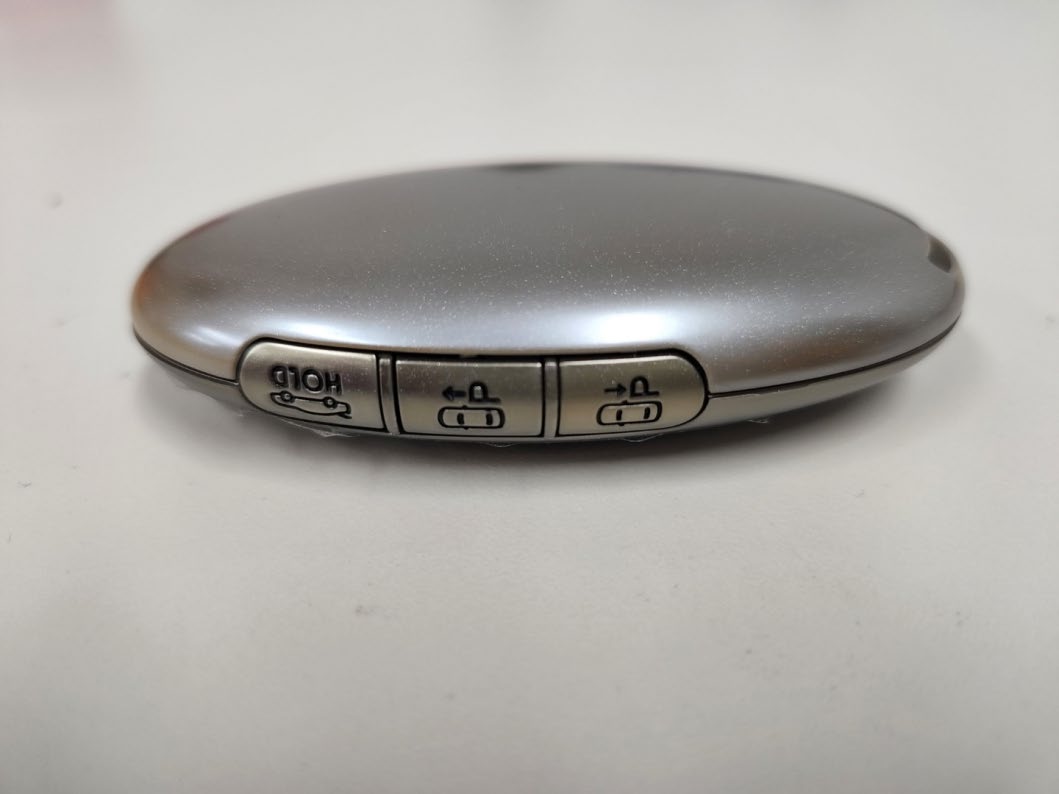

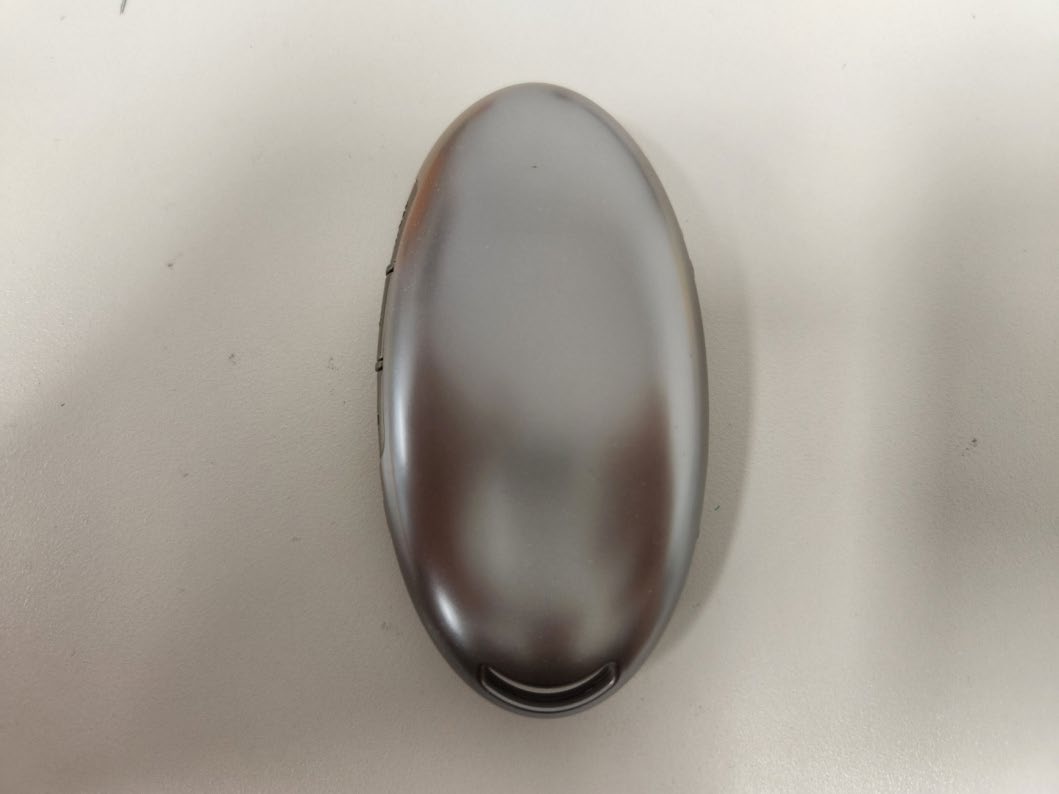

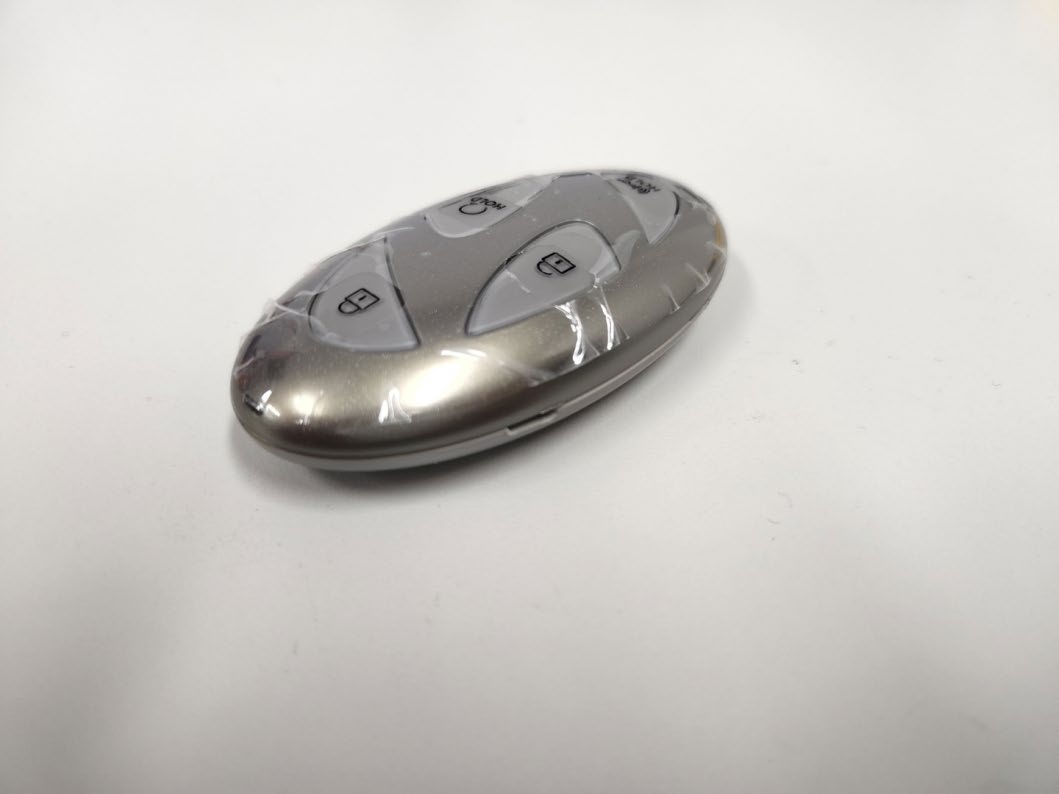

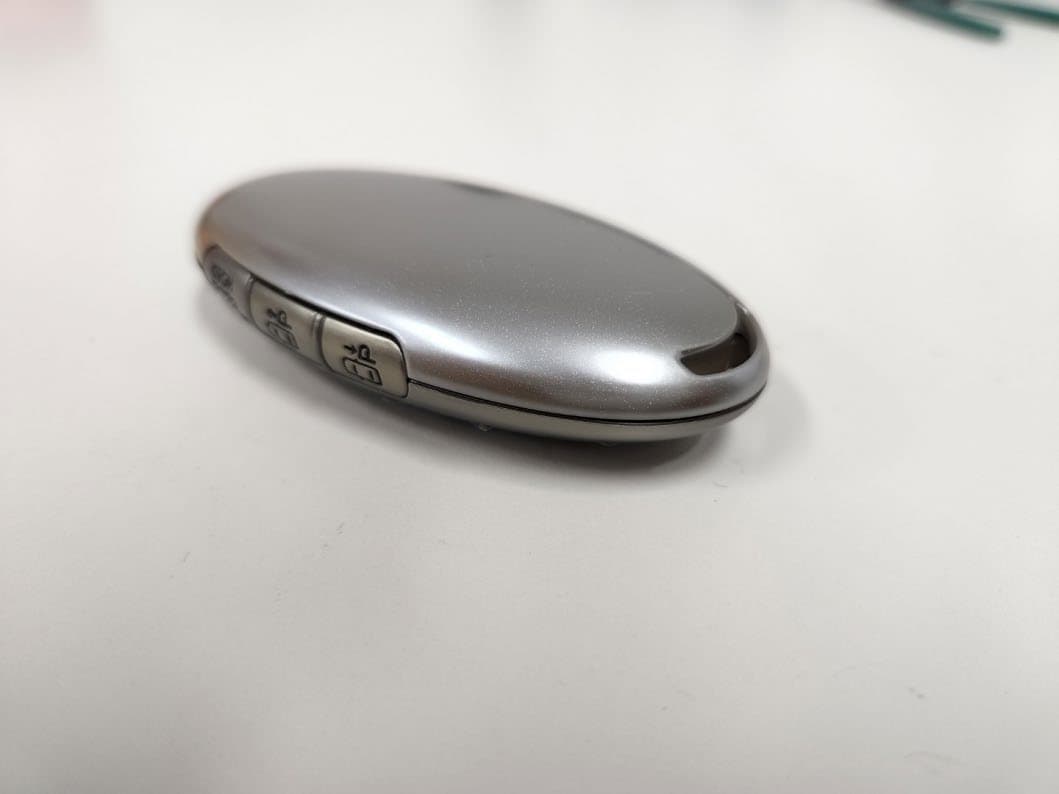

Model No.: MBEC7FOB2208 Page 1 of 2 External photos Model No.: MBEC7FOB2208 Page 2 of 2

SHT/SHTS : 8/8 Label NAME FOB TITLE LABEL SCALE FREE The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User Manual.

Model No.: MBEC7FOB2208 Page 1 of 2 Internal photos Model No.: MBEC7FOB2208 Page 2 of 2 Antenna N/A

Model No.: MBEC7FOB2208 Page 1 of 1 RF exposure FCC ID : NYOMBEC7FOB2208 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 ㎒ to 6 ㎓ at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(㎓)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where; f(㎓) is the RF channel transmit frequency in ㎓ Power and distance are rounded to the nearest ㎽ and mm before calculation The result is rounded to one decimal place for comparison Results Mode Frequency (㎓) Distance (mm) Max tune-up power (㏈m) Calculation value Exclusion Threshold (㏈m) (㎽) Tx 0.433 92 5 4.00 2.512 0.331 ≤3.0
