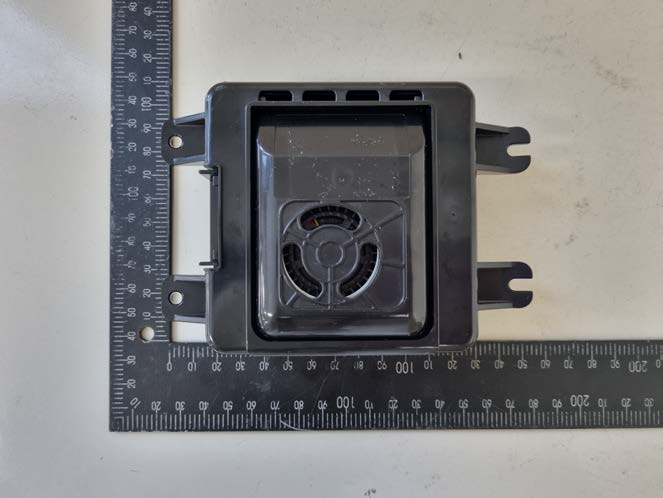

NYOMBECNWPC2307UNIT ASSY-WIRELESS CHARGING NFC

Operational description PAGE ESTABLISHED BY MOBASE ELECTRONICS MBECNWPC2307 SPEC NO. CONTENTS 1.GENERAL INFORMATION 2.ELECTRICAL CHARACTERISTICS - RELEASED ALL 2023.03.31 J W PARK Rev.NO DESCRIPTION OF CHANGE CHANGE PAGE REV. DATE REV. BY REL. DATE 2023.03.31 REFERENCE SORT PREPARED CHECKED APPROVED APPR OVAL J W PARK J Y JIN J H LEE Original archive (PLM SYSTEM) DSF-4-02-01A-1 MOBASE ELECTRONICS CO., LTD. A4(210x297) U S E R M A N U A L SPEC NO Document Change History Date Ver. Editor Chap. Description CR# U S E R M A N U A L SPEC NO Contents list page 1.GENERAL INFORMATION ............................................................. 3 1.1. Description of WPC UNIT ............................................................................................... 3 1.2. System configulation diagram .......................................................................................... 4 1.3. System overview ............................................................................................................. 5 2.ELECTRICAL CHARACTERISTICS ................................................................................... 5 2.1. Operating characteristics of MP .................................................................................... 5 2.2. Operating characteristics of MP+NFC ............................................................................. 6 2.3 UNIT Inout/OutputInterface .............................................................................................. 6 1.GENERAL INFORMATION 1.1 Description of WPC UNIT The actual distance used by the EUT is 20cm. WPC UNIT provid es the following functions. •MAX 15W Wireless Charging •NFC Vechicle Start status •Wireless Charging : 114~116kHz(5W,15W), 1126~128kHz(7.5W) •NFC Reader : 13.56MHz Picture 1: System configuration U S E R M A N U A L SPEC NO 1.3 System overview Wireless charging controller <LP, MP> - System for charging mobile phone wirelessly in vehicle using electromagnetic induction between coils ① After inputting IGN1 power, the reception coil (cell phone RX Coil) ② Confirmation of non-mobile NFC mounting via NFC Multi Tagging <MP + NFC> ③ (TX side charging pad: wireless charger side) Current flows in the transmission coil ④ The magnetic field generated by the current of the transmission coil is guided to the receiving coil and induction current is generated in the receiving coil ⑤ The charging current starts to be charged through PMIC (Power module IC) of mobile phone NFC Communication Controller <MP + NFC> - Vehicle start, key registration, and vehicle information transmission / reception device through mutual communication with NFC (near field communication) installed in mobile phone and ECU. ① After inputting B + power, put Smart Phone on top of ECU ② When charging C_WPCNFCCmd = 0x01 (NFCSearchingOnHCE) from the authentication unit, stop wireless charging && NFC Start ③ PhoneKeyAuth Mode (SmartPhone ↔ WPC ↔ IAU AUTH certification) ④ RTC SYNC MODE (RTC synchronization) ⑤ CertificateChain SYNC MODE (Certificate Synchronization) ⑥ PhoneKey Sync MODE MODE (Synchronize PhoneKey and Spare Key) ⑦ When C_WPCNFCCmd = 0x02 (NFC Searching Off) is input from the authentication unit NFC Mode Stop && When IGN1 is ON, Wireless charging Start 2 ELECTRICAL CHARACTERISTICS 2.1 Operating characteristics of MP Item Specification Rated Supply Voltage DC 12V Operating Voltage DC 9 ~ 16V Operating Temperature - 30 ~ + 75°C Storage temperature range - 40 ~ + 85°C MP<WPC> Frequency 114 ‐ 116 kHz 126 ‐ 128 kHz Table 1: Electrical characteristics of MP Standby Current Below than 1mA U S E R M A N U A L SPEC NO 2.2 Operating characteristics of MP+NFC Item Specification Rated Supply Voltage DC 12V Operating Voltage DC 9 ~ 16V Operating Temperature - 30 ~ + 75°C Storage temperature range - 40 ~ + 85°C MP<WPC> Frequency 114 ‐ 116 kHz 126 ‐ 128 kHz NFC Frequency 13.56MHz Table 2: Electrical characteristics of MP+NFC 2.3 UNIT Input/Output Interface Pin No. Description Reference 1 GND 2 GND 3 WC_AMBER_IND_OUT 4 WC_GREEN_IND_OUT 5 B_CAN_LOW 6 B_CAN_HIGH 7 NC 8 AUTH_CAN_LOW 9 AUTH_CAN_HIGH 10 NC 11 IGN1 12 BAT+ Standby Current Below than 1mA U S E R M A N U A L SPEC NO FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. ISED This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF du IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de IC rayonnements RF limites é-tablies pour un…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name MOBASE ELECTRONICS CO., LTD. Address 100, Saneop‐ro 156beon‐gil, Gwonseon‐gu, Suwon‐si, Gyeonggi‐do, Republic of Korea Grantee Code NYO FCC ID NYOMBECNWPC2307 Authorized Contact Name Hee‐Tack Ryu Contact Email [email protected] Contact Phone +82‐31‐420‐3482 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List MOBASE ELECTRONICS CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. MOBASE ELECTRONICS CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023.06.30 Print Name: Hee‐Tack Ryu Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

<NFC> Item Contents Antenna Type PCB Pattern Antenna Antenna peak gain - ㏈i Manufacturer STMicroelectronics 3F Business tower of Nuriggum square building, 396, World Cup buk-ro, Mapo-gu, Seoul, Republic of Korea, 03925 Model name ST25R3920 Test laboratory - Size Information Length : 7.6 cm / Width : 8.7 cm Antenna Information PCB Pattern Antenna 7.6cm 8.7 cm <WPC> Item Contents Antenna Type Coil Antenna Antenna peak gain - ㏈i Manufacturer Automotive Electronics Hi-Tech Co., Ltd. 49, Deokseongsandan 2-ro 50beon-gil, Idong-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Republic of Korea, 17130 Model name MP-A13 Test laboratory - Size Information Length : 5.4 cm / Width : 4.7 cm 5.4cm 4.7 cm coil antenna
