NYOMBECSCIM2106SCIM (Security Cab & Interface Module)

Technical Introduction of SCIM Package 2 / 9 ◇ General Specifications  Operating Voltage Range : 16V ~ 32V (nom 24V)  Operating Temperature : -40°C ~ 85°C  Storage Temperature : -40°C ~ 100°C  LF Frequency : 125KHz  RF Frequency : 433.92MHz(315MHz Only Japan)  Dark Current ◇ Package 1. Size : 175 x 145 x 45 mm 2. Weight : Less than 300g ※ Design and specification can be changed <REFERENCE UNIT VIEW> ◈ SCIM UNIT Mode RFQ Proposal Operational, ref state ISS0 < 40㎃ < 30㎃ Standby State(LIN Sleep) < 4㎃ < 2.5㎃ Standby State(Security) < 3㎃ < 2㎃ Sleep State < 0.3㎃ < 0.3㎃ SCIM PACKAGE Configuration 1 3 / 9 ◇ Mounting Layout Sliding assembly structure will be applied with its external case hook (Separate Bracket will not be applied) Mounting Proposal : 1st slot in the EC(Electrical Center) In order to meet RKE(RF) Operation Distance with 40M, Seoyon proposes the minimization of interruption made by metal material at RF radiated field Necessary to have 53mm separation from SCIM conductor material (Ideal Distance is more than 86mm) < MOUNTING Proposal > <REFERENCE UNIT VIEW> ◈ SCIM UNIT Mounting Point SCIM PACKAGE Configuration 1 4 / 9 ◈ SCIM UNIT ◇ LF / RF BLOCK DIAGRAM LF Chip Atmel ATA5291 Power- management Transponder interface Watchdog Driver Modules RF receiver Atmel ATA5781 RF front-end XTO 24,74 MHz Crystal RF LF Amplifier SAW Filter ECU SPI Event lines VDD = 5V SPI Event lines VDD = 12V LF Antennas Door Handles Transponder Transponder Antenna Ex Antenna SCIM PACKAGE Configuration 1 5 / 9 ◈ Reaction Time Review 20ms Start Stop or Toggle Button 15ms 24ms 20ms 10ms REGISTER SEARCH (33ms) AUTHENTICATION SEARCH AUTHENTICATION RF answer 1st 2nd 3rd RELAY output FOB Location determination Time: 66ms FOB Auth Time : 44ms 140ms ( for Fob 2EA ) LOCATION RF answer(33ms) 9.8ms Common 1st 2nd 9.8ms 9.8ms ◇ FOB Searching Sequence – LF&RF sending and receiving Sequence SCIM (LF Send) FOB (RF Receive) ▶ LF Frequency : 125KHz ▶ RF Frequency : 433.92MHz ▶ LF Baud Rate : 3.91kbit/s ▶ RF Baud Rate : 9.6kbit/s ▶ RKE Baud Rate : 5kbit/s ▶ Encryption algorithm : AES128 System Configuration 2 6 / 9 ◈ Reaction Time Review ◇ Issue on quantity of FOB 55.63ms ( for Fob 4EA ) All keys do not overlap but have more action time 35ms (FOB 8EA) - Proposal 35ms (FOB 4EA) 88ms (FOB 8EA) 1st / 5st , 2st / 6st., 3st / 7st, 4st/8st RF DATA Overap < Location RF Answer Time Slot > System Configuration 2 7 / 9 Technical Requirements LF Antenna Coverage : Over 3 meters WAL FOB detected in Area I = Lock Standby FOB detected in Area II = Locking When the FOB is detected in Area I for more than 3 minutes in Lock Standby state, autodoor locking SAU FOB detected in Area II = Unlock Standby FOB detected in Area I = Unlocking WAL Lock Fail Warning Func. 2M 2.5M 2M Area I Search Areas 2.5M Area II System Configuration 3 8 / 9 Security Issues (Relay Station Attack) Ø ANT1-2 Relay Attack Protection : Using Angle of Multiple LF Antenna ANT 1 ANT 2 VAnt1 VAnt2 System Configuration 4 9 / 9 Security Issues (Relay Station Attack) • Magnitude of Vector 풂=(풂 풙 ,풂 풚 ,풂 풛 ) • Angle between two vectors Angle Calculation  No RSA Case : ØANT1-2 > Threshold Value  RSA Case : ØANT1-2 < Threshold Value Standard Deviation of RSSI value(X, Y, Z)  No RSA Case : Standard Deviation > Threshold value  RSA Case : Standard Deviation < Threshold value < Threshold Value > • Test Results : RSA 100% Protection Ø ANT1-2 ANT 1 ANT 2 VAnt1 VAnt2 System Configuration 5

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : NYOMBECSCIM2106 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram (NYOMBECSCIM2106)_Block Diagram.pdf Parts List (NYOMBECSCIM2106)_Part List.pdf Schematics (NYOMBECSCIM2106)_Schematics.pdf (NYOMBECSCIM2106)_Schematics_PCB Layout.pdf Operational description (NYOMBECSCIM2106)_Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NAME: Hee-Tack Ryu Applicant: MOBASE ELECTRONICS CO., LTD.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date : December 18, 2020 SUBJECT: FCC Application for (FCC ID : NYOMBECSCIM2106) To Whom It May Concern: We, the undersigned, hereby authorize Young-taek Lee at CTK on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CTK on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, NAME: Hee-Tack Ryu Applicant: MOBASE ELECTRONICS CO., LTD.

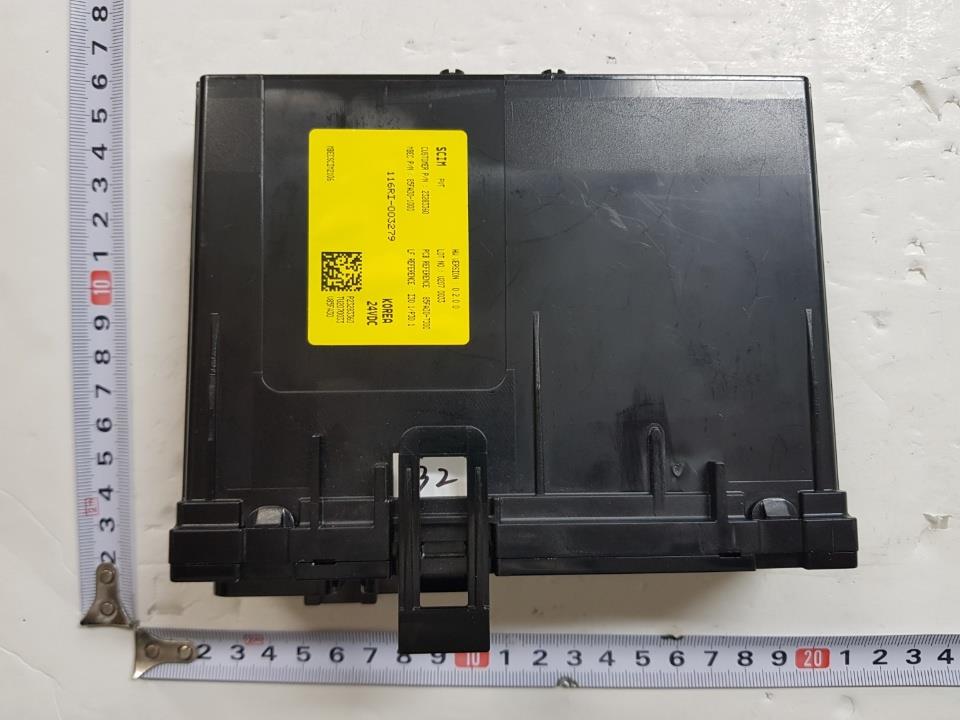

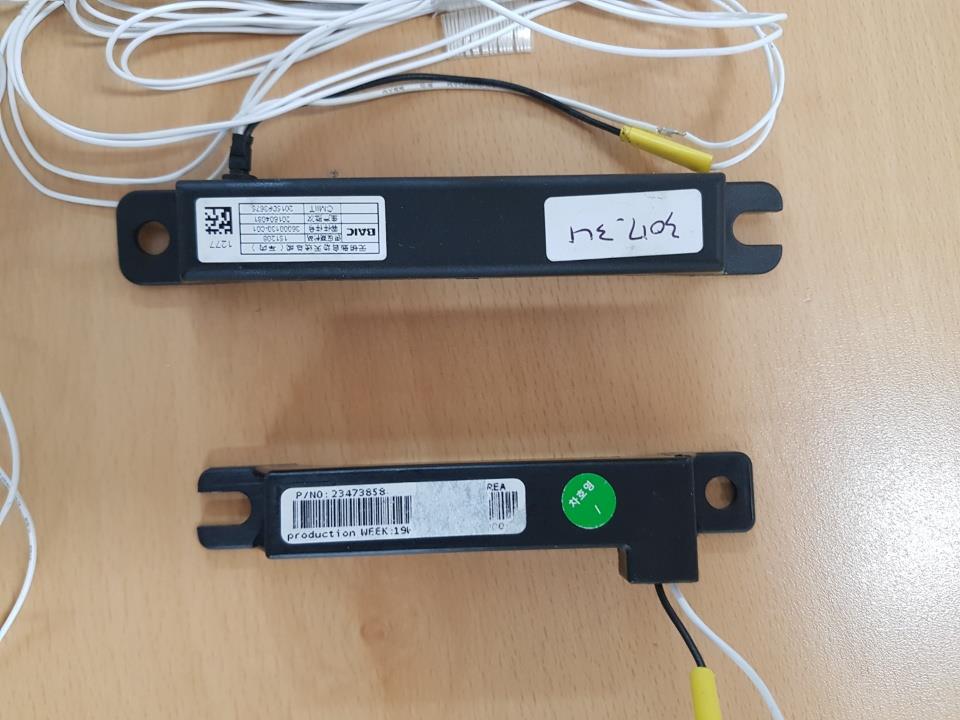

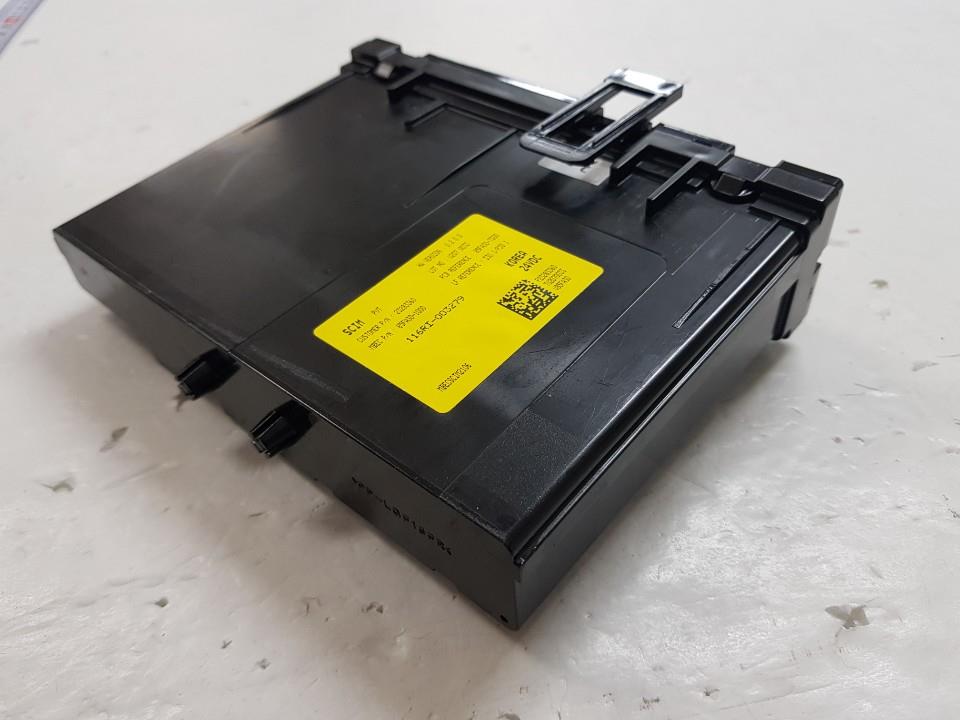

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com FCC ID : NYOMBECSCIM2106 EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com FCC ID : NYOMBECSCIM2106 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com FCC ID : NYOMBECSCIM2106 Antenna
