NYOMBECWPC2006Wireless Charging System

U S E R M A N U A L Page 1/11 Established By Wireless Charging SYSTEM Mobase Electronics - RELEASED ALL 2017.05.26 W.C NO Rev.NO DESCRIPTION OF CHANGED CHANGE PAGE REV. DATE REV. BY REV. DATE 2017.05.26 SORT PREPARED CHECKED APPROVED A P P R O V A L WON CHUL NO HO NAM KIM GYEONG HEUM CHOI (PLM MANAGEMENT SYSTEM) DSF-4-02-01A-1 SEOYON ELECTRONICS A4(210x297) Model : MBECWPC2006 U S E R M A N U A L 4.SYSTEM OVERVIEW 4.1. SYSTEM DESCRIPTION A wireless charger (WPC) installed in a vehicle is a system that transmits power to a mobile phone or a power receiver by power transmission by magnetic induction of a WPC coil and a cell phone coil without a USB connection. 4.2. OPERATION PRINCIPLE WPC transmits power by magnetic induction to the overlapping area of the coil inner diameter of WPC and the coil inner diameter of WPC with LC resonance (115KHZ). 2. INDICATOR operation controll 3. CAN communication controll - W.P.C CIRCUIT 1. Wireless Charging Antenna Coil transfers the power received from BATTERY 2. Check the unidirectional Inventory (ASK) data received from the mobile phone to control the transmission power 3. Control the amount of transmission power through voltage variation 4. Control of rechargeable coil selection function among 3 coils - Wireless Charging Antenna Coil 1. Delivered power from wireless charging circuit to mobile phone U S E R M A N U A L Model name : SYECLWPC1801 5. RED Article 10.2 Statement “This device is compliant with the RED article 10.2 requirement because this device is operated at least one Member State without infringing applicable requirements on the use of radio spectrum.” 6. Product specification SW / HW Version 1.00 / 1.00 Charge Frequency 115kHz Max Power 6.08 dBuA/m @ 10m Voltage DC 12V Brand name : HYUNDAI/KIA ANNEX (EN/BG/ES/CS/DA/DE/ET/EL/FR/GA/IT/LV/LT/HU/MT/NL/PL/PT/RO/SK/SL/FI/SV/TR/NO/HR/IS) 1 (EN)EUDeclarationofConformity/(BG)ДЕКЛАРАЦИЯЗАСЪОТВЕТСТВИЕСИЗИСКВАНИЯТАНАЕС/(ES)DeclaraciónUEdeConformidad/(CS)EUProhlášeníoshodě/(DA)EU- Overensstemmelseserklæ ring/(DE)EU-Konformitätserklärung/(ET)ELiVastavusdeklaratsioon/(EL)ΔΗΛΩΣΗΣΥΜΜΟΡΦΩΣΗΣΕΕ/(FR)DéclarationUEdeConformité/ (GA)DearbhúComhréireachtaanAE/(IT)DichiarazioneUEdiConformità/(LV)ESAtbilstībasDeklarācija/(LT)ESAtitiktiesDeklaracija/(HU)EU-MegfelelőségiNyilatkozat/ (MT)DikjarazzjoniTal-KonformitàTal-UE/(NL)EUConformiteitsverklaring/(PL)DeklaracjaZgodnościUE/(PT)DeclaraçãodeConformidadeUE/(RO)DeclarațiadeConformitateUE/ (SK)VyhlásenieoZhodeEÚ /(SL)IzjavaEUoSkladnosti/(FI)EU-Vaatimustenmukaisuusvakuutus/(SV)EU-FörsäkranomÖ verensstämmelse/(TR)UygunlukBeyanı/ (NO)EUSamsvarserklæ ring/(HR)EZizjavaosukladnosti/(IS)ESBSamræ misyfirlýsing 2 (EN)Number/(BG)No/(ES)No/(CS)Č./(DA)Nr./(DE)Nr./(ET)Nr/(EL)Αριθ./(FR)No/(GA)Uimhir/(IT)N./(LV)Nr./(LT)Nr./(HU)Szám/(MT)Numru/(NL)Nr./(PL)Nr/(PT)N.o/(RO)Nr/(SK)Číslo/(SL) Št./(FI)N:o/(SV)Nr/(TR)Sayısı/(NO)Nr./(HR)Broj/(IS)Númer 3 (EN)NameandaddressoftheManufacturer/(BG)Наименованиеиадреснапроизводителя/(ES)Nombreydireccióndelfabricante/(CS)Obchodníjménoaadresavýrobce/(DA)Fabrikanten snavnogadresse/(DE)NameundAnschriftdesHerstellers/(ET)Valmistajanimijaaadress/(EL)Όνομακαιδιεύθυνσηκατασκευαστή/(FR)Nometadressedufabricant/(GA)Ainmagusseoladhan Mónaróra/(IT)Nomeeindirizzodelfabbricante/(LV)Ražotājanosaukumsunadrese/(LT)Gamintojopavadinimasiradresas/(HU)Gyártóneveéscíme/(MT)Isemuindirizztal- manifattur/(NL)Naamenadresvandefabrikant/(PL)Nazwaiadresproducenta/(PT)Nomeeendereçodofabricante/(RO)NumeleșiadresaProducătorului/(SK)Obchodnémenoaadresavýrobcu /(SL)Imeinnaslovproizvajalca/(FI)Valmistajannimijaosoite/(SV)Tillverkarensnamnochadress/(TR)İmalatçınınadıveadresi/(NO)Navnpåogadressetilprodusenten/(HR)Naziviadresaproizv ođača/(IS)Nafnogheimilisfangframleiðanda 4 (EN)Thisdeclarationofconformityisissuedunderthesoleresponsibilityofthemanufacturer/(BG)Занастоящатадекларациязасъответствиеотговорностносиединственопроизвод ителят/(ES)Lapresentedeclaracióndeconformidadseexpidebajolaexclusivaresponsabilidaddelfabricante/(CS)Totoprohlášeníoshoděvydalnavlastníodpovědnostvýrobce/(DA)Denneove rensstemmelseserklæ ringudstedespåfabrikantensansvar/(DE)DieseKonformitätserklärungwirdunterderalleinigenVerantwortungdesHerstellersabgegeben/(ET)Käesolevvastavusdeklar atsioononväljaantudvalmistajaainuvastutusel/(EL)Ηπαρούσαδήλωσησυμμόρφωσηςεκδίδεταιμεαποκλειστικήευθύνητουκατασκευαστή/(FR)Laprésentedéclarationdeconformitéestétabli esouslaseuleresponsabilitédufabricant/(GA)Eisítearandearbhúcomhréireachtafaoifhreagrachtaonairanmhonaróra/(IT)Lapresentedichiarazionediconformitàèrilasciatasottolaresponsabi litàesclusivadelfabbricante/(LV)Šīatbilstībasdeklarācijairizdotavienīgiuzšādaražotājaatbildību/(LT)Šiatitiktiesdeklaracijaišduotatikgamintojoatsakomybe/(HU)Emegfelelőséginyilatkozata gyártókizárólagosfelelősségérekerülkibocsátásra/(MT)Dinid-dikjarazzjonital-konformitàtinħaregtaħtir-responsabbiltàunikatal-manifattur/ (NL)Dezeconformiteitsverklaringwordtverstrektondervolledigeverantwoordelijkheidvandefabrikant/(PL)Niniejszadeklaracjazgodnościwydanazostajenawyłącznąodpowiedzialnośćprodu centa/(PT)Apresentedeclaraçãodeconformidadeéemitidasobaexclusivaresponsabilidadedofabricante/(RO)Prezentadeclarațiedeconformitateesteemisăperăspundereaexclusivăaprodu cătorului/(SK)Totovyhlásenieozhodesavydávanavýhradnúzodpovednosťvýrobcu/(SL)Taizjavaoskladnostiseizdanalastnoodgovornostproizvajalca/(FI)Tämävaatimustenmukaisuusvaku utusonannettuvalmistajanyksinomaisellavastuulla/(SV)Dennaförsäkranomöverensstämmelseutfärdaspåtillverkarensegetansvar/(TR)Buuygunlukbeyanı,imalatçınınsorumluluğualtındav erilir/(NO)Dennesamsvarserklæ ringenerutstedtpåprodusentenseneansvar/(HR)Zaizdavanjeoveizjaveosukladnostiisključivojeodgovoranproizvođač/(IS)Þ essisamræ misyfirlýsingergefin úteingönguáábyrgðframleiðanda 5 (EN)Objectofthedeclaration/(BG)Обектнадекларацията/(ES)Objetodeladeclaración/(CS)Předmětprohlášení/(DA)Erklæ ringensgenstand/(DE)GegenstandderErklärung/(ET)Deklare eritavese/(EL)Σκοπόςτηςδήλωσης/(FR)Objetdeladéclaration/(GA)Cu…

Text truncated - open the document above for the full version.

MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Confidentiality Request Letter Date: July 16, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 FCC ID: NYOMBECWPC2006 Permanent Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematic Diagram 3. Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant : MOBASE ELECTRONICS CO., LTD. Address : 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Signature : _________________________________ Name and Job Title. : Ryu Hee-Tack, Project Manager E-mail : [email protected] Tel. : +82-31-8090-2611

MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Power of Attorney Date: July 16, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NYOMBECWPC2006 Product Name: Wireless Charging System To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : MOBASE ELECTRONICS CO., LTD. Address : 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Signature : _________________________________ Name and Job Title. : Ryu Hee-Tack, Project Manager E-mail : [email protected] Tel. : +82-31-8090-2611

MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Date: July 16, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Declaration of composite/rated equipment for FCC ID: NYOMBECWPC2006 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Other Class B digital devices & peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : MOBASE ELECTRONICS CO., LTD. Address : 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Signature : _________________________________ Name and Job Title. : Ryu Hee-Tack, Project Manager E-mail : [email protected] Tel. : +82-31-8090-2611

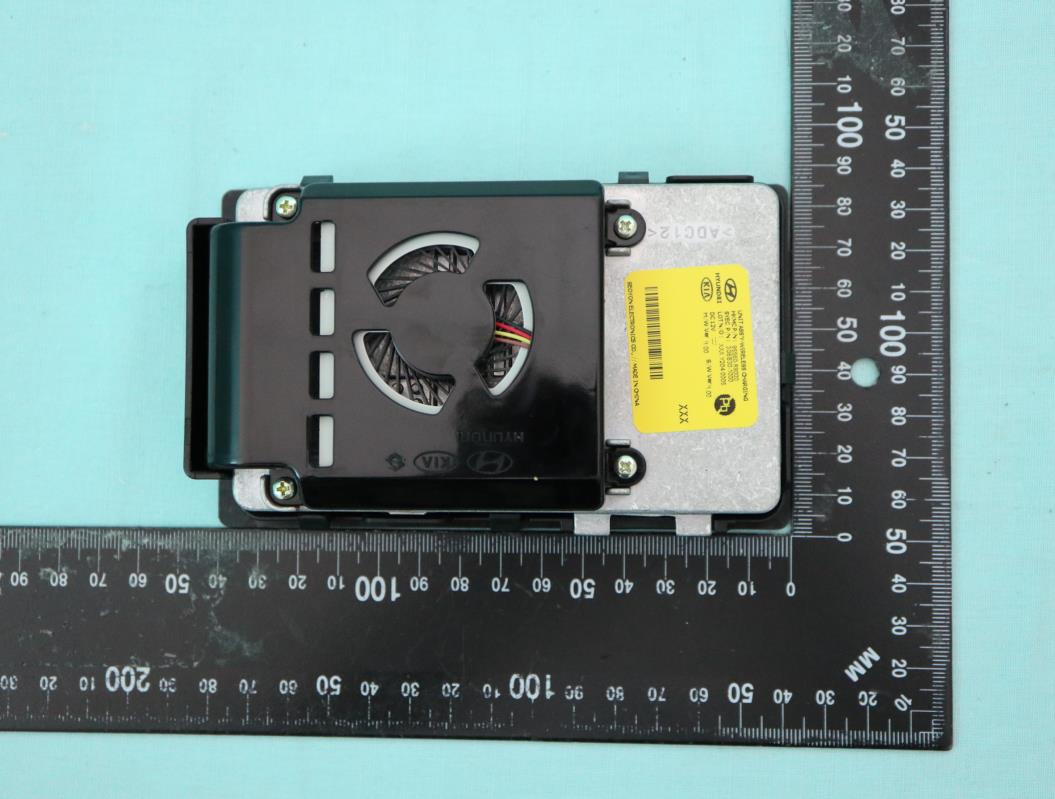

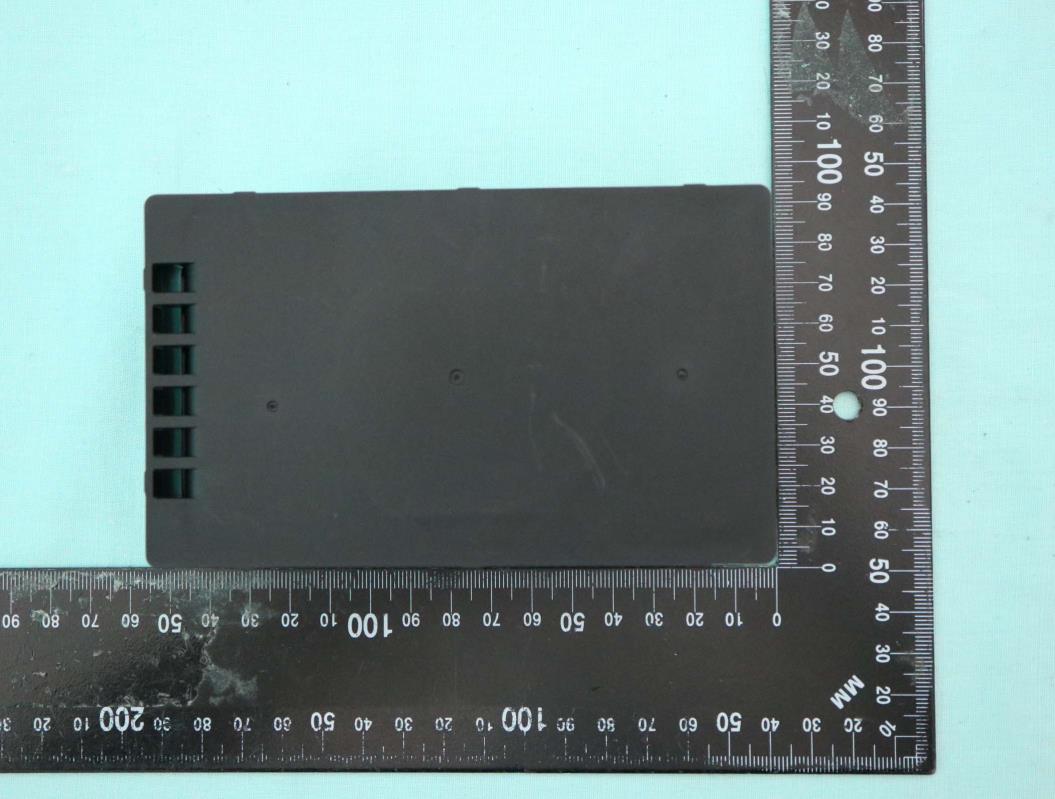

Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 1 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 2 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 3 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 4 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020

MINT LABEL LABEL Model No. : MBECWPC2006FCC ID : NYOMBECWPC2006IC : 3109A-MBECWPC2006 4.5A

Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 5 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 6 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 7 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 8 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 9 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 10 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 11 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 12 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Photographs of EUT Report No. : EP042932 SPORTON International Inc. Page No. : 13 of 13 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 ─────THE END────

Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 1 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 Maximum Permissible Exposure FCC ID : NYOMBECWPC2006 Equipment : Wireless Charging System Brand Name : MOBASE ELECTRONICS CO., LTD. Model Name : MBECWPC2006 Applicant : MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Manufacturer : MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Standard : 47 CFR Part 2.1091 The product was received on May 19, 2020, and testing was started from May 22, 2020 and completed on May 27, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in KDB680106 D01 RF Exposure Wireless Charging Apps v03 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 2 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 5 1.1 Maximum Permissible Exposure ............................................................................................................ 5 1.2 Testing Applied Standards ..................................................................................................................... 6 1.3 Testing Location Information .................................................................................................................. 6 1.4 Support Equipment ................................................................................................................................. 6 1.5 The Worst Condition ............................................................................................................................... 6 2 TEST EQUIPMENT AND CALIBRATION DATA .................................................................................. 8 APPENDIX A. TEST PHOTOS PHOTOGRAPHS OF EUT V01 Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 3 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 History of this test report Report No. Version Description Issued Date FA042932 01 Initial issue of report Jun. 18, 2020 Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 4 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.5 - Maximum Permissible Exposure PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Ann Hou Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 5 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 or LP0002 5.20 Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : 6 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-A2 Ver2.3 Report Version : 01 FCC ID: NYOMBECWPC2006 1.2 Testing Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards:  47 CFR Part 2.1091 The following reference test guidance is not within the scope of accreditation of TAF:  KDB680106 D01 RF Exposure Wireless Charging Apps v03 1.3 Testing Location Information Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. Test Condition Te…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR042932AW TEL : 886-3-327-3456 Page Number : 1 of 25 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-C5 Ver2.6 Report Version : 01 FCC ID: NYOMBECWPC2006 FCC TEST REPORT FCC ID : NYOMBECWPC2006 Equipment : Wireless Charging System Brand Name : MOBASE ELECTRONICS CO., LTD. Model Name : MBECWPC2006 Applicant : MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Manufacturer : MOBASE ELECTRONICS CO., LTD. 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea Standard : 47 CFR FCC Part 15.209 The product was received on May 19, 2020, and testing was started from May 22, 2020 and completed on May 27, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC TEST REPORT Report No. : FR042932AW TEL : 886-3-327-3456 Page Number : 2 of 25 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-C5 Ver2.6 Report Version : 01 FCC ID: NYOMBECWPC2006 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Condition ........................................................................................................................................ 8 2.2 The Worst Case Configuration ............................................................................................................... 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 8 2.4 Support Equipment ................................................................................................................................. 9 2.5 Test Setup Diagram ............................................................................................................................. 10 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 Transmitter Radiated Emissions .......................................................................................................... 15 3.3 Emission Bandwidth ............................................................................................................................. 23 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC TEST REPORT Report No. : FR042932AW TEL : 886-3-327-3456 Page Number : 3 of 25 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-C5 Ver2.6 Report Version : 01 FCC ID: NYOMBECWPC2006 History of this test report Report No. Version Description Issued Date FR042932AW 01 Initial issue of report Jun. 18, 2020 FCC TEST REPORT Report No. : FR042932AW TEL : 886-3-327-3456 Page Number : 4 of 25 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-C5 Ver2.6 Report Version : 01 FCC ID: NYOMBECWPC2006 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.209 Transmitter Radiated Emissions PASS - 3.3 15.215(c) Emission Bandwidth PASS - Reviewed by: Sam Tsai Report Producer: Ann Hou Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. FCC TEST REPORT Report No. : FR042932AW TEL : 886-3-327-3456 Page Number : 5 of 25 FAX : 886-3-327-0973 Issued Date : Jun. 18, 2020 Report Template No.: HE1-C5 Ver2.6 Report Version : 01 FCC ID: NYOMBECWPC2006 1 General Description 1.1 Information 1.1.1 General Information Wireless Power Transfer General Information Frequency Range Modulation Mode Charging Freq. (kHz) Field Strength (dBuV/m) 112-145 kHz ASK 119.63 84.12 Power Transfer Method Output powe…

Text truncated - open the document above for the full version.

Maximum Permissible Exposure Report No. : FA042932 TEL : 886-3-327-3456 Page Number : A1 of A1 FAX : 886-3-327-0973 Appendix A. Test Photos ─────THE END────

FCC Test Report Report No. : FR042932AW SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Front view Rear view FCC Test Report Report No. : FR042932AW SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Under table view FCC Test Report Report No. : FR042932AW SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Front view Rear view FCC Test Report Report No. : FR042932AW SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Front view Rear view ─────THE END─────
