NYOMBECWPC2310UNIT ASSY-WIRELESS CHARGING

U S E R M A N U A L PAGE 1/6 ESTABLISHED BY MOBASE ELECTRONICS WPC SPEC NO. CONTENTS 1.GENERAL INFORMATION 2.ELECTRICAL CHARACTERISTICS - RELEASED ALL 2023.06.15 J W PARK Rev.NO DESCRIPTION OF CHANGE CHANGE PAGE REV. DATE REV. BY REL. DATE 2023.06.15 REFERENCE SORT PREPARED CHECKED APPROVED APPR OVAL J W PARK J Y JIN J H LEE Original archive (PLM SYSTEM) DSF-4-02-01A-1 MOBASE ELECTRONICS CO., LTD. A4(210x297) U S E R M A N U A L SPEC NO SHT/SHTS 2/6 Document Change History Date Ver. Editor Chap. Description CR# U S E R M A N U A L SPEC NO SHT/SHTS 3/6 Contents list page 1.GENERAL INFORMATION ............................................................. 3 1.1. Description of WPC UNIT ............................................................................................... 3 1.2. System overview ............................................................................................................. 5 2.ELECTRICAL CHARACTERISTICS ................................................................................... 5 2.1. Operating characteristics of MP .................................................................................... 5 2.2 UNIT Inout/OutputInterface .............................................................................................. 6 1.GENERAL INFORMATION 1.1 Description of WPC UNIT WPC UNIT provides the following functions. •MAX 10W Wireless Charging •Wireless Charging : 114~116kHz (5W,10W),126~128kHz(7.5W) Picture 1: System configuration U S E R M A N U A L SPEC NO SHT/SHTS 5/6 1.2 System overview Wireless charging controller <LP, MP> - System for charging mobile phone wirelessly in vehicle using electromagnetic induction between coils ① After inputting IGN1 power, the reception coil (cell phone RX Coil) ②(TX side charging pad: wireless charger side) Current flows in the transmission coil ③The magnetic field generated by the current of the transmission coil is guided to the receiving coil and induction current is generated in the receiving coil ④The charging current starts to be charged through PMIC (Power module IC) of mobile phone 2 ELECTRICAL CHARACTERISTICS 2.1 Operating characteristics of MP Item Specification Rated Supply Voltage DC 12V Operating Voltage DC 9 ~ 16V Operating Temperature - 30 ~ + 75°C Storage temperature range - 40 ~ + 85°C MP<WPC> Frequency Table 1: Electrical characteristics of MP Standby Current Below than 1mA 114 ‐ 116 kHz(WPC 5W, 10W) 126 ‐ 128 kHz(WPC 7.5W) U S E R M A N U A L SPEC NO SHT/SHTS 6/6 2.2 UNIT Input/Output Interface Pin No. Description Reference 1 GND 2 GND 3 WC_AMBER_IND_OUT 4 WC_GREEN_IND_OUT1 5 B_CAN_LOW 6 B_CAN_HIGH 7 WC_GREEN_IND_OUT2 8 NC 9 NC 10 WC_GREEN_IND_OUT3 11 IGN1 12 BAT+ U S E R M A N U A L SPEC NO SHT/SHTS 6/6 CAUTION : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF du FCC et IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name MOBASE ELECTRONICS CO., LTD. Address 100, Saneop‐ro 156beon‐gil, Gwonseon‐gu, Suwon‐si, Gyeonggi‐do, Republic of Korea Grantee Code NYO FCC ID NYOMBECWPC2310 Authorized Contact Name Hee‐Tack Ryu Contact Email [email protected] Contact Phone +82‐31‐420‐3482 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List MOBASE ELECTRONICS CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. MOBASE ELECTRONICS CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023.09.08 Print Name: Hee‐Tack Ryu Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

UNITED STATES DE SIGNATED AGENT LETTER Date: 2023.09.08 TO: Federal C ommunication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: MOBASE ELECTRONICS CO., LTD. Company Name: Americas Compliance Consulting LLC dba iCertifi Grantee Code: NYO FRN: 0033399411 Contact Name: Hee‐Tack Ryu Contact Name: Address: 100, Saneop‐ro 156beon‐gil, Address: Paul A Preston 1001 SW Disk Drive, Suite 250 City/Province/Zip: Bend, Oregon 97702, United States Telephone: +1(866) 885-4575 Fax: Gwonseon‐gu City/Province/Zip: Suwon‐si, Gyeonggi‐ do/South korea/16648 Telephone: +82‐31‐420‐3482 Fax: N/A Email: [email protected] Email: [email protected] We, MOBASE ELECTRONICS CO., LTD. and Americas Compliance Consulting LLC dba iCertifi understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, MOBASE ELECTRONICS CO., LTD. and Americas Compliance Consulting LLC dba iCertifi acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Hee‐Tack Ryu Title: Manager Signature: Name (Printed): Paul A Pres ton Title: President Signature: Applicable Equipment: FCC ID: < NYOMBECWPC2310 > ATTN: Director of Certification: N/A

Date : 2023.09.08 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: NYOMBECWPC2310 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; MOBASE ELECTRONICS CO., LTD. 100, Saneop‐ro 156beon‐gil, Gwonseon‐gu, Suwon‐si, Gyeonggi‐do, Republic of Korea MOBASE ELECTRONICS CO., LTD. 100, Saneop‐ro 156beon‐gil, Gwonseon‐gu, Suwon‐si, Gyeonggi‐do, Republic of Korea f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Name : Hee‐Tack Ryu Title : Manager Company Name : MOBASE ELECTRONICS CO., LTD.

MOBASE ELECTRONICS CO., LTD. 100, Saneop‐ro 156beon‐gil, Gwonseon‐gu, Suwon‐si, Gyeonggi‐do, Republic of Korea Date : 2023.09.08 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: NYOMBECWPC2310 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, (Cresyn Co., Ltd.) hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give , (Cresyn Co., Ltd.) temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Name : Hee‐Tack Ryu Title : Manager Company Name : MOBASE ELECTRONICS CO., LTD.

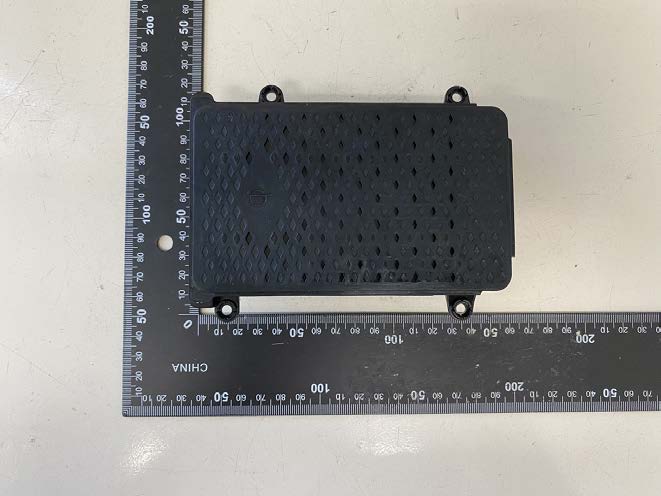

Model name: MBECWPC2310 External photos of EUT Model name: MBECWPC2310 Top view of EUT Bottom view of EUT Model name: MBECWPC2310 Front view of EUT Rear view of EUT Model name: MBECWPC2310 Side view of EUT

Label informationModel name: MBECWPC23 10 Label will be placed on the bottom of the product.

Model name: MBECWPC2310 Internal photos of EUT Model name: MBECWPC2310 Internal view of EUT Model name: MBECWPC2310 Top view of Main PCB Model name: MBECWPC2310 Bottom view of Main PCB Model name: MBECWPC2310 Top view of Antenna PCB Antenna 1 Antenna2 Antenna 3 Model name: MBECWPC2310 Top view of Antenna PCB

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004367 Page: 2 of 23 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Test Result -------------------------------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004367 Page: 3 of 23 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : MOBASE ELECTRONICS CO., LTD. Address : 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea, 16648 Contact Person : Ryu, Hee-tack Phone No. : +82 31 8090 2611 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product UNIT ASSY-WIRELESS CHARGING Model Name MBECWPC2310 Serial Number 001 Power Supply DC 12 V Operation Mode 5 W, 7.5 W, 10 W Frequency Range 5 W Ant. 1 114 ~ 116 ㎑ Ant. 2 Ant. 3 7.5 W Ant. 1 126 ~ 128 ㎑ Ant. 2 Ant. 3 10 W Ant. 1 114 ~ 116 ㎑ Ant. 2 Ant. 3 Idle 114 ~ 116 ㎑ Antenna Type Coil Antenna Antenna Part Number N/A H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004367 Page: 4 of 23 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Electric and Magnetic field Probe analyzer NARDA EHP 200AC 170WX91017 Dec. 19, 2022 Annual Dec. 19, 2023 DC Power Supply Agilent U8002A MY50020026 Nov. 30, 2022 Annual Nov. 30, 2023 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. ▶ Support Equipment Description Manufacturer Model FCC ID SAMSUNG Mobile Phone Samsung Electronics Co., Ltd. SM-N981U A3LSMN981U Apple Mobile Phone Apple Inc. A1897 BCG-E3174A Lap top Dell Latitude 3510 - 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 1 Subpart I Section Test Item(s) Result 1.1307(b) 1.1310(e)(1) Electronic Field, Magnetic Field Complied 1.7. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL004367 2023.09.08 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004367 Page: 5 of 23 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.8. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Electric Field 19.44 % Magnetic Field 19.86 % All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. 1.9. Worst Case of Test Configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. Charging mode With client device Mode Description Model FCC ID SM-N918U A3LSMN981U 5 W, 10 W 114 ~ 116 ㎑ 1 % of battery 50 % of battery 99 % of battery A1897 BCG-E3174A 7.5 W 126 ~ 128 ㎑ Mode Battery Frequency (㎑) E-field Strength (V/m) H-field Strength (A/m) 5 W 1 % 114 ~ 116 82.017 1.197 50 % 81.775 1.158 99 % 81.686 1.122 7.5 W 1 % 126 ~ 128 64.142 0.864 50 % 63.677 0.859 99 % 63.283 0.853 10 W 1 % 114 ~ 116 81.808 1.196 50 % 81.448 1.168 99 % 81.071 1.106 Note; - EUT was investigated with client device under normal charging condition as above and the test mode case was configurated based on the antenna with the highest value among the antennas and worst value were only reported. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004367 Page: 6 of 23 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. Test Result 2.1. Isotropic Probe Test Setup The measurement probe (EHP-200AC) is a regular hexahedron and supports 3-axis isotropic probe. A: Front of measurement probe B: Right of measurement probe C: Rear of measurement probe D: Left of measurement probe E: Top of measurement probe *Bottom of measurement probe is not used to measure RF exposure condition owing to connection with a stick. - Measurement isotropic probe was investigated by rotating the probe through various angles for one of the EUT’s sides as below. Measurement Point A B C D E Direction Front Right Rear Left Top Measurement Point A to B B to C C to D D to A N/A Direction Front to Right Right to Rear Rear to Left Left to Front - Measurement Point A to E B to E C to E D to E N/A Direction Front to Top Right to Top Rear to Top Left to Top - - When the worst angle among all angles was found, RF exposure measurement should be adjusted from worst angle. - Worst Case E-field: One of the several angles was found as Side E of isotropic probe. H-field: One of the several angles was found as Side D of isotropic probe. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F6…

Text truncated - open the document above for the full version.

Model name: MBECWPC2310 Item Conte nts Antenna Antenna 1 Antenna 2 Antenna 3 Antenna Type Coil Antenna Antenna peak gain - ㏈i Manufacturer / address Automotive Electronics Hi-Tech Co., Ltd. / 49, Deokseongsandan 2-ro 50beon-gil, Idong-eup, Cheoin-gu, Yongin-si, Gyeonggi-d o, Republic of Korea, 17130 Model name MP-A13 Test laboratory - Size Information Length : 5.4 cm / Width : 4.7 cm Length : 5.4 cm / Width : 4.7 cm Length : 5.4 cm / Wi dth : 4.7 cm Antenna Information Justification statement; This product, all measurements wre performed radiated and therefore additional antenna gain documentation is not required. Note; Please refer to the operation desciption, it shows antenna photo and size information.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004366 Page: 2 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission ---------------------------------------- 7 3. 20 ㏈ Bandwidth ----------------------------------------------------------------------------------------- 42 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004366 Page: 3 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : MOBASE ELECTRONICS CO., LTD. Address : 100, Saneop-ro 156beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, South Korea, 16648 Contact Person : Ryu, Hee-tack Phone No. : +82 31 8090 2611 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product UNIT ASSY-WIRELESS CHARGING Model Name MBECWPC2310 Serial Number 001 Power Supply DC 12 V Operation Mode 5 W, 7.5 W, 10 W Frequency Range 5 W Ant. 1 114 ~ 116 ㎑ Ant. 2 Ant. 3 7.5 W Ant. 1 126 ~ 128 ㎑ Ant. 2 Ant. 3 10 W Ant. 1 114 ~ 116 ㎑ Ant. 2 Ant. 3 Idle 114 ~ 116 ㎑ Antenna Type Coil Antenna Antenna Part Number N/A H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004366 Page: 4 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2022 Annual Dec. 07, 2023 DC Power Supply R&S HMP2020 020089489 May 11, 2023 Annual May 11, 2024 Signal Generator R&S SMA100B 106887 Oct. 13, 2022 Annual Oct. 13, 2023 Amplifier H.P. 8447F 2944A03909 Aug. 04, 2023 Annual Aug. 04, 2024 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 21, 2023 Biennial Aug. 21, 2025 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Feb. 09, 2023 Annual Feb. 09, 2024 Test Receiver R&S ESU26 100109 Jan. 18, 2023 Annual Jan. 18, 2024 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE PL360P-292M292M-1.5M -A 20200324002 Apr. 14, 2023 Semi- Annual Oct. 14, 2023 Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 ▶ Support Equipment Description Manufacturer Model FCC ID SAMSUNG Mobile Phone Samsung Electronics Co., Ltd. SM-N981U A3LSMN981U Apple Mobile Phone Apple Inc. A1897 BCG-E3174A Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004366 Page: 5 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C Section Test Item(s) Result 15.209 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 20 ㏈ Bandwidth Complied 15.207 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013). 1.8. Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) + (AMP (㏈)) 1.9. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL004366 2023.09.08 Initial 1.10. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty 20 ㏈ Bandwidth 0.01 ㎑ Radiated Emission, 9㎑ to 30㎒ H 3.40 ㏈ V 3.40 ㏈ Radiated Emission, below 1 ㎓ H 4.50 ㏈ V 5.10 ㏈ All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004366 Page: 6 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.11. Worst Case of Test Configurations Charging mode With client device Mode Description Model FCC ID SM-N918U A3LSMN981U 5 W, 10 W 114 ~ 116 ㎑ 1 % of battery 50 % of battery 99 % of battery A1897 BCG-E3174A 7.5 W 126 ~ 128 ㎑ Mode Ant. Battery Frequency (㎑) De…

Text truncated - open the document above for the full version.

Model name: MBECWPC2310 Test setup photo of EUT Model name: MBECWPC2310 1. Photo of Radiated Spurious Emission Test (9 ㎑ ~ 30 ㎒) 3. Photo of Radiated Spurious Emission Test (30 ㎒ ~ 1 000 ㎒) Model name: MBECWPC2310 2. Photos of MPE Test MBECWPC2310 EUT Probe Model name: MBECWPC2310 Point A Point B Model name: MBECWPC2310 Point C Point D Model name: MBECWPC2310 Point E
