NYX-32138Toy walkie talkie 49.86MHz

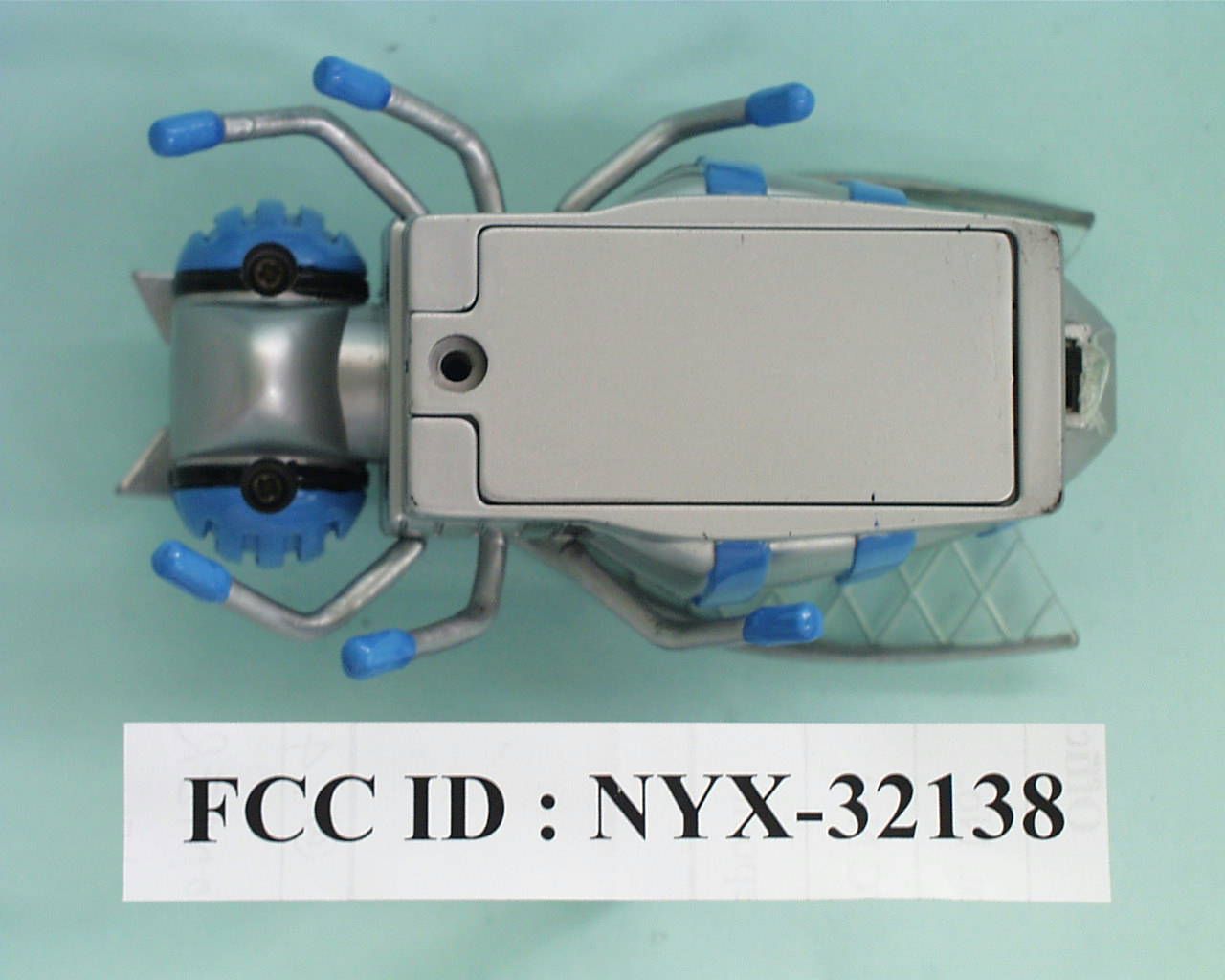

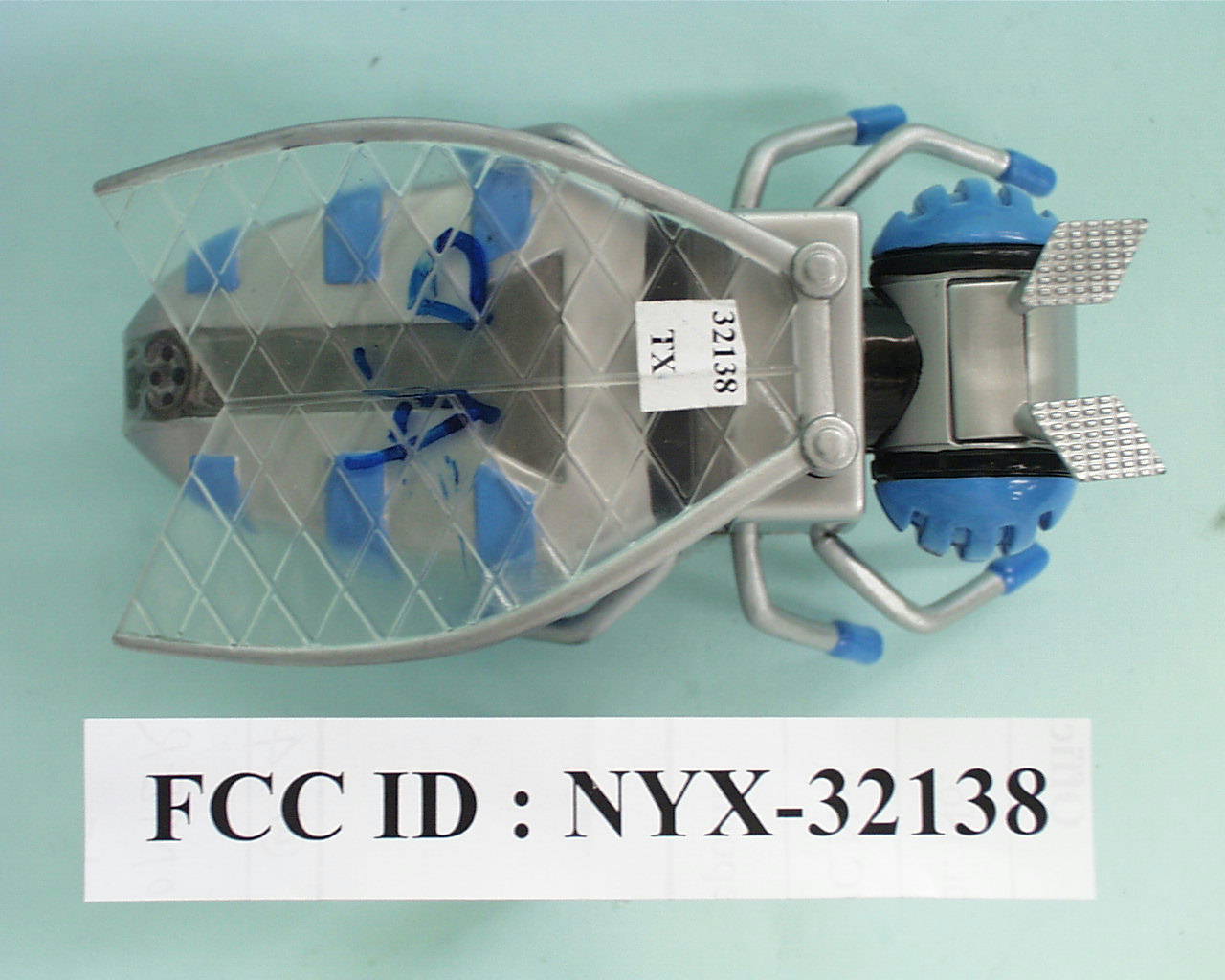

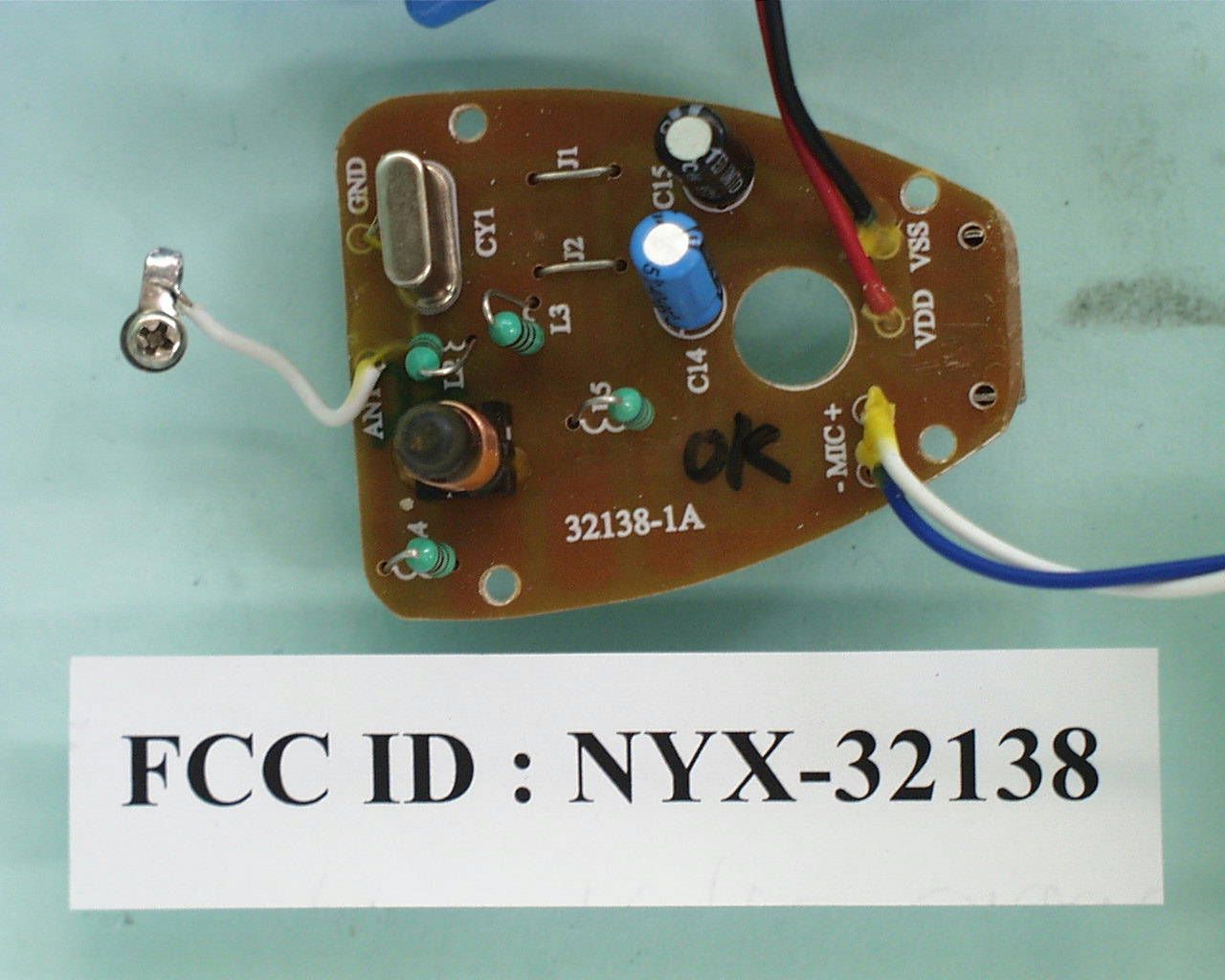

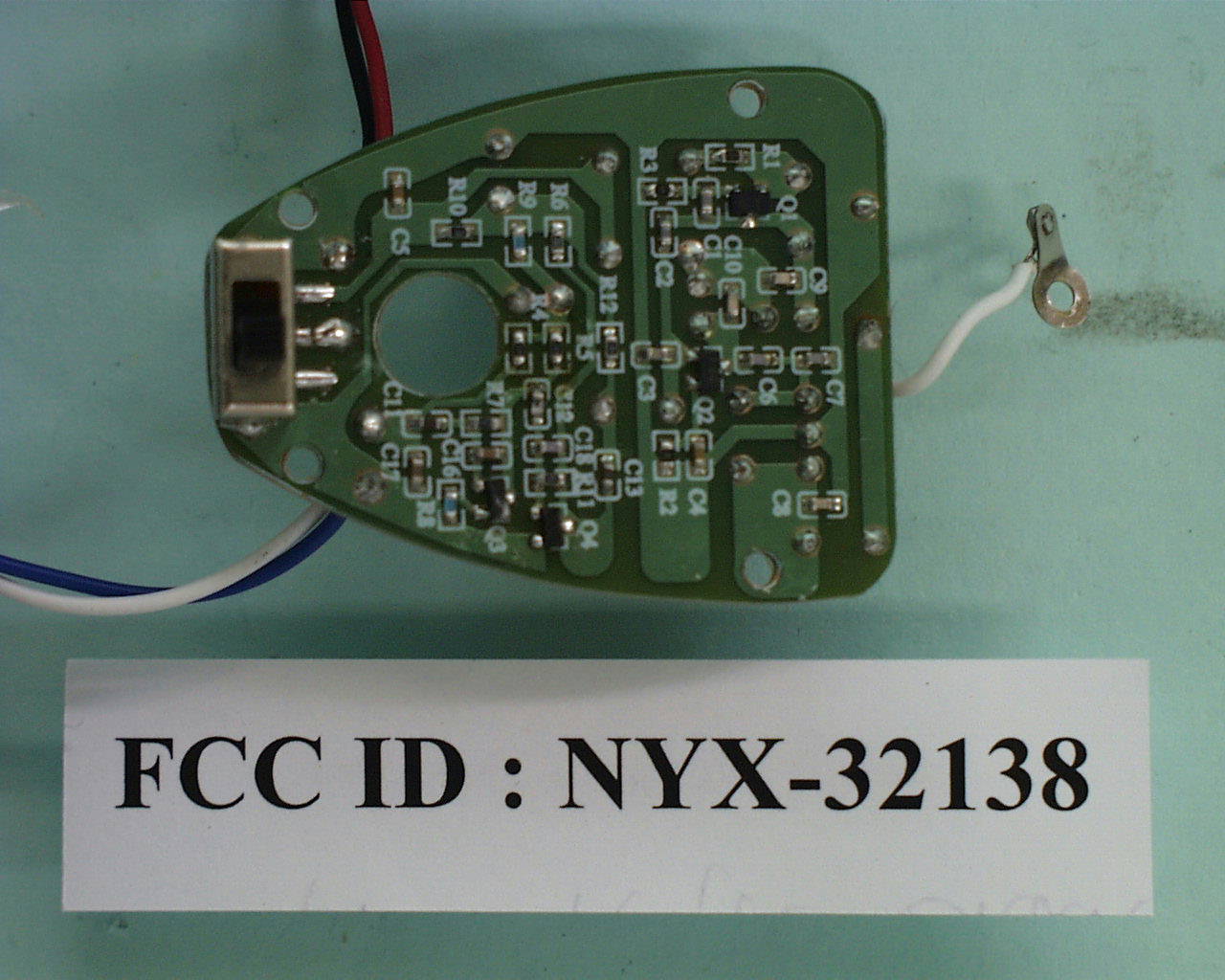

Product Description The equipment under test (EUT) is a single way transmitter for Toy Walkie Talkie operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. There is a on/ off switch on the EUT, turn on the on/ off switch, it transmit the signal to the receiver continuously. The brief circuit description is listed as follows: - Q3, Q4 and associated circuit act as Audio Amp. - Q1, CY1, L2 and associated circuit act as Local Oscillator. - Q2, L5 and associated circuit act as Mixer.

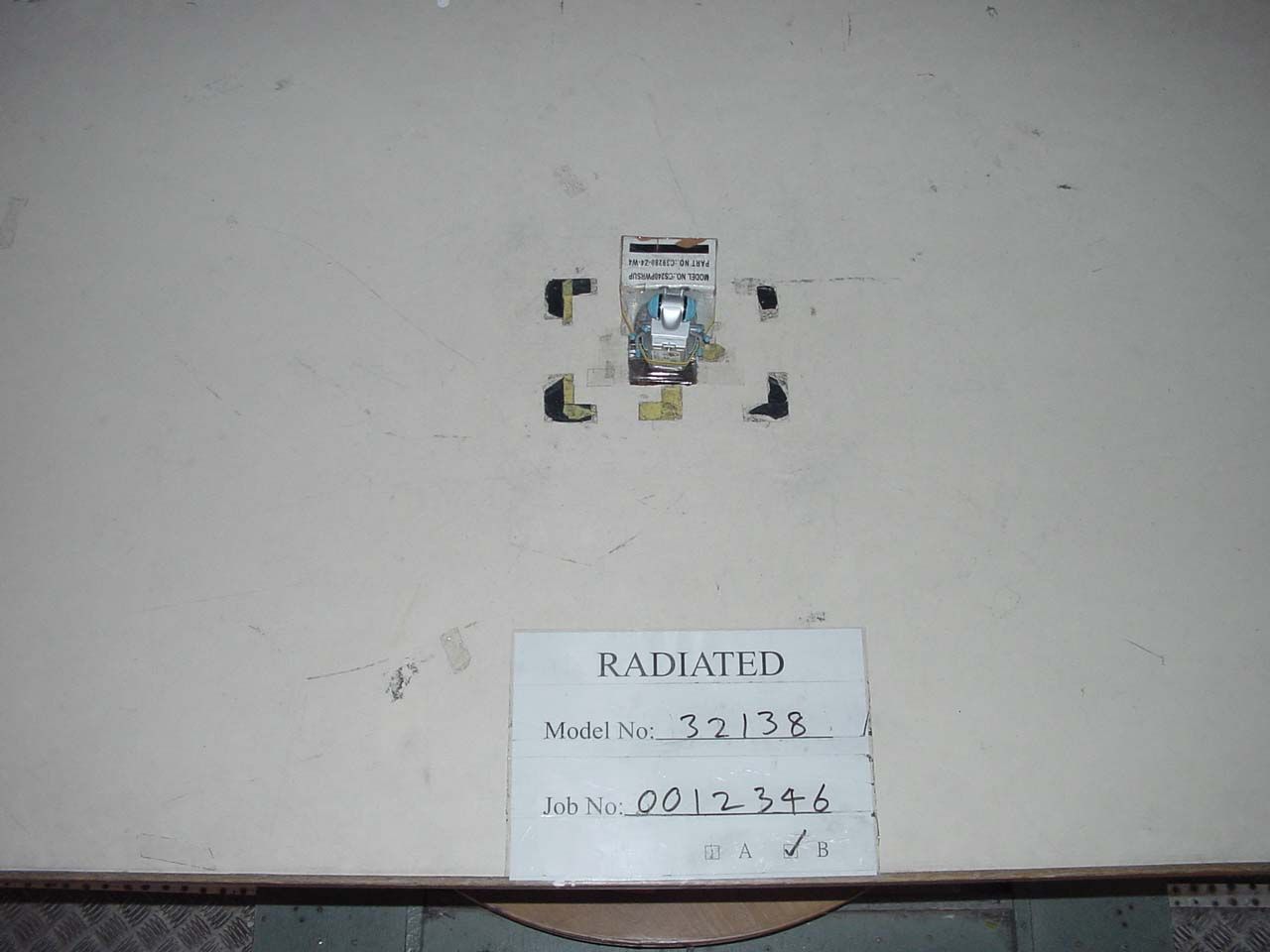

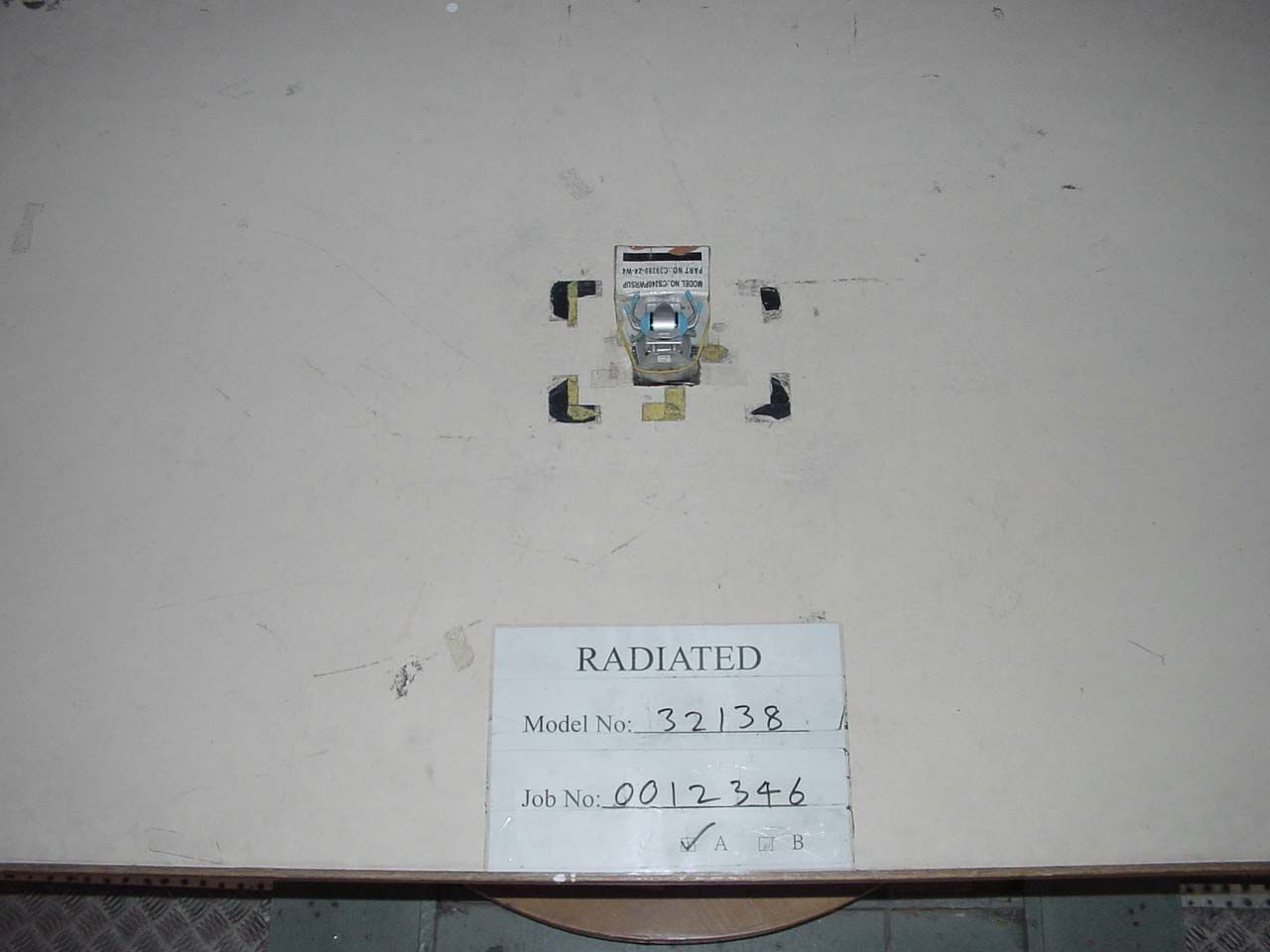

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed FCC ID : NYX-32138 Trendmasters Inc. Application For Certification (FCC ID: NYX-32138) Transmitter, Model : 32138 (TX) We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-99 edition] WO# 0012346 WN/at January 17, 2001 INTERTEK TESTING SERVICES FCC ID: NYX-32138 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NYX-32138 ii MEASUREMENT/TECHNICAL REPORT Trendmasters Inc. - MODEL: 32138 (TX) FCC ID: NYX-32138 January 17, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: NYX-32138 iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description............................................................................................................. 2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology................................................................................................................ 3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification.......................................................................................................................... 5 2.2 EUT Exercising Software ....................................................................................................5 2.3 Special Accessories ............................................................................................................. 5 2.4 Equipment Modification......................................................................................................6 2.5 Support Equipment List and Description ............................................................................ 6 3.0 Emission Results ...................................................................................................................... 8 3.1 Field Strength Calculation ................................................................................................... 9 3.1 Field Strength Calculation (cont’d) ................................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................................. 11 3.3 Radiated Emission Data .................................................................................................... 12 4.0 Equipment Photographs ....................................................................................................... 15 5.0 Product Labelling .................................................................................................................. 17 6.0 Technical Specifications ........................................................................................................ 19 7.0 Instruction Manual ................................................................................................................ 21 8.0 Miscellaneous Information ................................................................................................... 23 8.1 Measured Bandwidth.........................................................................................................24 8.2 Emissions Test Procedures ................................................................................................ 25 8.2 Emissions Test Procedures (cont'd)................................................................................... 26 INTERTEK TESTING SERVICES FCC ID: NYX-32138 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto2.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: NYX-32138 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NYX-32138 2 1.0 General Description 1.1Product Description The equipment under test (EUT) is a single way transmitter for Toy Walkie Talkie operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. There is a …
