Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
2.4G RP-SMA Antenna Connectors 5G RP-SMA Antenna Connectors 3 x Wi-Fi Signal LEDs Status LED WAN/LAN LED Hardware Overview WN572HP3 Feature Default Parameters LED Indicators Power LAN/Backhaul Status WAN/LAN On Off On Off On Off Fast flash Slow flash On The device is powered on. The Ethernet port is connected. The Ethernet port is disconnected. The Ethernet port is connected. The Ethernet port is disconnected. Another router has not been connected when the device is the repeater mode. The another router has been connected but the device has no access to the network in the repeater mode. The device keeps on in the AP mode; The device can access the network normally Wi-Fi signal output power 100%. Better reception: signal 81%~100%. Good reception: signal 60%~80%. Weak reception: signal below 0~59%. The device is not receiving electrical power. LAN Backhaul LED POWER LED Reset/PAIR Button LAN Backhaul Port WAN(PoE IN)/LAN Port Grounding Terminal Web: http://wifi.wavlink.com Default IP: 192.168.10.1 Login Password: admin Pass RJ45 cable through the spiral cover Pass RJ45 cable through the rubber seal Pass RJ45 cable through the holder Connect the RJ45 cable to PoE IN/WAN port. Spin 2.4G antenna into the 2.4G external RP-SMA connector Spin 5G antenna into the 5G external RP-SMA connector Screw the holder Plug the rubber seal to the holder Screw the spiral cover 2. Install the device. 2.1 Firstly fasten the device to somewhere firm, then install the device in the holder. Remark If you happen to live in the zone where lightning happens a lot, we suggest that you install the device through grounding connection in order to strengthen the lightning-resistant function. 2.2 Now please follow the steps below. 1. Please follow the installation steps when assembling the device. 1) Connect the "PoE" port of PoE converter to the PoE IN(WAN) port of the device. 2) Connect “LAN DATA IN” to “LAN” of your router. 3) Plug in the device through the power adapter. 4) Push the “ON/OFF” button to turn on or off the device. Attention 1) Ensure that you use a certified CAT5e/CAT6 Ethernet cable with RJ45 connectors 2) Make sure the length of the Ethernet cable from PoE to the device is less than 60 meters (196 ft). Wi-Fi Signal Installation 4.4 Router Mode FAQWarning 01 091011121314 15 0203040506 07 High Power Wireless Repeater - Dual band with maximum speed up to 5G 867Mbps and 2.4G 300Mbps. - Weatherproof and build in lightning arrester withstand harsh outdoor conditions. - Four omnidirectional antennas eliminate Wi-Fi dead zones. - High power amplifier for stronger signal transmission. - Gigabit port provides faster connection. - Passive PoE support for flexible deployment. - Support AP/Router/Repeater/EasyMesh agent mode. - MU-MIMO function lets the router talk to several devices simultaneously over the same Wi-Fi band. 2.4G SSID: WAVLINK-N_XXXX 5G/AC SSID: WAVLINK-AC_XXXX Wireless Password: open What is firmware upgrade and why do I need it? Firmware contains fixed for bugs and new features, please keep the latest firmware to improve the experience of using the product. Please do not use the wrong firmware, otherwise, it will damage your device and void the product warranty. For more details, please visit our website www.wavlink.com Our Technical Support: [email protected] 1.2 Via Cable Connect Ethernet cable to your PC/laptop and device’s LAN Backhaul port, then you can start configuring the device. 1.1 Via Wireless Configuration 1. Connection Turn on your Wi-Fi, search SSID of this product on your wireless devices (smart phone, tablet computer, laptop, etc.) and connect to it. WAVLINK-N_XXXX WAVLINK-N_XXXX WAVLINK-AC_XXXX WAVLINK-AC_XXXX www.wavlink.com/en_us/WING-12M Scan the QR code or load the link for Quick Start Guide downloading English Welcome to Wavlink Please set up this device first! Please enter your password Login 2. Technically speaking, the product web UI will guide you to the login page once you have connected to the device successfully in your first time, but if it doesn't, please manually input 192.168.10.1 or wifi.wavlink.com in the address bar of your browser on PC/laptop or phone, the default password is admin. 3. Select your Country/Region and Time Zone. For your network security, we suggest that you set a new login password. Note: The three colored bars in "Change Password" area indicates the strength of the login password. 4. Mode Selection This product has four modes. 4.1 Repeater Mode For Repeater mode, we recommend you choose “WISP”, you can manually enter the WiFi SSID you need to connect or select the WiFi SSID in the list, and the Password needs to be the same as the WiFi password that this product has connected, then click on “Connect”. Wireless-AC Wireless-N WAVLINK-Mesh WAVLINK-AX_XXXX WAVLINK_XXXX System WISP-Recommend Select WI-FIManual Input Mode selection Connect to Password 2.4G Connect 5G/2.4GChoose 5G Network The Self Management is open in default, you can manage this device (web UI) through the assigned IP or domain name. 08 4.2 EasyMesh Agent Mode If you have a router that supports Easymesh function, then you can build a mesh system with this mode. 1. Log in to 192.168.10.1 or wifi.wavlink.com. 2. In Mode Selection, please choose “EasyMesh Agent Mode”. 3. Click on the “Start Pairing” button. Please configure according to the following steps: 4. Now please start pairing process on the Easymesh controller, if you are not sure how to start, please ask manufacturer for help. 4.3 LAN Bridge (AP mode) Please connect the LAN DATA IN port of the POE converter or the LAN Backhaul port of the device to the upper router. Then you can change the SSID or use the default one, as for the Encryption Mode, the default is WPA2-PSK, we recommend you to select WPA3/WPA2-MIX if your devices support. For your network security, please create a new password according to the rule. Then click on “Save” and wait for the setting process to complete. Before configuring, please make sure your up…
Text truncated - open the document above for the full version.
Winstars Technology Limited Date: Nov. 10, 2022 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: NZ3-WN0003 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Schematics Block Diagram Operational Description U-NII Device Security Statement File Name Schematics.pdf Block Diagram.pdf Operational Description.pdf U-NII Device Security Statement V1.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Winstars Technology Limited Signature Johnson Huang / General Manager Typed name and Title
Winstars Technology Limited FCC ID: NZ3-WN0003 POWER OF ATTORNEY Date: Sept. 22, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Sept. 21, 2023. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Winstars Technology Limited are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Winstars Technology Limited Signature Johnson Huang / General Manager Typed name and Title
Winstars Technology Limited Date: 2022-11-10 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: NZ3-WN0003 To Whom It May Concern: This letter is to statement that WN572HP3, WN572HG3, WN570HA1, WN570HN2, WING 12M, AERIAL HD2/ High Power Wireless Repeater. has been tested according to FCC Part 15B by Waltek Testing Group Co., Ltd. (Test Report No.: WTD22D11225773E). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, Signature [Johnson Huang] [General Manager] [Winstars Technology Limited ]
Winstars Technology Limited Date: 10/31/2022 Subject: authorization for adding family models To whom it May concern, Statement We would like to confirm the product High Power Wireless Repeater with models WN572HP3, WN572HG3, WN570HA1, WN570HN2, WING 12M, AERIAL HD2 are same in all respects. Only the model names are different for different market requirement. Yours sincerely, [Signature] [Johnson Huang] [General Manager] [Winstars Technology Limited]

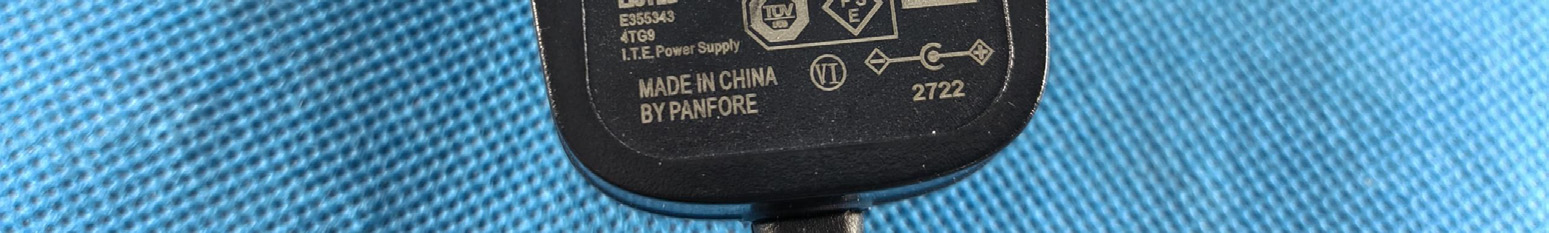

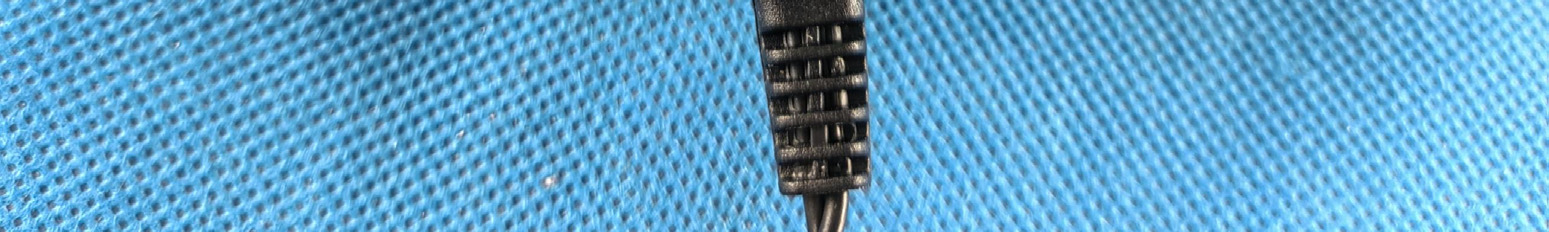

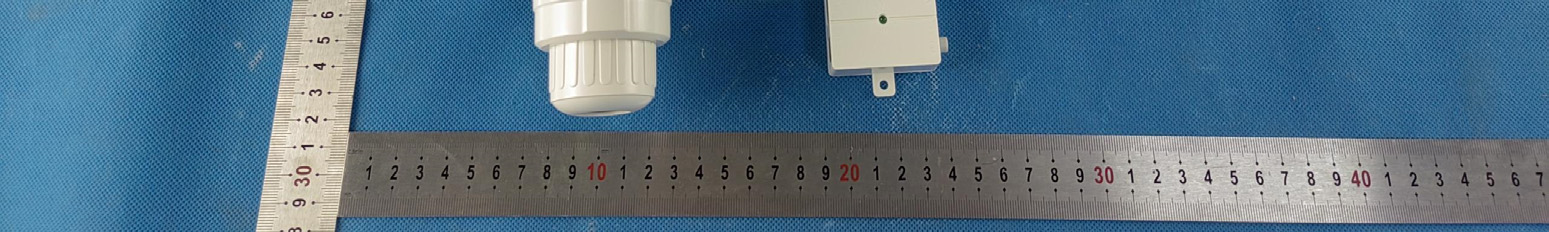

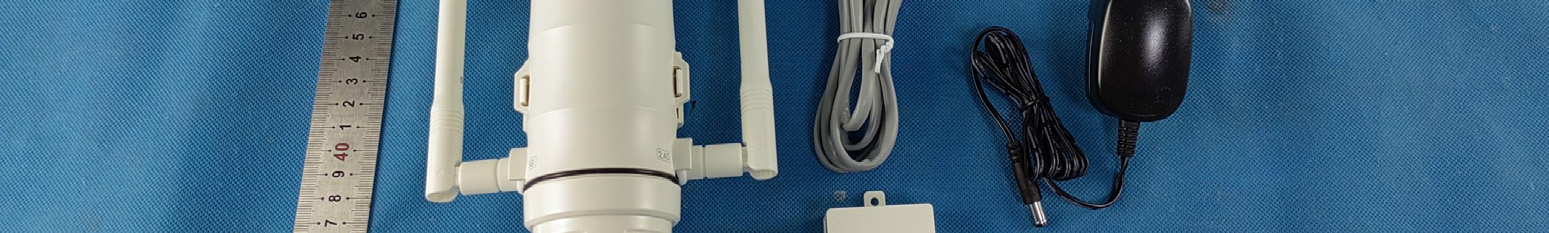

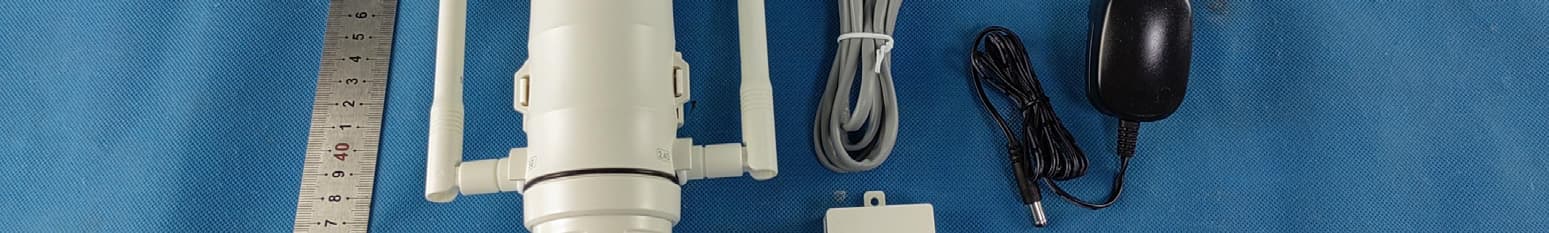

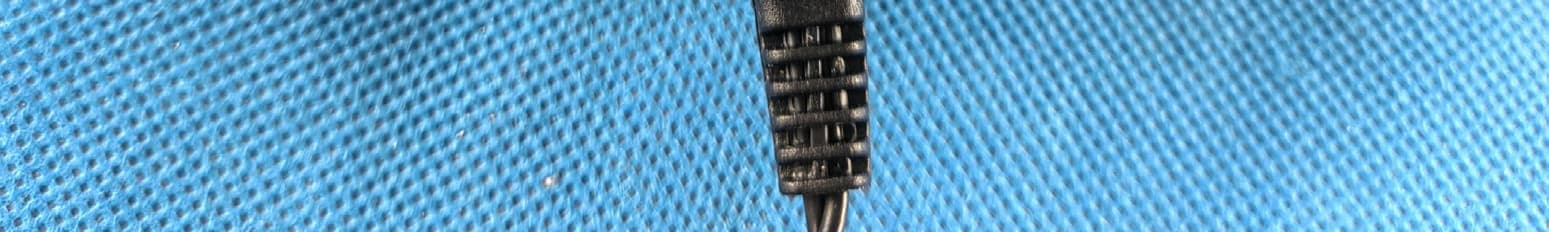

Appendix-WN572HP3-Photos Page 3 of 16 2. Photographs –Constructional Details 2.1. EUT – External View Model WN572HP3 FCC ID: NZ3-WN0003 Appendix-WN572HP3-Photos Page 4 of 16 Appendix-WN572HP3-Photos Page 5 of 16 Appendix-WN572HP3-Photos Page 6 of 16
Appendix-WN572HP3-Photos Page 7 of 16 2.4G Ant. 1 2.4G Ant. 2 5G Ant. 1 5G Ant. 2 Appendix-WN572HP3-Photos Page 8 of 16 Appendix-WN572HP3-Photos Page 9 of 16 Appendix-WN572HP3-Photos Page 10 of 16 Appendix-WN572HP3-Photos Page 11 of 16
Label Sample and Location Sample Material: 54# synthetic paper + dumb glue Dimension: 39.5 * 21mm Location
Appendix-WN572HP3-Photos Page 12 of 16 2.2. EUT – Internal View Model WN572HP3 FCC ID: NZ3-WN0003 Appendix-WN572HP3-Photos Page 13 of 16 Appendix-WN572HP3-Photos Page 14 of 16
Appendix-WN572HP3-Photos Page 15 of 16 Appendix-WN572HP3-Photos Page 16 of 16 ======End======
Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 9 TEST REPORT Reference No. .................... : WTD22D09190663W003 FCC ID ................................ : Applicant ............................ : Address .............................. : Manufacturer .................... : Address .............................. : Product ............................... : Model(s). ............................ : Standards........................... : Date of Receipt sample .... : Date of Test........................ : Date of Issue ...................... : Test Result ......................... : NZ3-WN0003 Winstars Technology Limited Block 4, Taisong Industrial Park, Dalang Street, Longhua Town, Bao'an District, Shenzhen, China Winstars Technology Limited Block 4, Taisong Industrial Park, Dalang Street, Longhua Town, Bao'an District, Shenzhen, China High Power Wireless Repeater WN572HP3, WN572HG3, WN570HA1, WN570HN2, WING 12M, AERIAL HD2 47CFR FCC Part 2 Subpart J Section 2.1091 2022-09-21 2022-09-21 to 2022-10-19 2022-11-11 Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD22D09190663W003 Page 2 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2.Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2.CONTENTS ............................................................................................................................................................ 2 3.REVISION HISTORY ............................................................................................................................................ 3 4.GENERAL INFORMATION .................................................................................................................................. 4 4.1. GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 4 4.2. DETAILS OF E.U.T. ..................................................................................................................................... 4 4.3. TEST FACILITY ............................................................................................................................................ 5 4.4. SUBCONTRACTED ....................................................................................................................................... 5 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 5 5.TEST SUMMARY .................................................................................................................................................. 6 6.RF EXPOSURE ...................................................................................................................................................... 7 6.1. REQUIREMENTS .......................................................................................................................................... 7 6.2. SIMULTANEOUS TRANSMISSIONS EXEMPTION THRESHOLDS .................................................................... 7 6.3. RADIOFREQUENCY RADIATION EXPOSURE EVALUATION .......................................................................... 9 Reference No.: WTD22D09190663W003 Page 3 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3.Revision History Test Report No. Date of Receipt Sample Date of Test Date of Issue Purpose Comment Approved WTD22D09190663W003 2022-09-21 2022-09-21 to 2022-10-19 2022-11-11 Original - Valid Reference No.: WTD22D09190663W003 Page 4 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: High Power Wireless Repeater Model(s): WN572HP3, WN572HG3, WN570HA1, WN570HN2, WING 12M, AERIAL HD2 Model Description: The models are same in all respects. Only the model names are different for different market requirement. Wi-Fi Specification: 2.4G-802.11b/g/n HT20/n HT40 5G-802.11a/n(HT20/40)/ac(VHT20/40/80) Hardware Version: WS-WN572HP3-A1 Software Version: M72HP3_V210414 4.2. Details of E.U.T. Operation Frequency: 2.4G Wi-Fi: 802.11b/g/n (HT20), 2412-2462MHz 11CH 802.11n (HT40), 2422-2452MHz 7CH 5G Wi-Fi: U-NII-1 802.11a/n(HT20)/ac(VHT20), 5180-5240MHz 4CH 802.11n(HT40)/ac(VHT40), 5190-5230MHz 2CH 802.11ac(VHT80), 5210MHz 1CH U-NII-3 802.11a/n(HT20)/ac(VHT20), 5745-5825MHz 5CH 802.11n(HT40)/ac(VHT40), 5755-5795MHz 2CH 802.11ac(VHT80), 5775MHz 1CH Max. conducted RF power: 2.4G Wi-Fi: Ant. 1 11.38dBm, Ant.2 10.80dBm, Total: 14.00dBm Max. 5G Wi-Fi: U-NII-1: Ant. 1 9.12dBm, Ant.2 9.12dBm, Total: 12.13dBm Max. U-NII-3: Ant. 1 13.20dBm, Ant.2 13.30dBm, Total: 16.22dBm Max. Modulation Technology: Wi-Fi: 802.11b: DBPSK, DQPSK, CCK 802.11a/g: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Antenna installation: External antenna with RP-SMA connector Antenna Gain: 2.4G Wi-Fi: Max. peak 4.62dBi, 5G Wi-Fi: U-NII-1: Max. peak 4.69dBi, U-NII-3: Max. peak 4.82dBi Ratings: DC24V 0.6A 14.4W Adapter: Manufacturer: PANFORE Model No.: PS240W0600U Input: 100-240V~, 50/60Hz, 0.5A Max Output: 24.0V0.6A 14.4W Reference No.: WTD22D09190663W003 Page 5 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4.3. Test Facility The t…
Text truncated - open the document above for the full version.
DONGGUAN TENGXIANG ELECTRONICS CO.,LTD. 5G Antenna Testing Parameters ⚫Pro No:AN5000- 50F080BX/2.15.5.00077 ⚫Antenna Specification: 5150-5850MHz 5dBi ⚫Test Equipment: Fully Anechoic Chamber/Aglient E5071C ⚫Versions:V1.0 ⚫Prepare by:YuanChaoXu ⚫Approve by:Wei Jia Address:Dongguan City Chang’an Town sand head community shacong Road 53# Call US: 0769-81873081/0769-81873082 1.CTIA OTA Test System 1.1 Test Coordinates 1.2 Turntable 1.3 ETS Test System In TengXiang Size:7m*3m*3m Electromagnetic Shield:>=100dB Test Tolerance:+0.5dBi Test Project: ➢700MHz-6GHz Passive Test ➢2G/3G/4G OTA Test 2. Testing Picture Z Y X 3. Testing Data Frequency(MHz)5150MHz5500MHz5850MHz Peak Gain(dBi) 4.694.674.82 Efficiency(%)66.6075.1069.40 3.1.1 VSWR Test 3.2.1 3D_Radiation Pattern 5150MHz5500MHz5850MHz 3.2.2 2D_Radiation Pattern 5500MHz XY_PlaneXZ_PlaneYZ_Plane
Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 82 TEST REPORT Reference No. .................... : WTD22D09190663W002 V1 FCC ID ................................ : NZ3-WN0003 Applicant ............................ : Winstars Technology Limited Address .............................. : Block 4, Taisong Industrial Park, Dalang Street, Longhua Town, Bao'an District, Shenzhen, China Manufacturer ..................... : Winstars Technology Limited Address .............................. : Block 4, Taisong Industrial Park, Dalang Street, Longhua Town, Bao'an District, Shenzhen, China Product ............................... : High Power Wireless Repeater Model(s). ............................. : WN572HP3, WN572HG3, WN570HA1, WN570HN2, WING 12M, AERIAL HD2 Standards ........................... : CFR47 FCC Part 15 E Section 15.407 Date of Receipt sample ..... : 2022-09-21 Date of Test ........................ : 2022-09-21 to 2022-11-10 Date of Issue ...................... : 2022-11-10 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD22D09190663W002 V1 Page 2 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 General Description of E.U.T. ....................................................................................................... 5 4.2 Details of E.U.T. ............................................................................................................................ 5 4.3 Channel List .................................................................................................................................. 6 5 TEST MODE DESCRIPTION .................................................................................................................... 7 5.1 Test Facility ................................................................................................................................... 8 5.2 Subcontracted ............................................................................................................................... 8 5.3 Abnormalities from Standard Conditions ...................................................................................... 8 6 EQUIPMENT USED DURING TEST ......................................................................................................... 9 6.1 Equipments List ............................................................................................................................ 9 6.2 Description of Support Units ....................................................................................................... 10 6.3 Measurement Uncertainty .......................................................................................................... 10 6.4 Test Equipment Calibration ........................................................................................................ 10 7 TEST SUMMARY .................................................................................................................................... 11 8 CONDUCTED EMISSION ....................................................................................................................... 12 8.1 E.U.T. Operation ......................................................................................................................... 12 8.2 EUT Setup .................................................................................................................................. 12 8.3 Measurement Description ........................................................................................................... 12 8.4 Conducted Emission Test Result ............................................................................................... 13 9 DUTY CYCLE .......................................................................................................................................... 15 9.1 Test Results ................................................................................................................................ 15 10 RADIATED EMISSIONS ......................................................................................................................... 18 10.1 EUT Operation ............................................................................................................................ 18 10.2 Test Setup .................................................................................................................................. 19 10.3 Spectrum Analyzer Setup ........................................................................................................... 20 10.4 Test Procedure ........................................................................................................................... 21 10.5 Corrected Amplitude & Margin Cal…
Text truncated - open the document above for the full version.
Reference No.: WTD22D09190663W002 V1 Page 51 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 14 Conducted Output Power Test Requirement: FCC CFR47 Part 15 Section 15.407(a) KDB 662911 D01 Multiple Transmitter Output v02r01, October 31, 2013 Test Method: KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 Section E ANSI C63.10:2013 Test Limit: For the band 5.15-5.25 GHz For an indoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. For fixed point-to-point access points operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. For the band 5.725-5.850 GHz For the band 5.725-5.850 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. Test Result: PASS 14.1 Test Procedure: 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum annlyzer. 2. Refer to section 4 of this report, according to KDB 789033 and ANSI C63.10, select the appropriate test method (SA-1, SA-2, SA-3, or alternatives to each). 3. Record the test results and calculate the final test data. 14.2 Test Result: Note: Conducted Output Power = Measurements + Duty Cycle Factor According to ANSI C63.10 clause 14.4.3.1, Directional gain=antenna gain + 10log(N) N is number of array elements or staves According to ANSI C63.10 clause 11.7, For those cases where it is specified that the conducted output power be reduced by the amount in dB that the directional gain of the transmitting antenna exceeds 6dBi, the output power effective limit shall be calculated as follows in Equation: P out = P Limit – (G TX - 6) For U-NII-1: the Directional gain is 7.7dBi that greater than 6dBi, Limit of power (SUM) is 28.3dBm. For U-NII-3: the Directional gain is 7.83dBi that greater than 6dBi, Limit of power (SUM) is 28.17dBm. Reference No.: WTD22D09190663W002 V1 Page 52 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Band Operation mode Channel Duty Cycle Factor (dB) Conducted Output Power (dBm) Ant. 1 Ant. 2 SUM Limit U-NII-1 802.11a Low 0.21 8.21 8.13 / 30dBm Middle 7.93 7.84 / 30dBm High 8.84 8.73 / 30dBm 802.11n(HT20) Low 0.22 8.15 8.12 11.15 28.3dBm Middle 7.95 7.83 10.90 28.3dBm High 8.68 8.67 11.69 28.3dBm 802.11ac(VHT20) Low 0.39 8.34 8.26 11.31 28.3dBm Middle 7.99 8.06 11.04 28.3dBm High 8.62 8.88 11.76 28.3dBm 802.11n(HT40) Low 0.39 7.94 8.01 10.99 28.3dBm High 8.77 8.82 11.81 28.3dBm 802.11ac(VHT40) Low 0.71 8.35 8.14 11.26 28.3dBm High 9.12 9.12 12.13 28.3dBm 802.11ac(VHT80) Middle 1.21 8.83 8.72 11.79 28.3dBm U-NII-3 802.11a Low 0.21 12.01 12.21 / 30dBm Middle 12.44 12.38 / 30dBm High 13.13 13.30 / 30dBm 802.11n(HT20) Low 0.23 12.12 11.70 14.93 28.17dBm Middle 12.73 12.14 15.46 28.17dBm High 13.13 13.16 16.16 28.17dBm 802.11ac(VHT20) Low 0.41 12.32 12.21 15.28 28.17dBm Middle 12.72 12.65 15.70 28.17dBm High 13.20 13.22 16.22 28.17dBm 802.11n(HT40) Low 0.40 11.44 11.54 14.50 28.17dBm High 11.99 11.93 14.97 28.17dBm 802.11ac(VHT40) Low 0.71 11.90 11.53 14.73 28.17dBm High 12.43 12.46 15.46 28.17dBm 802.11ac(VHT80) Middle 1.26 11.53 11.73 14.64 28.17dBm Test plots refer to next page: Reference No.: WTD22D09190663W002 V1 Page 53 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Ant. 1 U-NII-1 802.11a Low channel 802.11a Middle channel 802.11a High channel 802.11n HT20 Low channel 802.11n HT20 Middle channel Reference No.: WTD22D09190663W002 V1 Page 54 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT20 High channel 802.11ac VHT20 Low channel 802.11ac VHT20 Middle channel 802.11ac VHT20 High channel Reference No.: WTD22D09190663W002 V1 Page 55 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT40 Low channel 802.11n HT40 High channel 802.11ac VHT40 Low channel 802.11ac VHT40 High channel 802.11ac VHT80 Middle channel Reference No.: WTD22D09190663W002 V1 Page 56 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn U-NII-3 802.11a Low channel 802.11a Middle channel 802.11a High channel 802.11n HT20 Low channel 802.11n HT20 Middle channel Reference No.: WTD22D09190663W002 V1 Page 57 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT20 High channel 802.11ac VHT20 Low channel 802.11ac VHT20 Middle channel 802.11ac VHT20 High channel Reference No.: WTD22D09190663W002 V1 Page 58 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT40 Low channel 802.11n HT40 High channel 802.11ac VHT40 Low channel 802.11ac VHT40 High channel 802.11ac VHT80 Middle channel Reference No.: WTD22D09190663W002 V1 Page 59 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Ant. 2 U-NII-1 802.11a Low channel 802.11a Middle channel 802.11a High channel 802.11n HT20 Low channel 802.11n HT20 Middle channel Reference No.: WTD22D09190663W002 V1 Page 60 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT20 High channel 802.11ac VHT20 Low channel 802.11ac VHT20 Middle channel 802.11ac VHT20 High channel Reference No.: WTD22D09190663W002 V1 Page 61 of 82 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 802.11n HT40 Low channel 802.11n HT40 High channel 802.11ac VHT40 Low channel 802.11ac VHT40 High channel 802.11ac VHT80 Middle channel Reference No.: WTD22D09190663W002 V1 Page 62 of 82 Waltek Testing Group Co., Ltd. http://…
Text truncated - open the document above for the full version.
Appendix-WN572HP3-Photos Page 1 of 16 1. Test Setup photos Model WN572HP3 FCC ID: NZ3-WN0003 1.1 Photograph – Conducted Emission Test Setup For Conducted Emission Test Site 1# 1.2 Photograph – Radiated Emissions For 9kHz-30MHz Test Site 2# Appendix-WN572HP3-Photos Page 2 of 16 For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1#
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.75 GHz - 5.83 GHz | 41.90 mW |
