O2Q-DRTXM2TIS Low Power AM Transmitter

1 DRAFT DRAFTDRAFT DRAFT DRTXM2 Highway Advisory Radio Transmitter User’s Manual I. Introduction This document describes the installation and operation of the DRTXM2 AM transmitter designed for highway advisory radio applications. II. Installation A. External Connections 1. Under normal conditions, when the transmitter is mounted in the Black Max rack unit, power is fed to it through the back plane and no external power connection is needed. 2. When operating in a standalone configuration, power is fed to transmitter through the two-pin Molex connector near the rear of the printed circuit board using a RED (+) and GREEN (-) pigtail jumper. Voltages are as follows: Nominal: 12 Volts DC FCC COMPLIANCE This AM transmitter complies with Part 90 of the FCC rules. FCC ID: ___________ FCC Equipment Type: 34-366 Formal Model Number: DRTXM2 Frequency Range: 0.530 – 1.700 MHz Emission Designator: 6A3 (6K006A3) Power: 10 Watts Highway Information Systems, Inc. (Formerly TIS, Inc.) 4021 Stirrup Creek Drive, Suite 100 Durham NC 27703 2 Normal Range: 10.4 to 13.6 Volts DC. Maximum Range: 10 to 14 Volts DC. Current is typically less than 2 Amps DC. 3. RF output is from front-panel UHF connector with nominal output impedance of 50 Ohms and nominal power level of 10 Watts. 4. Audio input is into rear-panel RCA connector J1. Nominal level is 0.775 V rms for 100% Modulation. B. Internal controls Some of the internal controls can be accessed through the holes in the rear panel. Access to others requires removal of the side panel by removing the 8 Phillips head screws holding it in place. 1. SLIDE SWITCH S3 FOR LIMITER IN / OUT: The limiter switch is typically IN during normal operation. The limiter may be switched OUT under special conditions such as when testing. 2. SLIDE SWITCH S4 FOR LOW-PASS FILTER IN / OUT: The low pass filter (LPF) switch is typically IN for normal operation. The low pass filter may be switched OUT under special conditions such as when testing or when operating with an external filter. 3. DIP SWITCH S1 FOR INPUT SELECT: Under normal conditions, when the transmitter is mounted in the Black Max rack unit, the audio signal from the digital recorder player is fed to the transmitter through the backplane and switch S1 segment 2 should be ON and all others should be OFF. Under standalone operation, when a test signal is being fed through the rear-panel RCA input jack J1, switch S1 segment 1 should be ON and all others should be OFF. 4. DIP SWITCH SEGMENT S2-E FOR TRANSMITTER ENABLE: Under normal operation, the transmitter enable signal is fed to the unit from the back plane. When operating under standalone conditions DIP switch S2 segment E, which is the fifth segment from the top, should be ON (right) to enable the transmitter RF output. 5. DIP SWITCH SEGMENTS S2 A, B, C, D FOR FREQUENCY SELECT: The four upper segments of dip switch S2 select the frequency divider and must remain unchanged from the positions set when the transmitter was manufactured to prevent damage to the output transistors. III. Operation A. Front-Panel Controls 1. POWER Switch turns transmitter on. 3 2. POWER LED indicates power on. 3. MEASURE switch selects function of 20 LED bar-graph display as VSWR, FORWARD power, or REFLECTED power. 4. TRANSMIT LED indicates transmitter is in transmit mode. 5. LIMIT LED indicates limiter is enabled and is actively limiting modulation. 6. MODULATION LEDs indicate percent modulation. B. POWER Switch The power switch is located at the bottom of the front panel of the transmitter. Switch it on to turn on the transmitter power. The POWER LED will illuminate. C. MEASURE Switch The MEASURE switch is located at the top of the front panel. The MEASURE switch controls the function of the 20 LED bar-graph display. In the VSWR position it indicates the Voltage Standing Wave Ratio, which tells how well the antenna is tuned. The lower the reading (the fewer LEDs that are lit) the better the VSWR. The normal reading for the VSWR meter will be between 0 (no LEDs lit) and 1.6 (five LEDs lit). In the FORWARD position the LED bar-graph display indicates how much power the transmitter is producing. In the REVERSE position the LED bar-graph display indicates how much power is reflected by the imbalance in the antenna. A higher VSWR reading corresponds with a REVERSE power reading. The actual power that is transmitted can be determined by subtracting the REVERSE power measurement from the FORWARD power measurement.

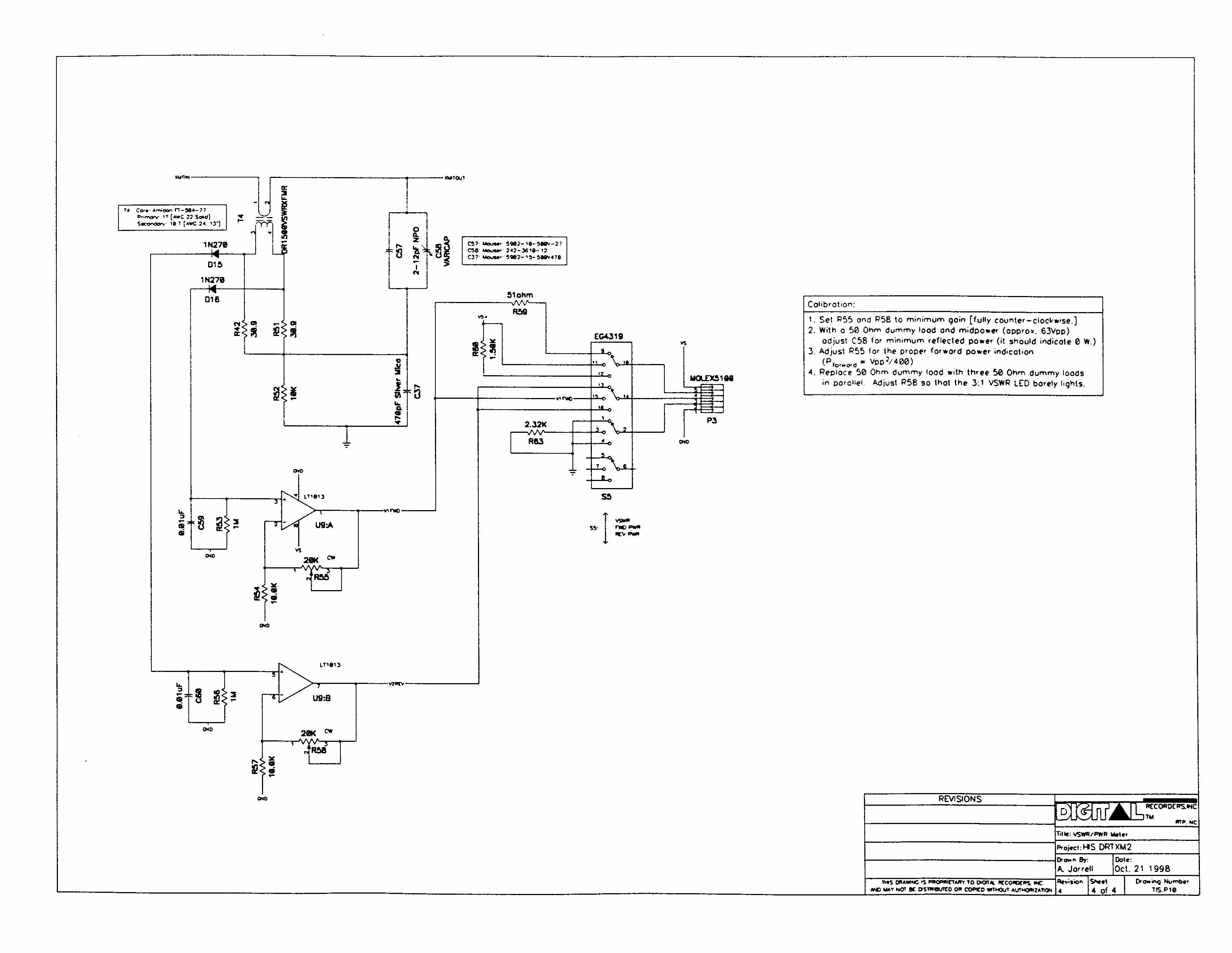

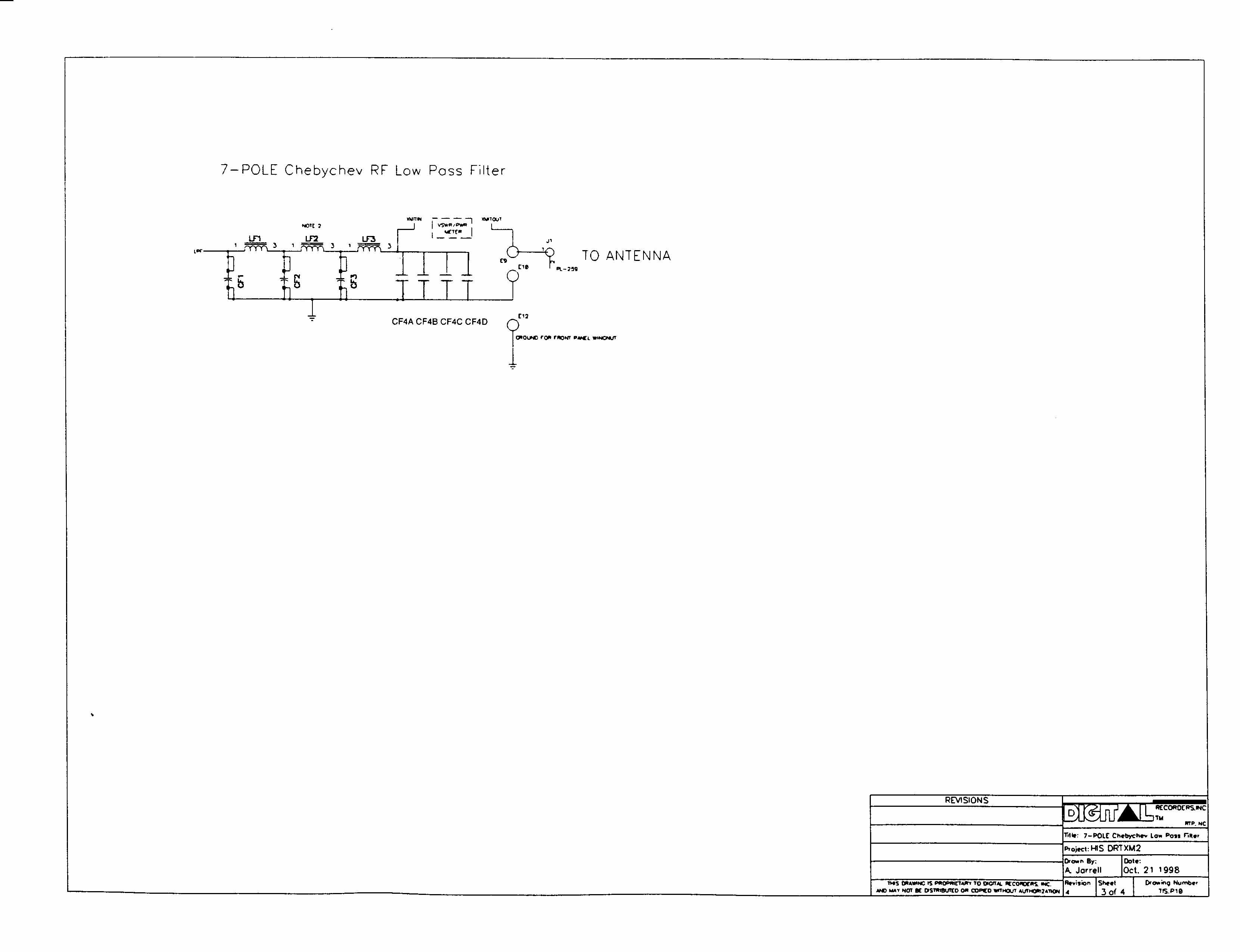

D:\Ready_To_Convert\Doc\102447.DOC 05/30/00 ANTENNA OUTPUT DRTXM2 BLOCK DIAGRAM AUD IO INPUT AUD IO INT ERFACE AUD IO L IM IT ER LOW-PASS AUD IO F ILT ER MODULATOR CRYSTAL OSCILLATOR (12.880 MHz) DIVIDE BY 8 (1.610 kHz) CLASS D DRIVER STAGE RF OUTPUT FILTER FORWARD, REFLECTED & VSWR MET ER

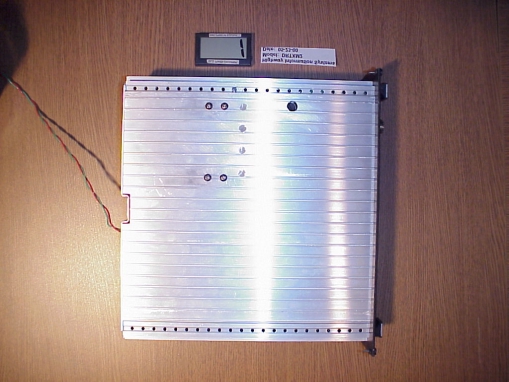

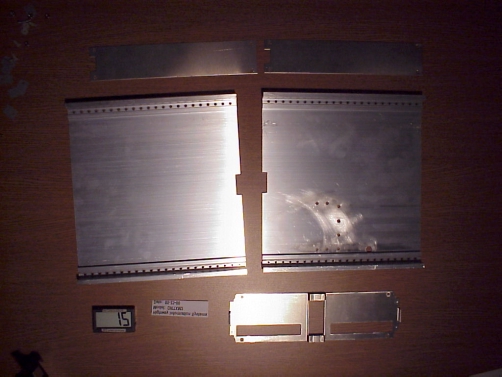

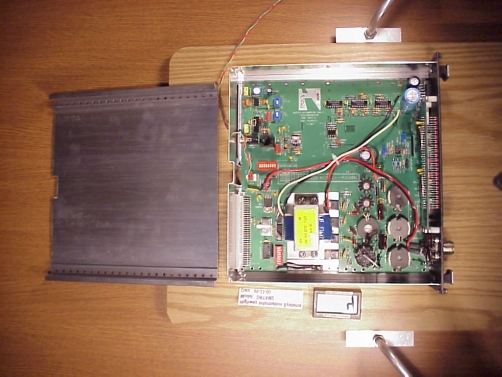

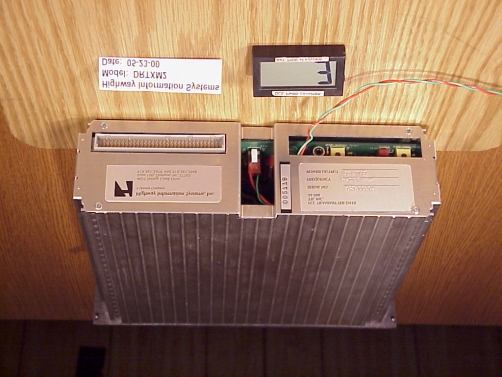

Front Side of EUT Left Side of EUT Back Side of EUT Right Side Cover removed Inside Covers

Highway Information Systems, In A Quixote Highway Information Systems, Inc. A Quixote Company 4021 Stirrup Creek Drive, Suite 100 Durham, NC 27703 USA Tel: 800.849.4447 Fax: 800.849.2947 Model: DRTXM2 S/N: FCC ID: O2Q-DRTXM2 Artwork original as shown is 200% Finished size is 1.6” high x 3“ wide Finished font is 8 pt Arial Label is located on rear of transmitter Label is visible through openings in rack when installed

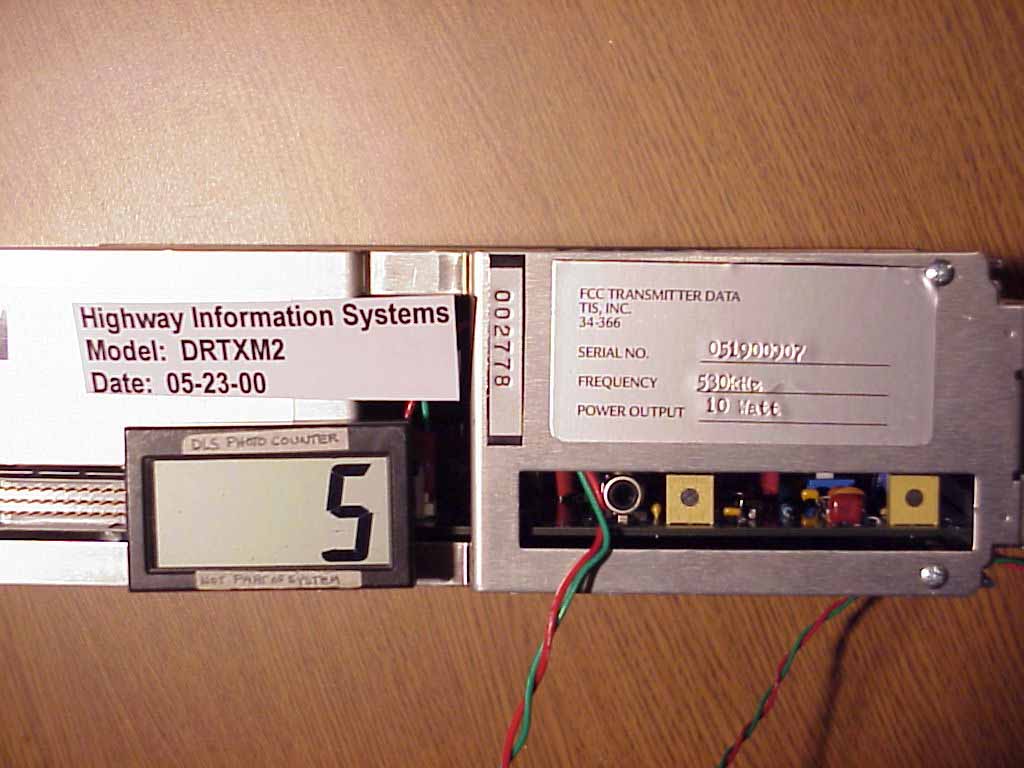

Location of FCC Label

Highway Information Systems, In A Quixote Highway Information Systems, Inc. A Quixote Company 4021 Stirrup Creek Drive, Suite 100 Durham, NC 27703 USA Tel: 800.849.4447 Fax: 800.849.2947 Model: DRTXM2 S/N: FCC ID: O2Q-DRTXM2 Artwork original as shown is 200% Finished size is 1.6” high x 3“ wide Finished font is 8 pt Arial Label is located on rear of transmitter Label is visible through openings in rack when installed

Location of FCC Label

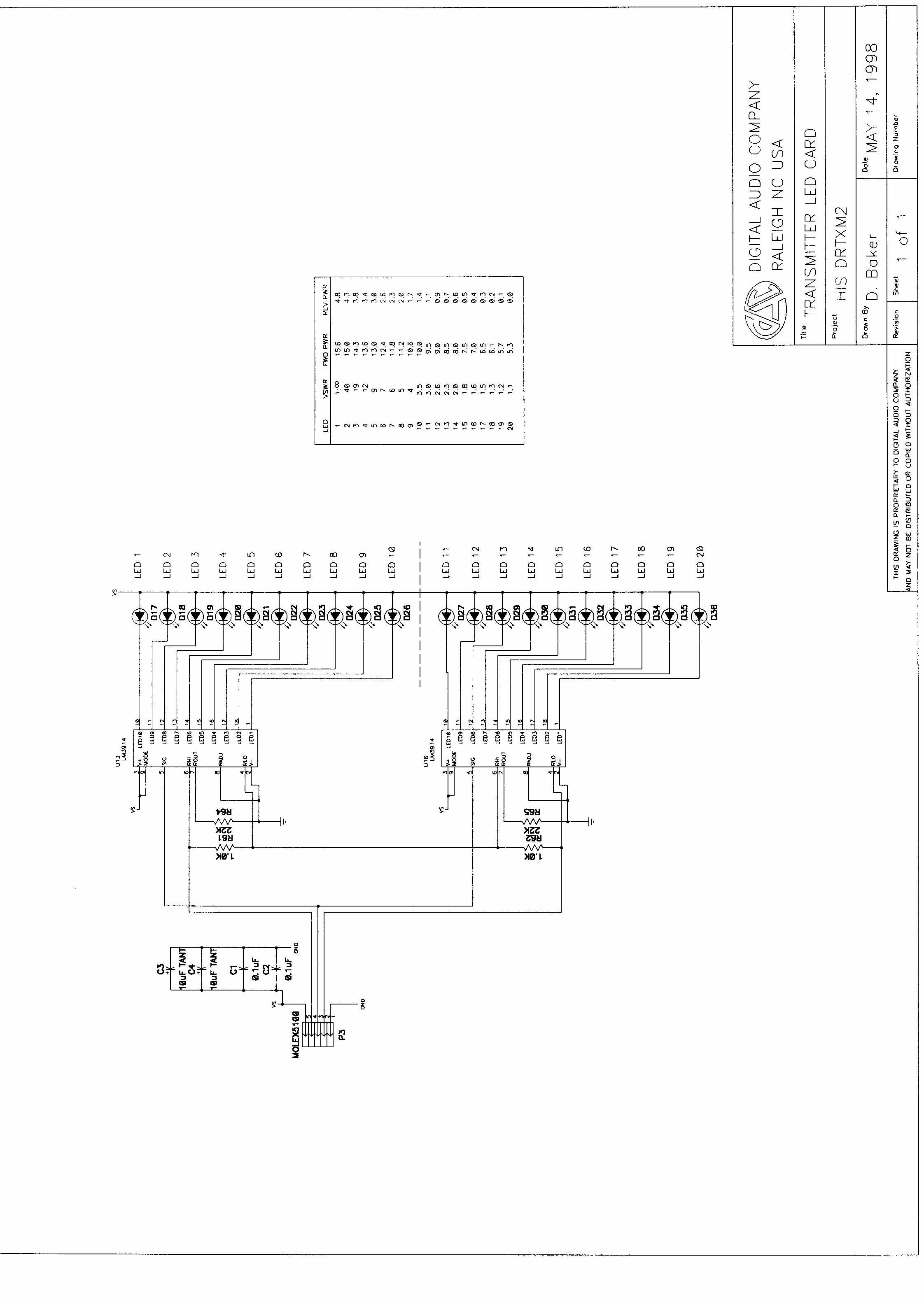

Component Side of DRTXM2DTR Board Solder?LED Side of DRTXM2DTR Board Back Half of DRTXM2DTR Main Board Component Side Front Half of DRTXM2DTR Main Board Component Side Front Half of DRTXM2DTR Main Board Solder Side Back Half DRTXM2DTR Main Board Solder Side

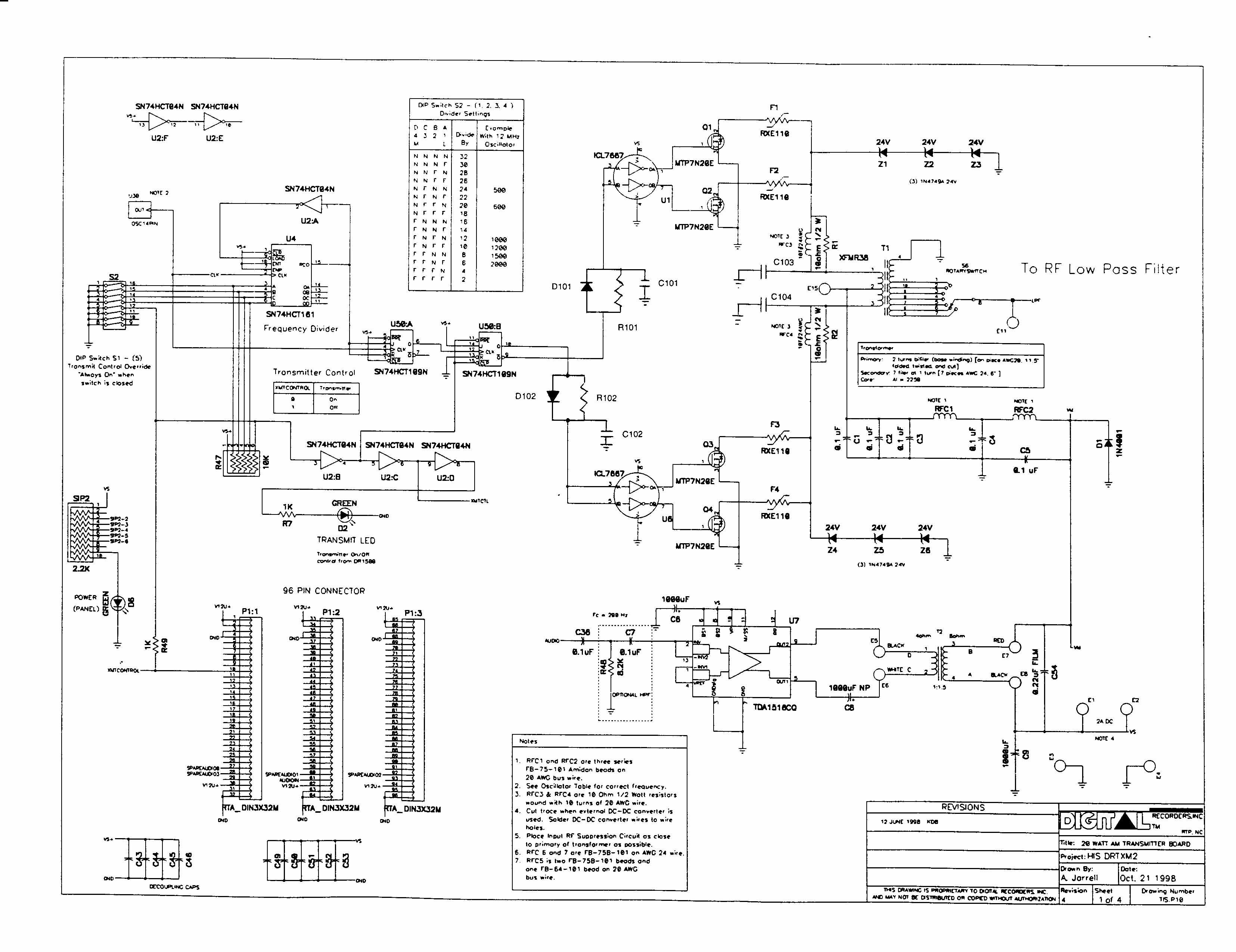

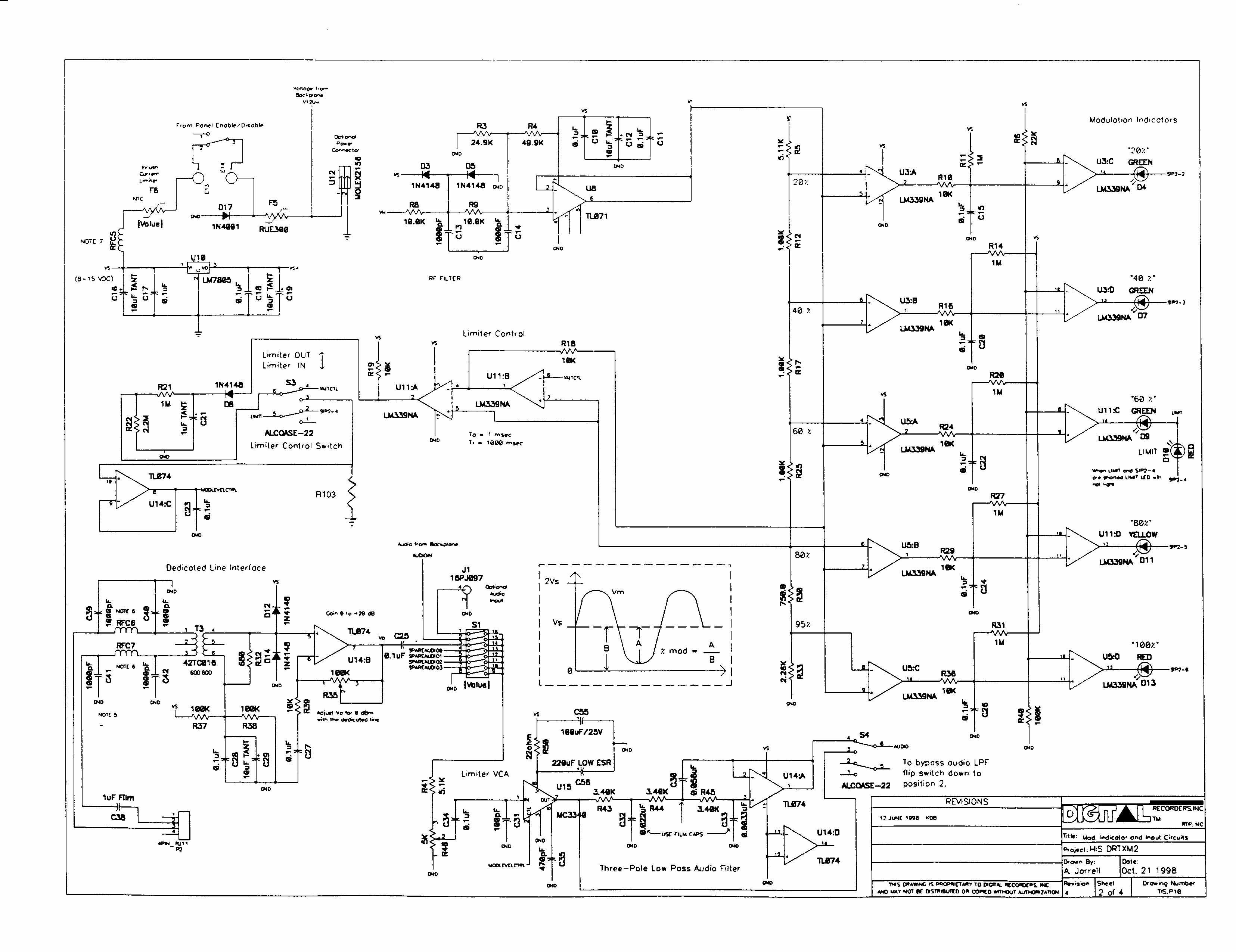

1 DRTXM2 Highway Advisory Radio Transmitter Functional Description This document gives a functional description of the Highway Information Systems, Inc. DRTXM2 AM transmitter designed for highway advisory radio applications. A. Audio Input, Limiter, and Low-Pass Filter As shown in the upper left part of the Block Diagram, the audio signal from an external source (such as a digital recorder player) is input to the audio interface circuit which provides switching and amplification functions. The audio signal is then fed to an audio limiter , which prevents over modulation. This is followed by a three-pole low- pass audio filter which conforms to the FCC specification that between 3 kHz and 20 kHz the attenuation be 60 log 10 (f/3), where f is the audio frequency in kHz. B. RF Oscillator and Divider As shown in the lower left part of the Block Diagram, a crystal oscillator is used to generate a stable frequency at a multiple of the transmitters output frequency. The output of the oscillator is then passed through a frequency divider circuit. For example as shown in the diagram, a 12.880 MHz crystal oscillator is used in conjunction with a divide-by-eight logic circuit to produce a stable and symmetric RF frequency of 1.610 MHz. C. Modulator and Driver Stage The audio signal from the limiter and low pass filter are fed to the modulator stage which is then fed to the class D driver stage along with the RF signal from the frequency divider circuit. D. RF Output Filter The modulated output of the driver stage passes through a seven-element low-pass RF output filter to attenuate harmonics to the FCC specification of better than 53 dB below 10 Watts. The filtered signal is terminated at the UHF-type antenna output connector. E. Meter A built in front-panel meter is provided to allow measurements of forward power, reflected power, and VSWR. This meter uses a 20 LED bar-graph display and a front- panel switch to select the function.

DRTXM2 TRANSMITTER BILL OF MATERIALKIT P/N 704-DRTXM2 BOM KIT, 704-DRTXM2-1BOM RETURN AS SUB-ASSEMBLY 804-DRTXM2KIT P/N 704-DRTXM2 TRANSFORMER KIT RETURN AS 804-DRTXM2 TRANSFORMER KITKIT P/N 704-DRTXM2 FILTER KIT RETURN AS 804-DRTXM2 FILTER KITFINAL PRODUCT P/N TXM0010 ORIGINAL DATE: 990310 IDENT QTY PART NUMBER DESCRIPTION MFR/VNR MFR HIS PART NUMBER COST TOTAL NOTES PRODUCT H1 8 Right Angle LED Mount Bivar 909-235/ Future BRK-470-0909-235 0.14 1.12 DRTXM2 0 0.01uf 50V Ceramic Disc Capacitor MSR 140CD50Z6-103Z CAP-000-.01UF-050 0.02 0.00 Obs use 030-.01uf-050 DRTXM2 C1-5,7,10-11 ,15,17-18,20, 22-28,34,38, 43-46,49-53,1A,2A 31 0.1 UF/50V Decoupling Capacitors AVX/Today comp SR225E104MAA CAP-000-.1UF-000 0.04 1.24 DRTXM2 C13,14,39-42 6 1000 pF 50V Ceramic Disc Cap MSR 140-CD50P2-102K CAP-000-1000PF-050 0.03 0.18 DRTXM2 C31 1 100 pF 50V Ceramic Capacitor MSR 140-CD50N6-101K CAP-000-100PF-050 0.04 0.04 obs part 140CD50S6-101M DRTXM2 C35 1 470 pF 50V Ceramic disc Cap radial MSR 140-CD50S6-471M CAP-000-470PF-050 0.07 0.07 DRTXM2 C38 1 1UF 100V Metalized film Cap DKY EF1105 CAP-001-1.UF-100 0.48 0.48 DRTXM2 C33 1 3300PF Polyester Film Cap DKY P4557 CAP-001-3300PF-050 0.07 0.07 DRTXM2 C32 1 0.022 UF 50V Polyester Film Cap DKY P4586-ND CAP-009-.022UF-050 0.08 0.08 DRTXM2 C30 1 0.056 UF Film Capacitor DKY P3563-ND CAP-009-.056UF-000 0.12 0.12 DRTXM2 C54 1 0.22 UF 100V Polyester Film Cap MSR 140-PM2A224K CAP-009-.22UF-100 0.22 0.22 DRTXM2 C6,9 2 1000 UF/35V Electrolytic Capacitor MALLORY SK102M035ST CAP-020-1000UF-035 0.47 0.94 Newark p/n 91F6288 DRTXM2 C8 1 1000 UF/50V Non-Polarized Electrolytic Capacitor MSR 140-NPRL50 V1000 CAP-020-1000UF-050 1.32 1.32 DRTXM2 C55 1 100 UF/25V Electrolytic Capacitor DKY P6239 CAP-020-100UF-025 0.09 0.09 DRTXM2 C56 1 220 UF/16V Low Electrolitic ESR Capacitor SPRAGUE 678D227M016CC3D CAP-020-220UF-016 0.72 0.72 Newark p/n 90F7553 DRTXM2 C59,60 2 .01uf monolithic 50V cap Newark 29F010 CAP-030-.01uf-050 0.06 0.12 repl.CAP000-.01uf-050 Disc DRTXM2 C57 1 27 pF 500V Silver Mica Capacitor MSR 5982-10-500V-27 CAP-040-27PF-500 0.26 0.26 DRTXM2 C37 1 470 pF 500V Silver Mica MSR 5982-15-500V470 CAP-040-470PF-500 0.67 0.67 DRTXM2 C3A,4A,12,16, 19, 29 6 10 UF 25V Tantalum Capacitor SPRAGUE/MSR 199D106X9025CA1 CAP-060-10UF-025 0.17 1.02 74-199D25V10 DRTXM2 C21 1 1UF 35V Tantalum Cap DKY P2059-ND CAP-060-1UF-035 0.21 0.21 DRTXM2 C58 1 2-12pF NPO Trimcap MSR 242-3610-12 CAP-070-2-12PF-000 0.25 0.25 DRTXM2 P3A 1 Single Row Female Header DKY 929974-01-10 CON-410-0010-001 0.52 0.52 10-pin header broken in half DRTXM2 P3B 1 Rt. Angle Single-Row Male Header DKY 929835-01-36 CON-410-0010-002 0.68 0.68 10-pin header broken in half DRTXM2 J1 1 SO-259 Bulkhead connector (83-1R) Sterling 83-1R CON-410-0083-001 1.20 1.20 DRTXM2 U12 1 MOLEX 2156 Connector DKY WM4620-ND CON-410-2156-000 0.12 0.12 DRTXM2 0 1N60 Diode MSR 610-1N60 DIO-200-0060-000 0.24 0.00 obsolete use 610 diode DRTXM2 D1,17 2 1N4001 Diode MSR 583-1N4001 DIO-200-4001-000 0.06 0.12 DRTXM2 D3,5,8,12,14 5 1N4148 Diode MSR 333-1N4148 DIO-200-4148-000 0.04 0.20 DRTXM2 Z1-6 6 1N4749A 24V Zener Diode MSR 583-1N4749 DIO-200-4749-024 0.06 0.36 DRTXM2 D15,16 2 610 Diode MSR 610-CDSH270 DIO-220-0000-610 0.28 0.56 repl.Diode 1N60 DRTXM2 RFC5C 1 Ferrite Bead (FB-64-101) Amidon FB-64-101 FER-365-0064-101 0.12 0.12 DRTXM2 RFC1A,B,C 11 Ferrite Bead (FB-75B-101) Amidon FB-75B-101 FER-365-0075-001 0.10 1.10 DRTXM2 F1-4 4 RXE110 Resetable Fuse DKY RXE110-ND FUS-330-0110-000 0.54 2.16 DRTXM2 0 RUE300 Resetable Fuse DKY RUE300-ND FUS-330-0300-000 0.80 0.00 DRTXM2 F5 1 RUE400 Resetable Fuse DKY F2027 FUS-330-0400-000 0.74 0.74 DRTXM2 H2 2 Circular Finned Heatsink DKY HS101-ND HEA-455-0101-000 0.70 1.40 DRTXM2 U14 1 TL074-CN Texas Instruments New Advantage IC-220-0000-074 0.52 0.52 DRTXM2 1 102458 5/30/00 IDENT QTY PART NUMBER DESCRIPTION MFR/VNR MFR HIS PART NUMBER COST TOTAL NOTES PRODUCT U8 1 TL071CP Texas Instruments Arrow-Semi IC-220-0071-000 0.26 0.26 DRTXM2 U2 1 SN74HCT04N Texas Instruments Arrow-Semi IC-220-0074-004 0.10 0.10 DRTXM2 U50 1 SN74HCT109N Texas Instruments Arrow-Semi IC-220-0074-109 0.15 0.15 DRTXM2 U4 1 SN74HCT161 Texas Instruments Arrow-Semi IC-220-0074-161 0.19 0.19 DRTXM2 U15 1 MC3340P Motorola New Advantage IC-220-0334-000 1.40 1.40 DRTXM2 U3,5,11 3 LM339N National Arrow-Semi IC-220-0339-000 0.14 0.42 DRTXM2 U13,16 2 LM3914N National New Advantage IC-220-0391-004 1.06 2.12 DRTXM2 U9 1 LT1013-CN8 Linear DKY IC-220-1013-008 2.30 2.30 DRTXM2 U7 1 TDA1516CQ (or TDA1516BQ) Phillips New Advantage IC-220-1516-000 1.46 1.46 DRTXM2 U10 1 LM7805 (LM340T5-7805) National Arrow-Semi IC-220-7805-000 0.22 0.22 DRTXM2 J1 1 Right Angle RCA Jack MSR 16PJ097 JAC-417-0100-101 0.48 0.48 DRTXM2 P2 1 6-4 Modular RJ-11 Jack (Top Entry) DKY A9083-ND JAC-417-6-4-000 0.44 0.44 DRTXM2 H3 2 Plastic Handles Phillips VMEX1000 KNO-496-1000-000 0.16 0.32 DRTXM2 LED1-20 20 Red T1 LED DKY P363-ND LED-320-0363-000 0.12 2.40 DRTXM2 D11 1 Yellow T 1 3/4 LED DKY P372-ND LED-320-0372-000 0.25 0.25 DRTXM2 D10,13 2 Red T 1 3/4 LED DKY P374-ND LED-320-0374-000 0.12 0.24 DRTXM2 D2,4,6,7,9 5 Green T 1 3/4 LED DKY P375-ND LED-320-0375-000 0.18 0.90 DRTXM2 Q1-4 4 MTP7N20E MOSFET [TO-220 Package] Motorola (Newark) MTP7N20E MOS-210-0007-220 1.21 4.84 08TMTP7N20E DRTXM2 U1,6 2 ICL-7667 MOSFET Driver Harris (Newark) A2TICL7667CTV MOS-210-7667-000 2.43 4.86 DRTXM2 H4 11 4-40 Nuts Tower 4CNHMS NUT-421-0400-000 0.01 0.11 Increased quantity DRTXM2 H5 2 M2.5 X 45P Nut Phillips NUT-421-2.5 X 45P 0.02 0.04 DRTXM2 H6 4 4-40 Nuts w/Nylon insert Tower 4CNNMS NUT-422-0440-001 0.03 0.12 DRTXM2 H7 1 DRTXM2 Front Panel Phillips PAN-594-DRTXM2-000 19.60 19.60 DRTXM2 PC2 1 DRTXM2DTR PCB Board (LED Board) Newtronix DRTXM2DTR PCB-518-0000-006 9.10 9.10 Quote # 2306 DRTXM2 PC1 1 DRTXM2MAIN PCB Board (Main Board) Newtronix DRTXM2REVB PCB-518-0000-007 16.00 16.00 Quote # 2334 DRTXM2 H8 1 ID Plate (Blank) Phillips VMES5000 PLA-595-5000-000 0.75 0.75 DRTXM2 H9 1 ID Plate (HIS Logo) Phillips VMES50…

Text truncated - open the document above for the full version.

DRTXM2 TRANSMITTER BILL OF MATERIAL IDENTQTY PART NUMBER DESCRIPTION H18 Right Angle LED Mount 0 0.01uf 50V Ceramic Disc Capacitor C1-5,7,10-11 ,15,17- 18,20, 22-28,34,38, 43-46,49-53,1A,2A 31 0.1 UF/50V Decoupli ng Capacitors C13,14,39-426 1000 pF 50V Ceramic Disc Cap C311 100 pF 50V Ceramic Capacitor C351 470 pF 50V Ceramic disc Cap radial C381 1UF 100V Metalized film Cap C331 3300PF Polyester Film Cap C321 0.022 UF 50V Polyester Film Cap C301 0.056 UF Film Capacitor C541 0.22 UF 100V Polyester Film Cap C6,92 1000 UF/35V Electrolytic Capacitor C81 1000 UF/50V Non-Polarized Electrolytic Capacitor C551 100 UF/25V Electrolytic Capacitor C561 220 UF/16V Low Electrolitic ESR Capacitor C59,602 .01uf monolithic 50V cap C571 27 pF 500V Silver Mica Capacitor C371 470 pF 500V Silver Mica C3A,4A,12,16, 19, 296 10 UF 25V Tantalum Capacitor C211 1UF 35V Tantalum Cap C581 2-12pF NPO Trimcap P3A1 Single Row Female Header P3B1 Rt. Angle Single-Row Male Header J11 SO-259 Bulkhead connector (83-1R) U121 MOLEX 2156 Connector 0 1N60 Diode D1,172 1N4001 Diode D3,5,8,12,145 1N4148 Diode Z1-66 1N4749A 24V Zener Diode D15,162 610 Diode RFC5C1 Ferrite Bead (FB-64-101) RFC1A,B,C11 Ferrite Bead (FB-75B-101) F1-44 RXE110 Resetable Fuse 0 RUE300 Resetable Fuse F51 RUE400 Resetable Fuse H22 Circular Finned Hea tsink U141 TL074-CN U81 TL071CP U21 SN74HCT04N U501 SN74HCT109N U41 SN74HCT161 U151 MC3340P U3,5,113 LM339N U13,162 LM3914N U91 LT1013-CN8 U71 TDA1516CQ (or TDA1516BQ) U101 LM7805 (LM340T5-7805) J11 Right Angle RCA Jack P21 6-4 Mod ular RJ-11 Jack (Top Entry) H32 Plastic Ha ndles LED1-2020 Red T1 LED D111 Yellow T 1 3/4 LED D10,132 Red T 1 3/4 LED D2,4,6,7,95 Green T 1 3/4 LED Q1-44 MTP7N20E MOSFET [TO-220 Package] U1,62 ICL-7667 MOSFET Dri ver H411 4-40 Nuts H52 M2.5 X 45P Nut H64 4-40 Nuts w/Nylon insert H71 DRTXM2 Fro nt Pane l PC21 DRTXM2DTR PCB Board (LED Board) PC11 DRTXM2MAIN PCB Board (Mai n Board) H81 ID Plate (Blank) H91 ID Plate (HIS Logo) P11 96-Pin Right Angle Male R461 5k Sideturn Trimpot R55,582 20k Topturn Trimpot R351 100k Sideturn Trimpot R37,R38,R403 100k 5% Resistor R52,18,19,399 10k 5% Resistor R7,492 1k 5% Resistor R53,568 1M 5% Resistor R221 2.2M 5% Resistor R501 22 ~ 5% Resistor 1/4Watt R6,R64,R653 22k 5% Resistor R411 5.1k 5% Resistor R591 51 ~ 5% Resistor R321 680 ~ 5% Resistor R601 1.50k 1% Resistor R54,R57,R894 10.0k 1% Resistor R12,17,25,61,625 1.00k 1% Resistor R331 2.26k 1% Resistor R631 2.32k 1% Resistor R31 24.9k 1% Resistor R43-453 3.40k 1% Resistor R42,512 30.9~ 1% Resistor (was 33.2() R41 49.9k 1% Resistor R51 5.11k 1% Resistor R301 750.0~1% Resistor R1,22 10 Ohm 5% 1/2 W Resistor R471 10k 6-pin SIP S1P21 2.2k 10-pin SIP H104 Retainer Slee ves H115 4-40 1/2" Pan Head Screw H121 6-32 1/4" Pan Head Screw H132 M2.5 X 16 Screw H144 Captive Screws H151 4 Pin socket for the oscillator H164 4-40 Nylon 3/8" Spacers (round, 1/4" diameter) S51 4T3P Slide Switch S3,42 1-Pos DIP Switch S1,22 8-Position DIP switch S51 Panel Power Switch T41 Toroid (FT-50A-77) T31 600:600 Transformer H175 4-40 Lock Washers (split) H181 4-40 Solder Lug Washer W12 18 AWG Red-Black Zipcord Wire W21 18 AWG Insulated Wire W31 20 AWG Buswire W41 24 AWG Copper Enamel Bell Wire RETURN AS SUB-ASSEMBLY P/N 804-DRTXM2 TRA NSFORME R COMPONENTS P/N 704-DRTXM2 TRANSFORMER KIT ORIGINAL DATE 990310 IDENTQTYPART NUMBER DESCRIPTION T1B1 Plastic Bobbin T1F1 Ungapped Pot Core Ferrite 3D3 2250 material S61 Electroswitch 12-position shaft PC-pin rotary H11 3/8" Electrical tape 3M #1318 T21 Audio Tra ns former W11 20 awg Copper Enamel Bell Wire H198 MOSFET Insulati ng pads H201 #10 Nylon Nut H214 6-32 Nylon Hex Nut H224 6-32 Nuts w/Nylon insert H238 M2.9x9.5 [or M3.0x8] Oval Head self-tappi ng screw H248 M2.5 x4.5 (use M2 .5 x 5 ) H254 6-32 1/2" Pan Head Screw H261 #10 Nylon screw H274 6-32 x 1" Nylon Screw (Flat Head) H281 4" nylon cable tie H291 4-40 Solder Lug Washer W54 24awg inductor silver ti nned insul.wire natural W61 20awg inductor silver ti nned insul.wire black FILTER COMPONENTS (depends on freq.) P/N 704-DRTXM2 FILTER KIT ORIGINAL DATE 990310 IDENTQTYPART NUMBER DESCRIPTION H303 Plastic Bobbin H313 Metal Clamp H321 Schroff Enclosure Kit LF1-3F3 Pot Core Ferrite 3D3 100 Material LF1-3A3 Gray Screw Core H331 3/8" Electrical tape 3M #1318 W71 20 awg Copper Enamel Bell Wire CFX11200PF 500vdc Silver Mica Cap CFX21300PF 500vdc Silver Mica Cap CFX31600PF 500vdc Silver Mica Cap CFX42400PF 500vdc Silver Mica Cap CFX52700PF 500vdc Silver Mica Cap CFX63000PF 500vdc Silver Mica Cap CFX73300PF 500vdc Silver Mica Cap CFX83900PF 500vdc Silver Mica Cap CFX94300PF 500vdc Silver Mica Cap CFX105600PF 500vdc Silver Mica Cap CFX116800PF 500vdc Silver Mica Cap CFX127500PF 500vdc Silver Mica Cap U30X11 12.720 Oscillator U30X212.880 Oscillator U30X313.040 Oscillator U30X413.520 Oscillator U30X519.680 Oscillator U30X620.160 Oscillator W81 20awg inductor silver ti nned insul.wire natural PARTS FOR ENGINEERING CHANGE ORDERS ORIGINAL DATE 20000524 TMH IDENTQTYPART NUMBER DESCRIPTION C57 (change)1 24 pF 500V Silver Mica Capacitor C101,1022 50 pF 50V Ceramic disc Cap radial C103,1042 22 pF 500V Silver Mica Capacitor D101,1022 BAT-85 Schottky Diode R101,1022 330R 1/8 Watt 5% Resistor R1031 5.1M 1/8 Watt 5% Resistor DATE & ECN CHANGE & DESCRIPTION 990310-Original Start Date of BOM 990606-ECO added 4 Pin socket SOC-435-0462-000 & 4" nylon tie TIE-402-0440-000 to BOM

Ðϕࡱ•á````````````````>` ̃`þÿ ` ̇```````````ˆ```œ````````•``þÿÿÿ````þÿÿÿ````š```›```ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ ÿÿÿÿÿÿÿ ̊•`` ̇ ̆`ò•Ì ̈É``` ̇```á`ˆ`° ̄Á`ˆ```â```\`p`•``Preferred Customer B`ˆ`° ̄a ́ˆ```= ́ ̄` ́`ˆ`œ`ˆ` `•`ˆ```•`ˆ```•`ˆ``` ̄ ́ˆ```¼ ́ˆ```=`•`x`x`ø% ̃•8` ́``` ́`Xˆ@`ˆ``` `ˆ```"`ˆ``` `ˆ` ́`· ́ˆ```Ú`ˆ```1`•`È```ÿ ́`````` ̆ ́A`r`i`a`l`1`•`È```ÿ ́`````` ̆ ́A`r`i`a`l`1`• `È```ÿ ́`````` ̆ ́A`r`i`a`l`1`•`È```ÿ ́`````` ̆ ́A`r`i`a`l`1`•`È```ÿ ́`````` ̆ ́A`r `i`a`l`1`•`È` ́`ÿ ¼ˆ```ˆ`` ̆ ́A`r`i`a`l`1`•`È```ÿ ́```ˆ`` ̆ ́A`r`i`a`l`1`•` ```ÿ ́` ````` ̆ ́A`r`i`a`l`- ̄•` ̆`•``"$"#,##0_);\("$"#,##0\)- ̄!` ̇`•``"$"#,##0_);[Red]\("$"# ,##0\)- ̄"` ̈`•``"$"#,##0.00_);\("$"#,##0.00\)- ̄'` ̊`"``"$"#,##0.00_);[Red]\("$"#,# #0.00\)- ̄7`*`2``_("$"* #,##0_);_("$"* \(#,##0\);_("$"* "-"_);_(@_)- ̄.`)`)``_(* #,##0_);_(* \(#,##0\);_(* "-"_);_(@_)- ̄?`,`:``_("$"* #,##0.00_);_("$"* \(#,##0.00\);_("$"* "-"??_);_(@_)- ̄6`+`1``_(* #,##0.00_);_(* \(#,##0.00\);_(* "- "??_);_(@_)- ̄ ̊`¤` ̃``0.0- ̄ `¥` ̆``0.000à`•`````õÿ ```````````À à`•` ́```õÿ ``ô````````À à`•` ́```õÿ ``ô````````À à`•`ˆ```õÿ ``ô````````À à`•`ˆ```õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•`````õÿ ``ô````````À à`•````` ́` ```````````À à`•` ̆`+`õÿ ``ø````````À à`•` ̆`)`õÿ ``ø````````À à`•` ̆`,`õÿ ``ø````````À à`•` ̆`*`õÿ ``ø````````À à`•` ̈` ́`õÿ ```````````À à`•` ̊`¤`õÿ ```````````À à`•` ̈`¥`õÿ ```````````À à`•` ̆` `õÿ ``ø````````À à`•` ̇``` ́` `` ̊````````À à`•` ̇``` ́`"``8`•``` ``À à`•` ̇``` ́` ``(`•``` ``À à`•```ˆ` ́` `` ̄````````À à`•` ̈``` ́` ``(````````À à`•` ̈``` ́`!``8````````À à`•` ̈``` ́`#``8````````À à`•````` ́`(``•````````À à`•` ̈`¥`a ́ `` ̊````````À à`•` ̈`)`• ́ `` ̊````````À à`•` ̈`¤`Q ́ `` ̊````````À à`•` ̈` ́`A ́ `` ̊````````À à`•` ̈``` ́` `` ̊````````À à`•` ̈`¥`a ́ ```````````À à`•` ̈` ́`A ́ ```````````À à`•` ̇`¥`a ́ `` ̊````````À “ˆ ̄`•• ̃ÿ“ˆ ̄`•• ̇ÿ“ˆ ̄`•• ̄ÿ“ˆ ̄`•• ̈ÿ“ˆ `•` ̈``Fixed 0“ˆ `•` ̈``Fixed 1“ˆ `•` ̈``Fixed 3“ˆ ̄``•`ÿ“ˆ ̄`•• ̆ÿ` ́ˆ```...`•`‚?```` `DRTXM2 BOM...`&` ̄·````-`DRTXM2 FILTER COMPONENT VALUESŒ` ̄` ́` ́`® ́ ̄`ˆ` ́ ̄•` `ˆ````````` ́` ́`•`•` `` ́ ``` ́`````` ̈;`` ̈` ̈```ÿ`•`•` `` ́ ```ˆ`````` ̈; ́`ˆ` ̃```ÿ`ü` ? ̄``Òˆ````DRTXM2DTR PCB Board (LED Board) ``Newtronix ``DRTXM2DTR ``Quote # 2306!``DRTXM2MAIN PCB Board (Main Board) ``DRTXM2REVB ``Quote # 2334•``DRTXM2 Front Panel ̊``Phillips•``1-Pos DIP Switch•``8-Position DIP switch ̃``DKY ``CKN3007-NDı``Electroswitch ``C5P0112N-A•``4T3P Slide Switch ``EG1915-ND ̊``H5096-ND"``6-4 Modular RJ-11 Jack (Top Entry) ̊``A9083-ND•``Single Row Female Header ``929974-01-10 ``Rt. Angle Single-Row Male Header ``929835-01-36•``Right Angle RCA Jack ̃``MSR ̈``16PJ097•``MOLEX 2156 Connector ``WM4620-ND•``Panel Power Switch ̃``C&K ``D102J12S205PQF•``600:600 Transformer ̈``42TC016•``Audio Transformer ``Radio Shack•``RUE300 Resetable Fuse ``RUE300-ND•``RXE110 Resetable Fuse ``RXE110-ND ̆``P4557 ``140CD50Z6-103Z ̊``P4586-ND ̊``P3563-ND ``SR225E104MAA ``140-PM2A224K ̇``EF1105 ̊``P2059- ND ̈``SPRAGUE•``199D106X9025CA1 ̆``P6239 ̈``MALLORY•``140-NPRL50 V1000•``140- CD50P2-102K•``678D227M016CC3D•``5982-10-500V-27•``5982-15-500V470•``140-CD50S6- 471M•``2-12pF NPO Trimcap ``242-3610-12•``Ferrite Bead (FB-75B-101) ̇``Amidon ``FB-75B-101•``Ferrite Bead (FB-64-101) ``FB-64-101•``Toroid (FT-50A-77) ``FT-50A-77 ``1N60 Diode ̊``610-1N60 ``1N4001 Diode ``583-1N4001 ``1N4148 Diode ``333-1N4148•``1N4749A 24V Zener Diode ``583-1N4749•``ICL-7667 MOSFET Driver•``Harris (Newark) ``MTP7N20E MOSFET [TO- 220 Package]•``Motorola (Newark) ̊``MTP7N20E ̈``MC3340P ̊``Motorola ̈``TL071CP•``Texas Instruments ̈``LM3914N ̊``National ``LT1013-CN8 ̇``Linear ̇``LM339N ``SN74HCT04N ̊``TL074-CN ``SN74HCT109N ``SN74HCT161•``LM7805 (LM340T5-7805)•``TDA1516CQ (or TDA1516BQ)•``Green T 1 3/4 LED ̈``P375-ND•``Red T 1 3/4 LED ̈``P374-ND•``Yellow T 1 3/4 LED ̈``P372-ND ``Red T1 LED ̈``P363-ND•``Right Angle LED Mount ̆``Bivar•``10 Ohm 5% 1/2 W Resistor6``All resistors are 1/4 Watt unless otherwise specified. ``1k 5% Resistor•``5.1k 5% Resistor•``10k 5% Resistor•``22k 5% Resistor•``100k 5% Resistor ``1M 5% Resistor•``2.2M 5% Resistor•``1.00k 1% Resistor•``1.50k 1% Resistor•``2.26k 1% Resistor•``2.32k 1% Resistor•``3.40k 1% Resistor•``5.11k 1% Resistor•``10.0k 1% Resistor•``24.9k 1% Resistor•``49.9k 1% Resistorı``10k 6-pin SIP ̈``264-10K•``2.2k 10-pin SIP ̊``266-2.2K•``5k Sideturn Trimpot ``594-63X502•``100k Sideturn Trimpot ``594-63X104•``20k Topturn Trimpot ``3296W-1-203•``Circular Finned Heatsink ̊``HS101-ND ̈``7253-WI•``18 AWG Red-Black Zipcord Wire ̈``Hosfelt ̇``60-192•``18 AWG Insulated Wire ̇``36-260 ``20 AWG Buswire ̈``7255-WI•``MOSFET Insulating pads ``HIS INUT.•``6-32 Nylon Hex Nut ̆``Tower ̇``6CNHMN!``6-32 x 1" Nylon Screw (Flat Head) ``6C100MSBN ``2616PL00-3D3 ``Plastic Bobbin ̈``2616F1D ``Metal Clamp ``2616HPC-Holderı``#10 Nylon Nut/``4-40 Nylon 3/8" Spacers (round, 1/4" diameter)•``4-40 Nuts w/Nylon insert ``4-40 Nuts•``Increased quantity•``4- 40 Solder Lug Washer•``4-40 1/2" Pan Head Screw•``6-32 1/2" Pan Head Screw•``6- 32 Nuts w/Nylon insert•``Schroff Enclosure Kit ̈``Schroff1``M2.9x9.5 [or M3.0x8] Oval Head self-tapping screw•``21100-542 [BN14067M2.9x9.5]•``order in groups of 100s•``Plastic Handles ̊``VMEX1000•``Retainer Sleeves ̊``VEMR3050•``Captive Screws ̊``VMES4000•``ID Plate (Blank) ̊``VMES5000•``ID Plate (HIS Logo) ``M2.5 X 45P Nut•``M2.5 X 16 Screw$``FILTER COMPONENTS (depends on freq.)•``P26/16-3D3-E100/Nı``Matching Pair•``Cornell…

Text truncated - open the document above for the full version.

DRTXM2 TRANSMITTER BILL OF MATERIALKIT P/N 704-DRTXM2 BOM KIT, 704-DRTXM2-1BOM RETURN AS SUB-ASSEMBLY 804-DRTXM2KIT P/N 704-DRTXM2 TRANSFORMER KIT RETURN AS 804-DRTXM2 TRANSFORMER KITKIT P/N 704-DRTXM2 FILTER KIT RETURN AS 804-DRTXM2 FILTER KITFINAL PRODUCT P/N TXM0010 ORIGINAL DATE: 990310 IDENT QTY PART NUMBER DESCRIPTION MFR/VNR MFR HIS PART NUMBER COST TOTAL NOTES PRODUCT H1 8 Right Angle LED Mount Bivar 909-235/ Future BRK-470-0909-235 0.14 1.12 DRTXM2 0 0.01uf 50V Ceramic Disc Capacitor MSR 140CD50Z6-103Z CAP-000-.01UF-050 0.02 0.00 Obs use 030-.01uf-050 DRTXM2 C1-5,7,10-11 ,15,17-18,20, 22-28,34,38, 43-46,49-53,1A,2A 31 0.1 UF/50V Decoupling Capacitors AVX/Today comp SR225E104MAA CAP-000-.1UF-000 0.04 1.24 DRTXM2 C13,14,39-42 6 1000 pF 50V Ceramic Disc Cap MSR 140-CD50P2-102K CAP-000-1000PF-050 0.03 0.18 DRTXM2 C31 1 100 pF 50V Ceramic Capacitor MSR 140-CD50N6-101K CAP-000-100PF-050 0.04 0.04 obs part 140CD50S6-101M DRTXM2 C35 1 470 pF 50V Ceramic disc Cap radial MSR 140-CD50S6-471M CAP-000-470PF-050 0.07 0.07 DRTXM2 C38 1 1UF 100V Metalized film Cap DKY EF1105 CAP-001-1.UF-100 0.48 0.48 DRTXM2 C33 1 3300PF Polyester Film Cap DKY P4557 CAP-001-3300PF-050 0.07 0.07 DRTXM2 C32 1 0.022 UF 50V Polyester Film Cap DKY P4586-ND CAP-009-.022UF-050 0.08 0.08 DRTXM2 C30 1 0.056 UF Film Capacitor DKY P3563-ND CAP-009-.056UF-000 0.12 0.12 DRTXM2 C54 1 0.22 UF 100V Polyester Film Cap MSR 140-PM2A224K CAP-009-.22UF-100 0.22 0.22 DRTXM2 C6,9 2 1000 UF/35V Electrolytic Capacitor MALLORY SK102M035ST CAP-020-1000UF-035 0.47 0.94 Newark p/n 91F6288 DRTXM2 C8 1 1000 UF/50V Non-Polarized Electrolytic Capacitor MSR 140-NPRL50 V1000 CAP-020-1000UF-050 1.32 1.32 DRTXM2 C55 1 100 UF/25V Electrolytic Capacitor DKY P6239 CAP-020-100UF-025 0.09 0.09 DRTXM2 C56 1 220 UF/16V Low Electrolitic ESR Capacitor SPRAGUE 678D227M016CC3D CAP-020-220UF-016 0.72 0.72 Newark p/n 90F7553 DRTXM2 C59,60 2 .01uf monolithic 50V cap Newark 29F010 CAP-030-.01uf-050 0.06 0.12 repl.CAP000-.01uf-050 Disc DRTXM2 C57 1 27 pF 500V Silver Mica Capacitor MSR 5982-10-500V-27 CAP-040-27PF-500 0.26 0.26 DRTXM2 C37 1 470 pF 500V Silver Mica MSR 5982-15-500V470 CAP-040-470PF-500 0.67 0.67 DRTXM2 C3A,4A,12,16, 19, 29 6 10 UF 25V Tantalum Capacitor SPRAGUE/MSR 199D106X9025CA1 CAP-060-10UF-025 0.17 1.02 74-199D25V10 DRTXM2 C21 1 1UF 35V Tantalum Cap DKY P2059-ND CAP-060-1UF-035 0.21 0.21 DRTXM2 C58 1 2-12pF NPO Trimcap MSR 242-3610-12 CAP-070-2-12PF-000 0.25 0.25 DRTXM2 P3A 1 Single Row Female Header DKY 929974-01-10 CON-410-0010-001 0.52 0.52 10-pin header broken in half DRTXM2 P3B 1 Rt. Angle Single-Row Male Header DKY 929835-01-36 CON-410-0010-002 0.68 0.68 10-pin header broken in half DRTXM2 J1 1 SO-259 Bulkhead connector (83-1R) Sterling 83-1R CON-410-0083-001 1.20 1.20 DRTXM2 U12 1 MOLEX 2156 Connector DKY WM4620-ND CON-410-2156-000 0.12 0.12 DRTXM2 0 1N60 Diode MSR 610-1N60 DIO-200-0060-000 0.24 0.00 obsolete use 610 diode DRTXM2 D1,17 2 1N4001 Diode MSR 583-1N4001 DIO-200-4001-000 0.06 0.12 DRTXM2 D3,5,8,12,14 5 1N4148 Diode MSR 333-1N4148 DIO-200-4148-000 0.04 0.20 DRTXM2 Z1-6 6 1N4749A 24V Zener Diode MSR 583-1N4749 DIO-200-4749-024 0.06 0.36 DRTXM2 D15,16 2 610 Diode MSR 610-CDSH270 DIO-220-0000-610 0.28 0.56 repl.Diode 1N60 DRTXM2 RFC5C 1 Ferrite Bead (FB-64-101) Amidon FB-64-101 FER-365-0064-101 0.12 0.12 DRTXM2 RFC1A,B,C 11 Ferrite Bead (FB-75B-101) Amidon FB-75B-101 FER-365-0075-001 0.10 1.10 DRTXM2 F1-4 4 RXE110 Resetable Fuse DKY RXE110-ND FUS-330-0110-000 0.54 2.16 DRTXM2 0 RUE300 Resetable Fuse DKY RUE300-ND FUS-330-0300-000 0.80 0.00 DRTXM2 F5 1 RUE400 Resetable Fuse DKY F2027 FUS-330-0400-000 0.74 0.74 DRTXM2 H2 2 Circular Finned Heatsink DKY HS101-ND HEA-455-0101-000 0.70 1.40 DRTXM2 U14 1 TL074-CN Texas Instruments New Advantage IC-220-0000-074 0.52 0.52 DRTXM2 1 102581 5/31/00 IDENT QTY PART NUMBER DESCRIPTION MFR/VNR MFR HIS PART NUMBER COST TOTAL NOTES PRODUCT U8 1 TL071CP Texas Instruments Arrow-Semi IC-220-0071-000 0.26 0.26 DRTXM2 U2 1 SN74HCT04N Texas Instruments Arrow-Semi IC-220-0074-004 0.10 0.10 DRTXM2 U50 1 SN74HCT109N Texas Instruments Arrow-Semi IC-220-0074-109 0.15 0.15 DRTXM2 U4 1 SN74HCT161 Texas Instruments Arrow-Semi IC-220-0074-161 0.19 0.19 DRTXM2 U15 1 MC3340P Motorola New Advantage IC-220-0334-000 1.40 1.40 DRTXM2 U3,5,11 3 LM339N National Arrow-Semi IC-220-0339-000 0.14 0.42 DRTXM2 U13,16 2 LM3914N National New Advantage IC-220-0391-004 1.06 2.12 DRTXM2 U9 1 LT1013-CN8 Linear DKY IC-220-1013-008 2.30 2.30 DRTXM2 U7 1 TDA1516CQ (or TDA1516BQ) Phillips New Advantage IC-220-1516-000 1.46 1.46 DRTXM2 U10 1 LM7805 (LM340T5-7805) National Arrow-Semi IC-220-7805-000 0…

Text truncated - open the document above for the full version.
