O3F-S850FPDECT Base Station

S 850-0 US/CA Safety remarks Siedle Scope Consignes de sécurité Siedle Scope Notas de seguridad Siedle Scope Sicherheitshinweise Siedle Scope 2 Industry Canada Certification The Industry Canada label identifies certified equipment. This certifica- tion means that the equipment meets certain telecommunications network, protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecom- munications company. The equip- ment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above condi- tions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equip- ment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Users should not attempt to make such connections themselves, but should contact the appropriate elec- tric inspection authority, or electri- cian, as appropriate. FCC / ACTA Information This equipment complies with Part 68 of the FCC rules and the require- ments adopted by the ACTA. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with Safety remarks Mounting, installation and servicing work on electrical devices may only be performed by a suitably qualified electrician. Failure to observe this regulation could result in the risk of serious damage to health or fatal injury due to electric shocks. • The base station should be mounted in a dry and dust-free loca- tion away from direct sunlight. • Ensure that it is placed far enough away from sources of interference such as microwave or electrical appli- ances with large metal housings. • Only ever use original power supply units, which form a part of the scope of supply. • Only use the original Siedle rechargeable battery in the cordless handset. • Siedle Scope is not suitable for use in wet rooms or in areas with an explosion risk. • For any servicing requirements, please contact your specialist dealer or electrical installer. • Never hold the cordless handset with its back against your ear when you are using the hands-free func- tion or if the cordless handset rings. This can result in serious damage to your hearing. • When using in conjunction with a hearing aid, it is possible for hum- ming or feedback noises to occur. • The cordless handset and the base station should be positioned at least 1 metre distant from other electrical devices. • When used close to medical devices, functional disturbances can occur. In such cases, please contact the manufacturer. • Modern furniture is coated with an enormous variety of different lacquer and plastic finishes. Constituents of these materials can result in sof- tening of the plastic feet in table-top devices and so impair the surface of the furniture. Please appreciate that the manufacturer is unable to accept any liability. • Keep the rechargeable battery away from sources of heat and naked flames. • The battery must never be immersed in water or salt water. • Never attempt to dissemble or modify the battery, or to expose it to the effects of heat. • Avoid dropping the battery and protect it from jolting and impacts which could damage the housing. • Otherwise there is a risk of explo- sion or battery leakage, which could result in fire, injury or damage to the surroundings. If a battery leaks and the emerging substances come into contact with the eyes, mouth, skin or clothing, rinse the affected area immediately using water and consult a doctor. • Only charge the battery in the cordless handset using the provided charging cradle and the original power supply unit. • The charging cradle and the power supply unit were developed exclu- sively for use with the Siedle Scope cordless handset. Never use it with other products or batteries. • A risk of overheating and defor- mation exists which could cause fires or initiate electric shocks. • Dispose of the battery responsibly. Cover over contacts using adhesive strips or other insulating material. Direct contact with other metal objects can result in fire and explo- sions. English 3 this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. If this equipment causes harm to the telephone network, the telephone company will notify you in advance, that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. This device complies with Part 15 of the FCC Rules and with RSS-213 of Industry Canada. Operation is sub- ject to the following two conditions: • this device may not cause harmful interference, and • this device must accept any inter- ference received, including interfer- ence that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a reside…

Text truncated - open the document above for the full version.

S 850-0 EN Operating Instructions Siedle Scope Use the cross-shaped control pad and the Enter button in the centre to navigate through all the menus in the cordless handset. Activate your selection using the round Enter button in the centre of the cross-shaped control pad or alternatively using the display button OK or Save. Leave the menu level and jump one menu level higher without saving your input using the red End call button or alternatively with the display button Back. Selected menu points, functions or names in the display have a yellow frame or are shown in yellow. In these operating instructions, these are depicted with a grey frame. Handling instructions are preceded by a point. Navigation in all menus Back Phone volume Setting the volume for the receiver and handsfree calls. Main menu Access to the call list, intercom set- tings, general set- tings and phone- book. Phonebook Access to favourite telephone numbers. Intercom menu Access to building communication functions (e.g. con- trol and switching). OK Overview Display and navigation Loudspeaker for audio privacy The loudspeaker for handsfree calls is located at the back. Status indications in the display Display Frequently used functions Display buttons Control buttons for menu navigation Enter button Green Pick up button Door release button Red End call button ON/OFF button (hold down for 3 seconds) Button to move back through the menu Input of numbers and letters Star button for call silencing (hold down for 3 secs.) Hash button to lock the keypad (hold down for 3 secs.) Microphone Overview Model: Siedle Scope 9 + 14:34 Monday 21/03/2011 Light Door call 2 Overview Display Standby mode In the standby status, the cordless handset shows the time and date in the display, the 4 symbols of the main menu and 2 frequently used functions using display buttons, if these have been set up. Status indications in the display The current Siedle Scope status dis- plays are shown along the top of the screen. The reception quality to the base station and the battery charge status are continuously shown. Other functions appear in the form of symbols only when active. Symbols in the standby mode Volume The receiver and handsfree volume are set using the Call volume menu. Main menu Access to the call list, intercom settings, general settings and phonebook. Phonebook Access to favourite tel- ephone numbers. Intercom menu Access to building com- munication functions (e.g. control and switching). Status indications in the display Reception quality Very good to none Battery charge status       Keypad lock The keypad lock prevents unintentional operation of the telephone. Missed calls All calls are counted up to the number nine. If there are more than 9 calls, a plus symbol is shown after the 9. 9 + Status indications in the display Door call forwarding enabled Service not available Required service cannot currently be used (e.g. external line engaged). Doormatic: enabled Call silencing: Activated 9 + Light Door call 14:34 Monday 21/03/2011 3 Overview Display and navigation Model: Siedle Scope Display Siedle Scope4 One for all4 Safety remarks5 Disposal5 Getting started Registering the cordless handset at the base station Charging the cordless handset battery Registering additional cordless handsets at the base station Switching the cordless handset on and off 7 Incoming calls Keypad lock Dial the required number Holding a call Handsfree Call silencing9 Volume 9 Microphone silencing9 Call parking9 Call forwarding10 Ending a call10 Brokering11 Cordless handset11 Charging cradle11 Door release11 Setting the date and time12 Setting the time12 Date settings13 Video14 Phone volume15 Main menu  Call lists Intercom settings Doormatic Door call forwarding19 Door call forwarding to the public network telephone 19 Functions20 Door21 Control Device21 Function21 Settings22 Status22 Setting the time23 Date settings24 Audio settings25 Ringtones25 Phone volume Notifications27 Key tones27 Battery tone 27 Signal tone27 Speed dial Making a speed dialling call29 Frequently used functions29 Language31 System31 ECO mode32 Change PIN32 Resetting the base station34 Door call35 Deregistering / registering a handset 35 Dialling pause35 External line digit New entry37 Phonebook options Making a call to a phonebook entry  Change entry39 Deleting an entry39 Intercom menu40 The individual symbols in the Intercom menu40 Frequently asked questions42 Index43 Contents Technical additions or printing errors do not constitute grounds for compensation claims. Customer service in the Furtwangen factory +49 7723 63-375 These instructions are intended to supplement: The Scope product information The In-Home bus: Video system manual The relevant current edition is located in the download area on www.siedle.de 4 Siedle Scope One for all A new freedom Siedle Scope is a video indoor sta- tion and a landline telephone in one device. And it’s cordless. That means that wherever you are, whether in the kitchen, the bath- room, the garden or the cellar ... Scope gives you a live update of who is standing at the door. Scope thus offers all the functions of a video indoor station, including a hands-free function and a door release button. At the same time,  !  - ephone with excellent voice quality and countless Comfort functions. One for all. New freedom. Scope, the mobile video indoor station Large colour display Video monitoring with zoom and swivel function Hands-free function In-house function control, such as lighting, garage door or blinds " #$ % &  can be used in parallel Scope, the cordless landline telephone High range and excellent voice quality thanks to the DECT standard Hands-free function Ergonomically optimized design and user guidance ECO mode with reduced transmis- sion power Telephone book, call log and numerous other telephone functions Compatible with te…

Text truncated - open the document above for the full version.

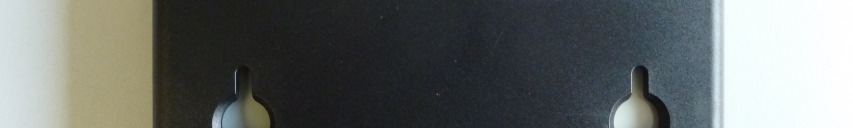

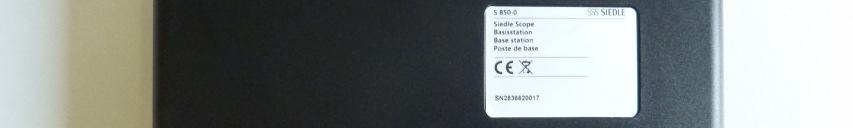

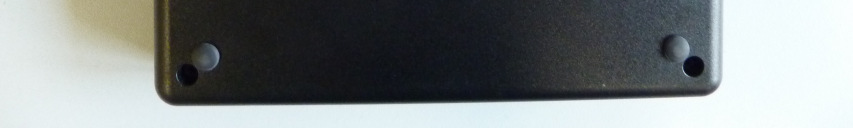

Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 57 of 64 An ne x B: E x te rna l P ho tog ra p hs o f t he E U T Photo 1: Photo 2:

Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 58 of 64 An ne x C: In te r na l P ho tog ra phs o f t h e E UT Photo 1: Photo 2: Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 59 of 64 Photo 3: Photo 4: Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 60 of 64 Photo 5: Photo 6:

Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 63 of 64 Annex F: Safety exposure levels Prediction of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: P Max power input to the antenna: 19.82 dBm P Max power input to the antenna: 95.9 mW R Distance: 20 cm G Maximum antenna gain: 3.00 dBi G Maximum antenna gain: 2.0 numeric S MPE limit for uncontrolled exposure: 1 mW/cm 2 Calculated Power density: 0.0382 mW/cm 2 0.382 W/m 2 This prediction demonstrates the following: The power density levels at a distance of 20 cm are below the maximum levels allowed by FCC regulations

2012-06-04 Page 1 of 64 TEST REPORT Test Report No.: 1-3989/11-01-02-FP Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (FCC part 15 D) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 S. SIEDLE & SÖHNE, Telefon- und Telegrafenwerk OHG Bregstraße 1, D-78120 Furtwangen Germany Phone: +49 7723 63294 Fax: +49 7723 63364 Contact: Heinrich Hermann e-mail: / Phone: +49 7723 63294 Manufacturer S. SIEDLE & SÖHNE, Telefon- und Telegrafenwerk OHG Bregstraße 1, D-78120 Furtwangen, Germany Test Standard/s FCC Part 15, subpart D Isochronous UPCS Device 1920 – 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communication Service Devices (LE-PCS) Test Item Kind of test item: DECT Fixed Part Model name: S 850FP FCC ID: O3F-S850FP IC: 10361A-S850FP S/N serial number: / HW hardware status: TNR 040999 SW software status: V2.6RC3 Frequency [MHz]: 1920 -1930 Type of Modulation: Digital (Gaussian Frequency Shift Keying) Number of channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Antenna: 2 permanently attached ג/4 antenna Power Supply: 110 V DC Temperature Range: -20°C to 50°C Test Report authorised: Test performed: 2012-06-04 Wolf, Joachim 2012-06-04 Lenjoint, Marco Senior Consultant Testing Manager Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 2 of 64 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2General information .................................................................................................................................. 4 2.1Notes and disclaimer ..................................................................................................................... 4 2.2Application details ......................................................................................................................... 4 3Test standard/s: ......................................................................................................................................... 4 4Test Environment ...................................................................................................................................... 5 5Test Item ..................................................................................................................................................... 5 6RSP100 Test report Cover Sheet/Performance Test Data ..................................................................... 6 7Summary of Measurement Results ......................................................................................................... 7 8Test Set-up ................................................................................................................................................. 8 8.1Frequency Measurements ............................................................................................................. 8 8.2Timing Measurements ................................................................................................................... 8 8.3Conducted Emission Test ............................................................................................................. 8 8.4Radiated Emission Test ................................................................................................................. 9 8.5Power Line Conducted Emissions Test ....................................................................................... 9 8.6Monitoring Tests........................................................................................................................... 10 8.7Radiated Output Power Test ....................................................................................................... 10 9Detailed Test Results .............................................................................................................................. 11 9.1Power Line Conducted Emissions ............................................................................................. 11 9.2Coordination with fixed microwave ............................................................................................ 14 9.3Digital Modulation Techniques ................................................................................................... 14 9.4Labeling Requirements ................................................................................................................ 14 9.5Antenna Requirements ................................................................................................................ 15 9.6Channel Frequencies ................................................................................................................... 15 9.7Automatic Discontinuation of Transmission ............................................................................. 16 9.8Peak Power Output ...................................................................................................................... 17 9.9E m i s s i o n B a n d w i d t h B ......................................................................................................... 22 9.10Power Spectral Density ............................................................................................................ 25 9.11In-Band Unwanted Emissions, Conducted ............................................................................ 28 9.12Out-of-Band Emissions, Conducted ................................…

Text truncated - open the document above for the full version.

Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 55 of 64 An ne x A: P h ot ogr a phs o f the Te s t S e t- up Photo 1: Power Line Conducted Emission Test Photo 2: Power Line Conducted Emission Test Test report no.: 1-3989/11-01-02-FP 2012-06-04 Page 56 of 64 Photo 3: Radiated Emission Photo 4: Radiated Emission
