O3L-PT2005-MHLabtec Wireless Laser Mouse for Notebooks

BRAND / LAUNCH: La bte c 2005 PROJECT TITLE: We bca mPlus_QSG1_EM EA.ai DETAI LS: EM EA / QSG SPOT COLORS DIE LINE NO PRINT DIE LINES PROCESS COLORS K 5 25 50 75 95 SPECIFICATIONS / NOTES: n/a M ODIFICATION DATE: January 21st , 2005' THIS PRINT SIZE / SCALE: 80% of original Designer: Roya Tarzaban Locat ion: Vancouver, WA E ng li sh w i r e l e ss l a s e r m o u s e f o r n o t eb oo k s ™ Getting Started Guide T r o u b l e sh oo t i n g If your Wireless Mouse does not function properl y , please review the following steps for troubleshooting. • Insure that the USB mini-receiver is properly inser ted into your c omputer’s USB port. Try another USB port. • Keep the mouse within one meter (3 feet) of the rec eiver. Metallic surfaces will shorten transmission distanc es. • T ry re-connecting the mouse with the receiver. Plea se see the section “Connecting the Mouse with the Receiver.” • If you find you are having problems (erratic or no movement) or if the low battery light blinks red, y ou will need to recharge the mous e. Please see the section “How to recharge”. Ma i n te n a n ce of y o u r M o us e • You may clean the surface of the Mouse with a soft damp cloth. • Do not us e any harsh or abrasive cleaners . • Before us ing any c hemic al cleaners, please test the results on 5. Do not expose your product to liquid, hum idity, or moisture. 6. D o no t ope ra te your produc t when the temperatures is outside the s pecified operating ran ge of 0°C (32°F ) to 40°C (104° F). In case of ex posure to out-of-range temperature envi ronment, s w itch off the devic e, and al low temperature to stabiliz e within the specified operat ing tem peratur e range bef o re ope ra t ing. C u s t om e r S e r v i c e If you need additional hel p with you product, conta ct Labtec at (702)269.3612 or on the w eb at: www.labtec.com P r od u ct W arra n t y Limited Warran ty. L a btec warrants that any hardware produc t ac companyin g this doc umentati on shall be free from significant def ects in material and wo rkmanshi p for a period of two (2) years from the da te of purchase. La btec ’s lim ited warranty is nontransferable and is l imited to the orig in al pu rch a se r . This warranty gives you specific legal rights, and you m a y a lso ha ve other rights which var y under l ocal laws. R emedie s . La bt e c ’ s e ntir e li a bilit y a nd yo ur ex clu s i ve r e m e d y f o r a n y br ea ch o f w a rr a nt y s h a ll b e , a t La bt e c ’ s o pti o n, t o : ( a ) r e p a ir o r r e pl a c e th e h a rdw a r e , o r ( b ) r e fund th e pric e p a id, pr ov id e d th a t th e h a rdw a r e i s r e turn e d t o th e p o int o f purch ase o r s uch o th e r pl a c e as La bt e c m ay dir e ct, with a c o p y o f th e sa l es r e c e ipt. I f La bt e c ch ooses t o r e p a ir o r r e pl a c e th e h a rdw a r e , La bt e c m ay u se n e w o r r e furbi s h e d p a rt s , o r c o mp a r a bl e pr o duct s . A n y r e pl a c e m e nt h a rdw a r e will b e w a rr a nt e d f o r th e r e m a ind e r o f th e o rigin a l w a rr a nt y p e ri o d o r thirt y ( 30 ) d ays , which eve r i s l o ng e r. T h ese r e m e di es a r e vo id if f a ilur e o f th e h a rdw a r e h as r es ult e d fr o m a ccid e nt, a bu se , mi sa pplic a ti o n, o r a n y un a uth o ri z e d D e u t s c h W i c h t i g e H i n we i s e z u r A r b e i t s - p l at z e i n r i c h t un g Ü ber einen l ä ngeren Zeitraum wiederholte monotone Bewegungen, ein schlecht eingerichteter Arbeits platz, eine falsche K ö rperhaltung und ungeeignete Arbeitsweisen k ö nnen zu k ö rperlichen Beschwerden oder Sc h ä digung der Nerven, Sehnen und Muskeln f ü hren. Konsultieren Sie umgehend einen Arzt, wenn Sie Schmerzen, Schwellungen, Kr ä mpfe, ein steifes oder taubes Gef ü hl oder Schw ä che in diesen Bereichen versp ü ren. I ns ta ll at i o n d er Ma us De r USB-E mp f ä nger kann in der Unterseite der Maus aufbewahrt wer den. • Legen Sie die beiden AAA-Batterien in die Maus ein. • Damit Sie mit der Maus arbeiten k ö nnen, m ü s sen Sie nur den Empf ä nger an einem freien USB-Anschluss des Computers anschließen. Hinweis: Der Empf ä nger l ä sst sich bequem Metallische Oberfl ä chen v erk ü rzen die Signalreichweite. • Stellen Sie erneut eine Verbindung zwischen Maus un d Empf ä nger her (siehe “Verbinden der Maus mit dem Empf ä nger”). • Wenn Probleme (ruckelnde oder keine Bewegung) auftr eten oder die Batterieanzeige rot blink t, m ü ssen Sie die Maus aufladen. Weitere Informationen finden Sie unter “Aufladen de r M aus”. W arte n d er Ma us • Die Maus kann zur Reinigung mit einem weichen feuch ten Tuch abgewischt werden. • Verwenden Sie keine scharfen oder scheuernden Reini gungsmittel. • T esten Sie chemische Reinigungsmittel auf der Unter seite des Ger ä ts, bevor Sie sie benutzen. W ar nun g bzg l . N i M H - A kk us Dieses Ger ä t ent h ä lt vom Benutzer bzw . Fachmann austauschbare 1, 5-Volt-NiMh-Batterien. • E s d ü rfen nur ents prechende 1,5 V -NiMh-Batterien als Ers atz Kun d e n d i e n s t We itere H ilfe zu d iese m Pr odu kt fi nde n Sie au f de r L a btec-Website: ww w.labtec .c om P r od u kt g ara n t i e Bes chr ä nkte Garantie. L a btec garantiert, da ss b ei de r den U n te rlage n be il iege nden H ard wa re f ü r einen Z e itr aum von zwe i (2 ) Jahr en ab Ka ufda tum kei ne Material - oder V erarbeitungsfehl er auftreten. Die be schr ä nkte Garan tie von La btec ist nic ht ü bertragbar und auf den urspr ü ngl ichen K ä ufer besc hr ä nkt. Die se Ga ran tie ge w ä hrt Ihnen bestimmte Rec hte. En tsp rechen d de r Ge se tzge bung Ihre s Lan des stehen Ihnen e vtl . n o ch w ei te re Re chte zu . Garantieleistungen. La btecs Ha ftun gsum fang un d Ih re au sschl ieß li chen An sp r ü che beschr ä n ken sich i m Garan ti e fa ll na ch E rm e ssen von La btec auf: (a ) die R epa ra tur bzw. de n E rsa tz de r H a rdw a re oder (b) die R ü ck erstattung des Kaufpreises , vo rau sge se tzt, da ss d ie H ar dw are mit eine r Kop ie d …

Text truncated - open the document above for the full version.

Date: . Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent and Request for Confidentiality / FCC ID: O3L-PT2005-MH Gentlemen: On Behalf of Paten Wireless Technology Inc., we hereby authorize Central Research Technology Co. to act on out behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by Central research Technology Co. on our behalf shall have the same effect as acts of our own. In accordance with provisions of section 0.457(d) of the Commission’s Rules and section 552(b)(4) of the Freedom of Information Act, the Applicant requests confidentiality treatment of information accompanying this Application as outlined below: Schematics Block diagram Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 1, 2006 RE: FCC ID: O3L-PT2005-MH_ATCB003420 Attention: Sam Chien I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the test procedure on page 9 of the FCC test report states that the receive antenna was raised and lowered 1-4 meters. Please note that this is a requirement for frequencies above 30MHz where a broadband antenna is usually used and is not a requirement for loop antenna measurements below 30MHz. It is only necessary to change the axis of the loop antenna. Please explain. 2. Please note that while a magnetic loop antenna is listed in the test instrumentation, the test procedures for the fundamental do not indicate what type antenna was used. Please confirm that a magnetic loop antenna was used to measure all frequencies below 30MHz. 3. Please note that the label drawings show both the USB and the mouse having the label. Please note that in a case like this when both transmitters are part of the app, then both transmitters need to have data. Please note that the data in the report is ambiguous as to which device was transmitting during the fundamental frequency testing. Please provide a report that clearly shows both transmitters have been tested at the fundamental operating frequency. 4. Please note that the label drawings show both the USB and the mouse having the label. Please note that in a case like this when both transmitters are part of the app, then both transmitters need to have data. Please note that the data in the report is ambiguous as to which device was transmitting during spurious emissions testing. Please provide a report that clearly shows both transmitters have been tested for radiated spurious emissions. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RE: FCC ID: O3L-PT2005-MH_ATCB003420 Attention: Sam Chien 1. Please note that the test procedure on page 9 of the FCC test report states that the receive antenna was raised and lowered 1-4 meters. Please note that this is a requirement for frequencies above 30MHz where a broadband antenna is usually used and is not a requirement for loop antenna measurements below 30MHz. It is only necessary to change the axis of the loop antenna. Please explain. ANS: Please see “FCC TEST REPORT-REVISE” 2. Please note that while a magnetic loop antenna is listed in the test instrumentation, the test procedures for the fundamental do not indicate what type antenna was used. Please confirm that a magnetic loop antenna was used to measure all frequencies below 30MHz. ANS: Please see “FCC TEST REPORT-REVISE” 3. Please note that the label drawings show both the USB and the mouse having the label. Please note that in a case like this when both transmitters are part of the app, then both transmitters need to have data. Please note that the data in the report is ambiguous as to which device was transmitting during the fundamental frequency testing. Please provide a report that clearly shows both transmitters have been tested at the fundamental operating frequency. ANS: The EUT only have a transmitter-mouse. The USB is dougle receiver. So we only test fundamental frequency of a transmitter. 4. Please note that the label drawings show both the USB and the mouse having the label. Please note that in a case like this when both transmitters are part of the app, then both transmitters need to have data. Please note that the data in the report is ambiguous as to which device was transmitting during spurious emissions testing. Please provide a report that clearly shows both transmitters have been tested for radiated spurious emissions. ANS: The EUT only have a transmitter-mouse. The USB is dougle receiver. So we only test spurious emission of a transmitter.

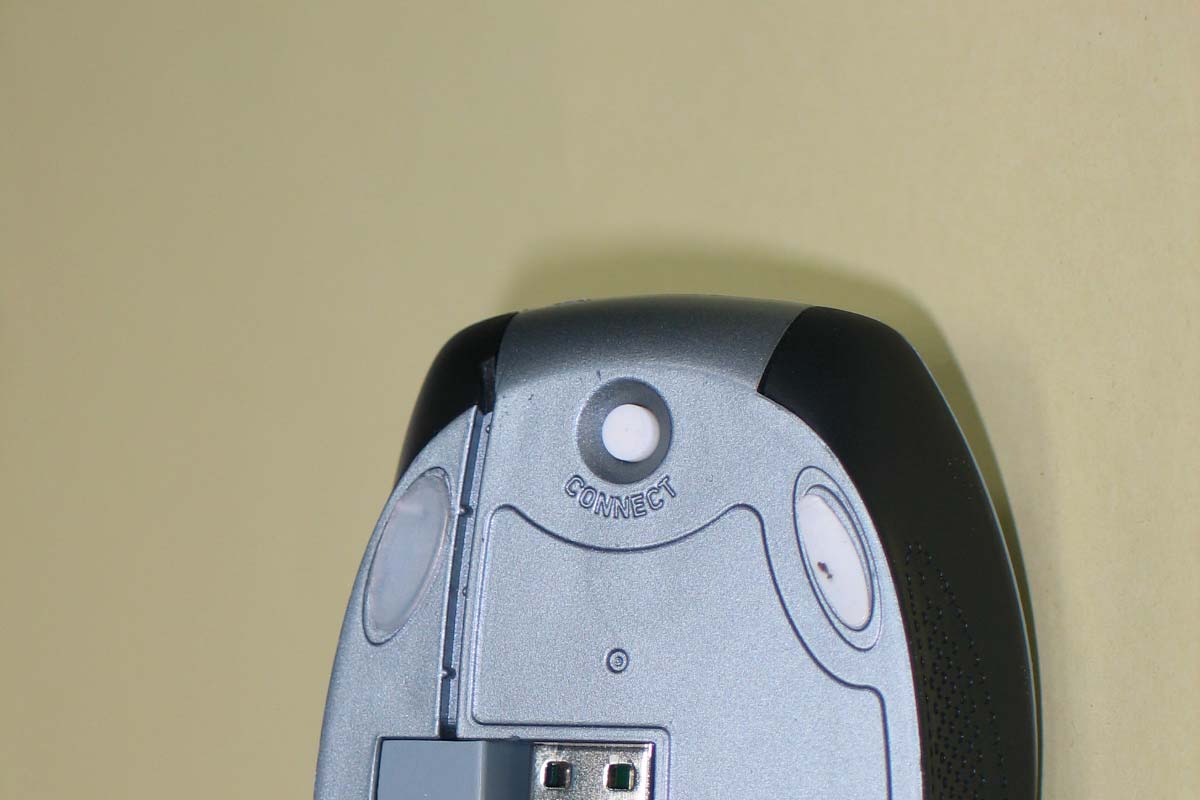

FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 2 External Photographs of EUT FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546

FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 3 FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 4 FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 5

FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1/18 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report for Labtec Wireless Laser Mouse for Notebooks Trade Name : Logitech, Labtec Model No. : M-RCA128 FCC ID : O3L-PT2005-MH Report No. : RF-J76-0603-229 Date of Receipt : April 3, 2006 Date of Report : April 7, 2006 Prepared for Paten Wireless Technology Inc. 8F, No.407, ZuiKuang Road, Neihu, Taipei, Taiwan Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by NVLAP or any U.S. government agency. The test result in the report applies only to the sample tested. FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2/18 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Certification of Compliance Equipment under Test : Labtec Wireless Laser Mouse for Notebooks Model No. : M-RCA128 FCC ID : O3L-PT2005-MH Manufacturer : Paten Wireless Technology Co, Ltd. Applicant : Paten Wireless Technology Inc. Address : 8F, No.407, ZuiKuang Road, Neihu, Taipei, Taiwan Date of Testing : April 6~7, 2006 Applicable Standards : 47 CFR part 15, Subpart C Deviation : N/A Condition of Test Sample : Prototype We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3/18 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description ............................................................................4 1.1 GENERAL DESCRIPTION OF EUT............................................................................................................4 1.2 CHARACTERISTIC OF EUT .....................................................................................................................4 1.3 TEST METHODOLOGY............................................................................................................................4 1.4 REQUIREMENT FOR COMPLIANCE...........................................................................................................5 1.5 LAY O U T O F SETUP................................................................................................................................7 1.6 TEST FACILITY......................................................................................................................................8 1.7 MEASUREMENT UNCERTAINTY...............................................................................................................8 2 Field Strength of fundamental ...........................................................9 2.1 APPLIED STANDARD..............................................................................................................................9 2.2 MEASUREMENT PROCEDURE.................................................................................................................9 2.3 TEST CONFIGURATION.........................................................................................................................10 2.4 TEST INSTRUMENTS.............................................................................................................................10 2.5 TEST DATA......................................................................................................................................... 11 3 Radiated Emission ............................................................................13 3.1 APPLIED STANDARD............................................................................................................................13 3.2 MEASUREMENT PROCEDURE...............................................................................................................14 3.3 TEST CONFIGURATION.........................................................................................................................15 3.4 TEST INSTRUMENTS.............................................................................................................................16 3.5 TEST DATA.........................................................................................................................................17 Attachment 1 – Photographs of the Test Configurations Attachment 2 – External Photographs of EUT Attachment 3 – Internal Photographs of EUT Attachment 4 – Modifications of EUT FCC Test Report Report No.:RF-J76-0603-229 CENTRAL RESEARCH TECHNOLOGY CO. Page : 4/18 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 General Description 1.1 General Description of EUT Equipment under Test : Labtec Wireless Laser Mouse for Notebooks Model No. : M-RCA128 Power in : TX 3Vdc Test Voltage : TX 3Vdc(two batteries) A…
