O3U-98161Inductive Toys

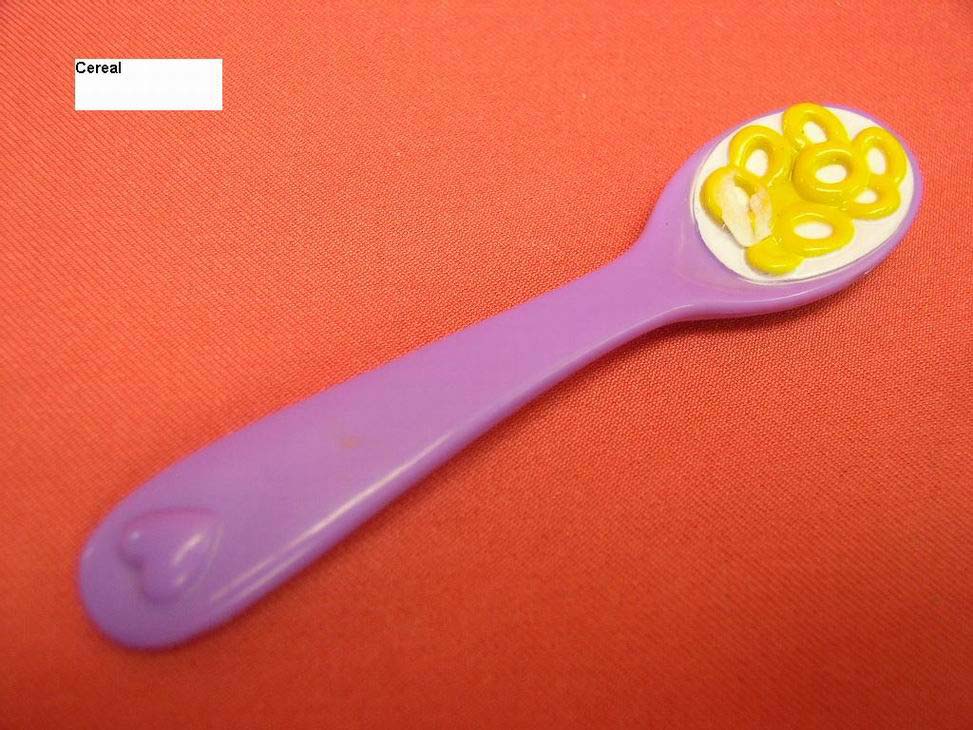

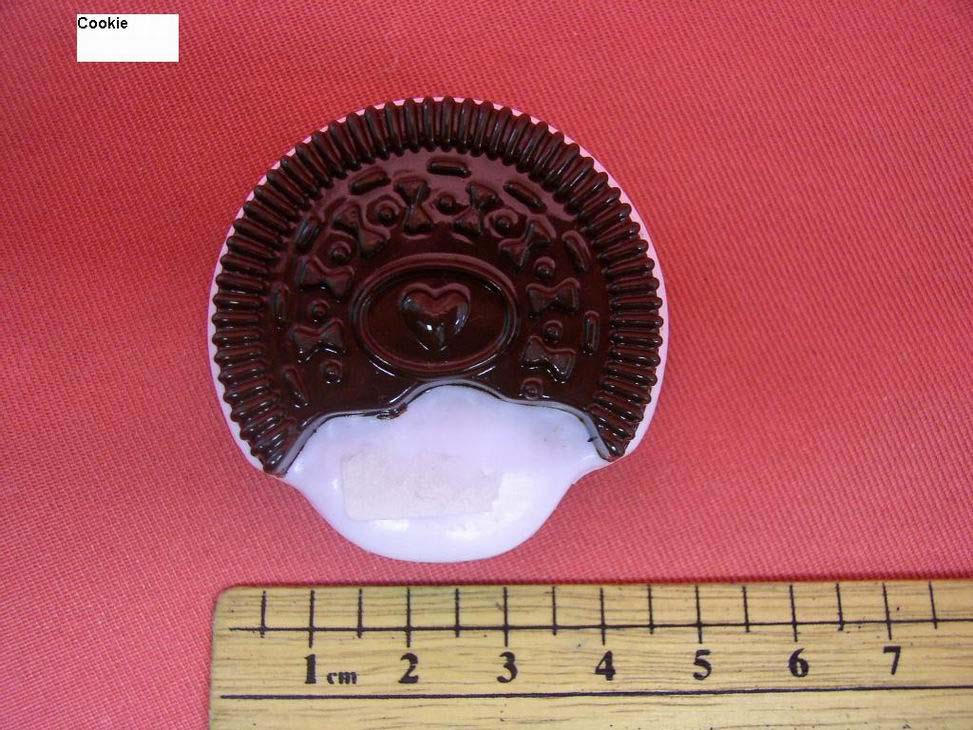

FCC ID: O3U-98161 Ophoto1 Ophoto2 FCC ID: O3U-98161 Ophoto3 Ophoto4 FCC ID: O3U-98161 Ophoto5 Ophoto6 FCC ID: O3U-98161 Ophoto7 Ophoto8 FCC ID: O3U-98161 Ophoto9 Ophoto10 FCC ID: O3U-98161 Ophoto11 Ophoto12 FCC ID: O3U-98161 Ophoto13 Ophoto14 FCC ID: O3U-98161 Ophoto15 Ophoto16

FCC ID: O3U-98161 Ophoto17 Ophoto18 FCC ID: O3U-98161 Ophoto19 Ophoto20 FCC ID: O3U-98161 Ophoto21 Ophoto22 FCC ID: O3U-98161 Ophoto23 Ophoto24 FCC ID: O3U-98161 Ophoto25 Ophoto26 FCC ID: O3U-98161 Ophoto27 Ophoto28 FCC ID: O3U-98161 Ophoto29 Ophoto30 FCC ID: O3U-98161 Ophoto31 Ophoto32 FCC ID: O3U-98161 Ophoto33 Ophoto34 FCC ID: O3U-98161 Ophoto35

FCC ID: O3U-98161 Iphoto1 Iphoto2 FCC ID: O3U-98161 Iphoto3 Iphoto4 FCC ID: O3U-98161 Iphoto5 Iphoto6 FCC ID: O3U-98161 Iphoto7 Iphoto8 FCC ID: O3U-98161 Iphoto9 Iphoto10 FCC ID: O3U-98161 Iphoto11 Iphoto12 FCC ID: O3U-98161 Iphoto13 Iphoto14 FCC ID: O3U-98161 Iphoto15 Iphoto16 FCC ID: O3U-98161 Iphoto17 Iphoto18 FCC ID: O3U-98161 Iphoto19 Iphoto20

FCC ID: O3U-98161 Iphoto21 Iphoto22 FCC ID: O3U-98161 Iphoto23 Iphoto24 FCC ID: O3U-98161 Iphoto25 Iphoto26 FCC ID: O3U-98161 Iphoto27 Iphoto28 FCC ID: O3U-98161 Iphoto29 Iphoto30 FCC ID: O3U-98161 Iphoto31 Iphoto32 FCC ID: O3U-98161 Iphoto33 Iphoto34 FCC ID: O3U-98161 Iphoto35 Iphoto36 FCC ID: O3U-98161 Iphoto37 Iphoto38 FCC ID: O3U-98161 Iphoto39 Iphoto40

FCC ID: O3U-98161 Iphoto41 Iphoto42 FCC ID: O3U-98161 Iphoto43 Iphoto44 FCC ID: O3U-98161 Iphoto45 Iphoto46 FCC ID: O3U-98161 Iphoto47 Iphoto48 FCC ID: O3U-98161 Iphoto49 Iphoto50 FCC ID: O3U-98161 Iphoto51 Iphoto52 FCC ID: O3U-98161 Iphoto53 Iphoto54 FCC ID: O3U-98161 Iphoto55 Iphoto56 FCC ID: O3U-98161 Iphoto57 Iphoto58 FCC ID: O3U-98161 Iphoto59 Iphoto60

FCC ID: O3U-98161 Iphoto61 Iphoto62 FCC ID: O3U-98161 Iphoto63 Iphoto64 FCC ID: O3U-98161 Iphoto65 Iphoto66 FCC ID: O3U-98161 Iphoto67 Iphoto68 FCC ID: O3U-98161 Iphoto69 Iphoto70 FCC ID: O3U-98161 Iphoto71 Iphoto72 FCC ID: O3U-98161 Iphoto73 Iphoto74 FCC ID: O3U-98161 Iphoto75 Iphoto76 FCC ID: O3U-98161 Iphoto77 Iphoto78 FCC ID: O3U-98161 Iphoto79 Iphoto80

FCC ID: O3U-98161 Technical Description : The brief circuit description is listed as follows : For Main Unit : - L3, VC3, C13 & C19 act as Antenna & Matching Circuit. - L2, VC2, C63 & C66 act as Antenna & Matching Circuit. - L4, VC4, C14 & C21 act as Antenna & Matching Circuit. - U1 HL5233, X1 and associated circuit act as RFID Reader (Mouth) and 13.56 MHz Oscillator. - U2 HL5233, X5 and associated circuit act as RFID Reader (Dress) and 13.56 MHz Oscillator. - U10 HL5233, X2 and associated circuit act as RFID Reader (Bottom) and 13.56 MHz Oscillator. - U3 RSC4128, X3, X4 and associated circuit act as Speech Recognition and Analog I/O Mixed Signal Processor. - U5 AT24C04N and associated circuit act as EEPROM. - U6 MM74HC08 and associated circuit act as Logic Gate. - U9 MX29LV320BTC and associated circuit act as Flash Memory. - U7 MM74HC374 and associated circuit act as 3-State Octal D-Type Flip Flop for Motor Control. - Q1, Q2, Q5, Q6, Q9, Q10 and associated circuit act as Motor Driver for Eye Motor. - Q3, Q4, Q7, Q8, Q11, Q12 and associated circuit act as Motor Driver for Mouth Motor. - U4 SPY0030A and associated circuit act as Amplifier for Speaker. - SP1 and associated circuit act as Speaker. - P1 and associated circuit act as Microphone. - PB3, PB5, SW1, SW3, SW4, SW7 and associated circuit act as Control Buttons. For Tags : - L1, C2 and associated circuit act as Antenna. - U11 HL5230 and associated circuit act as RFID Tag. Antenna Used : A loop antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : O3U-98161 Playmates Toys Int'l. Ltd. / Playmates Asia Services Ltd. Application For Certification (FCC ID: O3U-98161) Transmitter Sample Description : Amazing Amanda Model : 98161 Additional Model : 98166 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [12-8-2003] 0512677 WL/at July 8, 2005 INTERTEK TESTING SERVICES FCC ID: O3U-98161 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: O3U-98161 ii MEASUREMENT/TECHNICAL REPORT Playmates Toys Int'l. Ltd. / Playmates Asia Services Ltd. - MODEL: 98161 FCC ID: O3U-98161 July 8, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-8- 2003 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: O3U-98161 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description.............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation.................................................................................... 9 3.1 Field Strength Calculation (cont’d)..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 3.4 Frequency Tolerance......................................................................................... 15 4.0 Equipment Photographs ....................................................................................... 18 5.0 Product Labelling.................................................................................................. 20 6.0 Technical Specifications....................................................................................... 22 7.0 Instruction Manual ................................................................................................ 24 8.0 Miscellaneous Information ................................................................................... 26 8.1 Measured Bandwidth......................................................................................... 27 8.2 Emission Test Procedures ................................................................................ 28 8.2 Emission Test Procedures (Cont’d).................................................................... 29 INTERTEK TESTING SERVICES FCC ID: O3U-98161 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: O3U-98161 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: O3U-98161 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for an Inductive Doll operating at 13.560 MHz which is controlled by a crystal. The EUT consists of a main unit (doll) and eleven RF powered tags (a potty, a toothbrush, a cookie, a p…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
