㄀ 1 ݅义 2 义 Instruction    1˖Power on /Repairing /Power off˖  Press the “Answer&Hang up” key for 2 seconds,and then the blue LED light will flash slowly ˈpress this key continuously and the LED light will switch from the fast red to fast blue meanings in pairing mode,if there no have device be paired, it will exit the pairing mode automatically , Press the “Answer&Hang up” key for 5 seconds is power off (the Led indicator also be off)  ˖ Answer&Hang up: After connection OK (Such as :Phone,PC etc), press the Answer&Hang up key to answer or hang up the call, also the LED indicator will be flashing blue slowly.  ˖Re-dial the last call˖After connection OK, press the Answer&Hang up key for 2 times to re-dial the last call.also the LED indicator will be flashing blue slowly.  ˖Automatic re-paired It will re-paired with the last bluetooth device automatically after power on. ˖Warning of low battery level˖When the battery level is low than 3.3V, it will sound the warning with “Du,Du,DU”   ˖VOL+:to turn up the volume of microphone  ˖ VOL-˖to turn down the volume of microphone   VOL+ microphone receiver Charging contactor VOL- Answerǃ Hang up ㄀ 2 ݅义 2 义  ˖ Charging port˖  1˖5V charging : While charging LED light will be red. 2˖While full charging LED light will be off.  9 ˖Basic Parameter  Work Frequency Band 2.4GHZ 2.4835GHZ ISMī Blue tooth Standard V2.1+EDR Software edition Build V0 Hardware edition Build A0 RF Output Power -6 +4dBmī˄class2˅ RF Receiving Sensitivity •-75dBm Effective Range 10m No position Audio Output power (RL=4ohm)MAX=1.5W Match Password 0000 Working Pattern Hands-freeProfile Operating Current ”33mA Speaker Impedance 4 OHM Operating Temperature 0+45ćī ć Storage Temperature -10+60ćī ć  10. Warning˖ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.   NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. HO-BTL-2XX

KONNEXT CORPORATION CO, LTD. July 15, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O3ZHOBTL2XX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram HO-BTL-2XX _BlcokDiagram.pdf Schematic Diagram HO-BTL-2XX _SchematicDiagram.pdf Circuit Description HO-BTL-2XX _CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely,

KONNEXT CORPORATION CO, LTD. FCC ID: O3ZHOBTL2XX Product Name: iRetroPhone Bluetooth Model No.: HO-BTL-2XX POWER OF ATTORNEY 2013-7-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize DongGuan Anci Electronic Technology Co., Ltd. (MR. Joe Long, Supervisor) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by DongGuan Anci Electronic Technology Co., Ltd. (MR. Joe Long, Supervisor) on our behalf shall have the same effect as acts of our own. This authorization expires on (2014-7-15). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (KONNEXT CORPORATION CO, LTD.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

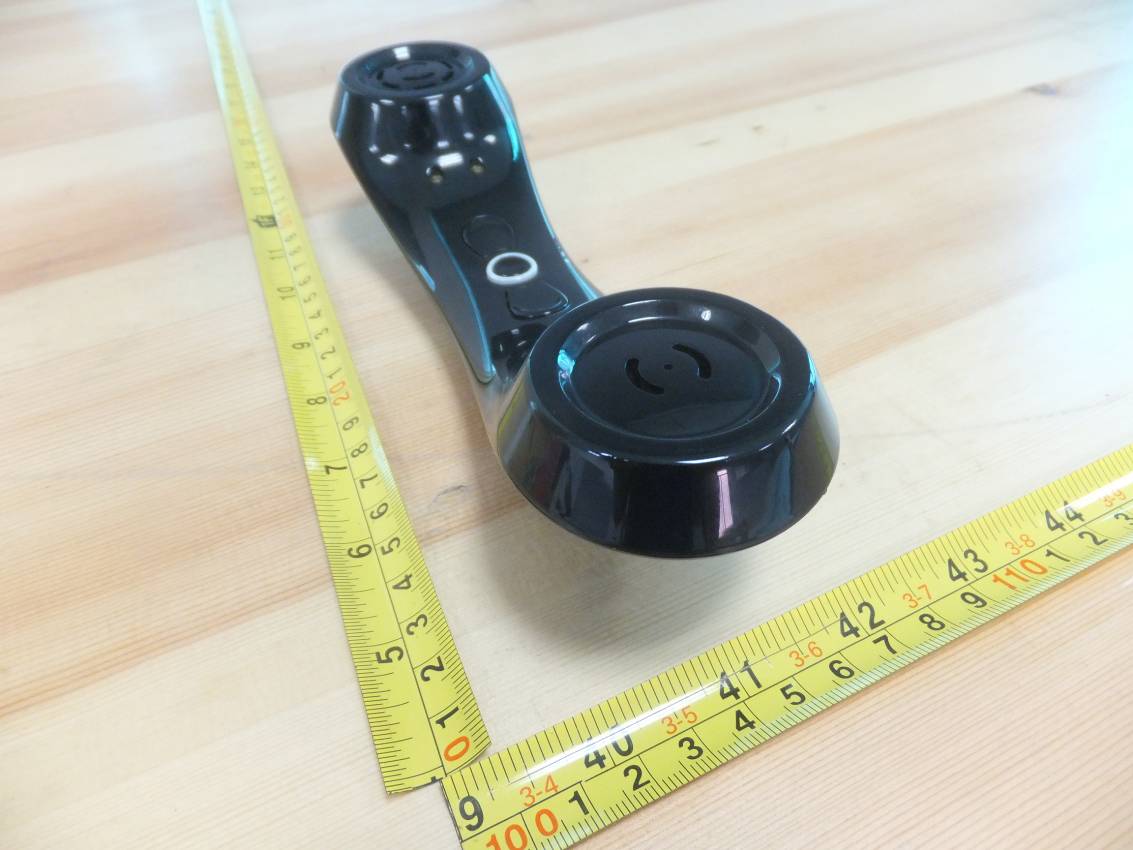

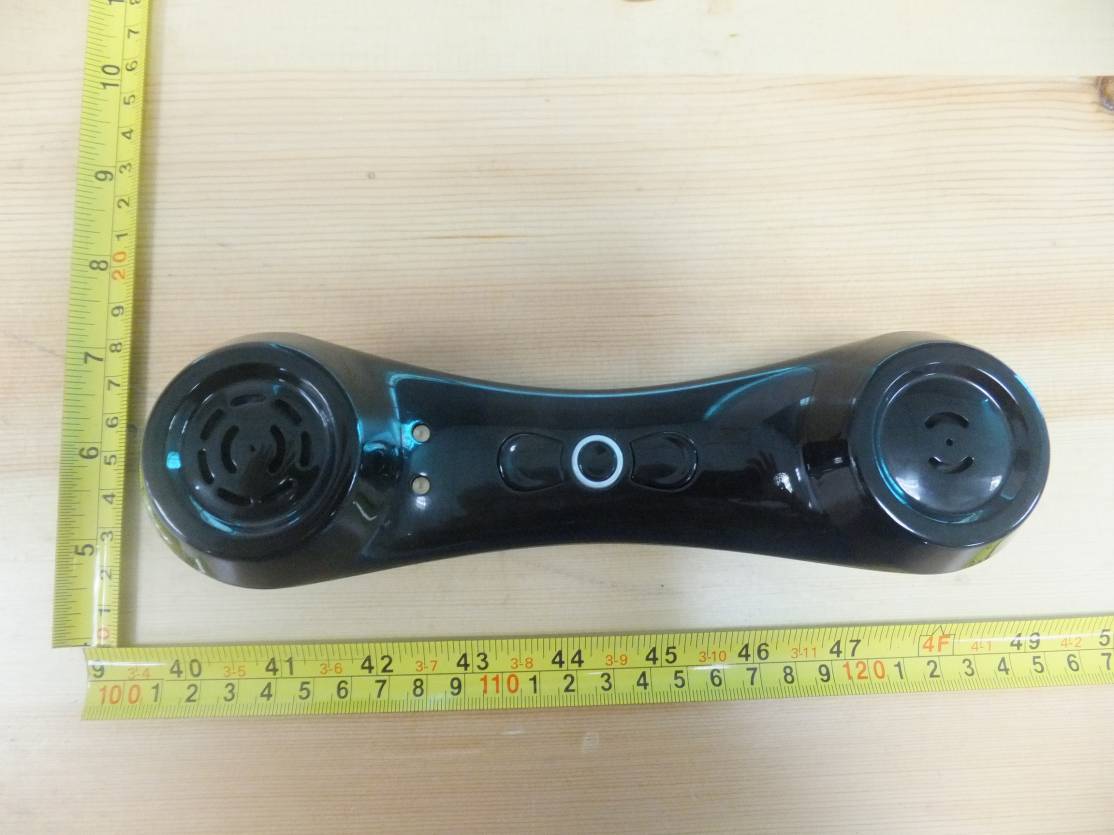

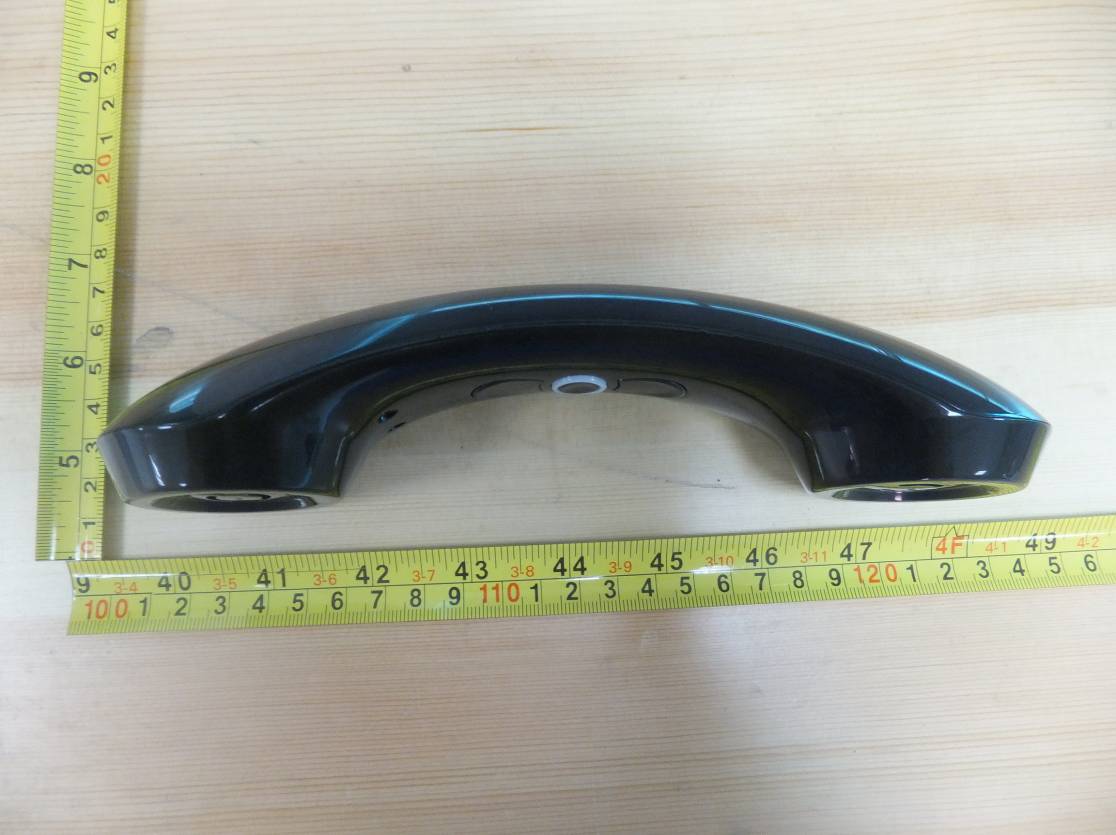

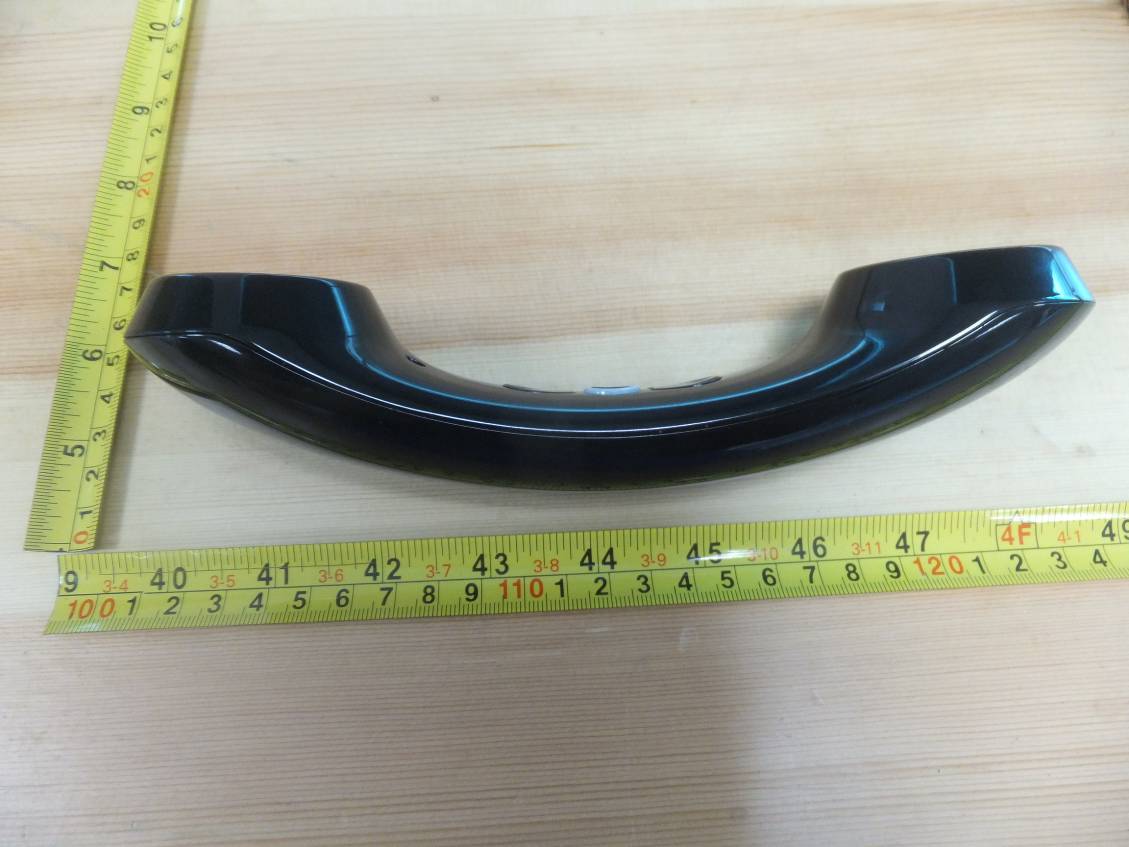

EUT External Photos (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

FCC ID Label Location

FCC ID Label Sample

EUT Internal Photos (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo

AVersion Itemlevel component No. NameSpecunitlocation manufacture A_010Z00-H1101A006 main unitBH-1301A-BE main unit1 B_01 1D01-0H1110A01 PCBABH-1301A semi-finished product1 C_001 2 D01-000SP1002 PCBASP-10A Bluetooth module1U2 C_001 3 D02-080175001 PCB17.5x14.5x0.8mm FR41 C_002 3 D10-287A05UCH ICBC57F687A05U QFN1 U1 C_003 3 D10-224C32ACH ICL24C32A 1.8V TSSO-81 U2 C_004 3 D10-2A18S3MCH ICCL9901A18S3M SOT-231 Q1 C_005 3 D13-0RFBPB001 FilterRFBPB 20121 U3 C_006 3 D12-016090001 SMD crystal16M 9PF ±10PPM 32251 Y1 C_007 3 D05-79668B001 SMD Capacitor 6.8PF/50V ±0.5PF 04021 C14 C_008 3 D05-796015001 SMD Capacitor 10PF/50V ±0.5PF 04021 C17 C_009 3 D05-73615A001 SMD Capacitor 15pF/50V 0402 ±5%1 C8 C_010 3 D05-73618A002 SMD Capacitor 18PF/50V 0402 ±5% NPO1 C16 C_011 3 D05-746227001 SMD Capacitor 223P/50V 0402 ±10%1 C15 C_012 3 D05-746477001 SMD Capacitor 473P/50V 0402 ±10%1 C10 C_013 3 D05-746019002 SMD Capacitor 104P/50V 0402 ±10%1 C13 C_014 3 D05-746229002 SMD Capacitor 2.2UF/50V 0402 ±10%2 C4 C18 C_015 3 D05-746479001 SMD Capacitor 4.7uF/50V 0603 ±10% NPO1 C2 C_016 3 D04-956229001 SMD resistor 2.2Ω 0402 ±5%1 R2 C_017 3 D04-956222001 SMD resistor 2.2K 0402 ±5%3R16 R17 R18 C_018 3 D06-515400001 SMD inductor 15NH 0402 ±5%1 L2 D_01 2 D02-032103402 PCB32.1x34.7 x1.0 mm BH-1301A_V 1.0 FR41 D_02 2 D04-916000001 SMD resistor 0Ω 04021C10 D_03 2 D04-950000001 SMD resistor 0Ω 06032L1, L2 D_04 2 D04-953249001 SMD resistor 2.4Ω 1206 ±5%1R1 D_05 2 D04-950011001 SMD resistor 10Ω 0603 ±5%1R4 D_06 2 D04-950470001 SMD resistor 47Ω 0603 ±5%2R6, R7 D_07 2 D04-950201001 SMD resistor 200Ω 0603 ±5%1R10 D_08 2 D04-950331001 SMD resistor 330Ω 0603 ±5%1R2 D_09 2 D04-950013001 SMD resistor 1K 0603 ±5%1R15 D_10 2 D04-950222001 SMD resistor 2.2K 0603 ±5%1R12 D_11 2 D04-910472002 SMD resistor 4.7K 0603 ±1%1R5 D_12 2 D04-950473001 SMD resistor 47K 0603 ±5%1R3 D_13 2 D04-950015001 SMD resistor 100K 0603 ±5%2R14, R8 D_14 2 D05-756019001 SMD Capacitor 104P/50V 0603 ±20% Y5V8C1, C5 ,C11 ,C12 ,C15 ,C2 ,C18 ,C19 D_15 2 D05-742105001 SMD Capacitor 105P/50V 0603 ±10% X7R2C7, C8 D_16 2 D05-752011002 SMD Capacitor 10uF/10V 0805 ±20%3C3, C4 ,C16 D_17 2 D05-754220002 SMD Capacitor 22uF/25V 1206 ±20%1C6 Bill of Material ModelDocument No. 日期：2013-7-26 拟制： 审核： 核准： 页码：1 AVersion Itemlevel component No. NameSpecunitlocation manufacture Bill of Material ModelDocument No. D_18 2 D06-515400002 SMD inductor 15NH 0603 ±10% I=200mA Q>251R11 D_19 2 D07-200560005 Voltage- regulator 5.6V 1/2W 2% LL-341ZD1 D_20 2 D07-100000023 LEDLED 1206 Red1LED2 D_21 2 D07-100000024 LEDLED 1206, blue1LED6 D_22 2 D08-3BT390401 triodeMMBT3904 SOT-23 NPN β=100~300 IC=200MA 1Q1 D_23 2 D10-2RT9161CH ICRT9161 3.3V SOT-231Q2 D_24 2 D10-2AM8302CH IC amplifier IC PAM8302 MSOP-81U3 D_25 2 D10-1CT4054CH ICCHARGE LTC4054 SOT-25(800mA)1U1 D_27 2 D23-1928AY001 Lithium- polymer 3.7V/330mAh P801928AY+PCM1BT1 D_28 2 D20-A04060001 wire6pin 80MM long1 D_01 2 D02-032103402 PCBDoubel board,BH-1301A-2_V 1.0 FR41 D_01 2 D02-032103404 swithcTD-10UAC :6mm 3 S1 S2 S3 D_01 2 D02-032103405 LEDRed and blue two color 3.3V 4 LED1 LED2 LED3 LED4 日期：2013-7-26 拟制： 审核： 核准： 页码：2 0 note 日期：2013-7-26 拟制： 审核： 核准： 页码：3 0 note 日期：2013-7-26 拟制： 审核： 核准： 页码：4

BH-1301A TOP layer BH-1301A Bottom layer BH-1301A key TOP layer BH-1301A Bottom layer BH-1301A Top Overlay BH-1301A Bottom Overlay BH-1301A Key Top Overlay BH-1301A Key Bottom Overlay

Report No.: A1304031F 01001 2 of 107 DongGuan Anci Electronic Technology Co., Ltd No. A222, Building A, Shifu Hardware Plaza, Changan Town, Dongguan City, Guangdong Pr., China. Phone: 86-769- 8507 5888; Fax: 86-769- 8507 5898 E-mail: [email protected] Rev. 1.0 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................................4 1.1. EUT Description ......................................................................................................................4 1.2. Mode of Operation ..................................................................................................................5 1.3. Tested System Details.............................................................................................................6 1.4. Configuration of Tested System ..............................................................................................6 1.5. EUT Exercise Software ...........................................................................................................6 2. Technical Test..........................................................................................................................7 2.1. Summary of Test Result ..........................................................................................................7 2.2. Test Environment ....................................................................................................................7 3. Conducted Emission ...............................................................................................................8 3.1. Test Equipment .......................................................................................................................8 3.2. Test Setup ...............................................................................................................................8 3.3. Limit.........................................................................................................................................9 3.4. Test Procedure ........................................................................................................................9 3.5. Uncertainty ..............................................................................................................................9 3.6. Test Result ............................................................................................................................10 4. Radiated Emission ................................................................................................................12 4.1. Test Equipment .....................................................................................................................12 4.2. Test Setup .............................................................................................................................13 4.3. Limit.......................................................................................................................................14 4.4. Test Procedure ......................................................................................................................14 4.5. Uncertainty ............................................................................................................................15 4.6. Test Result ............................................................................................................................16 5. 20dB Bandwidth ....................................................................................................................19 5.1 Test Equipment .....................................................................................................................19 5.2 Test Setup .............................................................................................................................19 5.3 Limit.......................................................................................................................................19 5.4 Test Procedure ......................................................................................................................20 5.5 Uncertainty ............................................................................................................................20 5.6 Test Result ............................................................................................................................21 6. Carrier Frequency Separation ...............................................................................................27 6.1. Test Equipment .....................................................................................................................27 6.2. Test Setup .............................................................................................................................27 6.3. Limit.......................................................................................................................................27 6.4. Test Procedure ......................................................................................................................28 6.5. Uncertainty ............................................................................................................................28 6.6. Test Result ............................................................................................................................29 7. Number of Hopping Frequencies ..........................................................................................34 7.1. Test Equipment .....................................................................................................................34 7.2. Test Setup .............................................................................................................................34 7.3. Limit.................................................................…

Text truncated - open the document above for the full version.

Report No.: A1304031F 03001 For FCC Standalone SAR test exclusion considerations FCC ID: O3ZHOBTL2XX Tunable Range F(GHz) Low F(GHz) High 2.402 2.480 According to KDB 447498 D01 General RF Exposure Guidance v05 4.3.1 Standalone SAR test exclusion considerations The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Note: when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Based on the Maximum measured transmitter power: Pout Conducted (dBm) Maximum Antenna Gain (dBi) Pout EIRP (mW) 2.02 -0.39 1.46 Maximum TX Power is 1.59 mW Conducted and 1.46 mW EIRP [(1.59 mW/5 mm)* √2.441(GHz)] = 0.50 < 3.0 Conclusion: Bluetooth SAR was not required.

Test Setup Photos Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Above 1GHz Description: Radiated Emission Test Setup for Above 18GHz
