O4G-MSPODSHOE POD

FCC Warning statement FCC 15b devices (15.105) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC 15.21 You are cautioned that changes or modifications not expressly approved by the partyment. responsible for compliance could void your authority to operate the equip FCC 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation

Dayton Industrial Co., Ltd. Jan. 22, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID：O4GMSPOD Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature - Name/Title: Wong Lap Fai/ Manager Applicant: Dayton Industrial Co., Ltd ADDRESS: 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong TEL: 852 24224404 FAX: 852 24804627 Email: [email protected]

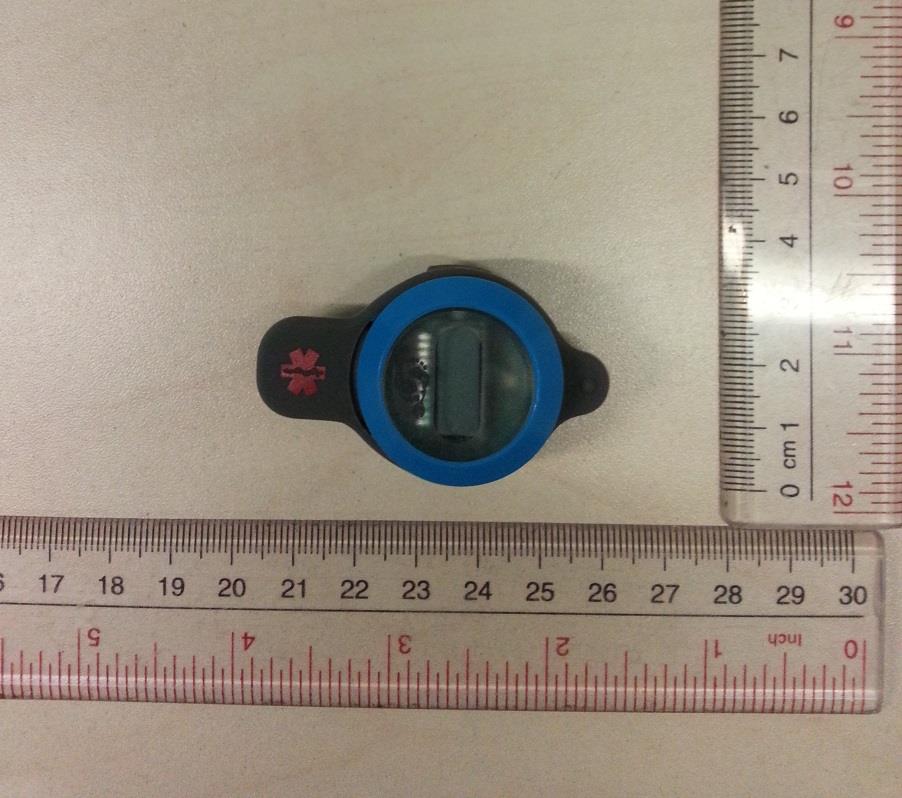

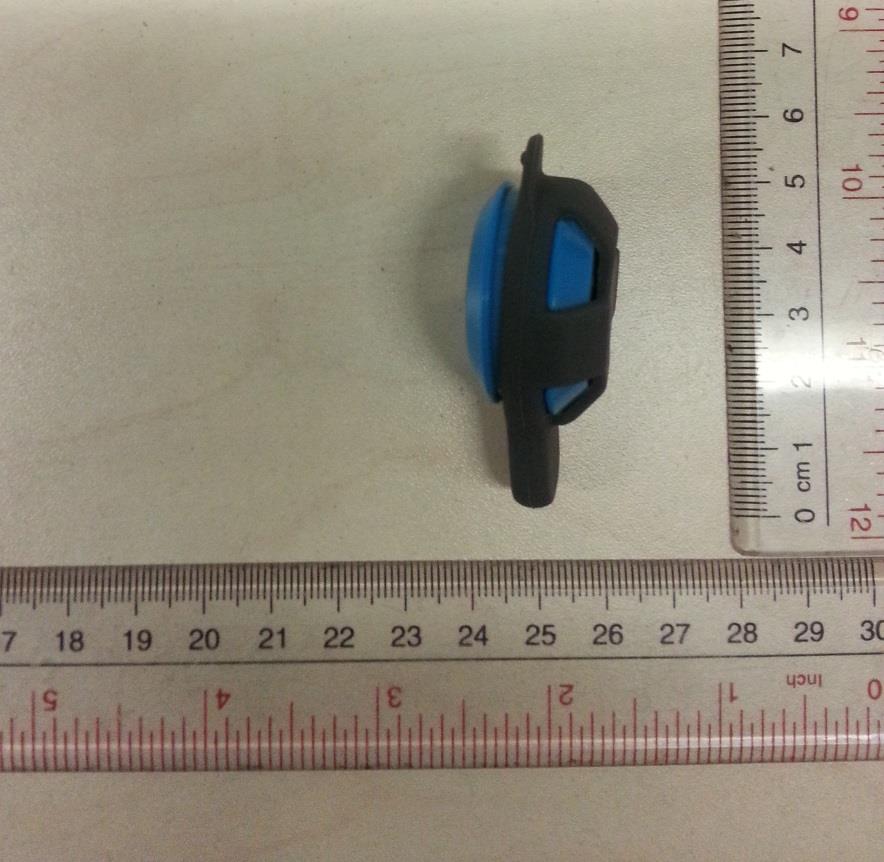

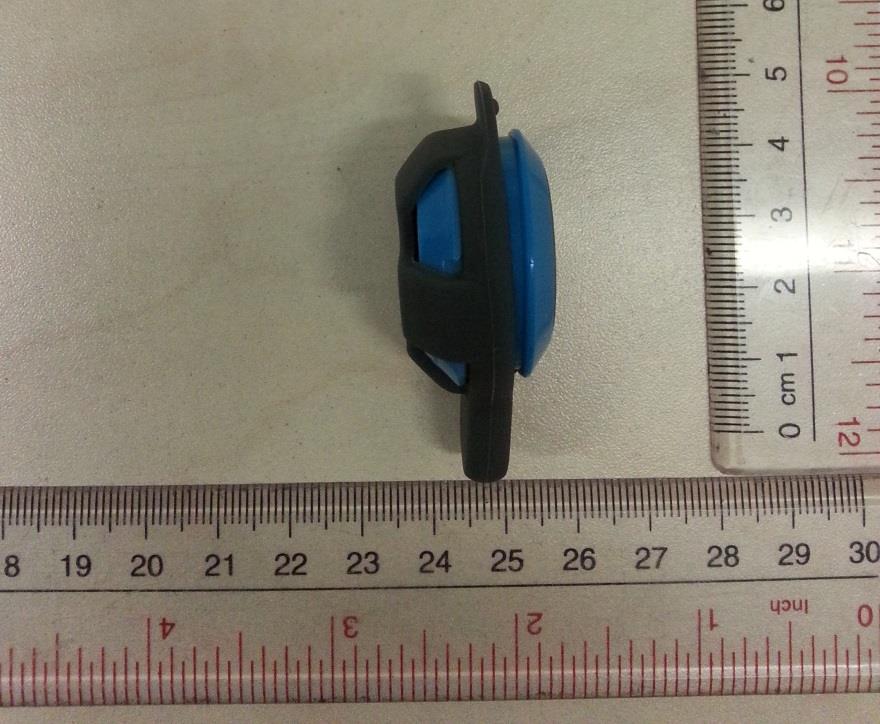

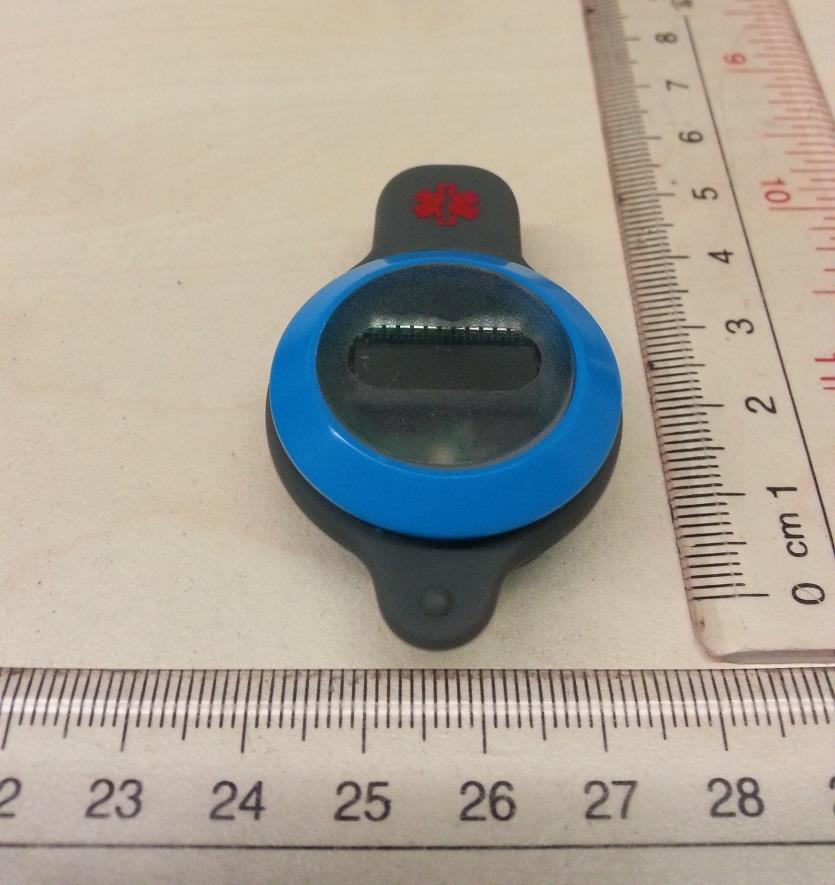

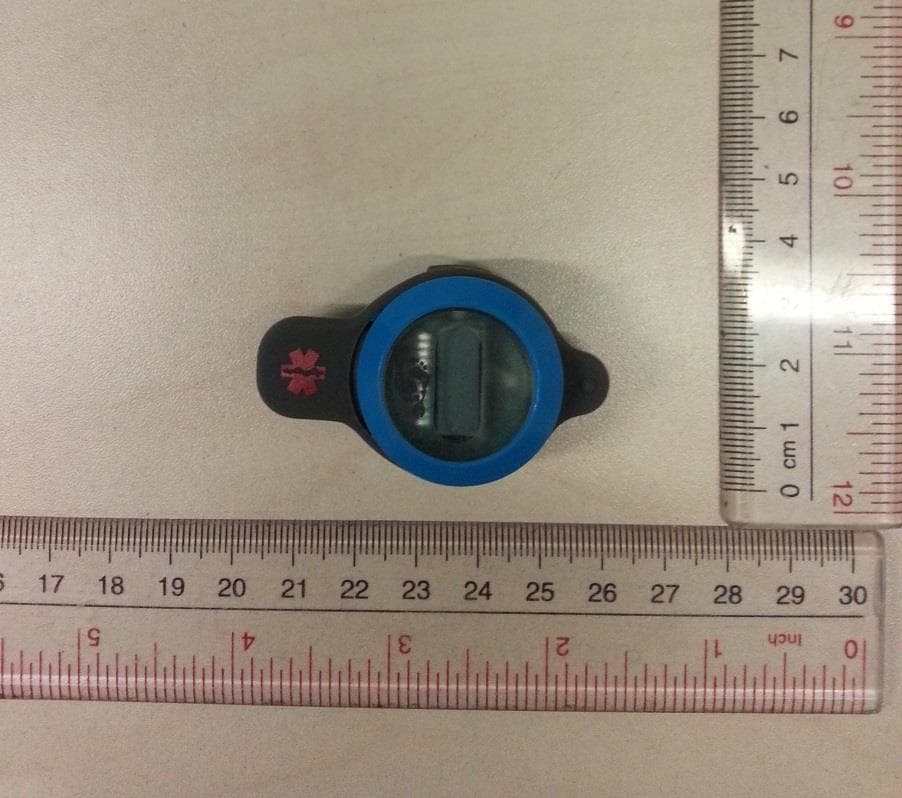

External Photo

Internal Photos Antenna

Report No.: 60.790.13.036.01A Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 1 of 19 FCC TEST REPORT Report Number : 60.790.13.036.01A Date of Issue: January 3, 2014 Model : MSP101 Product type : SHOE POD Applicant : Dayton Industrial Co., Ltd. Address : 2-12 KWAI FAT ROAD,11-A KWAI CHUNG, NEW ERRITORIES,HONGKONG Production Facility : Kendy Electronics (Dongguan) Co.Ltd, Address : Xingsi Huangtang Village, Hengli Town, Dongguan City, Guangdong Province, P.R.China Test Result :  Positive  Negative Total Pages: 19 TÜV SÜD Hong Kong Ltd. is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO 17025. TÜV SÜD Hong Kong Ltd. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Hong Kong Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Hong Kong Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Prepared by: Reviewed by: __________________________________________ __________________________________________ CHAN Kwong Ngai Edmond FUNG Report No.: 60.790.13.036.01A Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 2 of 19 TABLE OF CONTENTS 1 General Information ......................................................................................................................................... 3 1.1 Summary of Test Result ................................................................................................................... 3 1.2 Measurement Uncertainty ................................................................................................................ 3 1.3 Measurement Uncertainty ................................................................................................................ 3 2 EUT Description............................................................................................................................................... 4 3 Test Methodology ............................................................................................................................................ 5 3.1 Decision of Test Mode ...................................................................................................................... 5 3.2 Configuration of Test System Details ............................................................................................... 5 3.3 Test Site Environment ...................................................................................................................... 6 4 Emission Test .................................................................................................................................................. 7 4.1 Conducted Emission Measurement ................................................................................................. 7 4.2 Radiated Interference Measurement .............................................................................................. 12 Report No.: 60.790.13.036.01A Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 3 of 19 1 General Information 1.1 Summary of Test Result FCC Rules IC Rules Description of Test Result Remark FCC§15.107 ICES-003§6.1 AC Line Conducted Emissions PASS Meet Class B limit FCC§15.109 ICES-003§6.2 Radiated Emission PASS Meet Class B limit The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. 1.2 Measurement Uncertainty Conducted Emission The measurement uncertainty is evaluated as ± 2.26 dB. Radiated Emission The measurement uncertainty is evaluated as ± 3.19 dB. 1.3 Measurement Uncertainty Details about the Test Laboratory Test site 1 Company name: TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin HK. Telephone: 852 2776 1323 Fax: 852 2776 1372 Test site 2 Company name: TMC-Telecommunication Metrology Center of M.I.I.T No 52 Hua Yuanbei Road, Haidian District, Beijing, P.R.China Report No.: 60.790.13.036.01A Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 4 of 19 2 EUT Description Product SHOE POD Model Number MSP101 Applicant Dayton Industrial Co., Ltd 11A,2-12 Kwai Fat Road, Kwai Chung, New Territories, Hong Kong Manufacturer Kendy Electronics (Dongguan) Co.Ltd, Xingsi Huangtang Village, Hengli Town, Dongguan City, Guangdong Province, P.R.China Power Supply 1x 3.0V CR2032 battery I/O Port Description： I/O Port Types Q’TY Test Description 1). USB 1 Connected to computer Report No.: 60.790.13.036.01A Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 5 of 19 3 Test Methodology 3.1 Decision of Test Mode Pre-Test Mode EMC Mode 1: Normal working 3.2 Configuration of Test System Details Mode 1 Signal Cable Type Signal Cable Description A DC Power Cable Non-Shielded, 1.2…

Text truncated - open the document above for the full version.

Conducted Emission Front view Side view Radiated Emission Below 1 GHz view Above 1 GHz view
