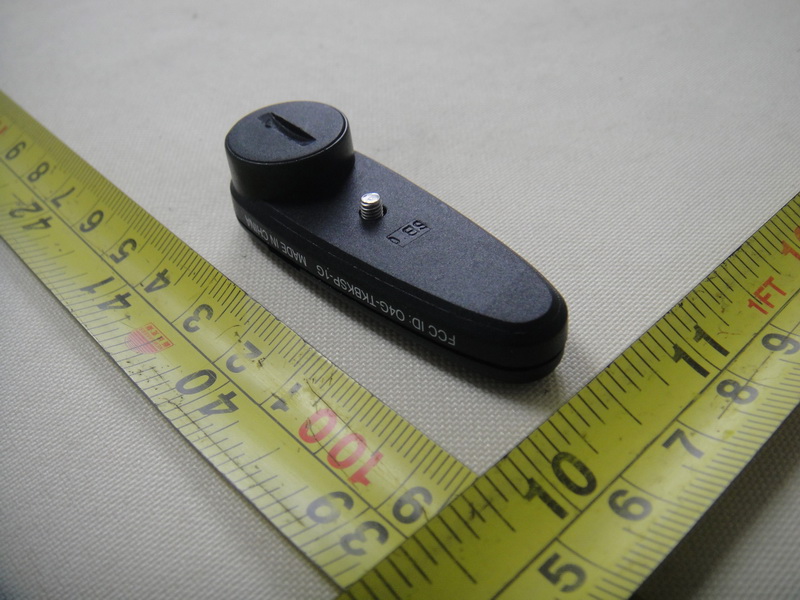

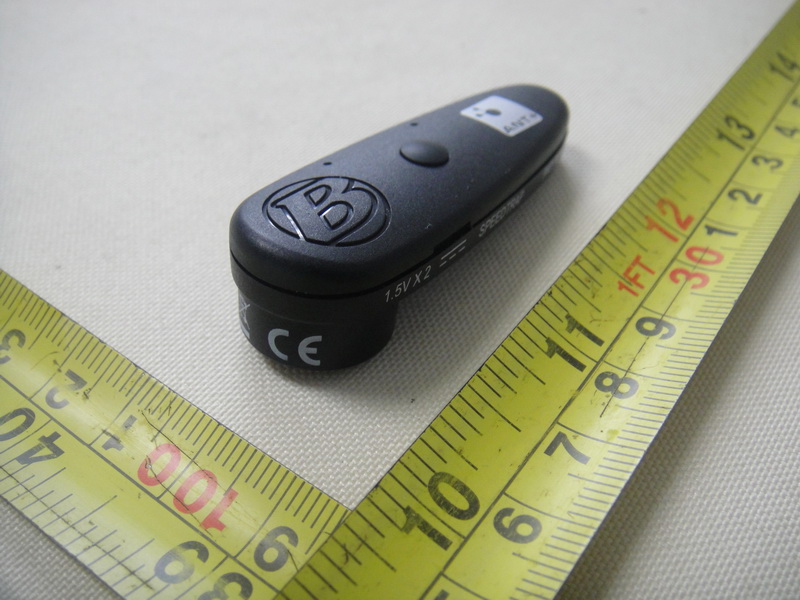

O4G-TKBKSP-1GBike Speed Transmitter

ProductsTechnologyAthletesCompanySupport SearchCountryFind a Retailer COMPUTERSSENSORS Is My Bike Compatible? The best way to tell if your bike can accept our integrated sensors is to look at the fork for SpeedTrap compatibility, and at the chainstay for DuoTrap compatibility. Standard speed and cadence sensors are compatible with most Trek, Gary Fisher, and other manufacturers bike frames. Please consult your local retailer if you have questions regarding compatibility. SensorsComputers Learn More About ANT+ Expand the Possibilities Bontrager's digital sensors operate using the ANT+ protocol, which means their signal is readable by a variety of 3rd party devices (including Garmin GPS). Sensors That Make Sense Bontrager's family of 2.4 GHz, ANT+ digital wireless sensors makes it easy for you to get only the sensors that make sense for you. NEXT 2010 Trek Madone 5.1 Madone 5.1 WSD 2.1 2.1 WSD 2.3 2.5E 7.5FX 7.5FX WSD 7.6FX 7.6FX WSD 7.7FX 7.9FX 2010 Gary Fisher Cronus Cronus Pro Cronus Ultimate Ion Pro Ion Pro GS Ion Super Ion Super GS Rail Rail Super 2009 Trek Madone 5.5 Madone 5.5 WSD Madone 5.1 Madone 5.1 WSD Madone 5.2 Madone 5.2 WSD Madone 4.5 Madone 4.5 WSD Madone 4.7 Madone 4.7 WSD 2.1 2.1 WSD 2.3 1.5 1.5 WSD 1.7 1.9 7.5FX 7.5FX WSD 7.6FX 7.6FX WSD 7.7FX 7.9FX Bikes With SpeedTrap Compatible ForksBikes With DuoTrap Compatible Frames 2010 Trek Madone 6.9 Madone 6.9 F/S Madone 6.9 WSD Madone 6.5 Madone 6.5 WSD Madone 4.7 Madone 4.7 WSD Madone 4.5 Madone 4.5 WSD Customer Service: Support | Find a Retailer | Contact Us Our Websites: Bontrager.com | FisherBikes.com | TrekBikes.com Copyright © 2011 Trek Bicycle Corporation - All Rights Reserved | Privacy Policy | Terms of Use | Sitemap | RSS NOTES: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is corrected. -- Consult the dealer or experienced radio / TV technician for help. FCC ID: O4G-TKBKSP-1G MADE IN CHINA This device complies with part 15 of the FCC Rules. O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g c o n d i t i o n s : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Neutron Engineering Inc. Project No.: 1101C100 Page 2 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 2 of 6 1101C100 1101C100

Neutron Engineering Inc. Project No.: 1101C100 Page 3 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 3 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 4 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 4 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 5 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 5 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 6 of 6 1101C100 1101C100 Neutron Engineering Inc. Project No.: 1101C100 Page 6 of 6 1101C100 1101C100

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 2 of 35 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 3 of 35 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST 17 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHz) 24 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 28 5 . BANDWIDTH TEST 29 5.1 MEASUREMENT INSTRUMENTS LIST 29 5.2 TEST PROCEDURE 29 5.3 DEVIATION FROM STANDARD 29 5.4 TEST SETUP 29 5.5 EUT OPERATION CONDITIONS 29 5.6 TEST RESULTS 30 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 31 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 4 of 35 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 31 6.1.1 MEASUREMENT INSTRUMENTS LIST 31 6.1.2 TEST PROCEDURE 31 6.1.3 DEVIATION FROM STANDARD 31 6.1.4 TEST SETUP 31 6.1.5 EUT OPERATION CONDITIONS 31 6.1.6 TEST RESULTS 32 7 . EUT TEST PHOTO 35 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 5 of 35 1. CERTIFICATION E q u i p m e n t : Bike Speed Transmitter Brand Name : N/A Model Name. : SPEEDTRAP A p p l i c a n t : Dayton Industrial Co. Ltd. Date of Test : Jan. 16, 2011 ~ Jan. 20, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1101C100) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 6 of 35 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) The EUT used new battery. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 7 of 35 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-C02/DG-CB03at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C02 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 DG-CB03 CISPR 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 8 of 35 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Bike Speed Transmitter Brand Name N/A Model Name. SPEEDTRAP OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a Bike Speed Transmitter . Product Type Low Power Communication Device Operation Frequency: 2457 MHz Modulation Type: GFSK Date rate: 1Mbps Number Of Channel 1CH .Please see note 2. Antenna Designation: Integral antenna Antenna Gain(Peak) 1 dBi Output Power: 39.25dBuV/m (AV Max.) More details of EUT technical specification. Please refer to the User's Ma…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 35 of 35 7. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1101C100 Page 35 of 35 7. EUT TEST PHOTO Radiated Measurement Photos
