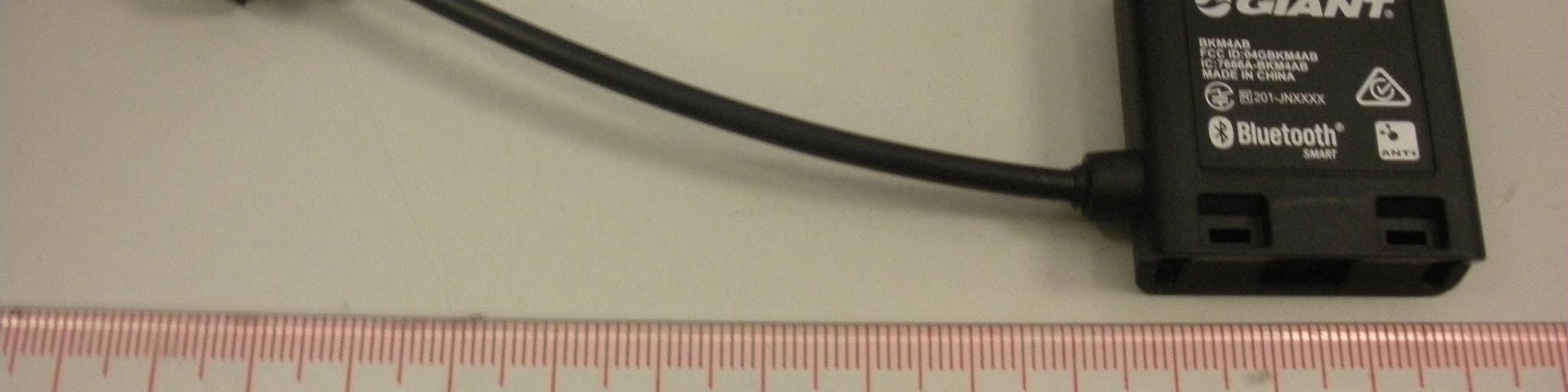

O4GBKM4ABBike speed transmitter with 2.4GHz functionality

中文使用說明書內需加註低功率警語，請參考如下警語 ．本機限在不干擾合法電臺與不受被干擾保障條件下於室內使用 ．經審驗合格之射頻電信終端設備，非經許可，公司、商號使用者均不得擅自變 更頻率、加大功率或變更原設計之特 性及功能。 ．射頻電信終端設備之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾 時方得繼續使用。所謂合法通信係指依電信法規定作業之無線電信。 ．輸入、製造射頻電信終端設備之公司、商號或其使用者違反本辦法規定，擅自使用或 變更無電頻率、電功率者，除 依電信法規定處罰外，國家通訊傳播委員會(NCC)並得撤銷其審驗合格證明。： FCC ID: O4GBKM4AB MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTES: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. ANY CHARGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE GRANTEE OF THIS DEVICE COULD VOID THE USER’S AUTHORITY TO OPERATE THE DEVICE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is corrected. -- Consult the dealer or experienced radio / TV technician for help. IC: 7666A-BKM4AB -English: This device complies with Industry Canada RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. French: Leprésent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils radio Exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement." NOTES: (i) This device shall be installed and operated in a completely enclosed container to prevent RF emissions, which otherwise can interfere with aeronautical navigation. Installation shall be done by trained installers, in strict compliance with the manufacturer’s instructions. (ii) The use of this device is on a “no-interference, no-protection” basis. That is, the user shall accept operations of high-powered radar in the same frequency band which may interfere with or damage this device. However, level probing devices found to interfere with primary licensing operations will be required to be removed at the user’s expense. (iii) The RF explosure compliance distance: 20mm

Date 01 st June 2015 BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, DAYTON INDUSTRIAL CO., LTD 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong hereby authorize Name: Xavier, TSENG Company:TÜV SÜD Hong Kong Ltd (E&E – EMC) 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, Hong Kong. Tel : (852) 3728 6231 E-mail: :[email protected] to act as our agent in all matters relating to applications for equipment authorization , including the signing of all documents relating to these matters the authorization expires on 31 st December 2015. Sincerely, Project Manager:LAP FAI WONG Telephone Number: (852) 2422 4404 Fax: (852) 2480 4627 e-mail: [email protected]

Appendix B Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

Appendix C Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Radiofrequency radiation exposure evaluation According to KDB 447498 D01v05r02 section 4.3.1, >> The 1-g SAR test exclusion thresholds for 100MHz to 6GHz, at test separation distances ” 50 mm are determined by: Power at 2457GHz = 0.8531 mW EIRP Power at 2402GHz = 1.1912 mW EIRP Power at 2440GHz = 1.1721 mW EIRP Power at 2480GHz = 1.3335 mW EIRP [(0.8531 mW) / (50 mm)] · [sqrt (2457 GHz)] = 0.8457 which is ” 3.0 for 1-g SAR. [(1.1912 mW) / (50 mm)] · [sqrt (2402 GHz)] = 1.1676 which is ” 3.0 for 1-g SAR. [(1.1721 mW) / (50 mm)] · [sqrt (2440 GHz)] = 1.1579 which is ” 3.0 for 1-g SAR. [(1.1335 mW) / (50 mm)] · [sqrt (2480 GHz)] = 1.1289 which is ” 3.0 for 1-g SAR. Therefore the device is exempt from stand-alone SAR test requirements. >> The fundamental frequency of the EUT is 2457MHz, the test separation distance is < 50mm. >> The power of EUT measured is: - For 2457MHz: 0.8531mW = 10 log (0.8531) dBm ~ -0.69dBm - For 2402MHz: 1.1912mW = 10 log (1.1912) dBm ~ +0.76dBm - For 2440MHz: 1.1721mW = 10 log (1.1721) dBm ~ -+0.69dBm - For 2480MHz: 1.3335mW = 10 log (1.3335) dBm ~ +1.25dBm Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

Report Number: 60.790.15.008.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 1 of 42 FCC - TEST REPORT Report Number: 60.790.15.008.02 Date of Issue:June 5, 2015 Model: BKM4AB Product Type: Combo Transmitter Applicant: DAYTON INDUSTRIAL CO., LTD Address: 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Production Facility : KENDY Enterprise Ltd Address: 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Test Result: „Positive†Negative Total pages including Appendices : 42 TÜV SÜD HONG KONG LTD. is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD HONG KONG LTD. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations TÜV SÜD HONG KONG LTD. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD HONG KONG LTD. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 60.790.15.008.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 2 of 42 1 Table of Contents 1 Table of Contents ............................................................................................................ 2 2 Description of Equipment Under Test ............................................................................. 3 3 Summary of Test Standards ........................................................................................... 4 4 Details about the Test Laboratory ................................................................................... 5 4.1 Test Equipment Site List ................................................................................................... 6 4.2 Measurement System Uncertainty .................................................................................... 7 5 Summary of Test Results ................................................................................................ 8 6 General Remarks ............................................................................................................ 9 7 Emission Test Results .................................................................................................. 10 7.1 Spurious Radiated Emission ........................................................................................... 10 7.2 6dB & 99% Bandwidth .................................................................................................... 16 7.3 Peak Output Power ......................................................................................................... 22 7.4 Spurious Emissions at Antenna Terminals ...................................................................... 25 7.5 100kHz Bandwidth of band edges................................................................................... 28 7.6 Power Spectral Density ................................................................................................... 32 7.7 Antenna Requirement ..................................................................................................... 35 8 Appendix A - Photographs of EUT ................................................................................ 36 9 Appendix B - Setup Photographs of EUT ...................................................................... 40 10 Appendix C - General Product Information ................................................................. 42 Report Number: 60.790.15.008.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 3 of 42 2 Description of Equipment Under Test Description of the Equipment Under Test Product:Combo Transmitter Model no.:BKM4AB FCC ID:04GBKM4AB Rating:3.0VDC (1 x 3.0VDC size “CR2032“ batteries) Frequency:2402MHz-2480MHz Antenna gain:0 dBi Number of operated channel: 40 Modulation:GFSK Report Number: 60.790.15.008.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 4 of 42 3 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-1-13 Edition Federal Communications Commission, PART 15 — Radio Frequency Devices, Subpart C — Unintentional Radiators Report Number: 60.790.15.008.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 5 of 42 4 Details about the Test Laboratory Site 1 Company name:TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, Hong Kong Site 2 Company name:TÜV SÜD China Ltd. Building 12&13 Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen 518052, P.R.China FCC Registration Number: 502708 EmissionTests Test ItemTest Site FCC Part 15 SubpartC FCC Title 47 Part 15.205, 15.209 & 15.247(d) Spurious Radiated EmissionSite 2 FCC Title 47 Part 15.207 Conduct EmissionNIL FCC Title 47 Part 15.247(a)(…

Text truncated - open the document above for the full version.

Appendix A Date: 2015-09-15 Report Number: 60.790.15.008.01 Model No.: BKM4AB Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong
