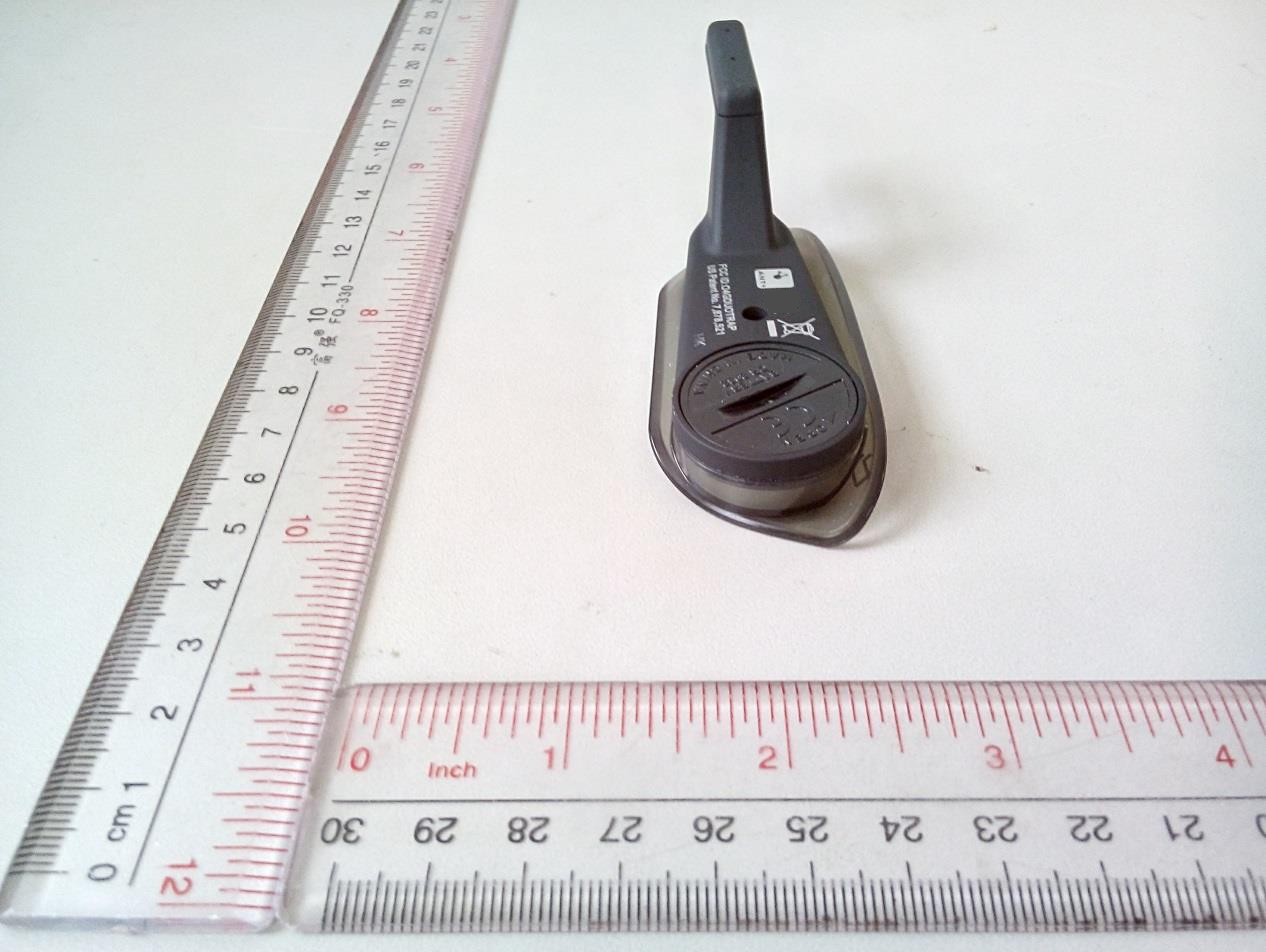

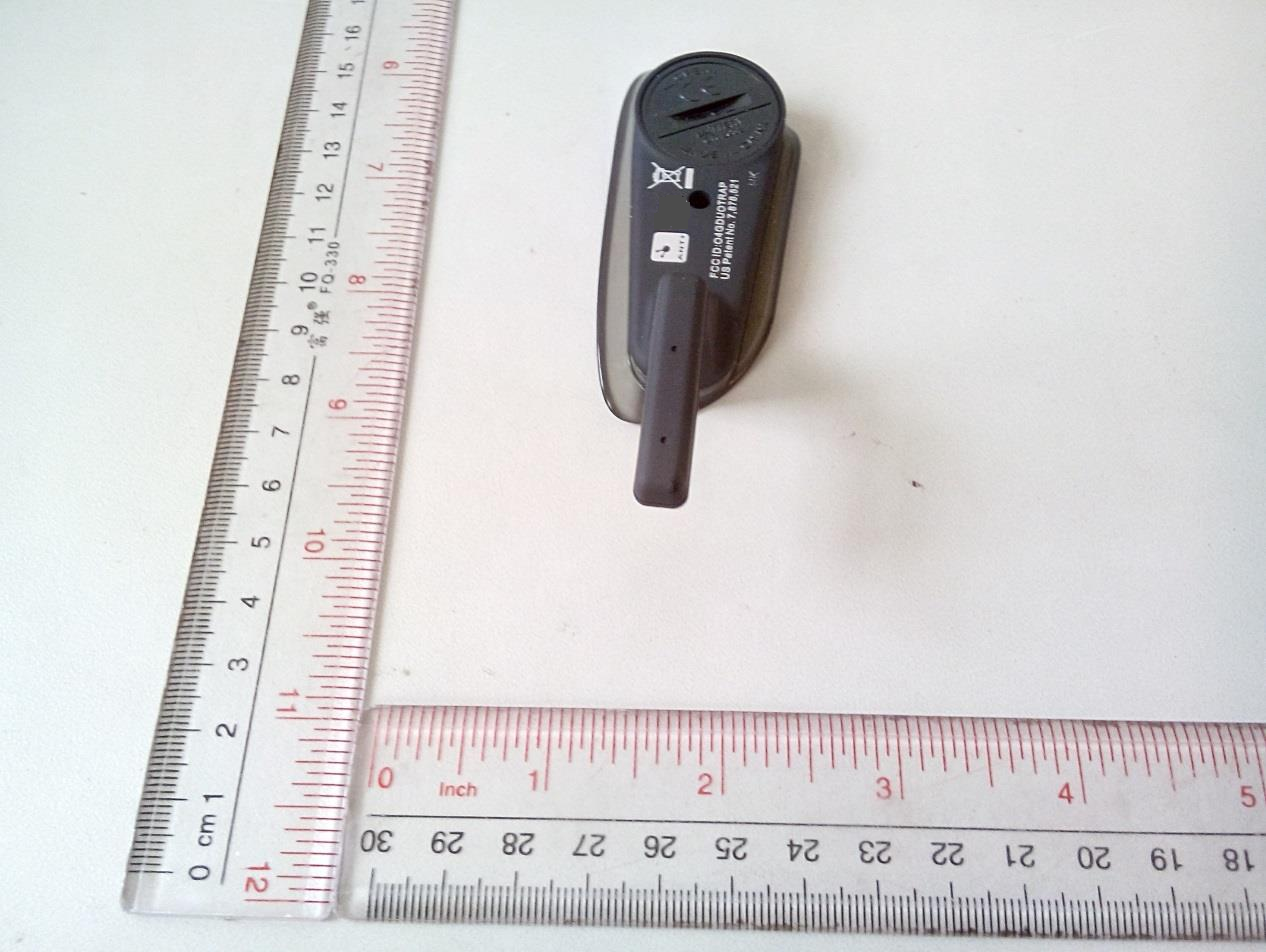

O4GDTRAPBike speed and cadence transmitter

Model:Duotrap

Antenna

Report Number: 60/790.14.017.02 Page 1 of 15 TÜV SÜD HONG KONG LTD., 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.1 TÜV SÜD HONG KONG LTD., Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong. Tel: +852-2776 1323 Fax: +852-2776 1206 FCC / IC – Test report Report Number : 60/790.14.017.02 Date of Issue: August 13, 2014 Model : Duotrap Product Type : Bike speed and cadence transmitter Applicant : DAYTON INDUSTRIAL CO.,LTD Address : 2-12 Kwai Fat Road, Kwai Chung, New Territories, Hong Kong Production Facility : Kendy Electronics (Dongguan) Co.Ltd, Address : 2-12 Kwai Fat Road,11-A Kwai Chung,New Territories,Hong Kong Test Result :  Positive  Negative Total pages including Appendices : 15 TÜV SÜD Hong Kong Ltd. is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO 17025. TÜV SÜD Hong Kong Ltd. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Hong Kong Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Hong Kong Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 60/790.14.017.02 Page 2 of 15 TÜV SÜD HONG KONG LTD., 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.1 TÜV SÜD HONG KONG LTD., Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong. Tel: +852-2776 1323 Fax: +852-2776 1206 1. Table of Contents 1. Table of Contents ................................................................................................................................................................. 2 2. Details about the Test Laboratory .................................................................................................................................... 3 3. Description of the Equipment Under Test ...................................................................................................................... 4 4. Summary of Test Standards .............................................................................................................................................. 5 5. Summary of Test Standards and Results ....................................................................................................................... 6 6. General Remarks .................................................................................................................................................................. 7 7. Emission Test Results ......................................................................................................................................................... 8 7.1 Duty cycle ...................................................................................................................................................................... 8 7.2 Radiated Emission Test ........................................................................................................................................... 10 7.3 20dB & 99% bandwidth measurement ................................................................................................................. 13 8. Test Equipment List ........................................................................................................................................................... 14 9. System Measurement Uncertainty ................................................................................................................................. 15 Report Number: 60/790.14.017.02 Page 3 of 15 TÜV SÜD HONG KONG LTD., 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.1 TÜV SÜD HONG KONG LTD., Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong. Tel: +852-2776 1323 Fax: +852-2776 1206 2. Details about the Test Laboratory Details about the Test Laboratory Test site 1 Company name: TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin HK. Telephone: 852 2776 1323 Fax: 852 2776 1372 Test site 2 Company name: Shenzhen Academy of Metrology and Quality Inspection No.4 TongFa Road, Xili Town Nanshan District, Shenzhen, China Test Firm FCC Registration number:817957 National Digital Electronic Product Test No.4 TongFa Road, Xili Town Nanshan District, Shenzhen, China IC Assigned Code: 11177A Report Number: 60/790.14.017.02 Page 4 of 15 TÜV SÜD HONG KONG LTD., 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.1 TÜV SÜD HONG KONG LTD., Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong. Tel: +852-2776 1323 Fax: +852-2776 1206 3. Description of the Equipment Under Test Description of the Equipment Under Test Product: Bike speed and cadence transmitter Model no.: Duotrap Serial number: NIL Options and accessories: NIL FCC ID: O4GDTRAP IC: 7666A-DTRAP Rated Voltage: 3 VDC Rated Current: NIL Rated Power: NIL Frequency: 2457MHz RF Transmission Frequency: 2457MHz Antenna gain: 0 dBi No. of Operated Channel: 1 Modulation: GFSK Description of the EUT: Battery operated – 1x 3.0V CR2032 battery Report Number: 60/790.14.017…

Text truncated - open the document above for the full version.

Radiated Emission Below 1 GHz Above 1 GHz
