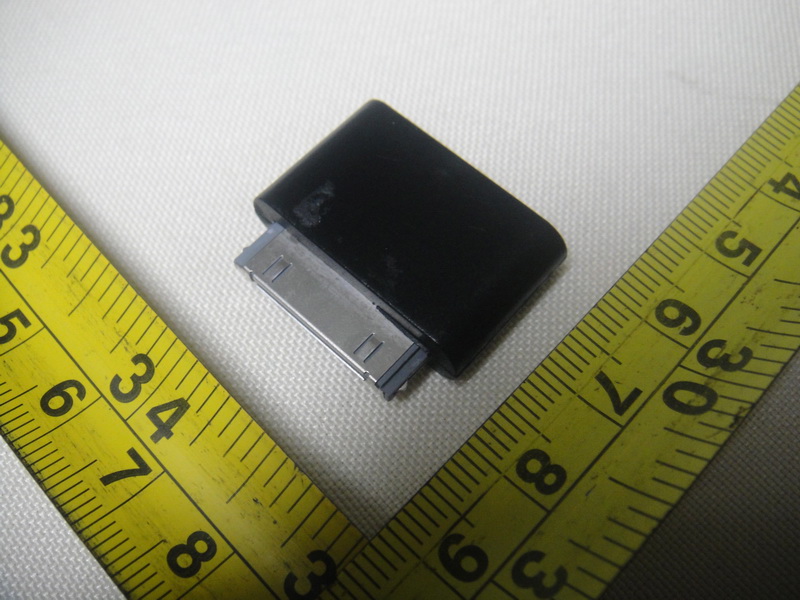

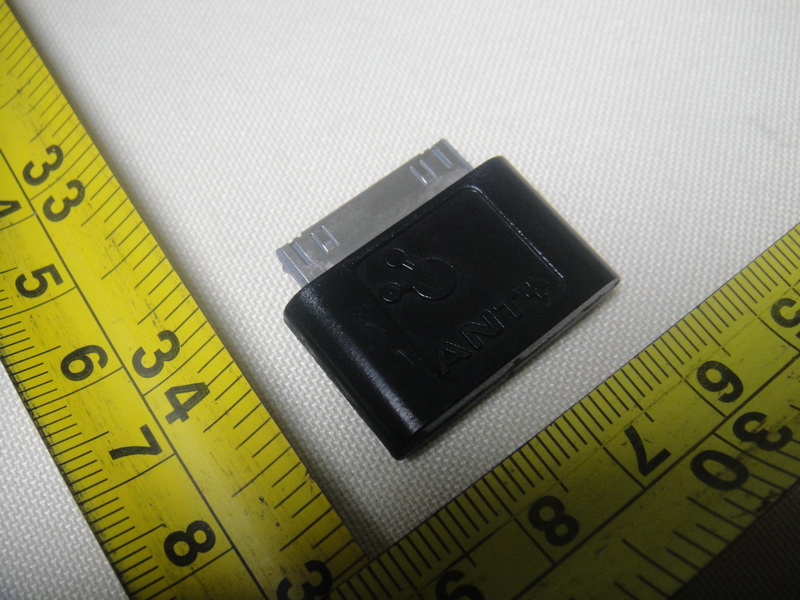

O4GIPDWAiPhone Dongle WA52500

fisica Download Wahoo Fitness Utility App from iTunes. Insert fisica securely into 30-pin connector at bottem of iPhone, iPod touch or iPad. Open Wahoo Fitness Utility and select Sensor tab. Select sensor you would like to pair with iPhone, iPod touch or iPad. Ensure the sensor is within 5’ of fisica. Done! Your sensor should show data from the sensor, the signal strength and the serial number of your sensor. Since ANT+ sensors ‘sleep’ when not in use, you may have to ‘awaken’ it - for example, a footpod can be activated by taking a few steps. Other Apps Each App has a unique way in which it works with sensors so there is no universal method for using fisica with all Apps. One common feature is that each App can be ‘paired’ with a particular sensor to avoid readings from other people’s sensors. Check our website for the current list of Apps compatible with your fisica sensor key. 3rd Party Sensors fisica will work with all wireless sensors that conform to the ANT+ standard. However, third party sensors have not been tested or verified by Wahoo Fitness and the accuracy of the data produced may not be as precise as those of Wahoo Fitness sensors Contact Wahoo Fitness Please feel free to contact Wahoo Fitness for any questions you have regarding your product. Wahoo Fitness L.L.C. 1604 athens Hwy Gainesville, Georgia, USA 30507 (404) 939-2447 www.wahoofitness.com I nstru c tions FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example-use only shielded interface cables when connecting to computer or peripheral devices). Radiation Exposure Statement This equipment complies with F CC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Canada Statement This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference received, including interference that may cause undesired operation. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and users can obtain Canadian information on RF exposure and compliance from the Canadian Representative as seen below: Dynastream Innovations Inc. 228 River Avenue Cochrane, Alberta, Canada T4C 2C1 Phone: 403-932-9292 Fax: 403-932-6521 E-Mail: [email protected] L e g a l C a n a d a FCC ID: O4GIPDWA IC: 7666A - IPDWA

Neutron Engineering Inc. Project No.: 1007C089 Page 2 of 4 1007C089 1007C089 Neutron Engineering Inc. Project No.: 1007C089 Page 2 of 4 1007C089 1007C089

Neutron Engineering Inc. Project No.: 1007C089 Page 3 of 4 1007C089 1007C089 Neutron Engineering Inc. Project No.: 1007C089 Page 3 of 4 1007C089 1007C089 Neutron Engineering Inc. Project No.: 1007C089 Page 4 of 4 1007C089

Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 2 of 45 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 3 of 45 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST 12 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 13 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 MEASUREMENT INSTRUMENTS LIST 16 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BELOW 30MHZ) 21 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHz) 22 4.2.9 TEST RESULTS (ABOVE 1000 MHz) 26 5 . BANDWIDTH TEST 36 5.1 MEASUREMENT INSTRUMENTS LIST 36 5.2 TEST PROCEDURE 36 5.3 DEVIATION FROM STANDARD 36 5.4 TEST SETUP 36 5.5 EUT OPERATION CONDITIONS 36 5.6 TEST RESULTS 37 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 39 Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 4 of 45 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 39 6.1.1 MEASUREMENT INSTRUMENTS LIST 39 6.1.2 TEST PROCEDURE 39 6.1.3 DEVIATION FROM STANDARD 39 6.1.4 TEST SETUP 39 6.1.5 EUT OPERATION CONDITIONS 40 6.1.6 TEST RESULTS 40 7 . RF EXPOSURE TEST 42 7.1 RF Exposure Compliance for Exemption from Routine Evaluation Limits 42 8 . EUT TEST PHOTO 43 Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 5 of 45 1. CERTIFICATION E q u i p m e n t : iPhone Dongle WA52500 Trade Name : N/A Model Name. : WA52500 A p p l i c a n t : Dayton Industrial Co. Ltd. Date of Test : Jul. 08, 2010~ Jul. 18, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANSI C63.4 : 2003; Canada RSS-210:2007 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1007C089) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 6 of 45 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Canada RSS-210:2007 Canada FCC Test Item Judgment Remark 15.207 Conducted Emission - Note(1) A2.9(a) 15.209 Radiated emission PASS A2.9(a) 15.249 Radiated Spurious EmissionPASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 7 of 45 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-C03/CB03 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number for FCC 319330 Neutron's test firm number for IC 4428B-1 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C03 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE 30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 CB03 CISPR 200MHz ~ 1,000MHz H 3.94 Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 8 of 45 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment iPhone Dongle WA52500 Trade Name N/A Model Name. WA52500 OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a iPhone Dongle WA52500. Product Type Low Power Communication Device Operation Frequency: 2450/2457 MHz Modulation Type: GFSK Number Of Channel 2CH Antenna Designation: Ceramic antenna Antenna Gain(Peak) 2.0…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 43 of 45 7. EUT TEST PHOTO Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 43 of 45 7. EUT TEST PHOTO Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 44 of 45 Radiated Measurement Photos 30M~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 44 of 45 Radiated Measurement Photos 30M~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 45 of 45 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1007C089 Page 45 of 45 Radiated Measurement Photos Above 1000MHz
