X5 Installation General Operation & Display Function SelectSelect L or R OK R MM2 L R AC M L Press and release R key Press and release M key Press & hold M key for 2s Press and release L key R L R L R L R L R L R L R L R L Installation & Quick Start Unit & Parts or 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. ENSCTC JP 5mm 9 1 2 34 10 11 12 13 14 15 5 6 7 8 FOR 410000048 ONLY M2 Ride Time Current Speed Cadence Heart Rate Distance Clock Altitude Temperature Phone mode Wireless sensor detector Bike Selection Bluetooth Incoming Call In recording Battery power indicator 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 骑行时间 实时速度 回转数 心跳数 距离 时钟 海拔高度 温度 手机模式 无线传感器探头 车型选择 蓝牙 来电显示 记录中 电量显示 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 騎乘時間 即時速度 回轉數 心跳數 距離 時間 海拔高度 溫度 手機模式 無線感應符號 車種選擇 藍芽 來電顯示 記錄中 電量顯示 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 走行時間 現在の速度 ケイデンス 心拍数 距離 現在時刻 高度 温度 フォンモード ワイヤレスセンサー検出表示 バイク選択 Bluetooth 着信 記録中 電池残量表示 ES 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Tiempo de marcha Velocidad actual Cadencia Frecuencia cardíaca Distancia Reloj Altitud Temperatura Modo de teléfono Detector de sensor inalámbrico Selección de bicicleta Bluetooth Llamada entrante Grabando Indicador de carga de batería 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Durée à vélo Vitesse actuelle Cadence Rythme cardiaque Distance Horloge Altitude Température Mode téléphone Détecteur sans fil Sélection de vélo Bluetooth Appel entrant Enregistrement en cours Voyant de niveau de batterie 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Fahrmodus Aktuelle Geschwindigkeit Kadenz Herzfrequenz Strecke Uhr Höhe Temperatur Telefonmodus Kabelloser Sensor Fahrradauswahl Bluetooth Ankommender Anruf Aufzeichnung Akkubetriebsanzeige 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 주행 시간 현재 속도 케이던스 맥박수 거리 시계 고도 온도 전화 모드 무선 센서 감지기 자전거 선택 블루투스 수신 전화 기록 중 배터리 전원 표시기 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Fietstijd Huidige snelheid Ritme Hartslag Afstand Klok Hoogte Temperatuur Telefoonmodus Draadloze sensor detector Fietsselectie Bluetooth Binnenkomende oproep In opname Vermogensindicator batterij 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Czas jazdy Prędkość aktualna Kadencja Tętno Odległość Zegar Wysokość Temperatura Tryb Telefonu Wskaźnik czujnika Wybór roweru Bluetooth Połączenie przychodzące Podczas nagrywania Wskaźnik zasilania bateryjnego DEFRKRNLPL M 6. Set BPM 7. Set Pair MR R L M Ride Sync App L 30S Time out, or finish pairing or press any key 1. Set Unit 2. Set Date MMM Set Hour Format M R L 3. Set Hour Format MM Set Wheel Size M R L R L MM 5. Gender & Weight4. Set Wheel Size M Set BPM M M R L Press and release R key Press and release L key MM2 Press and release M key Press & hold M key for 2s or Start Setting ES TC DE SC EN FR 初めてストップウォッチを使用する前に、ストップウォッチの裏面にある AC ボタンを長押しし、簡易設 定メニューに入ってください。 「L」または「R」キーを押して選択し、「M」キーを押して選択を確定し ます。 1. 計測単位の設定： 「L」または「R」キーを押してメートルまたはマイル単位を選択し、「M」キーを押 して選択を確定します。2. 日付の設定： 「L」または「R」キーを押して年を選択し、「M」キーを押して 選択を確定します。 この操作を繰り返し、月と日を設定します。3. 時刻形式の設定: 「L」または「R」キ ーを押して 24 時間表示または 12 時間表示を選択し、「M」キーを押して選択を確定します。 この操作を 繰り返し、時間と分を設定します。4. ホイール外径の設定： 「L」または「R」キーを押して 10 通りの選 択肢からホイール外径を選択するか、手動で入力します (「カスタム」オプション)。 5. 性別と体重の設定： 「L」または「R」キーを押して男性または女性を選択し、「M」キーを押して選択 を確定します。 この操作を繰り返し、体重を設定します。6. 心拍通知の設定： 「L」または「R」キーを 押して心拍の上限を選択し、「M」キーを押して選択を確定します。 この操作を繰り返し、下限を設定し ます。7. デバイスのペアリング方法: センサーペアリングモードに入り、R (はい) キーを押し、デバイス をペアリングします。 L (いいえ) キーを押すか、デバイスのペアリング後に 30 秒待つと、モバイルペア リングモードに入ります。 モバイルをペアリングする場合、R (はい) キーを押してデバイスをペアリング します。あるいは、L (いいえ) キーを押して終了し、メニューに戻ります。 M」キーを押し、ペダリングページに入ります。(モバイルペアリングモードについては APP 設定プロセ スをご覧ください。) * 「M」キーを長押しし、メニュー機能に入ります。 * 操作マニュアルは Web サイト (http://www.giant-bicycles.com/en-in/) でダウンロードしてください。 Before using the computer for the first time, press and hold the AC button on the back side of the computer to enter the fast setup menu. Follow the steps below in order. Press the "L" or "R" key to select a value. Press the "M" key to confirm a selection. 1. Unit of Measure: Press the "L" or "R" key to select either metric or imperial units. Press the "M" key to confirm selection. 2. Date: Press the "L" or "R" key to select year. Press the "M" key to confirm selection. Repeat steps to set up month and day. 3. Time Format: Press the "L" or "R" key to select either 12 or 24 hour format. Press the "M" key to confirm selection. Repeat steps to set up hour and minute. 4. Tire Size: Press the "L" or "R" key to select tire size from the 10 uilt-in options. Press the "M" key to confirm selection. To enter a tire size other than those built-in, select Custom and press the "M" key. Press the "L" or "R" key to select tire circumference (in millimeters). Press the "M" key to confirm selection. 5. Gender & Weight: Press the "L" or "R" key to select either male or female. Press the "M" key to confirm selection. Repeat steps to set up weight. 6. Heart Rate Limits: Press the "L" or "R" key to select upper heartrate limit. Press the "M" key to confirm selection. Repeat steps to set up lower heartrate limit. 7. Pair Sensors & Phone: If no sensors are to be paired, press the "L" key (No) to enter mobile pairing mode. To pair computer with sensors, press the "R" key (Yes) to enter sensor pairing mode. Wait 30 seconds after the computer is paired to enter mobile pairing mode. To pair computer with phone, press the "R" (Yes) key to enter mobile pairing mode, or press the "L" (No) key to enter "Menu Exit". Menu Exit: Press the "M" key to enter the pedaling page. (See APP setup process for mobile pairing mode) *Press and hold the "M" key to enter setup menu. *Please download the operation manual at web site: http://www.giant-bicycles.com/en-in/ Avant d'utiliser votre compteur pour la première fois, appuyez sur le bouton AC à l'arrière du chronomètre et maintenez-le enfoncé pour accéder au menu de configuration rapide. Appuyez sur « L » ou « R » pour sélectionner, et sur « M » pour confirmer votre sélection. 1. Configurer l'unité de mesure : Appuyez sur « L » ou …

Text truncated - open the document above for the full version.

Date 01 st June 2015 BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, DAYTON INDUSTRIAL CO., LTD 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong hereby authorize Name: Xavier, TSENG Company:TÜV SÜD Hong Kong Ltd (E&E – EMC) 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, Hong Kong. Tel : (852) 3728 6231 E-mail: :[email protected] to act as our agent in all matters relating to applications for equipment authorization , including the signing of all documents relating to these matters the authorization expires on 31 st December 2015. Sincerely, Project Manager:LAP FAI WONG Telephone Number: (852) 2422 4404 Fax: (852) 2480 4627 e-mail: [email protected]

Appendix B Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

Appendix C Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong Appendix C Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Radiofrequency radiation exposure evaluation According to KDB 447498 D01v05r02 section 4.3.1, >> The 1-g SAR test exclusion thresholds for 100MHz to 6GHz, at test separation distances ” 50 mm are determined by: Power at 2.457GHz = 1.2560 mW EIRP Power at 2.402GHz = 1.3740 mW EIRP Power at 2.440GHz = 1.2416 mW EIRP Power at 2.480GHz = 1.2560 mW EIRP [(1.2560 mW) / (20 mm)] · [sqrt (2.457 GHz)] =0.0984 which is ” 3.0 for 1-g SAR. [(1.3740 mW) / (20 mm)] · [sqrt (2.402 GHz)] =0.1064 which is ” 3.0 for 1-g SAR. [(1.2416 mW) / (20 mm)] · [sqrt (2.440 GHz)] =0.0969 which is ” 3.0 for 1-g SAR. [(1.2560 mW) / (20 mm)] · [sqrt (2.480 GHz)] =0.0988 which is ” 3.0 for 1-g SAR. Therefore the device is exempt from stand-alone SAR test requirements. >> The fundamental frequency of the EUT is 2402MHz-2480MHz and 2457MHz, the test separation distance is < 50mm. (Manufacturer specification distance is 20mm) >> The power of EUT measured is: - For 2457MHz: 1.2560mW = 10 log (1.2560) dBm ~ +0.99dBm - For 2402MHz: 1.3740mW = 10 log (1.3740) dBm ~ +1.38dBm - For 2440MHz: 1.2416mW = 10 log (1.2416) dBm ~ +0.94dBm - For 2480MHz: 1.2560mW = 10 log (1.2560) dBm ~ +0.99dBm Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong

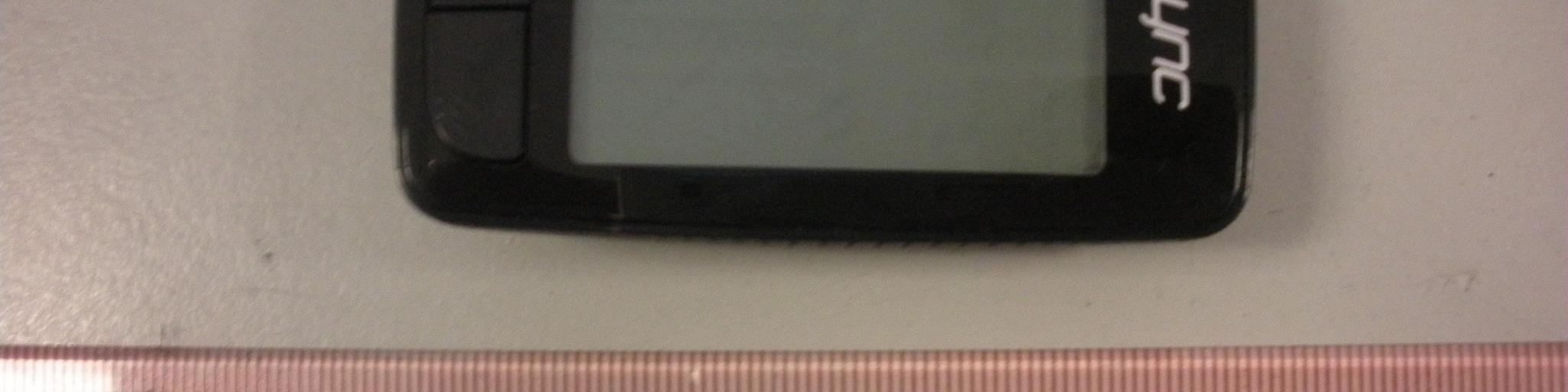

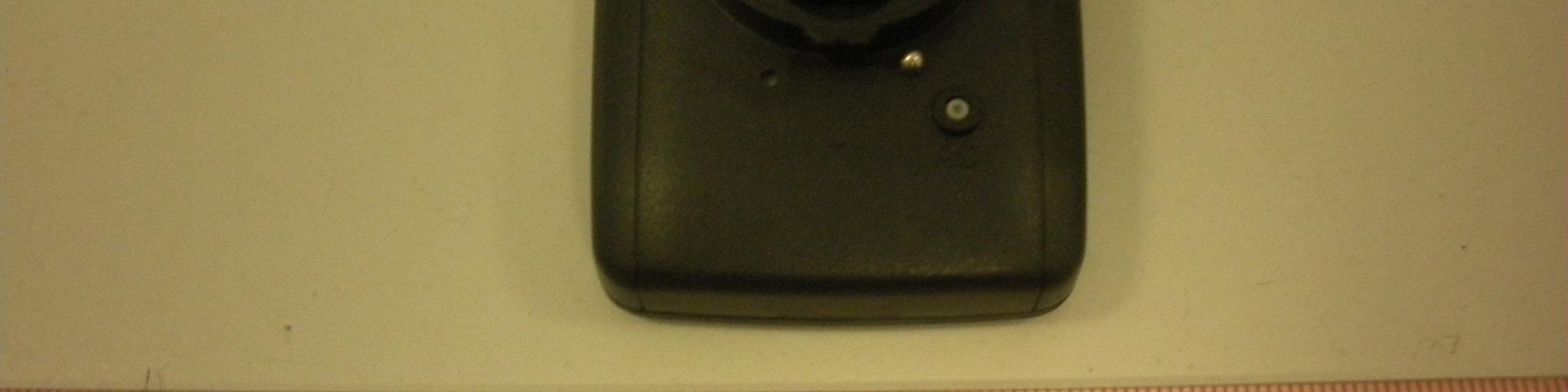

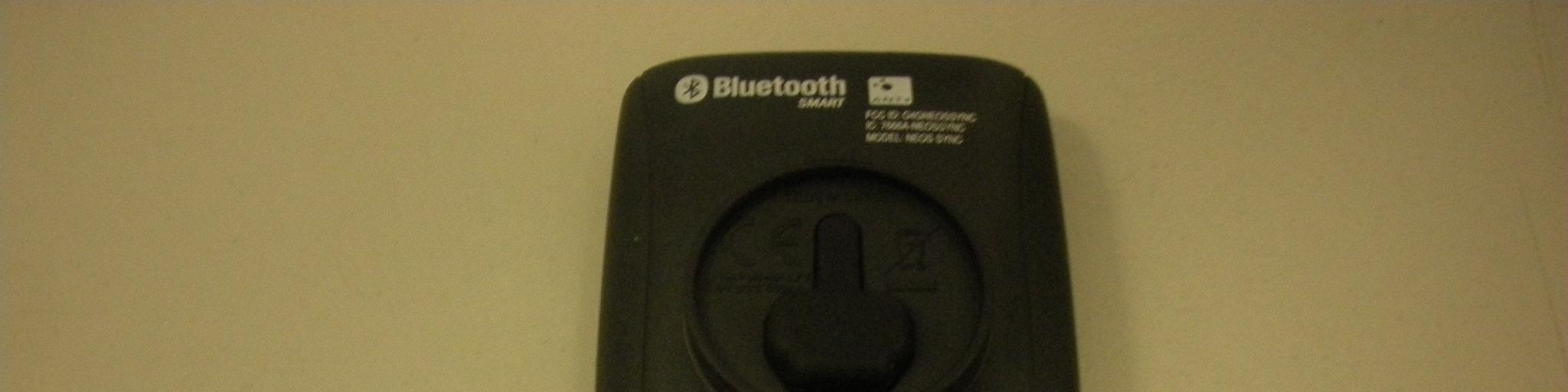

Report Number: 60.790.15.009.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 1 of 44 FCC - TEST REPORT Report Number: 60.790.15.009.02 Date of Issue:June 5, 2015 Model: Giant Neos Sync Product Type: Bike Computer Applicant: DAYTON INDUSTRIAL CO., LTD Address: 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Production Facility : KENDY Enterprise Ltd Address: 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Test Result: „Positive†Negative Total pages including Appendices : 44 TÜV SÜD HONG KONG LTD. is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD HONG KONG LTD. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations TÜV SÜD HONG KONG LTD. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD HONG KONG LTD. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 60.790.15.009.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 2 of 44 1 Table of Contents 1 Table of Contents ............................................................................................................ 2 2 Description of Equipment Under Test ............................................................................. 3 3 Summary of Test Standards ........................................................................................... 4 4 Details about the Test Laboratory ................................................................................... 5 4.1 Test Equipment Site List ................................................................................................... 6 4.2 Measurement System Uncertainty .................................................................................... 7 5 Summary of Test Results ................................................................................................ 8 6 General Remarks ............................................................................................................ 9 7 Emission Test Results .................................................................................................. 10 7.1 Spurious Radiated Emission ........................................................................................... 10 7.2 6dB & 99% Bandwidth .................................................................................................... 16 7.3 Peak Output Power ......................................................................................................... 22 7.4 Spurious Emissions at Antenna Terminals ...................................................................... 25 7.5 100kHz Bandwidth of band edges................................................................................... 28 7.6 Power Spectral Density ................................................................................................... 32 7.7 Antenna Requirement ..................................................................................................... 35 8 Appendix A - Photographs of EUT ................................................................................ 36 9 Appendix B - Setup Photographs of EUT ...................................................................... 42 10 Appendix C - General Product Information ................................................................. 44 Report Number: 60.790.15.009.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 3 of 44 2Description of Equipment Under Test Description of the Equipment Under Test Product:Bike Computer Model no.:Giant Neos Sync FCC ID:O4GNEOSSYNC Rating:3.7VDC (1 x 3.7VDC Internal rechargeable battery) Frequency:2402MHz-2480MHz Antenna gain:0 dBi Number of operated channel: 40 Modulation:GFSK Report Number: 60.790.15.009.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 4 of 44 3 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-1-13 Edition Federal Communications Commission, PART 15 — Radio Frequency Devices, Subpart C — Unintentional Radiators Report Number: 60.790.15.009.02 EMC_SZ_FR_22.00 FCC Release 2014-03-20 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park W est Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 5 of 44 4 Details about the Test Laboratory Site 1 Company name:TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, Hong Kong Site 2 Company name:TÜV SÜD China Ltd. Building 12&13 Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen 518052, P.R.China FCC Registration Number: 502708 EmissionTests Test ItemTest Site FCC Part 15 SubpartC FCC Title 47 Part 15.205, 15.209 & 15.247(d) Spurious Radiated EmissionSite 2 FCC Title 47 Part 15.207 Conduct EmissionNIL FCC Title 4…

Text truncated - open the document above for the full version.

Appendix A Date: 2015-09-15 Report Number: 60.790.15.009.01 Model No.: Giant Neos Sync Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong
