O4GPRSBLE2.4GHz BLE Proximity Key Fob

BLE Proximity key fob User manual - Proximity sensor allows you to tag and keep track of belongings electronically using your Bluetooth-SMART enabled phone - Tag transmits signal up to 100ft. - Compatible with iOS and BTLE Smart Phones - Water-resistant - Replaceable 3Volt CR2025 coin cell battery - To power on: Press and hold button for approximately 7 seconds. One beep followed by two short beeps and red LED will indicate you have successfully powered on. - To power off: Press and hold button for 2 seconds. One short beep will indicate you have successfully powered off. - Removing battery: Open battery compartment. Replace battery with a CR2025 3 Volt. Note: Wait approximately 45 seconds before installing the new battery to ensure the electronics fully reset. FCC Rules Part 15 The enclosed hardware device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) It must accept any interference received, including interference that may cause undesired operation. FCC ID: O4GPRSBLE IC: 7666A-PRSBLE FCC Compliance Statement: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help To assure continued compliance, any changes or responsible for compliance could void the users authority to operate this equipment. (Example- use only shielded interface cables when connecting to a computer or peripheral devices). Radiation Exposure Statement This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized could void the users authority to operate the equipment. IC Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and users can obtain Canadian information on RF exposure and compliance. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Le dispositif rencontre I’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et les utilisateurs peuvent obtenir I’information canadienne sur I’exposition et la conformité de rf.

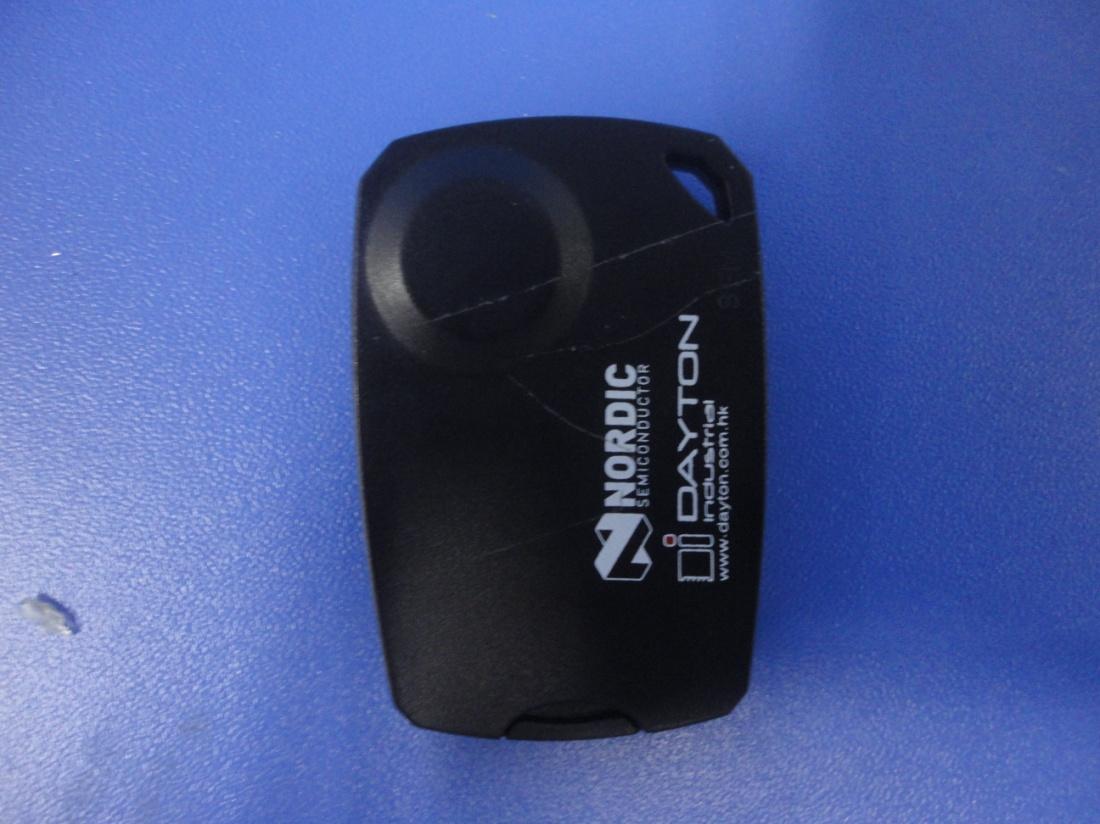

External Photos of PRSBLE Antenna

Internal Photos of PRSBLE Antenna

Report Number: 68.950.12.082.01 Page 1 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC/IC - TEST REPORT Report Number : 68.950.12.082.01 Date of Issue: 14 September 2012 Model : PRSBLE Product Type : BLE Proximity Key fob Applicant : Dayton Industrial Co., Ltd. Address : 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Production Facility : Kendy Enterprise Ltd. Address : 2-12 Kwai Fat Road, 11-A Kwai Chung, NT, Hong Kong Test Result :  Positive  Negative Total pages including Appendices : 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.12.082.01 Page 2 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................ 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Conducted Peak Power......................................................................... 8 7.2 Band edge compliance of RF emission...................................................... 10 7.3 Spurious RF Conducted emission............................................................ 16 7.4 Spurious radiated emissions for transmitter and receiver.............................. 24 7.5 6dB Bandwidth & 99% bandwidth............................................................ 28 7.6 Power spectral density........................................................................... 32 8 System Measurement Uncertainty................................................................... 36 Report Number: 68.950.12.082.01 Page 3 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test Site 2 Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.950.12.082.01 Page 4 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: BLE Proximity Key fob Model no.: PRSBLE Brand Name: Dayton Options and accessories: NIL Rating: DC 3V (Supplied by 1pcs 3VDC CR2032 Battery) RF Transmission Frequency: 2402MHz-2480MHz Description of the EUT: NIL Auxiliary Equipment Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) -- -- -- -- Report Number: 68.950.12.082.01 Page 5 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-1-2011 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-Gen Issue 3 December 2010 General Requirements and Information for the Certification of Radio Apparatus RSS-210 Issue 8 December 2010 RSS-210 — Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment Report Number: 68.950.12.082.01 Page 6 of 36 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 5 Summary of Test Results Technical Requirements FCC Part 15 Subpart C, R…

Text truncated - open the document above for the full version.

Test setup photos of PRSBLE 1. Radiated Emission Test (Blow 1GHz) Transmitting mode 2. Radiated Emission Test (Above 1GHz) Transmitting mode
