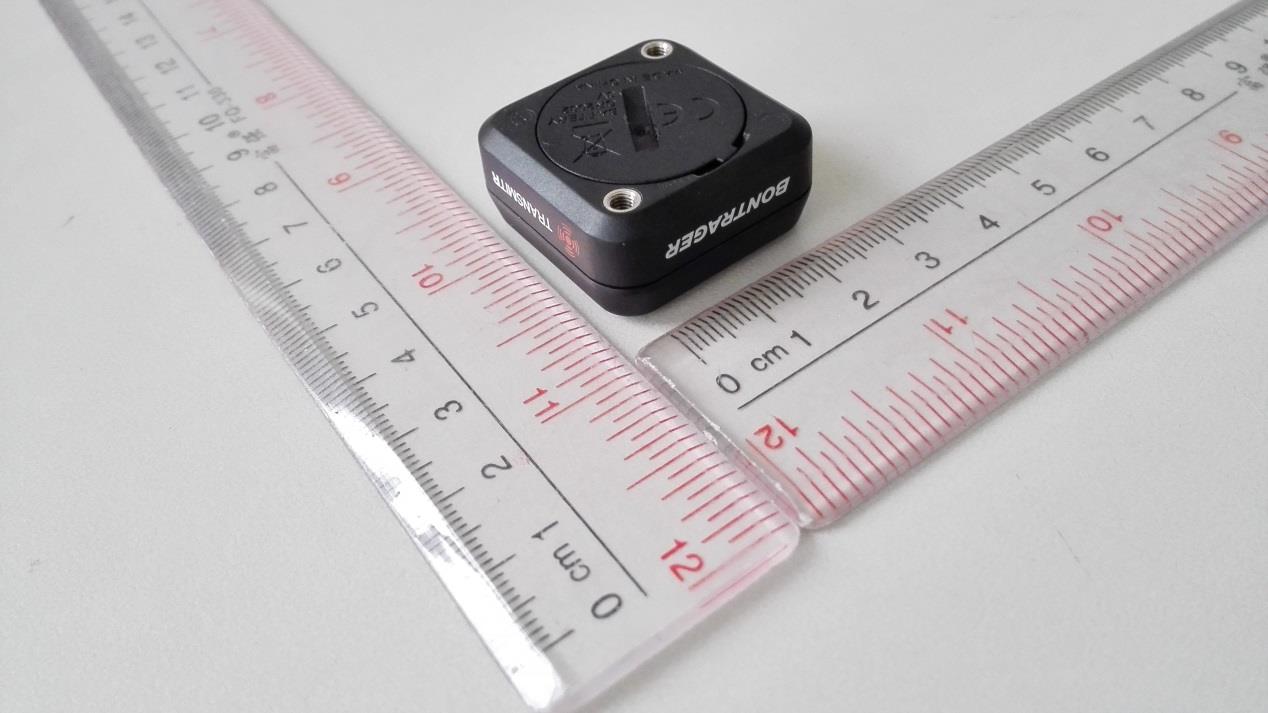

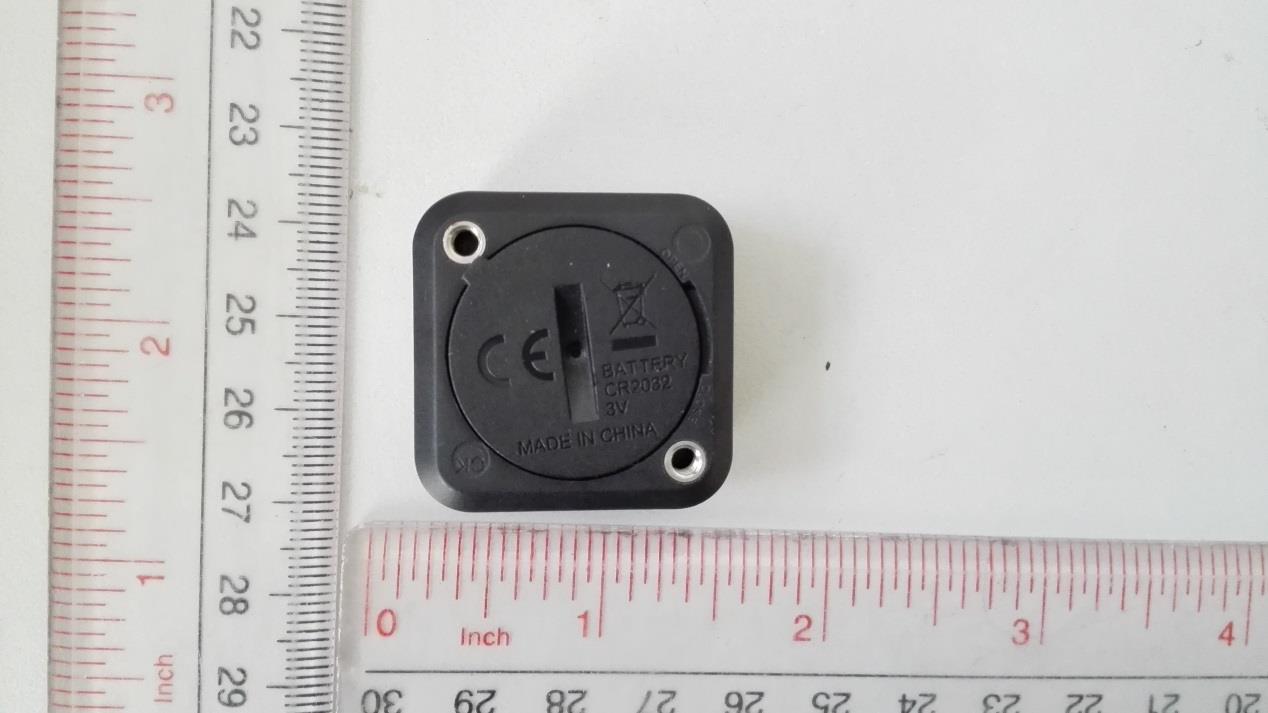

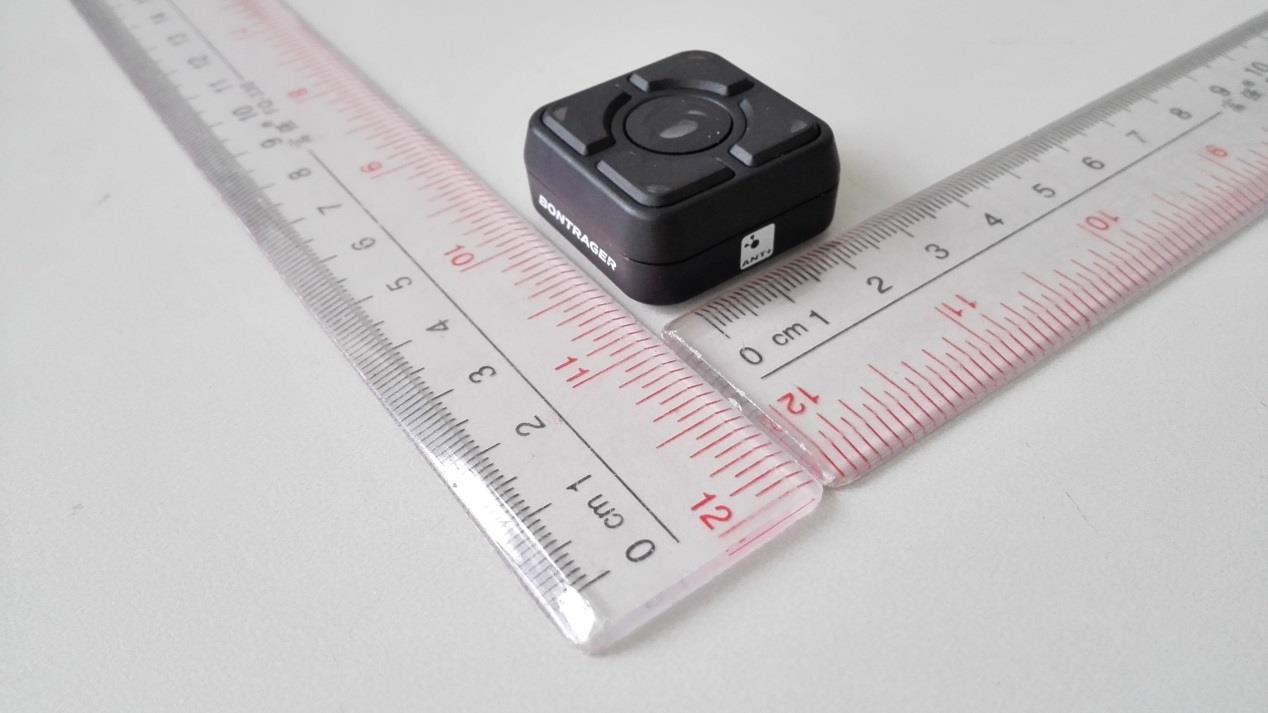

TRANSMITR remote + Ion 700 RT + flare RT User Guide / Instruction Manual Content Overview What’s in the Box Pairing and Operation of the TRANSMITR Remote •Pairing to TRANSMITR / ANT+ compatible lights •Controlling modes and features Status LEDs on the TRANSMITR remote •Using the remote to see mode and battery status of lights •Using turn signal configuration Attaching the TRANSMITR remote to bars •Determining orientation/position •Installing the TRANSMITR remote Troubleshooting Appendix Ion 700 RT information Flare RT information Regulatory Statements 1 TRANSMITR REMOTE User Guide Transmitr Remote + Transmitr Lights 2 •The Transmitr System Remote can pair to any Transmitr enabled light. •The pairing process is the same for all Transmitr enabled lights, regardless of whether it is a headlight or tail light. •Only Bontrager lights designated ‘RT’ are compatible with the Transmitr System Remote •Pairing is a procedural function of the ANT+ protocol and required to enable the remote control of TRANSMITR / ANT+ lights. In a single pairing session, up to 7 distinct Transmitr-enabled lights can be paired to a single Transmitr remote. Once in pairing mode, the system will automatically search to pair each system light one at a time, in sequence. Multiple lights can be paired to a single button. All pairings must be done in a single session. If lights are added to the system later, all lights will need to be re- paired to the remote •Special functions and configurations are only available with select Bontrager TRANSMITR lights designated with an RT include a) High Beam, b) Turn-Signal Configuration b) Brake light configuration Overview Welcome to Bontragar’s TRANSMITR /ANT+ compatible lighting ecosystem of products. This manual supports the TRANSMITR Remote, Ion 700 RT head light, and flare RT day/night visible tail light. You’ll find information to support all of Bontrager’s TRANSMITR compatible products in this manual. Please visit Bontrager.com for additional information. Basic guidelines TRANSMITR REMOTE User Guide Transmitr Remote 3 What‟s In the Box A) TRANSMITR Remote B) 22mm Bar Adapter C) Handlebar Mount D) Mount screw E) Remote mounting screws F) 2032 Coin Cell Battery C B A F E D TRANSMITR REMOTE User Guide Pairing the remote to TRANSMITR / ANT+ lights TRANSMITR remote + TRANSMITR / ANT+ lights setup 4 Step 1. Prepare the light(s) for pairing •Press the power button on the light(s) to turn it on, then off again. •Note: Do not press power button on the light(s) again until pairing is complete. Step 2. Put the remote into pairing mode •Press and hold the center button on the remote for at least 8 seconds. •Release the center button when the corner button LEDs begin flashing. •The center button will flash RED indicating that the remote is searching for a light Step 3. Connect to the remote •Place the light(s) close to the remote (within 6 inches). •When the remote finds a light, it will start to flash and the center button on the remote • will change from flashing RED to flashing GREEN. •NOTE: move 15 feet from other TRANSMITR / ANT+ compatible lights to prevent accidental pairing. Step 4. Pairing the light (s) to the desired button (s): While the light is still flashing, quick press and release any button on the remote you would like to pair the light to. The remote will then illuminate the corresponding button, and the light will stop flashing and turn off. Please note: The center button on the remote will turn back to RED until it finds another available ANT+ compatible light. Note: Move unintended RT lights 15’ away from the remote to avoid unintended pairing. Note: If a light is accidentally paired, start pairing process over. Step 5. (if pairing to additional lights) Pairing additional lights to the remote: After a light has been paired to a button on the remote, the center button on the remote will turn back to red as it searches for other Ant+ lights. If the remote finds another ANT+ compatible light, the light will begin flashing and the center button on the remote will turn green again. Repeat step 4 for each additional light desired. Up to 7 lights can be paired to the remote at any time. Please Note: once pairing is finished, any additional lights desired to be added to the system will require the complete pairing procedure. Step 6. Exit Pairing: When all TRANSMITR / ANT+ compatible lights are paired to the desired remote buttons, quickly press and release the center button on the remote to exit pairing mode. It will stop flashing red and turn off. . Pairing the remote to TRANSMITR / ANT+ compatible lights TRANSMITR remote + TRANSMITR lights setup Step 7. Verify pairing: 1.Quickly press and release the center button to turn on all paired lights. Press and hold the center button to turn them off. 2.Quickly press and release each paired button on the remote to turn on the individual light(s). Press and hold the same button to turn the light off. TRANSMITR REMOTE User Guide 5 Controlling Modes and Features Power on/off all lights: •To turn on all lights paired to the remote, quickly press and release the center button. •To turn all paired lights off, press and hold the center button on the remote until lights turn off. •Please Note: that LEDs in the buttons paired to lights will illuminate. Power on/off individual lights: •To turn on an individual light quickly press and release the button that it is paired to. •Press and hold the paired button to turn it off Changing modes of individual lights: •Quickly press and release the paired button to select the desired mode of the corresponding light. Please note: The remote will enable wireless control of the modes in order of the manual operation of the light. TRANSMITR REMOTE User Guide 6 Using the TRANSMITR remote •Each quick press and release of a paired button will change the mode, and provide indication of the mode and battery status of the light. High beam feature: While paired headlights are on, a quick press and release of the …
