O4GUSB22.4GHz USB Dongle

USB 2 User Manual 1. Introduction .......................................................................................................... P.2 2. Transferring Data ................................................................................................ P.2 3. View Your Session ................................................................................................ P.2 4. Features .................................................................................................................. P.3 5. Warranty ............................................................................................................... P.3 6. FCC statement ....................................................................................................... P.4 7. Canada statement .................................................................................................. P.4 1. Introduction Thank you for choosing our USB dongle for transferring your training data stored in your watch to the PC. With these data, you can monitor your training scheme and make adjustment to achieve the best result. 2. Transferring data How to import data from the watch Speed and Distance 3. View you sessions Select the session and view your training data 4. Features Dimension: 60mm * 18mm *8.6mm Weight: 6 gram Transmission range in meter: 4m Operational temperature ‐10°C to +50°C Note: The technical features of this device and contents of this manual may be modified without warning. 5. Warranty This product is guaranteed for 1 year counted from the purchase date. Please keep your receipt as proof of purchases. They warranty does not cover: a) Damage due to misuse, failure to adhere to the precautions of use or accident, nor to incorrect maintenance. b) Damage caused by repairs carried out by individuals not unauthorized person. If you have any feedback on the device, you can contact us at following address: Dayton Industrial Co. Ltd. 2‐12, Kwai Fat Road, 11‐A Kwai Chung, New Territories, Hong Kong Remark: For USB 2.0 device only 6. FCC statement NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CASUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is corrected  Consult the dealer or experience radio / TV technician for help 7. Canada statement IC: 7666A‐USB2 This Device complies with RSS‐210 of IC Rules; Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and users can obtain Canadian information on RF exposure and compliance from the Canadian Representative as seen below: Dynastream Innovations Inc. #201, 100 Grande Blvd. Cochrane, Alberta, Canada T4C 2C1 Phone: 403‐932‐9292 Fax: 403‐932‐6521 Email: [email protected] FCC ID: O4GUSB2 MADE IN CHINA This device complies with part 15 of FCC Rules. Operation is subjected to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

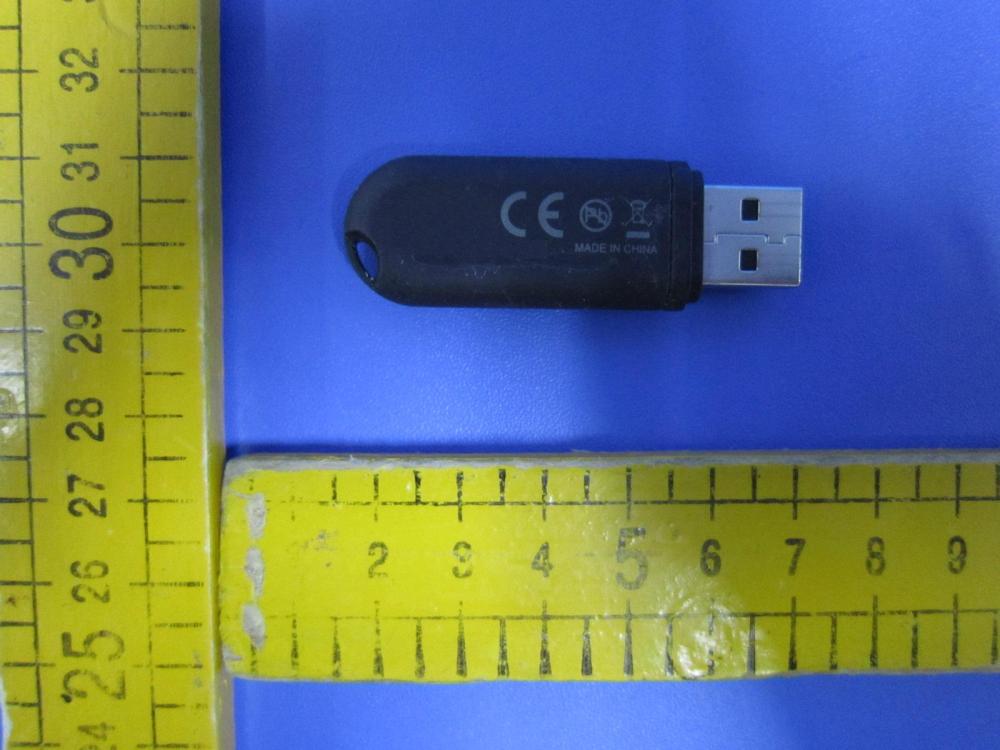

External Photos

Internal Photos

Report Number: 68.950.12.118.01 Page 1 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC - TEST REPORT Report Number : 68.950.12.118.01 Date of Issue: 10 August 2012 Model : USB2 Product Type : USB Dongle Applicant : Dayton Industrial Co., Ltd. Address : 2-12 Kwai Fat Road, 11-A Kwai Chung, New Territories, Hong Kong Production Facility : Kendy Electronics (Dongguan) Ltd. Address : Xingsi Huangtang Village, Hengli Town, Dongguan City, Guangdong Province, P.R.China Test Result :  Positive  Negative Total pages including Appendices : 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.12.118.01 Page 2 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................ 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Conducted Emission AC Power Port......................................................... 8 7.2 Band edge compliance of RF emission...................................................... 12 7.3 Radiated emissions............................................................................... 22 7.4 20dB Bandwidth................................................................................... 26 8 System Measurement Uncertainty................................................................... 30 Report Number: 68.950.12.118.01 Page 3 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test Site 2 Company name: Audix Technology (Shenzhen) Co., Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen Guangdong China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.950.12.118.01 Page 4 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: USB Dongle Model no.: USB2 Brand Name: NIL Options and accessories: NIL Rating: DC 5V from PC via USB Port RF Transmission Frequency: 2403MHz-2480MHz Description of the EUT: NIL Auxiliary Equipment Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) PC Lenovo T400 -- Report Number: 68.950.12.118.01 Page 5 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-1-2011 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Report Number: 68.950.12.118.01 Page 6 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 5 Summary of Test Results Technical Requirements FCC Part 15 Subpart C Test Condition Pages Test Site Test Result Pass Fail N/A 15.207 Conducted Emission AC Power Port 8 Site 2 15.249(d) Band edge compliance of RF emissions 12 Site 2 15.205(a), 15.209(a), 15.249(a), 15.249(c), 15.35 Radiated Emissions 22 Site 2 15.215(c) 20dB bandwidth 26 Site 2 Report Number: 68.950.12.118.01 Page 7 of 30 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture …

Text truncated - open the document above for the full version.

Page 1 of 2 Test setup photos 1. Conducted Emission Test setup Connect to PC Front view: Rear view: Page 2 of 2 2. Radiated Emission Test Connect to PC Blow 1GHz Above 1GHz
