O4M9P23Portable Telephone

About This Manual Please read this manual thoroughly prior to using your phone. This manual is divided into the following sections. Important Safety Information describes safety factors for using electronic products. Guidelines for Safe and Efficient Use describes important information for using your phone. Battery Information contains useful information about rechargeable batteries. Getting Started tells you what you need to know to get your phone out of the box and ready to make calls. Learning About Your Phone describes the parts of your phone to help you get familiar with its operation. Basic Operations gets you started using your phone by describing operations such as placing calls, answering calls, speed dialing, volume control, and microphone muting during a call. Using Menus describes how to access and navigate through menus. Storing and Recalling Numbers In Memory describes how to use the memory features of your phone. Menu Descriptions describes the menus and settings available on your phone. Problems You Can Solve provides an easy-to-use troubleshooting table if you should encounter problems using your phone. The following descriptions will help you understand the information presented in this manual. Names of keys - Key names are shown in Bold type. Some keys have more than one function. When the name of a multiple function key is used, the function which is being referred to is shown in bold type. For example, “To temporary mute the warning beeps, press Mute button”. Any text or numbers which represent something shown on the phone display use a typeface similar to that of the phone display, Search, for example. Soft Key Functions - The right and left soft keys of your phone has multiple functions depending on what menu state its in. They are shown in “block” charac- ter, Menu for example. Illustrations of phone displays in this manual are examples which approximate what is shown in the phone display. What is actually shown in your phone display may vary slightly from what is repre- sented in the illustrations. 071702/R1 2 Table of Contents Table of Contents About This Manual..................................................................1 Important Safety Information.................................................4 Guidelines for Safe and Efficient Use.....................................5 WARRANTY NOTIFICATION..............................................................................7 New Batteries...........................................................................................................8 Battery Use and Care..............................................................................................8 Battery Charging Times..........................................................................................8 Battery Information.................................................................8 Getting Started.........................................................................9 Install the Battery....................................................................................................9 Charging the Battery...............................................................................................9 Charging a Battery Attached to the Phone..........................................................9 Attaching the Belt Clip to your Phone...............................................................10 Removing the Belt Clip from your Phone...........................................................10 Learning About Your Phone....................................................11 Display Indicators.................................................................................................12 Indicator Light Functions.....................................................................................12 Key Functions........................................................................................................13 Turning Your Phone On........................................................................................14 Turning Your Phone Off........................................................................................14 Placing A Call.........................................................................................................14 Basic Operations...................................................................14 Increasing or Decreasing Speaker Volume During a Call.................................14 Reading a Message...............................................................................................14 Temporarily Muting the Ring Tone/Warning Beeps........................................14 ..................................................................................................................................14 Redialing the Last Number You Called...............................................................14 Pause Dialing..........................................................................................................15 Low Battery Power Alert.......................................................................................15 Recalling an Entry..................................................................................................15 Recalling an Entry (cont.).....................................................................................16 Quick Entry Recall.................................................................................................16 Speed Dial...............................................................................................................16 Alarm Button..........................................................................................................16 Summary of Basic Operations..............................................17 Using Menus..........................................................................18 3 Table of Contents Opening Menus...............................................................…

Text truncated - open the document above for the full version.

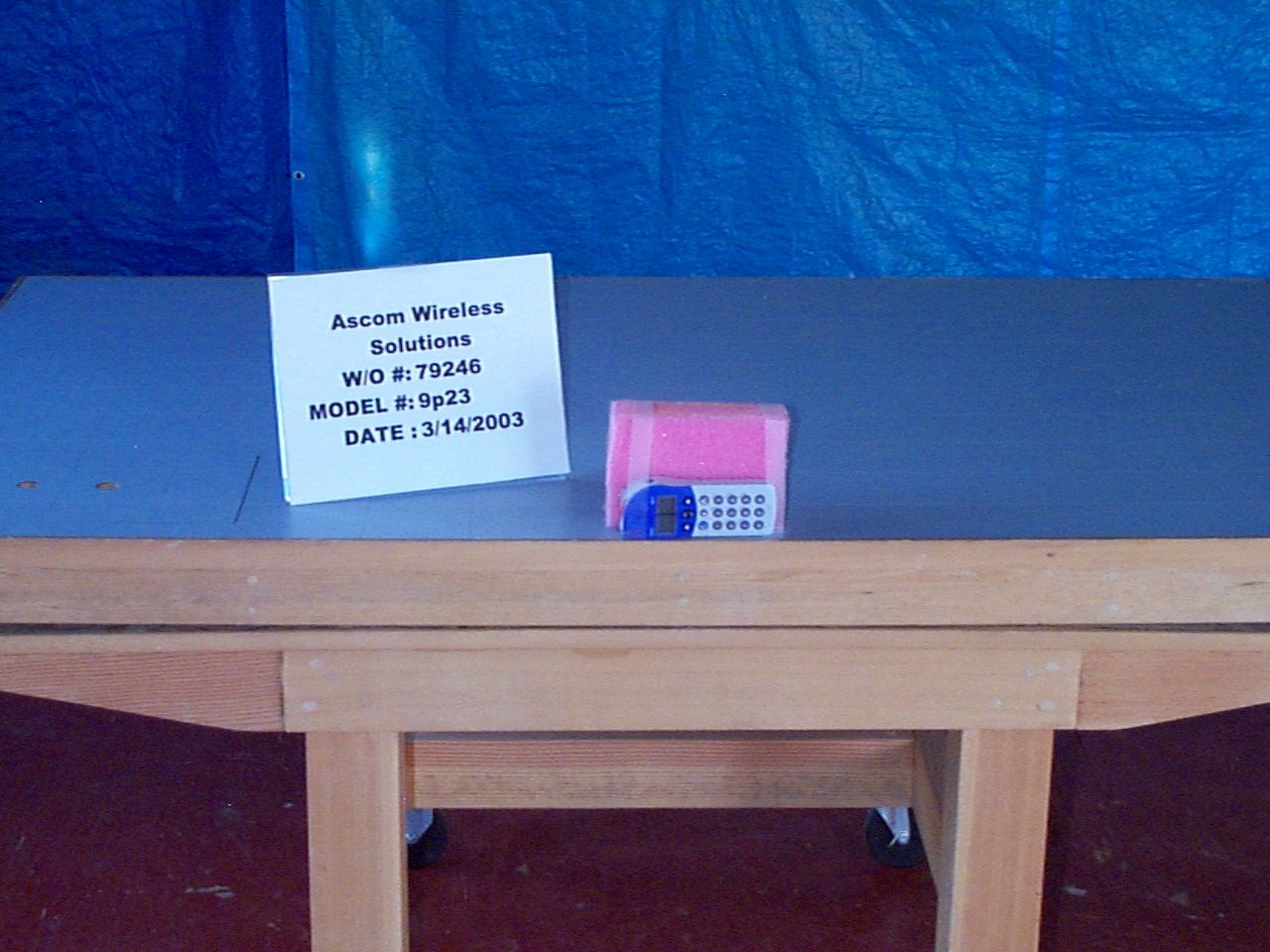

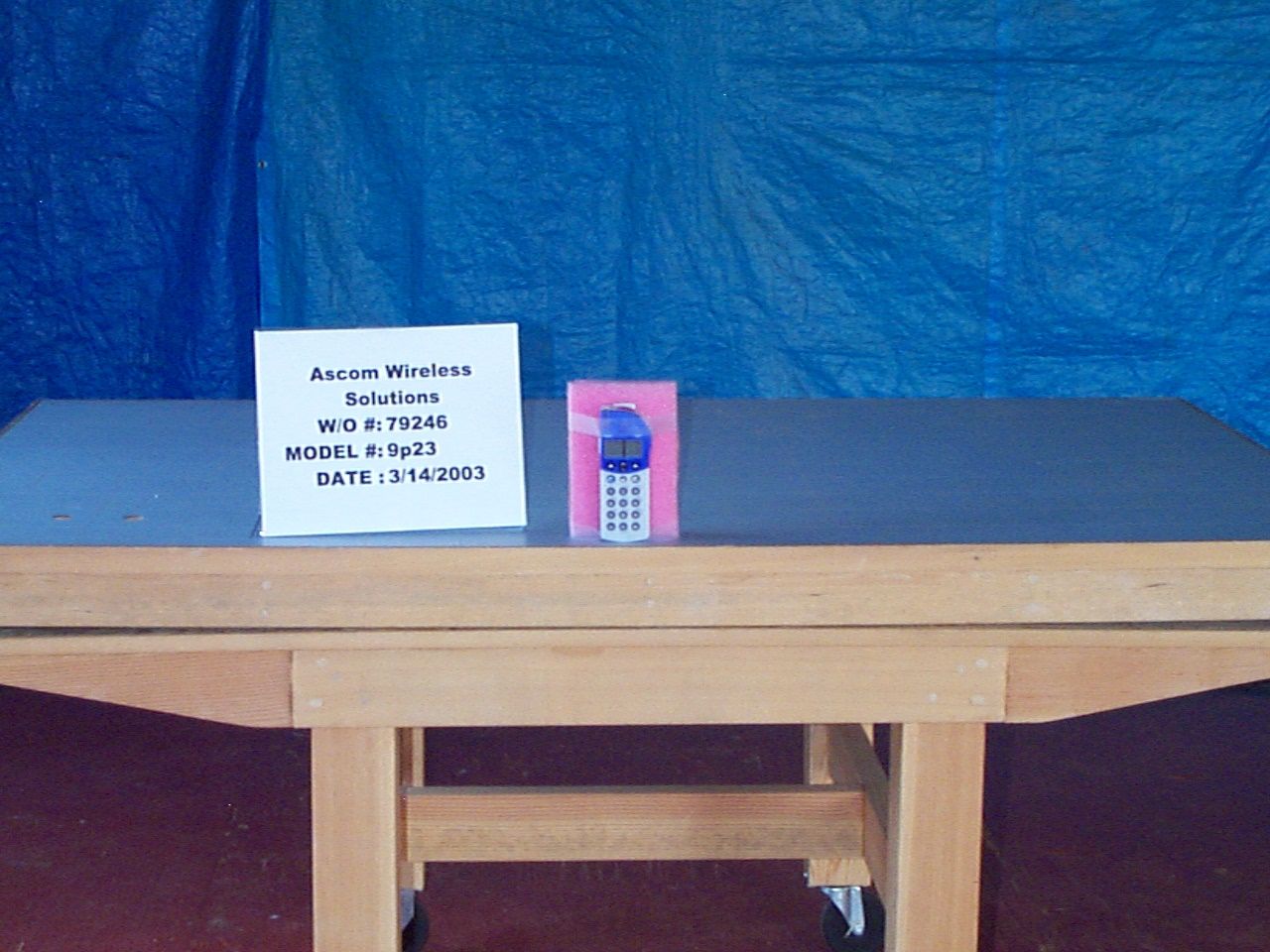

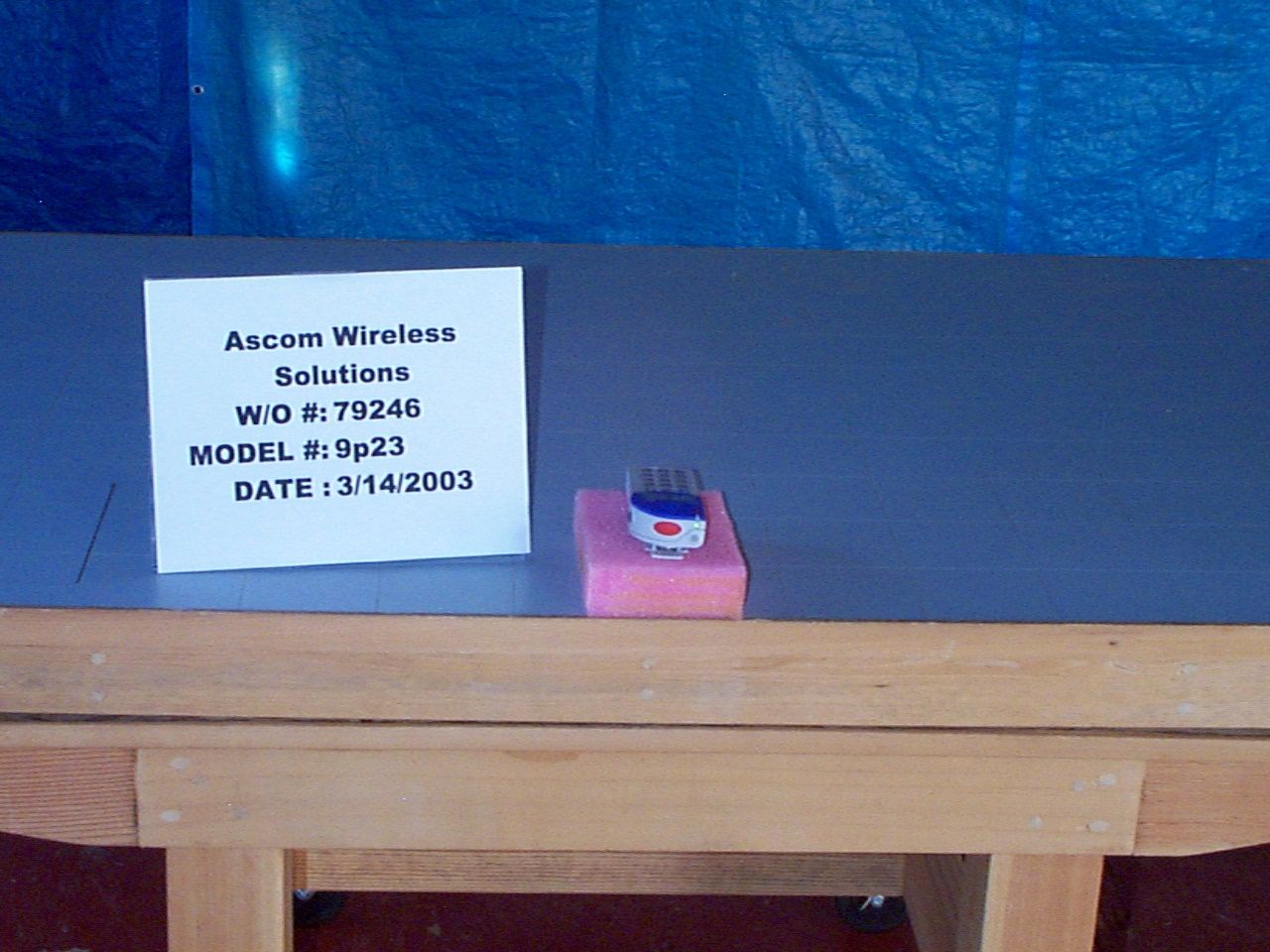

Response to Correspondence Reference Number 24933 for 731 Confirmation Number EA935816 1. The EUT was originally tested using a dry wooden block as a support. The EUT was re-tested using a non-conductive foam block as a support. The field strength was measured from the back of the device at different frequencies corresponding to known emissions from the device. The readings were compared in each of the three orthogonal axes. The field strength readings showed no change from the wooden block to the foam block. Three photos showing the testing with the foam block have been uploaded. 2. The dipole target value we used is 39.7 W/kg. This value was obtained from IEEE 1528 standard. Since we used 0.5 Watts as an input to the dipole, we normalized the measured SAR to 1 Watt and compared that value to the target. We normalized the measured SAR to 1 Watt using the following formula: (1Watt / dipole input) x (measured SAR)= 1 Watt normalized SAR. 3. A revised SAR report has been uploaded. The revised SAR report has data re- measured using the same tune-up procedure CKC Laboratories used during our testing. CKC differences are due to uncertainties between radiated and conducted test methods. OATS measurements include the +/- 4dB NSA deviations in their uncertainties.

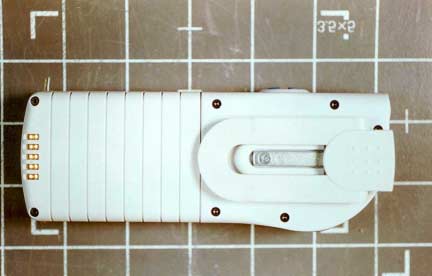

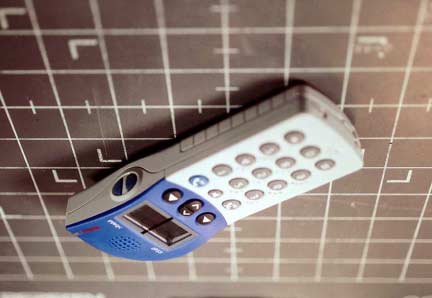

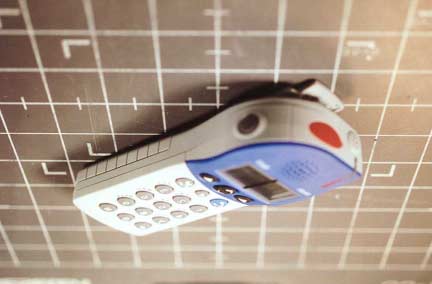

Top Back Side 1 Side 2

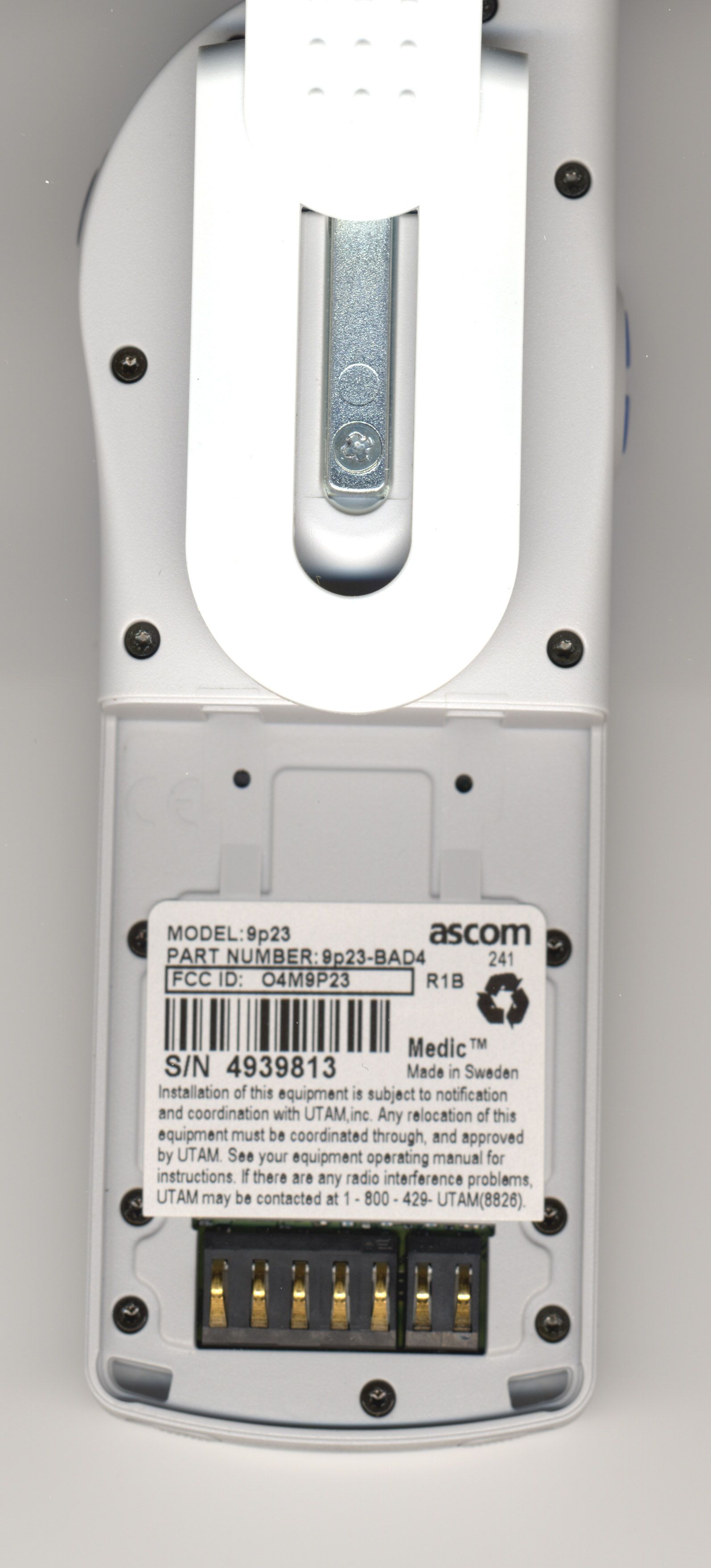

9p23 Product Labelling Ascom? Wireless Solutions Inc. 1 (2) Doc No. Author: Date Rev. File 0621-9p23 M. Weber 11/18/2002 A The 9p23 portable telephone label should be marked as described below. Labels should be placed on the back of the transceiver in accordance to Ascom labeling standard. 9p23 Product Labelling Ascom? Wireless Solutions Inc. 2 (2) Doc No. Author: Date Rev. File 0621-9p23 M. Weber 11/18/2002 A Below is the Industry Canada (IC) label that should be used in 9p23 portable telephone. Notes: 1. Due to differences in factory printing capabilities at various manufacturing facilities, it is acceptable to print the appropriate product labeling information as long as it is a reasonable facsimile of the pictures in this document. 2. Text to be black, legible and of high definition and quality. 3. Serial number must comprise of 7 digits. 4. Bar codes reflect the serial number.

Back with Battery Removed Cover Removed PCB Removed Closeup PCB Top Closeup PCB Bottom Battery

CETECOM Inc. 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Phone: + 1 (408) 586 6200
Fax: + 1 (408) 586 6299
E-mail: [email protected]
http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 g:\emc\projects\ascom_wireless\report\sar_374_2002_fcc_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_374_2002_FCC_1900 for the Ascom Wireless Solutions 1920MHz to 1930MHz Unlicensed PCS Portable Telephone Model Number: 9p23 Date of Report: 11/18/2002 Date of issue: 11/18/2002 Report Copy No.: 01 SAR Test Report No. Date of Report: Page 2 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Contents 1. ASSESSMENT ................................................................................................................ 4 2. ADMINISTRATIVE DATA ................................................................................................ 5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report.............. 5 2.2. Identification of the Client ........................................................................................ 5 2.3. Identification of the Manufacturer ............................................................................ 5 3. EQUIPMENT UNDER INVESTIGATION (EUI)................................................................. 6 3.1. Identification of the Equipment under Investigation ................................................. 6 3.2. Front View of the Equipment under Investigation .................................................... 7 4. SUBJECT OF INVESTIGATION ...................................................................................... 8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria...................................... 8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies .. 8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits..................... 9 4.4. SAR Limit ................................................................................................................ 9 5. THE FCC MEASUREMENT PROCEDURE................................................................... 10 5.1. General Requirements .......................................................................................... 10 5.2. Device Operating Next to a Person’s Ear .............................................................. 10 5.3. Test Positions........................................................................................................ 11 5.4. Test positions of device relative to head................................................................ 11 5.5. Test to be Performed............................................................................................. 14 5.6. Body-worn and Other Configurations.................................................................... 14 5.7. Procedure for assessing the peak spatial-average SAR ........................................ 15 5.8. Determination of the largest peak spatial-average SAR ........................................ 17 6. THE MEASUREMENT SYSTEM.................................................................................... 18 6.1. Robot system specification.................................................................................... 18 6.2. Probe and amplifier specification........................................................................... 19 6.3. Phantoms.............................................................................................................. 19 6.4. SAR measurement procedure ............................................................................... 20 SAR Test Report No. Date of Report: Page 3 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 6.5. SARA2 Interpolation and Extrapolation schemes.................................................. 20 6.6. Interpolation of 2D area scan ................................................................................ 21 6.7. Extrapolation of 3D scan ....................................................................................... 21 6.8. Interpolation of 3D scan and volume averaging..................................................... 21 7. UNCERTAINTY ASSESSMENT ....................................................................................23 7.1. Measurement Uncertainty Budget ......................................................................... 24 8. TEST RESULTS SUMMARY ......................................................................................... 25 8.1. Conducted Output Power ...................................................................................... 25 8.2. Test Method .......................................................................................................... 25 8.3. Head SAR results for GSM 1900MHz band for Willow .......................................... 26 8.4. Body SAR results for GSM 1900MHz band for Willow........................................... 26 8.5. Validation Check Results....................................................................................... 27 9. REFERENCES............................................................................................................... 28 SAR Test Report No. Date of Report: Page 4 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 1. Assessment The Ascom Wireless Solutions Willow Unlicensed PCS Portable Telephone is in compliance with the exposure criteria specified in…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 1 of 20 Tissue Parameters 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Dielectric constants measured on 11/08/2002 11/08/02 21.6°C Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.18 1.415 1920.625 38.74 1.422 1924.375 38.71 1.427 1929.375 38.68 1.434 Conductivity 1.32 1.34 1.36 1.38 1.4 1.42 1.44 1.46 1.48 1.5 1899190719151923 frequency (MHz) conductivity (S/m) 1900 MHz head liquid 1528 std Pe rmittiv ity 37 38 39 40 41 42 43 1899190719151923 frequency (MHz) relative permittivity 1900 MHz head liquid 1528 std +5% -5% SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 2 of 20 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Dielectric constants measured on 11/08/2002 11/08/02 21.6°C Freq. Rel. Condy (MHz) Perm. (S/m) 1900 51.15 1.557 1920.625 51.79 1.569 1924.375 52.3 1.576 1929.375 53.32 1.59 Conductivity 1.4 1.45 1.5 1.55 1.6 1.65 1899190719151923 frequency (MHz) conductivity (S/m) 1900Body liquid 1528 std +5% -5% Permittivity 49 50 51 52 53 54 55 56 57 1899190719151923 frequency (MHz) relative permittivity 1900Body liquid 1528 std +5% -5% Environment 11/08/2002: Temperature: 21.3
C to 23.1
C Humidity: 45% _ 55 % SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 3 of 20 Test Equipment Test Equipment Model Serial Instrument description Supplier/Manufacturer Model Serial No. Calibration (date) Bench top Robot Mitsubishi supplied by Indexsar RV-E2 Serial No. N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by Indexsar SAM 04/02 FT08 N/A 1900MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 11/08/02 1900MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 11/08/02 1900MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/30/2002 Netwok Analyzer Agilent 8753ES US39172511- 04/04/2002- RF Amplifier Vectawave N/A N/A N/A Power Meter Rohde and Schwartz NRVD 836875/020 5/2002 Power Sensor Rohde and Schwartz URV5-Z2 836029/034 5/2002- Power Sensor Rohde and Schwartz URV5-Z2 836029/035 5/2002- SAR Probe IndexSAR IXP-050 S/N 0106 7/10/2002 Probe amplifier Indexsar IXA-010 S/N 043 N/A- Thermometer Control Company 4039 20410549 Due 11/20/2002 SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 4 of 20 IMMERSIBLE SAR PROBE CALIBRATION REPORT Part Number: IXP – 050 S/N 0106 10 th July 2002 Indexsar Limited Oakfield House Cudworth Lane Newdigate Surrey RH5 5DR Tel: +44 (0) 1306 631 233 Fax: +44 (0) 1306 631 834 e-mail: [email protected] SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 5 of 20 INTRODUCTION This Report presents measured calibration data for a particular Indexsar SAR probe (S/N 0106) and describes the procedures used for characterisation and calibration. Indexsar probes are characterised using procedures that, where applicable, follow the recommendations of CENELEC [1] and IEEE [2] standards. The procedures incorporate techniques for probe linearisation, isotropy assessment and determination of liquid factors (conversion factors). Calibrations are determined by comparing probe readings with analytical computations in canonical test geometries (waveguides, boxes and spheres) using normalised power inputs. Each step of the calibration procedure and the equipment used is described in the sections below. CALIBRATION PROCEDURE 1. Equipment Used For the first part of the calibration procedure, the probe is placed in a calibration jig as pictured in Figure 1. In this position the probe can be rotated about its axis by a non- metallic belt driven by a stepper motor. The probe is attached via its amplifier and an optical cable to a PC. A schematic representation of the test geometry is illustrated in Figure 2. A balanced dipole (900 or 1800 MHz) is inserted horizontally into the bracket attached to a second belt (Figure 1). The dipole also can be rotated about its axis. A cable connects the dipole to a signal generator, via a directional coupler and power meter. The signal generator feeds an RF amplifier at constant power, the output of which is monitored using the power meter. The probe is positioned so that its sensors line up with the rotation center of the source dipole. By recording output voltage measurements of each channel as both the probe and the dipole are rotated, the spherical isotropy of the probe can be determined. The calibration process requires E-field measurements to be taken in air, in 900 MHz simulated brain liquid and at other frequencies/liquids as appropriate. When it is necessary to place the probe in liquid, a rectangular box made from PMMA (200mm internal width, 200mm internal height and 100mm internal depth; wall thickness 4mm) is filled with the appropriate liquid and positioned on the stand so that the probe tip is positioned within the liquid (Figure 1). The box is positioned so that its outer surface is 2mm from the dipole. The procedure follows that described in Ref [2]. Section A.5.2.1. 2. Linearising probe output SAR Test Report No.: SAR_374_2002_FCC_1900 Date of Report:11/18/2002 Appendix C Page 6 of 20 The probe channel output signals are linearised in the manner set out in Refs [1] and [2]. The following equation is utilized for each channel: U lin = U o/p + U o/p 2 / DCP (1) where U lin is the linearised signal, U o/p is the raw output signal in voltage units and DCP is the diode compression potential in similar voltage units. DCP is determined from fitting equation (1) to measurements of U lin versus source feed power over the full dynamic range of the probe. The DCP is a characteristic of the schottky diodes used as the sensors. For the IXP-050 probes the DCP values are typically 0.10V (or 20 in the voltag…

Text truncated - open the document above for the full version.

CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 f:\emc\projects\ascom_wireless\report\sar_374_2002_fcc_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_374_2002_FCC_1900 for the Ascom Wireless Solutions 1920MHz to 1930MHz Unlicensed PCS Portable Telephone Model Number: 9p23 FCC ID: 04M9P23 Date of Report: 11/18/2002 Date of issue: 11/18/2002 Report Copy No.: 01 SAR Test Report No. SAR_374_2002_FCC_1900 Date of Report: 11/18/2002 Page 2 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1. ASSESSMENT ...................................................................................................................4 2. ADMINISTRATIVE DATA...................................................................................................5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2. Identification of the Client...........................................................................................5 2.3. Identification of the Manufacturer...............................................................................5 3. EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1. Identification of the Equipment under Investigation ...................................................6 3.2. Front View of the Equipment under Investigation ......................................................7 4. SUBJECT OF INVESTIGATION ........................................................................................8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4. SAR Limit ...................................................................................................................9 5. THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1. General Requirements.............................................................................................10 5.2. Device Operating Next to a Person’s Ear ................................................................10 5.3. Test Positions ..........................................................................................................11 5.4. Test positions of device relative to head..................................................................11 5.5. Test to be Performed ...............................................................................................14 5.6. Body-worn and Other Configurations.......................................................................14 5.7. Procedure for assessing the peak spatial-average SAR .........................................15 5.8. Determination of the largest peak spatial-average SAR ..........................................17 6. THE MEASUREMENT SYSTEM ......................................................................................18 6.1. Robot system specification ......................................................................................18 6.2. Probe and amplifier specification .............................................................................19 6.3. Phantoms.................................................................................................................19 6.4. SAR measurement procedure .................................................................................20 SAR Test Report No. SAR_374_2002_FCC_1900 Date of Report: 11/18/2002 Page 3 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.5. SARA2 Interpolation and Extrapolation schemes ....................................................20 6.6. Interpolation of 2D area scan...................................................................................21 6.7. Extrapolation of 3D scan..........................................................................................21 6.8. Interpolation of 3D scan and volume averaging.......................................................21 7. UNCERTAINTY ASSESSMENT.......................................................................................23 7.1. Measurement Uncertainty Budget ...........................................................................24 8. TEST RESULTS SUMMARY............................................................................................25 8.1. Conducted Output Power.........................................................................................25 8.2. Test Method .............................................................................................................25 8.3. Head SAR results for GSM 1900MHz band for Willow ............................................26 8.4. Body SAR results for GSM 1900MHz band for Willow ............................................26 8.5. Validation Check Results .........................................................................................27 9. REFERENCES..................................................................................................................28 SAR Test Report No. SAR_374_2002_FCC_1900 Date of Report: 11/18/2002 Page 4 of 28 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Mi…

Text truncated - open the document above for the full version.

Page 1 of 100 Report No.: FC02-095 ASCOM WIRELESS SOLUTIONS TEST REPORT FOR THE HANDSET, 9P23 FCC PART 15 SUBPART D, PART 15 SUBPART C SECTIONS 15.207 AND 15.209 & PART 15 SUBPART B SECTIONS 15.107 AND 15.109 CLASS B COMPLIANCE DATE OF ISSUE: JANUARY 8, 2003 PREPARED FOR: Ascom Wireless Solutions 598 Airport Blvd., Suite 300 Morrisville, NC 27560 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 000727 W.O. No.: 79246 Date of test: October 21, 2002 – January 6, 2003 Report No.: FC02-095 This report contains a total of 100 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 100 Report No.: FC02-095 TABLE OF CONTENTS Administrative Information ............................................................................................. 4 Summary of Results......................................................................................................... 5 Conditions for Compliance.............................................................................................. 7 Approvals......................................................................................................................... 7 Equipment Under Test (EUT) Description...................................................................... 8 15.31 Voltage Variation .................................................................................................. 8 15.31 Number Of Channels ............................................................................................. 8 15.33 Frequency Ranges Tested ...................................................................................... 8 15.35 Analyzer Bandwidth Settings ................................................................................ 8 15.205 Restricted Bands .................................................................................................. 9 15.307 UTAM Statement ................................................................................................ 9 15.309 Cross Reference To 47CFR 15 Subpart B........................................................... 9 15.311 Label ....................................................................................................................9 15.317 Antenna Requirements ........................................................................................ 9 15.319(a) Eut Operating Frequency ................................................................................ 9 15.319(b) Modulation Techniques .................................................................................. 9 15.319(c) Peak Transmit Power ...................................................................................... 10 15.319(d) Power Spectral Density................................................................................... 11 15.319(e) Antenna Gain Requirements ........................................................................... 14 15.319(f) Automatic Discontinuation of Transmission ................................................... 14 15.319(i) SAR Information.............................................................................................. 14 Temperature And Humidity During Testing ................................................................... 14 Equipment Under Test..................................................................................................... 14 Peripheral Devices .................................................................................................…

Text truncated - open the document above for the full version.
