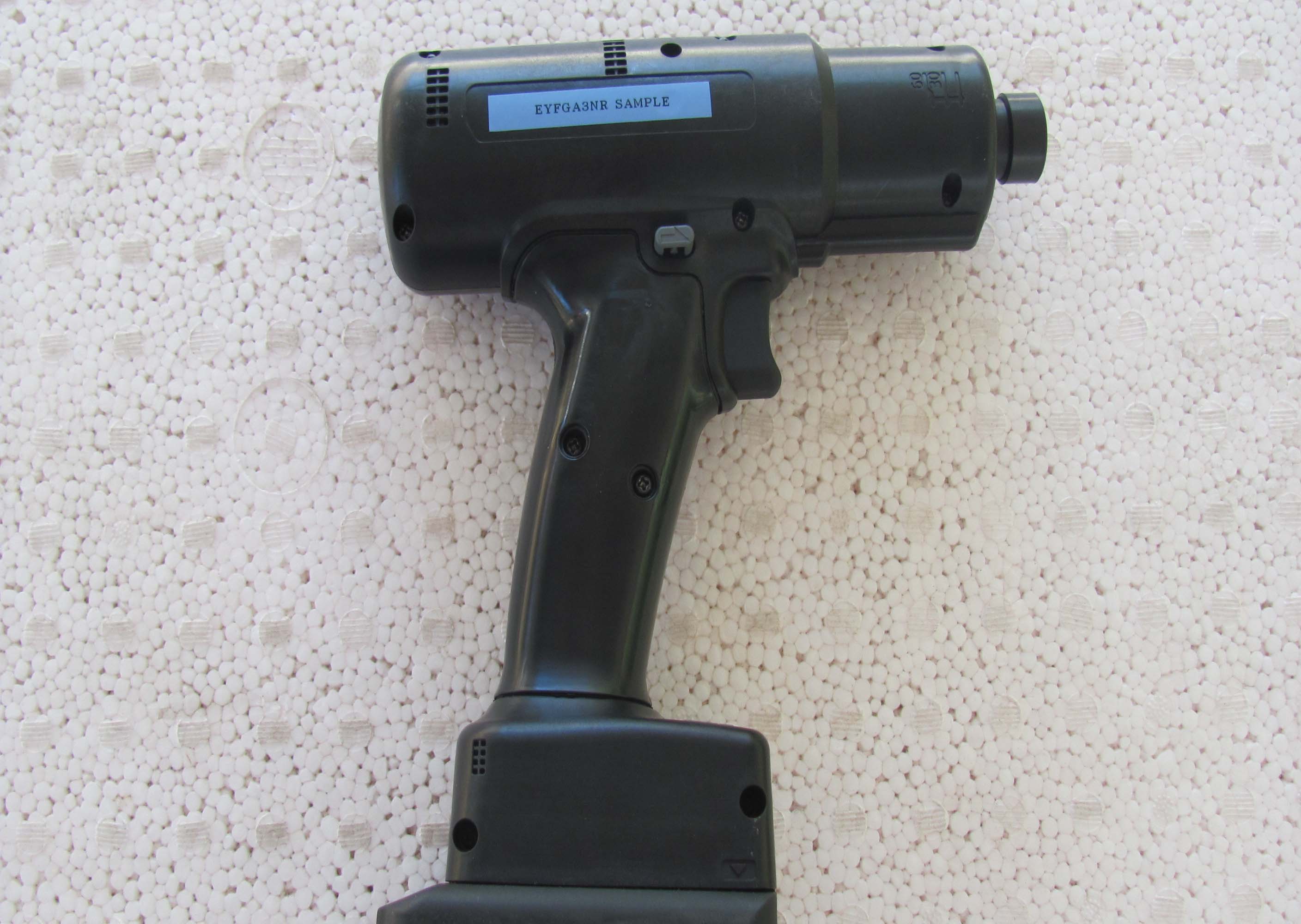

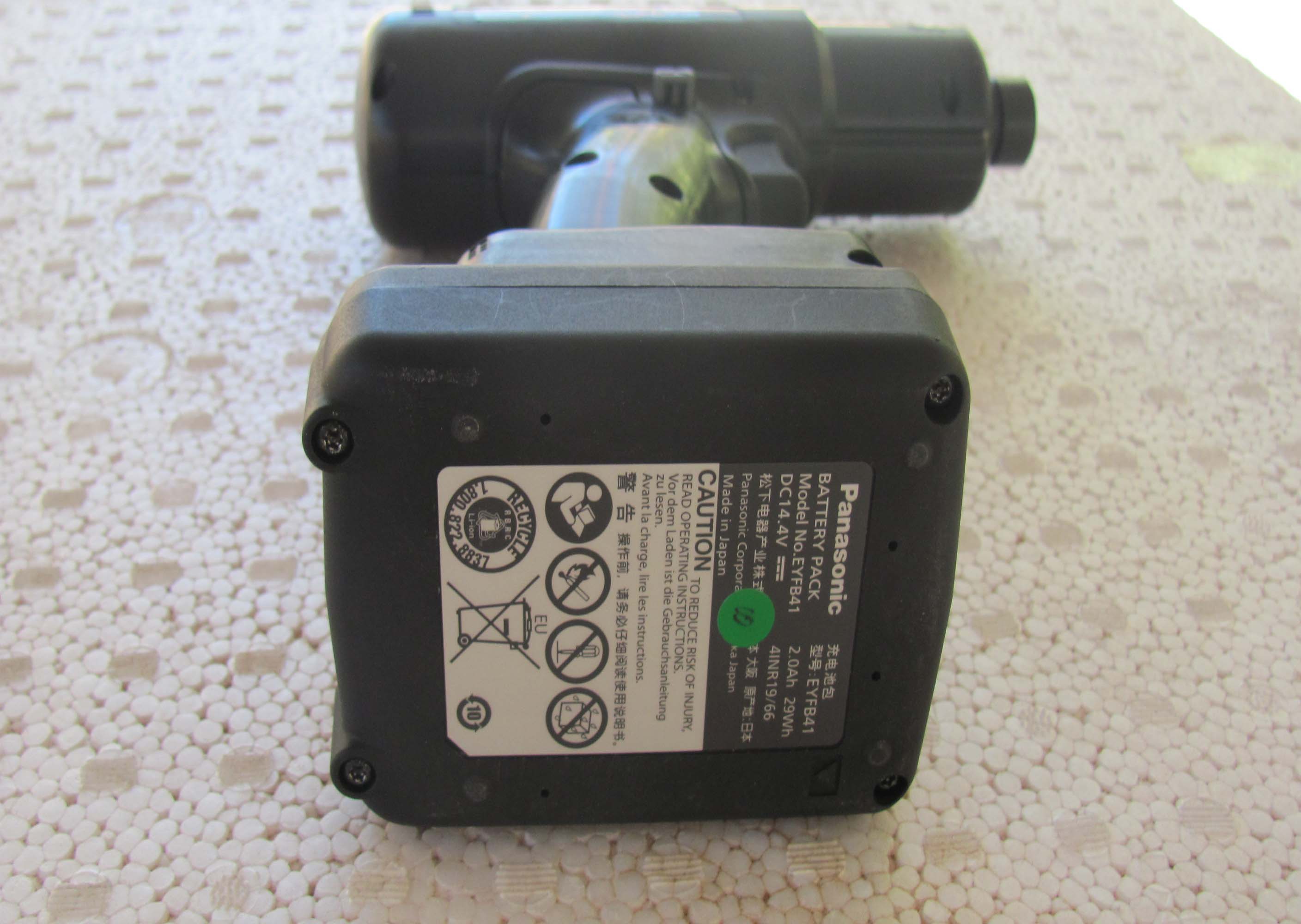

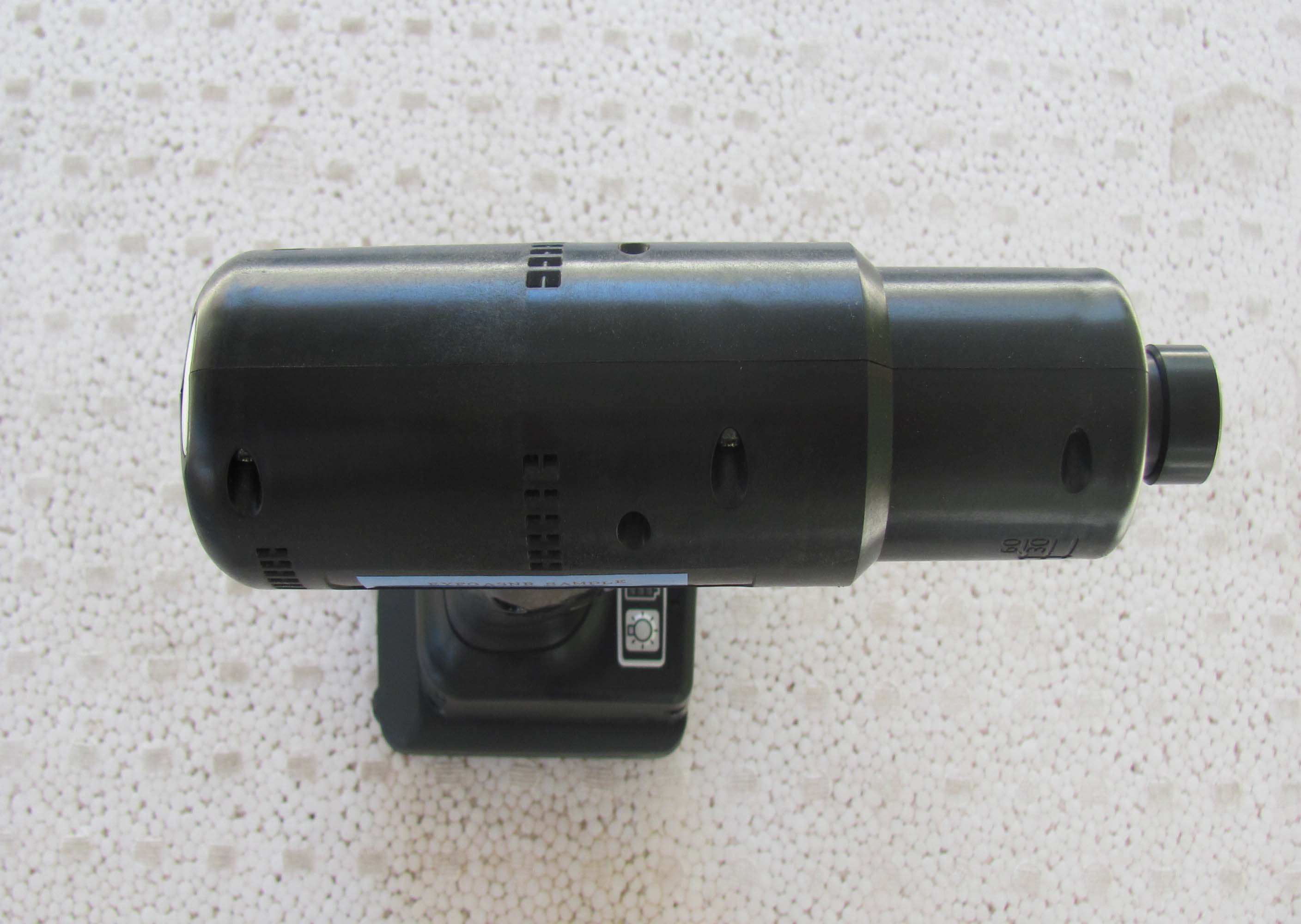

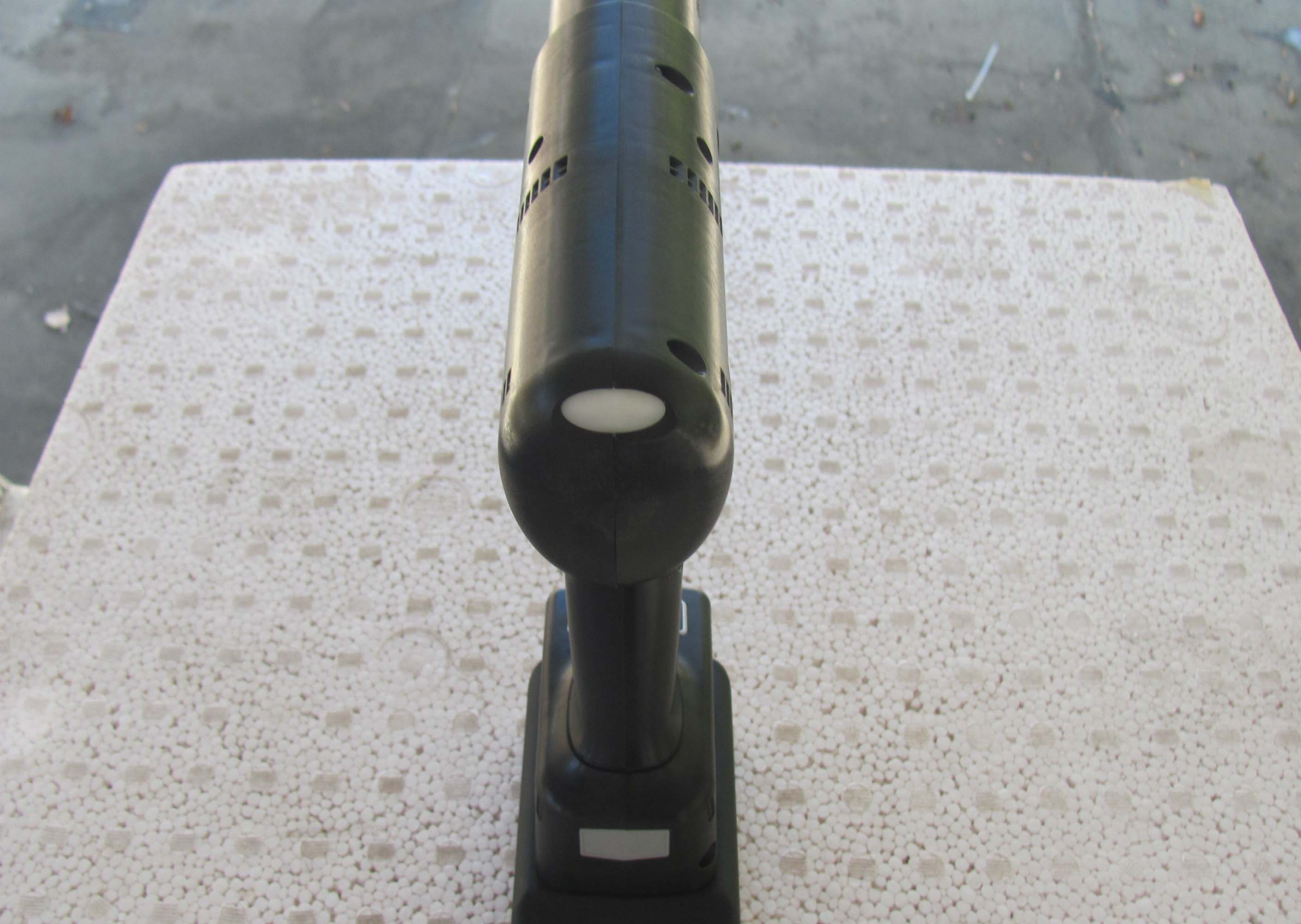

O4O-EYFGACordless Screwdriver

IMPORTANT This manual contains safety information. Read manual completely before first using this product and save this manual for future use. IMPORTANT Ce manuel contient des informations de sécurité. Veuillez lire l'intégralité du manuel avant la première utilisation de ce produit et conservez ce manuel pour les utilisations futures. IMPORTANTE Este manual tiene información de seguridad. Lea todo el manual antes de usar este producto por primera vez y guarde el manual para poderlo consultar en el futuro. Operating Instructions Instructions d’utilisation Manual de instrucciones Cordless Screwdriver Tournevis sans fil Destornillador inalámbrico Model No: EYFGA1N / EYFGA1NR EYFGA2N / EYFGA2NR EYFGA3N / EYFGA3NR -  - (D) (I)(J) (K) (A) (E) (F) (G) (H) (L) (M) (C) (B) EYFA31 A B CD (O) (P) (N) (R) (U) (T) (S) (W) (V) (Q) (X) Index/Index/Indice English: Page4 Français: Page0 Español: Página38 FUNCTIONAL DESCRIPTION DESCRIPTION DES FONCTIONS DESCRIPCIÓN FUNCIONAL Remote control, clutch setting handle and battery are not included. La télécommande, la poignée de réglage de l'embrayage et la batterie ne sont pas incluses. El control remoto, la empuñadura de ajuste de embrague y la batería no están incluidos. - 3 - (A) 6.35 mm (1/4") hex quick connect chuck Mandrin de connexion rapide hexagonal 6,35 mm Mandril hexagonal de conexión rápida de 6,35 mm (B) Clutch shutter Volet d'embrayage Cierre del embrague (C) Hole for tool hanger Trou pour dispositif de suspension de l'outil Orificio para el colgador de la herramienta (D) Tightening confirmation lamp Témoin de confirmation de serrage Lámpara de confirmación de apriete (E) Forward/Reverse lever Levier d’inversion marche avant/marche arrière Palanca de avance/marcha atrás (F) Alignment mark Marques d’alignement Marcas de alineación (G) Remote control receiver Récepteur de la télécommande Receptor de control remoto (H) Control panel Panneau de commande Panel de control (I) LED light on/off button Bouton Marche/Arrêt de la lumière DEL Botón ENCENDIDO/APAGADO de luz LED (J) Battery indication lamp Témoin indicateur de la batterie Lámpara de indicadora de la batería (K) Display Affichage Visor (L) Variable speed control trigger Gâchette de commande de vitesse Disparador del control de velocidad variable (M) LED light Lumière DEL Luz LED (N) Remote control Télécommande Control remoto (O) + button Bouton + Botón + (P) − button Bouton − Botón − (Q) OK button Bouton OK Botón OK (R) D button Bouton D Botón D (S) C button Bouton C Botón C (T) B button Bouton B Botón B (U) A button Bouton A Botón A (V) Holder Support Retenedor (W) Battery Batterie Batería (X) Clutch setting handle Poignée de réglage de l'embrayage Empuñadura de ajuste de embrague - 4 - I. GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) p o w e r t o o l a n d b a t t e r y o p e r a t e d (cordless) power tool. SAVE THESE INSTRUCTIONS Work Area Safety 1) Keep work area clean and well lit. Cluttered or dark areas invite accidents. ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical Safety 1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.  ) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. 3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. 5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Personal Safety 1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in personal injury.  ) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. 3) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in the power tools that have the switch on invites accidents. 4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. 5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. 7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. Power Tool Use and Care 1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for wh…

Text truncated - open the document above for the full version.

C.E. Electronics 2107 Industrial Drive Bryan, OH 43506 419.636.6705 phone 419.636.2516 fax www.ceelectronics.com October 22, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for C.E. Electronics, Inc. 2107 Industrial Drive Bryan, OH 43506 , for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following C.E. Electronics, Inc. product: Battery powered cordless screwdriver with 2.4GHz radio interface under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither C.E. Electronics, Inc. nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, C.E. Electronics, Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing C.E. Electronics, Inc. to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 419-636-6705. Sincerely, Garry L. Courtney President C.E. Electronics

C.E. Electronics 2107 Industrial Drive Bryan, OH 43506 419.636.6705 phone 419.636.2516 fax www.ceelectronics.com October 29 th , 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, C.E. Electronics, would like to declare that the application being submitted for the device with FCC ID: O4O-EYFGA, has not been submitted to another TCB or FCC for certification. If you have any questions, please do not hesitate to contact us at (419) 636-6705. Sincerely, Garry L. Courtney President C.E. Electronics

C.E. Electronics 2107 Industrial Drive Bryan, OH 43506 419.636.6705 phone 419.636.2516 fax www.ceelectronics.com October 22, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, C.E. Electronics, Inc, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at 419-636-6705. Sincerely, Sincerely, Garry L. Courtney President C.E. Electronics

Correspondence by Project Project Number: Correspondence Number Memo O4O-EYFGA-1 1) Please provide the type of modulation used. The type of modulation used is O-QPSK 2) Some of the internal photos are not clear. Please provide internal photos that are more clear. Additional photos have been sent. 3) Please provide corrected schematics. The schematics for the non-RF board do not match the internal photos. Corrected schematics have been sent. Untitled Documenthttp://www.celectronics.com/CorrespondenceByProject.asp?ProjectNum... 1 of 112/5/2013 11:39 AM

12.3mm 48.3mm

SAR TEST EXCLUSION This device is excluded from SAR testing by the following justifications. The device meets the requirements for SAR exclusion using a 5 mm test separation distance. See the table below for all powers and exclusion calculations. The formula used, see below, is from section 4.3.1 of KDB 447498. [( max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm )]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Frequency of worst case Field Strength Worst Case Field Strength at 3 Meters (dBuV/m) EIRP (mW) EIRP (dBm) SAR test exclusion results (Limit = <3 for 1-g SAR and <7.5 for 10-g extremity SAR) 2.435 GHz 95.47 1.06 0.24 0.33

Report Number: B31003D1 FCC 15.249 Test Report Cordless Screwdriver Model: EYFGA1NR Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15, SUBPART B FCC 15.249 TEST REPORT TEST METHOD: ANSI C63.4: 2009 For CORDLESS SCREWDRIVER Model: EYFGA1NR Prepared for C.E. ELECTRONICS, INC. 2107 INDUSTRIAL DRIVE BRYAN, OHIO 43506 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: NOVEMBER 8, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 17 27 67 This report shall not be reproduced, except in full, without the written approval of Compatible Electronics. Report Number: B31003D1 FCC 15.249 Test Report Cordless Screwdriver Model: EYFGA1NR Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY .................................................................................................................. 4 SUMMARY OF TEST RESULTS ................................................................................................................... 5 1. PURPOSE............................................................................................................................................................ 6 2. ADMINISTRATIVE DATA .............................................................................................................................. 7 2.1 Location of Testing ........................................................................................................................................................ 7 2.2 Traceability Statement ................................................................................................................................................... 7 2.3 Cognizant Personnel ...................................................................................................................................................... 7 2.4 Date Test Sample was Received .................................................................................................................................... 7 2.5 Disposition of the Test Sample ...................................................................................................................................... 7 2.6 Abbreviations and Acronyms ........................................................................................................................................ 7 3. APPLICABLE DOCUMENTS .......................................................................................................................... 8 4. Description of Test Configuration ..................................................................................................................... 9 4.1 Description of Test Configuration – (Emissions) .......................................................................................................... 9 4.1.2 Cable Construction and Termination ....................................................................................................................... 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT ..................................................................... 11 5.1 EUT and Accessory List .............................................................................................................................................. 11 6. TEST SITE DESCRIPTION ........................................................................................................................... 12 6.1 Test Facility Description .............................................................................................................................................. 12 6.2 EUT Mounting, Bonding and Grounding .................................................................................................................... 12 7. Test Procedures ................................................................................................................................................. 13 7.1 RF Emissions ............................................................................................................................................................... 13 7.1.1 Conducted Emissions Test ....................................................................................................................................... 13 7.1.2 Radiated Emissions Test .......................................................................................................................................... 14 7.1.3 RF Emissions Test Results ....................................................................................................................................... 16 8. CONCLUSIONS ............................................................................................................................................... 17 Report Number: B31003D1 FCC 15.249 Test Report Cordless Screwdriver Model: EYFGA1NR Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos  Test Setup Diagrams  A…

Text truncated - open the document above for the full version.
