O4Y1004849MHz WALKIE TALKIE

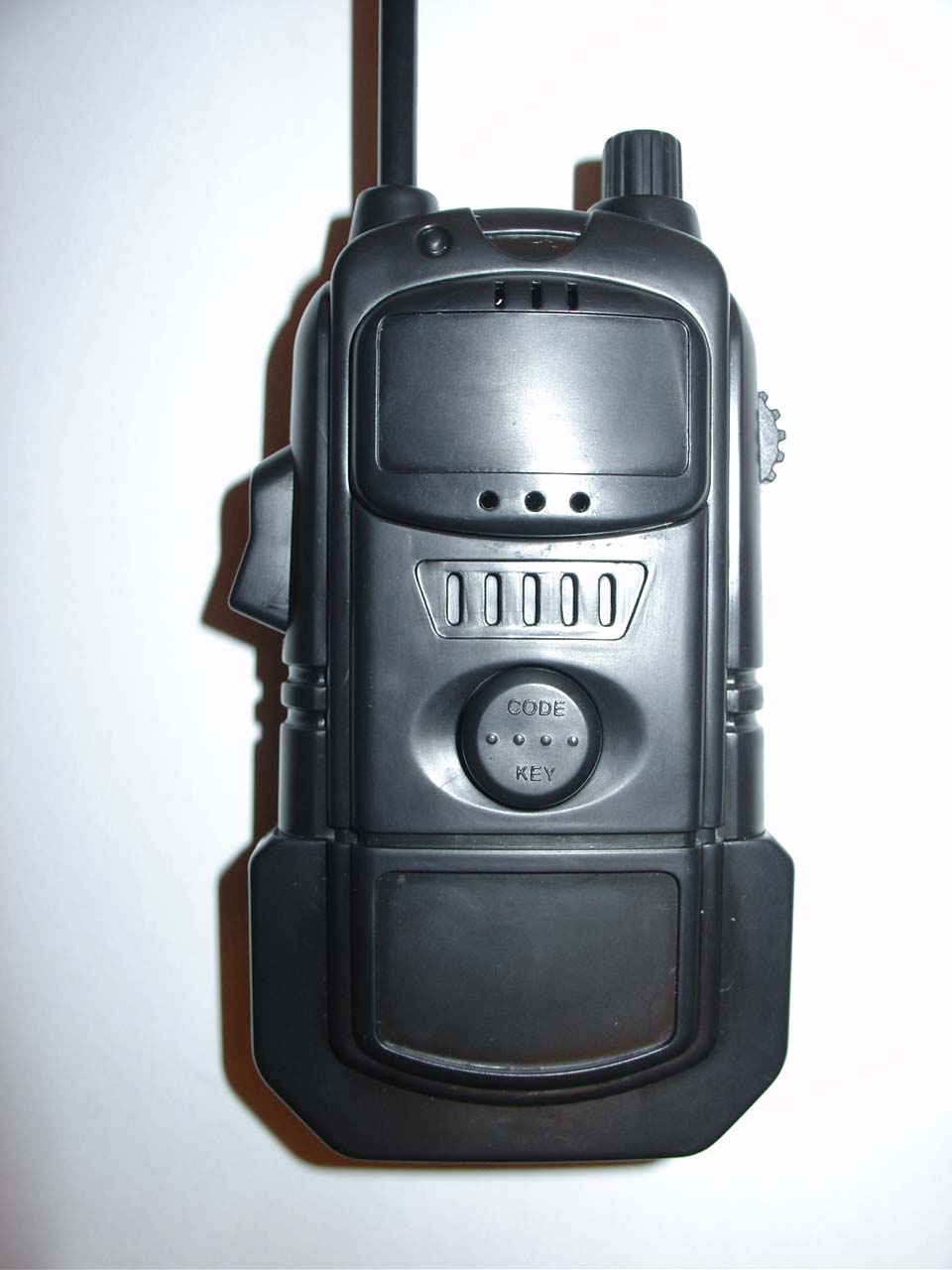

200 TOY (HK) LTD. FCC ID: O4Y10048 EXTERNAL PHOTOS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE FCC ID : O4Y10048 MADE IN CHINA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE FCC ID : O4Y10048 MADE IN CHINA

200 TOY (HK) LTD. FCC ID: O4Y10048 INTERNAL PHOTOS

FCC PART 15.235 TYPE APPROVAL TEST REPORT APPLICANT 200 Toy (HK) Ltd. Room 1009, 10/F,Houston Centre, 63 Mody Road Kowloon Hong Kong FCC ID O4Y10048 MODEL NUMBER 10048 PRODUCT DESCRIPTION 49 MHZ WALKIE TALKIE DATE SAMPLE RECEIVED April 4, 2006 DATE TESTED April 10, 2006 TESTED BY Nam Nyguen APPROVED BY Mario R. de Aranzeta C.E.T. TIMCO REPORT NO. 691AHT6TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10048 REPORT: C:\Ready_To_Convert\Doc\649228.DOC Page 2 of 9 TABLE OF CONTENTS GENERAL INFORMATION......................................................... 3 EMC EQUIPMENT LIST.......................................................... 4 TEST PROCEDURE.............................................................. 5 RADIATION INTERFERENCE...................................................... 6 OCCUPIED BANDWIDTH.......................................................... 7 OCCUPIED BANDWIDTH.......................................................... 7 TEST SET UP PHOTO........................................................... 9 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10048 REPORT: T\TWOO4Y\691AHT6\691AHT6TestReport.doc Page 3 of 9 GENERAL INFORMATION DUT specification The test results relate only to the items tested. FCC ID O4Y10048 Model Number 10048 Serial Number N/A Product Description 49 MHz Walkie Talkie Operating Frequency 49.9 MHz Max. output power N/A Type of Modulation N/A Primary Power Battery Exclusively EUT Power Secondary Power N/A Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Rational for selecting test configuration(s) No deviation from technical specifications. Modification to the DUT No modification was made to the DUT during testing. Test exercise (e.g software description, test signal, etc.) The EUT was set in continuous transmit mode of operation. Test standards FCC Part 15, Subparts B and C, ANSI C63.4 - 2003 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10048 REPORT: T\TWOO4Y\691AHT6\691AHT6TestReport.doc Page 4 of 9 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Statement of Traceability: All calibrations have been performed in accordance with ISO/IEC 17025 requirements. APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10048 REPORT: T\TWOO4Y\691AHT6\691AHT6TestReport.doc Page 5 of 9 TEST PROCEDURE General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Radiation interference: The test procedure used was ANSI STANDARD C63.4- 2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. Formula of conversion factors: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI standard C63.4-2003 10.1.7 measurement procedures: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10048 REPORT: T\TWOO4Y\691AHT6\691AHT6TestReport.doc Page 6 of 9 RADIATION INTERFERENCE Rules part No.: 15.235 Requirements: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M Test procedure: The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes Test data: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity V/H Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.9 49.86 43.0 V 0.50 11.07 54.57 25.43 49.9 49.86 37.3 H 0.50 11.20 49.00 31.00 49.9 199.44 4.5 H 0.90 17.32 22.72 20.78 49.9 199.44 3.6 V 0.90 17.22 21.72 21.78 49.9 448.73 4.3 V 1.25 16.56 22.11 23.89 49.9 149.58 4.6 V 0.70 14.11 19.41 24.09 49.9 99.72 6.5 V 0.65 11.55 18.70 24.80 49.9 149.58 3.1 H 0.70 14.32 18.12 25.38 49…
