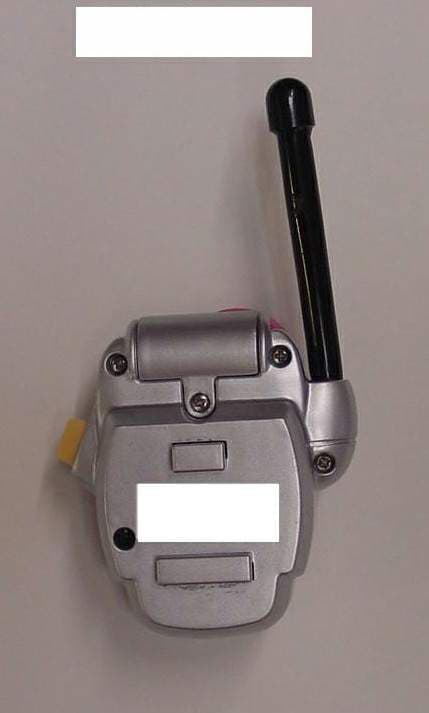

O4Y1006149.82-49.90 MHz WALKIE TALKIE-TX PORTION

U FCC ID Label Sample for FCCID: O4Y10061 (MODEL: 10061)_ FCC ID: O4Y10061 MADE IN CHINA

Schematic Diagram 49.82-49.90 MHz

THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 COVER SHEET Test Report Product Name: 49.82-49.90MHz Walkie Talkie – TX portion FCC ID: O4Y10061 Applicant: 200 TOY (HK) LTD. Room 1009, 10/F, Houston Centre, 63 Mody Road, Kowloon, Hong Kong Date Receipt:08/16/2005 Date Tested: 08/17/2004 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10061 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE 15.235TEST DATA PAGE 6.............RADIATION INTERFERENCE 15.209TEST DATA PAGE 7.............OCCUPIED BANDWIDTH PAGE 8.............OCCUPIED BANDWIDTH PLOT PAGE 9.............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS EXHIBITS CONTAINING: EXHIBIT 2..........BLOCK DIAGRAM EXHIBIT 3..........SCHEMATIC EXHIBIT 4A-4B......PARTS LIST EXHIBIT 5..........INSTRUCTION MANUAL EXHIBIT 6..........SAMPLE OF FCC ID LABEL EXHIBIT 7..........LOCATION OF FCC ID LABEL EXHIBIT 8..........EXTERNAL PHOTO - FRONT SIDE EXHIBIT 9..........EXTERNAL PHOTO - BACK SIDE EXHIBIT 10.........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11.........INTERNAL PHOTO - COPPER SIDE EXHIBIT 14.........CIRCUIT DESCRIPTION THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 1 of 9 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2006.04.23. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2006.04.23 Spectrum Display 85662A Hewlett Packard 2542A12429 2006.04.23. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2006.04.23. RF Preselector 85685A Hewlett Packard 2648A00504 2006.04.23 Pre-Amplifier 8449B Hewlett Packard 3008A00375 2006.04.23. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2006.04.23. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2006.04.23. Bico-Antenna 94455-1 Eaton 977 2007.04.01. Log-Periodic Antenna 3146 EMCO 2051 2007.04.01. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2007.04.01. Horn Antenna SAS-571 A.H Systems 414 2007.04.01. Spectrum Analyzer R3261C Advantest 71720189 2006.04.23 LISN KNW-242 Kyoritsu 8-923-2 2007.04.25. LISN 8012-50-R- 24 Solar 8379121 2007.04.25.. Loop Ant 6507 EMCO 1435 2005.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2006.04.23. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2006.04.23. Frequency Counter CMC251 Tektronic CMC-251TW52489 2006.04.23. Audio Generatior Ken AG203 Kenwood - 2007.07.05 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 2 of 9 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRU Lab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 31ºC with a humidity of 70%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-2003 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 3 of 9 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10061 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv/m PK Limit dBuv/m AV Margin dBuv/m AV 49.855 46.7 H 1.5 10.9 1.0 58.6 80 -21.4 49.855 48.9 V 2.10 10.9 1.0 60.8 80 -19.2 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-2003. According to FCC 47CFR15.35, the limit on the radio frequency Emissions as measured using instrumentation with a peak detector Function, corresponding to 20dB above the maximum permitted Average limit for the frequency being investigated unless a Different peak emission limit is otherwise specified in the rules. The EUT was modulated 1KHz using Audio Signal Generator. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUI…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003 THRU Lab & Engineering. RM302,Bokjo,29-15 , Chongpa3-Dong Yongsan-Gu, Seoul, Korea 81221095059F81221095056 email [email protected] APPLICANT: 200 Toy (HK) Ltd. FCC ID: O4Y10061 REPORT #: THRU-508003
