O55137800Wireless Fixed Phone

Contents- Viva Heat 137 Basic Information ................................................................................................ 2 Brief Introduction ..................................................................................................... 2 Safety Notice ............................................................................................................. 2 Cleaning and Maintaining ........................................................................................ 2 Before Using ........................................................................................................ 2 SIM ........................................................................................................................... 3 Phone Unlock ........................................................................................................... 3 SIM Unlock ............................................................................................................... 3 Function menu Introduction ............................................................................... 3 Call logs ................................................................................................................... 3 Phonebook ................................................................................................................ 4 Profiles ................................................................................................................. 5 Settings ..................................................................................................................... 5 Phone settings ....................................................................................................... 5 Security settings ................................................................................................... 7 Restore Factory Settings ....................................................................................... 8 Messages................................................................................................................... 8 Write message ...................................................................................................... 8 Inbox ..................................................................................................................... 8 Drafts .................................................................................................................... 8 Outbox .................................................................................................................. 8 Sent messages ....................................................................................................... 8 SMS settings ......................................................................................................... 9 Tools ......................................................................................................................... 9 Tasks ..................................................................................................................... 9 Calculator ............................................................................................................. 9 FM radio ............................................................................................................... 9 Alarm ...................................................................................................................... 10 Calendar ................................................................................................................. 10 STK ......................................................................................................................... 10 Appendix ................................................................................................................. 10 2 Basic Information Brief Introduction Thank you for choosing VIVA HEAT 137 mobile phone. You can read the manual, a comprehensive understanding of the use of mobile phones and enjoy its perfect functionality and simple method of operation. VIVA HEAT 137 supports two SIM cards function.In addition to basic call functions, but also to provide you with phone book, personalized ring tones, alarm, camera, image viewer, video recorder, video player, audio player, FM, One Memory Card (T-Flash card), calculator, calendar etc. A variety of practical features to facilitate your work and leisure activities, in addition, VIVA HEAT 137 interface with personalized mobile phone design, its perfect functionality to meet your needs. Our Company reserves without any prior notice the contents of this manual under the right to make changes. Safety Notice If your phone is lost or stolen, immediately notify the telecommunications sector, or its outlet, to disable the SIM. This will allow you to take phone calls from other economic loss arising. To make you more secure use of mobile phones, please take precautionary measures, such as: - Set up mobile phone SIM card PIN password, PIN password to prevent your SIM is unauthorized use by others. Cleaning and Maintaining Do not use the bathroom where high humidity, cell phone, battery and charger, the same should also avoid the rain. Use a soft, dry cloth to clean the phone, battery and charger. Dirt outlet will lead to poor contact, power-down, which does not charge, regular cleaning. Before Using 3 SIM Before using your phone you must insert a valid SIM (Subscriber Identity Module) card. SIM card provide by the network provider. Warning: Be sure to remove the SIM phone off before. There is absolutely prohibited in the case of an external power supply connected to insert or remove the SIM, or SIM card and mobile phone may be damaged. Phone Unlock In order to prevent illegal use, your phone can set the phone lock password protected. Use this function,you must enter the phone lock password so that you can unlock the phone into the normal use state. Enter the phone lock password, press the LS…

Text truncated - open the document above for the full version.

SWAGTEK Date: November 27, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O55137800 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Soundmax Electronics Limited ................................................ Signature Charles Cheng / Manager ................................................ Typed name and Title

SWAGTEK FCC ID: O55137800 POWER OF ATTORNEY Date: November 28, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on November 27, 2016. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SWAGTEK are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ................................................................................. Signature Charles Cheng / Manager ................................................................................. Typed name and Title SWAGTEK

SWAGTEK Date:2015-11-16 Subject: authorization for adding family models To whom it May concern, Statement We would like to confirm the models Viva Heat 137, LOGIC F1 , LOGIC FIXO 800 are same in all respects, Only the model names are different . [signature] [Charles Cheng] [Manager] [SWAGTEK]

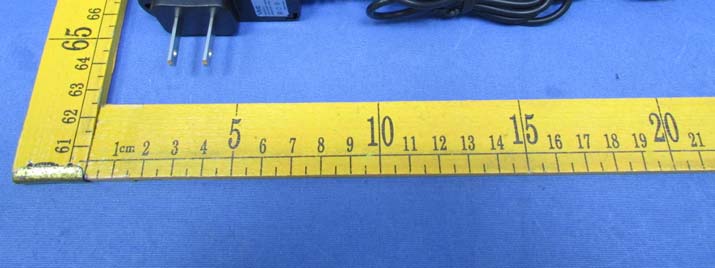

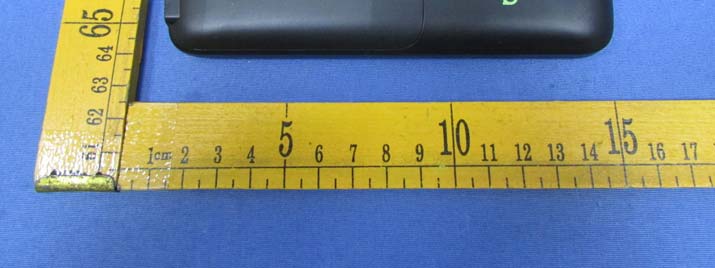

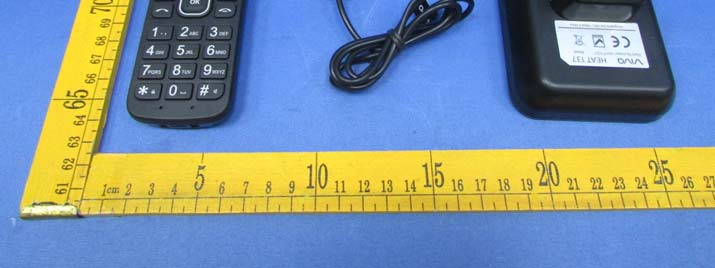

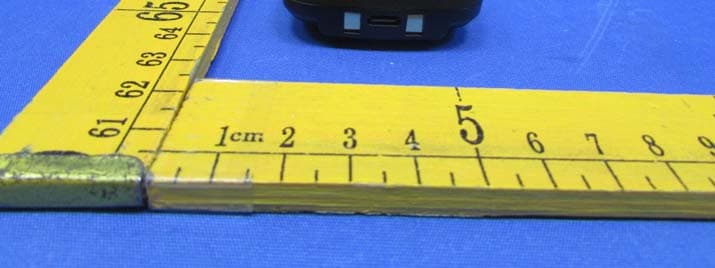

Appendix-Photos EUT –Model Viva Heat 137 External View Appendix-Photos Appendix-Photos Appendix-Photos Appendix-Photos

FCC Label Sample and Location for model: Viva Heat 137 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Appendix-Photos EUT –Model Viva Heat 137 Internal View GSM ANT. Appendix-Photos Appendix-Photos Appendix-Photos =====End of Report======

Ite m Material code Part NumberDescriptionManufacture Quanti ty Location 1 SZXPIC0284 MT6261MA/BGSM/GPRS/EDGE-RX Baseband ProcessMTK1 U1000 2 SZXPIC0323 HS8269SRF PAHTX1 U601 3 SZXPIC0412 AW5007ASTREZ-FM ICAW1 U603 SZFLJS0052 TZ1689ACrystal_26M-10ppm-7.3pf-3225TST SZFLJS0051 7M26000028Crystal_26M-10ppm-7.5pF-3225TXC SZFLJS0144 CXC3X260000GHVRT30Crystal_26M-10ppm-7.3pf-3225PARTRON SZFLTR0146 DTC143ZEchangdian SZFLTR0167 SBT5833T1GSIG 6 SZFLEM0164 PESDHC2FD7VUTVS(7V,230W,73pF,DFN1006-2L)Prisemi1 T701 SZFLTR0166 WPT2N32-6/TRWILL SZFLTR0024 MC2539MC 8 SZFLLE0164 L-SP194W1D-C01-4T White LED 0603 LEEDCON6 D901,D902,D903,D904,D905,D906,D907,D908 9 SZFLLE0065 LTST-C193KRKT-5A RED LED 0603 LITEON1 D909 SZFLBD0006 BLM15AG601SN1DMURATA SZFLBD0136 GZ1005U601CTFSunlord SZRLRE0054 RC0402JR-070RLYAGEO SZRLRE0323 WR04X000PTLWALSIN SZRLRE0122 RC0402JR-07100RLYAGEO SZRLRE0326 WR04X101JTLWALSIN SZRLRE0084 RC0402JR-071KLYAGEO SZRLRE0309 RC0402FR-071KLYAGEO SZRLRE0328 WR04X102JTLWALSIN SZRLRE0074 RC0402JR-071K5LYAGEO SZRLRE0329 WR04X152JTLWALSIN SZRLRE0450 RC0402JR-073K3LYAGEO SZRLRE0559 WR04X332JTLWALSIN SZRLRE0080 RC0402JR-0710KLYAGEO SZRLRE0336 WR04X103JTLWALSIN SZRLRE0289 RC0402FR-0739KLYAGEO SZRLRE0520WR04X3902FTLWALSIN 15RES 0402 3.3kΩ ±5% 0.063W1 R210 R901,R902,R903 2 Q901 R601,L607,R403,R404,B401,B402,B501,L662 1 1 U202 2 B314,B315 8 R208,R635 14 R201,R203,R205,R307,R312,R904,R905,R906,R907,R 909,R910,R911,R912,R913 R315,R321 R101,R636 2 RES 0402 10kΩ ±5% 0.063W16 10 11 17 12 13 14RES 0402 1.5kΩ ±5% 0.063W U60241 RES 0402 100Ω ±5% 0.063W 5NPN Transistor(SOT-523) RES 0402 0Ω ±5% 0.063W 7charge Transistor（DFN2*2*0.75） Bead 0402 600Ω 100MHZ 300mA RoHS RES 0402 1kΩ ±5% 0.063W 2 RES 0402 39kΩ ±5% 0.063W 3 SZRLRE0520WR04X3902FTLWALSIN SZRLRE0509 RC0402FR-07330KLYAGEO SZRLRE0521 WR04X3303FTLWALSIN SZRLRE0194 RL0805FR-7W0R2LYAGEO SZRLRE0516 WW08PR200FTLWALSIN SZRLC00474 CC0402CRNPO9BNR50YAGEO SZRLC00120 C0402C0G0R5B500NTBEYANG SZRLC00199 CC0402CRNPO9BN2R2YAGEO SZRLC00089 C0402C0G2R2B500NTBEYANG SZRLC00028 CC0402JRNPO9BN220YAGEO SZRLC00091 C0402C0G220L500NTBEYANG SZRLC00036 CC0402JRNPO9BN330YAGEO SZRLC00092 C0402C0G330L500NTEYANG SZRLC00004 CC0402JRNPO9BN101YAGEO SZRLC00093 C0402C0G101L500NTEYANG SZRLC00024 CC0402JRNPO9BN221YAGEO SZRLC00094 C0402X7R221M500NTEYANG SZRLC00452 CC0402KRX7R9BB331YAGEO SZRLC00122 C0402X7R331M500NTBEYANG SZRLC00006 CC0402KRX7R9BB103YAGEO SZRLC00108 C0402X7R103M160NTBEYANG SZRLC00042 CC0402KRX7R7BB473YAGEO SZRLC00643 C0402X5R473M160NTBEYANG SZRLC00002 CC0402KRX5R6BB104YAGEO SZRLC00098 C0402X5R104M100NTEYANG SZRLC00233 CL05A104KO5NNNCSAMSUNG 22Cap 0402 22PF 5% C0G DC50V2 C660,C662 Cap 0402 330PF 5% C0G DC50V1 C213 3 C322,C423 28C663,C664,C666 RES 0805 0.2Ω ̧ ±1% 1/4W Cap 0402 47nF 10% C0G DC16V 1 C633 C311,C313,C205 3 1 C506 R211 R202 1 C635,C637 1 1RES 0402 330kΩ ±5% 0.063W18 20 24 19 29 25 26 Cap 0402 100PF 5% C0G DC50V2 C619Cap 0402 0.5PF ±0.1 C0G DC50V 4 21 23Cap 0402 33PF 5% C0G DC50V Cap 0402 220PF 5% C0G DC50V 27Cap 0402 10nF 10% C0G DC16V Cap 0402 2.2PF ±0.1 C0G DC50V2 C321,C323,C422,C438 Cap 0402 100nF 10% C0G DC10V Viva Heat 137 SZRLC00173 CL05A105KQ5NNNCSAMSUNG SZRLC00099 C0402X5R105M6R3NTEYANG SZRLC00016 CC0402KRX5R5BB105YAGEO SZRLC00015 GRM155R60J105KE19JMURATA 31 SZRLC00141 C0402X5R105M100NTBCap 0402 1uF 10% C0G DC10VEYANG1 C242 32 SZRLC00672 C0402X5R225M100NTBCap 0402 2.2uF 10% C0G DC10VSAMSUNG1 C504 33 SZRLC00102 C0603X5R475M6R3NTDCap 0603 4.7uF 10% C0G DC6.3VEYANG3 C201,C315,C215 SZRLC00642 CL10A226MQ8NRNESAMSUNG SZRLC00103 C0603X5R226M6R3NTKEYANG SZRLLN0143 SDCL1005C3N9STDFSunlord SZRLLN0041 CLH1005T-3N9S-SChilisin SZRLLN0507 SDCL1005C4N3STDFSunlord SZRLLN0628 HCI1005F-4N3S-M8TAI-TECH SZRLLN0042 CLH1005T-4N3S-S-NPChilisin SZRLLN0063 SDCL1005C33NJTDFSunlord SZRLLN0054 CLH1005T-33NJ-S-NPChilisin SZRLLN0271 SDCL1005C47NJTDFSunlord SZRLLN0056 CLH1005T-47NJ-S-NPChilisin SZRLLN0064 SDCL1005CR12JTDFSunlord SZRLLN0062 CLH1005T-R12J-SChilisin 40 SZCTUC0306 MCB03-5K12002-3MICRO USB 5PIN 2 DIPXQ1 J704 41 SZCTEC0367 PH20-0A38F38B3.5 mm Earphone socketHY1 J301 42 SZCTSC0326 SIM04-6K33710H1.8,SIM CARD ConnectorXQ1 J702 43 SZCTBC0333 BTY21-3K32042H6.0，PITCH3.0 Battery connectorXQ1 J203 44 SZCTSF0479 6139_BB SHIELDING6139_BB SHIELDINGXHD1 45 SZCTPB0636 6139_MB_V1.26139_MB_V1.2FISE1 38Inducter 0402 47nH ±5%1 L661 Inducter 0402 33nH ±5%1 L664 R639,R6402 C202,C203,C204,C214,C208,C210,C211,C212,C216,C 209,C245,C320,C501,C502,C617,C612,C702,C703 C615 2 1 39 37 34 Inducter 0402 120nH ±5% 35 36 18 Inducter 0402 4.3nH ±0.3nH 30Cap 0402 1uF 10% C0G DC6.3V Inducter 0402 3.9nH ±0.3nH L660,L663 L606,C618 2 Cap 0603 22uF 10% C0G DC6.3V

Viva Heat 137 Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (CMU 200) measures the Mobile phone device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power Mode Frequency Bands Tune‐up Power GSM GSM850 32.0dBm1dB GSM1900 29.0dBm1dB Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMU 200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Email:[email protected] SAR TEST REPORT Reference No. ................... : WTS15S1136860E FCC ID ................................ : O55137800 Applicant ........................... : SWAGTEK Address ............................. : 10205 NW19th Street,STE101, Miami, FL, 33172, USA Manufacturer .................... : The same as above Address ............................. : The same as above Product Name ................... : Wireless Fixed Phone Model No. .......................... : Viva Heat 137, LOGIC F1, FIXO 800 Trade Name................ .... : VIVA(Viva Heat 137), LOGIC(LOGIC F1), iSWAG(FIXO 800) Standards .......................... : FCC 47 CFR Part2(2.1093) ANSI/IEEE C95.1-1999 IEEE 1528-2013 & Published RF Exposure KDB Procedures Date of Receipt sample .... : Nov, 10, 2015 Date of Test ....................... : Nov, 11 - 12, 2015 Date of Issue ..................... : Nov, 28, 2015 Test Result ........................ : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Test Engineer Philo Zhong / Manager Reference No.: WTS15S1136860E Page 2 of 81 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Email: [email protected] 1 Laboratory Introduction Waltek Service Co., Ltd. is a professional third-party testing and certification organization with multi-year product testing and certification experience Established strictly in accordance with ISO/IEC Guide 65 and ISO/IEC 17025our company has got recognition from CNAS (China National Accreditation Service for Conformity Assessment) and International Laboratory Accreditation Cooperation (ILAC) At the same time, our company has been approved by some authoritative organizations such as EMSD of HongkongULIntertek-ETL SEMKOCSAMETTÜV Rheinland TÜV SÜDSGSNemkoFCC IC of CanadaCPSCTMICO and California Energy Commission (CEC)Since the set-up of our company, we sincerely help our customers to improve their products to achieve relative international standards. We are accepted by various clients in international market and well-known in the same industry. There are several laboratories in our company which are equipped with advanced equipments for fully testing. It can provide testing and certification services for products exported around the world, also it can ensure that the products reach international standards in aspects of safety, electromagnetic compatibility, virulence, energy efficiency, reliability and so on. To enable our customers can get local services more directly and conveniently, and to realize our promise to provide more high quality services. Our company has set up product testing labs in South China and East China (Shenzhen, Dongguan, Foshan, Suzhou and Ningbo). We can provide our clients with accurate test and technical support services in good faith, and actively follow customer demand. These can fully demonstrate Waltek Services concept -- “One-stop Services”. Our company has many experienced engineers and customer service representatives to meet our customer’s demand for a number of tests and provide superb technical guidance and modification service; At the same time we can provide global certification services by our global partners to help our customer’s products to successfully extend to the global market. Reference No.: WTS15S1136860E Page 3 of 81 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Email:[email protected] 2 Contents 1 LABORATORY INTRODUCTION ....................................................................................................................... 2 2 CONTENTS .............................................................................................................................................................. 3 3 GENERAL INFORMATION .................................................................................................................................. 4 4 INTRODUCTION ..................................................................................................................................................... 5 5 SAR MEASUREMENT SETUP .............................................................................................................................. 6 6 EXPOSURE LIMIT ................................................................................................................................................ 15 7 SYSTEM AND LIQUID VALIDATION .............................................................................................................. 16 8 TYPE A MEASUREMENT UNCERTAINTY ..................................................................................................... 24 9 TEST INSTRUMENT ............................................................................................................................................ 27 10 OUTPUT POWER VERIFICATION ................................................................................................................... 28 11 SAR TEST RESULTS ............................................................................................................................................ 30 12 SAR MEASUREMENT REFERENCES .............................................................................................................. 33 13 CALIBRATION REPORTS-PROBE ................................................................................................................... 46 14 SAR SYSTEM PHOTOS .........................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 27 TEST REPORT Reference No. .................... : WTS15S1136856E FCC ID ................................ : O55137800 Applicant ............................ : SWAGTEK Address .............................. : 10205 NW19th Street,STE101, Miami, FL, 33172, USA Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Wireless Fixed Phone Model No. ........................... : Viva Heat 137, LOGIC F1, FIXO 800 Brand............................ : VIVA(Viva Heat 137), LOGIC(LOGIC F1), iSWAG(FIXO 800) Standards........................... : FCC CFR47 Part 22 Subpart H:2014 FCC CFR47 Part 24 Subpart E:2014 Date of Receipt sample .... : Nov.09, 2015 Date of Test ....................... : Nov. 09, 2015 – Nov. 16, 2015 Date of Issue ...................... : Nov.28, 2015 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Test Engineer Philo Zhong / Manager Reference No.: WTS15S1136856E Page 2 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result RF Output Power 2.1046 22.913 (a) 24.232 (c) PASS Peak-to-Average Ratio 24.232 (d) PASS Bandwidth 2.1049 22.905 22.917 24.238 PASS Spurious Emissions at Antenna Terminal 2.1051 22.917 (a) 24.238 (a) PASS Field Strength of Spurious Radiation 2.1053 22.917 (a) 24.238 (a) PASS Out of band emission 22.917 (a) 24.238 (a) PASS Frequency Stability 2.1055 22.355 24.235 PASS Maximum Permissible Exposure (SAR) 1.1307 2.1093 PASS Reference No.: WTS15S1136856E Page 3 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 4 4.2 DETAILS OF E.U.T. .................................................................................................................................... 4 4.3 TEST MODE ................................................................................................................................................ 5 4.4 TEST FACILITY ............................................................................................................................................ 5 5 EQUIPMENT USED DURING TEST ............................................................................................................. 6 5.1 EQUIPMENTS LIST ...................................................................................................................................... 6 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................. 7 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................ 7 6 RF OUTPUT POWER ...................................................................................................................................... 8 6.1 EUT OPERATION ........................................................................................................................................ 8 6.2 TEST PROCEDURE ..................................................................................................................................... 8 6.3 TEST RESULT ............................................................................................................................................. 9 7 PEAK-TO-AVERAGE RATIO ....................................................................................................................... 10 7.1 EUT OPERATION ...................................................................................................................................... 10 7.2 TEST PROCEDURE ................................................................................................................................... 10 7.3 TEST RESULT ........................................................................................................................................... 11 8 BANDWIDTH ................................................................................................................................................... 12 8.1 EUT OPERATION ...................................................................................................................................... 12 8.2 TEST PROCEDURE ................................................................................................................................... 12 8.3 TEST RESULT ........................................................................................................................................... 13 9 SPURIOUS EMISSIONS AT ANTENNA TER…

Text truncated - open the document above for the full version.

Appendix-Photos Photographs – Model Viva Heat 137 Constructional Details Photograph – Conducted Emission Test Setup Test Site 1# Photograph - Spurious Emissions Radiated Test Setup Below 30MHz Test Site 2# Appendix-Photos For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1# Absorbent material Appendix-Photos Photograph – Extreme Condition Test Setup Photograph –2G&3G Conducted Test Setup
