Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
SWAGTEK Family models difference declaration Product Name: 2.8 inch 4G FLIP PHONE Trade Name: LOGIC, iSWAG, UNONU Model Name: F11L, CLAP, VON Difference declaration: All models are the same circuit and RF module, except the model name. Regards, Signature Name: Charles Cheng Date: 2022-10-13
SWAGTEK Agent Authorization Letter (2022-10-13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Charles Cheng / Manager Date/City: 2022-10-13 / Miami Phone: 1-305 421 9938 Fax: 1-305 471 9011 E-mail: [email protected]
SWAGTEK Long Term Confidentiality Request Letter (2022-10-13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: 2.8 inch 4G FLIP PHONE Model No.: F11L, CLAP, VON FCC ID: O55183322 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Schematic Diagram Block Diagram Part List / BOM List / PCB Layout Operational Description Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Charles Cheng / Manager Date/City: 2022-10-13 / Miami Phone: 1-305 421 9938 Fax: 1-305 471 9011 E-mail: [email protected]
SWAGTEK Short Term Confidentiality Request Letter (2022-10-13) Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 RE: Short Term Confidentiality Request For Product: 2.8 inch 4G FLIP PHONE Model No.: F11L, CLAP, VON FCC ID: O55183322 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <SWAGTEK>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which <SWAGTEK> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <SWAGTEK> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Charles Cheng / Manager Date/City: 2022-10-13 / Miami Phone: 1-305 421 9938 Fax: 1-305 471 9011 E-mail: [email protected]

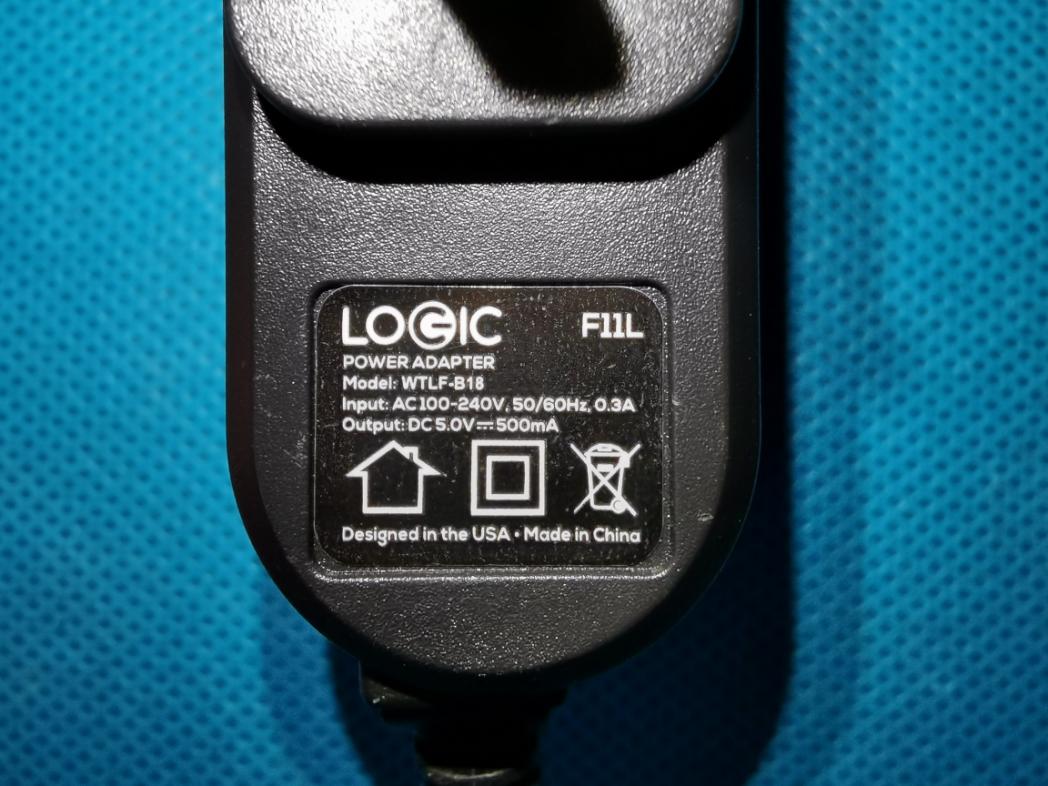

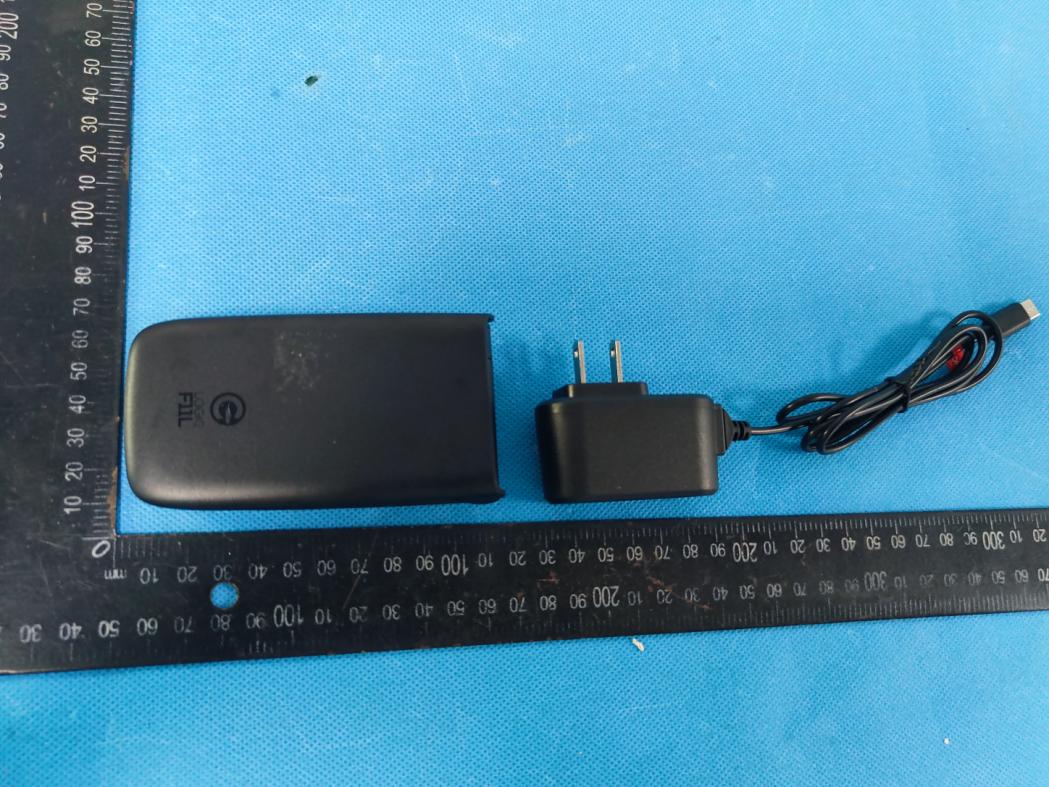

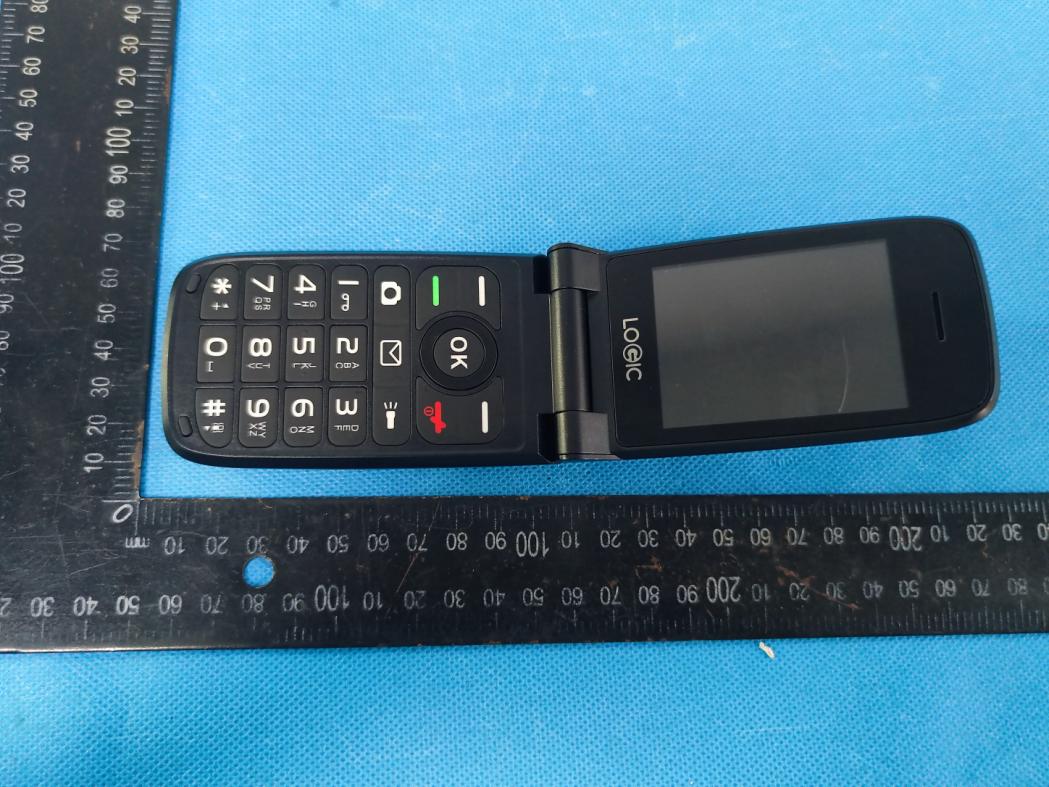

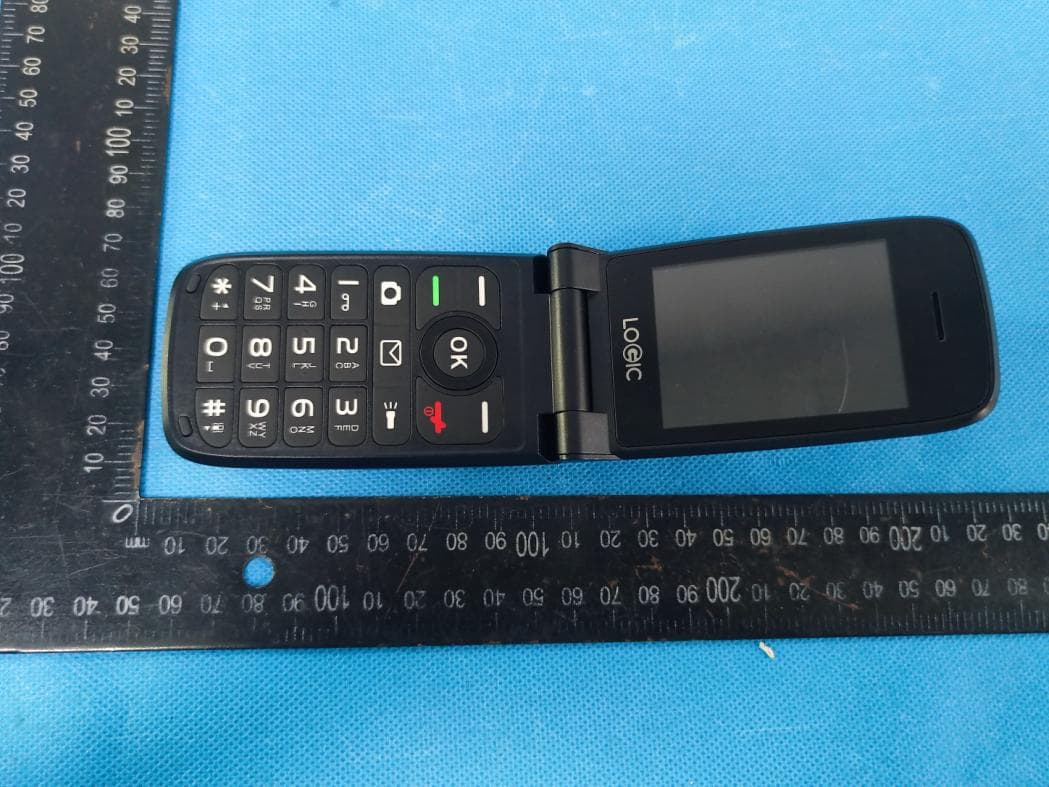

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9
ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 LTE AUX ANT BT ANT Photo 13 GSM/WCDMA/LTE Main ANT
ANWEI commnuication Equipment Co.,Ltd Specification Customer weitu Specs F11L Part Number Frequency Band G4P+W2/5/8/+FDD/2/4/7/12/17/28A/B Color black Edition REV:A Salesperson Mr.Xie Design Tang di Structure Tan yun lin Confirm Date 2022/9/22 Signing Date Customer confirmation: Join hands to create the future Project development environment MIMO antenna 0: (Working frequency band: G4P+W2/5/8/+FDD/2/4/7/12/17/28A/B Matching network: E1=27NH E2=3.3pf MIMO antenna 1 (Working frequency band:G4P+W2/5/8/+FDD/2/4/7/12/17/28A/B Matching network E2=0Ω ANWEI ANT TRP&TIS parameter Summary of F11L OPEN Channel TRP(dBm) TIS(dBm) FDD B2 L 18.3 -92.35 M 18.5 -92.47 H 18.34 -92.12 FDD B4 L 18.5 -92.15 M 18.3 -92.03 H 18.36 -91.53 FDD B7 L 17.4 -92.67 M 17.42 -92.43 H 17.4 -92.51 FDD B12 L 16.36 -90.82 M 16.47 -90.57 H 16.4 -90.60 FDD B17 L 16.51 -90.61 M 16.12 -90.22 H 16.8 -90.35 FDD B28A L 16.46 -90.73 M 16.57 -90.46 H 16.53 -90.57 FDD B28B L 16.75 -90.33 M 16.56 -90.26 H 17.54 -90.40 Channel TRP(dBm) TIS(dBm) WCDMA B2 L 18.5 -102.37 M 18.54 -102.12 H 18.5 -102.23 WCDMA B8 L 18.53 -102.22 M 17.3 -102.13 H 16.52 -102.17 WCDMA B5 L 18.51 -103.53 M 18.3 -103.46 1 18.73 -103.33 GSM 850 L 26.57 -104.28 M 27.5 -104.44 H 28.3 -103.56 GSM 900 L 28.5 -102.61 M 27.3 -102.32 H 27.3 -102.57 DCS 1800 L 25.83 -102.36 M 25.5 -102.24 H 25.3 -102.33 PCS 1900 L 25.73 -102.60 M 25.5 -102.48 H 25.85 -102.55 Antenna gain: Channel Unit(dbi) 2.4G L -1.4 M -1.7 H -1.45
Page 1 of 160 Report No.: STR220815003006E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name: 2.8 inch 4G FLIP PHONE Brand Name: LOGIC, iSWAG, UNONU Model Name: F11L Family Model: CLAP, VON Report No.: STR220815003006E FCC ID: O55183322 Prepared for SWAGTEK 10205 NW 19th Street STE101Miami, FL 33172 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 160 Report No.: STR220815003006E TEST RESULT CERTIFICATION Applicant’s name ................. : SWAGTEK Address .................................. : 10205 NW 19th Street STE101Miami, FL 33172 Manufacturer's Name .......... : SWAGTEK Address .................................. : 10205 NW 19th Street STE101Miami, FL 33172 Product description Product name ........................ : 2.8 inch 4G FLIP PHONE Brand Name ......................... : LOGIC, iSWAG, UNONU Model and/or type reference : F11L Family Model ......................... : CLAP, VON Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ........................... T220815002R002 Date of Test Date (s) of performance of tests .............. : Sep. 01, 2022 ~ Sep. 14, 2022 Date of Issue ........................................... : Sep. 26, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 160 Report No.: STR220815003006E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Sep. 26, 2022 Jacob Chen Page 4 of 160 Report No.: STR220815003006E TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions ........................................................................................ 26 6.1. Ear and handset reference point .......…
Text truncated - open the document above for the full version.
Page 121 of 160 Report No.: STR220815003006E Page 122 of 160 Report No.: STR220815003006E Page 123 of 160 Report No.: STR220815003006E Page 124 of 160 Report No.: STR220815003006E Page 125 of 160 Report No.: STR220815003006E Page 126 of 160 Report No.: STR220815003006E Page 127 of 160 Report No.: STR220815003006E Page 128 of 160 Report No.: STR220815003006E Page 129 of 160 Report No.: STR220815003006E Page 130 of 160 Report No.: STR220815003006E Page 131 of 160 Report No.: STR220815003006E Page 132 of 160 Report No.: STR220815003006E Page 133 of 160 Report No.: STR220815003006E Page 134 of 160 Report No.: STR220815003006E Page 135 of 160 Report No.: STR220815003006E Page 136 of 160 Report No.: STR220815003006E Page 137 of 160 Report No.: STR220815003006E Page 138 of 160 Report No.: STR220815003006E Page 139 of 160 Report No.: STR220815003006E Page 140 of 160 Report No.: STR220815003006E Page 141 of 160 Report No.: STR220815003006E Page 142 of 160 Report No.: STR220815003006E Page 143 of 160 Report No.: STR220815003006E Page 144 of 160 Report No.: STR220815003006E Page 145 of 160 Report No.: STR220815003006E Page 146 of 160 Report No.: STR220815003006E Page 147 of 160 Report No.: STR220815003006E Page 148 of 160 Report No.: STR220815003006E Page 149 of 160 Report No.: STR220815003006E Page 150 of 160 Report No.: STR220815003006E Page 151 of 160 Report No.: STR220815003006E Page 152 of 160 Report No.: STR220815003006E Page 153 of 160 Report No.: STR220815003006E Page 154 of 160 Report No.: STR220815003006E Page 155 of 160 Report No.: STR220815003006E Page 156 of 160 Report No.: STR220815003006E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 157 of 160 Report No.: STR220815003006E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 158 of 160 Report No.: STR220815003006E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 159 of 160 Report No.: STR220815003006E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 160 of 160 Report No.: STR220815003006E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________
Report No.: STR220815003003E 1 / 27 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 28.16 PASS GPRS1900 1 Slot 661 1880 28.21 PASS GPRS1900 1 Slot 810 1909.8 28.37 PASS GPRS1900 2 Slot 512 1850.2 26.29 PASS GPRS1900 2 Slot 661 1880 26.08 PASS GPRS1900 2 Slot 810 1909.8 25.95 PASS GPRS1900 3 Slot 512 1850.2 24.76 PASS GPRS1900 3 Slot 661 1880 24.52 PASS GPRS1900 3 Slot 810 1909.8 24.37 PASS GPRS1900 4 Slot 512 1850.2 22.61 PASS GPRS1900 4 Slot 661 1880 22.35 PASS GPRS1900 4 Slot 810 1909.8 22.15 PASS GPRS850 1 Slot 128 824.2 32.19 PASS GPRS850 1 Slot 189 836.4 32.38 PASS GPRS850 1 Slot 251 848.8 32.86 PASS GPRS850 2 Slot 128 824.2 30.31 PASS GPRS850 2 Slot 189 836.4 30.28 PASS GPRS850 2 Slot 251 848.8 30.45 PASS GPRS850 3 Slot 128 824.2 28.27 PASS GPRS850 3 Slot 189 836.4 28.25 PASS GPRS850 3 Slot 251 848.8 28.42 PASS GPRS850 4 Slot 128 824.2 26.05 PASS GPRS850 4 Slot 189 836.4 25.97 PASS GPRS850 4 Slot 251 848.8 26.20 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.72915608 13.00 PASS GPRS1900 661 1880 2.755276817 13.00 PASS GPRS1900 810 1909.8 2.746428248 13.00 PASS GPRS850 128 824.2 2.64997915 13.00 PASS GPRS850 189 836.4 2.684457751 13.00 PASS GPRS850 251 848.8 2.668738117 13.00 PASS GPRS1900 Channel=512 Report No.: STR220815003003E 2 / 27 GPRS1900 Channel=810 GPRS1900 Channel=661 Report No.: STR220815003003E 3 / 27 GPRS850 Channel=189 GPRS850 Channel=128 Report No.: STR220815003003E 4 / 27 GPRS850 Channel=251 10 Occupied bandwidth Report No.: STR220815003003E 5 / 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 247.688 317.552 PASS GPRS1900 661 1880 244.013 310.466 PASS GPRS1900 810 1909.8 244.473 315.141 PASS GPRS850 128 824.2 246.527 323.501 PASS GPRS850 189 836.4 246.603 313.185 PASS GPRS850 251 848.8 249.219 317.370 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: STR220815003003E 6 / 27 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: STR220815003003E 7 / 27 GPRS850 Channel=189 GPRS850 Channel=251 Report No.: STR220815003003E 8 / 27 11 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1850.00 -32.23 -13 PASS GPRS1900 810 1909.8 1910.01 -32.31 -13 PASS GPRS850 128 824.2 824.00 -26.67 -13 PASS GPRS850 251 848.8 849.02 -27.79 -13 PASS GPRS1900 Channel=810 Report No.: STR220815003003E 9 / 27 GPRS1900 Channel=512 GPRS850 Channel=128 Report No.: STR220815003003E 10 / 27 GPRS850 Channel=251 12 Out-of-band emissions Report No.: STR220815003003E 11 / 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 26036.78 -19.02 -13 PASS GPRS1900 661 1880 26002.36 -18.74 -13 PASS GPRS1900 810 1909.8 25632.45 -18.70 -13 PASS GPRS850 128 824.2 25900.45 -19.57 -13 PASS GPRS850 189 836.4 25973.25 -20.33 -13 PASS GPRS850 251 848.8 25496.79 -20.47 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: STR220815003003E 12 / 27 GPRS1900 Channel=661 GPRS850 Channel=189 Report No.: STR220815003003E 13 / 27 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: STR220815003003E 14 / 27 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GSM1900 512 1850.2 28.21 PASS GSM1900 661 1880 28.27 PASS GSM1900 810 1909.8 28.38 PASS GSM850 128 824.2 32.18 PASS GSM850 189 836.4 32.38 PASS GSM850 251 848.8 32.86 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GSM1900 512 1850.2 2.69 13 PASS GSM1900 661 1880 2.70 13 PASS GSM1900 810 1909.8 2.71 13 PASS GSM850 128 824.2 2.62 13 PASS GSM850 189 836.4 2.70 13 PASS GSM850 251 848.8 2.60 13 PASS GSM1900 Channel=512 Report No.: STR220815003003E 15 / 27 GSM1900 Channel=810 GSM1900 Channel=661 Report No.: STR220815003003E 16 / 27 GSM850 Channel=128 GSM850 Channel=251 Report No.: STR220815003003E 17 / 27 GSM850 Channel=189 04 Occupied bandwidth Report No.: STR220815003003E 18 / 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GSM1900 512 1850.2 238.435 296.886 PASS GSM1900 661 1880 239.463 299.537 PASS GSM1900 810 1909.8 243.455 306.924 PASS GSM850 128 824.2 244.216 319.325 PASS GSM850 189 836.4 240.024 306.761 PASS GSM850 251 848.8 239.669 311.829 PASS GSM1900 Channel=512 GSM1900 Channel=810 Report No.: STR220815003003E 19 / 27 GSM1900 Channel=661 GSM850 Channel=128 Report No.: STR220815003003E 20 / 27 GSM850 Channel=189 GSM850 Channel=251 Report No.: STR220815003003E 21 / 27 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 1850.00 -27.00 -13 PASS GSM1900 810 1909.8 1910.02 -30.77 -13 PASS GSM850 128 824.2 823.98 -26.28 -13 PASS GSM850 251 848.8 849.02 -26.18 -13 PASS GSM1900 Channel=512 Report No.: STR220815003003E 22 / 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: STR220815003003E 23 / 27 GSM850 Channel=251 06 Out-of-band emissions Report No.: STR220815003003E 24 / 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 25981.19 -18.87 -13 PASS GSM1900 661 1880 25530.54 -18.63 -13 PASS GSM1900 810 1909.8 25872.00 -18.67 -13 PASS GSM850 128 824.2 25531.20 -21.18 -13 PASS GSM850 189 836.4 25985.82 -20.52 -13 PASS GSM850 251 848.8 25503.40 -20.38 -13 PASS GSM1900 Channel=512 GSM1900 Channel=810 Report No.: STR220815003003E 25 / 27 GSM1900 Channel=661 GSM850 Channel=128 Report No.: STR220815003003E 26 / 27 GSM850 Channel=251 GSM850 Channel=189 Report No.: STR220815003003E 27 / 27
Report No.: STR220815003003E 1 / 15 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 20.89 PASS WCDMA Band2 9400 1880 21.12 PASS WCDMA Band2 9538 1907.6 21.39 PASS WCDMA Band5 4132 826.4 22.59 PASS WCDMA Band5 4182 836.4 22.58 PASS WCDMA Band5 4233 846.6 22.67 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 3.74 13 PASS WCDMA Band2 9400 1880 3.95 13 PASS WCDMA Band2 9538 1907.6 4.02 13 PASS WCDMA Band5 4132 826.4 2.99 13 PASS WCDMA Band5 4182 836.4 2.92 13 PASS WCDMA Band5 4233 846.6 2.81 13 PASS WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9262 Report No.: STR220815003003E 2 / 15 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4132 Report No.: STR220815003003E 3 / 15 WCDMA Band5 Channel=4182 WCDMA Band5 Channel=4233 Report No.: STR220815003003E 4 / 15 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4177.405 4689.937 PASS WCDMA Band2 9400 1880 4167.106 4683.615 PASS WCDMA Band2 9538 1907.6 4152.121 4684.308 PASS WCDMA Band5 4132 826.4 4165.035 4689.661 PASS WCDMA Band5 4182 836.4 4154.826 4657.270 PASS WCDMA Band5 4233 846.6 4142.149 4693.321 PASS WCDMA Band2 Channel=9262 Report No.: STR220815003003E 5 / 15 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: STR220815003003E 6 / 15 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: STR220815003003E 7 / 15 WCDMA Band5 Channel=4182 05 Band edge Report No.: STR220815003003E 8 / 15 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1849.99 -24.58 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -25.26 -13 PASS WCDMA Band5 4132 826.4 824.00 -24.75 -13 PASS WCDMA Band5 4233 846.6 849.00 -24.44 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: STR220815003003E 9 / 15 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4132 Report No.: STR220815003003E 10 / 15 06 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19940.59 -23.00 -13 PASS WCDMA Band2 9400 1880 19882.18 -23.66 -13 PASS WCDMA Band2 9538 1907.6 19088.87 -23.54 -13 PASS WCDMA Band5 4132 826.4 3140.39 -30.30 -13 PASS WCDMA Band5 4182 836.4 7711.89 -29.58 -13 PASS WCDMA Band5 4233 846.6 3179.77 -29.59 -13 PASS WCDMA Band2 Channel=9262 Report No.: STR220815003003E 11 / 15 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: STR220815003003E 12 / 15 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4182 Report No.: STR220815003003E 13 / 15 WCDMA Band5 Channel=4233 07 Conducted output power Report No.: STR220815003003E 14 / 15 Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 19.74 PASS HSDPA Band2 Subtest2 9262 1852.4 19.29 PASS HSDPA Band2 Subtest3 9262 1852.4 19.03 PASS HSDPA Band2 Subtest4 9262 1852.4 18.92 PASS HSDPA Band2 Subtest1 9400 1880 18.98 PASS HSDPA Band2 Subtest2 9400 1880 18.65 PASS HSDPA Band2 Subtest3 9400 1880 18.26 PASS HSDPA Band2 Subtest4 9400 1880 18.22 PASS HSDPA Band2 Subtest1 9538 1907.6 19.48 PASS HSDPA Band2 Subtest2 9538 1907.6 19.25 PASS HSDPA Band2 Subtest3 9538 1907.6 18.90 PASS HSDPA Band2 Subtest4 9538 1907.6 18.74 PASS HSDPA Band5 Subtest1 4132 826.4 21.26 PASS HSDPA Band5 Subtest2 4132 826.4 20.84 PASS HSDPA Band5 Subtest3 4132 826.4 20.51 PASS HSDPA Band5 Subtest4 4132 826.4 20.57 PASS HSDPA Band5 Subtest1 4182 836.4 22.35 PASS HSDPA Band5 Subtest2 4182 836.4 22.19 PASS HSDPA Band5 Subtest3 4182 836.4 21.89 PASS HSDPA Band5 Subtest4 4182 836.4 21.76 PASS HSDPA Band5 Subtest1 4233 846.6 21.04 PASS HSDPA Band5 Subtest2 4233 846.6 20.82 PASS HSDPA Band5 Subtest3 4233 846.6 20.54 PASS HSDPA Band5 Subtest4 4233 846.6 20.61 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 19.58 PASS HSUPA Band2 Subtest2 9262 1852.4 19.55 PASS HSUPA Band2 Subtest3 9262 1852.4 18.95 PASS HSUPA Band2 Subtest4 9262 1852.4 19.55 PASS HSUPA Band2 Subtest5 9262 1852.4 19.38 PASS HSUPA Band2 Subtest1 9400 1880 18.84 PASS HSUPA Band2 Subtest2 9400 1880 18.91 PASS HSUPA Band2 Subtest3 9400 1880 18.25 PASS HSUPA Band2 Subtest4 9400 1880 18.92 PASS HSUPA Band2 Subtest5 9400 1880 18.41 PASS HSUPA Band2 Subtest1 9538 1907.6 19.36 PASS HSUPA Band2 Subtest2 9538 1907.6 19.45 PASS HSUPA Band2 Subtest3 9538 1907.6 19.03 PASS HSUPA Band2 Subtest4 9538 1907.6 19.41 PASS HSUPA Band2 Subtest5 9538 1907.6 19.21 PASS HSUPA Band5 Subtest1 4132 826.4 21.19 PASS Report No.: STR220815003003E 15 / 15 HSUPA Band5 Subtest2 4132 826.4 21.04 PASS HSUPA Band5 Subtest3 4132 826.4 20.88 PASS HSUPA Band5 Subtest4 4132 826.4 21.04 PASS HSUPA Band5 Subtest5 4132 826.4 20.79 PASS HSUPA Band5 Subtest1 4182 836.4 22.37 PASS HSUPA Band5 Subtest2 4182 836.4 22.35 PASS HSUPA Band5 Subtest3 4182 836.4 22.01 PASS HSUPA Band5 Subtest4 4182 836.4 22.33 PASS HSUPA Band5 Subtest5 4182 836.4 22.17 PASS HSUPA Band5 Subtest1 4233 846.6 20.96 PASS HSUPA Band5 Subtest2 4233 846.6 21.05 PASS HSUPA Band5 Subtest3 4233 846.6 20.53 PASS HSUPA Band5 Subtest4 4233 846.6 21.02 PASS HSUPA Band5 Subtest5 4233 846.6 20.89 PASS
Report No.: STR220815003004E 1 / 314 01 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band12 1.4 23017 1 #0 QPSK 22.83 PASS Band12 1.4 23017 1 #Mid QPSK 22.93 PASS Band12 1.4 23017 1 #Max QPSK 22.86 PASS Band12 1.4 23017 3 #0 QPSK 23.03 PASS Band12 1.4 23017 3 #Mid QPSK 22.96 PASS Band12 1.4 23017 3 #Max QPSK 22.92 PASS Band12 1.4 23017 6 #0 QPSK 21.91 PASS Band12 1.4 23017 1 #0 QAM16 21.80 PASS Band12 1.4 23017 1 #Mid QAM16 21.67 PASS Band12 1.4 23017 1 #Max QAM16 21.75 PASS Band12 1.4 23017 3 #0 QAM16 22.06 PASS Band12 1.4 23017 3 #Mid QAM16 22.15 PASS Band12 1.4 23017 3 #Max QAM16 22.04 PASS Band12 1.4 23017 6 #0 QAM16 20.66 PASS Band12 1.4 23095 1 #0 QPSK 23.23 PASS Band12 1.4 23095 1 #Mid QPSK 23.29 PASS Band12 1.4 23095 1 #Max QPSK 23.24 PASS Band12 1.4 23095 3 #0 QPSK 23.13 PASS Band12 1.4 23095 3 #Mid QPSK 23.28 PASS Band12 1.4 23095 3 #Max QPSK 23.12 PASS Band12 1.4 23095 6 #0 QPSK 21.86 PASS Band12 1.4 23095 1 #0 QAM16 22.04 PASS Band12 1.4 23095 1 #Mid QAM16 21.89 PASS Band12 1.4 23095 1 #Max QAM16 21.65 PASS Band12 1.4 23095 3 #0 QAM16 22.18 PASS Band12 1.4 23095 3 #Mid QAM16 22.23 PASS Band12 1.4 23095 3 #Max QAM16 22.19 PASS Band12 1.4 23095 6 #0 QAM16 20.81 PASS Band12 1.4 23173 1 #0 QPSK 23.05 PASS Band12 1.4 23173 1 #Mid QPSK 23.02 PASS Band12 1.4 23173 1 #Max QPSK 23.09 PASS Band12 1.4 23173 3 #0 QPSK 23.01 PASS Band12 1.4 23173 3 #Mid QPSK 23.16 PASS Band12 1.4 23173 3 #Max QPSK 23.01 PASS Band12 1.4 23173 6 #0 QPSK 21.92 PASS Band12 1.4 23173 1 #0 QAM16 22.24 PASS Band12 1.4 23173 1 #Mid QAM16 22.47 PASS Band12 1.4 23173 1 #Max QAM16 22.35 PASS Band12 1.4 23173 3 #0 QAM16 22.13 PASS Band12 1.4 23173 3 #Mid QAM16 22.31 PASS Band12 1.4 23173 3 #Max QAM16 22.24 PASS Report No.: STR220815003004E 2 / 314 Band12 1.4 23173 6 #0 QAM16 20.71 PASS Band12 3 23025 1 #0 QPSK 22.98 PASS Band12 3 23025 1 #Mid QPSK 22.98 PASS Band12 3 23025 1 #Max QPSK 22.92 PASS Band12 3 23025 8 #0 QPSK 21.95 PASS Band12 3 23025 8 #Mid QPSK 21.88 PASS Band12 3 23025 8 #Max QPSK 21.91 PASS Band12 3 23025 15 #0 QPSK 21.97 PASS Band12 3 23025 1 #0 QAM16 22.36 PASS Band12 3 23025 1 #Mid QAM16 22.23 PASS Band12 3 23025 1 #Max QAM16 22.32 PASS Band12 3 23025 8 #0 QAM16 20.92 PASS Band12 3 23025 8 #Mid QAM16 20.97 PASS Band12 3 23025 8 #Max QAM16 20.90 PASS Band12 3 23025 15 #0 QAM16 20.95 PASS Band12 3 23095 1 #0 QPSK 23.24 PASS Band12 3 23095 1 #Mid QPSK 23.40 PASS Band12 3 23095 1 #Max QPSK 23.30 PASS Band12 3 23095 8 #0 QPSK 22.10 PASS Band12 3 23095 8 #Mid QPSK 21.98 PASS Band12 3 23095 8 #Max QPSK 22.05 PASS Band12 3 23095 15 #0 QPSK 21.97 PASS Band12 3 23095 1 #0 QAM16 21.88 PASS Band12 3 23095 1 #Mid QAM16 22.07 PASS Band12 3 23095 1 #Max QAM16 21.99 PASS Band12 3 23095 8 #0 QAM16 21.68 PASS Band12 3 23095 8 #Mid QAM16 21.15 PASS Band12 3 23095 8 #Max QAM16 21.13 PASS Band12 3 23095 15 #0 QAM16 21.11 PASS Band12 3 23165 1 #0 QPSK 22.92 PASS Band12 3 23165 1 #Mid QPSK 22.94 PASS Band12 3 23165 1 #Max QPSK 23.01 PASS Band12 3 23165 8 #0 QPSK 21.85 PASS Band12 3 23165 8 #Mid QPSK 21.89 PASS Band12 3 23165 8 #Max QPSK 21.98 PASS Band12 3 23165 15 #0 QPSK 21.90 PASS Band12 3 23165 1 #0 QAM16 22.44 PASS Band12 3 23165 1 #Mid QAM16 22.27 PASS Band12 3 23165 1 #Max QAM16 22.44 PASS Band12 3 23165 8 #0 QAM16 20.99 PASS Band12 3 23165 8 #Mid QAM16 21.04 PASS Band12 3 23165 8 #Max QAM16 20.98 PASS Band12 3 23165 15 #0 QAM16 20.95 PASS Band12 5 23035 1 #0 QPSK 23.32 PASS R…
Text truncated - open the document above for the full version.
1/F, Building E, Fenda Science Park Sanwei, · Shenzhen, Guangdong · China
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 12 | 27 | 699.7 MHz - 715.3 MHz | 148.94 mW | 8M94W7D | 0.01435 ppm |
