O552417244G BAR PHONE

SWAGTEK

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 01, 2024
Application Purpose: Original Equipment
Date of Application: Jul 01, 2024
Equipment Note: 4G BAR PHONE
Frequency Range: 1720.00000000 - 1770.00000000
Company: SWAGTEK
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

SWAGTEK U.S. Agent Designation for Service of Process - Certification Attestation Letter DATE：19/6/2024 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: O55241724 FRN of applicant: 0021846670 Per section 2.911(d)(7) of the FCC rules, [SWAGTEK] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: SWAGTEK FCC Registration Number (FRN): 0021846670 Physical U.S. Company Address: 10205 NW 19th Street,STE 101, Miami, FL33172,USA Contact Person: Charles Cheng Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Charles Cheng Title: Manager Company Name: SWAGTEK Date: 19/6/2024 Agent Signed (if different from Applicant): Signed: Printed name: 34T Title: 34T Company Name: 34T Date: 34T * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process.

Attestation Statements

COMPANY LETTERHEAD Covered Equipment Certification Attestation Letter DATE：19/6/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID:O55241724 SWAGTEK (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. SWAGTEK (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Charles Cheng Title: Manager Company Name: SWAGTEK Date: 19/6/2024

Cover Letter(s)

SWAGTEK DATE:2024-6-19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint JianYan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Communit y,Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. ；Bruce.Zhang , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with SWAGTEK/ 10205 NW 19th Street,STE 101, Miami, FL33172,USA Dated this 2024-6-19 By: Charles Cheng Signature Printed Title: Manager On behalf of : SWAGTEK Telephone:

Cover Letter(s)

SWAGTEK DATE :2024-6-19 Equipment Autorisation Division Federal Communications Commission 7345 Oakland Mills Road Columbia, MD 21046 FCC ID: O55241724 Product Name: 4G BAR PHONE Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description • Tune up • BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2024-6-19 By: Charles Cheng Signature Printed Title: Manager On behalf of : SWAGTEK Telephone:

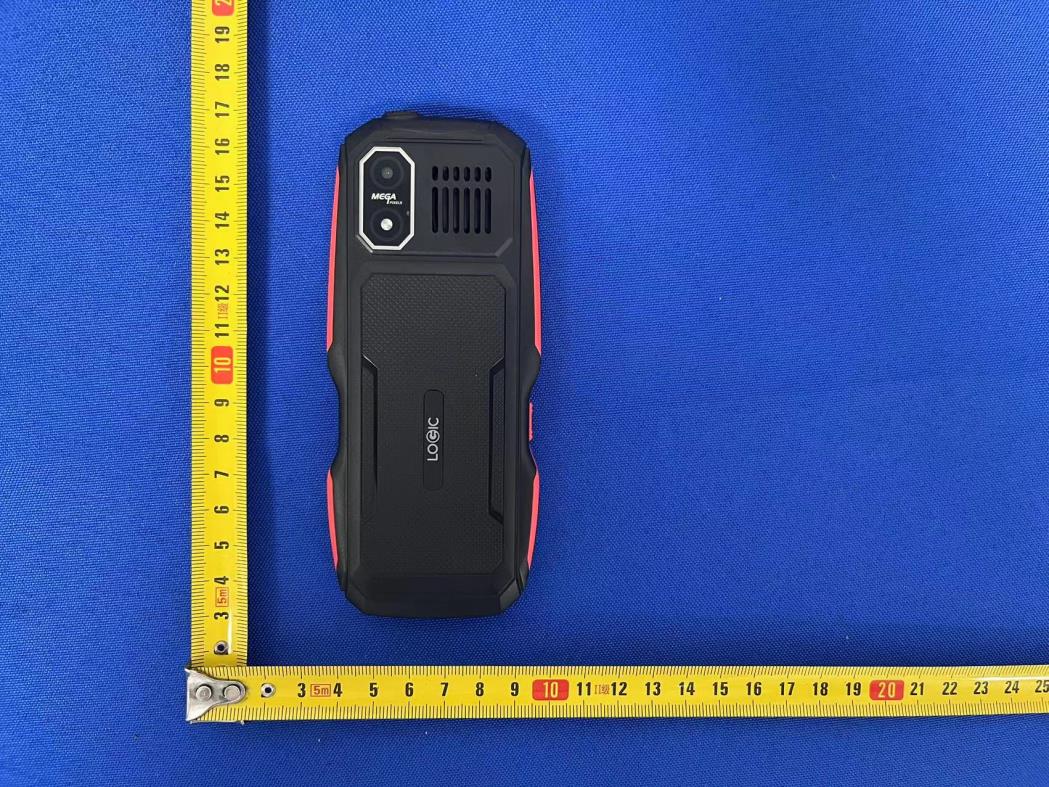

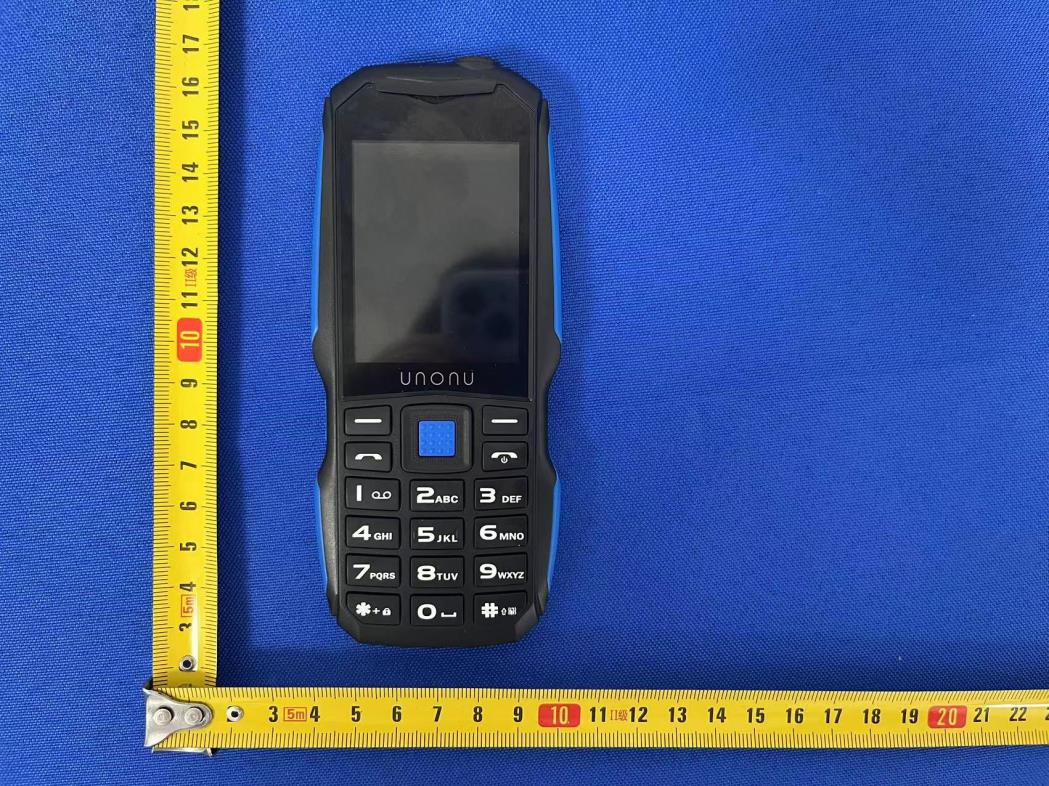

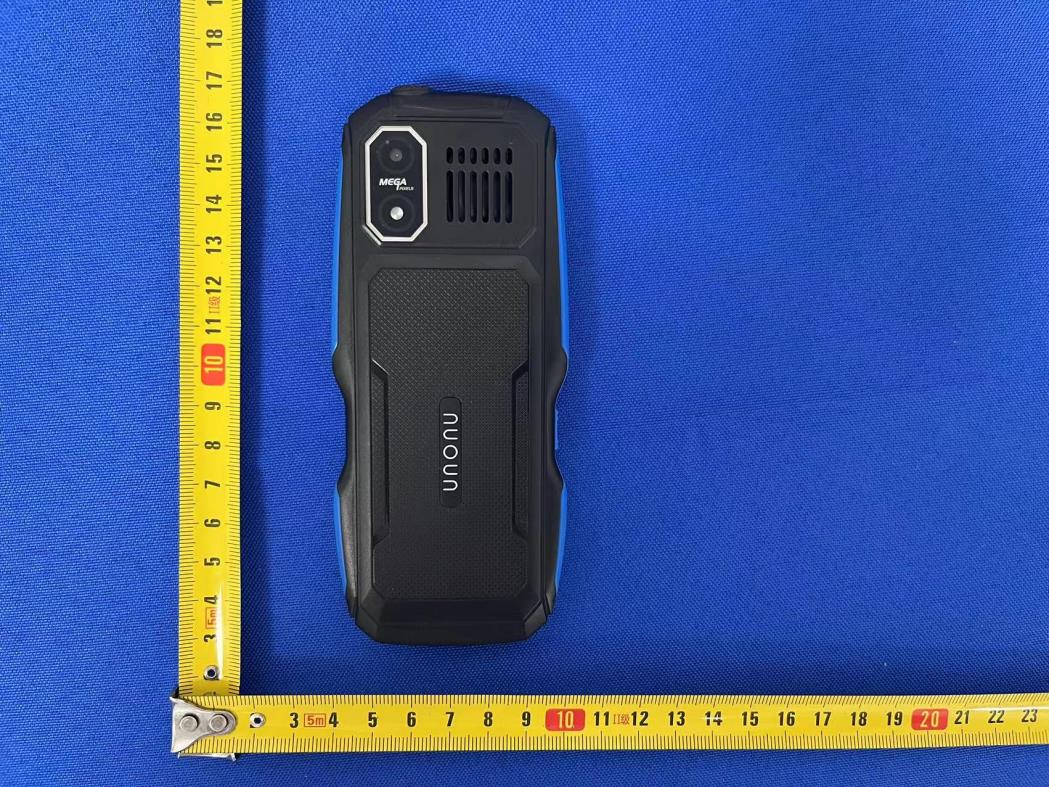

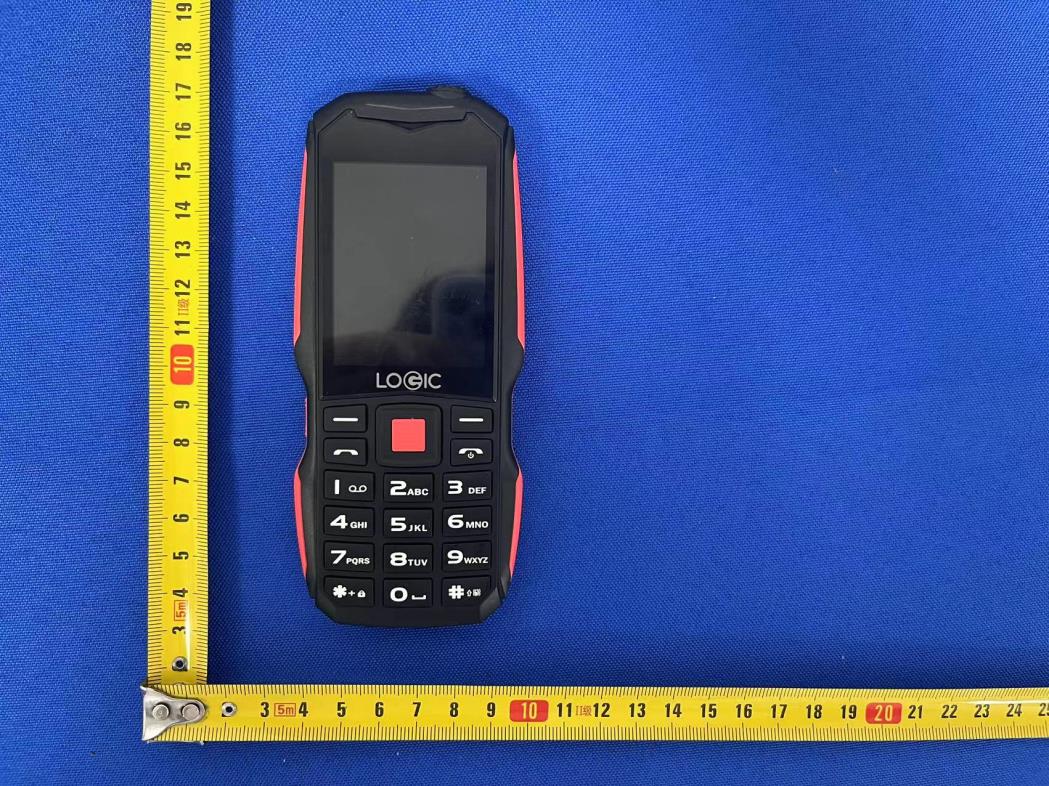

External Photos

ID Label/Location Info

S/N: 202405060000001 IMEI: 35791199000001 IMEI: 35791199018800

Internal Photos

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 11 EUT Internal Photos JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 11 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 11 ------End------

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R14-2400040 This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Report No.: JYTSZ-R14-2400040 Applicant: SWAGTEK Address of Applicant: 10205 NW 19th Street,STE 101,Miami, FL33172.USA Equipment Under Test (EUT) Product Name: 4G BAR PHONE Model No.: UR5L，R5L Trade mark UNONU LOGIC FCC ID: O55241724 Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 14 May, 2024 ~ 23 May, 2024 Test Result: Maximum Reported 1-g SAR (W/kg) Head: 0.765 Body: 1.176 Project by: Date: 28 Jun., 2024 Project Engineer Reviewed by: Date: 28 Jun., 2024 Senior Engineer Approved by: Date: 28 Jun., 2024 Manager Report No.: JYTSZ-R14-2400040 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-286-C Project No.: JYTSZR2405016 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 2 of 87 2 Version Version No. Date Description 00 28 Jun., 2024 Original Report No.: JYTSZ-R14-2400040 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-286-C Project No.: JYTSZR2405016 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 3 of 87 3 Contents 1 COVER PAGE ............................................................................................................................................................ 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ................................................................................................................................. 5 5 GENERAL INFORMATION .................................................................................................................................. 6 5.1 CLIENT INFORMATION ..................................................................................................................................................................... 6 5.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 6 5.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 8 5.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 9 5.5 TEST SAMPLE PLAN ....................................................................................................................................................................... 9 5.6 LABORATORY FACILITY .......................................................................................................................................................................... 9 5.7 TEST LOCATION ............................................................................................................................................................................. 9 6 INTRODUCTION ................................................................................................................................................. 10 6.1 INTRODUCTION ............................................................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................................................... 10 7 RF EXPOSURE LIMITS ..................................................................................................................................... 11 7.1 UNCONTROLLED ENVIRONMENT ................................................................................................................................................... 11 7.2 CONTROLLED ENVIRONMENT ....................................................................................................................................................... 11 7.3 RF EXPOSURE LIMITS .................................................................................................................................................................. 11 8 SAR MEASUREMENT SYSTEM ......................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Appendix C: System Calibration Certificate Calibration information for E-field probes Calibration information for Dipole Dipole Impedance and Return Loss Check Report Object: D835V2 - SN: 4d157 Check Date: June 02, 2023 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Janet Wei, SAR project engineer) Reviewed By: (Winner Zhang, Technical manager) Environment of Test Site Temperature: 21 ~ 23C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Measurement Plot for Head TSL In 2023 Comparison with Original report Items Checked By JYT In 2022 Checked By JYT In 2023 Deviation Limit Impendence for Head TSL 52.42Ω -1.46jΩ 49.63Ω -3.87jΩ -2.79Ω -2.41jΩ ±5Ω Return Loss for Head TSL -31.17 -28.17 -9.62% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: D1900V2 - SN: 5d175 Check Date: June 02, 2023 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Janet Wei, SAR project engineer) Reviewed By: (Winner Zhang, Technical manager) Environment of Test Site Temperature: 21 ~ 23C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Measurement Plot for Head TSL In 2023 Comparison with Original report Items Checked By JYT In 2022 Checked By JYT In 2023 Deviation Limit Impendence for Head TSL 48.61Ω -6.42jΩ 49.30Ω-5.47jΩ 0.69Ω+0.95jΩ ±5Ω Return Loss for Head TSL -23.53 -26.32 11.86% ±20%(No less than 20 dB) Result Compliance Dipole Impedance and Return Loss Check Report Object: D2450V2 - SN: 910 Check Date: June 02, 2023 Check reference: IEC/IEEE 62209-1528:2020, FCC KDB 865664 D01 Checked By: (Janet Wei, SAR project engineer) Reviewed By: (Winner Zhang, Technical manager) Environment of Test Site Temperature: 18 ~ 25C Humidity: 50~60% RH Atmospheric Pressure: 1011 mbar Test Data Measurement Plot for Head TSL In 2023 Comparison with Original report Items Checked By JYT In 2022 Checked By JYT In 2023 Deviation Limit Impendence for Head TSL 51.33Ω-2.73jΩ 53.28Ω-0.28jΩ 1.95Ω+2.45jΩ ±5Ω Return Loss for Head TSL -23.76dB -20.94dB -11.87% ±20%(No less than 20 dB) Result Compliance Calibration information for DAE ------End of Report------

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2400506 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page FCC RF Test Report (GSM) Report No.: JYTSZ-R12-2400506 Applicant: SWAGTEK Address of Applicant: 10205 NW 19th Street, STE 101, Miami, FL33172.USA Equipment Under Test (EUT) Product Name: 4G BAR PHONE Model No.: UR5L, R5L Trade Mark: UNONU, LOGIC FCC ID: O55241724 Applicable Standards: FCC CFR Title 47 Part 2, 22H, 24E Date of Sample Receipt: 10 May, 2024 Date of Test: 11 May, to 17 Jun., 2024 Date of Report Issued: 18 Jun., 2024 Test Result: PASS Tested by: Date: 18 Jun., 2024 Project Engineer Reviewed by: Date: 18 Jun., 2024 Senior Engineer Approved by: Date: 18 Jun., 2024 Manager Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-150-C Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 14 Version 1 Version No. Date Description 00 18 Jun., 2024 Original Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-150-C Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 14 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Test Mode and Environment .................................................................................................................. 5 3.3 Description of Test Auxiliary Equipment ................................................................................................ 5 3.4 Measurement Uncertainty ...................................................................................................................... 5 3.5 Additions to, Deviations, or Exclusions from the Method ....................................................................... 5 3.6 Laboratory Facility .................................................................................................................................. 5 3.7 Laboratory Location ................................................................................................................................ 6 3.8 Test Instruments List .............................................................................................................................. 6 3.9 Measurement Setup and Procedure ........................................................................................................... 8 4 Test Channel .......................................................................................................................................... 8 4.1 Test Setup .............................................................................................................................................. 8 4.2 Test Procedure ..................................................................................................................................... 10 4.3 Test Results ................................................................................................................................................. 11 5 Summary .............................................................................................................................................. 11 5.1 Clause and Data Summary .............................................................................................................. 11 5.1.1 Test Limit .......................................................................................................................................... 12 5.1.2 Field Strength of Spurious Radiation Measurement ............................................................................ 13 5.2 Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-150-C Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 14 General Information 3 Client Information 3.1 Appl…

Text truncated - open the document above for the full version.

Test Report

Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 15 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Channel PCL Conducted Power (dBm) ERP/EIRP (dBm) ERP/EIRP Limit (dBm) Verdict GSM850 128 5 32.23 30.19 38.45 PASS GSM850 190 5 32.82 30.78 38.45 PASS GSM850 251 5 32.93 30.89 38.45 PASS GSM1900 512 0 29.29 29.54 33.00 PASS GSM1900 661 0 29.08 29.33 33.00 PASS GSM1900 810 0 29.58 29.83 33.00 PASS Band Channel PCL Slot Conducted Power (dBm) ERP/EIRP (dBm) ERP/EIRP Limit (dBm) Verdict GPRS850 128 5 1 32.13 30.09 38.45 PASS GPRS850 128 5 2 29.13 27.09 38.45 PASS GPRS850 128 5 3 27.11 25.07 38.45 PASS GPRS850 128 5 4 25.06 23.02 38.45 PASS GPRS850 190 5 1 32.73 30.69 38.45 PASS GPRS850 190 5 2 29.70 27.66 38.45 PASS GPRS850 190 5 3 27.65 25.61 38.45 PASS GPRS850 190 5 4 25.59 23.55 38.45 PASS GPRS850 251 5 1 32.86 30.82 38.45 PASS GPRS850 251 5 2 29.77 27.73 38.45 PASS GPRS850 251 5 3 27.72 25.68 38.45 PASS GPRS850 251 5 4 25.65 23.61 38.45 PASS GPRS1900 512 0 1 29.14 29.39 33.00 PASS GPRS1900 512 0 2 26.12 26.37 33.00 PASS GPRS1900 512 0 3 24.85 25.10 33.00 PASS GPRS1900 512 0 4 22.48 22.73 33.00 PASS GPRS1900 661 0 1 29.11 29.36 33.00 PASS GPRS1900 661 0 2 26.04 26.29 33.00 PASS GPRS1900 661 0 3 24.90 25.15 33.00 PASS GPRS1900 661 0 4 22.40 22.65 33.00 PASS GPRS1900 810 0 1 29.62 29.87 33.00 PASS GPRS1900 810 0 2 26.59 26.84 33.00 PASS GPRS1900 810 0 3 24.92 25.17 33.00 PASS GPRS1900 810 0 4 22.95 23.20 33.00 PASS Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 15 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Channel PCL Result(dB) Limit(dB) Verdict GSM850 190 5 2.65 13 PASS GSM1900 661 0 2.61 13 PASS Remark: All channel and all modulation had been tested, but only the worst case data displayed in this report. Test Graphs GSM850-190 GSM1900-661 Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 15 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel PCL Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict GSM850 128 5 0.24074 0.3057 --- PASS GSM850 190 5 0.24347 0.3046 --- PASS GSM850 251 5 0.24228 0.3070 --- PASS GSM1900 512 0 0.24183 0.3039 --- PASS GSM1900 661 0 0.23930 0.3073 --- PASS GSM1900 810 0 0.23937 0.3030 --- PASS Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 15 Test Graphs GSM850-128 GSM850-190 GSM850-251 GSM1900-512 GSM1900-661 GSM1900-810 Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 15 Appendix D: Band Edge Test Result Band Channel PCL Freq (MHz) Result (dBm) Limit(dBm) Verdict GSM850 128 5 824.00 -25.48 -13 PASS GSM850 251 5 849.02 -23.62 -13 PASS GSM1900 512 0 1850.00 -13.91 -13 PASS GSM1900 810 0 1910.02 -14.50 -13 PASS Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 15 Test Graphs GSM850-128 GSM850-251 GSM1900-512 GSM1900-810 Report No.: JYTSZ-R12-2400506 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2405015 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 15 Appendix E: Conducted Spurious Emission Test Result Band Channel PCL Frequency Range(MHz) Max.Freq. (MHz) Result (dBm) Limit (dBm) Verdict GSM850 128 5 0.009~0.15MHz 0.01 -58.09 -33 PASS GSM850 128 5 0.15~30MHz 0.15 -44.07 -13 PASS GSM850 128 5 30~1000MHz 399.57 -44.99 -13 PASS GSM850 128 5 1000~10000MHz 1648.3 -28.68 -13 PASS GSM850 190 5 0.009~0.15MHz 0.01 -55.6 -33 PASS GSM850 190 5 0.15~30MHz 0.15 -43.69 -13 PASS GSM850 190 5 30~1000MHz 674.73 -44.1 -13 PASS GSM850 190 5 1000~10000MHz …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Charles Cheng(Manager)

[email protected]1-305 421 9938Fax: 1-305 471 9011

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
17	27	1.72 GHz - 1.77 GHz	170.60 mW	18M0W7D	0.02 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body including flip open or flip closed. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, and simultaneous transmission exposure conditions are 0.77 W/kg, 1.18 W/kg, and 1.18 W/kg respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
