O556519216.5-inch 4G Smart Phone

FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: This device has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the phone kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 0mm separation distance between the user's body and the back of the phone. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

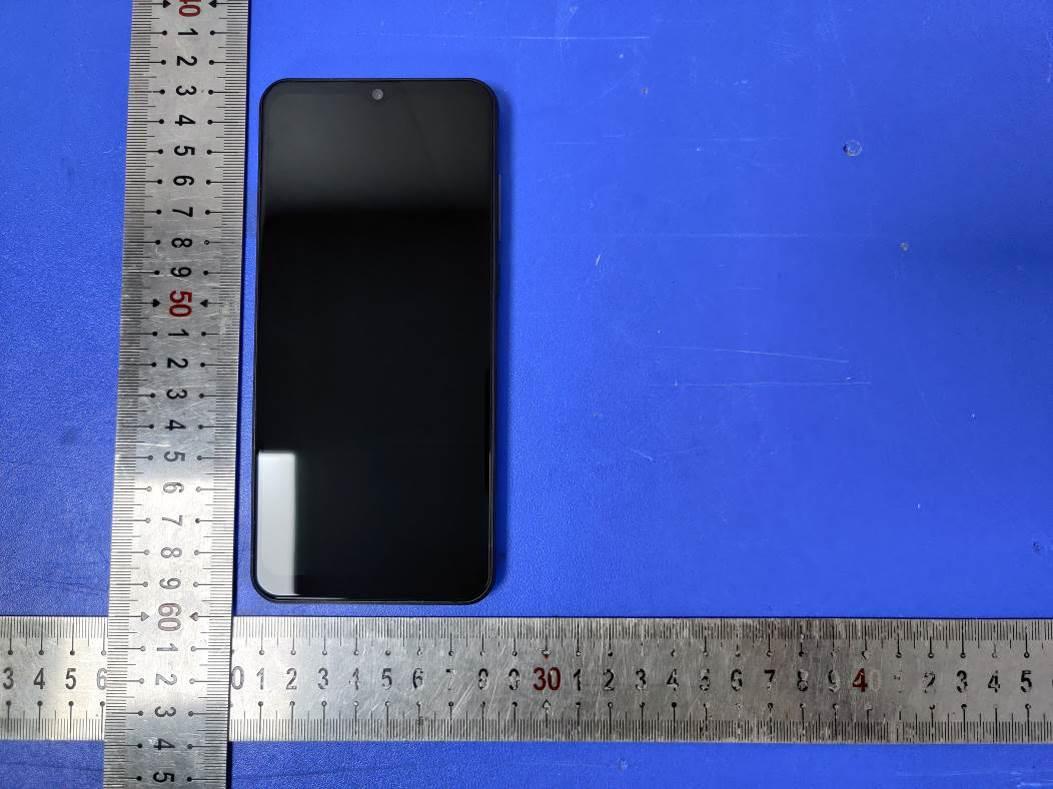

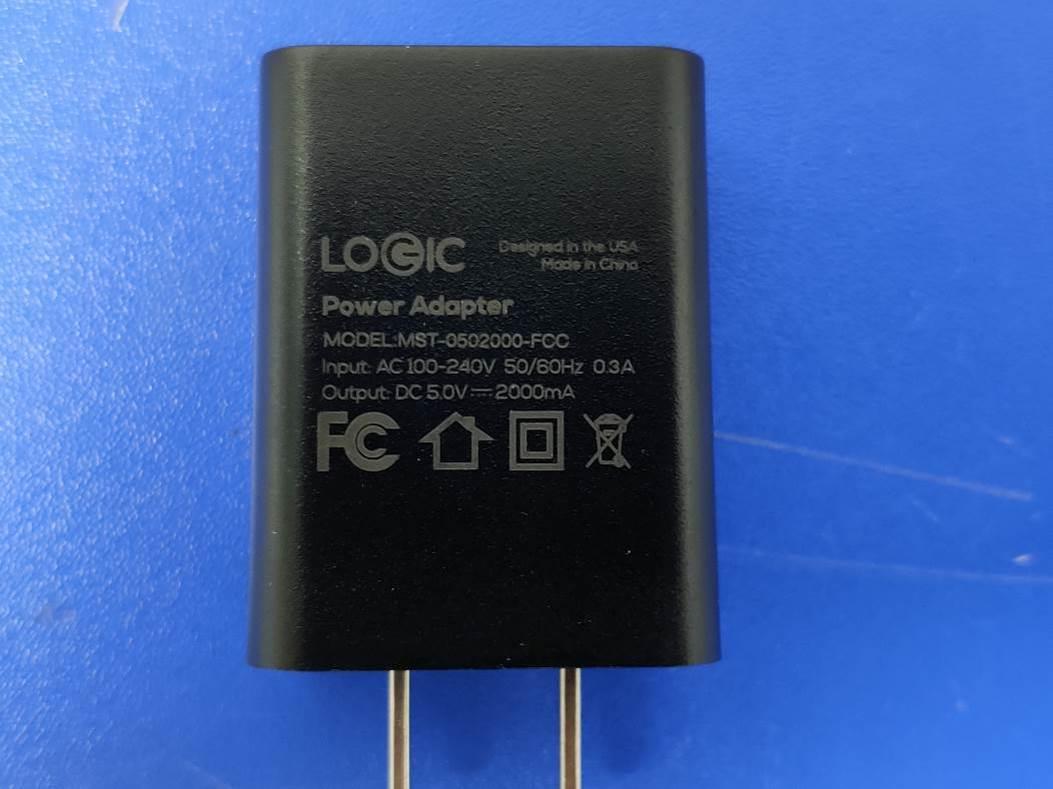

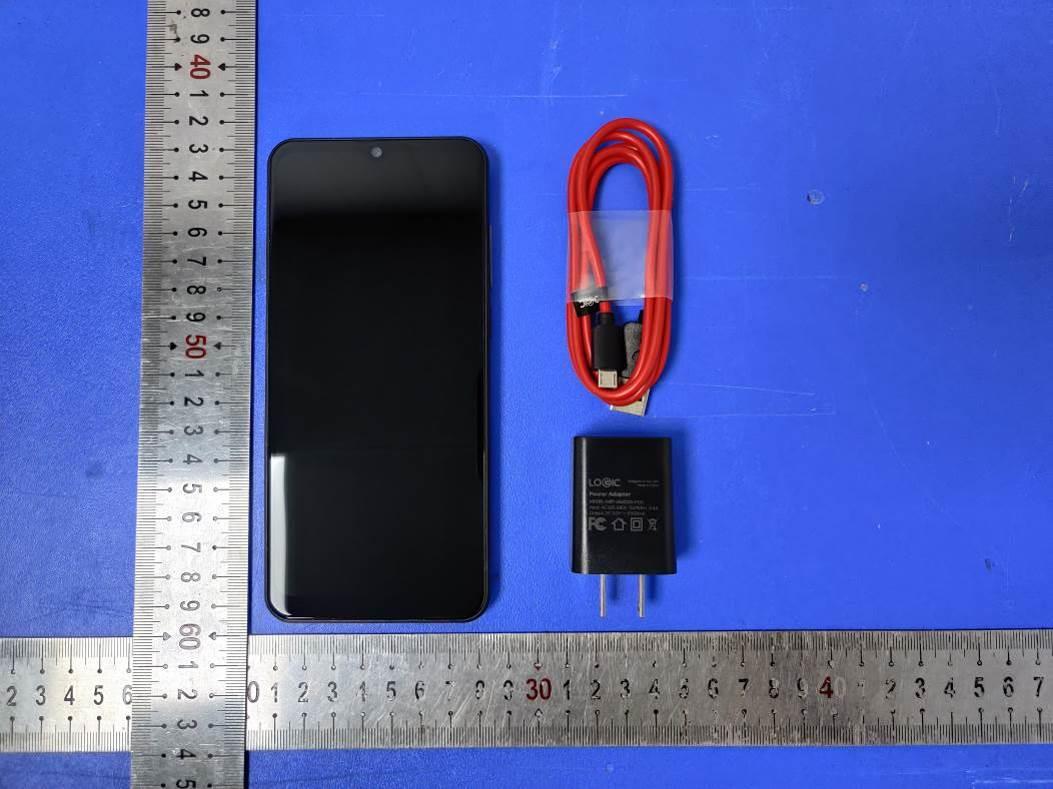

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 4.0cm*W3.0cm Label Location 6.5-inch 4G Smart Phone Model No.: L65 FCC ID: O55651921 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI ANT LTE Div ANT GSM/WCDMA/LTE Main ANT Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Fig.9 Fig.10 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Fig.11 Fig.12 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Fig.13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 167 SAR TEST REPORT For Swagtek 6.5-inch 4G Smart Phone Test Model: L65 Additional Model No.: ULTRA, N65 Prepared for : Swagtek Address : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 22, 2021 Number of tested samples : 1 Serial number : Prototype Date of Test : June 22, 2021~June 30, 2021 Date of Report : July 12, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 167 SAR TEST REPORT Report Reference No. ............... : LCS210525068AEB Date Of Issue .............................. : July 12, 2021 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Swagtek Address ....................................... : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Test Specification: Standard ...................................... : IEEE Std C95.1, 2019& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : 6.5-inch 4G Smart Phone Trade Mark ................................. : LOGIC, iSWAG, UNONU Model/Type Reference ............... : L65 Operation Frequency .................. : GSM 850/PCS1900,WCDMA Band II/V; LTE Band 2/4/5/7/12/13/17; WLAN2.4G and Bluetooth4.2. Modulation Type ........................ : ULTRA, N65 Ratings ........................................ : DC 3.8V by Rechargeable Li-ion Battery(4800mAh) Recharged by 5V2000mA Adapter Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 167 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210525068AEB July 12, 2021 Date of issue Type / Model......................... : L65 EUT....................................... : 6.5-inch 4G Smart Phone Applicant.............................. : Swagtek Address.................................. : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Swagtek Address.................................. : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone.............................. : / Fax......................................... : / Factory.................................. : Swagtek Address.................................. : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 167 Revison History Revision Issue Date Revisions Revised By 000 July 12, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 167 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS ...............................................................................................................................................................6 1.4. PRODUCT DESCRIPTION .........................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 101 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 102 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 103 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 104 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 105 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 106 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 107 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 108 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 109 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 110 of 167 5.3 SID835Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 111 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 112 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 113 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 114 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 115 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 116 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 117 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 118 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 119 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 120 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 121 of 167 5.4 SID1800 Dipole Calibration Certificate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 122 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 123 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 124 of 167 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: O55651921 Report No.: LCS210525068AEB This report sha…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2 (BDR/EDR) (Conducted Measurement) Product Name: 6.5-inch 4G Smart Phone Trade Mark: LOGIC, iSWAG, UNONU Test Model: L65 Environmental Conditions Temperature: 21.6 C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.780 21 PASS MCH 5.262 21 PASS HCH 5.093 21 PASS π/4DQPSK LCH 5.104 21 PASS MCH 6.131 21 PASS HCH 5.739 21 PASS 8DPSK LCH 5.513 21 PASS MCH 6.442 21 PASS HCH 5.997 21 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 6 of 47 8DPSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9441 Not Specified PASS MCH 0.9471 Not Specified PASS HCH 0.9453 Not Specified PASS π/4DQPSK LCH 1.290 Not Specified PASS MCH 1.289 Not Specified PASS HCH 1.292 Not Specified PASS 8DPSK LCH 1.300 Not Specified PASS MCH 1.299 Not Specified PASS HCH 1.304 Not Specified PASS Test Graphs GFSK/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 8 of 47 GFSK/MCH GFSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.148 0.631 PASS MCH 0.950 0.631 PASS HCH 1.152 0.631 PASS π/4DQPSK LCH 0.928 0.861 PASS MCH 0.996 0.861 PASS HCH 0.968 0.861 PASS 8DPSK LCH 1.046 0.869 PASS MCH 1.306 0.869 PASS HCH 1.374 0.869 PASS Test Graphs GFSK/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 13 of 47 GFSK/MCH GFSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 18 of 47 8DPSK/Hop Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.307 0.4 PASS 3DH5 MCH 2.88 106.7 0.307 0.4 PASS 3DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 3.438 -38.148 -16.562 PASS MCH 5.03 -37.740 -14.970 PASS HCH 4.785 -38.389 -15.215 PASS π/4DQPSK LCH 2.589 -37.976 -17.411 PASS MCH 3.723 -37.468 -16.277 PASS HCH 3.729 -34.876 -16.271 PASS 8DPSK LCH 2.75 -35.612 -17.250 PASS MCH 4.16 -37.695 -15.840 PASS HCH 3.933 -38.320 -16.067 PASS GFSK_LCH_Graphs Pref Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 25 of 47 Puw Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA Page 29 of 47 π/…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 38 FCC TEST REPORT For Swagtek 6.5-inch 4G Smart Phone Test Model: L65 Additional Model No.: ULTRA, N65 Prepared for : Swagtek Address : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 22, 2021 Number of tested samples : 1 Serial number : Prototype Date of Test : June 22, 2021 ~ June 30, 2021 Date of Report : July 07, 2021 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 38 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210525068AEA Date of Issue .................................. : July 07, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Swagtek Address .......................................... : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : 6.5-inch 4G Smart Phone Trade Mark ..................................... : LOGIC, iSWAG, UNONU Test Model ...................................... : L65 Ratings ........................................... : DC 3.8V by Rechargeable Li-ion Battery(4800mAh) Recharged by 5V2000mA Adapter Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ File administrator Linda He/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 38 FCC -- TEST REPORT Test Model............................... : L65 EUT......................................... : 6.5-inch 4G Smart Phone Applicant............................... : Swagtek Address.................................. : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Swagtek Address................................... : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone............................... : / Fax.......................................... : / Factory................................... : Swagtek Address................................... : 10205 NW 19th St. Suite 101, Miami, FL, 33172 Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210525068AEA July 07, 2021 Date of issue Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 38 Revision History Revision Issue Date Revisions Revised By 000 July 07, 2021 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 Report No.: LCS210525068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 8 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 8 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 8 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 (Below 1GHz) Fig. 2 (Above 1GHz) Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: O55651921 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement AC Conducted Emission of charge from power adapter mode
