O556645226.6 inch 4G smart phone

User Manual User Manual User Manual All rights are reserved. No part of this document may be reproduced without permission. While all efforts have been made to ensure the accuracy of all the contents in this manual, we assume no liability for errors or omissions or statements of any kind in this manual, whether such errors or omissions or statements resulting from negligence, accidents, or any other cause. The contents of this manual are subject to change without notice. Protect our environment! We strive to produce products in compliance with global environmental standards. Please consult your local authorities for proper disposal. Note: User Manual is just to guide the user about the functionality of the phone. It is not a certificate of technology. Some functions may vary due to modifications and upgrade of software, or due to printing mistake. “It is advisable to charge battery to 100% before start using phone for better battery life” User Manual M7L 1 1- Welcome ............................................................... 7 1.1. Exciting Features ............................................... 7 2- Phone Layout ........................................................ 9 2.1. Keys and Parts ................................................... 9 1. USB Jack .............................................................. 9 2. Earphone Jack ........................................................ 3. Receiver ................................................................ 9 4. Front Camera ........................................................ 9 5. Front Flash ............................................................ 9 6. Screen ................................................................... 9 7. Menu Key .............................................................. 9 8. Home Key ............................................................. 9 9. Back Key ............................................................... 9 User Manual M7L 2 10. Volume Key ......................................................... 9 11. Power Key ........................................................... 9 12. Rear Flash ........................................................... 9 13. Rear Camera ....................................................... 9 14. Speaker ............................................................... 9 2.2. Icons and Indicators ........................................... 9 3- Getting Started .................................................... 10 3.1. Insert SIM card ................................................. 10 3.2. Insert Memory card............................................11 3.3. Unlock the Phone ............................................. 12 3.4. Using the Touch screen .................................... 12 3.5. Using the Phone’s Buttons ............................... 13 3.6. Context Menus ................................................. 13 User Manual M7L 3 3.7. Options menus ................................................. 14 3.8. Menu Icons ....................................................... 14 4-Placing and Receiving Calls ................................ 15 4.1. Make a Call ...................................................... 15 4.2. Disable Phone Calls (Airplane mode) .............. 15 4.3. Disable SIM card .............................................. 15 5-The Home Screen ................................................ 15 5.1. Open and Close the Launcher ......................... 16 5.2. Switch to Recently Used Application ................ 17 5.3. Customize Home Screen ................................. 17 6-Connect to the Internet ........................................ 18 6.1. To configure your Internet: ............................... 18 6.2. Access Internet via Wi-Fi .................................. 18 User Manual M7L 4 7-Managing Notifications ......................................... 19 7.1. Open the Notifications Panel ............................ 19 7.2. Respond to Notifications .................................. 19 7.3. Close Notifications Panel ................................. 19 8-Messaging ............................................................ 19 8.1. Message environment & Settings .................... 19 8.2. Using the Onscreen Keyboard ......................... 20 8.3. Create and Send Multimedia Message ............ 22 8.4. Operation on a message: ................................. 22 9-Multimedia ............................................................ 23 9.1. Camera ............................................................ 23 9.2. Gallery .............................................................. 24 9.3. Share an image ................................................ 24 User Manual M7L 5 9.4.YT Music ........................................................... 24 9.5. FM Radio .......................................................... 24 9.6. Record Sounds ................................................ 25 9.7. Make Screenshot ............................................. 25 9.8. New features of the volume control .................. 26 10-Connect to Networks and Devices ..................... 26 10.1. Connect to PC ................................................ 26 10.2. Connect to Internet ......................................... 28 10.3. Connect to Wi-Fi Networks ............................ 28 10.4. Pair with Bluetooth Devices ........................... 28 10.5. Connect to Internet via your Phone ................ 29 10.6. Install Secure Certificate from SD Card ......... 29 11-Download Applications ....................................... 29 User Manual M7L 6 12-Phone Settings ................................................... 29 13- Health and Safety Information .......................... 30 User Manual M7L 7 1- WELCOME Congratulations on your purchase of the BLUmobile phone. Your phone provides many functions which are practical for daily use, such as a hands-free loudspeaker, camera, MP3 playe…

Text truncated - open the document above for the full version.

SWAGTEK Agent Authorization Letter (2023-01-11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Charles Cheng / Manager Date/City: 2023-01-11 / Miami Phone: 1-305-421-9938 Fax: 1-305-471-9011 E-mail: [email protected]

SWAGTEK Family models declaration letter. 2023-01-11 We Company: SWAGTEK Address: 10205 NW 19th Street STE101Miami, FL 33172 Product: 6.6 inch 4G smart phone Model Name: L66 LITE Family Model: ZAC, LEX All the model are the same circuit and RF module,except the model names. Thanks Signature Charles Cheng / Manager Date/City: 2023-01-11 / Miami Phone: 1-305-421-9938 Fax: 1-305-471-9011 E-mail: [email protected]

SWAGTEK Long Term Confidentiality Request Letter (2023-01-11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: 6.6 inch Smart Phone Model No.: L66 LITE, ZAC, LEX FCC ID: O55664522 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description  Parts List  Tune Up Procedure  PCB Layout and its Location Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Charles Cheng / Manager Date/City: 2023-01-11 / Miami Phone: 1-305-421-9938 Fax: 1-305-471-9011 E-mail: [email protected]

SWAGTEK Short Term Confidentiality Request Letter (2023-01-11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: 6.6 inch Smart Phone Model No.: L66 LITE, ZAC, LEX FCC ID: O55664522 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <SWAGTEK>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos Internal photos External photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which <SWAGTEK> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <SWAGTEK> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Charles Cheng / Manager Date/City: 2023-01-11 / Miami Phone: 1-305-421-9938 Fax: 1-305-471-9011 E-mail: [email protected]

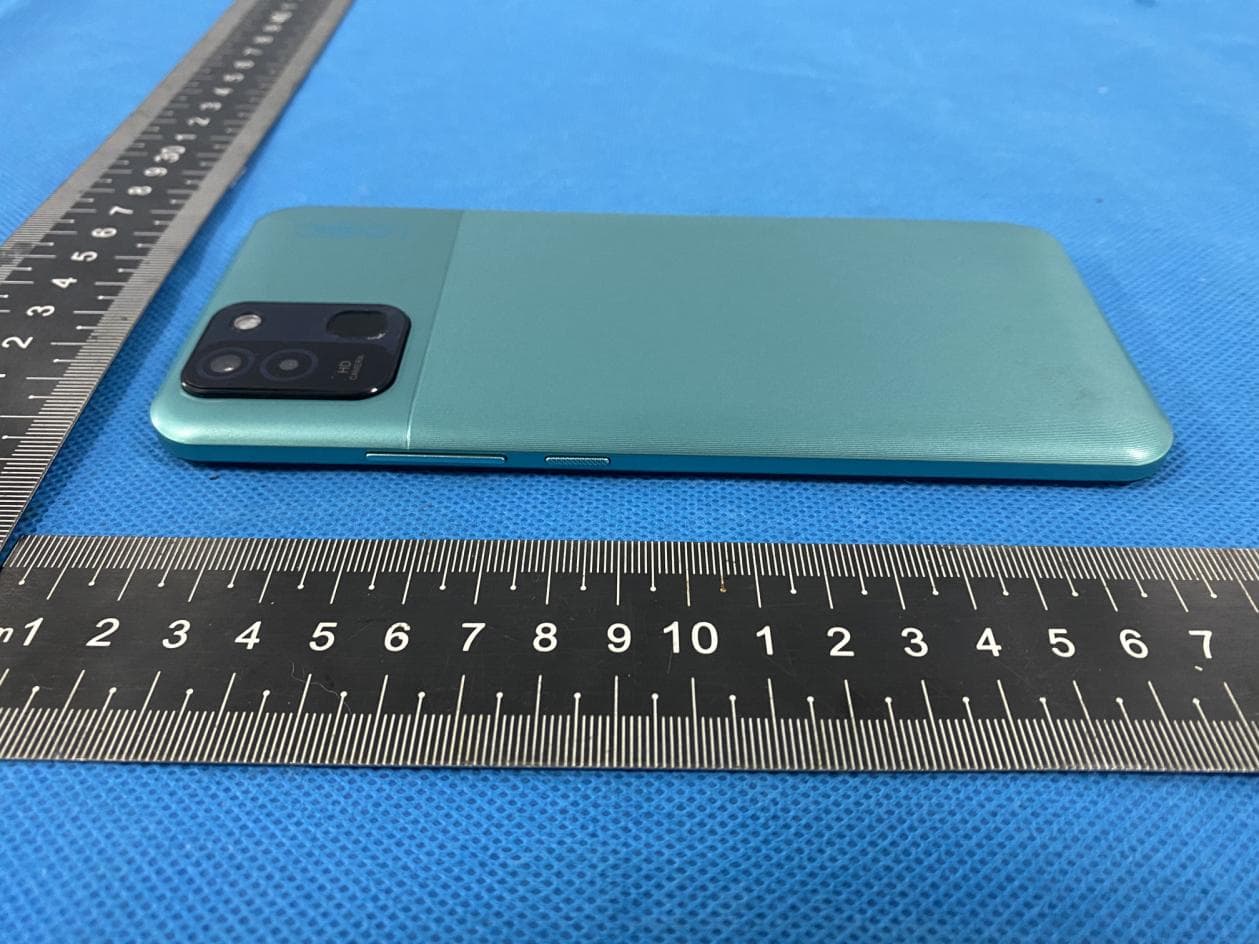

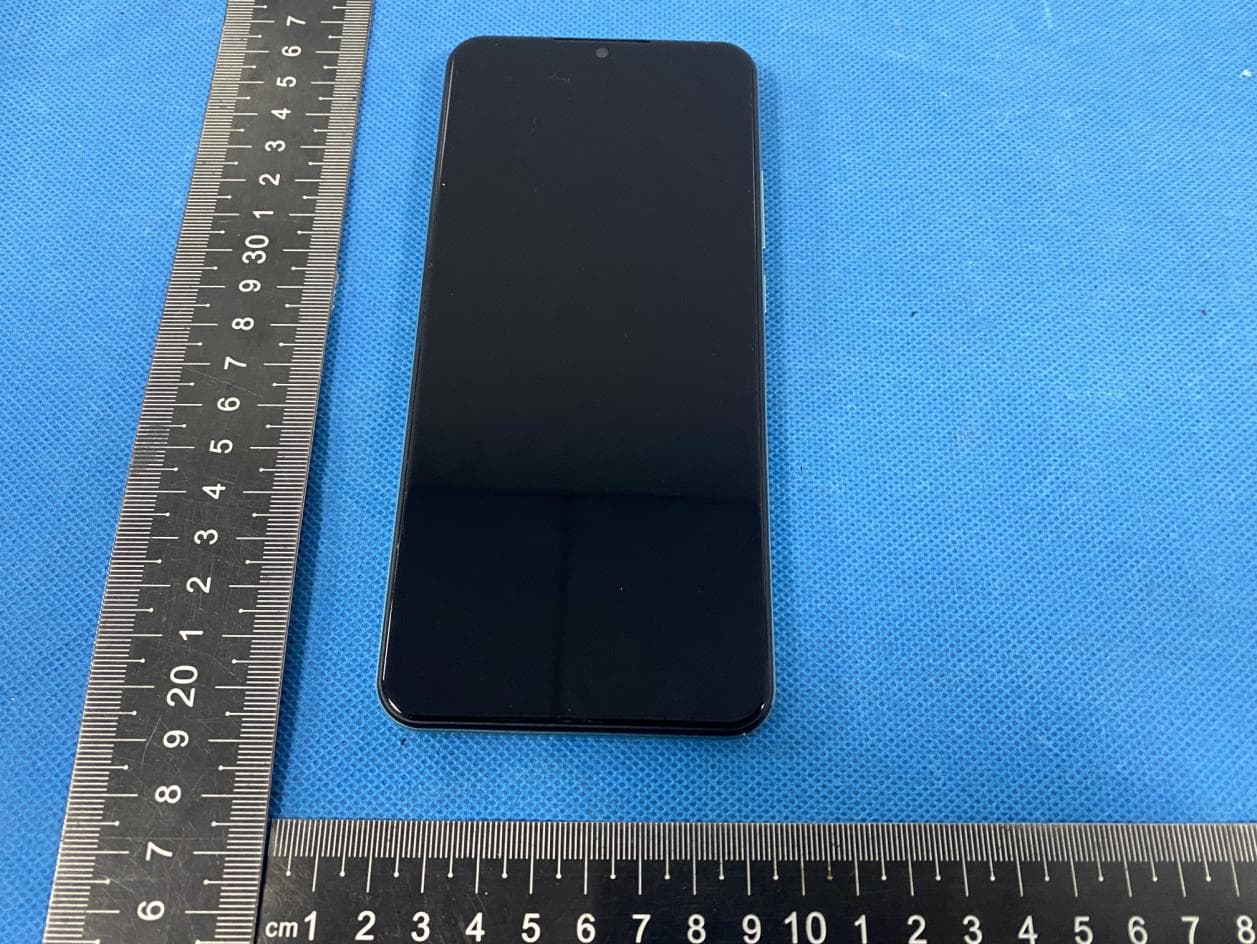

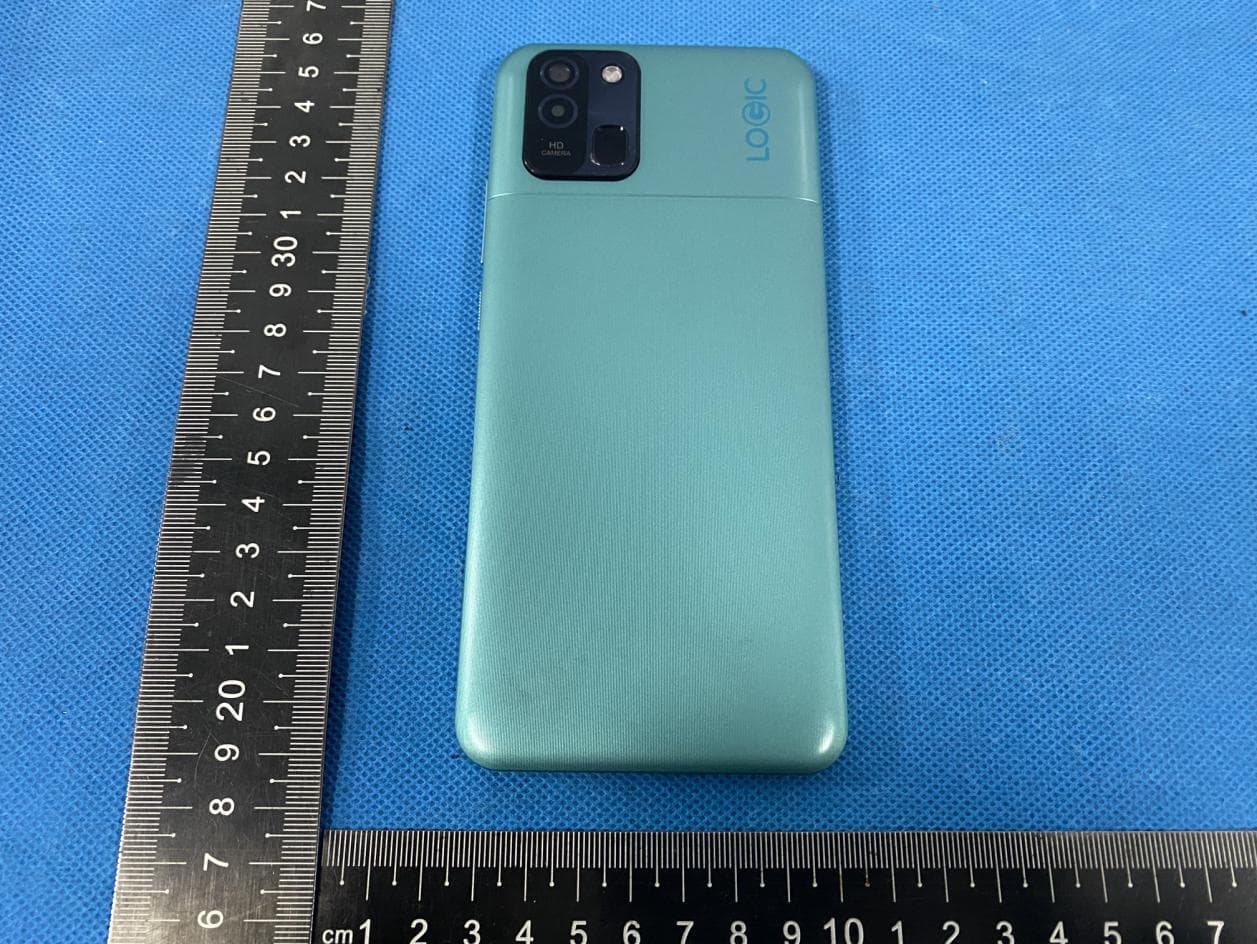

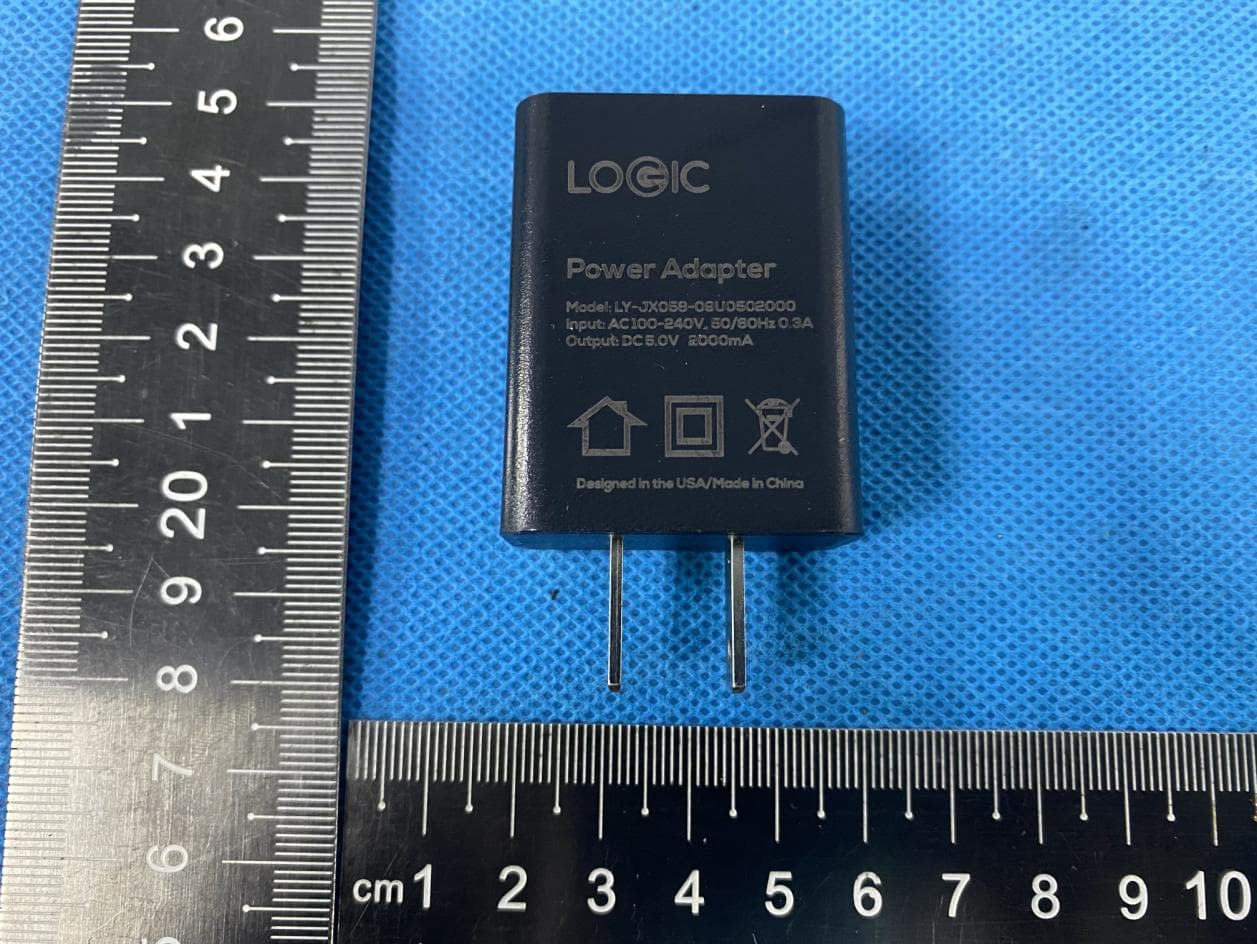

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 BT/WIFI ANT 4G AUX ANT Photo 21 2/3/4G Main ANT

致力于为客户提供专业级天线解决方案 Project introduction Product type Tablet Board type Main board Bands and material main antenna Bands material 2GGSM850/900/1800/1900 FPC 3GWCDMA B1/2/5/8 4G LTE B1/2/3/4/5/7/8/12/13/17/25/26/28AB B66 others GWB1575.42MHz/2.450GHz FPC DRX824MHz-2700MHz FPC Performance request carry out as customer request 致力于为客户提供专业级天线解决方案 Active parameters of the main antenna TestGSM 850EGSM 900 Channel128190251162124 TRP(dBm) 26.4326.0325.7825.7723.9823.32 TIS(dBm) -102.67-102.36-102.25-99.14-98.63-98.75 TestDCS 1800PCS 1900 Channel512698885512661810 TRP(dBm) 24.6825.2325.1125.3625.0124.78 TIS(dBm) -103.11-102.88-102.45-103.46-102.65-102.27 致力于为客户提供专业级天线解决方案 Active parameters of the main antenna TestWCDMA_VWCDMA_VIII Channel435744084458293730133088 TRP(dBm) 15.6616.2316.0415.4413.8913.21 TIS(dBm) -103.09-102.56-102.26-99.77-98.22-97.71 TestWCDMA_IWCDMA_II Channel105621070010838966298009938 TRP(dBm) 17.1317.0916.8818.2417.6617.32 TIS(dBm) -103.17-103.04-102.89-103.55-103.29-103.14 致力于为客户提供专业级天线解决方案 Active parameters of the main antenna TestFDD B1FDD B2 Channel180501830018550186501890019150 TRP(dBm) 18.2217.7817.4417.5518.1418.26 TIS(dBm) -93.46-93.25-92.89-93.13-93.27-93.18 TestFDD B3FDD B4 Channel192501957519900 200502017520350 TRP(dBm) 16.6717.2517.8816.5517.4517.23 TIS(dBm) -93.44-93.32-92.55-93.51-93.28-93.04 TestFDD B5FDD B7 Channel204502052520600208002110021400 TRP(dBm) 15.7716.1316.0418.2218.1118.05 TIS(dBm) -92.3-92.14-90.88-93.46-93.17-92.79 TestFDD B8 Channel215002165021750 TRP(dBm) 15.3214.0913.26 TIS(dBm) -88.64-87.23-87.42 致力于为客户提供专业级天线解决方案 Active parameters of the main antenna TestFDD B12 Channel230352309523155 TRP(dBm) 15.6616.0316.22 TIS(dBm) -91.11-91.45-90.48 TestFDD B17 Channel237802379023800 TRP(dBm) 15.7416.1116.31 TIS(dBm) -91.53-91.08-90.82 TestFDD B66 Channel132033132322132622 TRP(dBm) 17.3217.5517.66 TIS(dBm) -93.42-92.78-92.28 FDD B13 231302323023330 15.7516.2816.29 -91.43-90.89-90.65 FDD B26 267402686526990 15.6316.2216.14 -91.22-91.07-90.53 致力于为客户提供专业级天线解决方案 Active parameters of the main antenna TestFDD B28A Channel272602736027460 TRP(dBm) 15.6915.8816.14 TIS(dBm) -91.43-90.89-90.52 TestFDD B25 Channel263652664026090 TRP(dBm) 17.5618.1418.23 TIS(dBm) -92.27-92.66-92.29 FDD B28B 274102751027610 15.5116.0416.32 -90.75-90.66-90.22 致力于为客户提供专业级天线解决方案 customer standard 致力于为客户提供专业级天线解决方案 GPS testing 致力于为客户提供专业级天线解决方案 switch logic RF1(0欧） GSM900/1800 WCDMA B8 LTEB3/4/8/66 RF2（4.7NH） GSM850 WCDMA B5 LTEB5/26 RF3（NC） LTEB12/13/17/28AB RF4（3.9PF） GSM1900 WCDMA B1/2 LTEB1/2/7/25 致力于为客户提供专业级天线解决方案 Antenna environment treatment and improvement 致力于为客户提供专业级天线解决方案 antenna gain Band Gain（MAX） GSM850 0.53 EGSM900 0.49 DCS1800 0.41 PCS1900 0.38 WCDMA B1 0.44 WCDMA B2 0.38 WCDMA B5 0.53 WCDMA B8 0.49 LTE B1 0.44 LTE B2 0.38 LTE B3 0.41 LTE B4 0.42 LTE B5 0.53 LTE B7 0.47 LTE B8 0.49 LTE B12 0.42 LTE B13 0.42 LTE B17 0.42 LTE B25 0.38 LTE B26 0.53 LTE B28 0.42 LTE B66 0.41 GPS 1.22 WiFi 1.11 BT 1.11 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph 致力于为客户提供专业级天线解决方案 data graph

Report No.: STR221125001004E 1 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 24.51 PASS EGPRS1900 1 Slot 661 1880 25.65 PASS EGPRS1900 1 Slot 810 1909.8 25.96 PASS EGPRS1900 2 Slot 512 1850.2 24.86 PASS EGPRS1900 2 Slot 661 1880 25.52 PASS EGPRS1900 2 Slot 810 1909.8 25.78 PASS EGPRS1900 3 Slot 512 1850.2 23.90 PASS EGPRS1900 3 Slot 661 1880 23.97 PASS EGPRS1900 3 Slot 810 1909.8 24.64 PASS EGPRS1900 4 Slot 512 1850.2 21.61 PASS EGPRS1900 4 Slot 661 1880 22.30 PASS EGPRS1900 4 Slot 810 1909.8 22.45 PASS EGPRS850 1 Slot 128 824.2 25.17 PASS EGPRS850 1 Slot 189 836.4 25.01 PASS EGPRS850 1 Slot 251 848.8 24.90 PASS EGPRS850 2 Slot 128 824.2 25.33 PASS EGPRS850 2 Slot 189 836.4 25.03 PASS EGPRS850 2 Slot 251 848.8 24.96 PASS EGPRS850 3 Slot 128 824.2 24.19 PASS EGPRS850 3 Slot 189 836.4 24.28 PASS EGPRS850 3 Slot 251 848.8 23.86 PASS EGPRS850 4 Slot 128 824.2 21.59 PASS EGPRS850 4 Slot 189 836.4 21.69 PASS EGPRS850 4 Slot 251 848.8 21.40 PASS Report No.: STR221125001004E 2 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 7.390506757 13.00 PASS EGPRS1900 661 1880 6.630244565 13.00 PASS EGPRS1900 810 1909.8 6.393771429 13.00 PASS EGPRS850 128 824.2 9.771823144 13.00 PASS EGPRS850 189 836.4 9.659375818 13.00 PASS EGPRS850 251 848.8 9.869582844 13.00 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: STR221125001004E 3 / 47 EGPRS1900 Channel=661 EGPRS850 Channel=128 Report No.: STR221125001004E 4 / 47 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: STR221125001004E 5 / 47 Report No.: STR221125001004E 6 / 47 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 242.424 309.348 PASS EGPRS1900 661 1880 237.872 298.657 PASS EGPRS1900 810 1909.8 246.683 313.384 PASS EGPRS850 128 824.2 242.106 290.488 PASS EGPRS850 189 836.4 246.768 290.027 PASS EGPRS850 251 848.8 245.396 283.708 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: STR221125001004E 7 / 47 EGPRS1900 Channel=661 EGPRS850 Channel=128 Report No.: STR221125001004E 8 / 47 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: STR221125001004E 9 / 47 Report No.: STR221125001004E 10 / 47 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.98 -36.31 -13 PASS EGPRS1900 810 1909.8 1910.01 -34.38 -13 PASS EGPRS850 128 824.2 823.99 -35.64 -13 PASS EGPRS850 251 848.8 849.00 -35.80 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: STR221125001004E 11 / 47 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: STR221125001004E 12 / 47 Report No.: STR221125001004E 13 / 47 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25941.48 -18.99 -13 PASS EGPRS1900 661 1880 26204.86 -18.52 -13 PASS EGPRS1900 810 1909.8 25595.39 -17.87 -13 PASS EGPRS850 128 824.2 25929.57 -19.88 -13 PASS EGPRS850 189 836.4 26061.26 -19.89 -13 PASS EGPRS850 251 848.8 25981.85 -20.46 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: STR221125001004E 14 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: STR221125001004E 15 / 47 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: STR221125001004E 16 / 47 Report No.: STR221125001004E 17 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 29.31 PASS GPRS1900 1 Slot 661 1880 29.36 PASS GPRS1900 1 Slot 810 1909.8 29.24 PASS GPRS1900 2 Slot 512 1850.2 27.22 PASS GPRS1900 2 Slot 661 1880 26.99 PASS GPRS1900 2 Slot 810 1909.8 26.76 PASS GPRS1900 3 Slot 512 1850.2 25.71 PASS GPRS1900 3 Slot 661 1880 25.46 PASS GPRS1900 3 Slot 810 1909.8 25.25 PASS GPRS1900 4 Slot 512 1850.2 23.60 PASS GPRS1900 4 Slot 661 1880 23.39 PASS GPRS1900 4 Slot 810 1909.8 23.13 PASS GPRS850 1 Slot 128 824.2 32.30 PASS GPRS850 1 Slot 189 836.4 32.64 PASS GPRS850 1 Slot 251 848.8 32.58 PASS GPRS850 2 Slot 128 824.2 30.36 PASS GPRS850 2 Slot 189 836.4 30.50 PASS GPRS850 2 Slot 251 848.8 30.40 PASS GPRS850 3 Slot 128 824.2 28.51 PASS GPRS850 3 Slot 189 836.4 28.64 PASS GPRS850 3 Slot 251 848.8 28.54 PASS GPRS850 4 Slot 128 824.2 26.09 PASS GPRS850 4 Slot 189 836.4 26.26 PASS GPRS850 4 Slot 251 848.8 26.14 PASS Report No.: STR221125001004E 18 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.681610915 13.00 PASS GPRS1900 661 1880 2.679920105 13.00 PASS GPRS1900 810 1909.8 2.711217472 13.00 PASS GPRS850 128 824.2 2.639596197 13.00 PASS GPRS850 189 836.4 2.642121212 13.00 PASS GPRS850 251 848.8 2.672080153 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: STR221125001004E 19 / 47 GPRS1900 Channel=661 GPRS850 Channel=189 Report No.: STR221125001004E 20 / 47 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: STR221125001004E 21 / 47 Report No.: STR221125001004E 22 / 47 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 238.706 309.700 PASS GPRS1900 661 1880 243.447 307.404 PASS GPRS1900 810 1909.8 237.271 295.413 PASS GPRS850 128 824.2 244.410 309.593 PASS GPRS850 189 836.4 242.567 318.018 PASS GPRS850 251 848.8 242.141 315.130 PASS GPRS1900 Channel=661 GPRS1900 Channel=512 Report No.: STR221125001004E 23 / 47 GPRS1900 Channel=810 GPRS850 Channel=189 Report No.: STR221125001004E 24 / 47 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: STR221125001004E 25 / 47 Report No.: STR221125001004E 26 / 47 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.98 -30.55 -13 PASS GPRS1900 810 1909.8 1910.01 -30.53 -13 PASS GPRS850 128 824.2 823.97 -27.83 -13 PASS GPRS850 251 848.8 849.02 -27.58 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: STR221125001004E 27 / 47 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: STR221125001004E 28 / 47 Report No.…

Text truncated - open the document above for the full version.

Report No.: STR221125001004E 1 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 23.26 PASS WCDMA Band2 9400 1880 23.28 PASS WCDMA Band2 9538 1907.6 23.25 PASS WCDMA Band5 4132 826.4 22.71 PASS WCDMA Band5 4182 836.4 22.72 PASS WCDMA Band5 4233 846.6 23.27 PASS Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 2.51 13 PASS WCDMA Band2 9400 1880 2.65 13 PASS WCDMA Band2 9538 1907.6 2.69 13 PASS WCDMA Band5 4132 826.4 3.14 13 PASS WCDMA Band5 4182 836.4 3.02 13 PASS WCDMA Band5 4233 846.6 2.99 13 PASS WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9262 Report No.: STR221125001004E 2 / 17 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4182 Report No.: STR221125001004E 3 / 17 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: STR221125001004E 4 / 17 Report No.: STR221125001004E 5 / 17 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4165.977 4710.771 PASS WCDMA Band2 9400 1880 4172.881 4704.444 PASS WCDMA Band2 9538 1907.6 4158.944 4668.786 PASS WCDMA Band5 4132 826.4 4149.869 4667.720 PASS WCDMA Band5 4182 836.4 4133.843 4686.206 PASS WCDMA Band5 4233 846.6 4133.728 4647.683 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: STR221125001004E 6 / 17 WCDMA Band2 Channel=9400 WCDMA Band5 Channel=4132 Report No.: STR221125001004E 7 / 17 WCDMA Band5 Channel=4182 WCDMA Band5 Channel=4233 Report No.: STR221125001004E 8 / 17 Report No.: STR221125001004E 9 / 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -21.87 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -22.60 -13 PASS WCDMA Band5 4132 826.4 824.00 -25.23 -13 PASS WCDMA Band5 4233 846.6 849.01 -24.69 -13 PASS WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9262 Report No.: STR221125001004E 10 / 17 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4132 Report No.: STR221125001004E 11 / 17 Report No.: STR221125001004E 12 / 17 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19921.62 -23.18 -13 PASS WCDMA Band2 9400 1880 19947.08 -22.98 -13 PASS WCDMA Band2 9538 1907.6 19865.70 -23.17 -13 PASS WCDMA Band5 4132 826.4 5968.13 -29.59 -13 PASS WCDMA Band5 4182 836.4 3279.72 -29.62 -13 PASS WCDMA Band5 4233 846.6 3389.64 -29.58 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: STR221125001004E 13 / 17 WCDMA Band2 Channel=9400 WCDMA Band5 Channel=4132 Report No.: STR221125001004E 14 / 17 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: STR221125001004E 15 / 17 Report No.: STR221125001004E 16 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 21.75 PASS HSDPA Band2 Subtest2 9262 1852.4 21.59 PASS HSDPA Band2 Subtest3 9262 1852.4 20.98 PASS HSDPA Band2 Subtest4 9262 1852.4 20.80 PASS HSDPA Band2 Subtest1 9400 1880 21.45 PASS HSDPA Band2 Subtest2 9400 1880 21.20 PASS HSDPA Band2 Subtest3 9400 1880 20.71 PASS HSDPA Band2 Subtest4 9400 1880 20.31 PASS HSDPA Band2 Subtest1 9538 1907.6 21.40 PASS HSDPA Band2 Subtest2 9538 1907.6 21.14 PASS HSDPA Band2 Subtest3 9538 1907.6 20.76 PASS HSDPA Band2 Subtest4 9538 1907.6 20.74 PASS HSDPA Band5 Subtest1 4132 826.4 22.27 PASS HSDPA Band5 Subtest2 4132 826.4 21.95 PASS HSDPA Band5 Subtest3 4132 826.4 21.58 PASS HSDPA Band5 Subtest4 4132 826.4 21.50 PASS HSDPA Band5 Subtest1 4182 836.4 22.01 PASS HSDPA Band5 Subtest2 4182 836.4 21.86 PASS HSDPA Band5 Subtest3 4182 836.4 21.51 PASS HSDPA Band5 Subtest4 4182 836.4 21.37 PASS HSDPA Band5 Subtest1 4233 846.6 22.78 PASS HSDPA Band5 Subtest2 4233 846.6 22.54 PASS HSDPA Band5 Subtest3 4233 846.6 22.28 PASS HSDPA Band5 Subtest4 4233 846.6 22.12 PASS Report No.: STR221125001004E 17 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 21.48 PASS HSUPA Band2 Subtest2 9262 1852.4 21.75 PASS HSUPA Band2 Subtest3 9262 1852.4 21.42 PASS HSUPA Band2 Subtest4 9262 1852.4 21.72 PASS HSUPA Band2 Subtest5 9262 1852.4 21.36 PASS HSUPA Band2 Subtest1 9400 1880 21.27 PASS HSUPA Band2 Subtest2 9400 1880 21.38 PASS HSUPA Band2 Subtest3 9400 1880 21.04 PASS HSUPA Band2 Subtest4 9400 1880 21.43 PASS HSUPA Band2 Subtest5 9400 1880 21.12 PASS HSUPA Band2 Subtest1 9538 1907.6 21.22 PASS HSUPA Band2 Subtest2 9538 1907.6 21.42 PASS HSUPA Band2 Subtest3 9538 1907.6 21.27 PASS HSUPA Band2 Subtest4 9538 1907.6 21.31 PASS HSUPA Band2 Subtest5 9538 1907.6 21.23 PASS HSUPA Band5 Subtest1 4132 826.4 22.28 PASS HSUPA Band5 Subtest2 4132 826.4 22.19 PASS HSUPA Band5 Subtest3 4132 826.4 21.80 PASS HSUPA Band5 Subtest4 4132 826.4 22.17 PASS HSUPA Band5 Subtest5 4132 826.4 21.96 PASS HSUPA Band5 Subtest1 4182 836.4 21.79 PASS HSUPA Band5 Subtest2 4182 836.4 21.95 PASS HSUPA Band5 Subtest3 4182 836.4 21.75 PASS HSUPA Band5 Subtest4 4182 836.4 22.05 PASS HSUPA Band5 Subtest5 4182 836.4 21.86 PASS HSUPA Band5 Subtest1 4233 846.6 22.76 PASS HSUPA Band5 Subtest2 4233 846.6 22.84 PASS HSUPA Band5 Subtest3 4233 846.6 22.62 PASS HSUPA Band5 Subtest4 4233 846.6 22.64 PASS HSUPA Band5 Subtest5 4233 846.6 22.58 PASS

Report No.: STR221125001005E 1 / 736 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band12 1.4 23017 1 #0 QPSK 23.90 PASS Band12 1.4 23017 1 #Mid QPSK 23.93 PASS Band12 1.4 23017 1 #Max QPSK 23.87 PASS Band12 1.4 23017 3 #0 QPSK 23.64 PASS Band12 1.4 23017 3 #Mid QPSK 23.63 PASS Band12 1.4 23017 3 #Max QPSK 23.62 PASS Band12 1.4 23017 6 #0 QPSK 22.71 PASS Band12 1.4 23017 1 #0 QAM16 22.92 PASS Band12 1.4 23017 1 #Mid QAM16 22.93 PASS Band12 1.4 23017 1 #Max QAM16 22.89 PASS Band12 1.4 23017 3 #0 QAM16 22.93 PASS Band12 1.4 23017 3 #Mid QAM16 22.90 PASS Band12 1.4 23017 3 #Max QAM16 22.91 PASS Band12 1.4 23017 6 #0 QAM16 21.88 PASS Band12 1.4 23095 1 #0 QPSK 23.62 PASS Band12 1.4 23095 1 #Mid QPSK 23.65 PASS Band12 1.4 23095 1 #Max QPSK 23.63 PASS Band12 1.4 23095 3 #0 QPSK 23.73 PASS Band12 1.4 23095 3 #Mid QPSK 23.71 PASS Band12 1.4 23095 3 #Max QPSK 23.73 PASS Band12 1.4 23095 6 #0 QPSK 22.70 PASS Band12 1.4 23095 1 #0 QAM16 22.90 PASS Band12 1.4 23095 1 #Mid QAM16 22.95 PASS Band12 1.4 23095 1 #Max QAM16 22.92 PASS Band12 1.4 23095 3 #0 QAM16 22.86 PASS Band12 1.4 23095 3 #Mid QAM16 22.84 PASS Band12 1.4 23095 3 #Max QAM16 22.85 PASS Band12 1.4 23095 6 #0 QAM16 21.80 PASS Band12 1.4 23173 1 #0 QPSK 23.60 PASS Band12 1.4 23173 1 #Mid QPSK 23.54 PASS Band12 1.4 23173 1 #Max QPSK 23.51 PASS Band12 1.4 23173 3 #0 QPSK 23.61 PASS Band12 1.4 23173 3 #Mid QPSK 23.64 PASS Band12 1.4 23173 3 #Max QPSK 23.63 PASS Band12 1.4 23173 6 #0 QPSK 22.61 PASS Band12 1.4 23173 1 #0 QAM16 22.50 PASS Band12 1.4 23173 1 #Mid QAM16 22.49 PASS Band12 1.4 23173 1 #Max QAM16 22.44 PASS Band12 1.4 23173 3 #0 QAM16 22.75 PASS Band12 1.4 23173 3 #Mid QAM16 22.78 PASS Band12 1.4 23173 3 #Max QAM16 22.78 PASS Report No.: STR221125001005E 2 / 736 Band12 1.4 23173 6 #0 QAM16 21.80 PASS Band12 3 23025 1 #0 QPSK 23.65 PASS Band12 3 23025 1 #Mid QPSK 23.66 PASS Band12 3 23025 1 #Max QPSK 23.65 PASS Band12 3 23025 8 #0 QPSK 22.65 PASS Band12 3 23025 8 #Mid QPSK 22.65 PASS Band12 3 23025 8 #Max QPSK 22.65 PASS Band12 3 23025 15 #0 QPSK 22.69 PASS Band12 3 23025 1 #0 QAM16 23.10 PASS Band12 3 23025 1 #Mid QAM16 23.12 PASS Band12 3 23025 1 #Max QAM16 23.10 PASS Band12 3 23025 8 #0 QAM16 21.72 PASS Band12 3 23025 8 #Mid QAM16 21.72 PASS Band12 3 23025 8 #Max QAM16 21.69 PASS Band12 3 23025 15 #0 QAM16 21.75 PASS Band12 3 23095 1 #0 QPSK 23.63 PASS Band12 3 23095 1 #Mid QPSK 23.70 PASS Band12 3 23095 1 #Max QPSK 23.60 PASS Band12 3 23095 8 #0 QPSK 22.58 PASS Band12 3 23095 8 #Mid QPSK 22.61 PASS Band12 3 23095 8 #Max QPSK 22.59 PASS Band12 3 23095 15 #0 QPSK 22.68 PASS Band12 3 23095 1 #0 QAM16 22.89 PASS Band12 3 23095 1 #Mid QAM16 22.95 PASS Band12 3 23095 1 #Max QAM16 22.85 PASS Band12 3 23095 8 #0 QAM16 21.68 PASS Band12 3 23095 8 #Mid QAM16 21.68 PASS Band12 3 23095 8 #Max QAM16 21.67 PASS Band12 3 23095 15 #0 QAM16 21.63 PASS Band12 3 23165 1 #0 QPSK 23.61 PASS Band12 3 23165 1 #Mid QPSK 23.66 PASS Band12 3 23165 1 #Max QPSK 23.55 PASS Band12 3 23165 8 #0 QPSK 22.62 PASS Band12 3 23165 8 #Mid QPSK 22.64 PASS Band12 3 23165 8 #Max QPSK 22.56 PASS Band12 3 23165 15 #0 QPSK 22.62 PASS Band12 3 23165 1 #0 QAM16 22.55 PASS Band12 3 23165 1 #Mid QAM16 22.51 PASS Band12 3 23165 1 #Max QAM16 22.41 PASS Band12 3 23165 8 #0 QAM16 21.66 PASS Band12 3 23165 8 #Mid QAM16 21.61 PASS Band12 3 23165 8 #Max QAM16 21.58 PASS Band12 3 23165 15 #0 QAM16 21.65 PASS Band12 5 23035 1 #0 QPSK 23.85 PASS Report No.: STR221125001005E 3 / 736 Band12 5 23035 1 #Mid QPSK 23.87 PASS Band12 5 23035 1 #Max QPSK 23.83 PASS Band12 5 23035 12 #0 QPSK 22.67 PASS Band12 5 23035 12 #Mid QPSK 22.68 PASS Band12 5 23035 12 #Max QPSK 22.64 PASS Band12 5 23035 25 #0 QPSK 22.69 PASS Band12 5 23035 1 #0 QAM16 23.19 PASS Band12 5 23035 1 #Mid QAM16 23.24 PASS Band12 5 23035 1 #Max QAM16 23.20 PASS Band12 5 23035 12 #0 QAM16 21.62 PASS Band12 5 23035 12 #Mid QAM16 21.61 PASS Band12 5 23035 12 #Max QAM16 21.59 PASS Band12 5 23035 25 #0 QAM16 21.71 PASS Band12 5 23095 1 #0 QPSK 23.70 PASS Band12 5 23095 1 #Mid QPSK 23.80 PASS Band12 5 23095 1 #Max QPSK 23.72 PASS Band12 5 23095 12 #0 QPSK 22.67 PASS Band12 5 23095 12 #Mid QPSK 22.66 PASS Band12 5 23095 12 #Max QPSK 22.75 PASS Band12 5 23095 25 #0 QPSK 22.72 PASS Band12 5 23095 1 #0 QAM16 22.97 PASS Band12 5 23095 1 #Mid QAM16 23.03 PASS Band12 5 23095 1 #Max QAM16 22.97 PASS Band12 5 23095 12 #0 QAM16 21.71 PASS Band12 5 23095 12 #Mid QAM16 21.65 PASS Band12 5 23095 12 #Max QAM16 21.70 PASS Band12 5 23095 25 #0 QAM16 21.71 PASS Band12 5 23155 1 #0 QPSK 23.76 PASS Band12 5 23155 1 #Mid QPSK 23.73 PASS Band12 5 23155 1 #Max QPSK 23.66 PASS Band12 5 23155 12 #0 QPSK 22.65 PASS Band12 5 23155 12 #Mid QPSK 22.63 PASS Band12 5 23155 12 #Max QPSK 22.49 PASS Band12 5 23155 25 #0 QPSK 22.57 PASS Band12 5 23155 1 #0 QAM16 23.13 PASS Band12 5 23155 1 #Mid QAM16 23.09 PASS Band12 5 23155 1 #Max QAM16 22.99 PASS Band12 5 23155 12 #0 QAM16 21.66 PASS Band12 5 23155 12 #Mid QAM16 21.64 PASS Band12 5 23155 12 #Max QAM16 21.57 PASS Band12 5 23155 25 #0 QAM16 21.60 PASS Band12 10 23060 1 #0 QPSK 23.77 PASS Band12 10 23060 1 #Mid QPSK 23.77 PASS …

Text truncated - open the document above for the full version.
