O5ZSNF-930MPager

• COMPREHENSIVE DISTRIBUTION BLOCK DIAGRAM

KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 1 of 2 External photo-Front KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 2 of 2 KTI01E-F0317 FCC ID : 05ZSNF-930M External photo-Rear

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: SNF-930M FCC ID : 05ZSNF-930M SHINIL Industrial Co., Ltd. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location

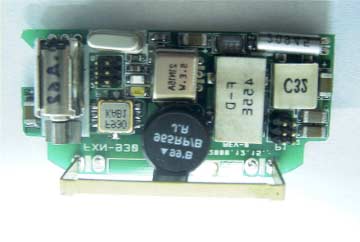

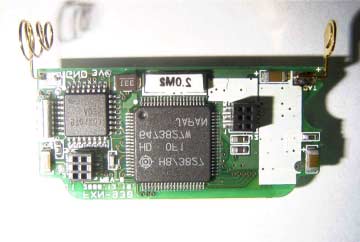

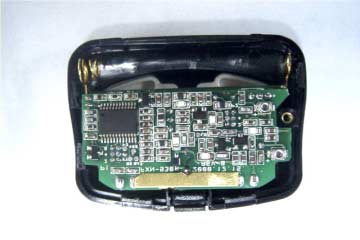

KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 1 of 3 Internal photo KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 2 of 3 Internal photo KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 3 of 3 Internal photo

KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 1 of 12 Certificate of Compliance Test Report No.: KTI01E-F0317 Registration No.: 99058 Applicant: SHINIL Industrial Co., Ltd. Applicant Address: 119-1,SASA-DONG,ANSAN-SHI,KYUNGI-DO,425-220,KOREA Product: Paging Receiver FCC ID: 05ZSNF-930M Model No. SNF-930M Receipt No.: KTI20010315 Date of receipt: Mar, 15, 2001 Date of Issue: Mar, 16, 2001 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: ANSI. C63.4 : 1992 Rule Parts: FCC Part 15, Subpart B Equipment Class: Communication Receiver Test Result: The above mentioned product has been tested and passed. Prepare by: J. H. Lee Tested by: S. B. Kim/ Engineer Approved by: G. C. Min/ President Signature Date Signature Date Signature Date Other Aspects : Abbreviations : • OK, Pass=passed • Fail=failed • N/A=not applicable ☞ ▪ This test report is not permitted to copy partly without our permission. ▪ This test result is dependent on only equipment to be used. ▪ This test result is based on a single evaluation of one sample of the above mentioned. ▪ This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. ▪ We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 2 of 12 ≫≫ ≫≫≫≫ ≫≫ Contents ≪≪ ≪≪≪≪ ≪≪ 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 7 8 8 9 11 13 14~16 ≫ ≫≫ ≫ List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions ≫ ≫≫ ≫ List of Photographs Photograph 1 Setup for Conducted Emissions Photograph 2 Setup for Radiated Emissions 4 10 11 12 KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 3 of 12 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 4 of 12 KTI01E-F0317 FCC ID : 05ZSNF-930M 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment • •• • Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2001 Field Strength Meter ESPC 832827/011 11.2001 LISN KNW407 8-1157-2 10.2001 LISN KNW407 8-1097-7 11.2001 Pulse limiter ESH3Z2 357.8810.52 11.2001 Conducted Cable N/A N/A 11.2001 • •• • Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 11.2001 Spectrum Analyzer R3261C 61720417 11.2001 Log Periodic Antenna 3146 9105-3100 11.2001 Biconical Antenna 3110 9104-1343 11.2001 Open Site Cable N/A N/A 11.2001 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application : Mar. 15, 2001 Date of Test : Mar. 20, 2001 2.4 Test Environment See each test item’s description . Korea Technology Institute Co., Ltd. Page 5 of 12 KTI01E-F0317 FCC ID : 05ZSNF-930M 3. Description of the tested samples The EUT is Paging Receiver. 3.1 Rating and Physical Characteristics • Frequency range : 929.0375 - 931.9375MHz • Using battery:1.5V 3.2 Submitted Documents • User’s Guide • Block Diagram Korea Technology Institute Co., Ltd. Page 6 of 12 KTI01E-F0317 FCC ID : 05ZSNF-930M 4. Measurement Conditions Testing Input Voltage : DC 1.5V 4.1 Modes of Operation The EUT was in the following normal mode during all testing; Prior to a measurement, the Pager shall be operated until stabilization has been reached. 4.2 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2 ∴ U = ± 3.6dB 2) Conducted disturbance UC = ± 0.88dB U = KUc=2xUc = ± 1.8dB Korea Technology Institute Co., Ltd. Page 7 of 12 KTI01E-F0317 FCC ID : 05ZSNF-930M 4.3 Test setup EUT KTI01E-F0317 FCC ID : 05ZSNF-930M Korea Technology Institute Co., Ltd. Page 8 of 12 5. EMISSION Test 5.1 Conducted Emissions Result : Not Applicable The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605-05. A 1m x 1.5m wooden table 80cm. High is placed 80cm away from the vertical wall and 1.5m away from the side wall of the shielded room. R&S Model ESH3-Z5(10kHz-30MHz) 50ohm/50 uH line-Impedance Stabilization Networks(LISN) are bonded to the shielded room. The EUT is powered from the R&S LISN and the support equipment is powered from the Kyoritsu LISN. Power to the LISN are filtered by a high-current high-insertion loss shield enclosures power line filters(100dB 14kHz-1Ghz). The purpose of the filter is to attenuate ambient signal interference and this filter is also bonded to the shielded enclosu…

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 1 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions
