O63GH5815HALD04Analog Cordless Phone

5.8GHzCordless Telephone With Caller ID/Call Waiting 50 CHANNEL AUTOSCAN Model GH5815 OWNER’S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. For installation information, please see “Getting Started” instructions on page 5 or your separate Quick Start guide. Visit Us on the Web: www .uselectronics.info © 2004 BellSouth Corporation S a v e / P a u s e D e l C h a n manual 5815 analog.qxd 3/16/2004 2:40 PM Page 1 Special Features Special Fea ongratulations on your selection of a quality BellSouth Product. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. BellSouthis committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 When examining your new BellSouth cordless telephone, you will find an array of special features including: Filtered Sound™ System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 50 Channel Autoscan- Press the /Optionbutton on the HANDSETto find and lock on to the clearest channel for any call. Desk or Wall Mount- Use this equipment as a desk phone or as a wall phone. TONE or PULSE Dialing- Use this phone for either TONE (push-button) or PULSE (rotary) dialing. Automated Functions - Redial the last number called and automatic STANDBY mode. Security- Ensures greater privacy because of a built-in security code with 65,536 possible combinations that prevents use of your telephone line by another nearby cordless phone. Dependable Battery- Recharge your BATTERY PACK many times with the built-in charger. The battery low warning tone tells you when the BATTERY PACK needs recharging (See page 27). Special Services- Use the /Flashbutton to access special services such as Call Waiting supplied by your telephone company or company switchboard. STANDBY Mode- When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call. When the HANDSETis on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK). When the HANDSETis taken off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver- Recharge your BATTERY PACK many times with the built-in CHARGER. Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of five days without the need for recharging. Length of charge depends on frequency of use. Luminous LCD Screen- The LCD Screen emits light for 10 seconds every time you press any of the TELEPHONE KEYPAD buttons. HANDSET Ringer Control Switch- Select the ringer sound level (HI, LOW, OFF). HANDSET Volume Level - Select the receiver volume level (HI, MID, LOW). HEADSET JACK- Your telephone can utilize a headset for hands-free communication. BELT CLIP- Use the BELT CLIP to hang your HANDSET on your belt. C Edit Talk Ch manual 5815 analog.qxd 3/16/2004 2:40 PM Page 2 Special Features CALLER ID SYSTEM Multi-Function Large LCD Screen - Shows the number you are dialing, and with Caller ID service (available through subscription from your local telephone company), displays information about the caller before you answer the call. Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke. Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone who called. The name, phone number, time and date of the call are recorded. Allows you to return their calls with a few key strokes. Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and a special ring will be heard. Blocked Calls- You can mark the name and number of an unwelcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and the ringer will be disabled. Repeat Call Indicator - Shows if a new incoming call has called more than once. Unavailable Call Indicator - Advises you that the origin of the incoming call does not support the Caller ID system. Call Waiting Service - Displays the name and number of the second caller, if you have subscribed for Call Waiting service from your local telephone company (see page 13). Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service and requested Visual Message Indication from your local telephone company (see page 13). manual 5815 analog.qxd 3/16/2004 2:40 PM Page 3 HANDSET Controls HANDSET C 10. HANDSET ANTENNA 11 . SCROLL UP-DOWN Button 13. Dir (DIRECTORY)/ SAVE Button 12. CID (CALLER ID) Button 14. REDIAL/DELETE Button 16. SHIFT RIGHT Button 17. Ch (CHANNEL)/ OPTION Button 18. Charge Contacts 1. NEW CALL/MESSAGE WAITING LED Indicator 2. LARGE LCD SCREEN 4. TALK Button 3. MENU Button 5. VOICE MAIL Button 6. HEADSET JACK 7. TELEPHONE KEYPAD 8. SHIFT LEFT/ TEMPORARY TONE (*) Button 9. EDIT/FLASH Button 1. New Call/Message Waiting Led Indicator: (New Call) Blinks RED to indicate that you have a new Caller ID call stored in memory. (Message Waiting) Blinks GREEN when receiving a Message Waiting signal, if you have subscribed to a Voice Mail message service from your local telephone company. HANDSET Controls D e l e t e C h O p t i o n New Call/ Msg Wtg MenuCid Save manual 5815 analog.qxd 3/16/2004 2:40 PM Page 4 HANDSET Controls 2. Large LCD Screen:Shows call information, phone status, prompts and DIRECTORY (PHONE BOOK) items. 3. /Mute Button: (Menu) Press to accessthe special functions operation in STANDBY mode. (Mute) Used to temporarily mute the HANDSETmicrophone. 4.Button:Press to answer an incoming call or place a call. Press to end a call. 5.Press to…

Text truncated - open the document above for the full version.

Block 2 Laodong 2nd Industria Area, Xixian, Baoan, Shenzhen, China Tel.: 86-755-7917824/ 86-755-7902415, Fax: 86-755-7917944 February 05, 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: FCC ID: O63GH5815ALD04 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematic Diagram • Block Diagram • Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dan Coronia Senior Approval Engineer

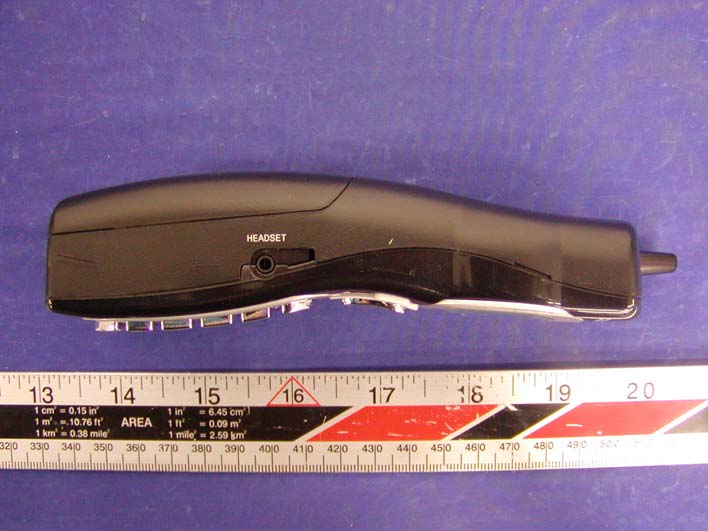

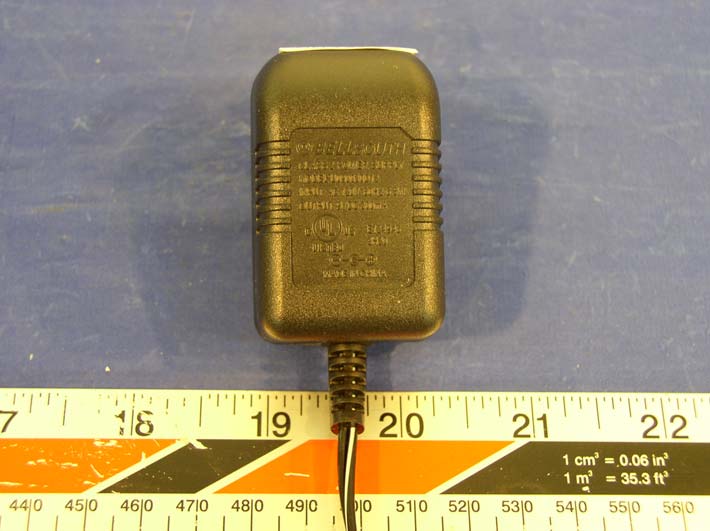

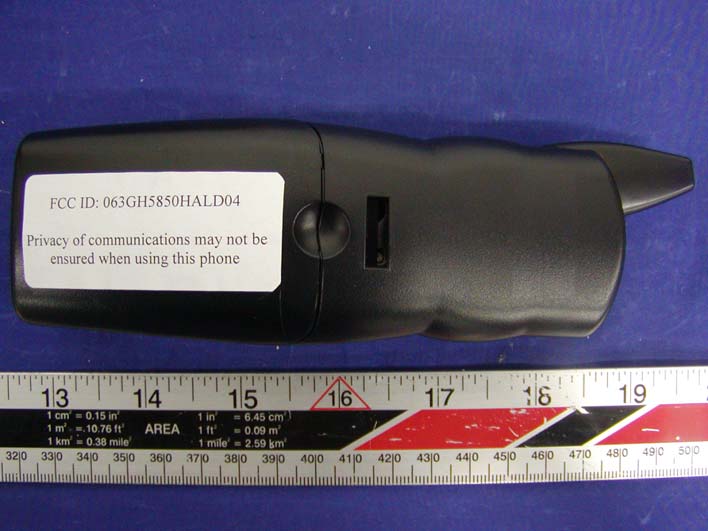

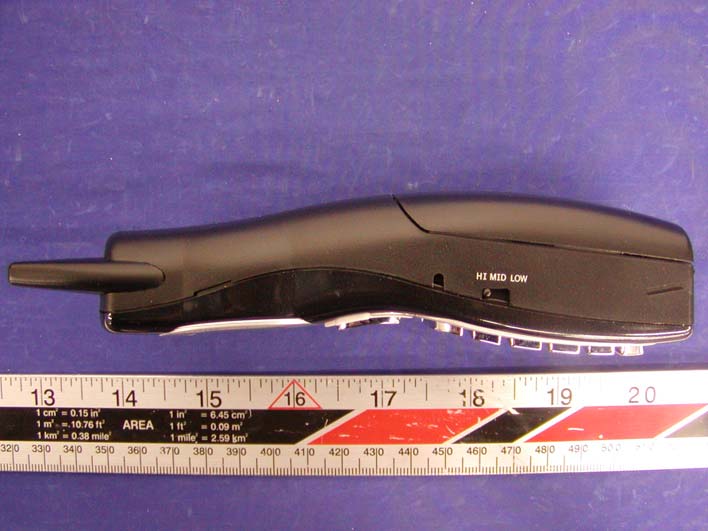

EXHIBIT C - EUT PHOTOGRAPHS Handset – Top View Handset – Rear View Handset Side – Left View Handset Side – Right View Power Supply – Front View Power Supply – Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label 2.1875" 1.0" FCC ID: O63GH5815HALD04 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.

Handset – Cover Off View Handset – Solder View & LCD Handset – Component View I Handset – Component View II Handset Transceiver with Antenna – Top View Handset Transceiver – Bottom View

LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center GH5815 ANALOG FREQUENCY CHART CH BASE TX BASE RX CH HANDSET TX HANDSET RX 1 5802.98 2467.96 1 2467.96 5802.98 2 5803.30 2467.26 2 2467.26 5803.30 3 5803.64 2468.56 3 2468.56 5803.64 4 5803.98 2468.86 4 2468.86 5803.98 5 5804.30 2469.16 5 2469.16 5804.30 6 5804.64 2469.46 6 2469.46 5804.64 7 5804.98 2469.76 7 2469.76 5804.98 8 5805.30 2470.06 8 2470.06 5805.30 9 5805.64 2470.36 9 2470.36 5805.64 10 5805.98 2470.66 10 2470.66 5805.98 11 5806.30 2470.96 11 2470.96 5806.30 12 5806.64 2471.26 12 2471.26 5806.64 13 5806.98 2471.56 13 2471.56 5806.98 14 5807.30 2471.86 14 2471.86 5807.30 15 5807.64 2472.16 15 2472.16 5807.64 16 5807.98 2472.46 16 2472.46 5807.98 17 5808.30 2472.76 17 2472.76 5808.30 18 5808.64 2473.06 18 2473.06 5808.64 19 5808.98 2473.36 19 2473.36 5808.98 20 5809.30 2473.66 20 2473.66 5809.30 21 5809.64 2473.96 21 2473.96 5809.64 22 5809.98 2474.26 22 2474.26 5809.98 23 5810.30 2474.56 23 2474.56 5810.30 24 5810.64 2474.86 24 2474.86 5810.64 25 5810.98 2475.16 25 2475.16 5810.98 26 5811.30 2475.46 26 2475.46 5811.30 27 5811.64 2475.76 27 2475.76 5811.64 28 5811.98 2476.06 28 2476.06 5811.98 29 5812.30 2476.36 29 2476.36 5812.30 30 5812.64 2476.66 30 2476.66 5812.64 31 5812.98 2476.96 31 2476.96 5812.98 32 5813.30 2477.26 32 2477.26 5813.30 33 5813.64 2477.56 33 2477.56 5813.64 34 5813.98 2477.86 34 2477.86 5813.98 35 5814.30 2478.16 35 2478.16 5814.30 36 5814.64 2478.46 36 2478.46 5814.64 37 5814.98 2478.76 37 2478.76 5814.98 38 5815.30 2479.06 38 2479.06 5815.30 39 5815.64 2479.36 39 2479.36 5815.64 40 5815.98 2479.66 40 2479.66 5815.98 GH5815freq.doc 1 03/22/04

CTP-8200 TEST MODE 1. BASE UNIT 1-1. TEST MODE SETTING • PRESS THE “PAGE” KEY AND PLUG THE ADAPTOR INTO THE AC WALL OUTLET. IN USE LED WILL BE TURNED UP. 1-2. CHANNEL SELECTOR • TO INCREASE THE CHANNEL NUMBER, PRESS THE “PAGE”KEY. 1-3. WHEN ENTERED INTO TEST MODE, 25th (5811.019 MHz) CHANNEL IS SET. 1-4. PLL VT VOLTAGE( 25th : 5811.019 MHz) Tx : 2.5V(SPEC : 1.0V ~ 3.5V) Rx : 2.5V(SPEC : 1.0V ~ 3.5V) 2. HANDY UNIT 1-1. TEST MODE SETTING • PRESS THE “#” KEY AND CONNECT THE BATTERY 1-2. CHANNEL SELECTOR • TO INCREASE THE CHANNEL NUMBER, PRESS THE “#” BUTTON. 1-3.TX DATA DEV or LCD ALL DISPLAY •DUARING THE TEST MODE, PRESS THE DIAL “3” BUTTON 1-4.MEMORY ALL INITIAL . DUARING THE TEST MODE, PRESS THE DIAL”9” BUTTON. 1-6. PLL VT VOLTAGE( 21th 2474.000MHz) Tx : 1.5V(SPEC : 1.0V ~ 2.0V) Rx : 1.5V(SPEC : 1.0V ~ 2.0V)

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Lionda Technology Co., Ltd Block 2 Laodong 2 nd Industrial Area, Xixian, Baoan, Shenzhen, China FCC ID:O63GH5815HALD04 2004-04-15 This Report Concerns: Original Report Equipment Type: 5.8GHz Analog Cordless Phone Test Engineer: Hang Tan / Report No.: R0401192(Handset) Test Date: 2004-02-10 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Lionda Technology Co., Ltd FCC ID:O63GH5815HALD04 Report #R0401192(Handset) Page 2 of 19 FCC Part 15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................5 POWER SUPPLY AND LINE FILTERS..............................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 § 15.249 (C) - CONDUCTED EMISSIONS TEST DATA .........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 SPECTRUM ANALYZER SETUP......................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 SUMMARY OF TEST RESULTS.......................................................................................................................................9 CONDUCTED EMISSIONS TEST DATA...........................................................................................................................9 PLOT OF CONDUCTED EMISSIONS TEST DATA.............................................................................................................9 §15.209(A) - RADIATED EMISSION DATA ...........................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 SPECTRUM ANALYZER SETUP....................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 CORRECTED …

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission – Front View (Handset) Radiated Emission-Rear View (Handset)
